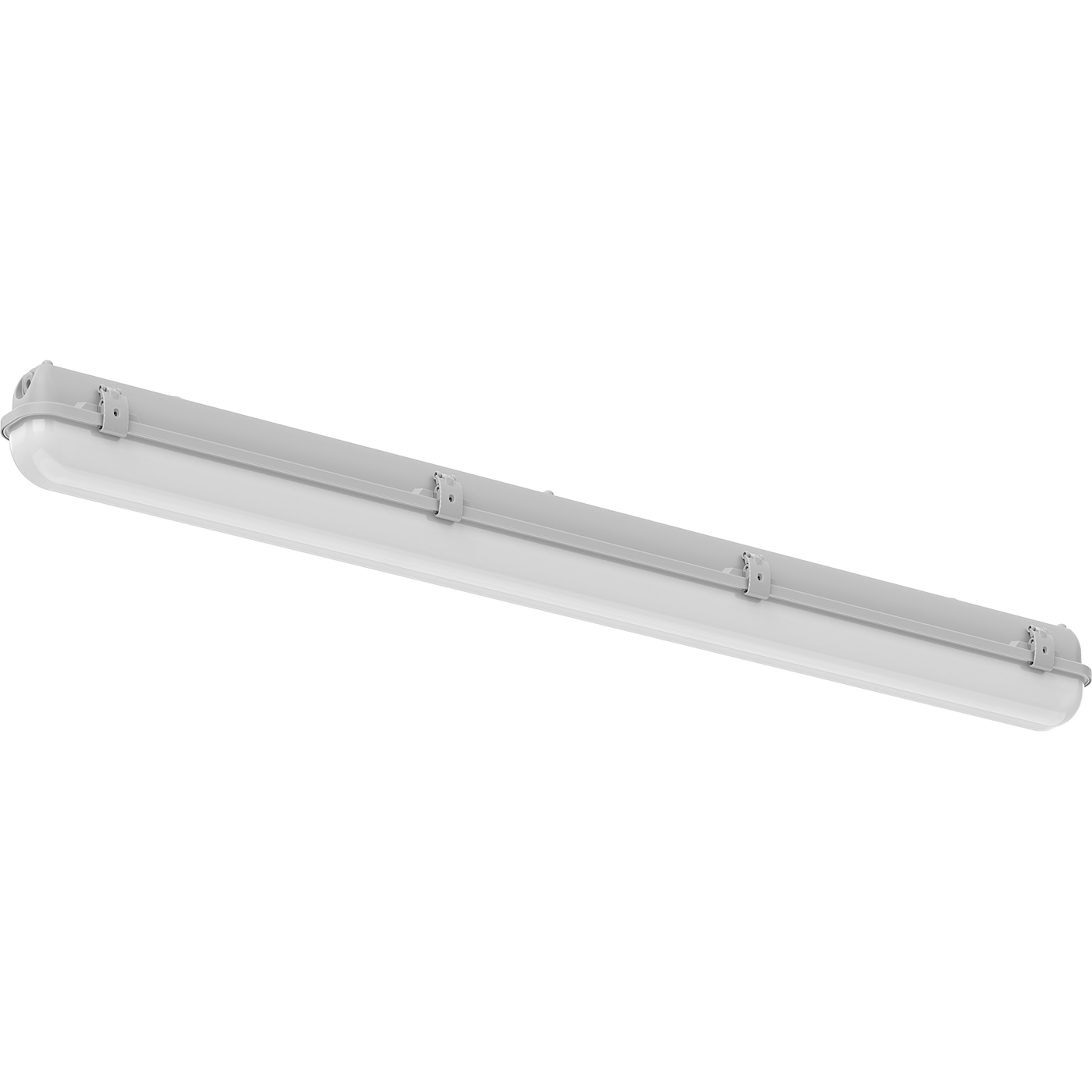

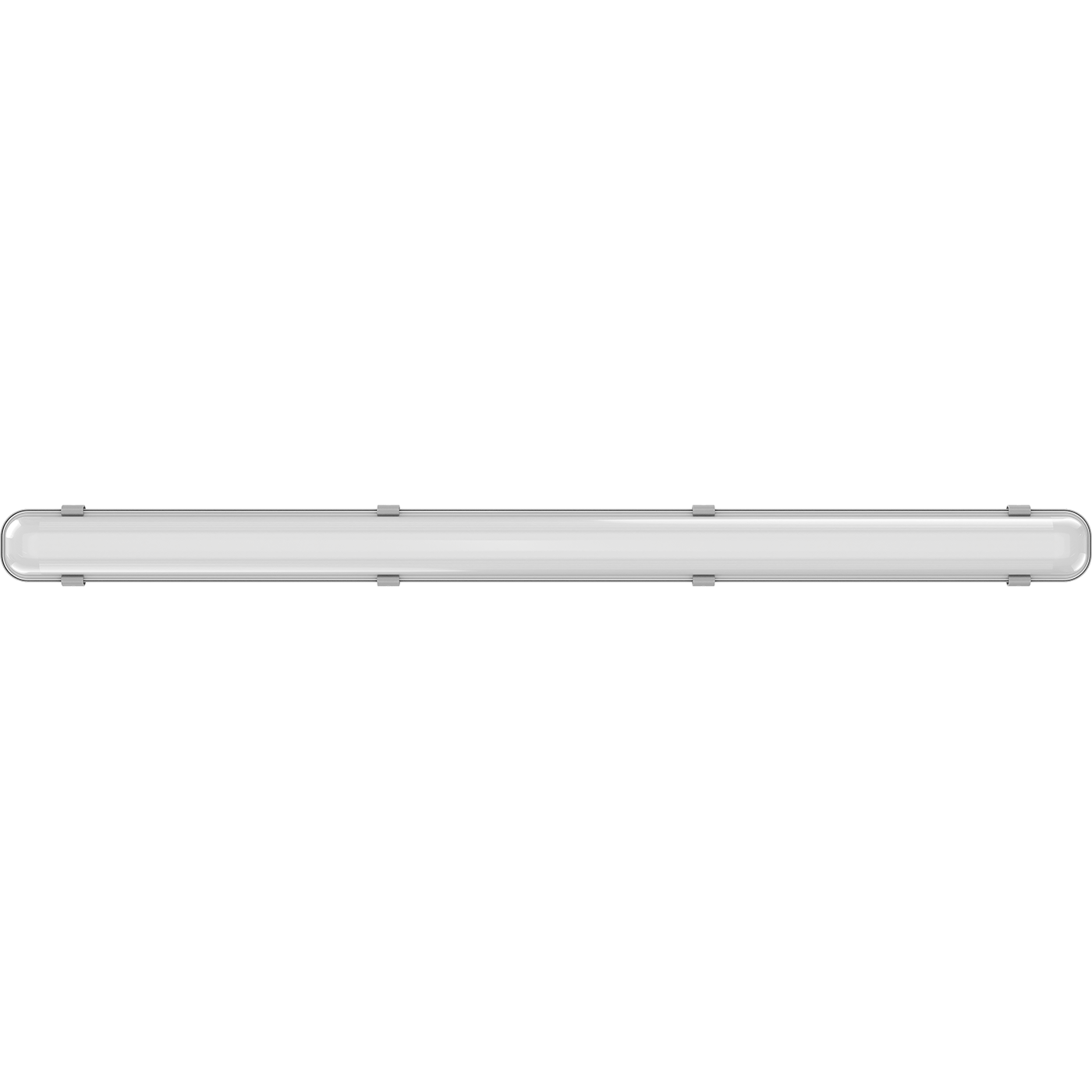

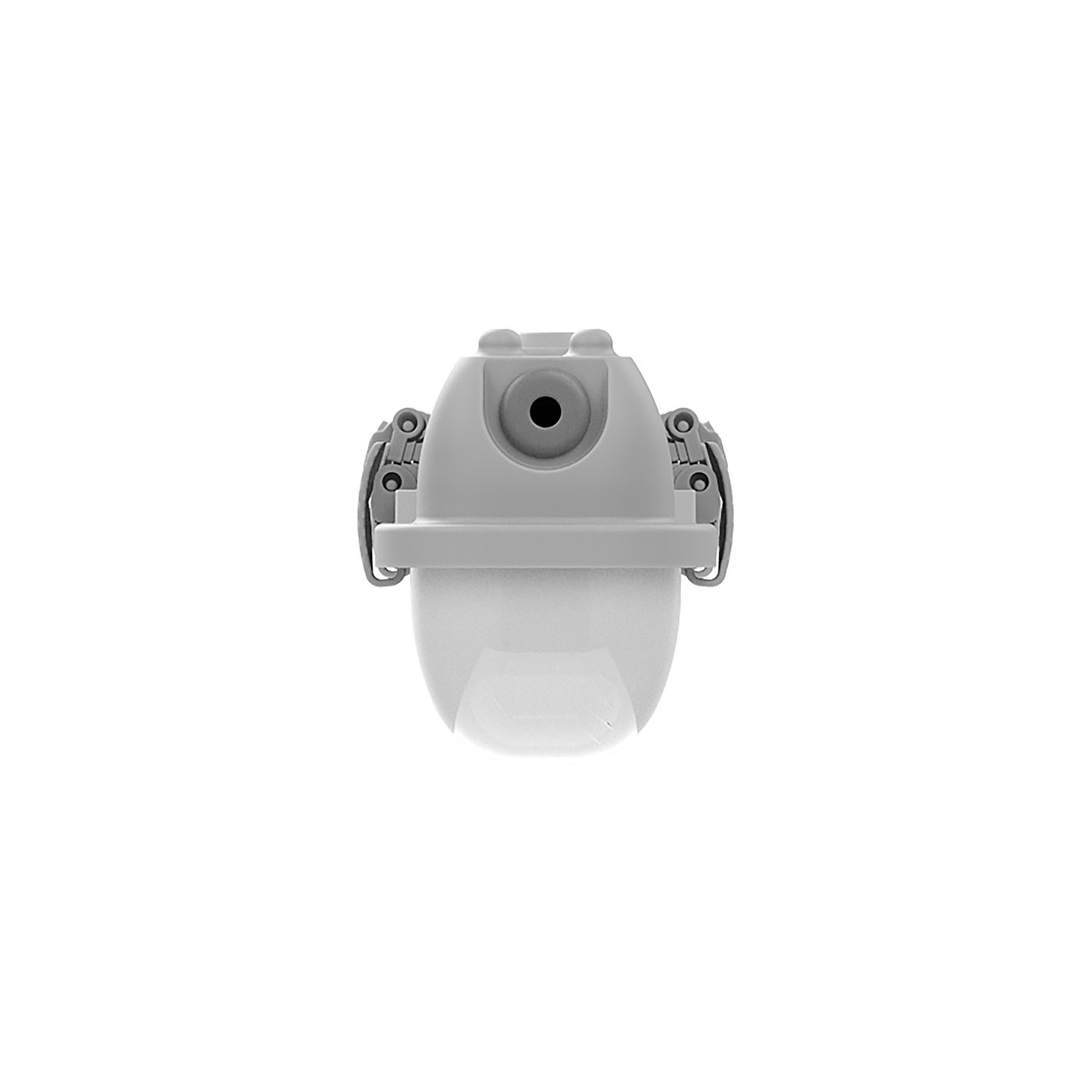

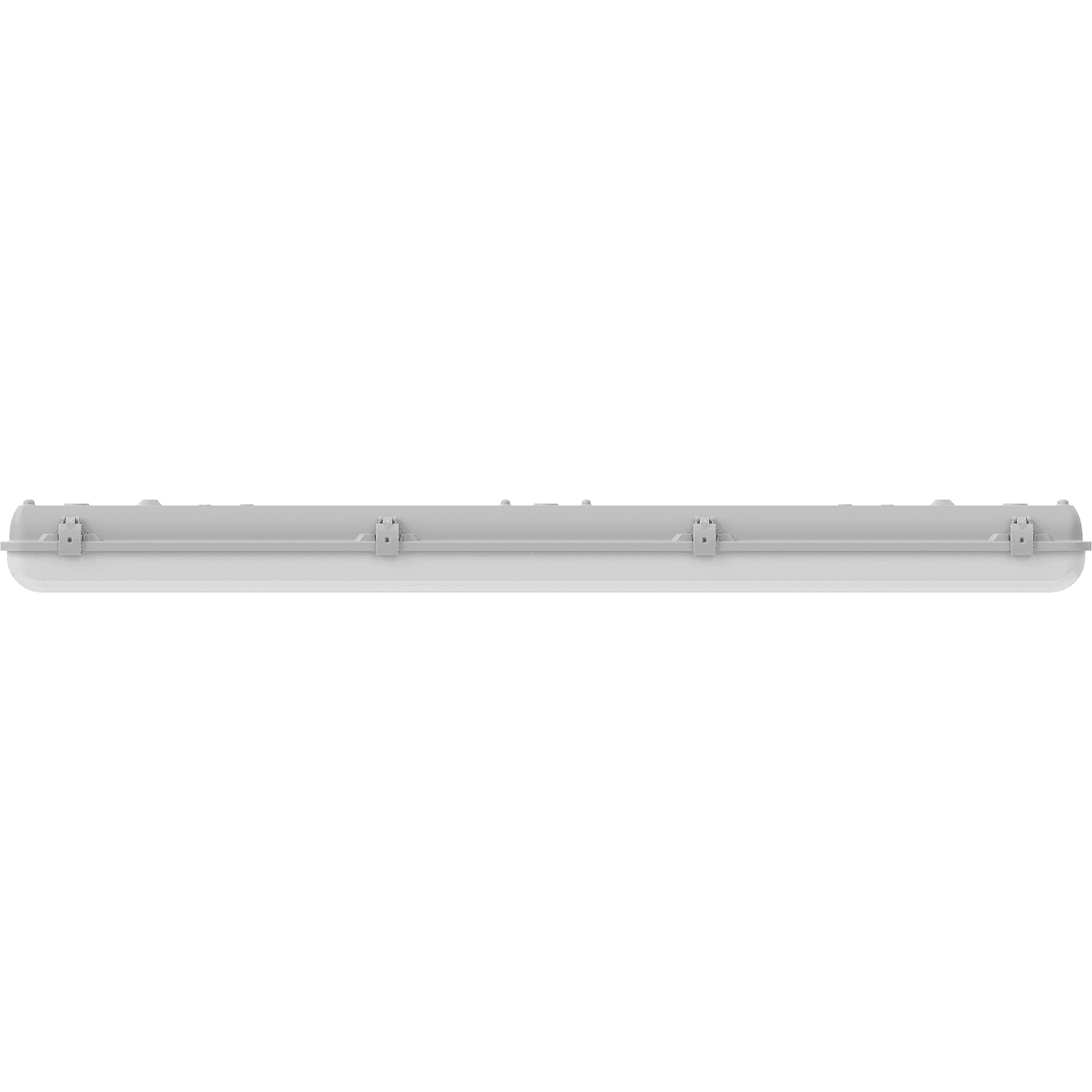

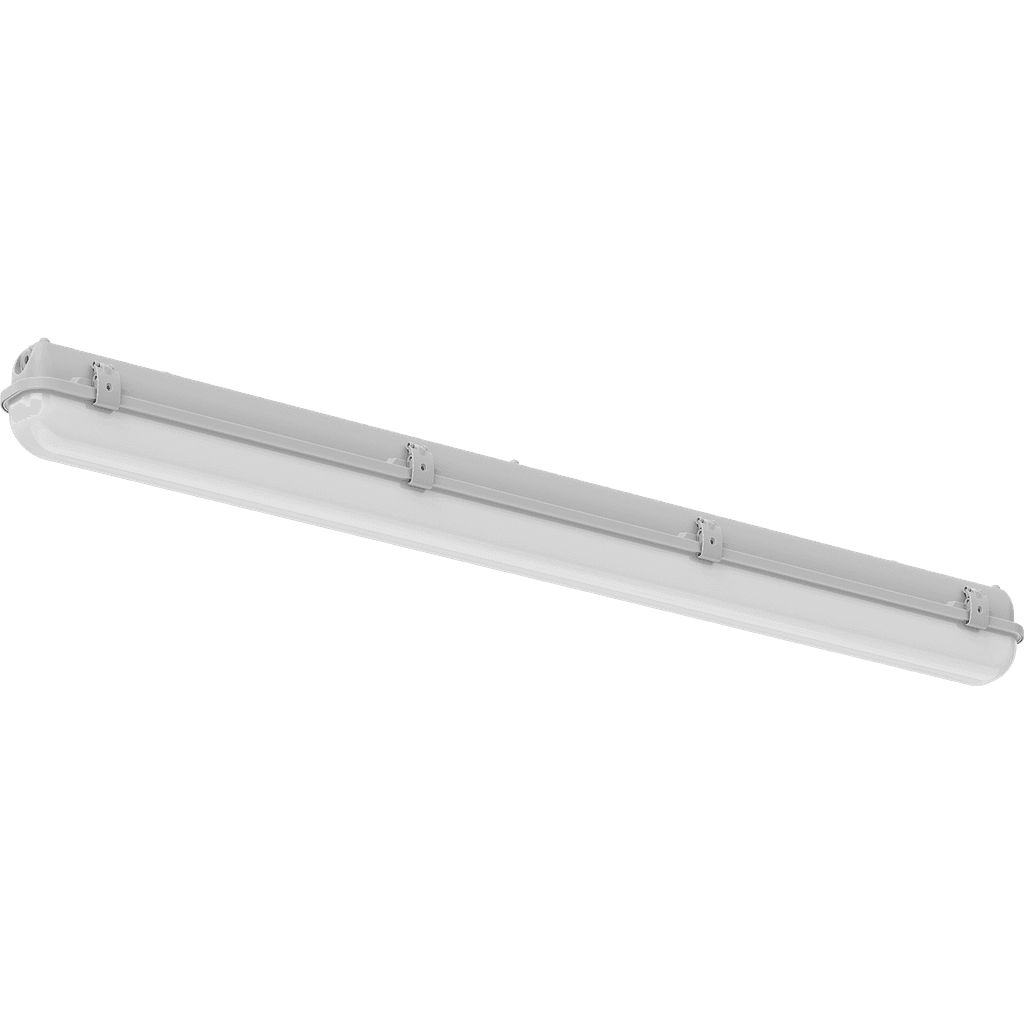

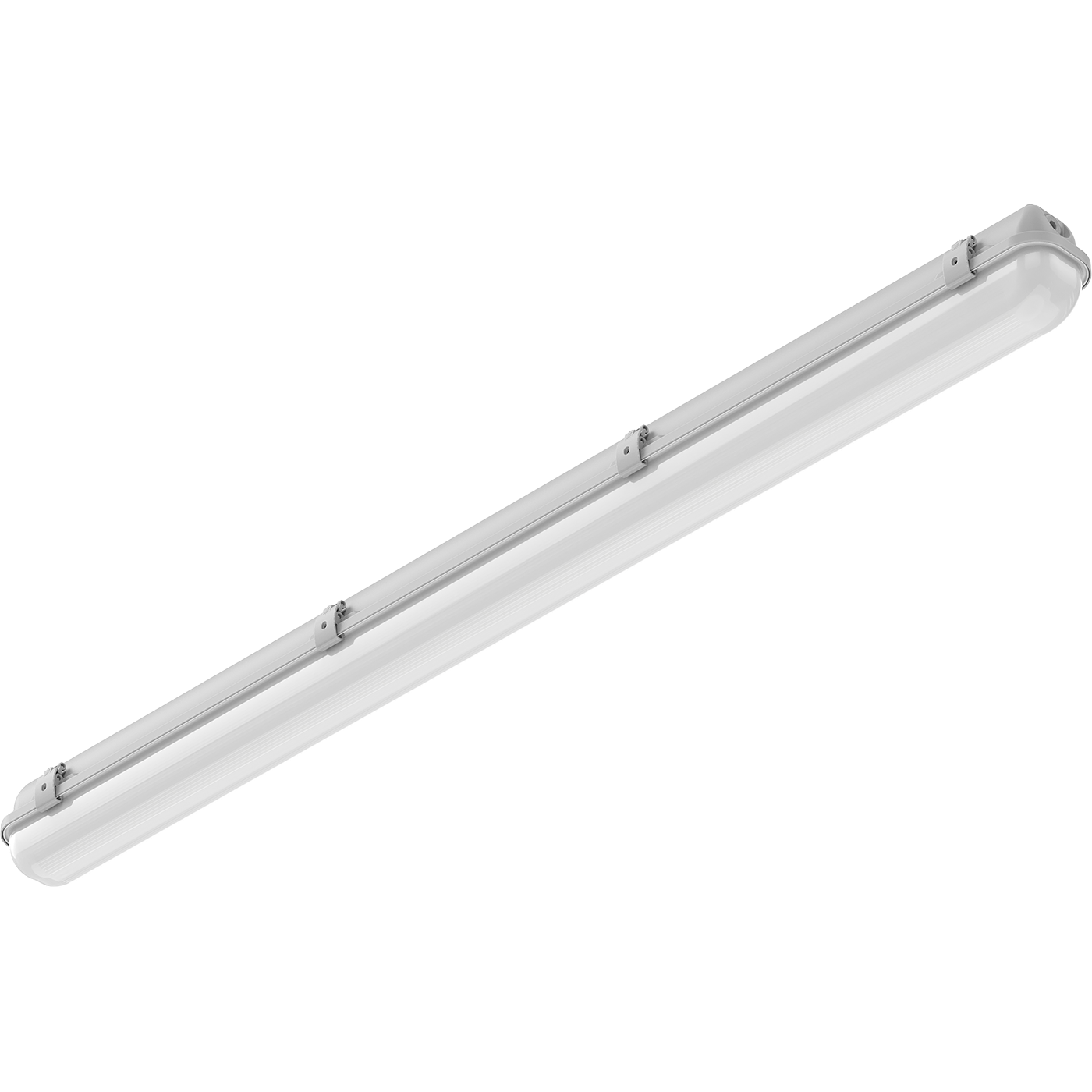

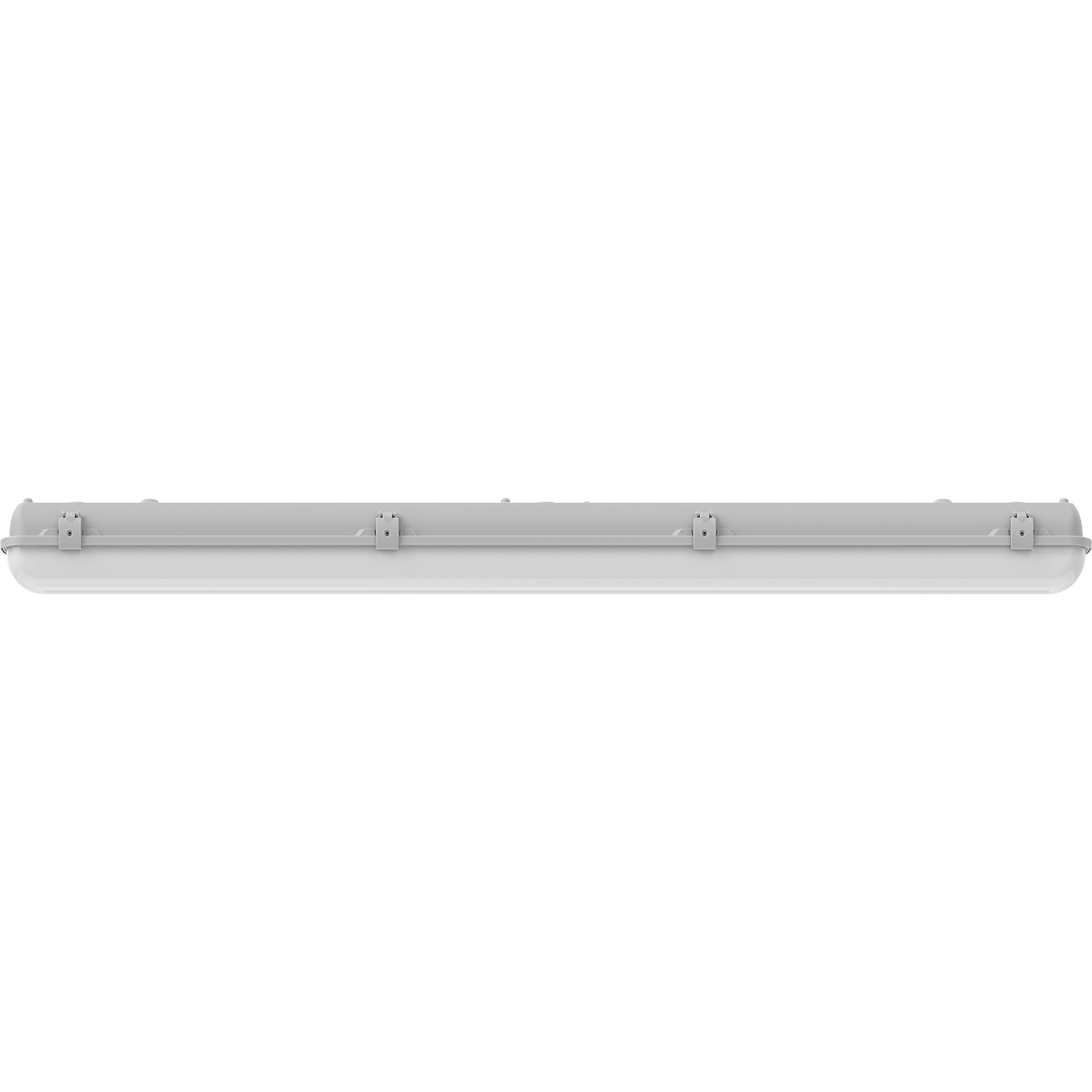

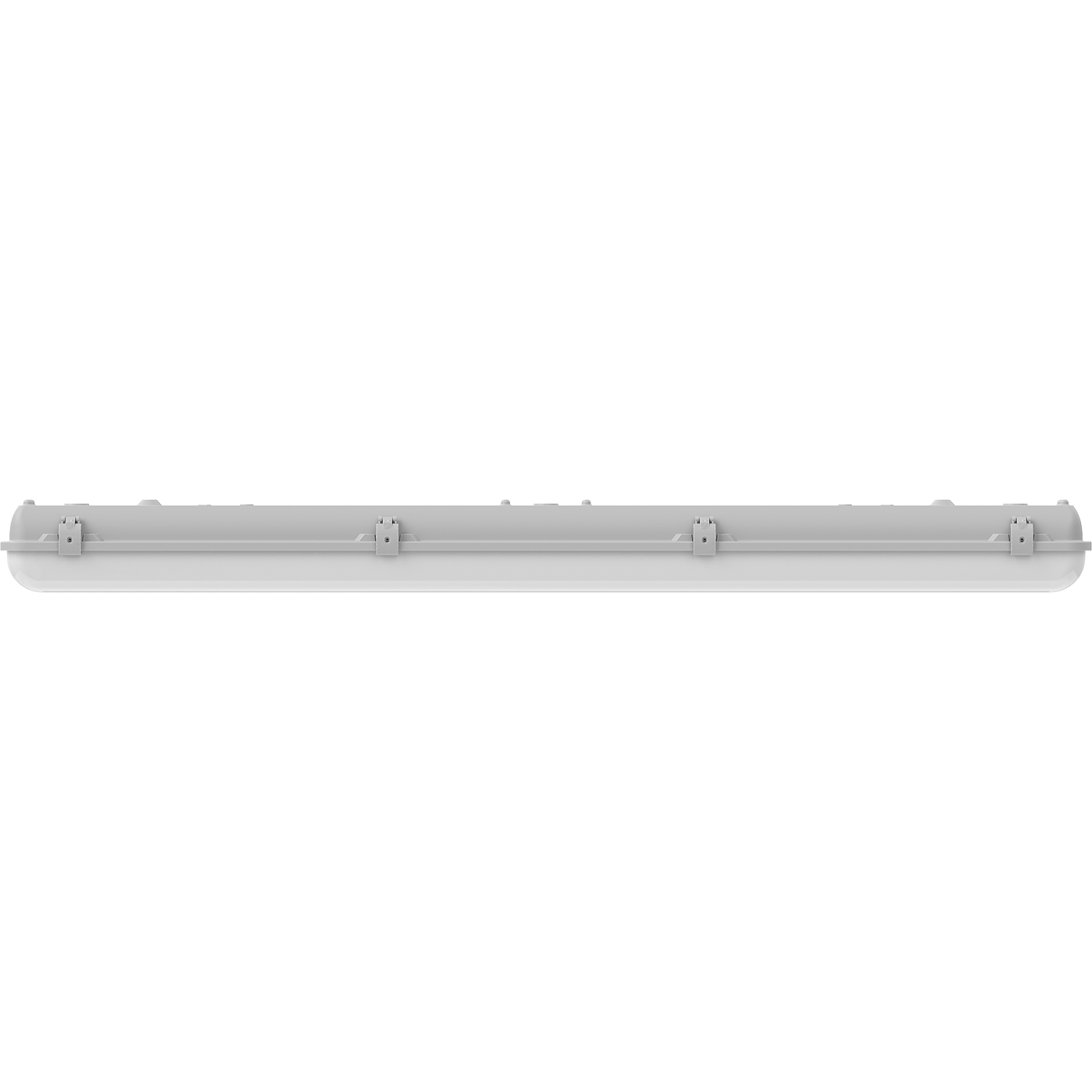

ARCTIC.OPL ECO LED 1200 TH 3000K
model is discontinued
model is discontinued
ARCTIC.OPL ECO LED 1200 TH 3000K
34 Wluminaire power
4000 lmlight flow
118 lm/Wenergy efficiency
code1088001180
color temperature3000 K
beam angleD120
performance factor100
weight3.6 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
118 lm/Wcolor rendition index (CRI)
>80light flow
4000 lmflickering factor
<1%beam angle
D120color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
118 lm/W
color rendition index (CRI)
>80
light flow
4000 lm
flickering factor
<1%
beam angle
D120
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,95
luminaire power
34 W
electric shock protection
II
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
constructional
length
1280 mm
width
96 mm
height
110 mm
installation length
932 mm
weight
3.6 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ2*
fire safety class
П-ІІ
material
Пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1088001180
model files
model files

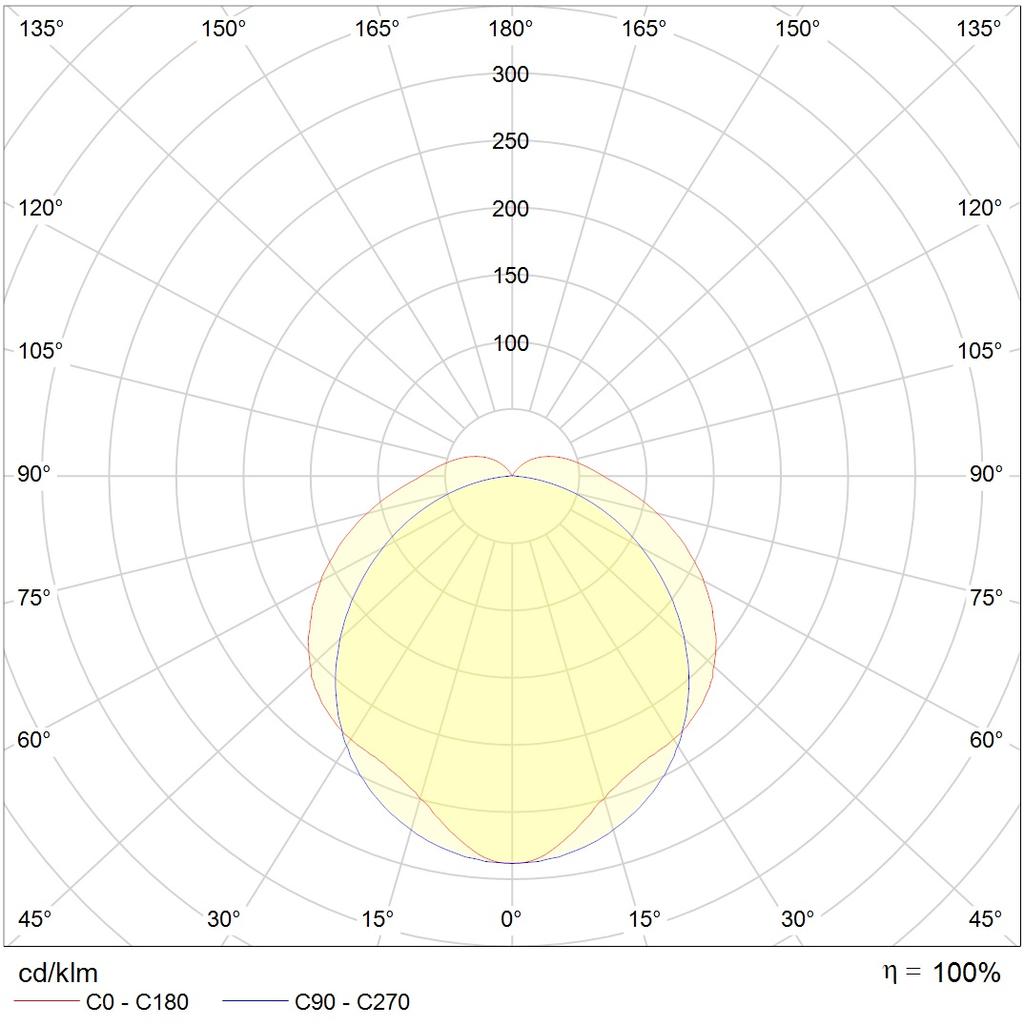

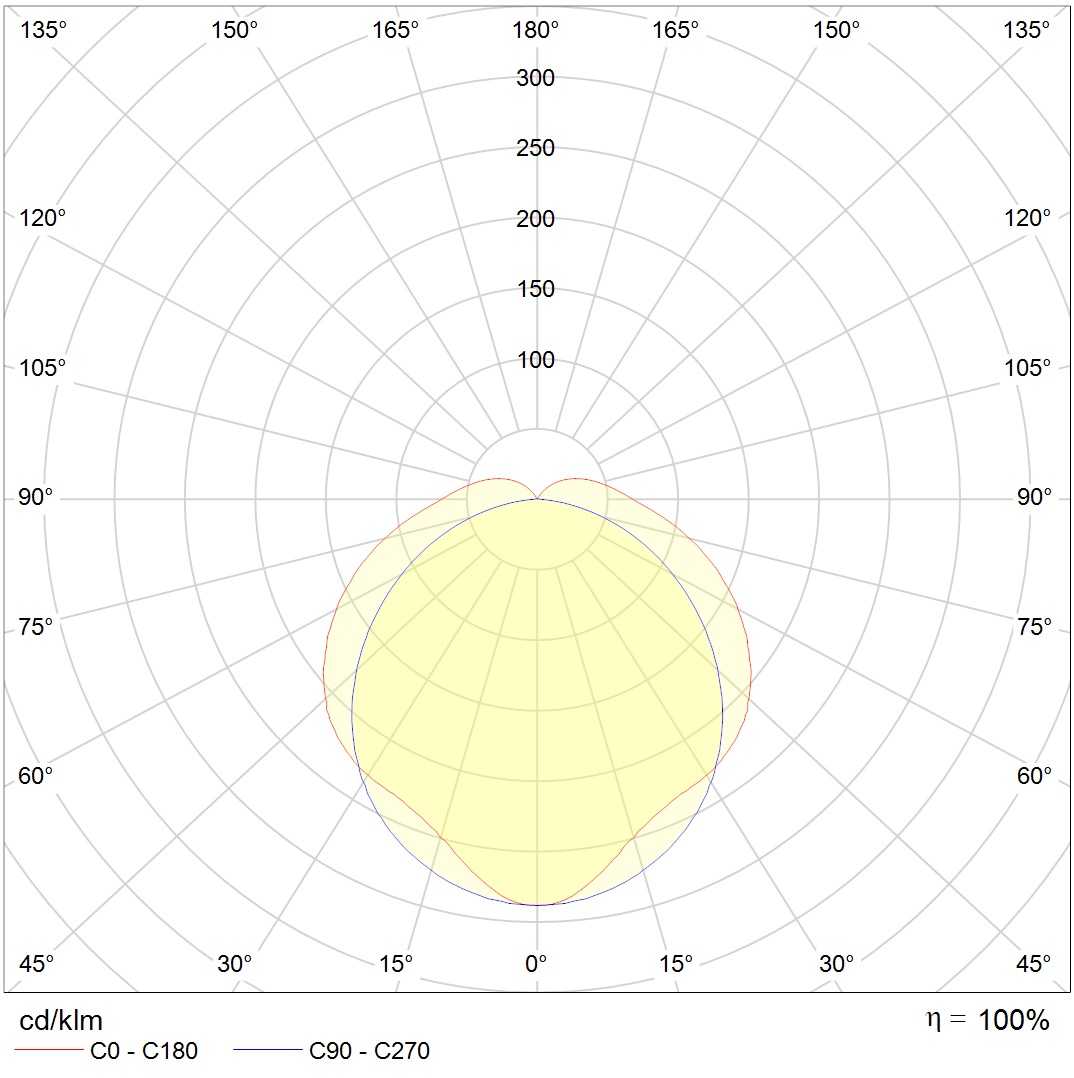

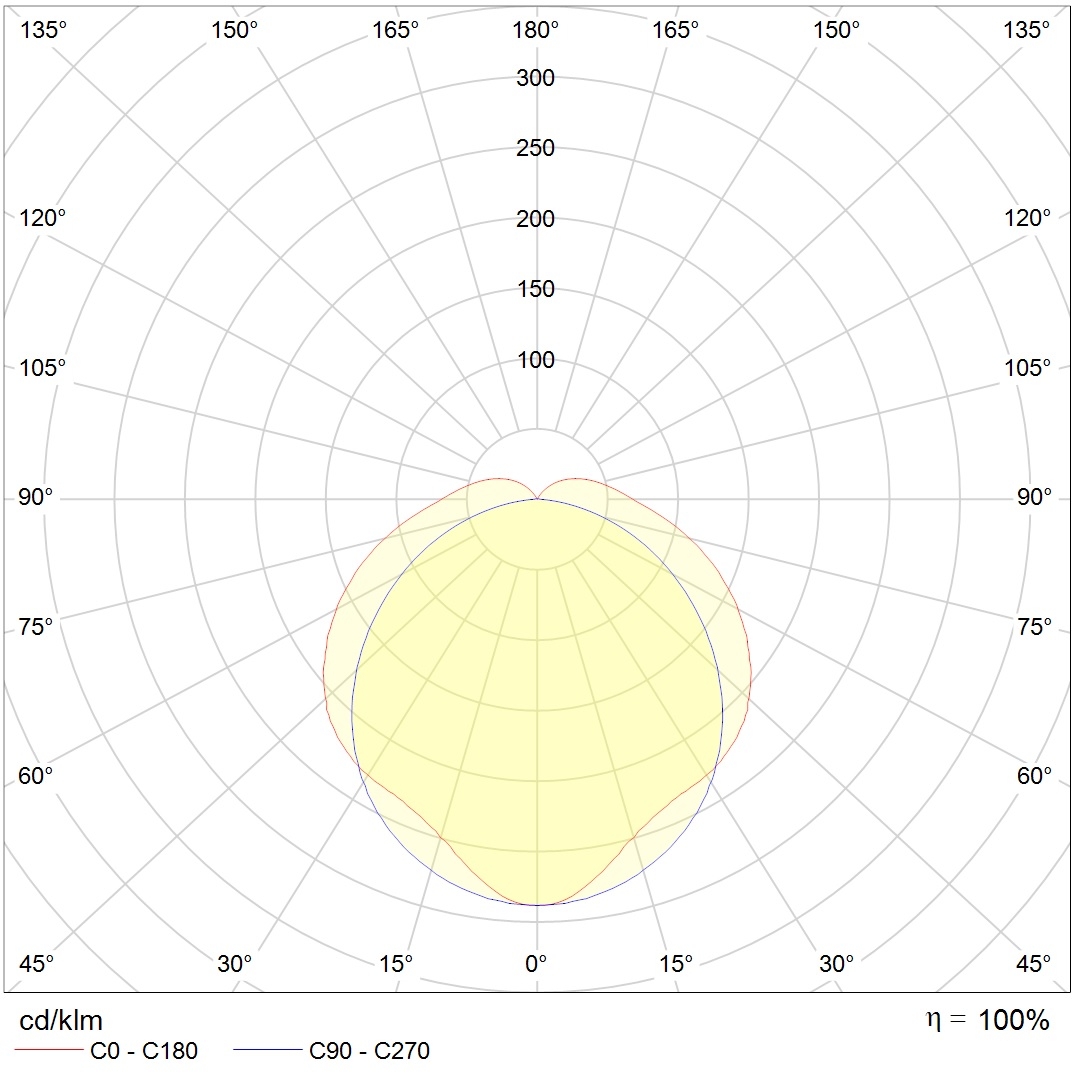

photometric files
сертификаты
photometric files
ies134.1 kB
jpg173.3 kB
ldt107.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
