зарегистрирована в реестре российской промышленной продукции

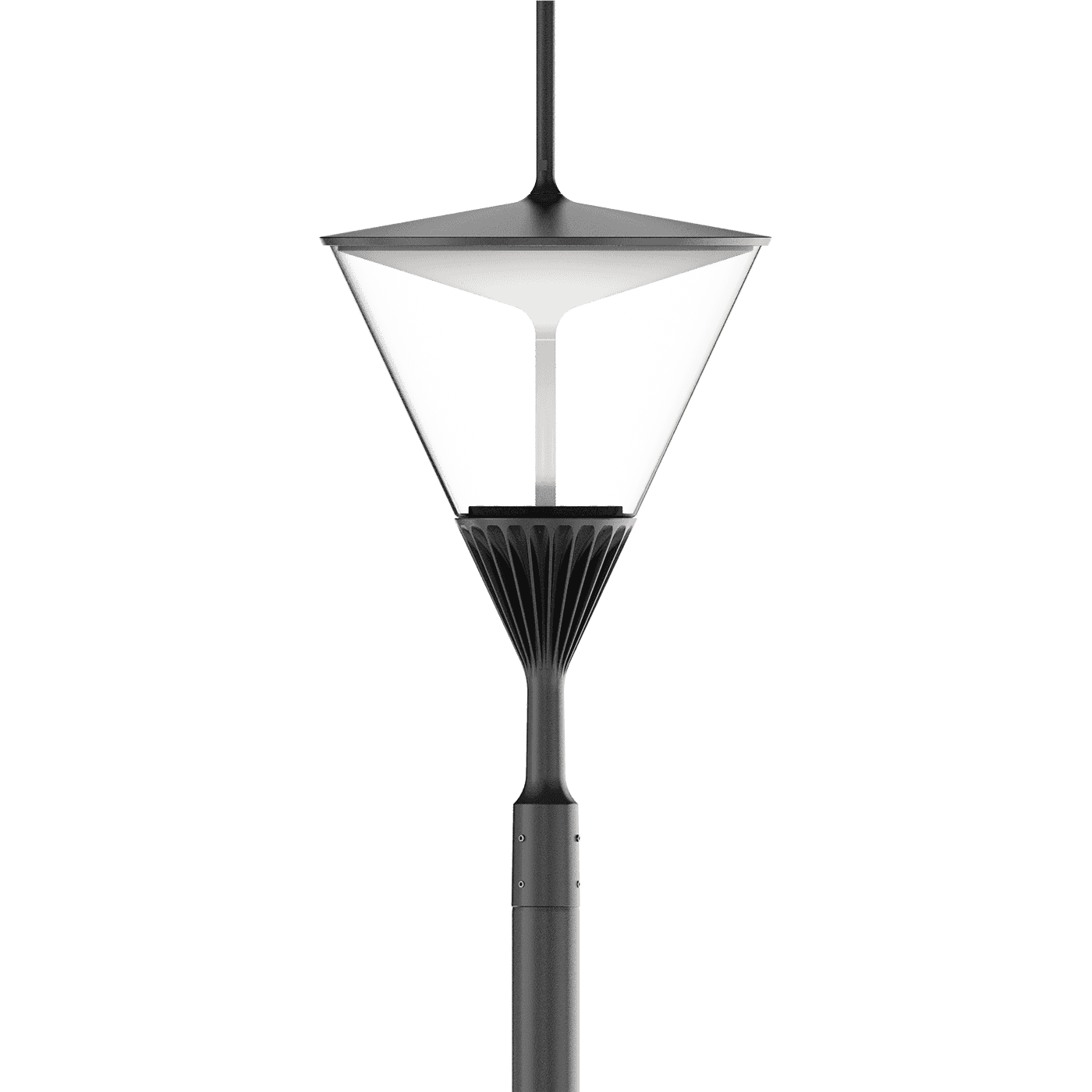

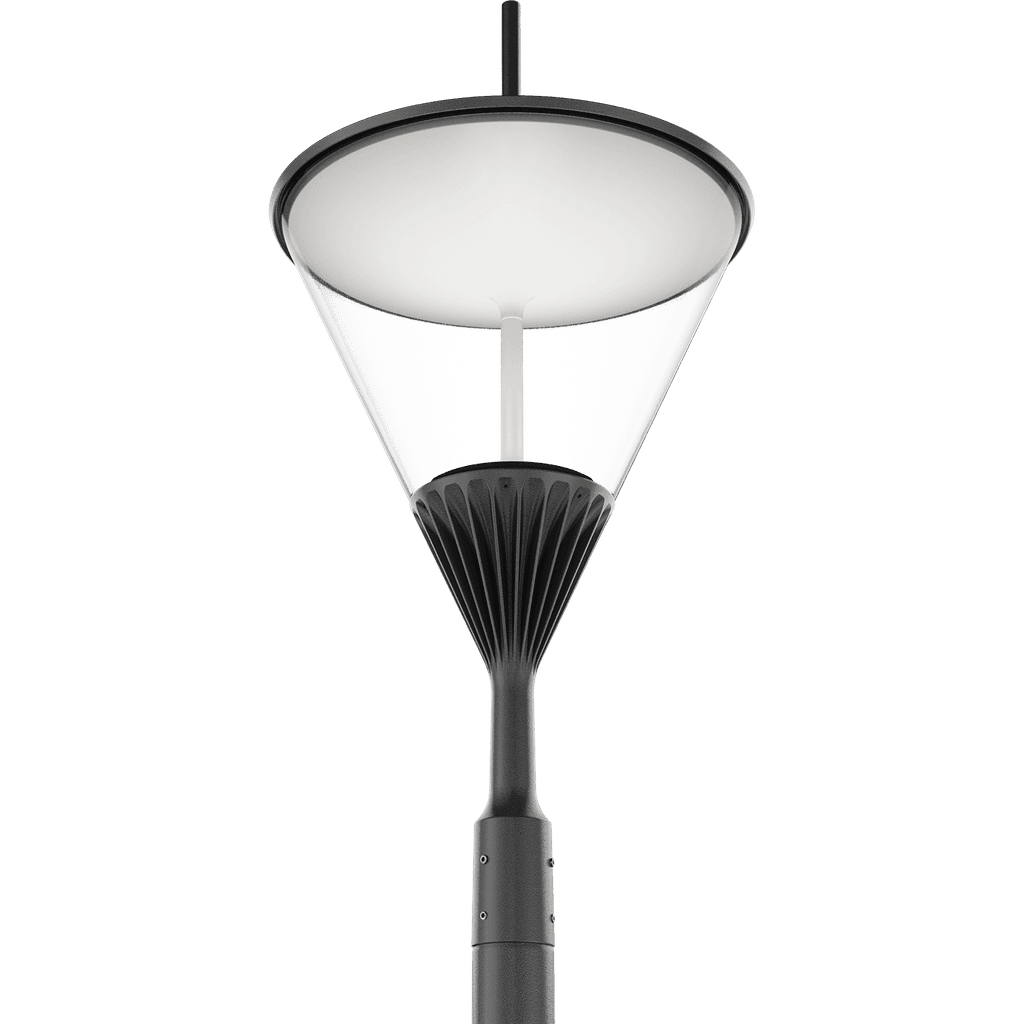

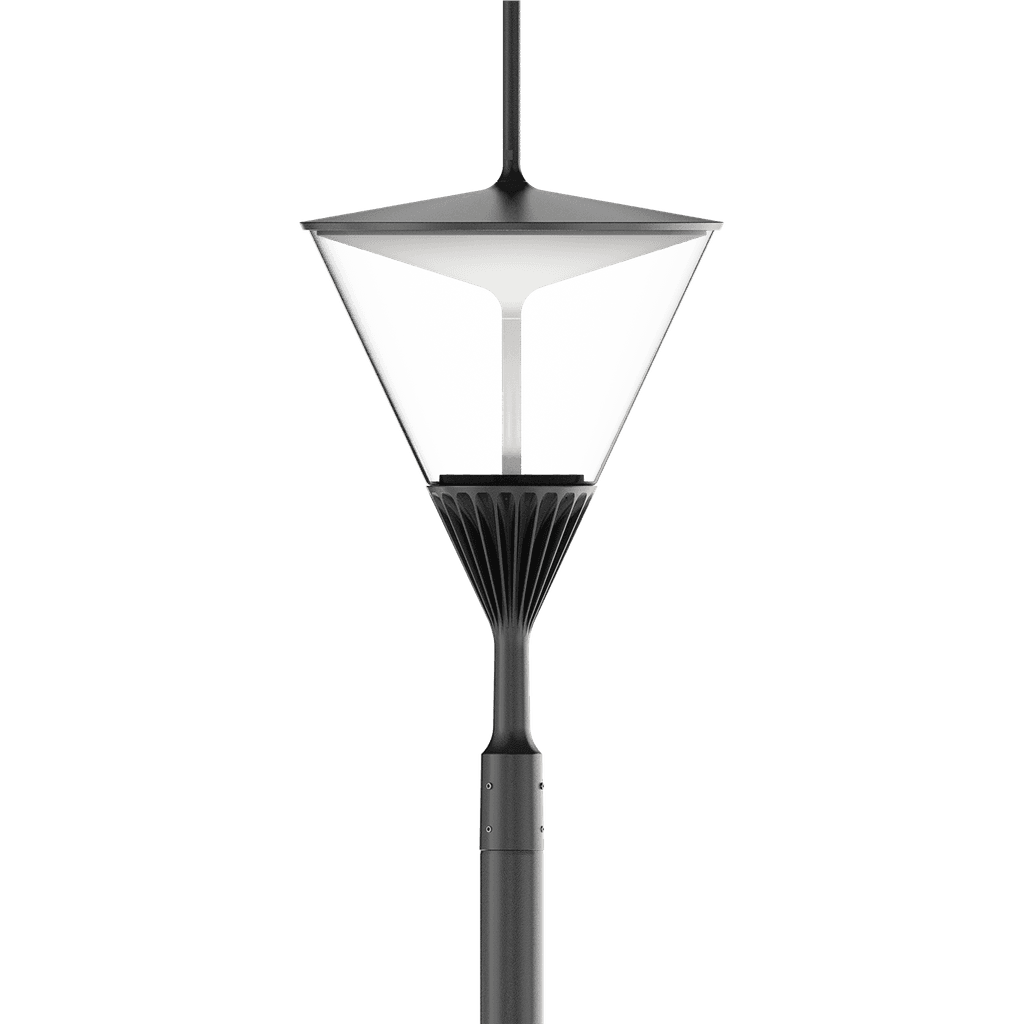

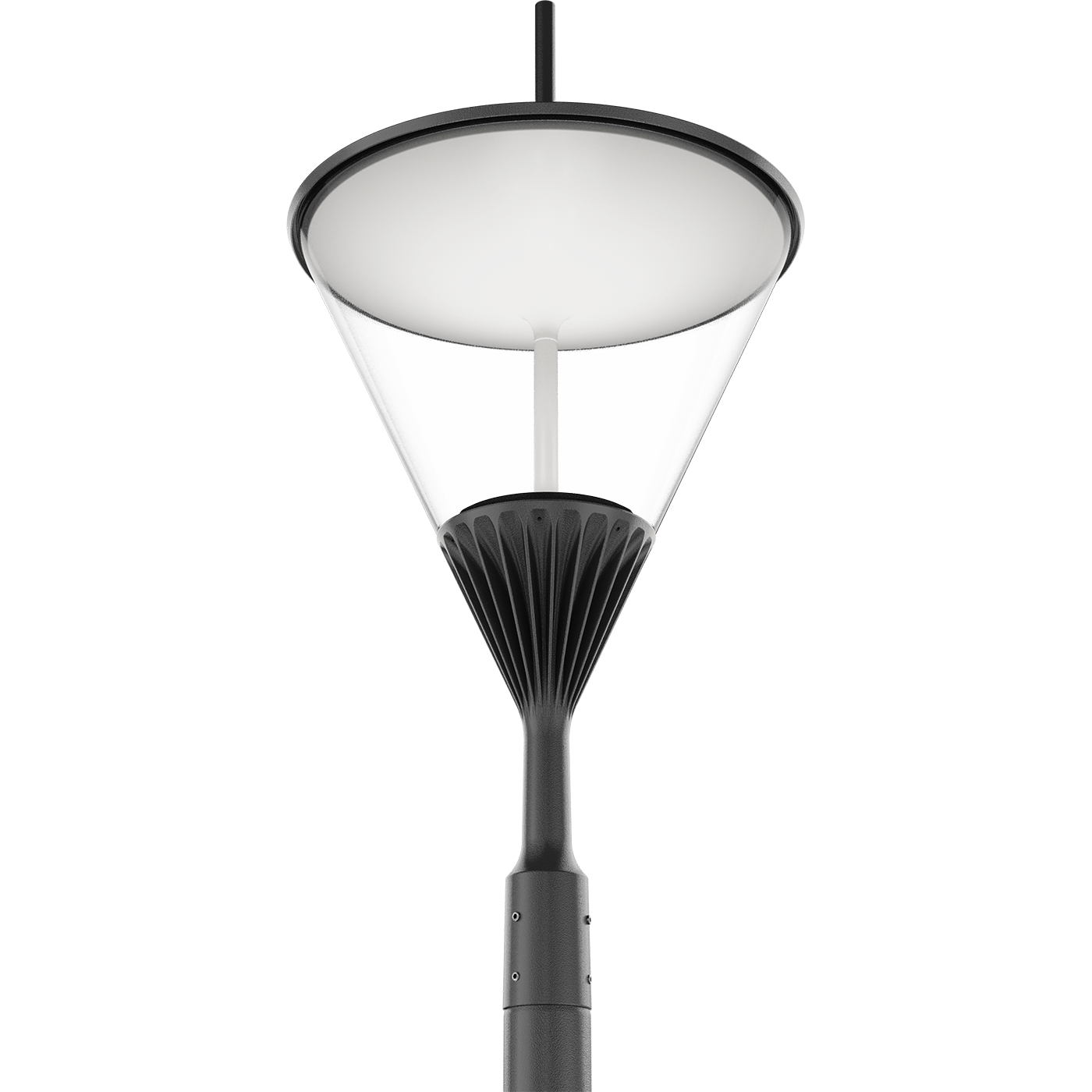

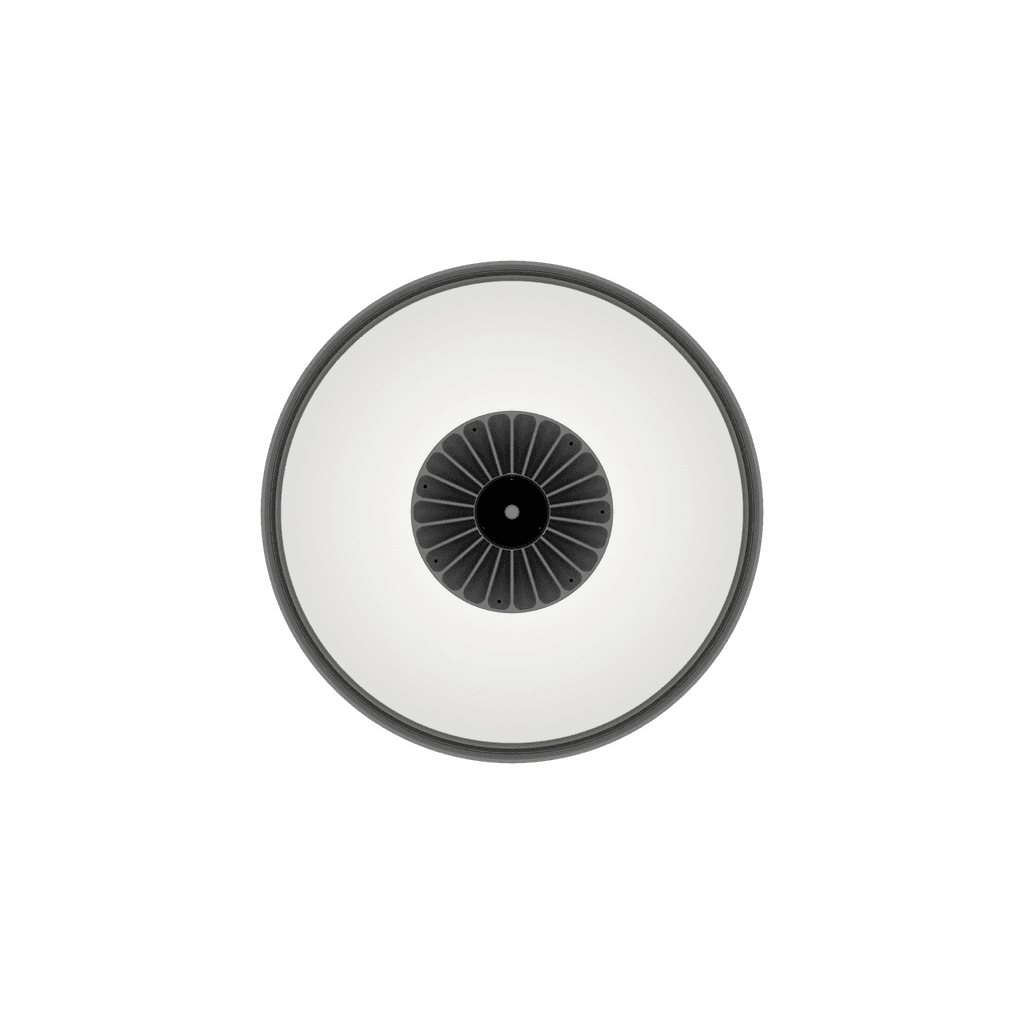

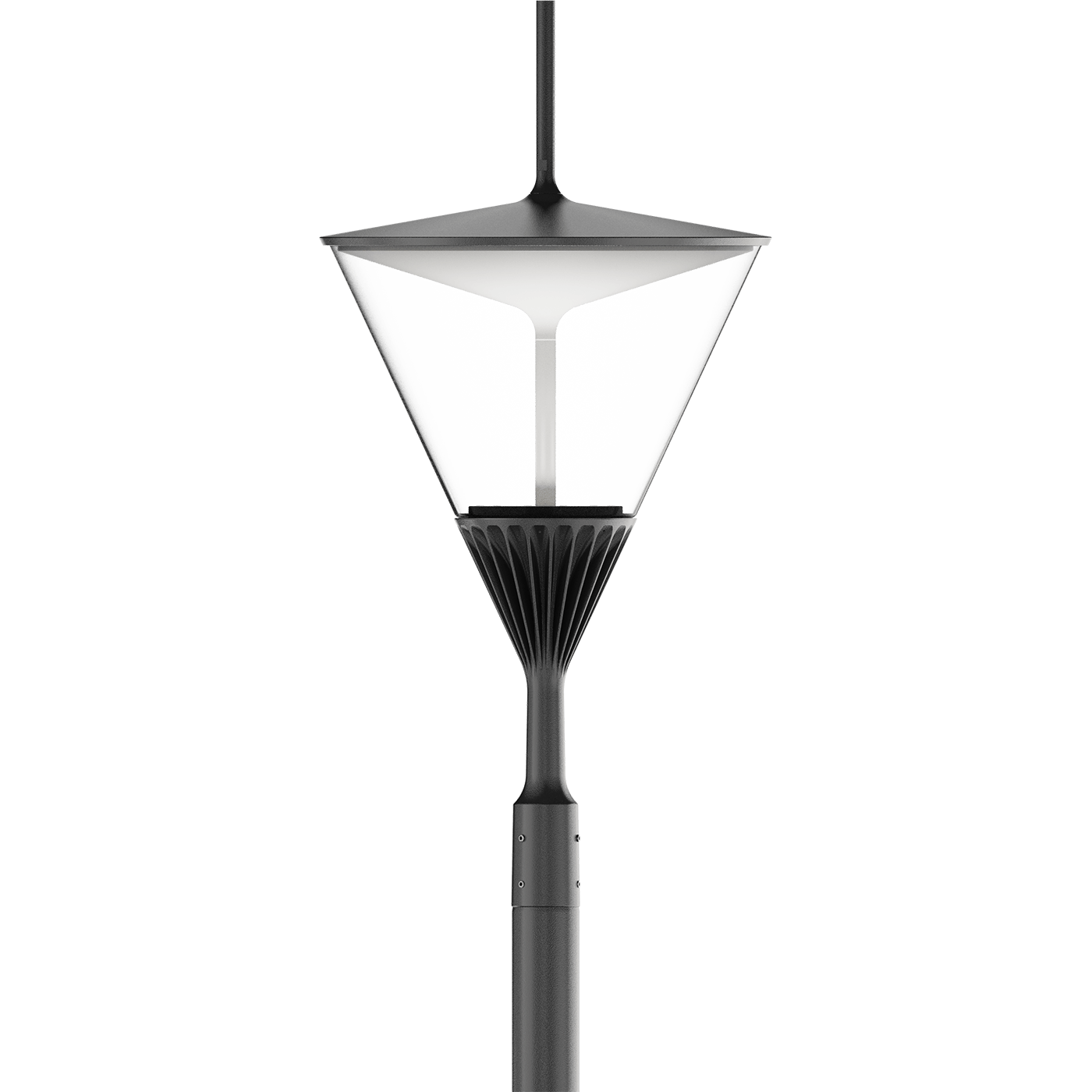

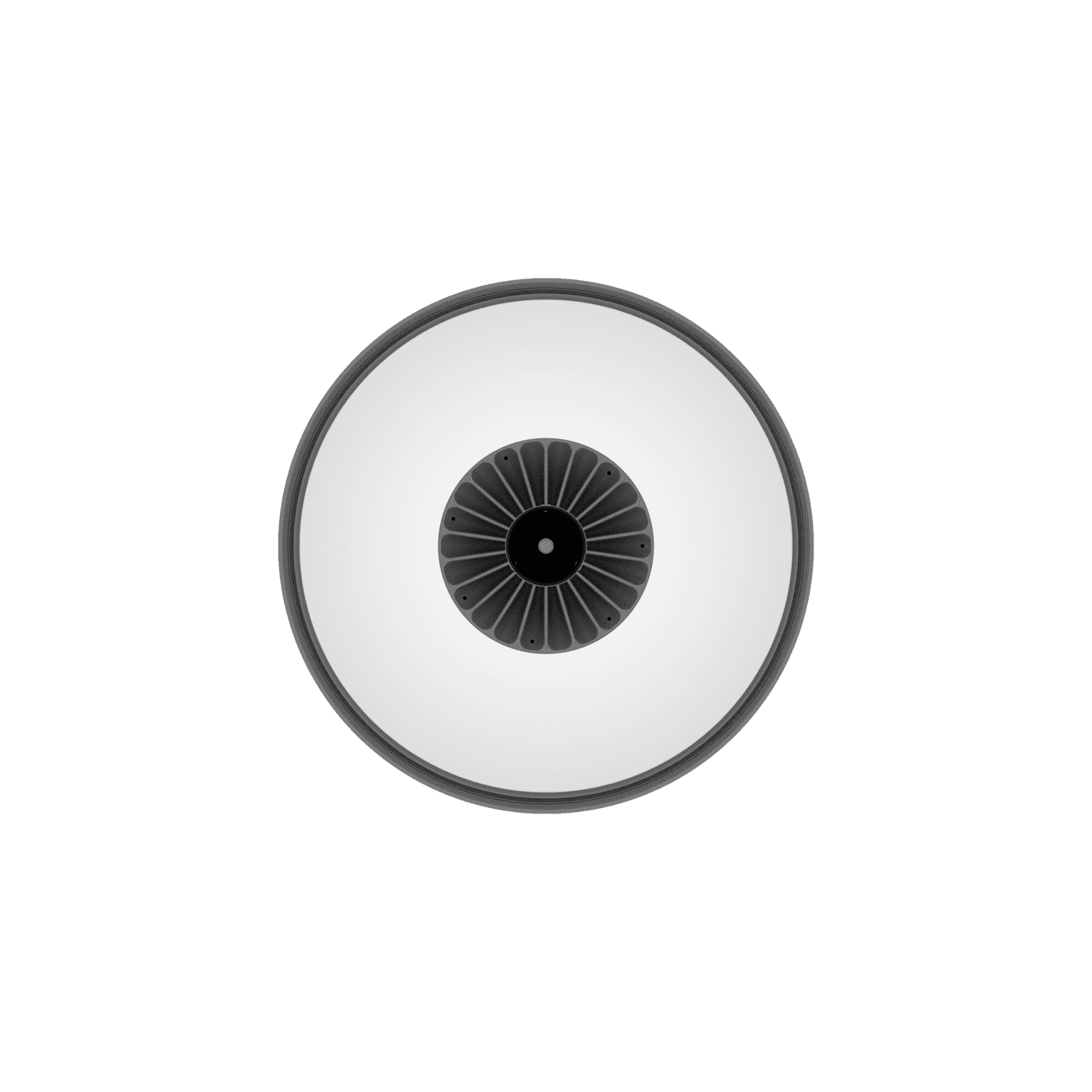

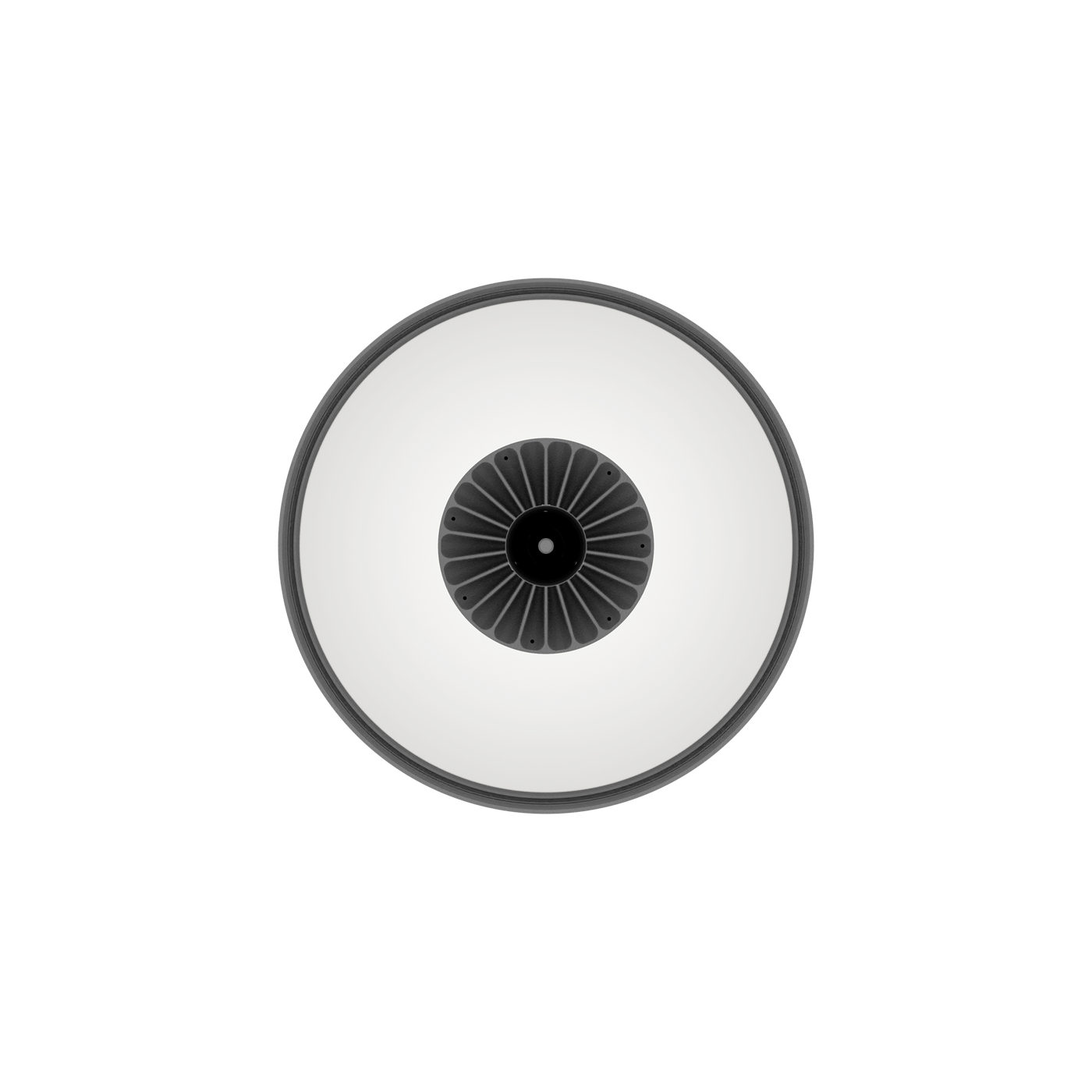

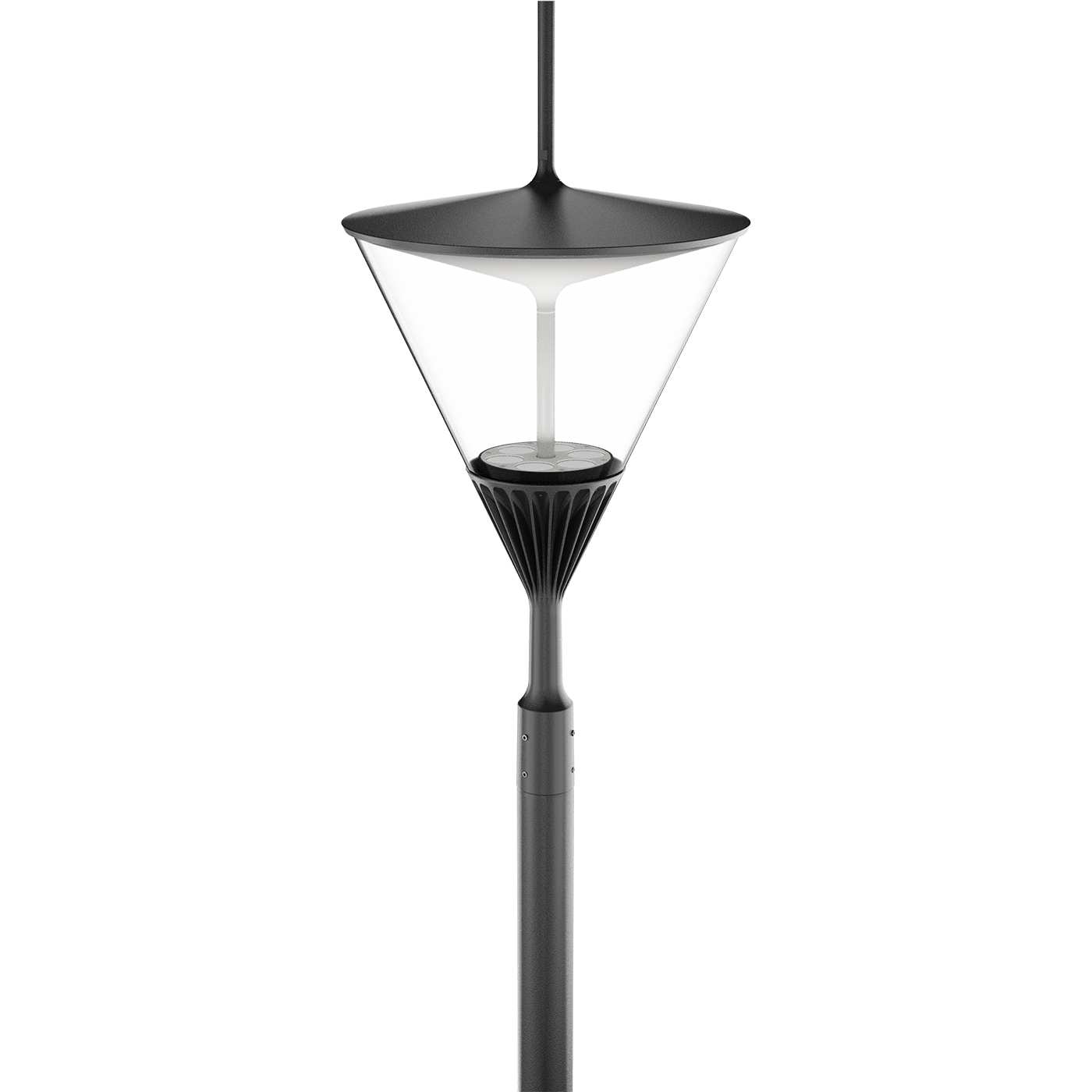

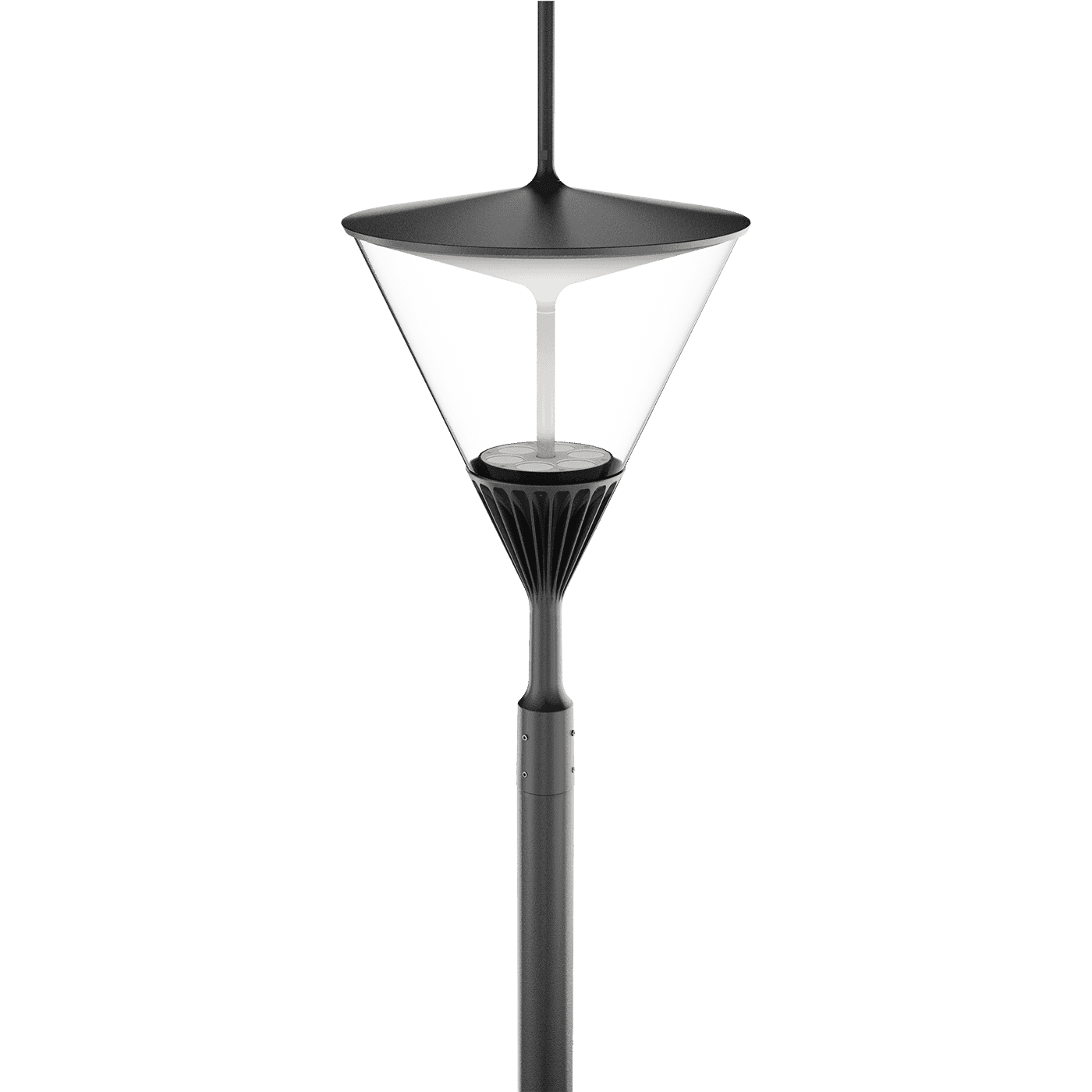

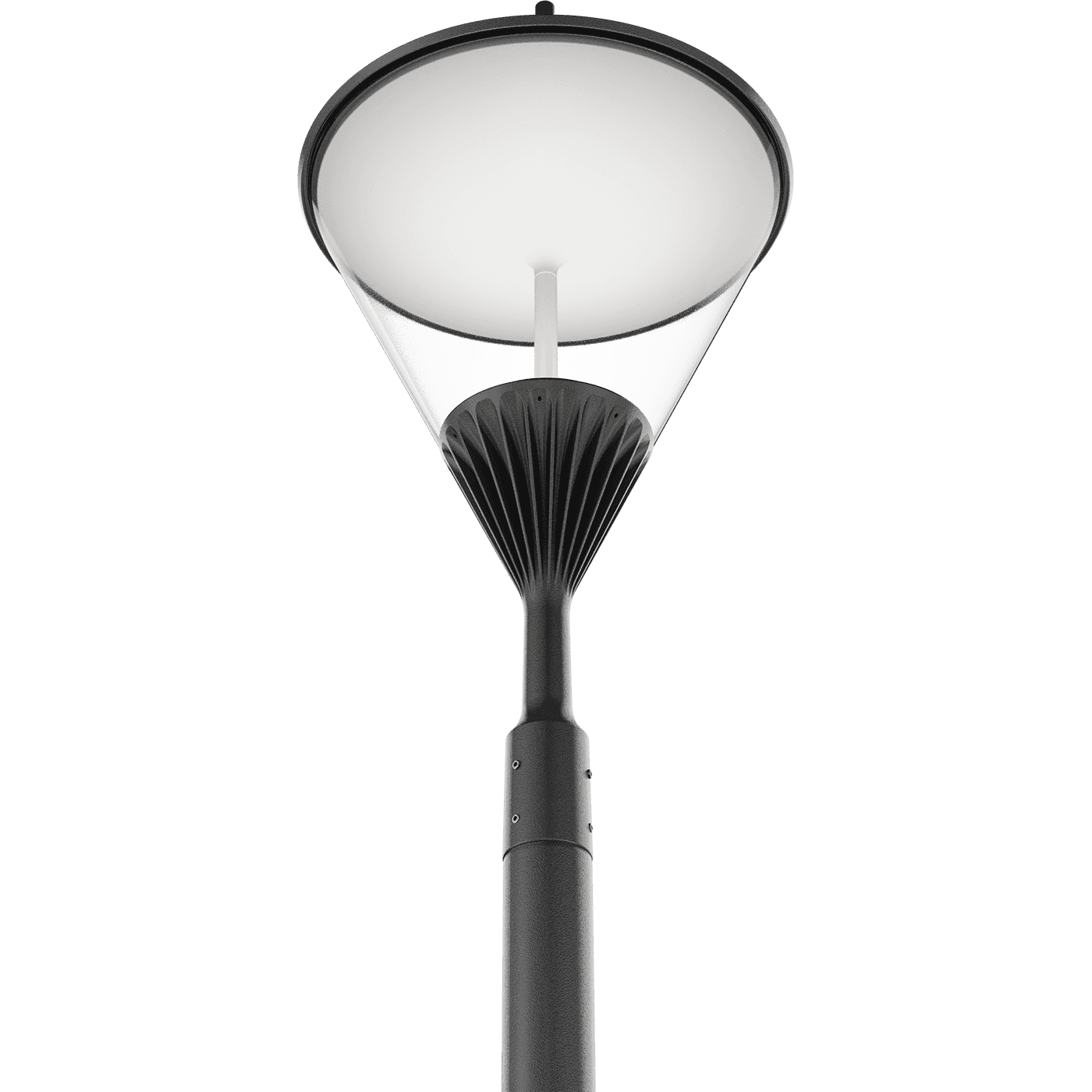

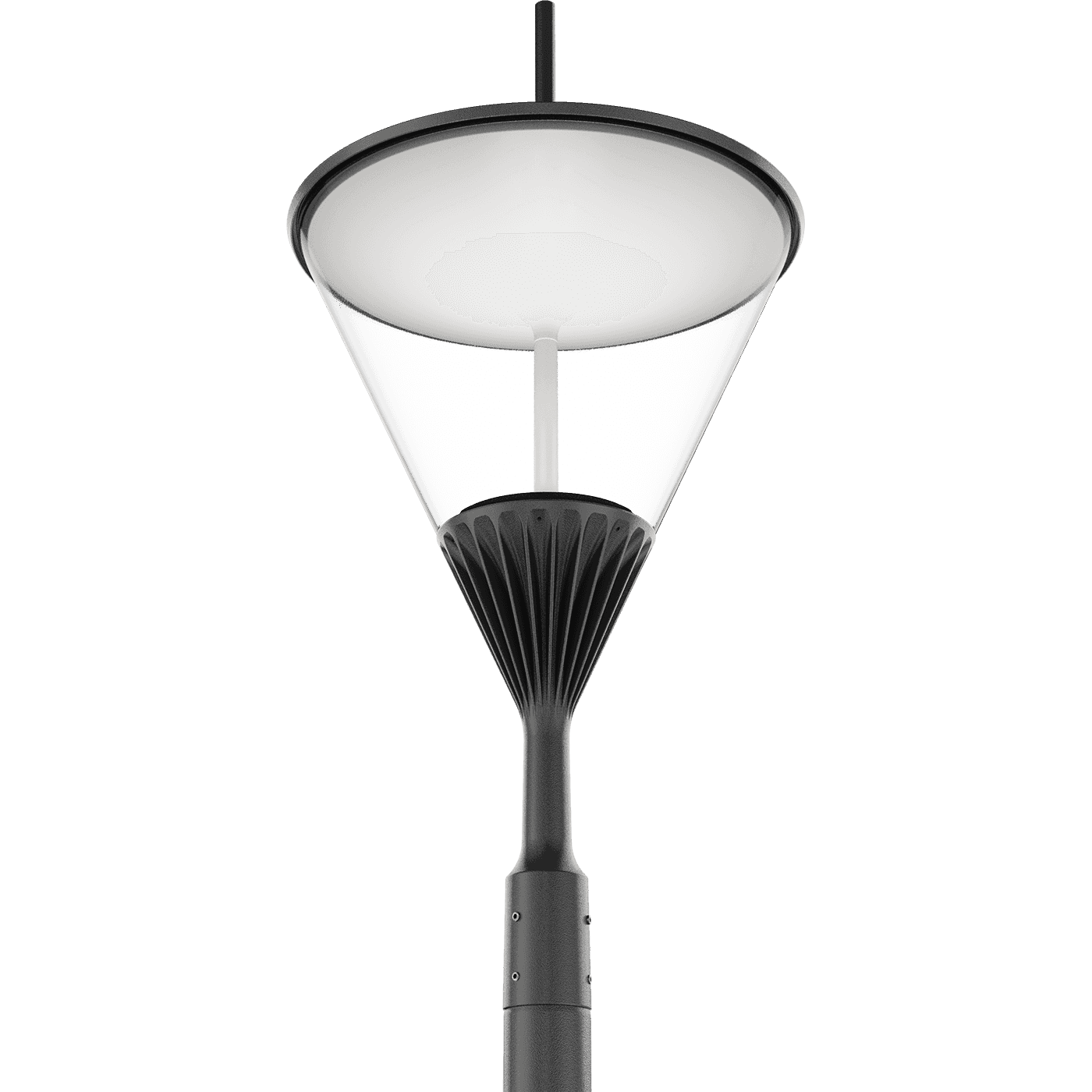

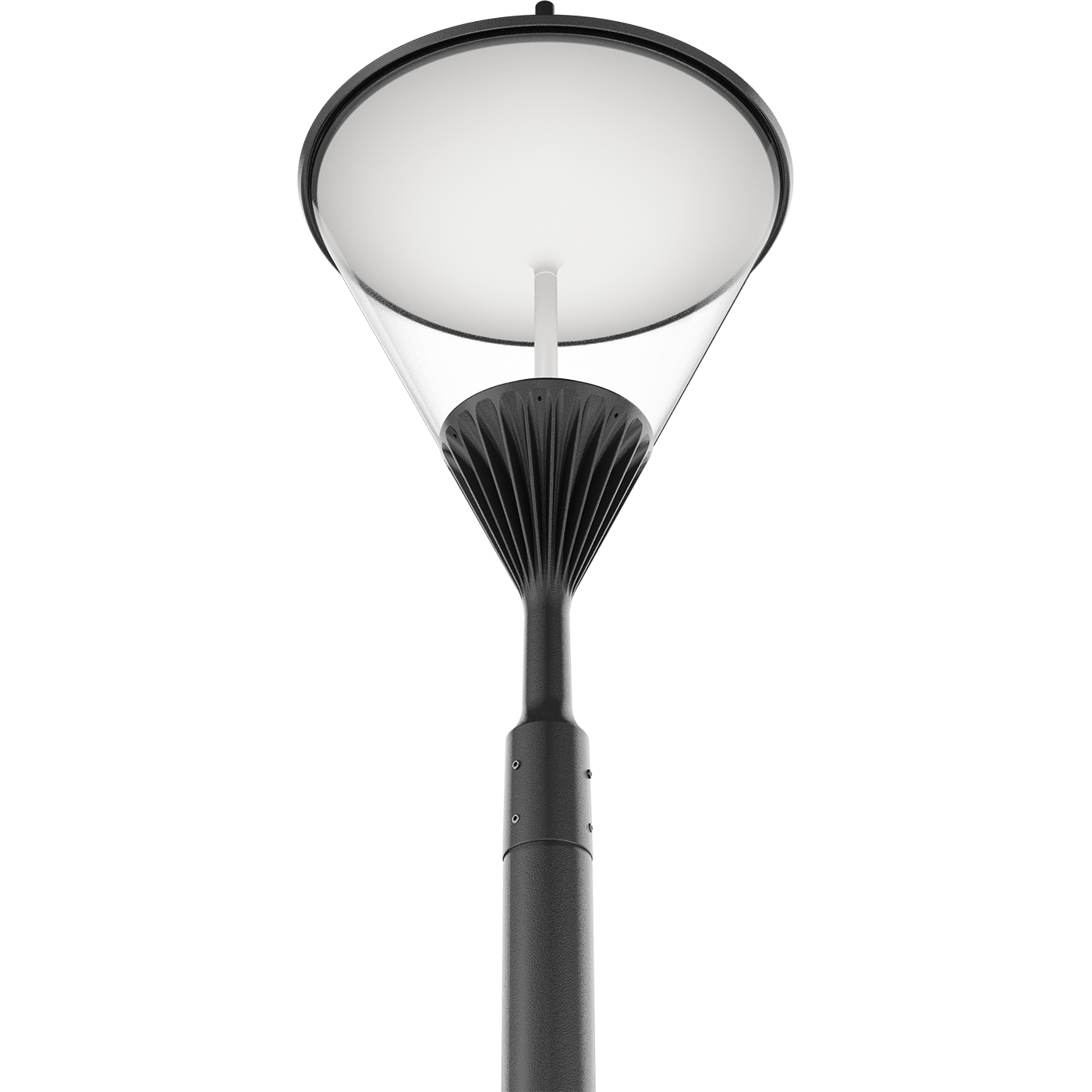

APEX LED 40W RW 840 RAL9005
зарегистрирована в реестре российской промышленной продукции
APEX LED 40W RW 840 RAL9005
40 Wluminaire power
3600 lmlight flow
90 lm/Wenergy efficiency
code
1732000020
number from the register of Russian industrial products
10734555
beam angle
D150
color temperature
4000 K
weight
9.03 kg
- main page
- catalog
- by product type
- outdoor lighting
- floor lamps
- APEX LED
- APEX LED 40W RW 840 RAL9005
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
90 lm/Wcolor rendition index (CRI)
>80light flow
3600 lmflickering factor
<5%beam angle
D150color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
90 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%

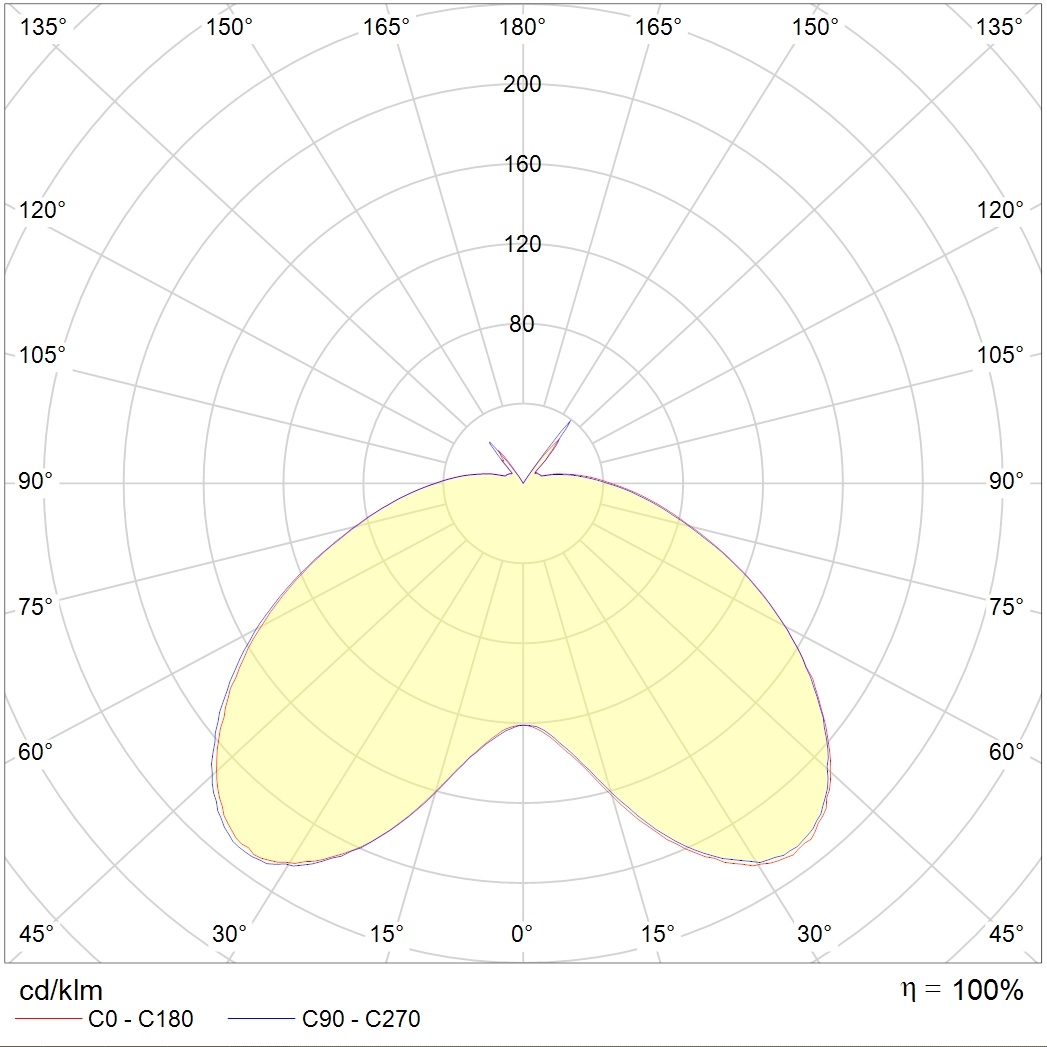

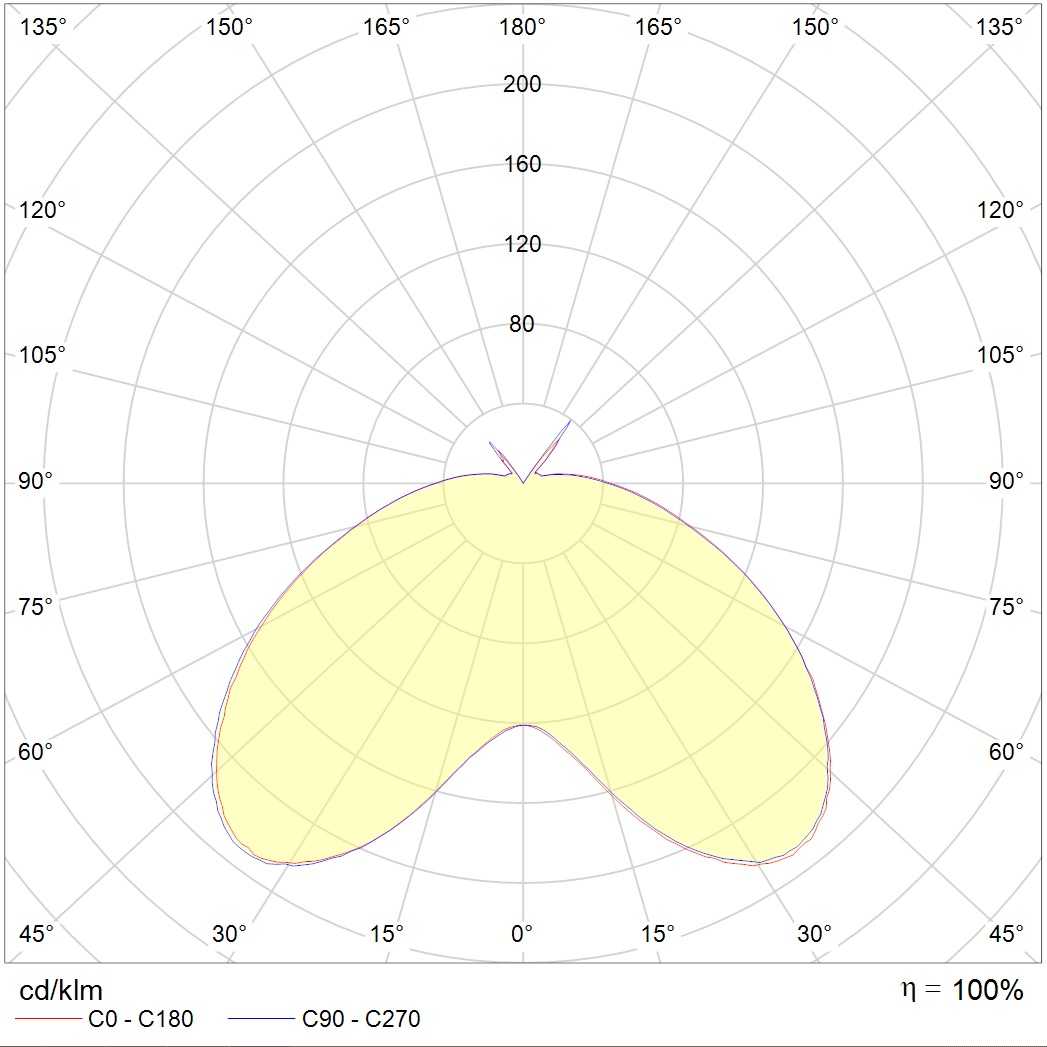

beam angle
D150
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
40 W
electric shock protection
II
starting current pulse time
500 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
220-420 V
supply voltage, alternating current
140-305 V
power factor
> 0,95
constructional

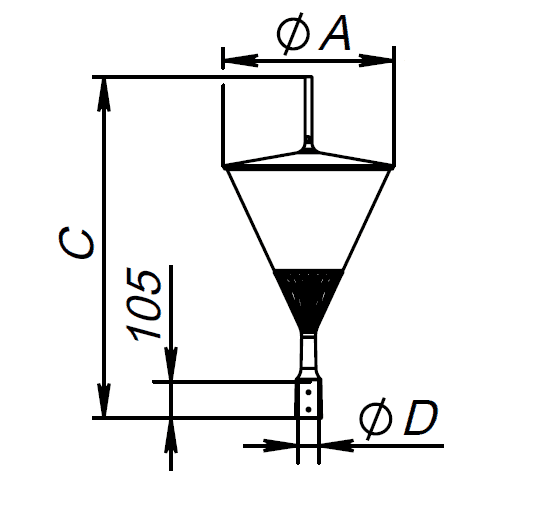

diameter
492 mm
height
986 mm
installation diameter
60 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
mounting type
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
weight
9.03 kg
emergency
emergency power supply
Нет
common
code
1732000020
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник ландшафтный торшерного типа/ светильник-столбик/ световая тумба
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg161 kB
ldt216.7 kB
csv422 B
documents
passport1.2 mB
сертификаты
Russian origin329.7 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016533.5 kB
