AOT.OPL UNI LED 1200x200 (50) EM 4000K CRI90

AOT.OPL UNI LED 1200x200 (50) EM 4000K CRI90
add to favorites
56 Wluminaire power
6000 lmlight flow
107 lm/Wenergy efficiency
code1386000340
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. invoices
  6. AOT UNI LED
  7. AOT.OPL UNI LED 1200x200 (50) EM 4000K CRI90
options
свернуть все
electricalconstructionalcommonilluminatingemergency
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Сталь
weight
2.8 kg

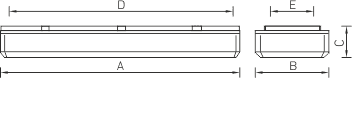

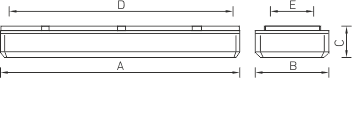

length, mm
1270 mm
width, mm
190 mm
height, mm
87 mm
housing color
Белый
installation length, mm
1050 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1386000340
illuminating
color rendition index (CRI)
>90
light flow
6000 lm
flickering factor
<5%
energy efficiency
107 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
9% lm
model files
model files

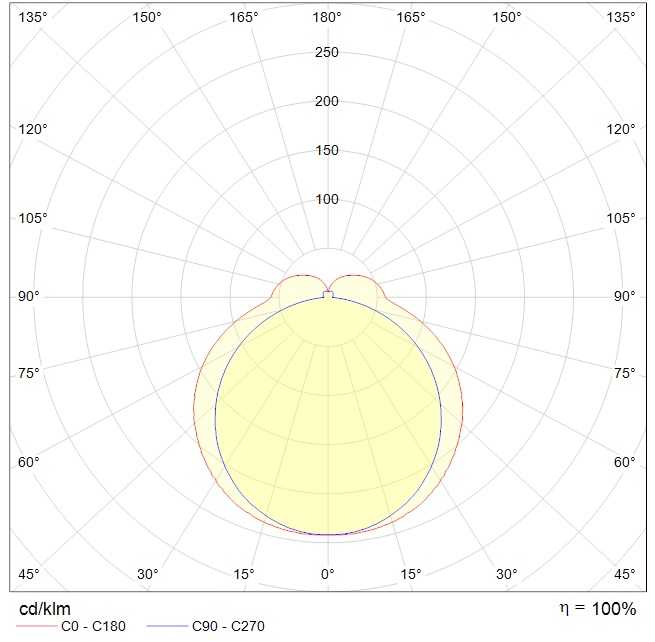

photometric files
ies134.1 kB
jpg82.1 kB
ldt119.7 kB
csv430 B
documents
passport919.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
photometric files
ies134.1 kB
jpg82.1 kB
ldt119.7 kB
csv430 B
documents
passport919.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
