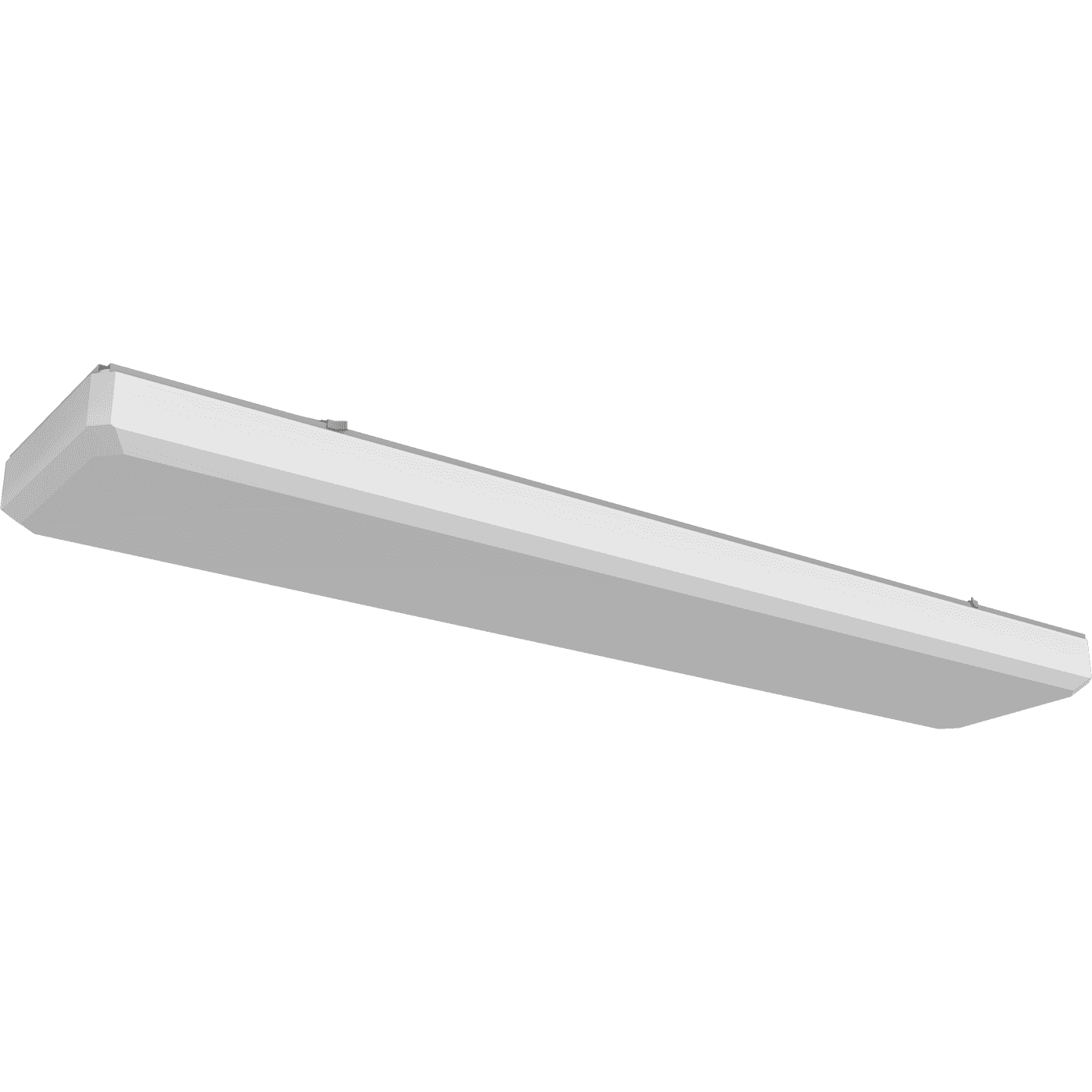

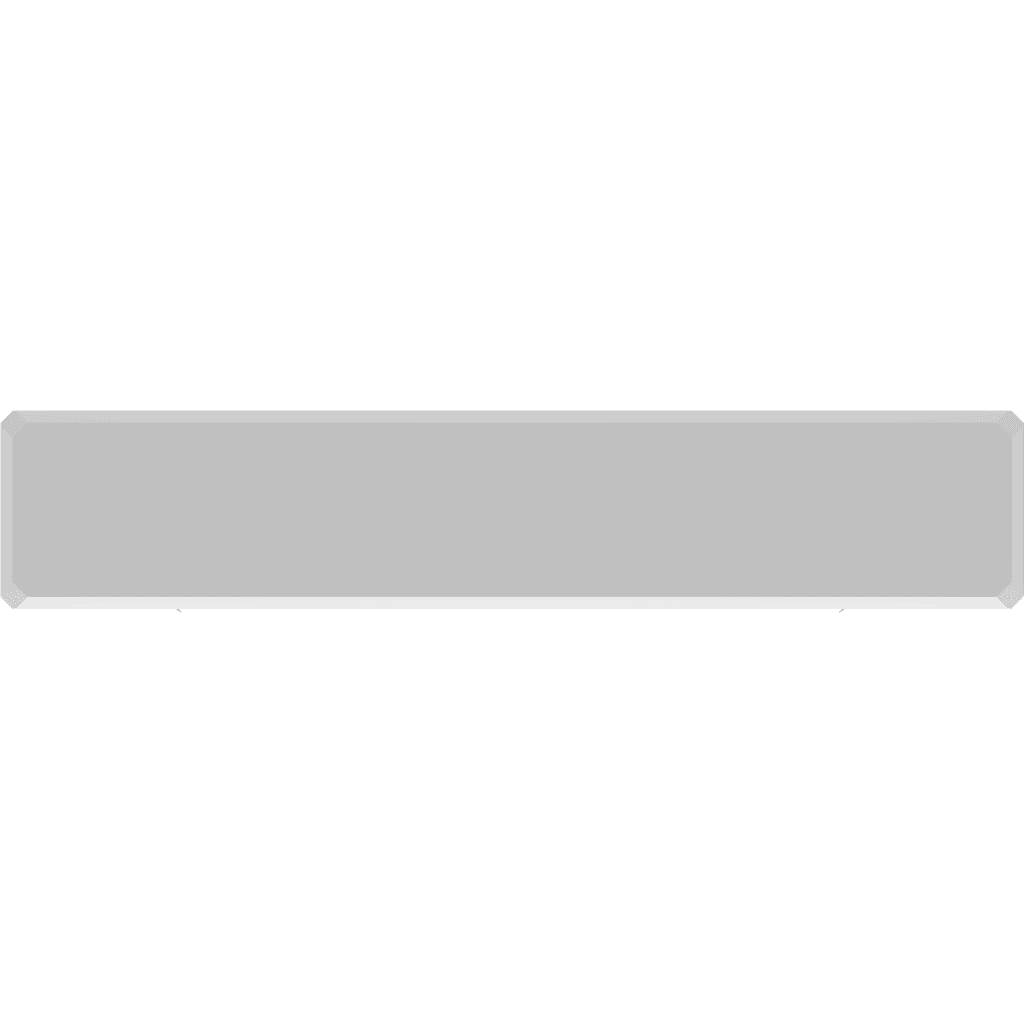

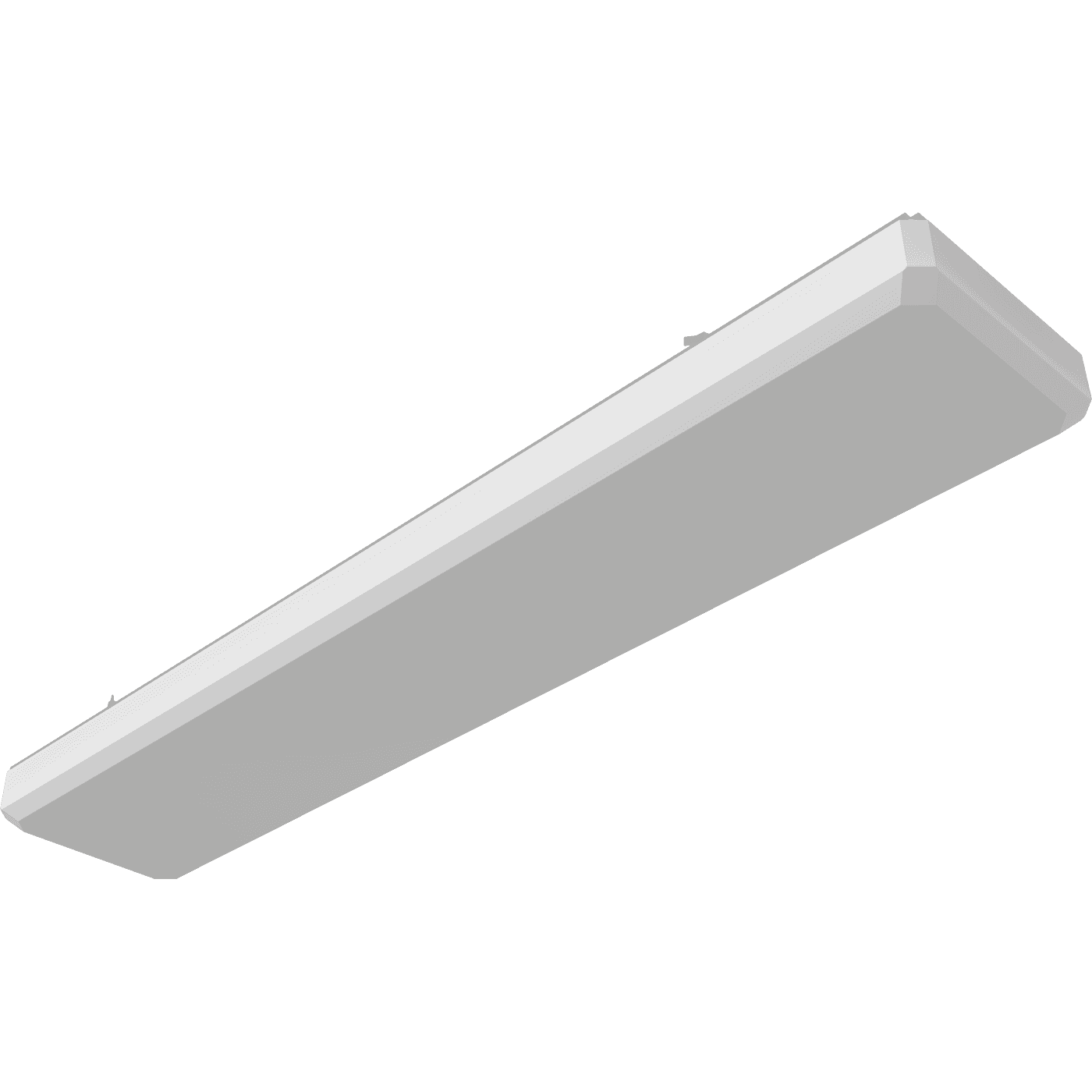

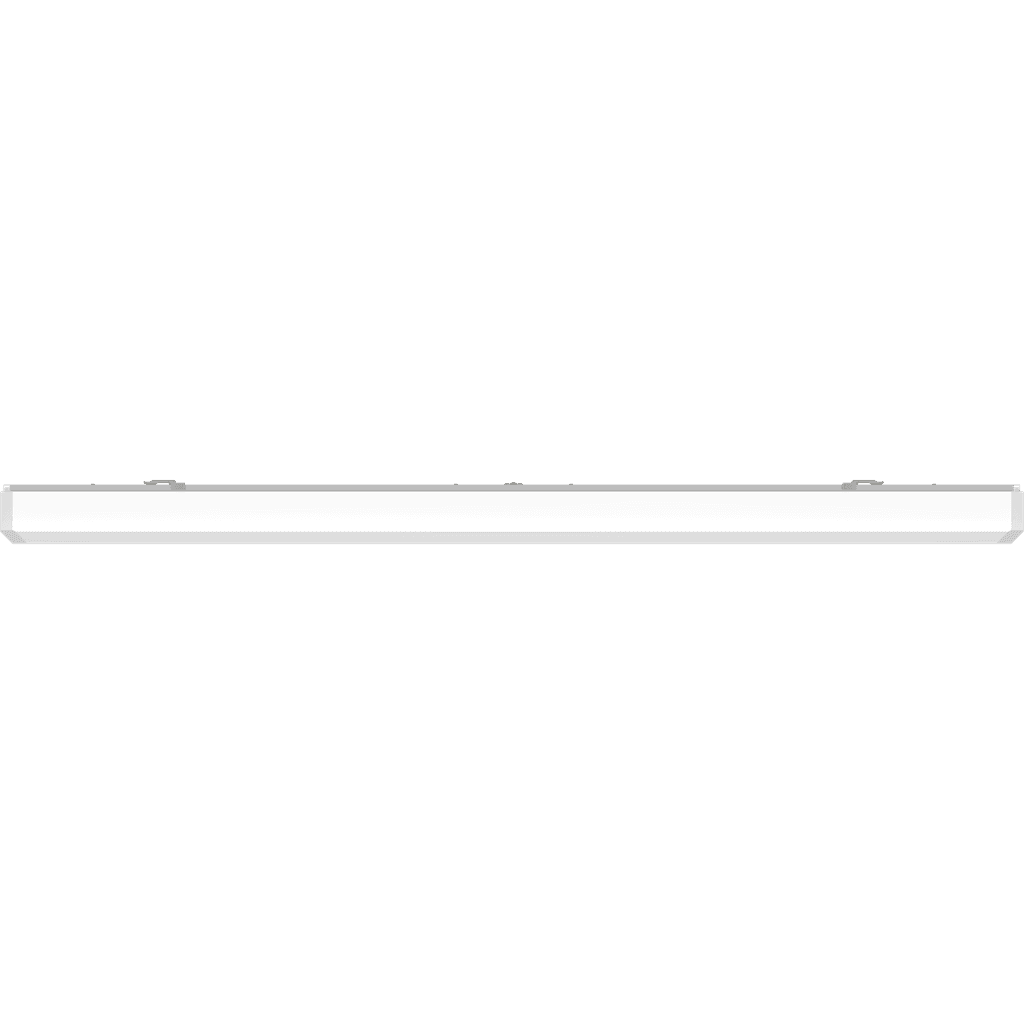

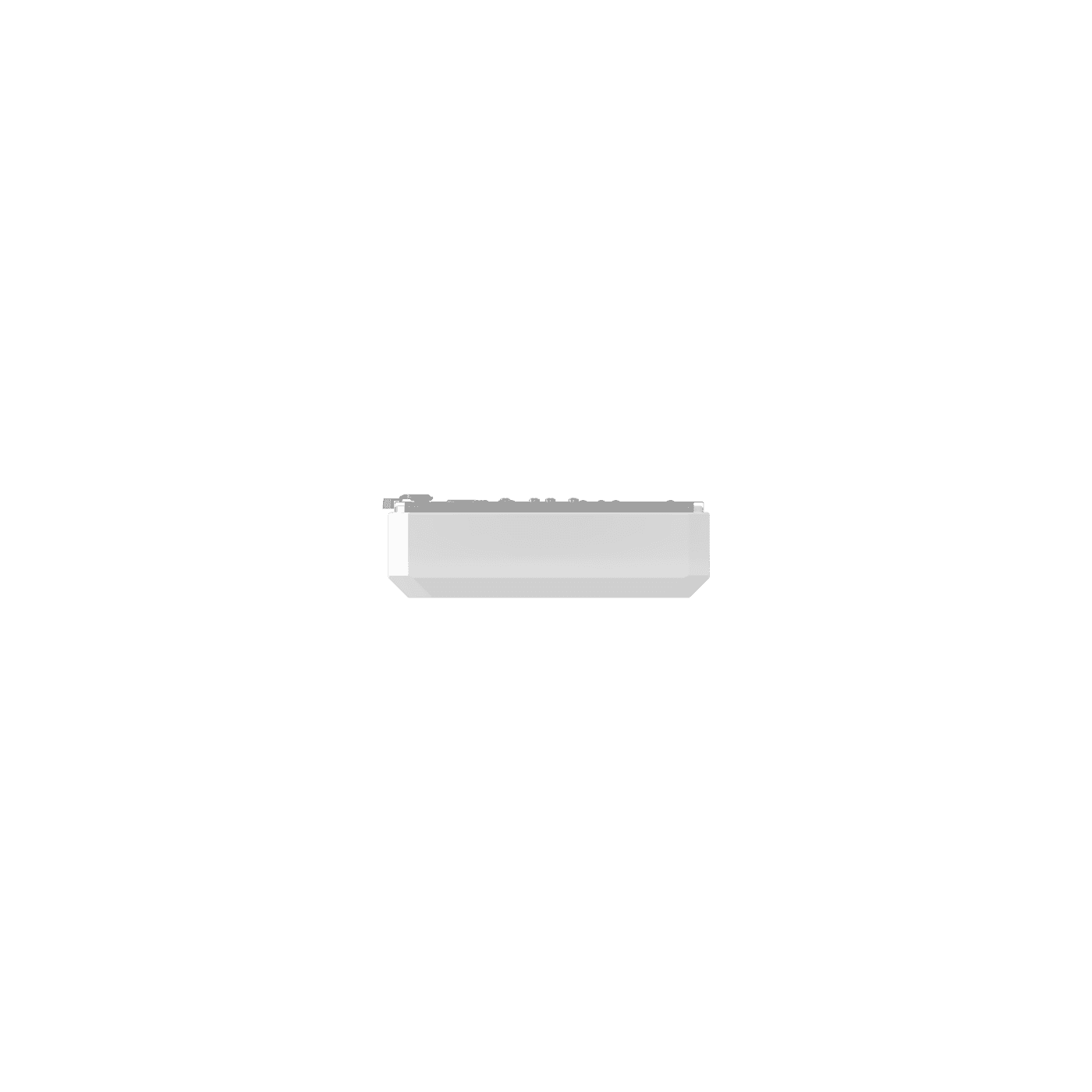

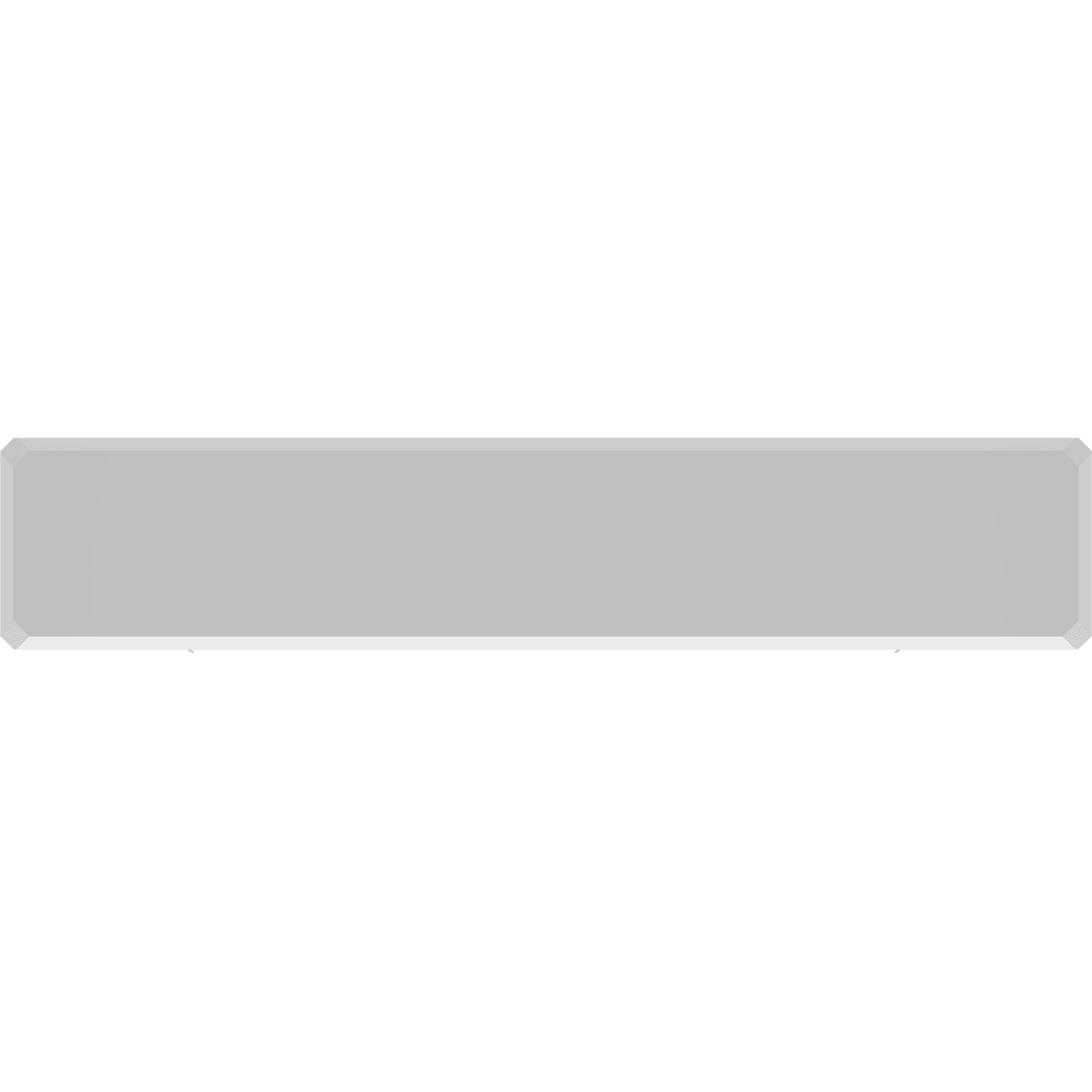

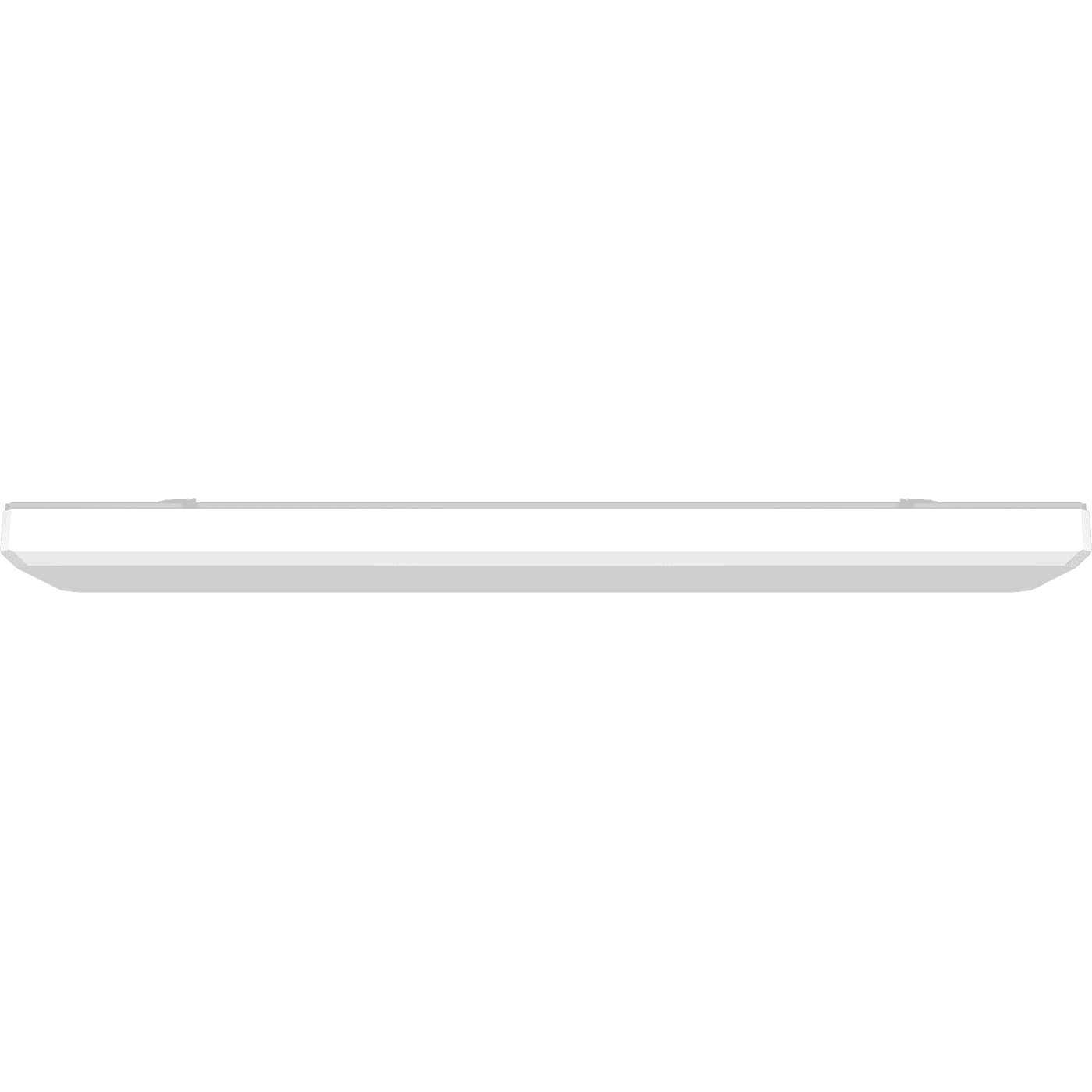

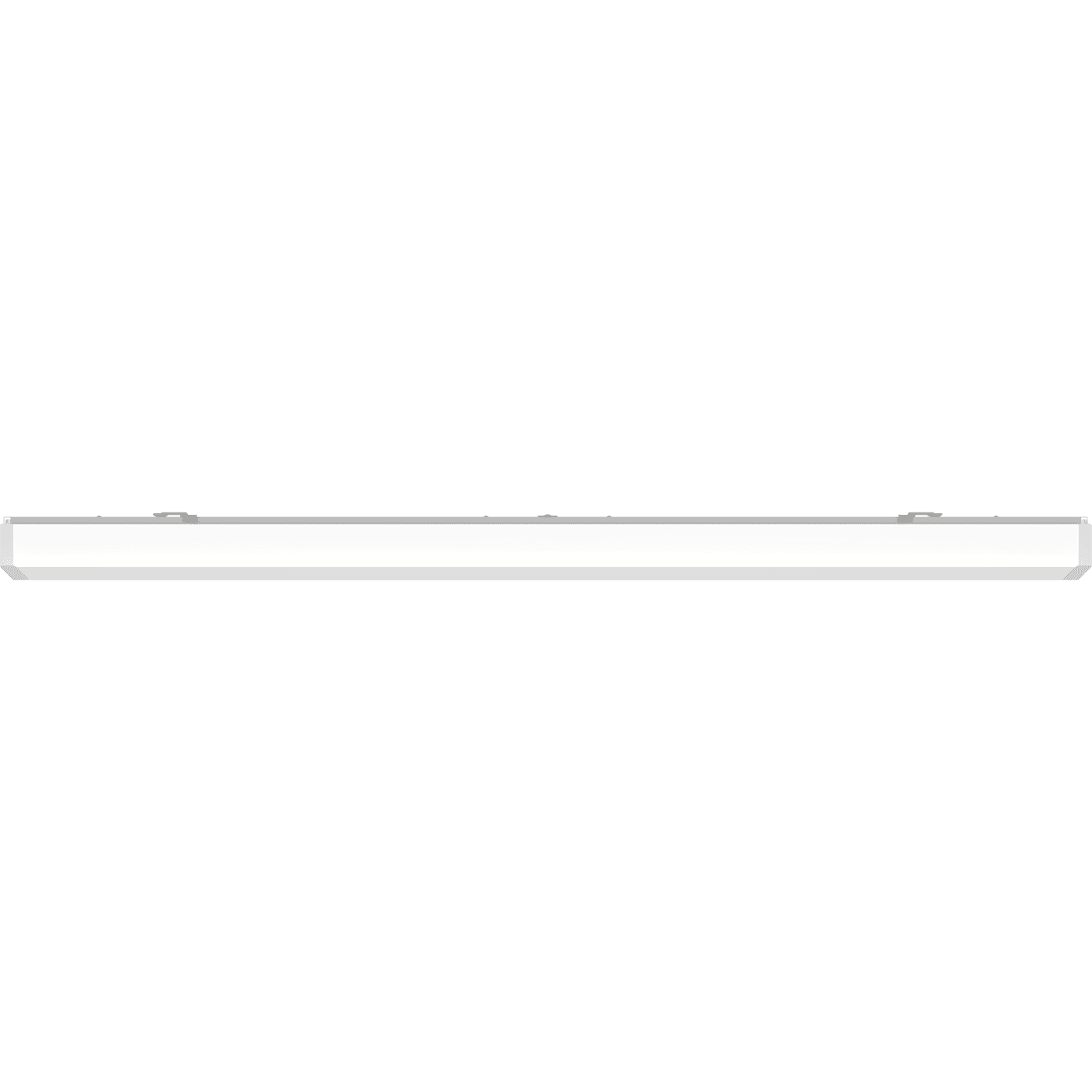

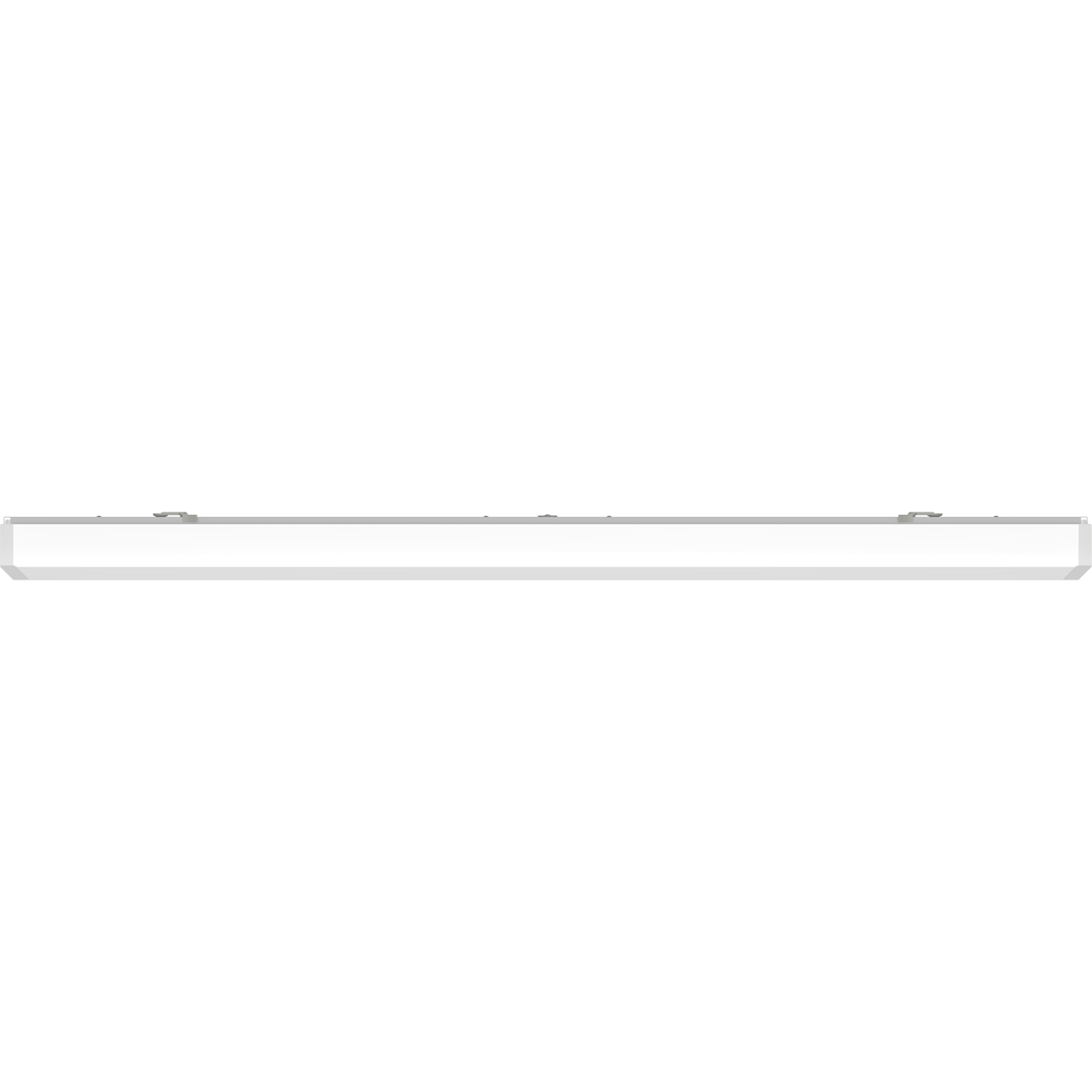

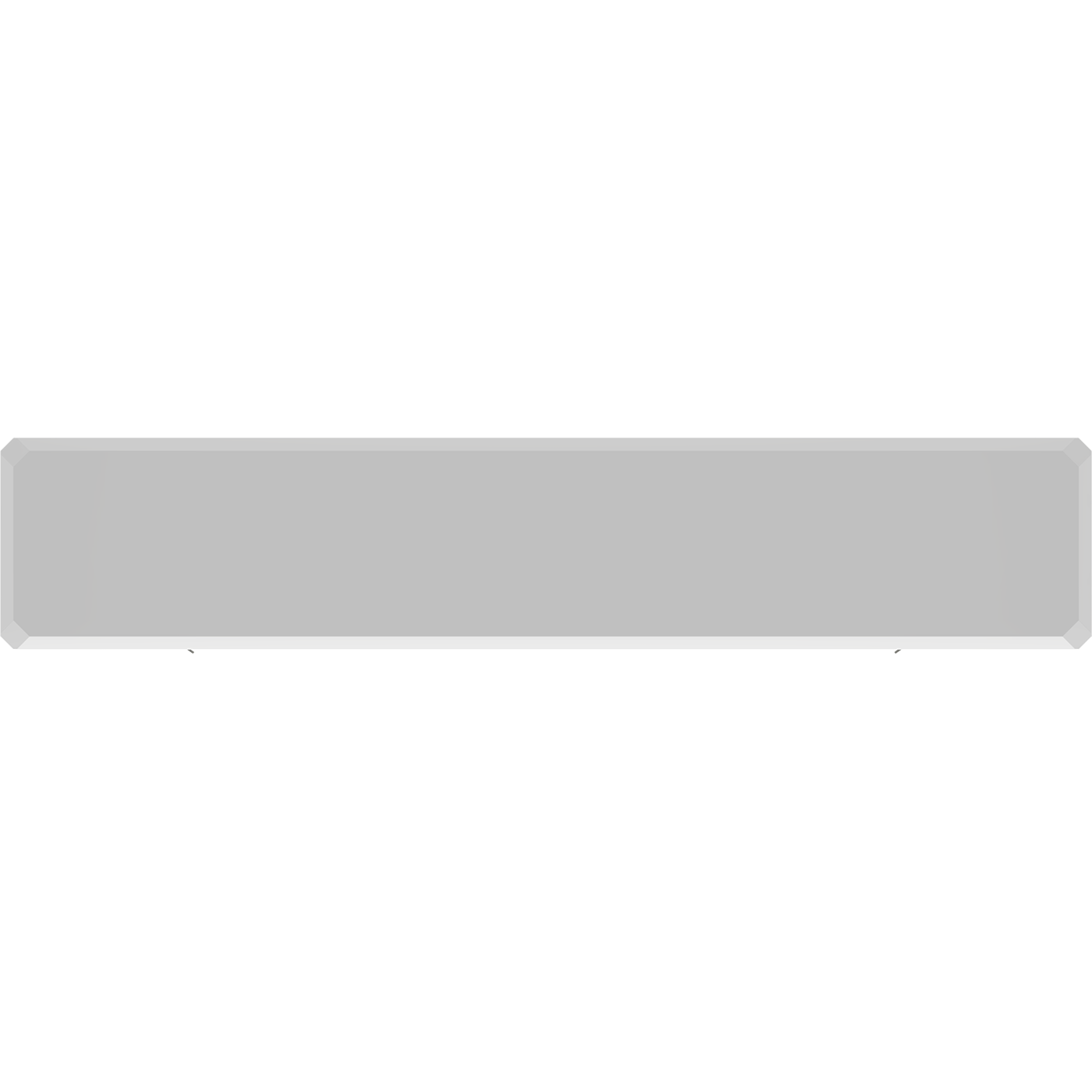

AOT.OPL UNI LED 1200x200 (40) HFD 4000K PRO
archive
archive
AOT.OPL UNI LED 1200x200 (40) HFD 4000K PRO
44 Wluminaire power
5400 lmlight flow
123 lm/Wenergy efficiency
code1386000190
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 Astarting current pulse time, µs
250 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
44 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
44 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
material
Сталь
weight
2.8 kg
length, mm
1270 mm
width, mm
190 mm
height, mm
87 mm
housing color
Белый
installation length, mm
1050 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1386000190
illuminating
color rendition index (CRI)
>80
light flow
5400 lm
flickering factor
<5%
energy efficiency
123 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
documents
сертификаты
documents
passport723 kB
сертификаты
Russian origin620 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
