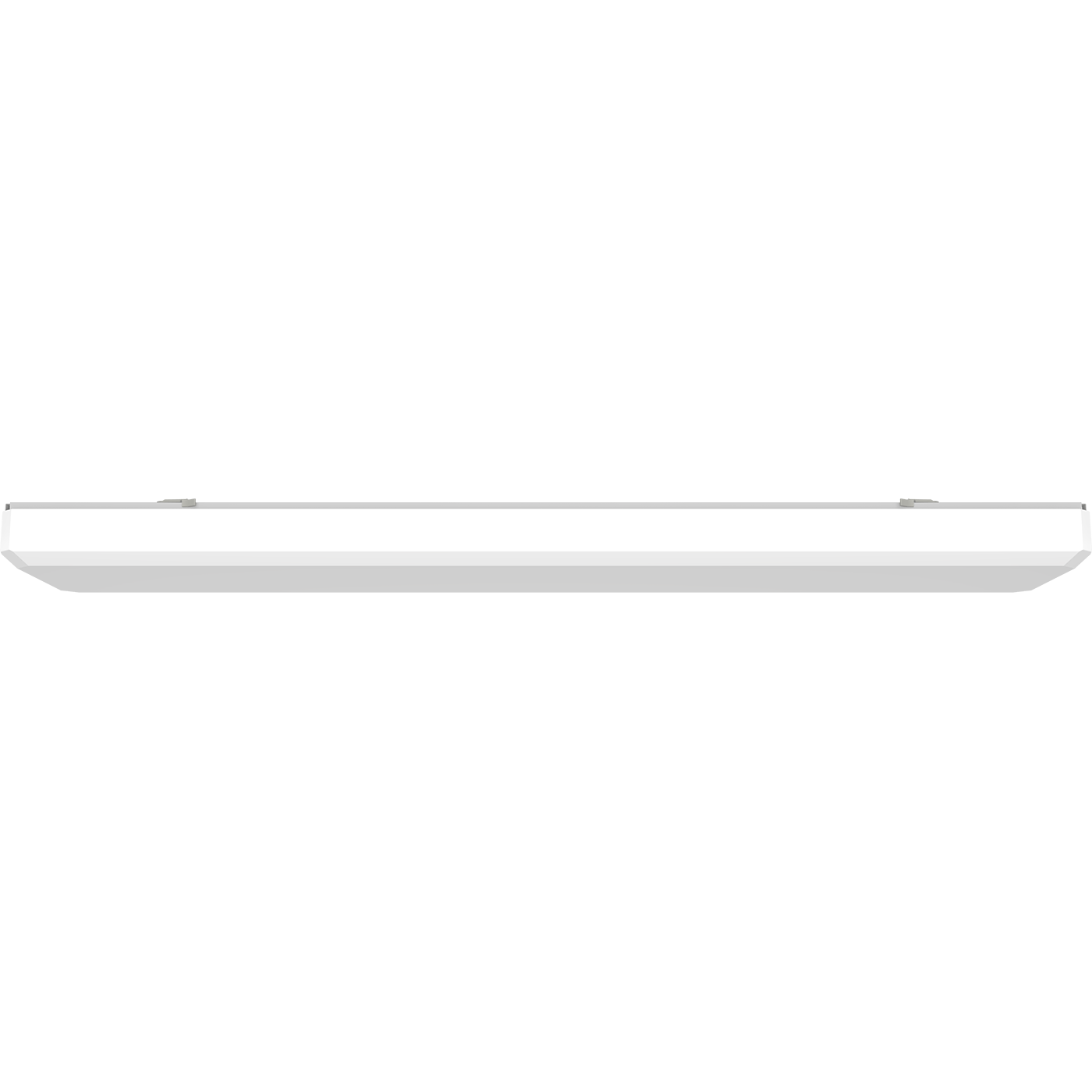

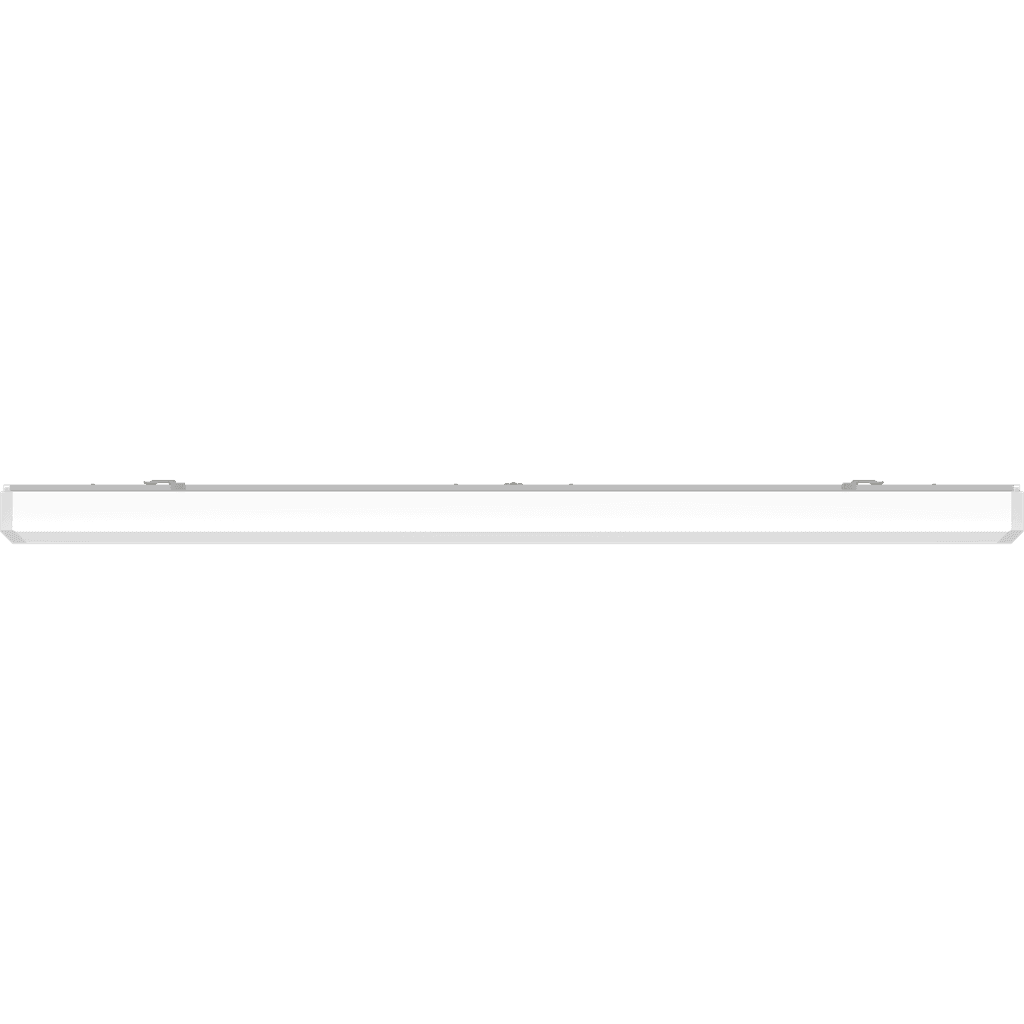

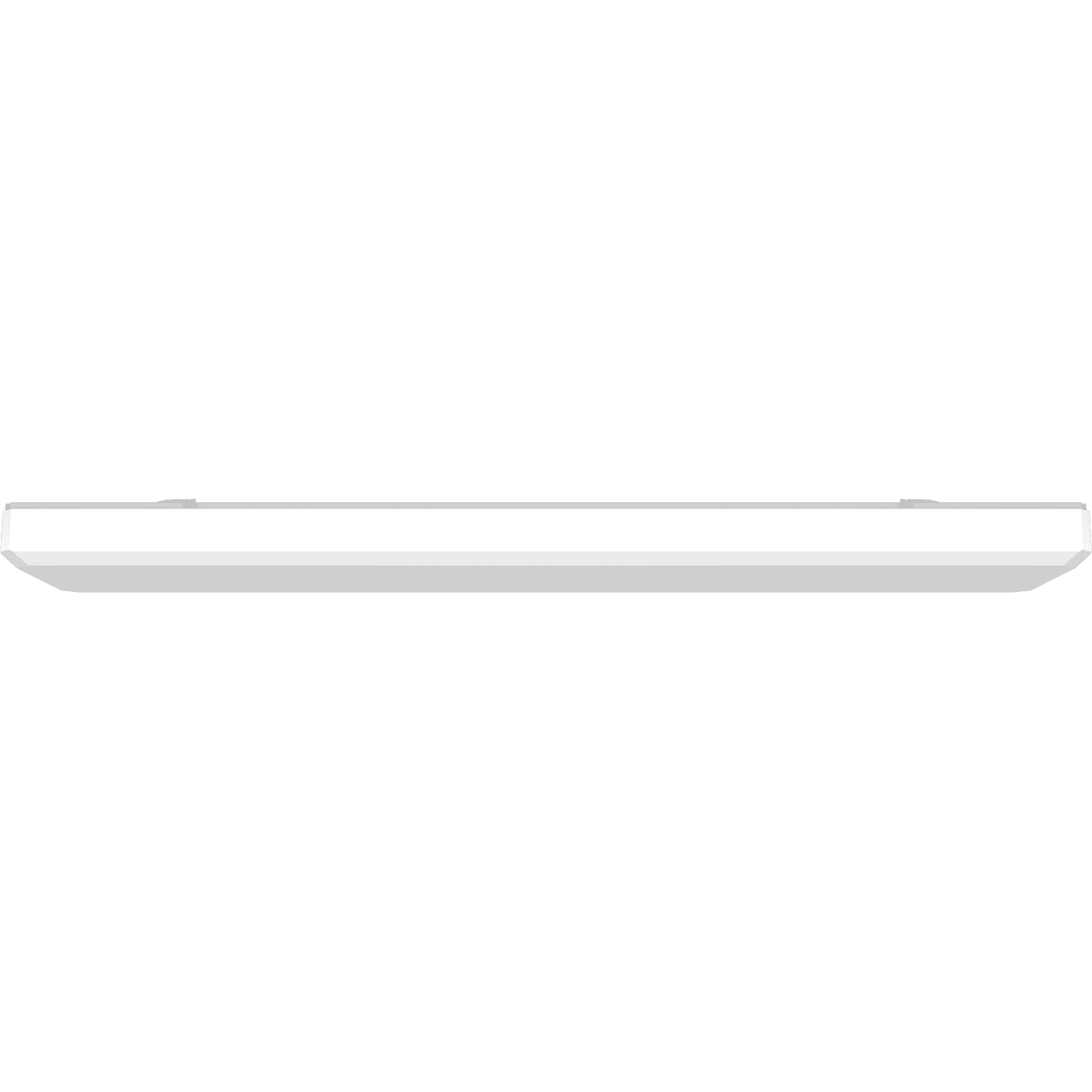

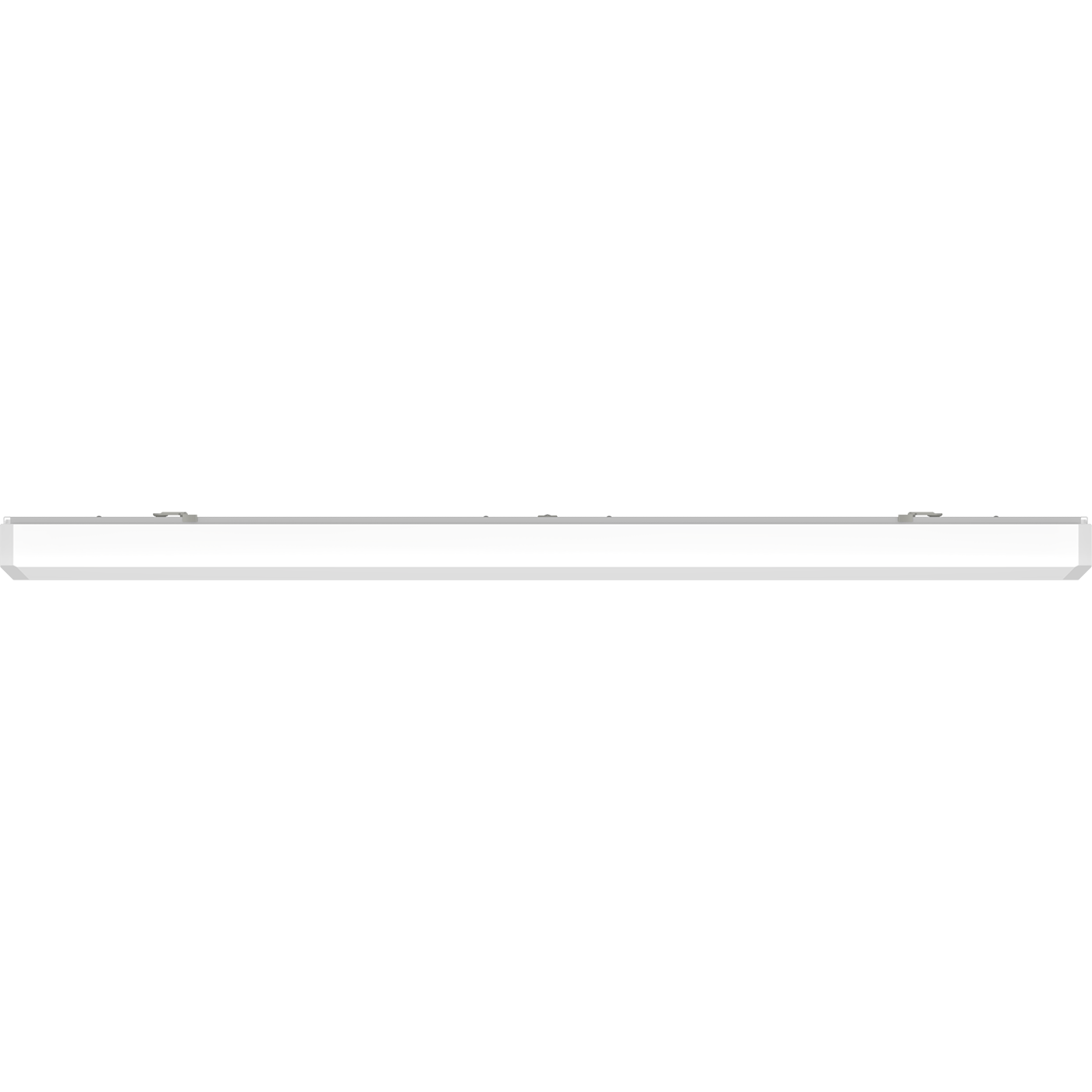

AOT.OPL 236 HF ES1 new
AOT.OPL 236 HF ES1 new
72 Wluminaire power
3250 lmlight flow
65 lm/Wenergy efficiency
code1061000190
number of lamps2
performance factor72
options
свернуть все
electricalconstructionalcommonilluminatingemergency
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
72 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
72 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP40
climatic performance
УХЛ4*
material
Сталь
weight
2.85 kg
length, mm
1270 mm
width, mm
190 mm
height, mm
85 mm
housing color
Белый
installation length, mm
1050 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
2
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
service life, hour
30 000 h
code
1061000190
illuminating
light flow
3250 lm
flickering factor
<5%
energy efficiency
65 lm/W
light source type
ЛЛ
emission color
Белый
emergency
operating time in emergency mode, hours
2,5 h
luminous flux in emergency mode
10% lm
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.2 kB
model 3dMax392 kB

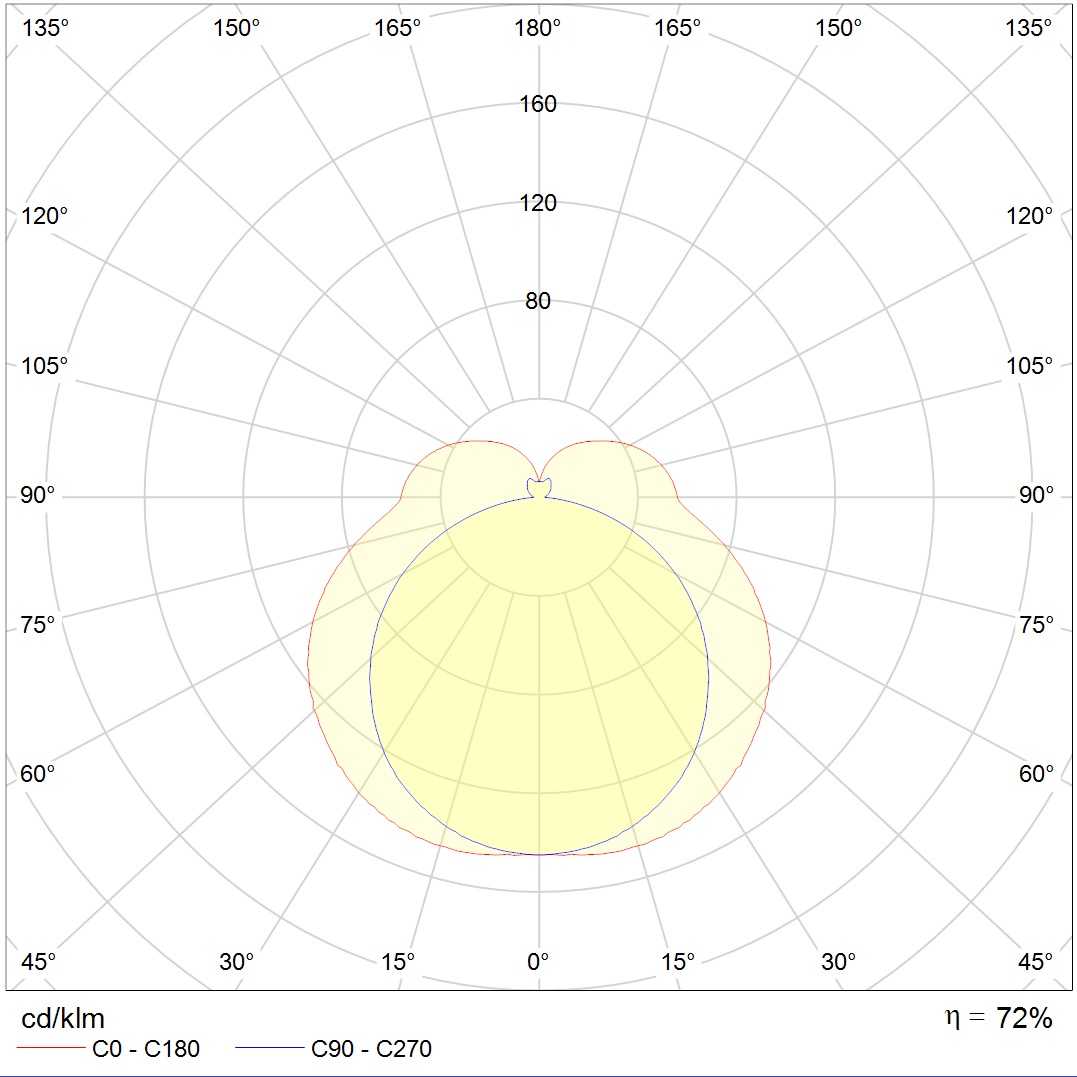

photometric files
ies134.1 kB
jpg157.7 kB
ldt92.7 kB
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Mounting kit X40.013kgarticle: 2995000040
