ANTARES 4200-4 LED

ANTARES 4200-4 LED
add to favorites
4 Wluminaire power
220 kd/m2average luminance
code
4501007060
battery / battery Ni-Cd
Нет аккумулятора
type of operation / type of operation of the emergency luminaire
централизованного электропитания
  1. main page
  2. catalog
  3. by product type
  4. emergency lighting
  5. evacuation signs
  6. ANTARES LED
  7. ANTARES 4200-4 LED
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
200 lm
average luminance
220 kd/m2
light source type
LED
energy efficiency
50 lm/W
emission color
Белый
illuminating
light flow
200 lm
average luminance
220 kd/m2
light source type
LED
energy efficiency
50 lm/W
emission color
Белый
electrical
supply voltage
230 V
supply voltage, alternating current
230-240 V
constructional
material
Поликарбонат
ballast
Драйвер
weight
0.6 kg
length
331 mm
width
129 mm
height
62 mm
материал рассеивателя
Поликарбонат
ingress protection (IP)
IP42
mounting type
climatic performance
УХЛ4
shock resistance (IK)
IK02/0,2 Дж
emergency
type of operation / type of operation of the emergency luminaire
централизованного электропитания
battery / battery Ni-Cd
Нет аккумулятора
emergency power supply
Нет
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от 0 до +40 C
energy efficiency class
A
code
4501007060
model files
model files
CAD/BIM files
model 3dMax480 kB
photometric files
ies134.1 kB
jpg159.6 kB
ldt111.2 kB
csv417 B
documents
passport350.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011307.5 kB
Declaration of Conformity EAEU TR 037/2016302.7 kB
CAD/BIM files
model 3dMax480 kB

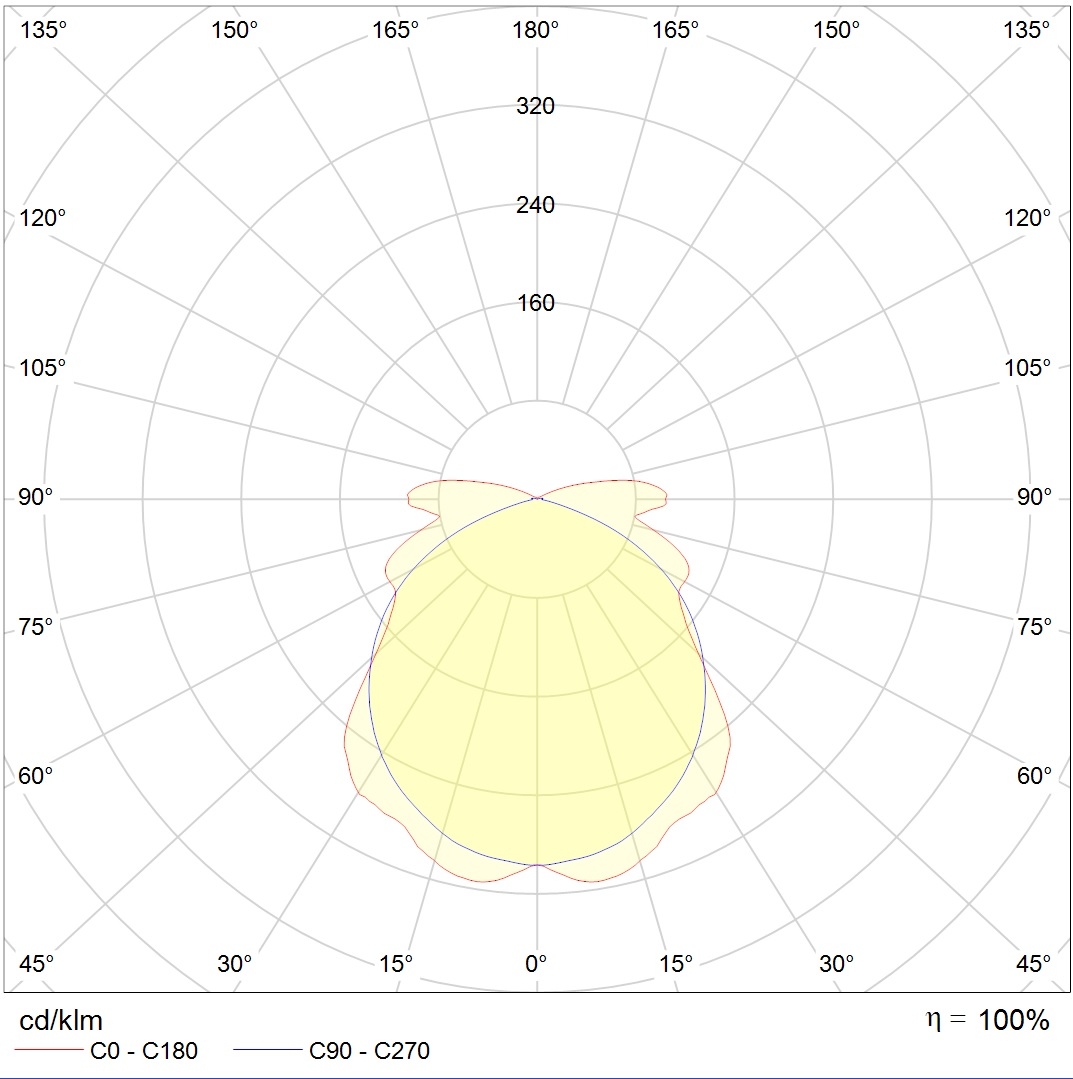

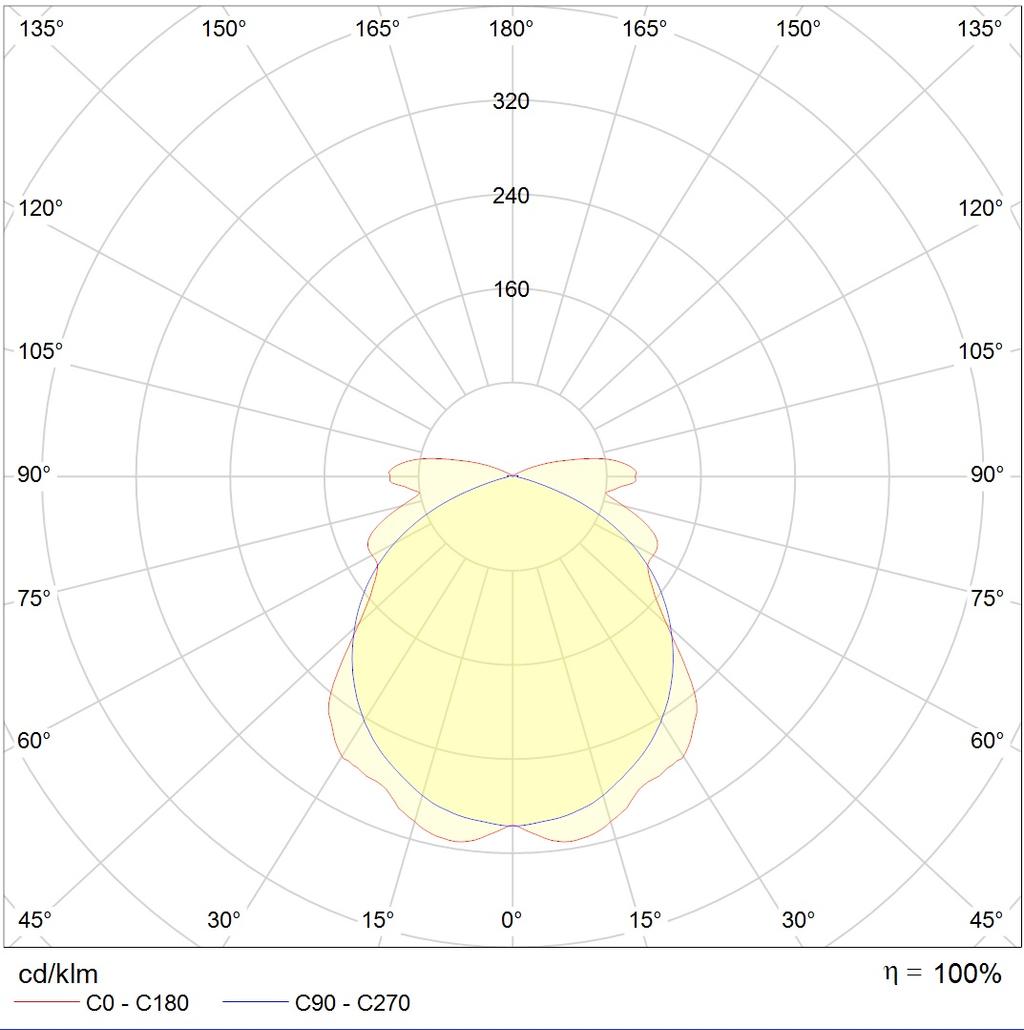

photometric files
ies134.1 kB
jpg159.6 kB
ldt111.2 kB
csv417 B
documents
passport350.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011307.5 kB
Declaration of Conformity EAEU TR 037/2016302.7 kB
accessories
PEU 006 Up the stairs to the right (130х260) URAN/ANTARES0.0092kgarticle: 2502000660
PEU 008 Emergency exit (130х260) URAN/ANTARES0.0092kgarticle: 2502000250
PPB 0004 Fire extinguishing station (130х260) URAN/ANTARES0.0092kgarticle: 2502001100
