ALS.OPL 258 HF
ALS.OPL 258 HF
116 Wluminaire power
5200 lmlight flow
49 lm/Wenergy efficiency
code1065000220
number of lamps2
performance factor55
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
116 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
116 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2*
material
Пластик
weight
3.7 kg
length, mm
1570 mm
width, mm
190 mm
height, mm
95 mm
housing color
Серый
installation length, mm
900 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G13
number of lamps
2
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A
service life, hour
24 000 h
code
1065000220
illuminating
light flow
5200 lm
flickering factor
<5%
energy efficiency
49 lm/W
light source type
ЛЛ
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS2.3 mB
model 3dMax1.2 mB

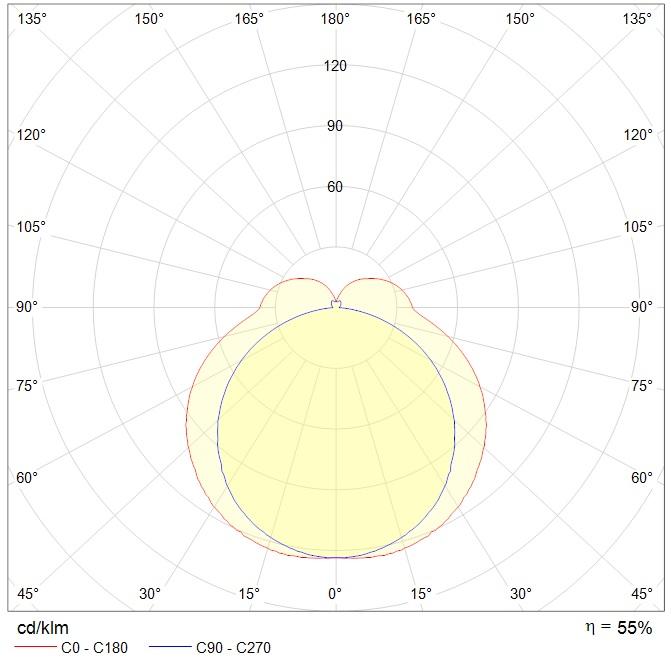

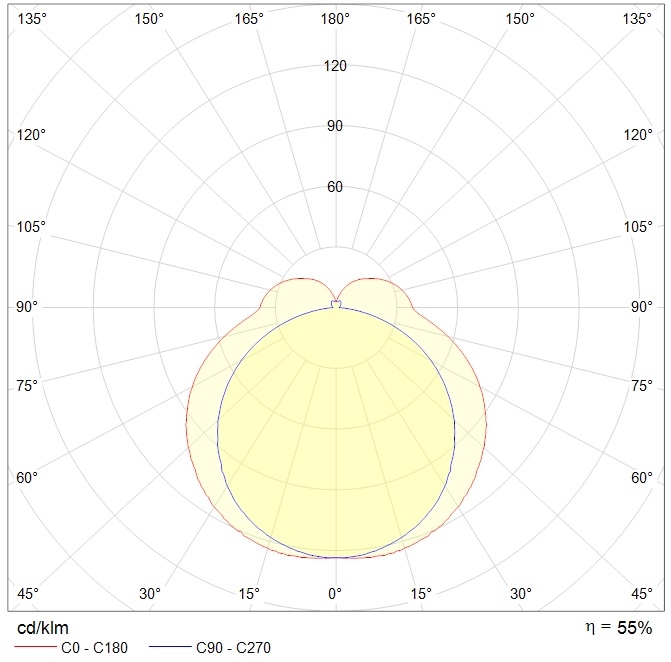

photometric files
ies134.1 kB
jpg80.3 kB
ldt92.4 kB
documents
passport967.5 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Cable mounting kit Arctic /2/0.01kgarticle: 2069000010
Mounting kit X40.013kgarticle: 2995000040
