ALS.OPL UNI LED 1200 HFD EM 4000K

ALS.OPL UNI LED 1200 HFD EM 4000K
add to favorites
32 Wluminaire power
3600 lmlight flow
113 lm/Wenergy efficiency
code1066000490
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. invoices
  6. ALS.OPL UNI LED
  7. ALS.OPL UNI LED 1200 HFD EM 4000K
options
свернуть все
electricalconstructionalcommonilluminatingemergencyLMS options
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2*
material
Пластик
weight
4.5 kg
length, mm
1270 mm
width, mm
190 mm
height, mm
95 mm
housing color
Серый
installation length, mm
748 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1066000490
illuminating
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<5%
energy efficiency
113 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
11% lm
LMS options
dimming
DALI
model files
model files

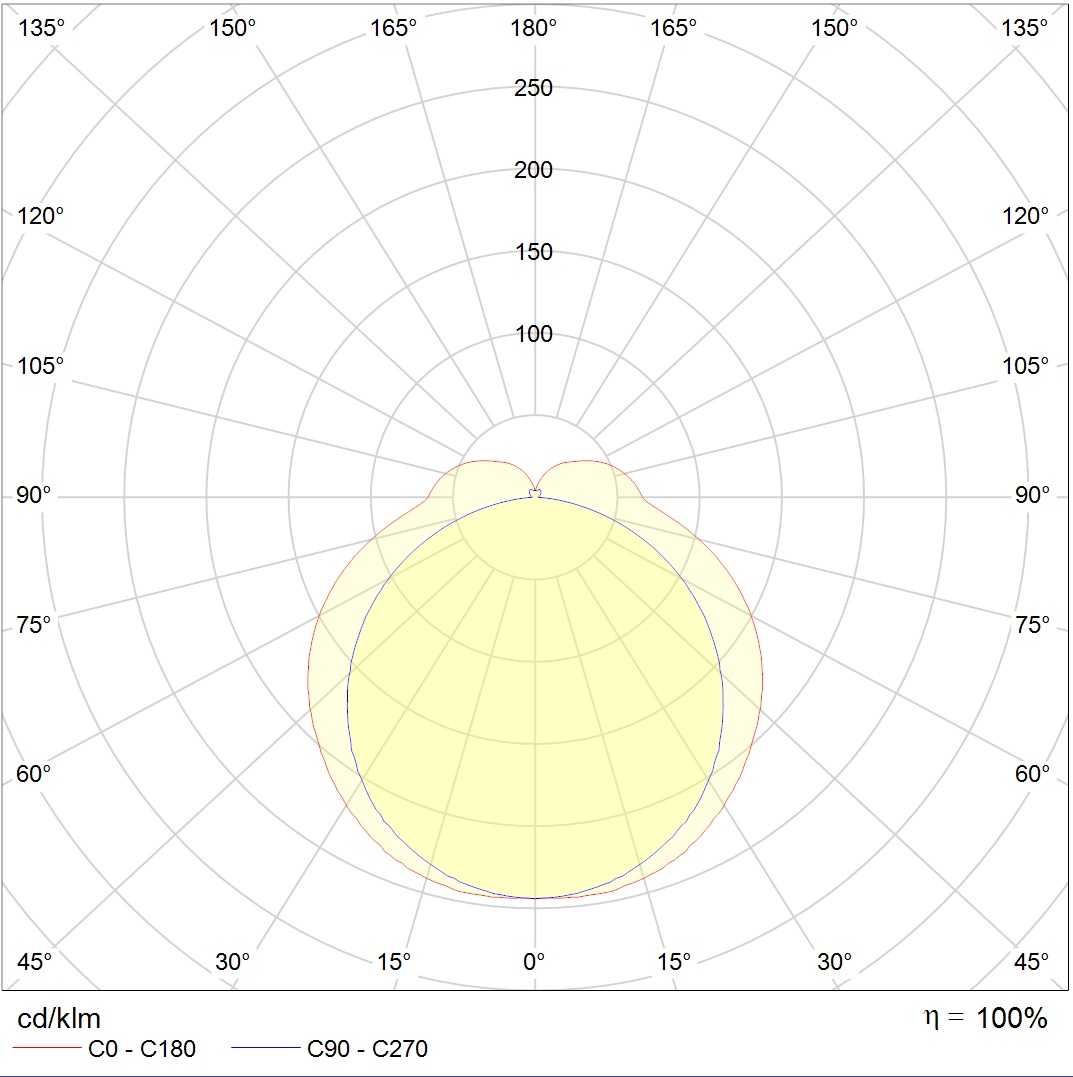

photometric files
ies134.1 kB
jpg167.4 kB
ldt118.9 kB
csv419 B
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB

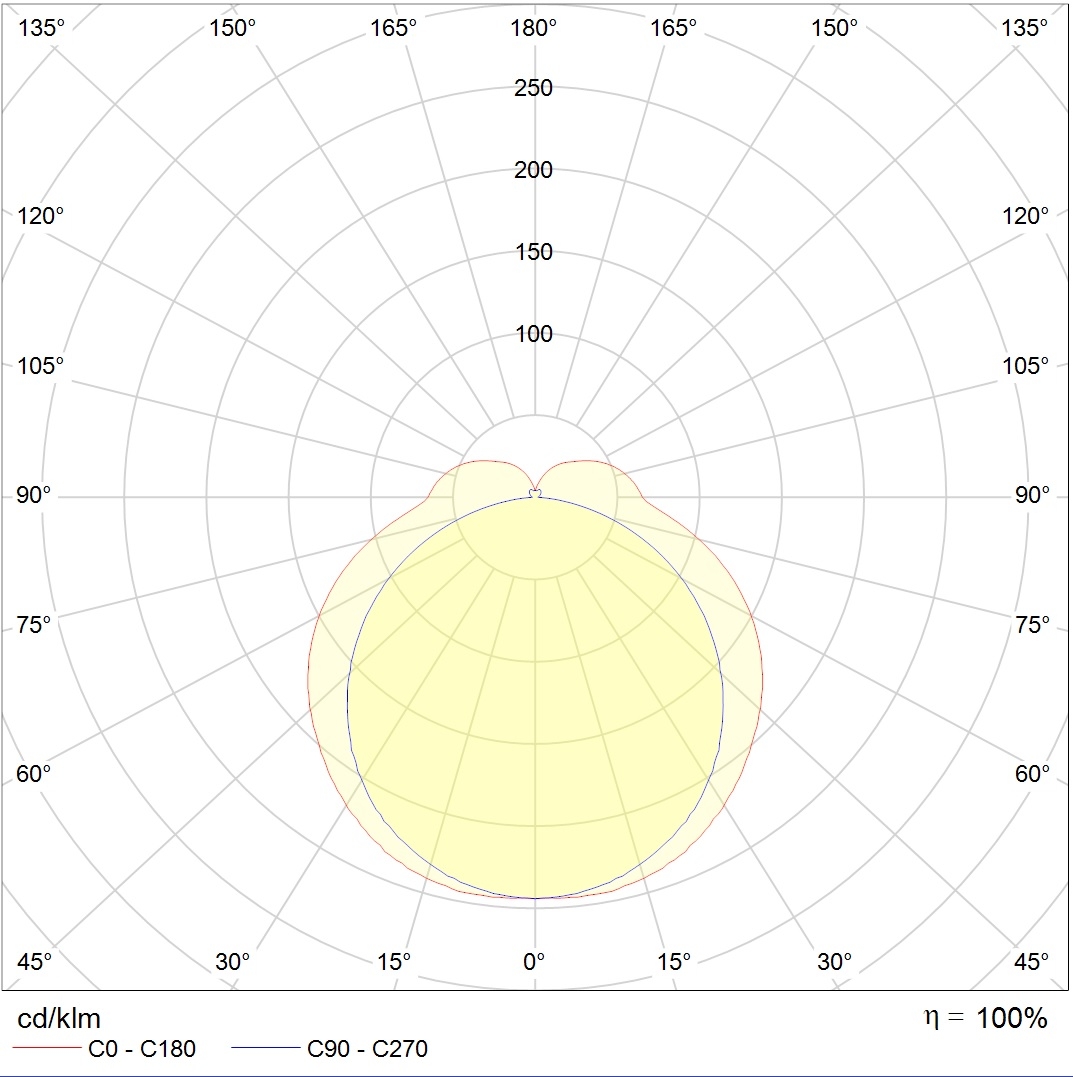

photometric files
ies134.1 kB
jpg167.4 kB
ldt118.9 kB
csv419 B
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
