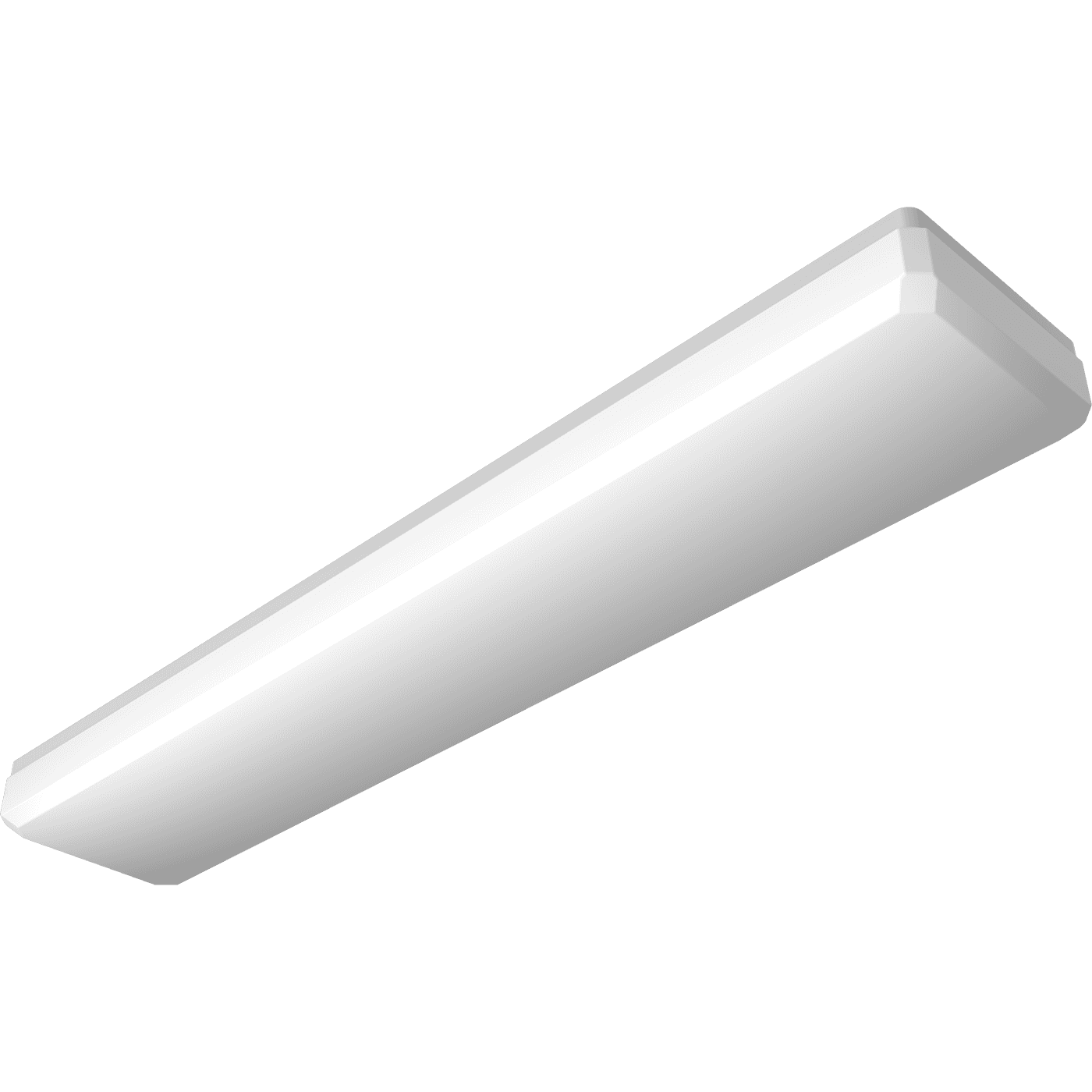

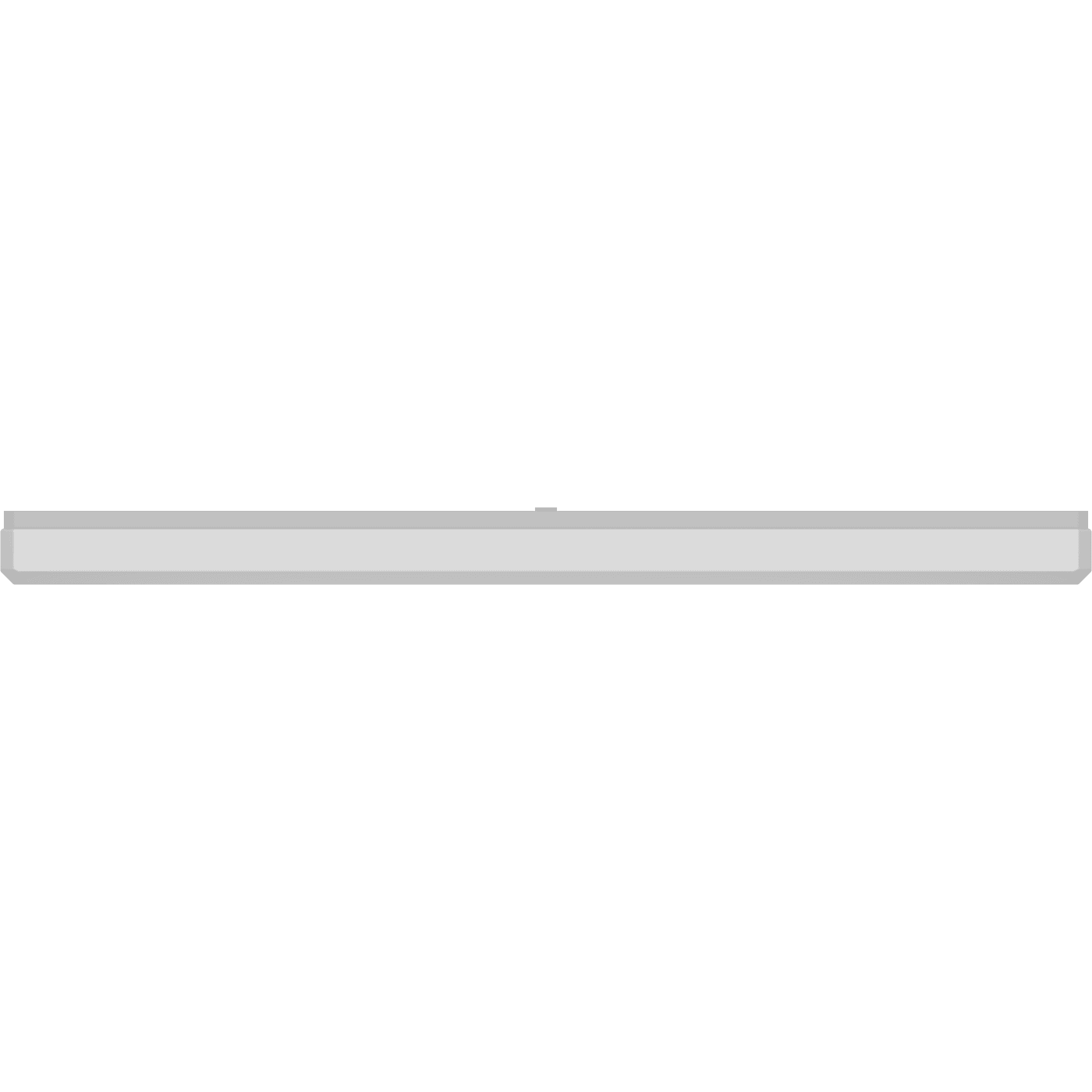

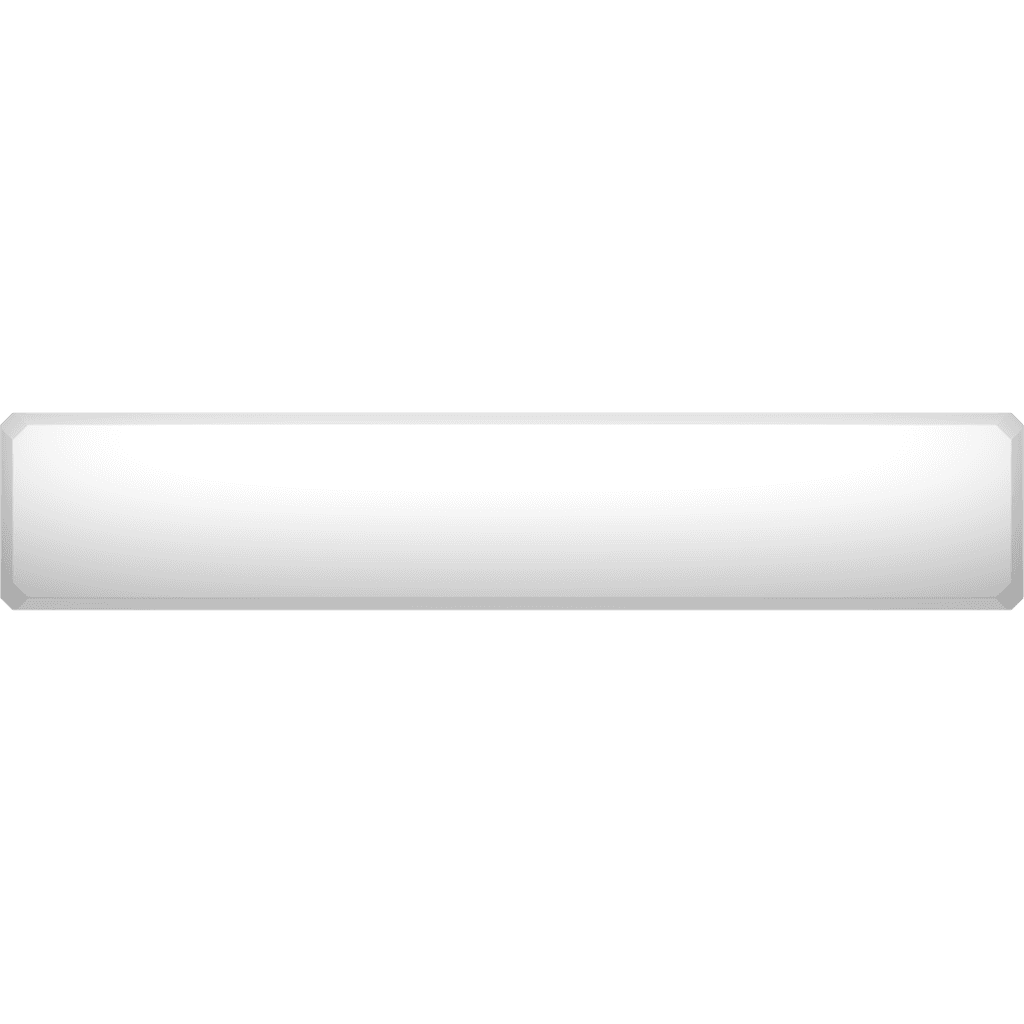

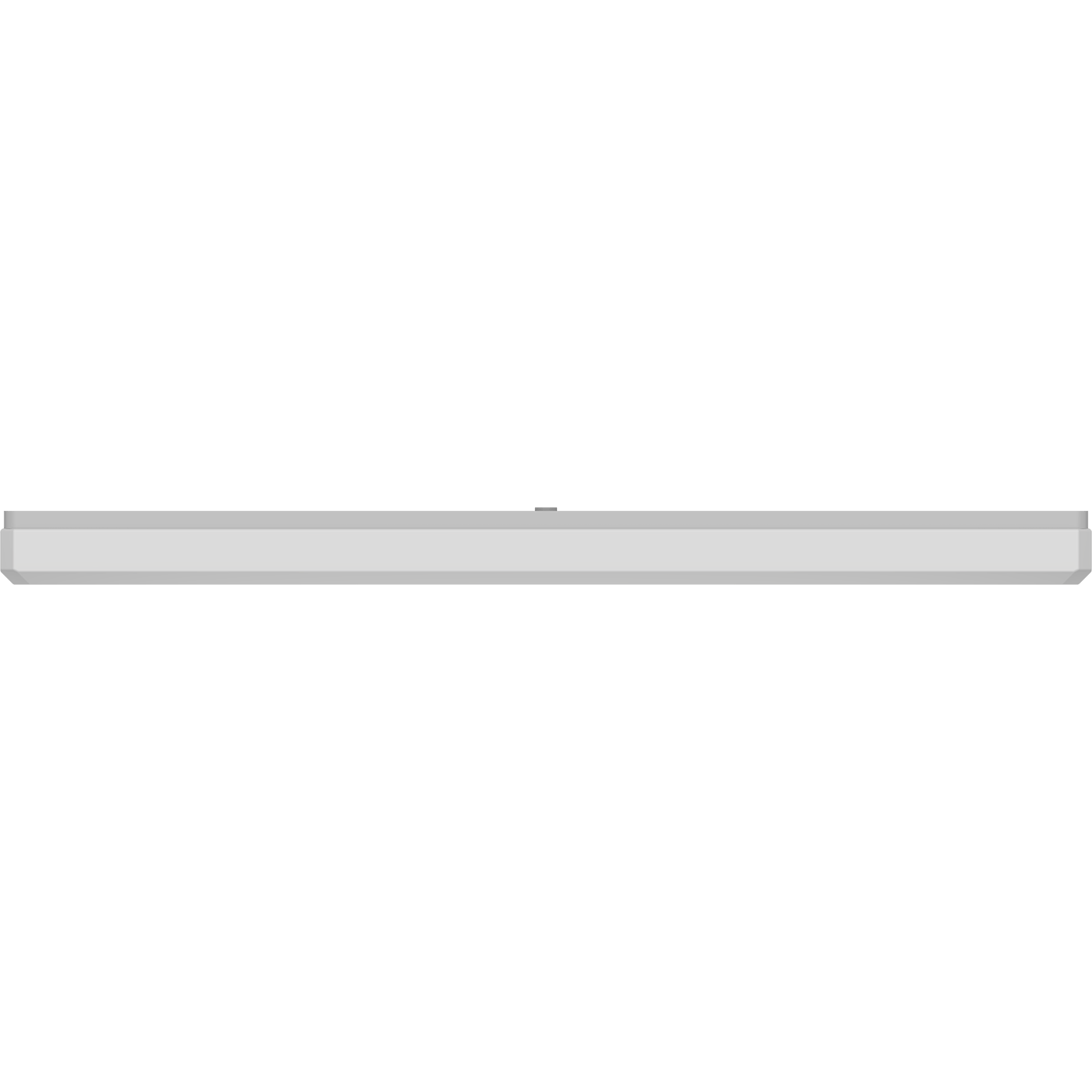

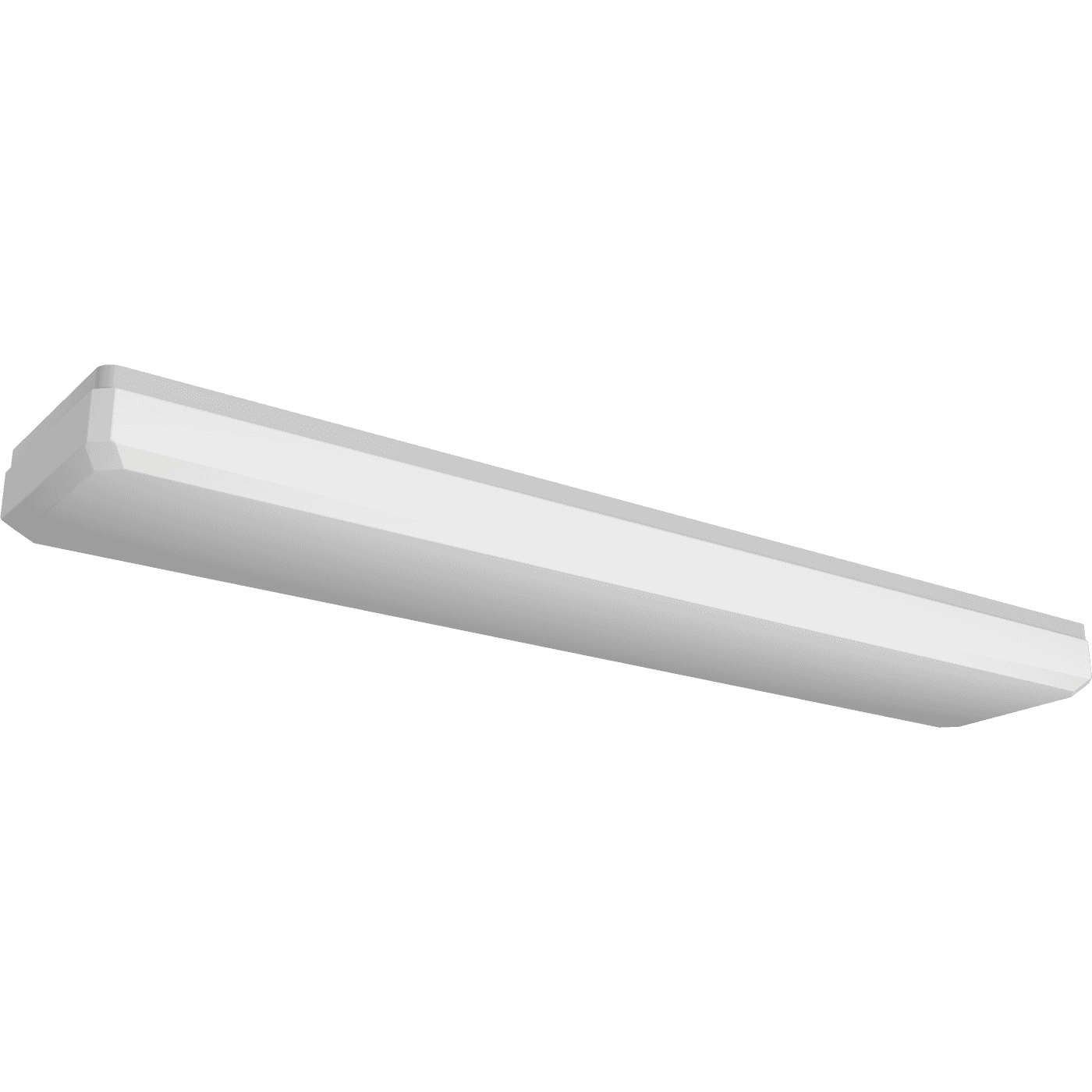

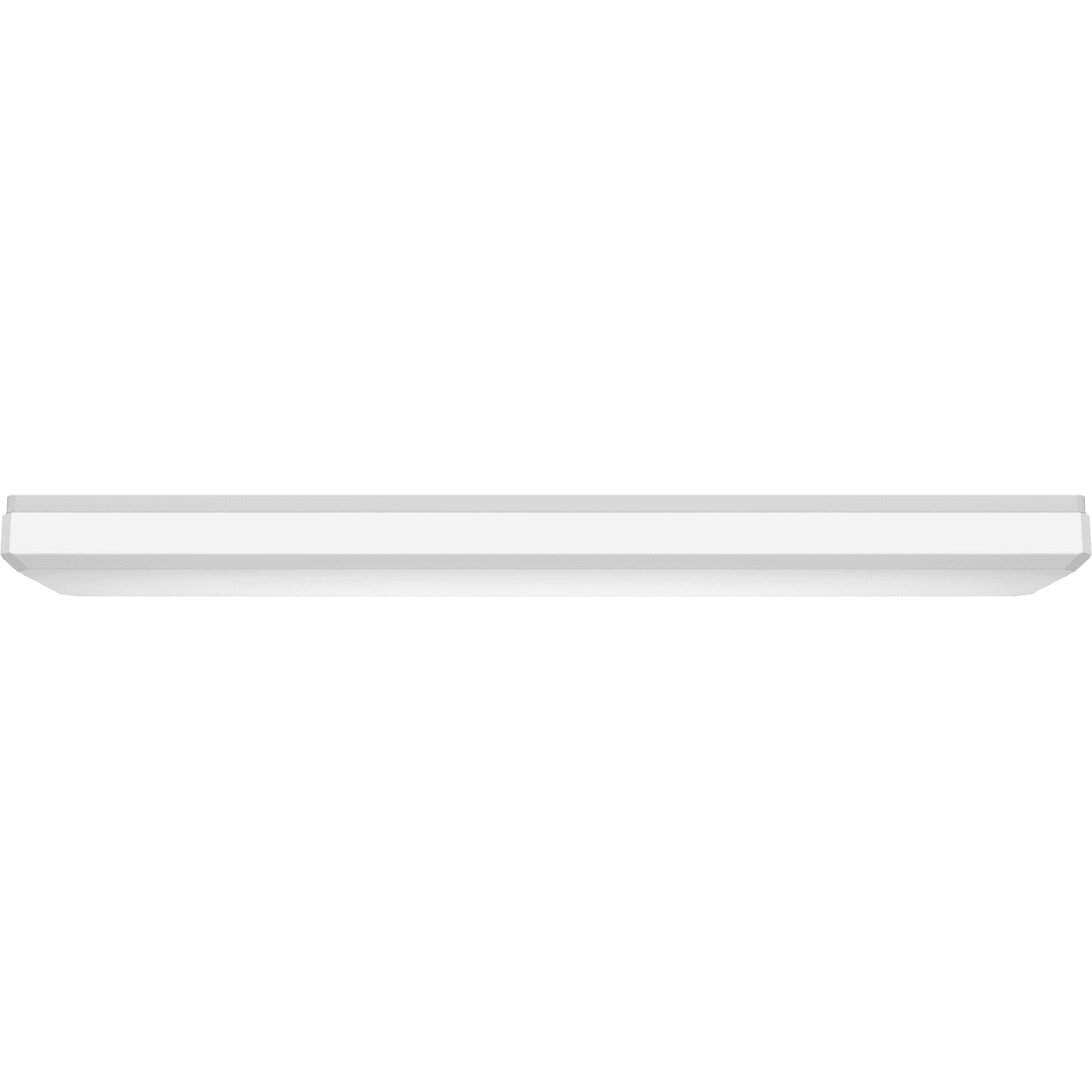

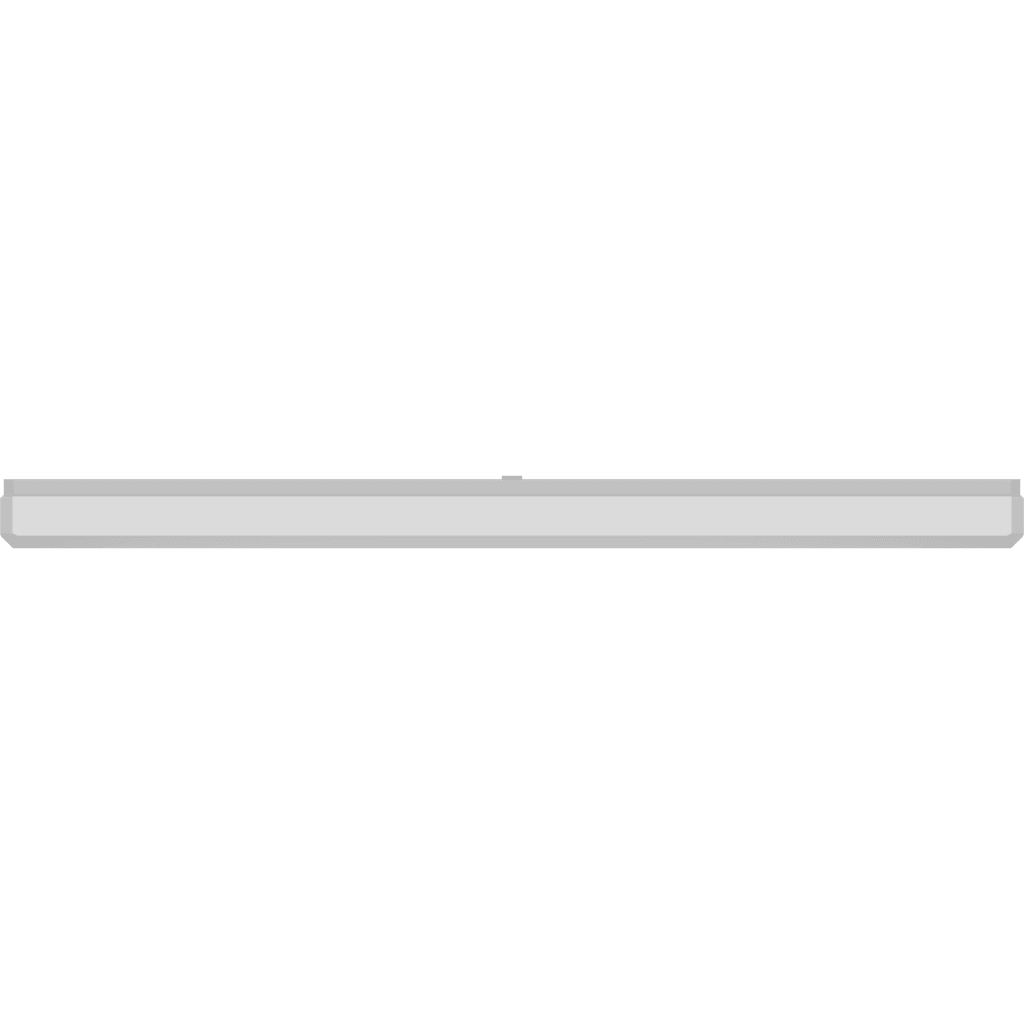

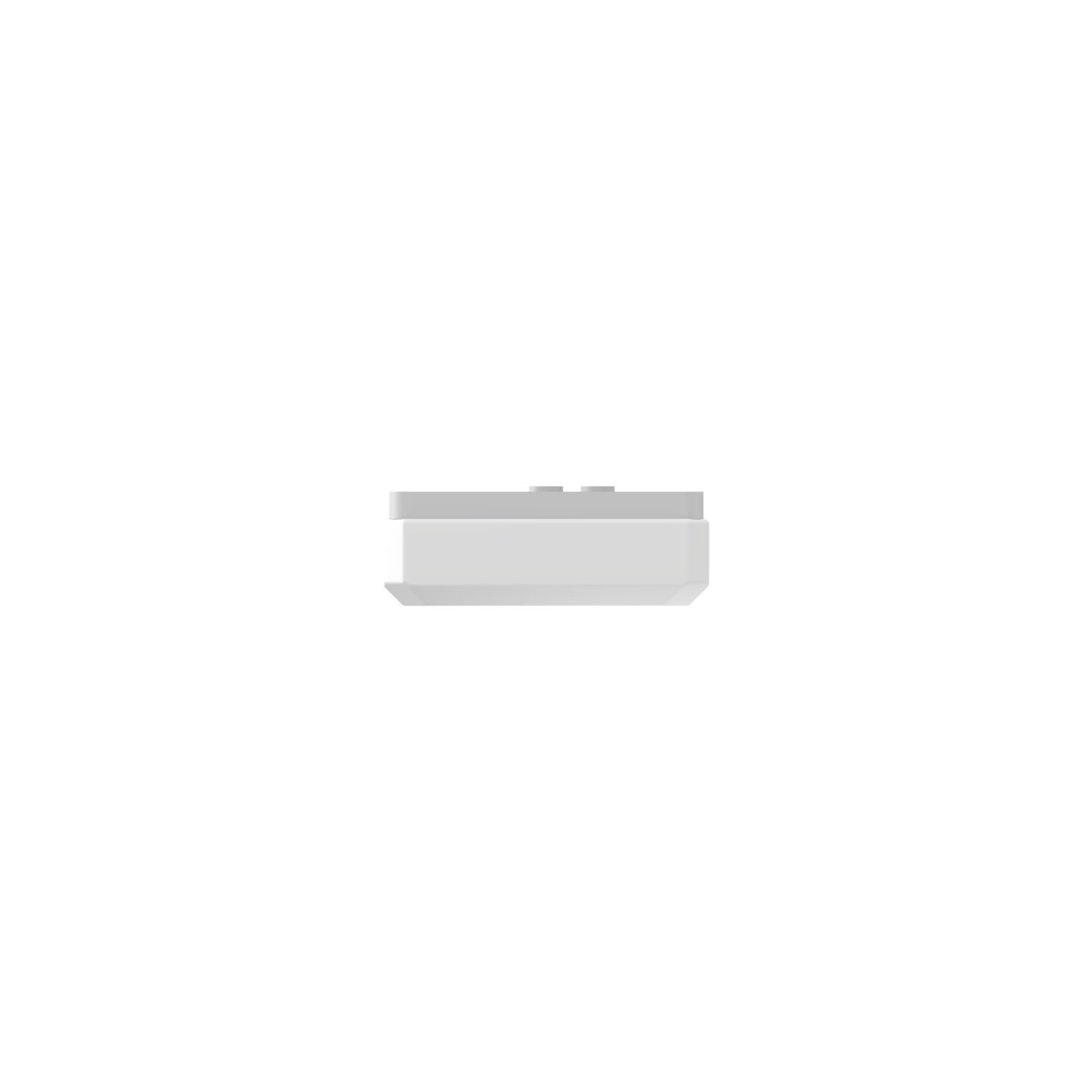

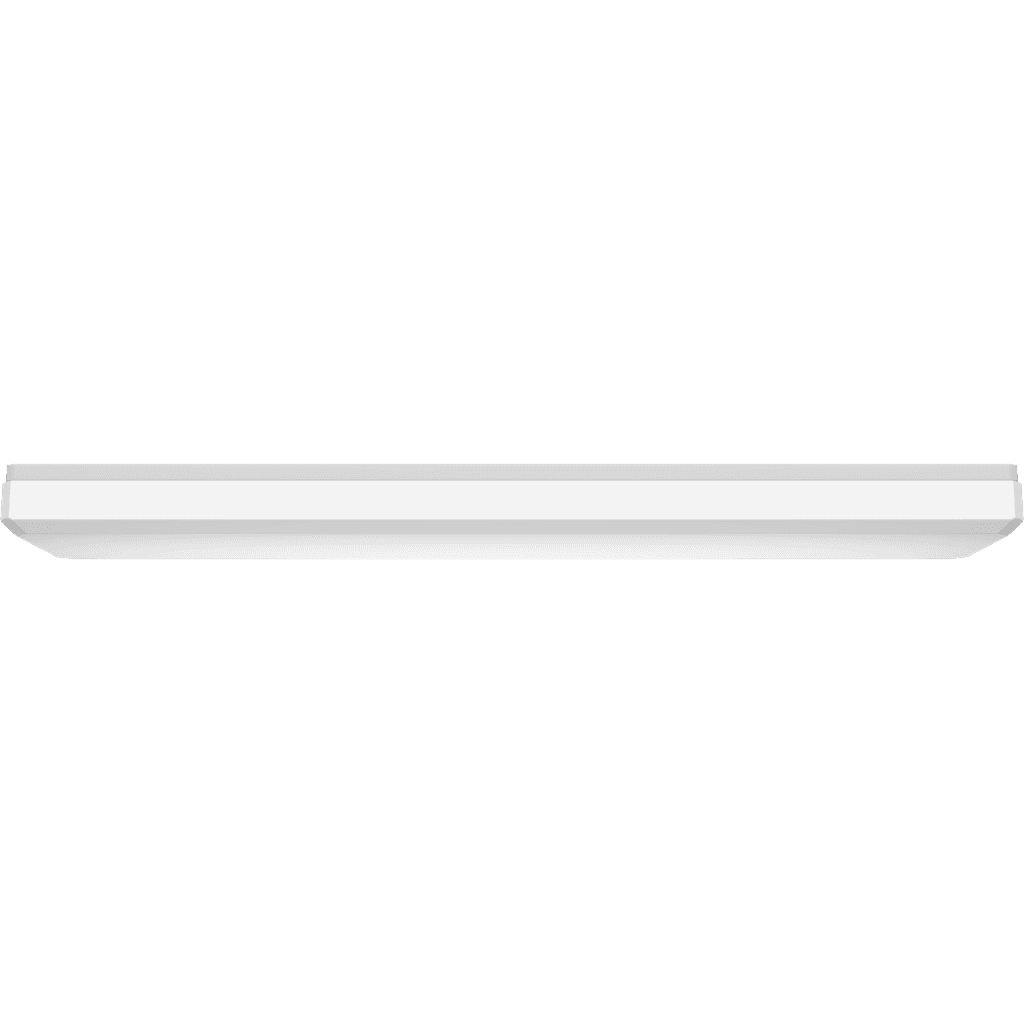

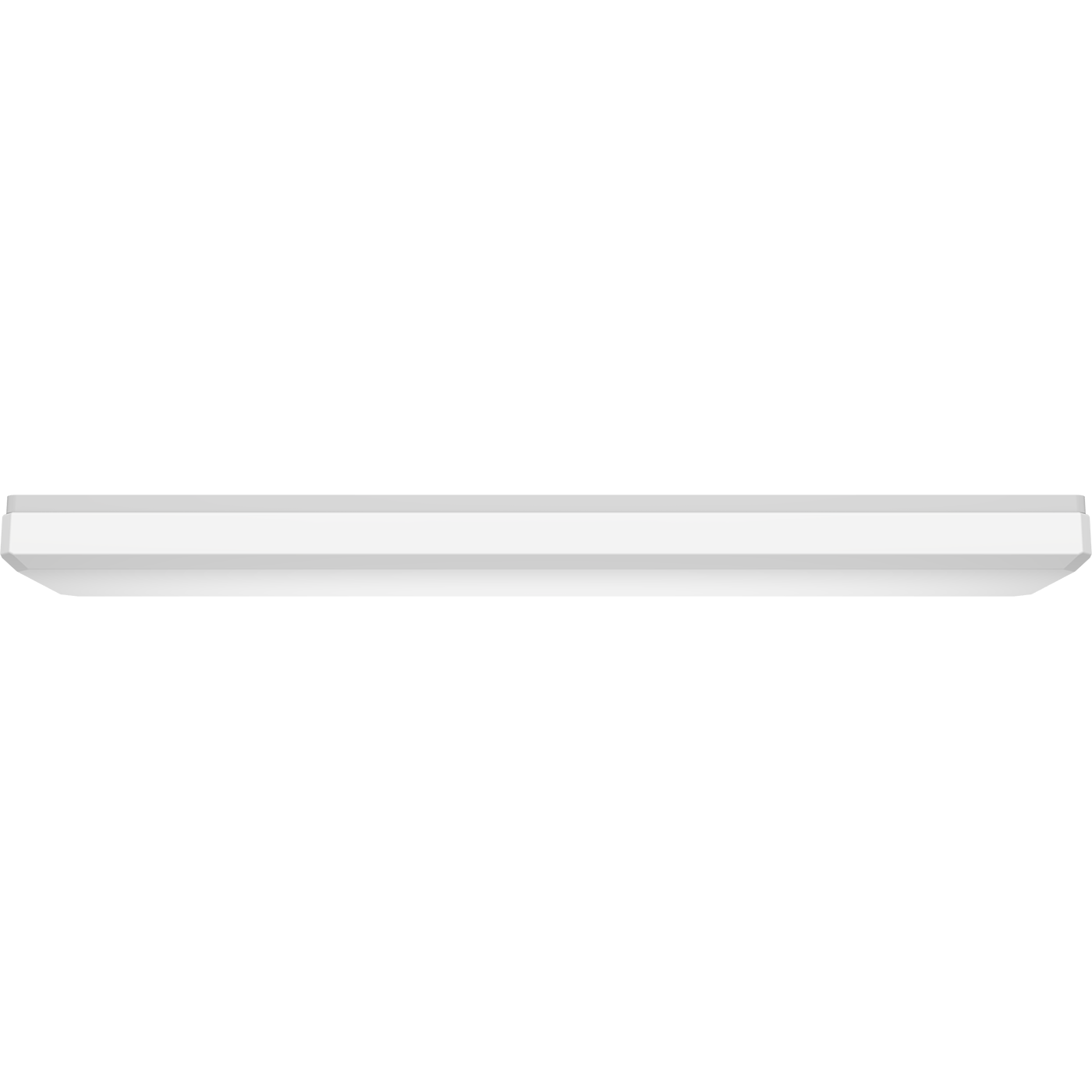

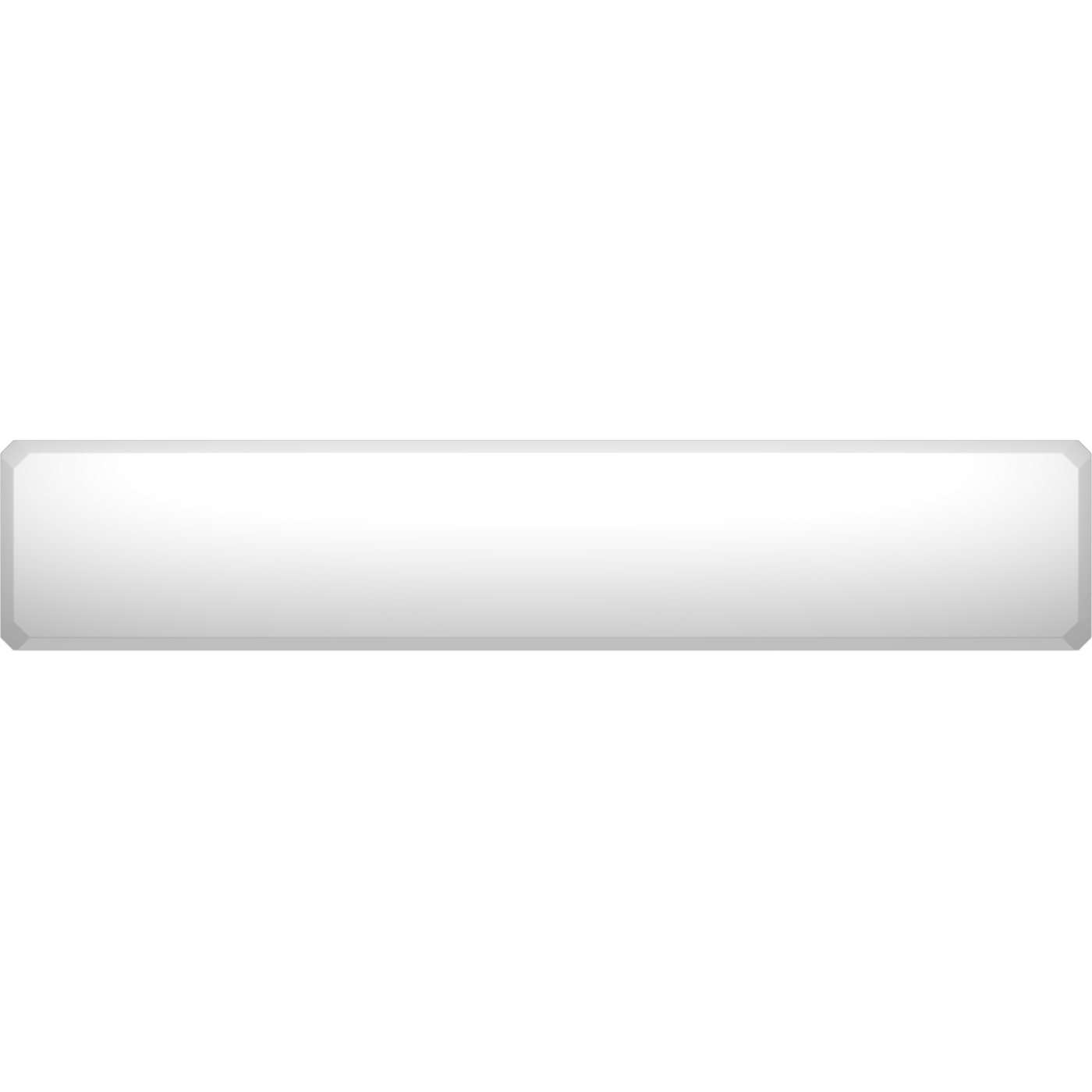

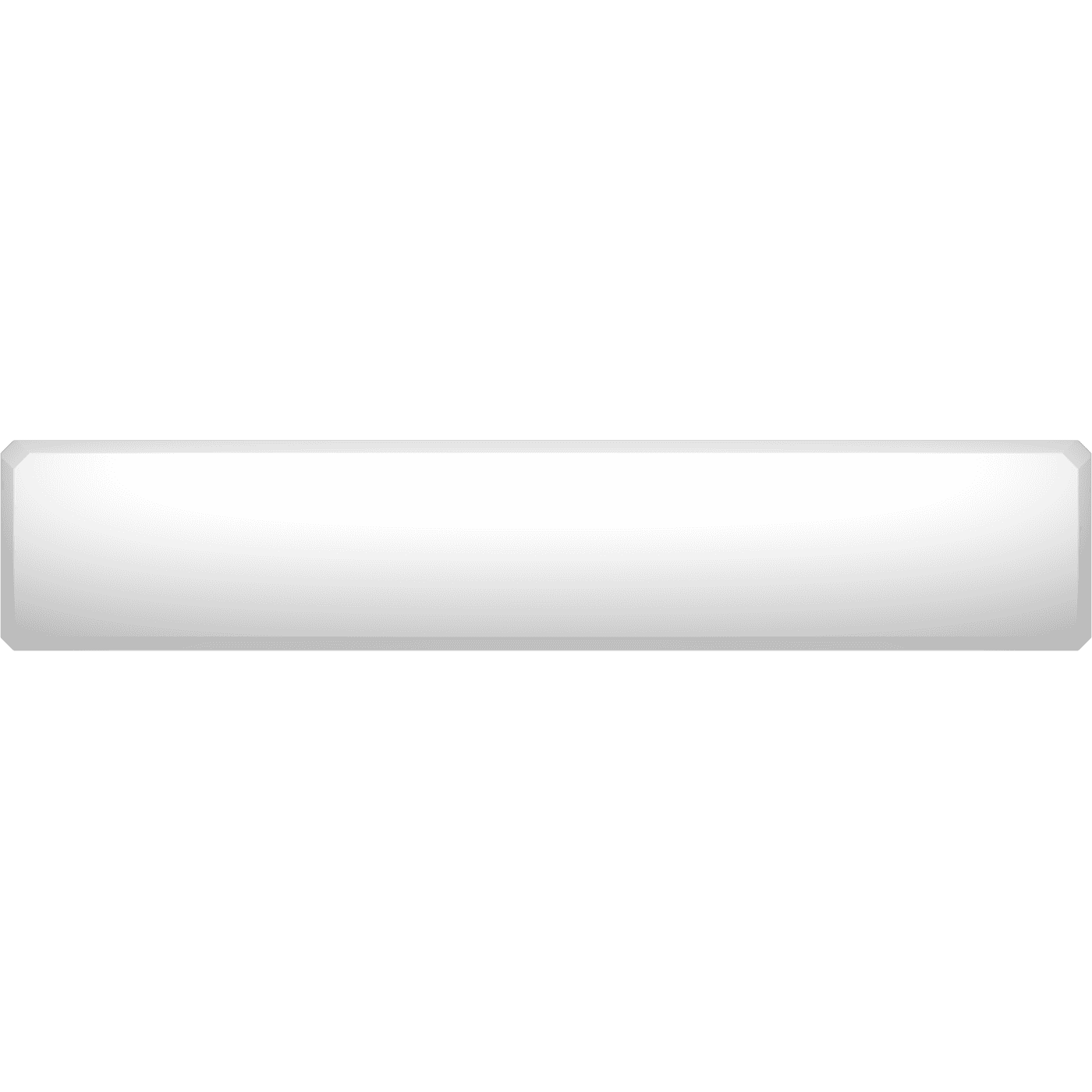

ALS.OPL UNI LED 1200 (50) 4000K

ALS.OPL UNI LED 1200 (50) 4000K
50 Wluminaire power
5600 lmlight flow
112 lm/Wenergy efficiency
code1066000120
color temperature4000
beam angleD120
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
50 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2*
material
Пластик
weight
4 kg
length, mm
1270 mm
width, mm
190 mm
height, mm
95 mm
housing color
Серый
installation length, mm
748 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1066000120
illuminating
color rendition index (CRI)
>80
light flow
5600 lm
flickering factor
<5%
energy efficiency
112 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS3.5 mB
model 3dMax1.2 mB

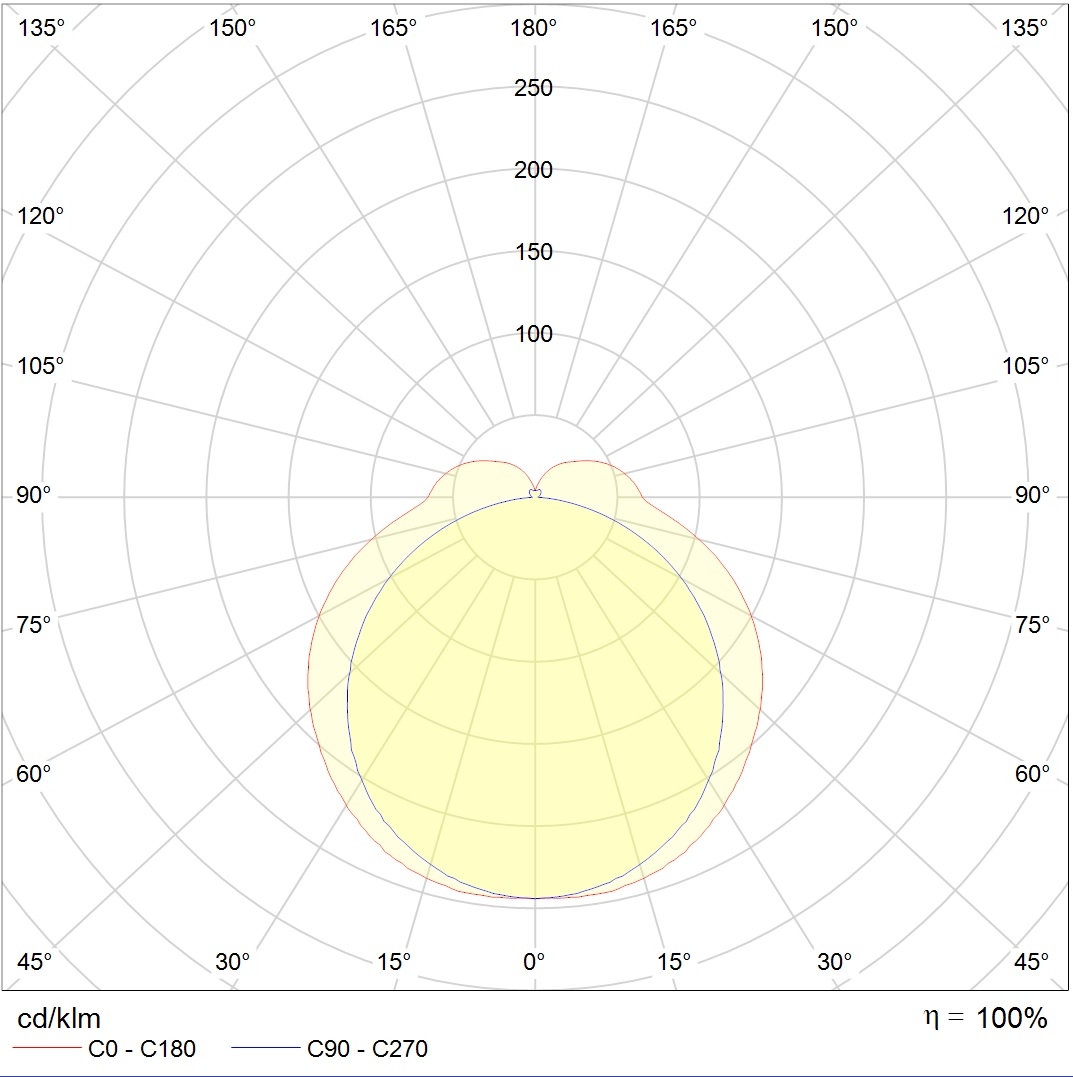

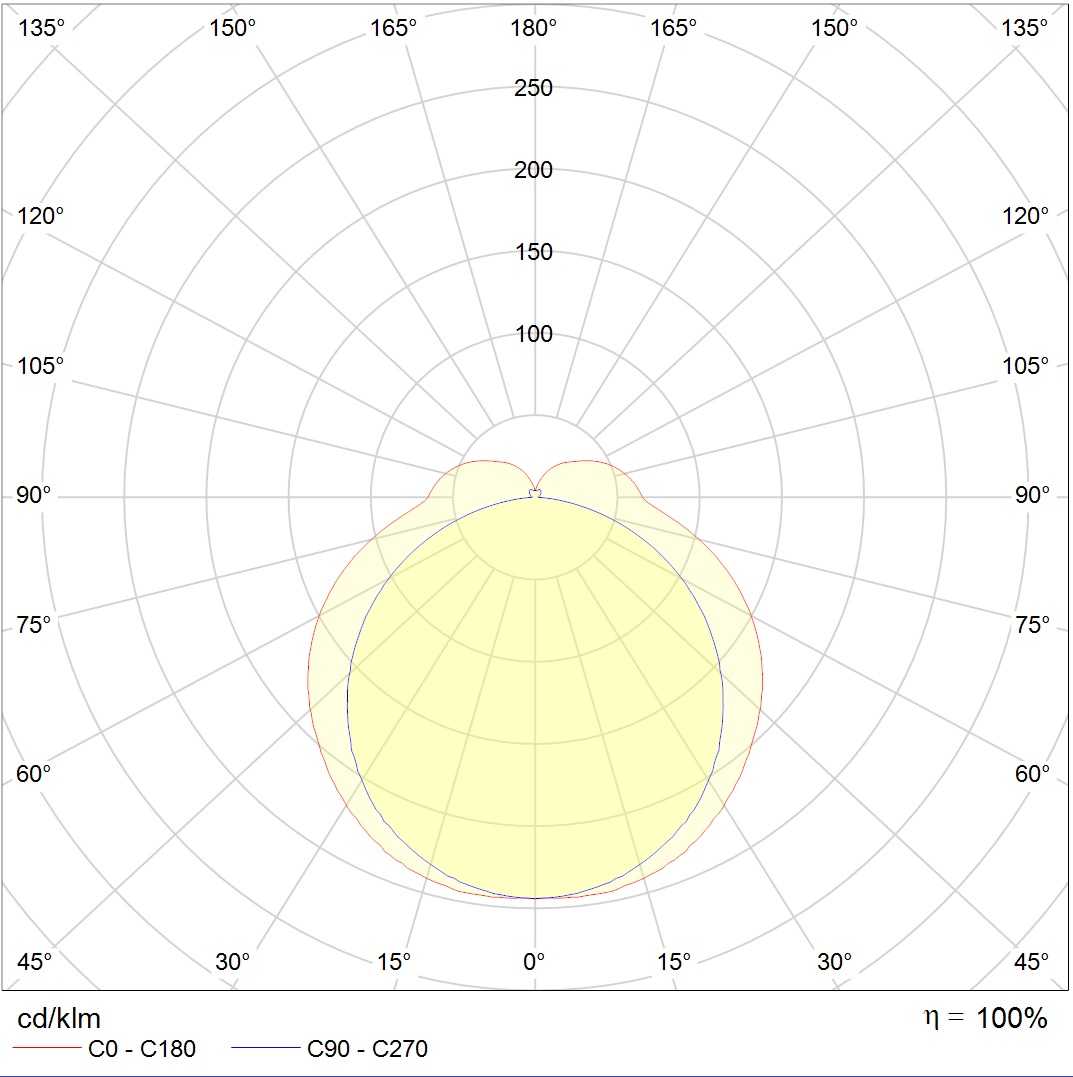

photometric files
