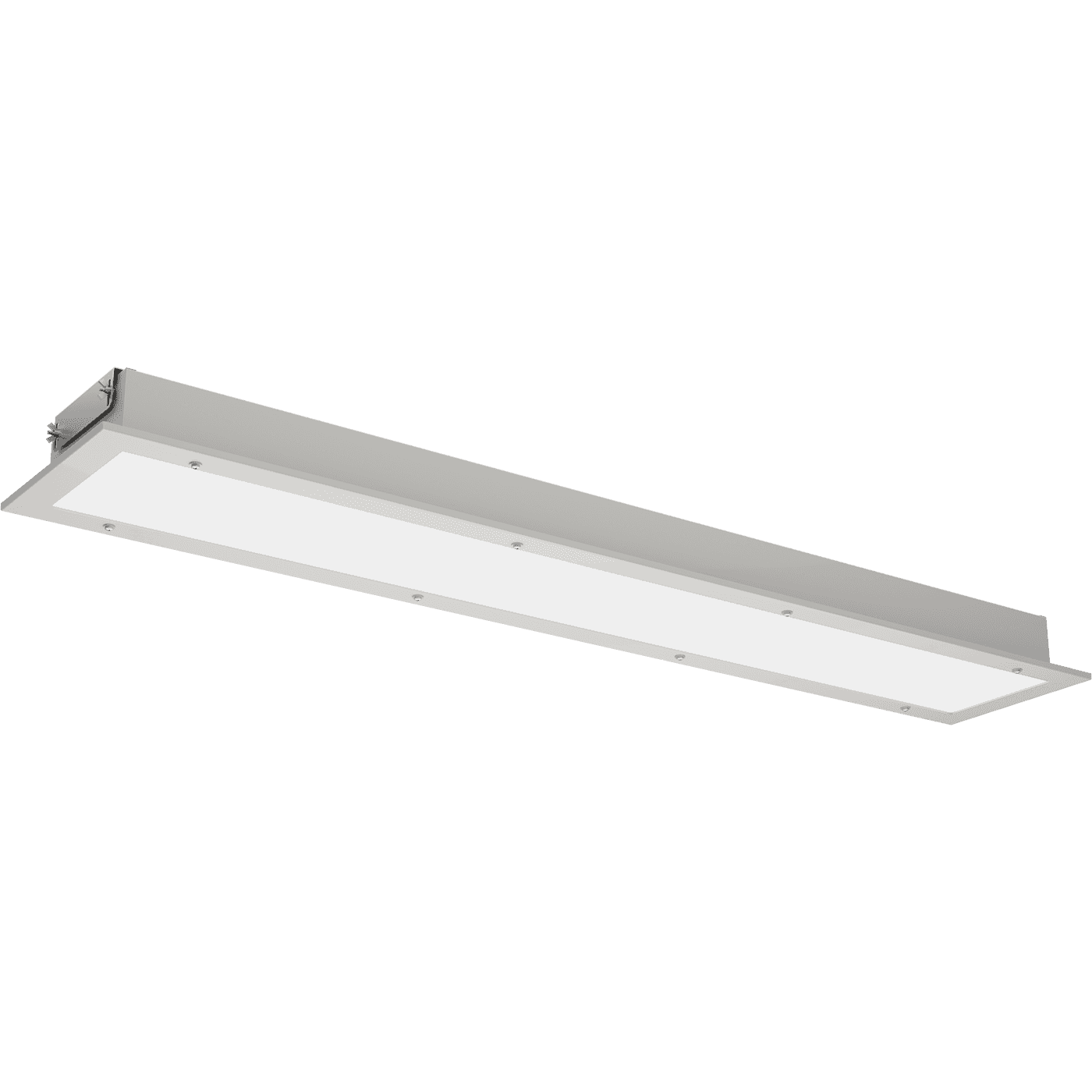

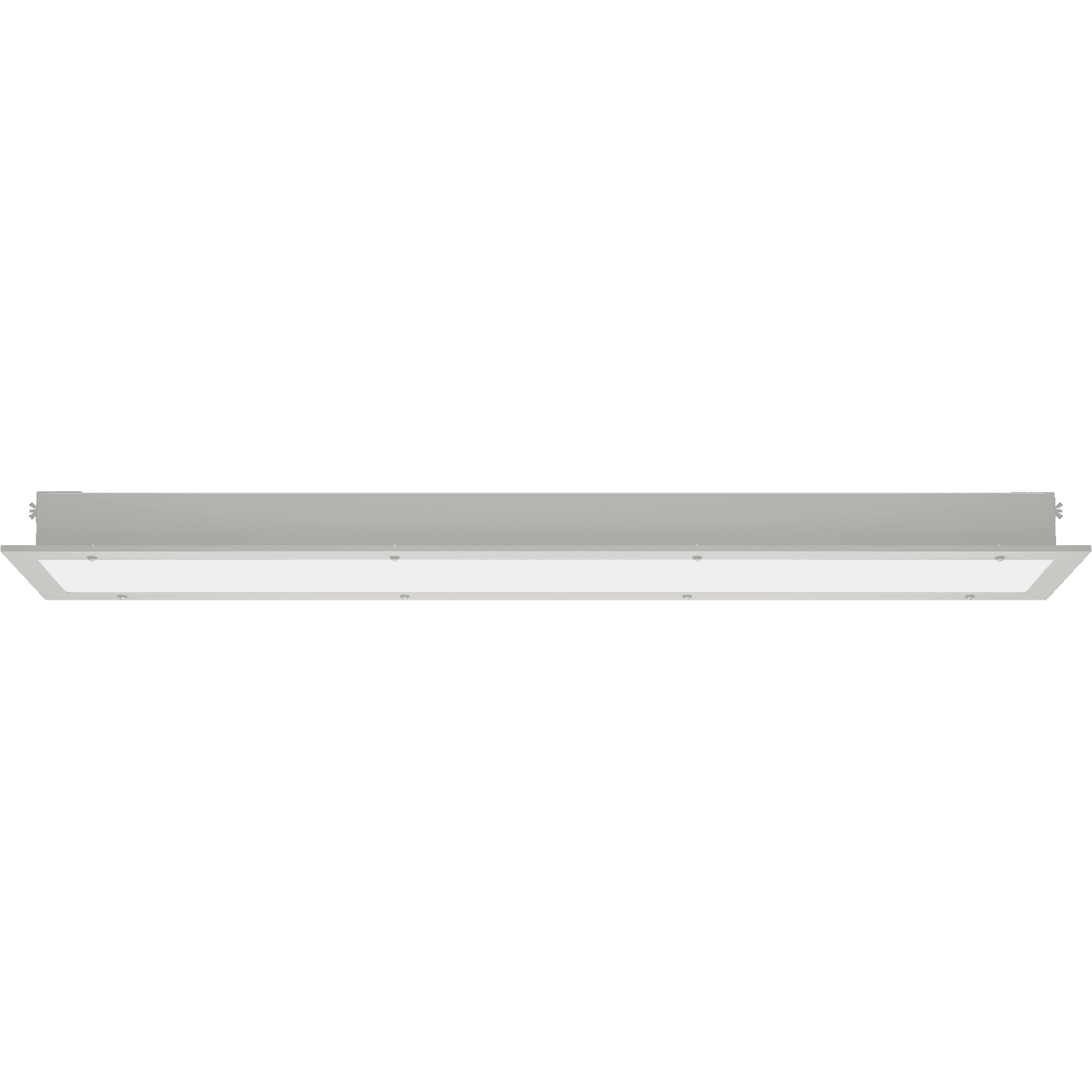

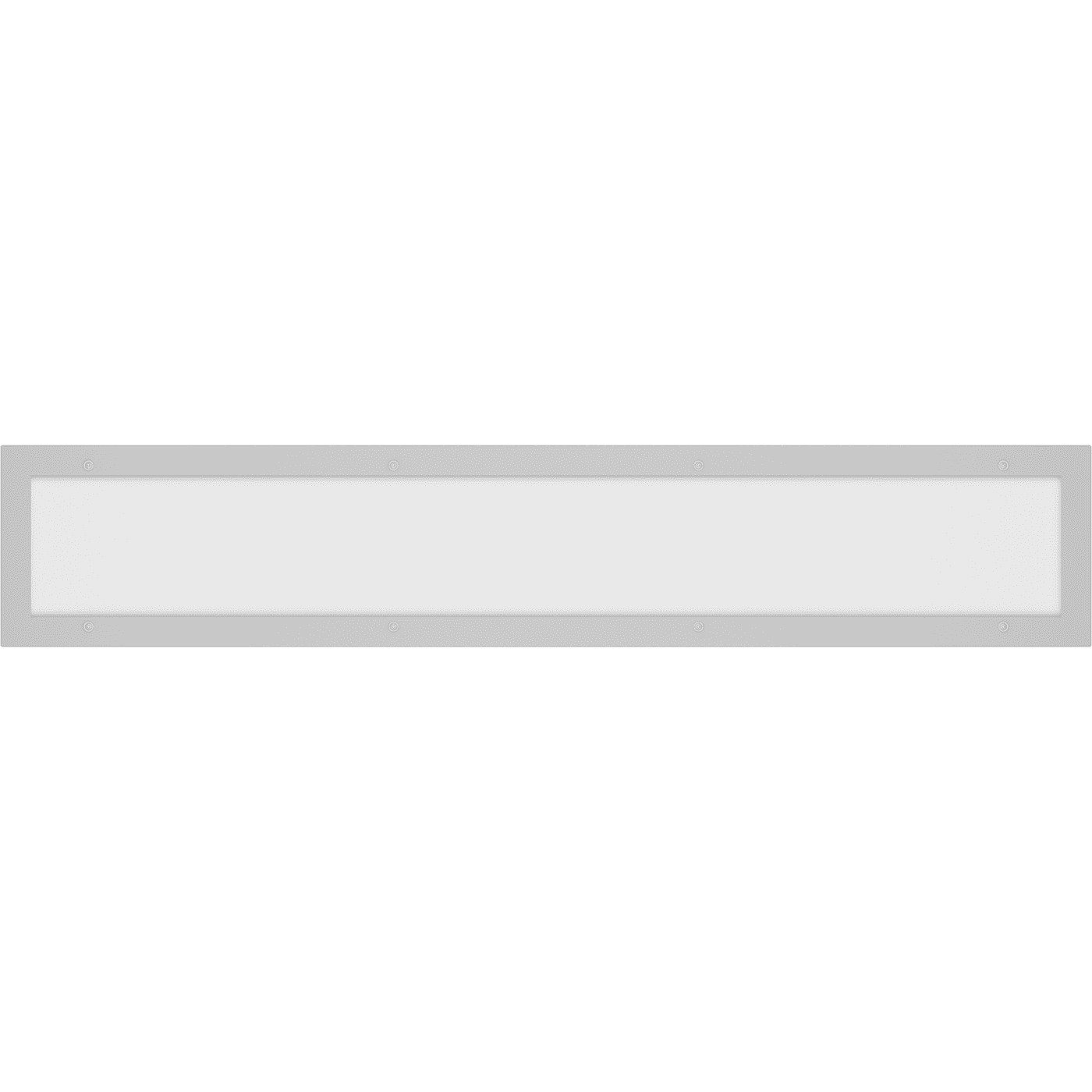

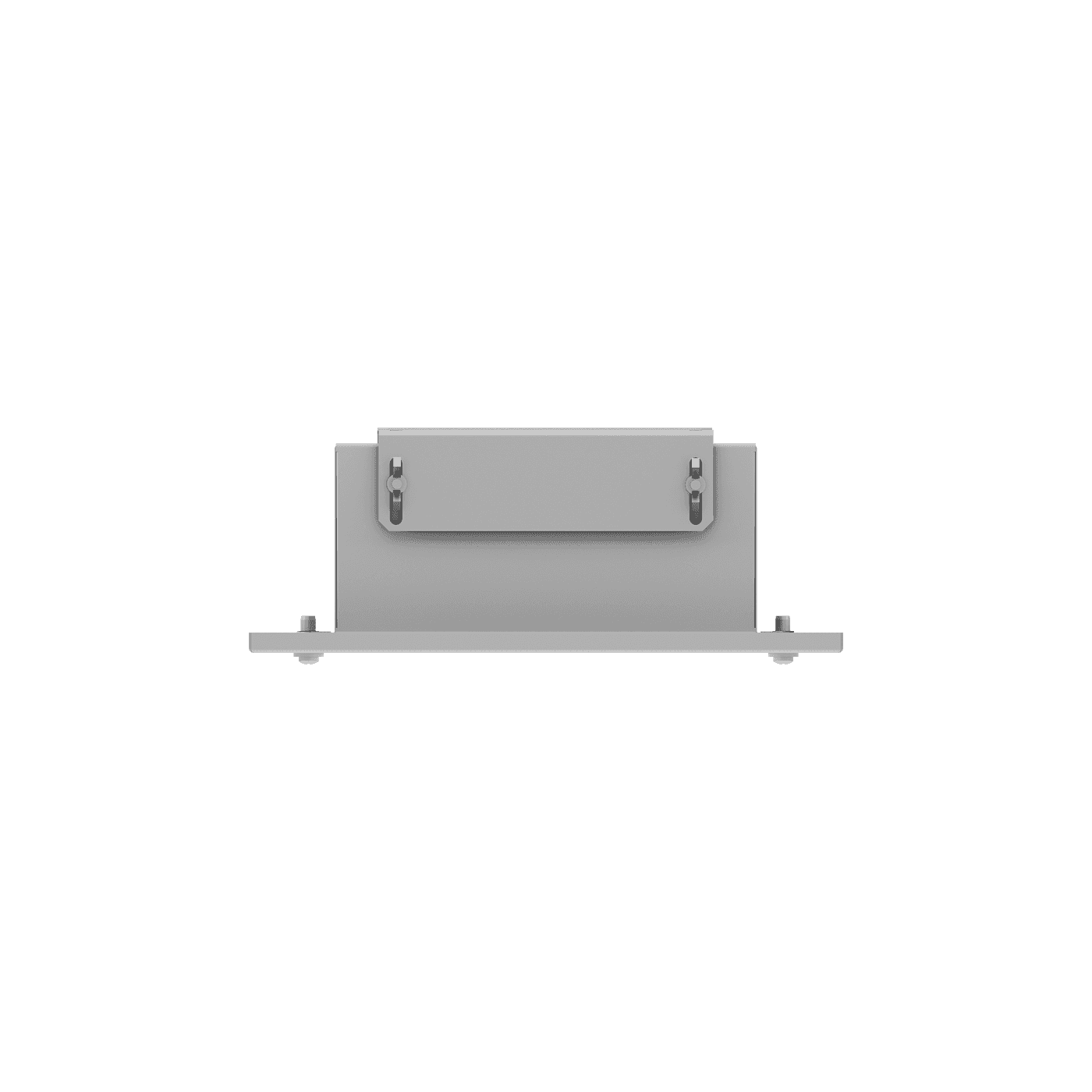

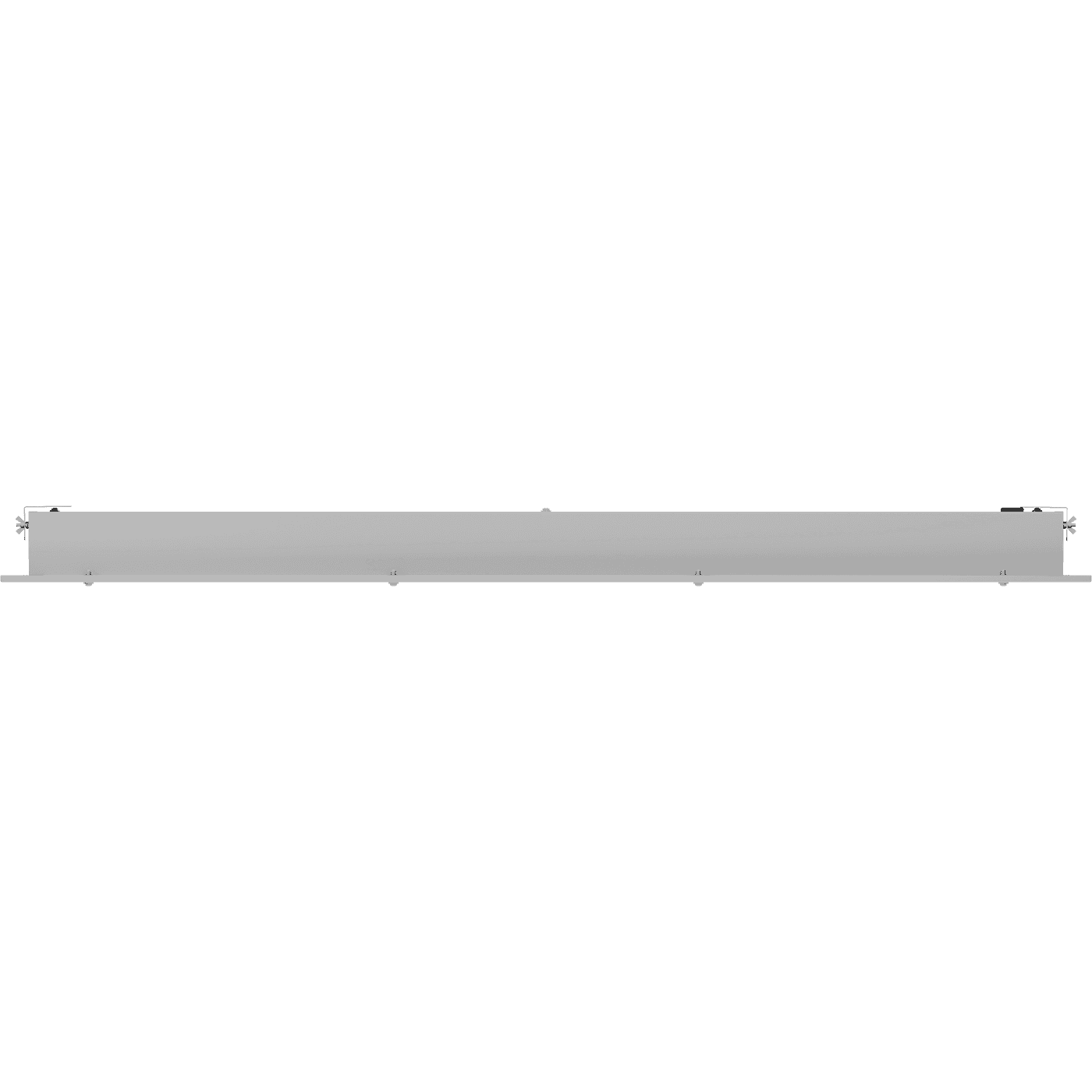

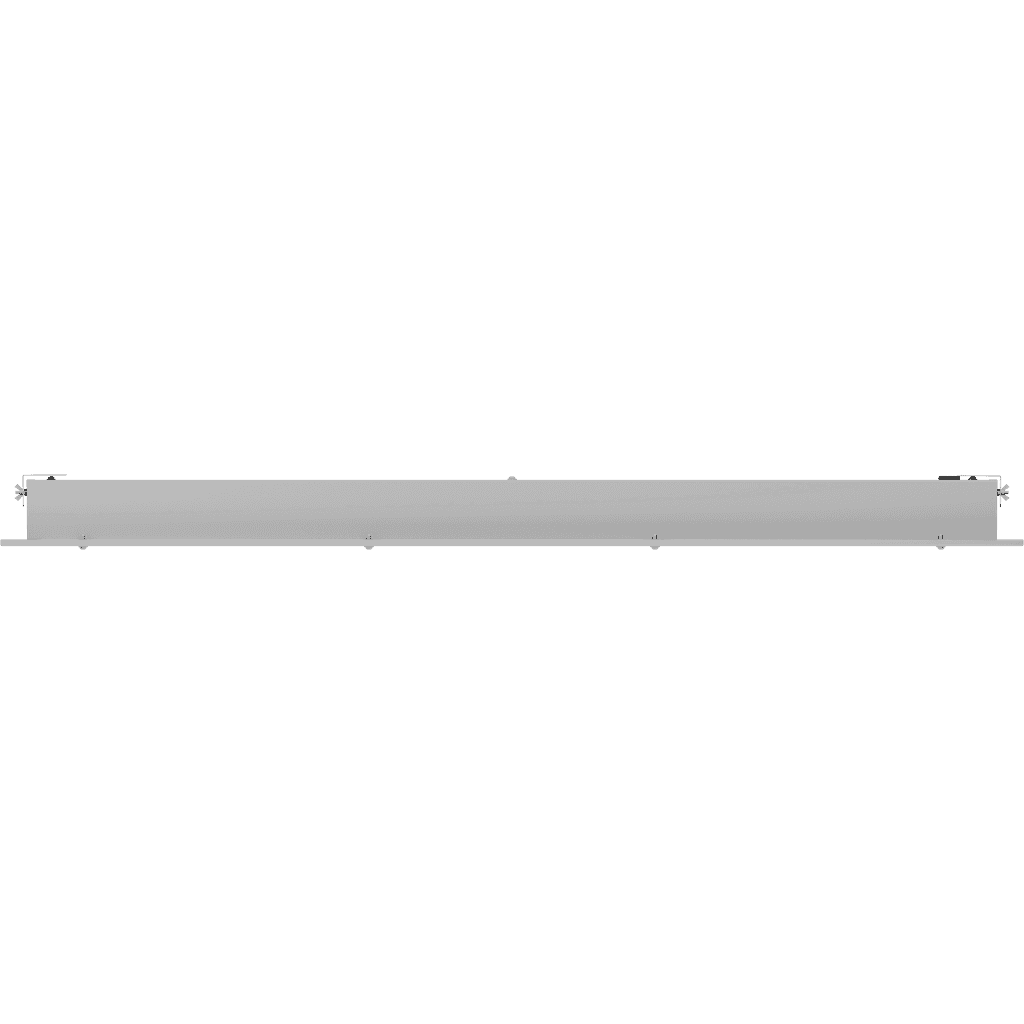

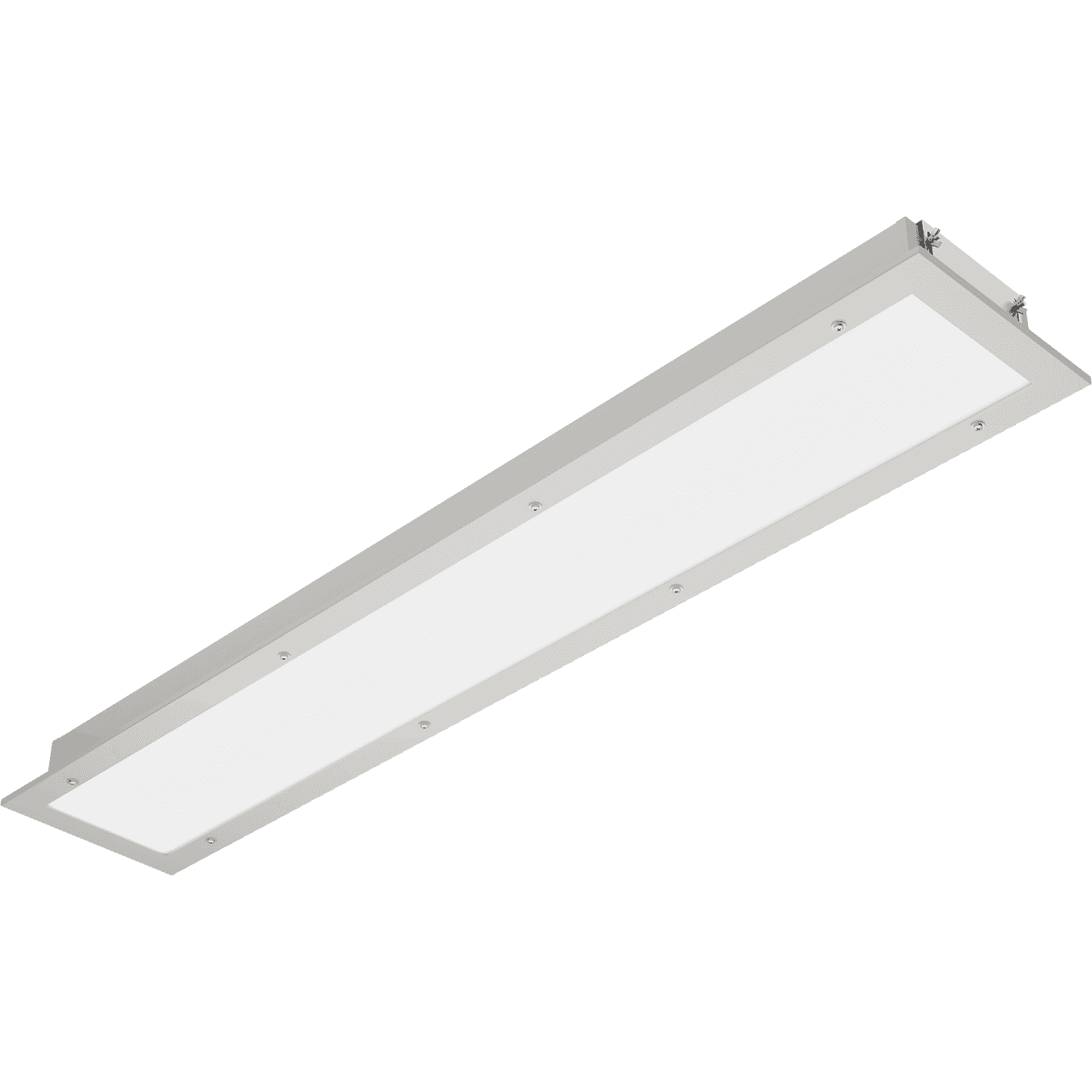

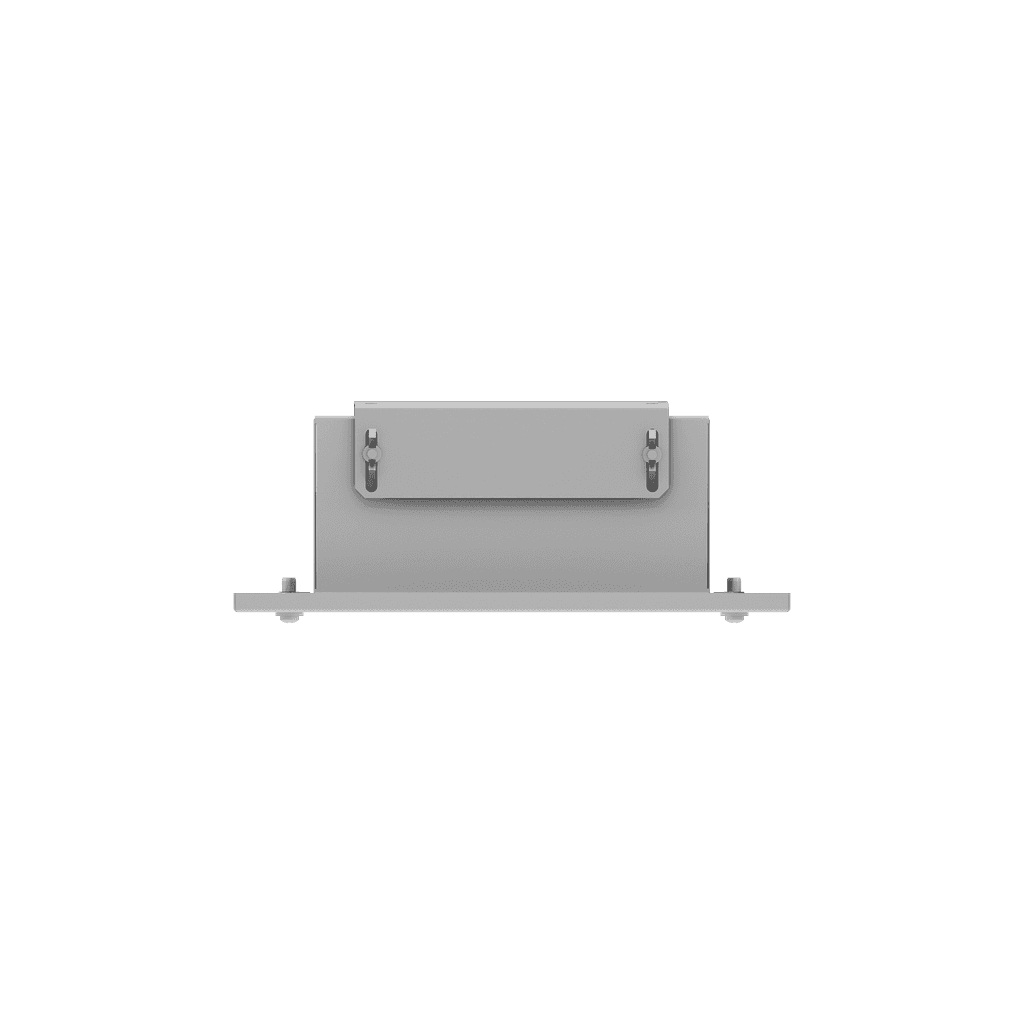

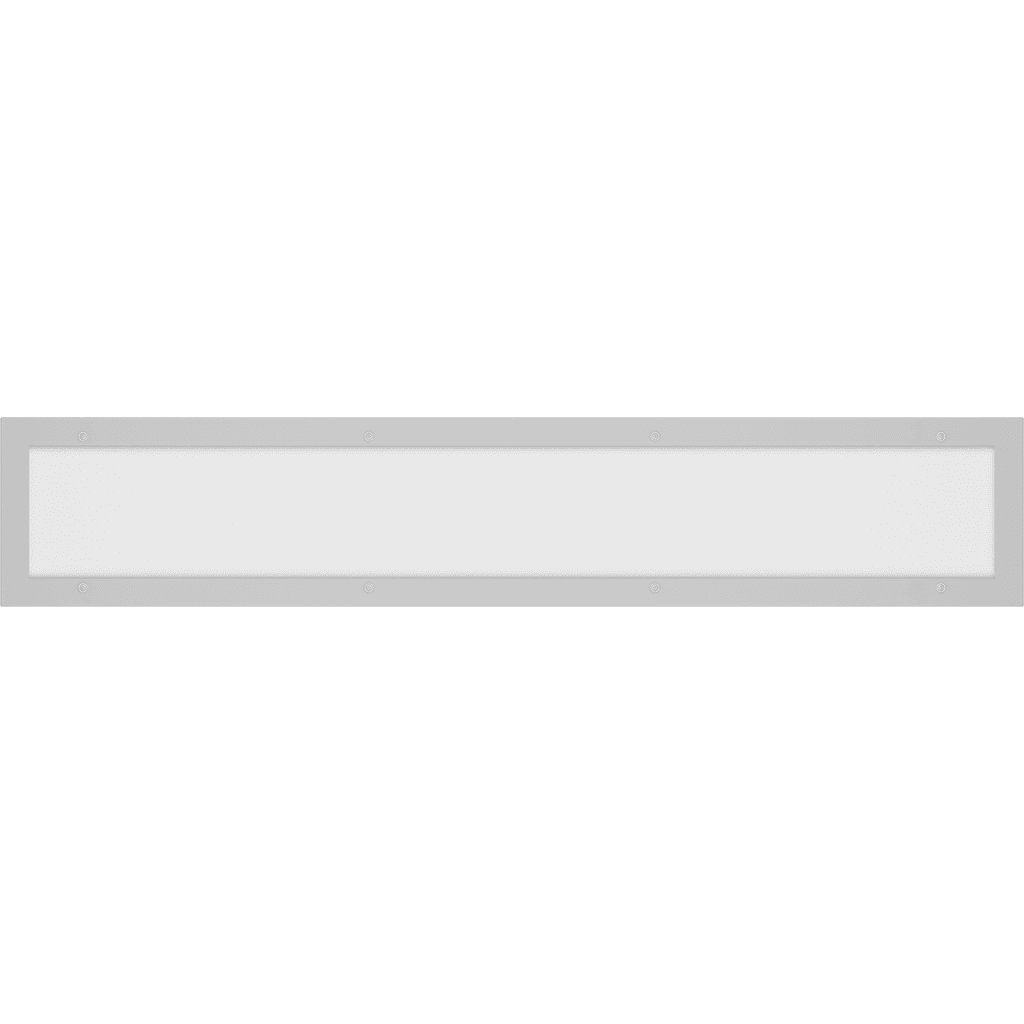

ALD LED MARINE 1200 4000K
ALD LED MARINE 1200 4000K
48 Wluminaire power
5600 lmlight flow
117 lm/Wenergy efficiency
code1835000010
color temperature4000
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
5600 lmenergy efficiency
117 lm/Wbeam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
5600 lm
energy efficiency
117 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
luminaire power
48 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
material
Сталь
width, mm
240 mm
height, mm
90 mm
installation width, mm
200 mm
housing color
Белый
length, mm
1290 mm
weight
5.1 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
ОМ1
common
code
1835000010
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от -40 до +45 C
model files
model files

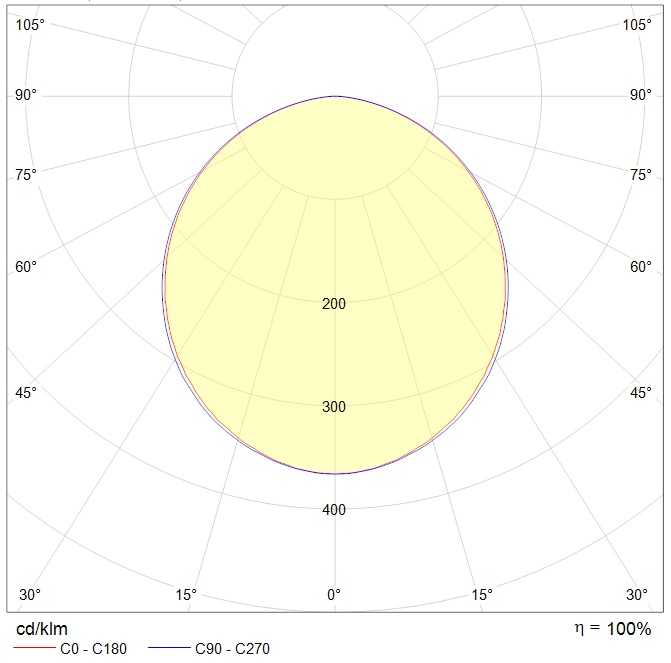

photometric files
сертификаты
photometric files
ies134.1 kB
jpg61.1 kB
ldt86.8 kB
сертификаты
Russian origin277.7 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
