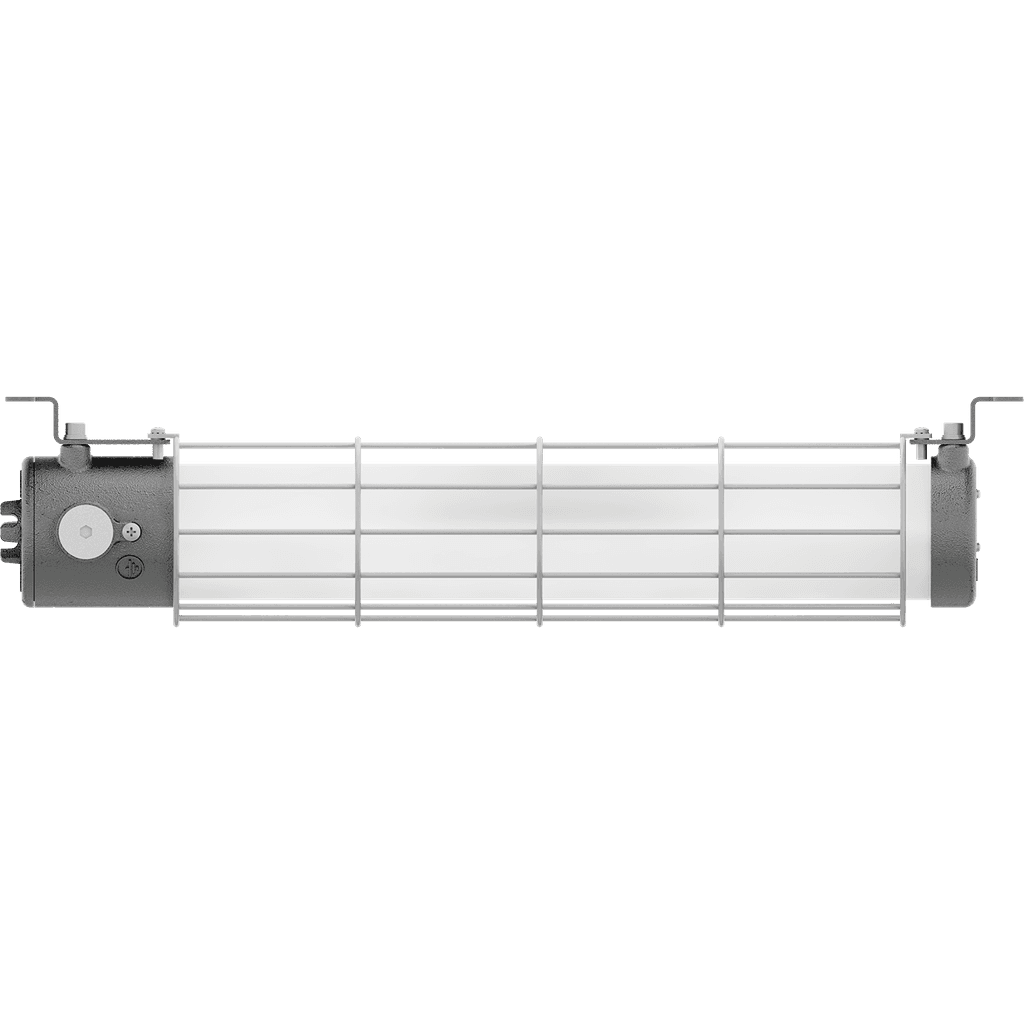

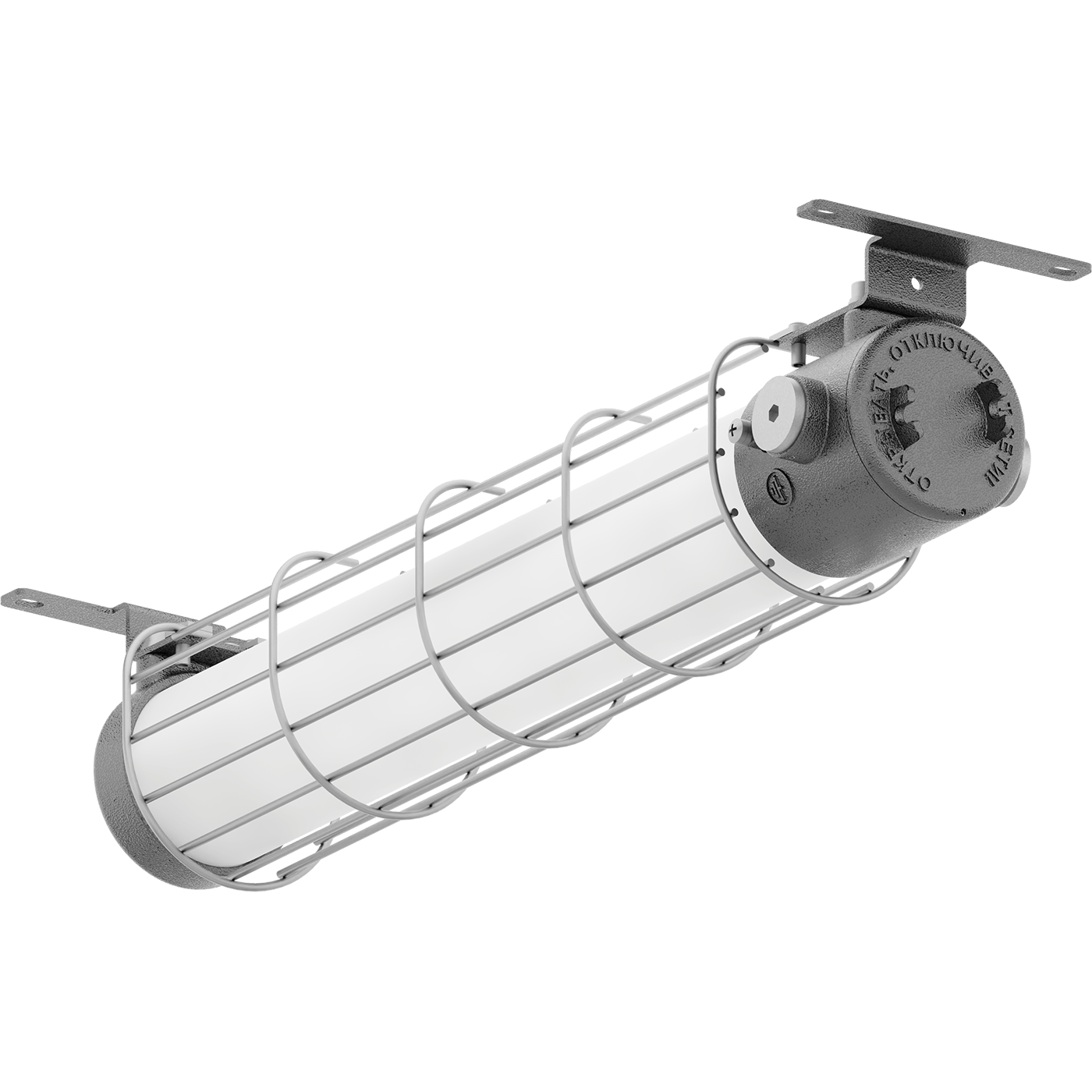

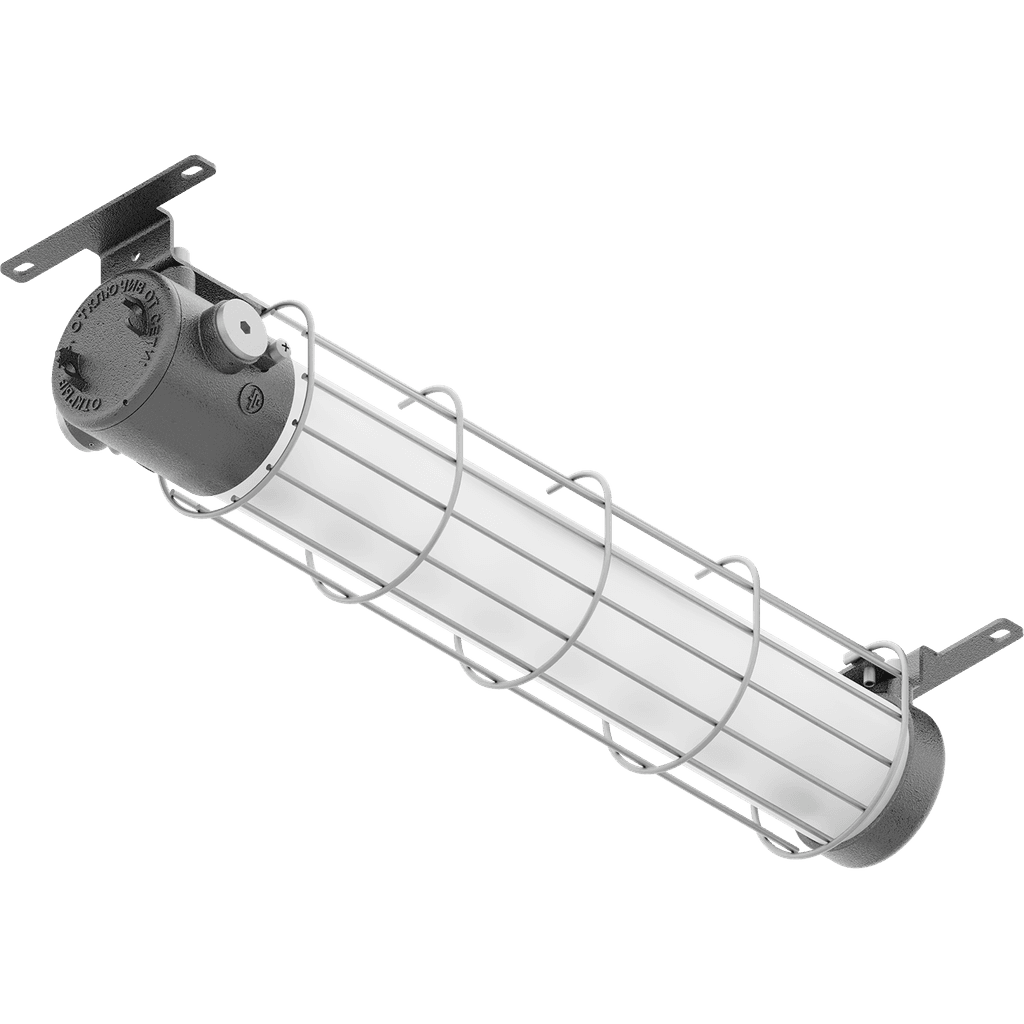

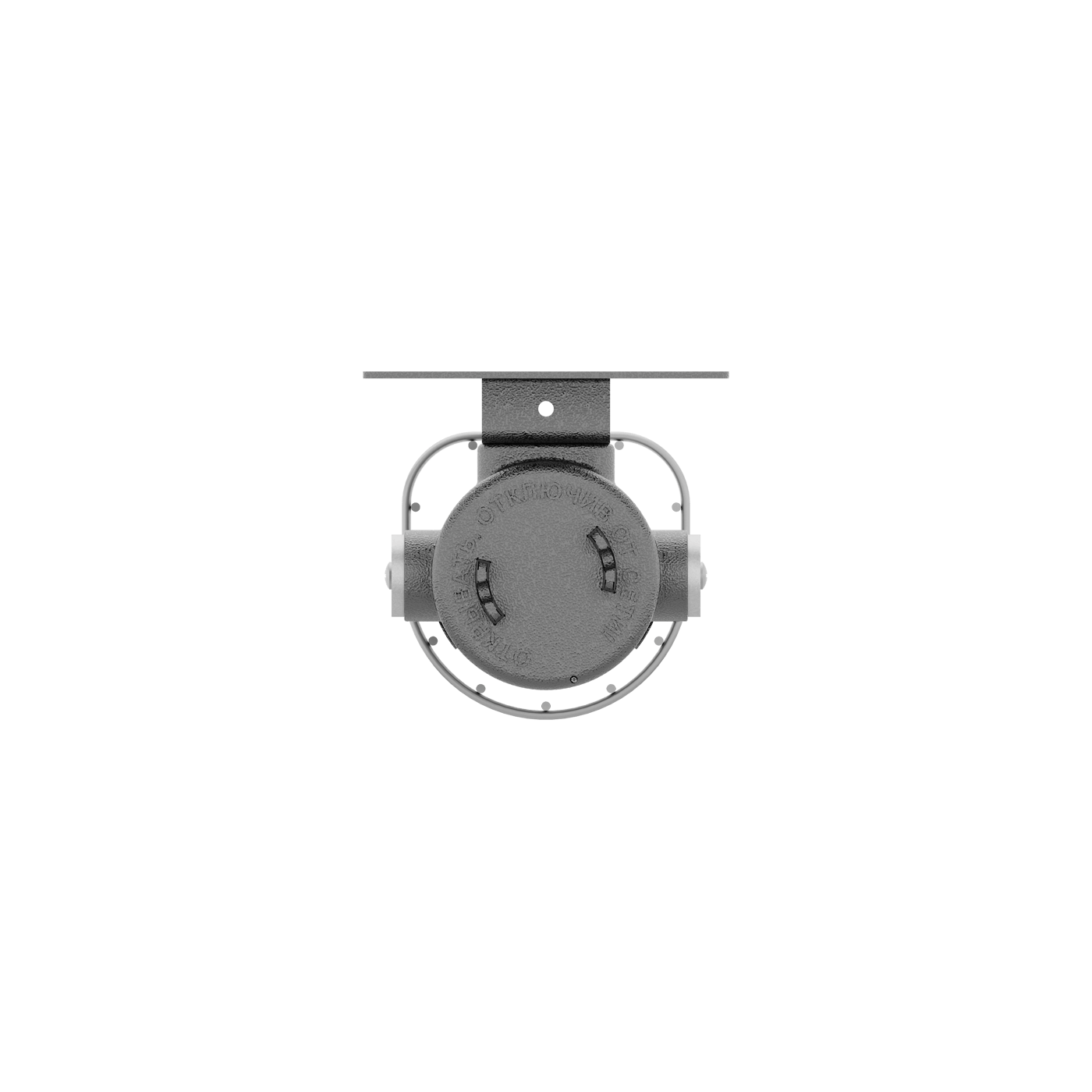

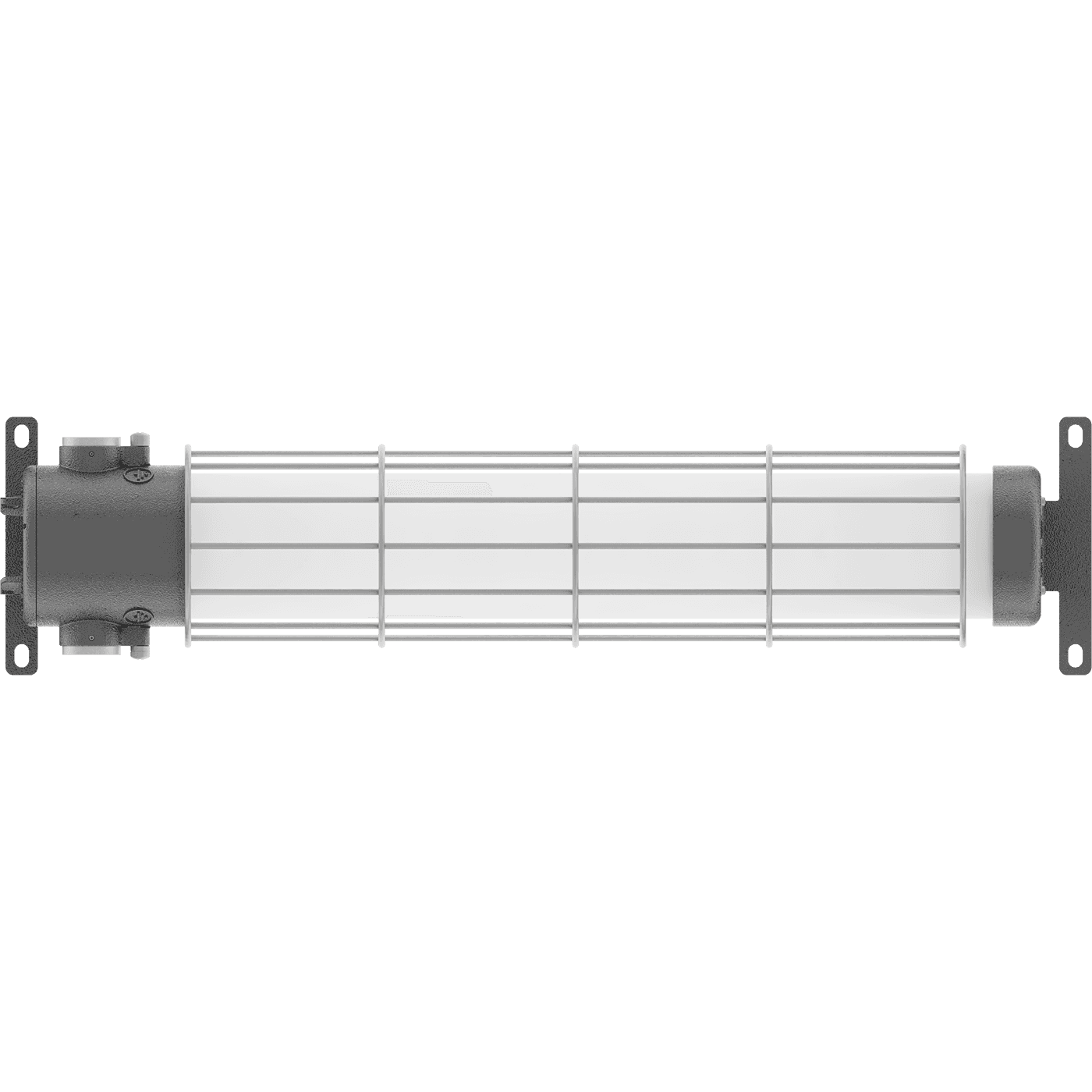

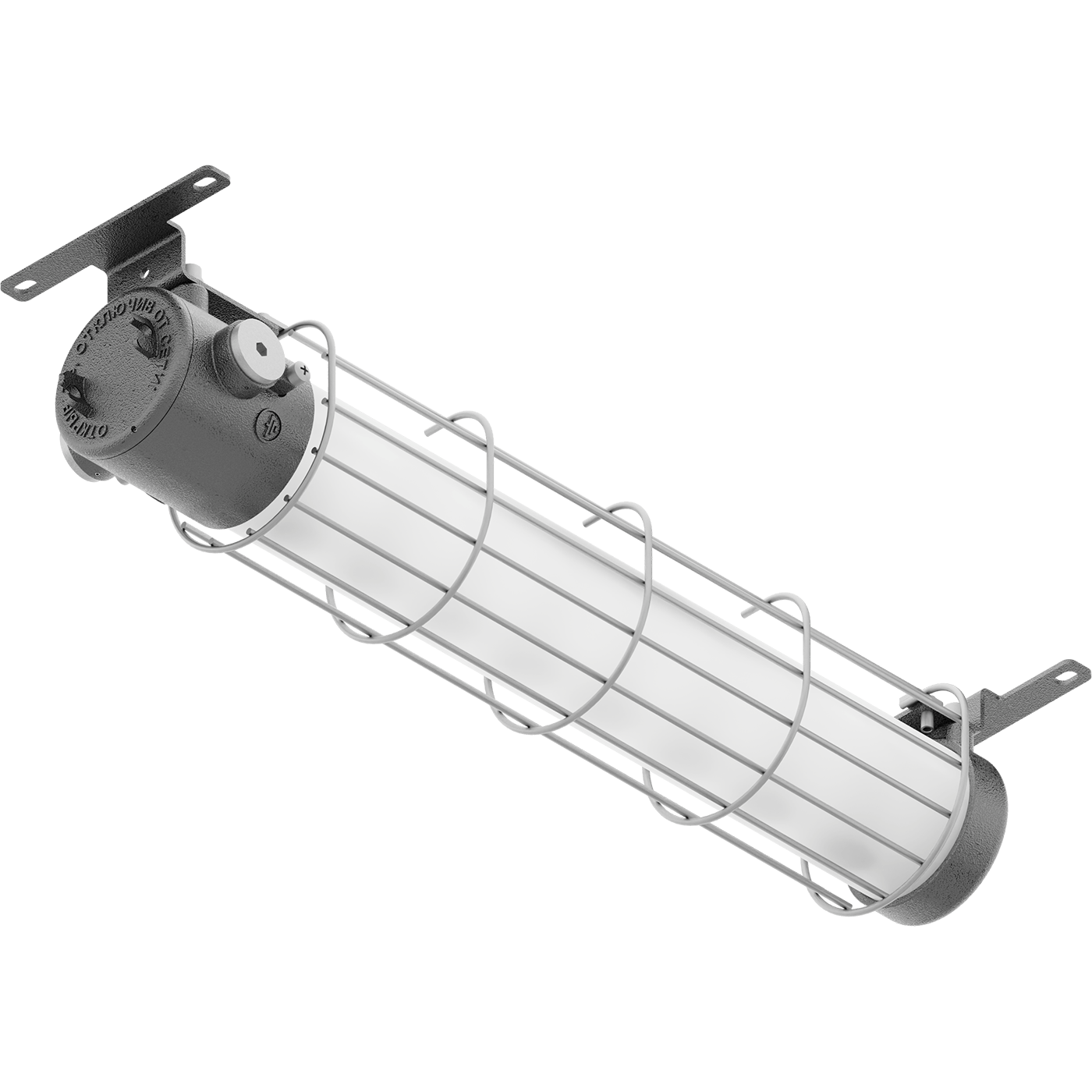

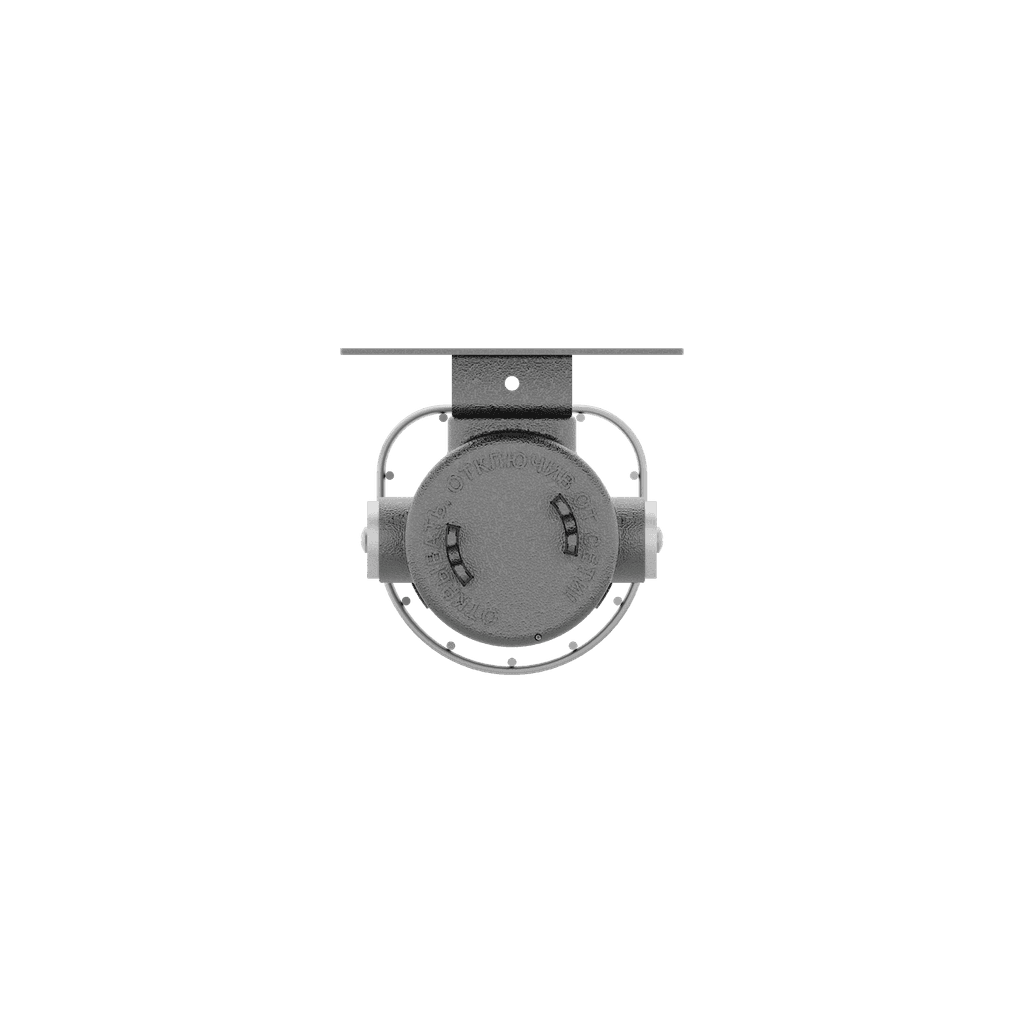

AGATE LED/B 10W 850 HG
AGATE LED/B 10W 850 HG
10 Wluminaire power
1300 lmlight flow
130 lm/Wenergy efficiency
code1805000010
color temperature5000 K
marking for firedamp and coal dustРВ Ex db I Mb X
beam angleD120
weight5.6 kg
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нетcolor rendition index (CRI)
>80light flow
1300 lmenergy efficiency
130 lm/Wflickering factor
<1%beam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
1300 lm
energy efficiency
130 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
176-280 V
supply voltage, alternating current
99-264 V
starting current pulse time
50 µs
luminaire power
10 W
power factor
> 0,95
starting current
5 A

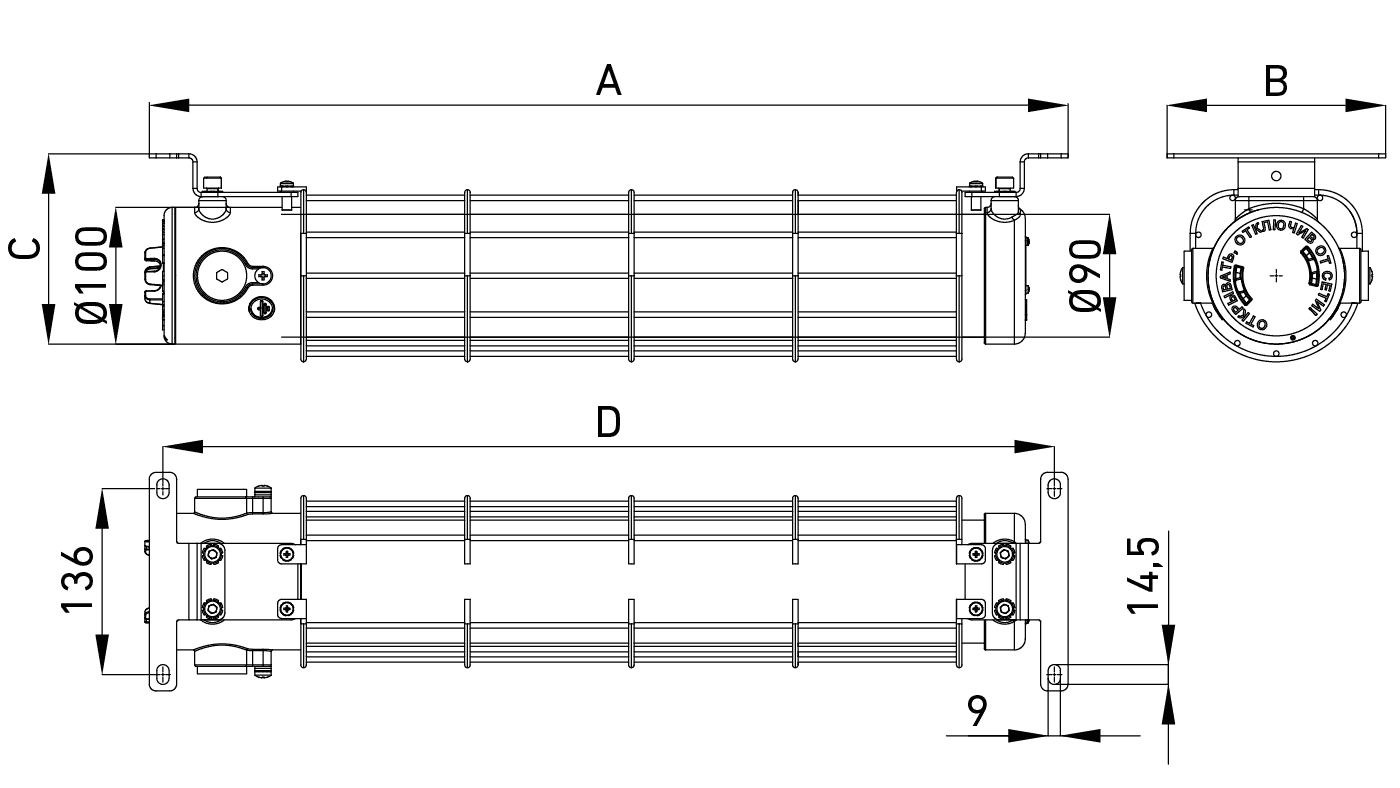

constructional
weight
5.6 kg
length
653 mm
width
136 mm
height
131 mm
installation length
563 mm
installation width
136 mm
material
Сплав цинковый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK10/20 Дж
housing color
Серый
explosion-proof
marking for firedamp and coal dust
РВ Ex db I Mb X
gas explosion-proof (type)
Ex db
gas explosion-proof (groups of equipment)
I
common
code
1805000010
warranty
36 month
temperature range
от 0 до +55 C
energy efficiency class
A+
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files

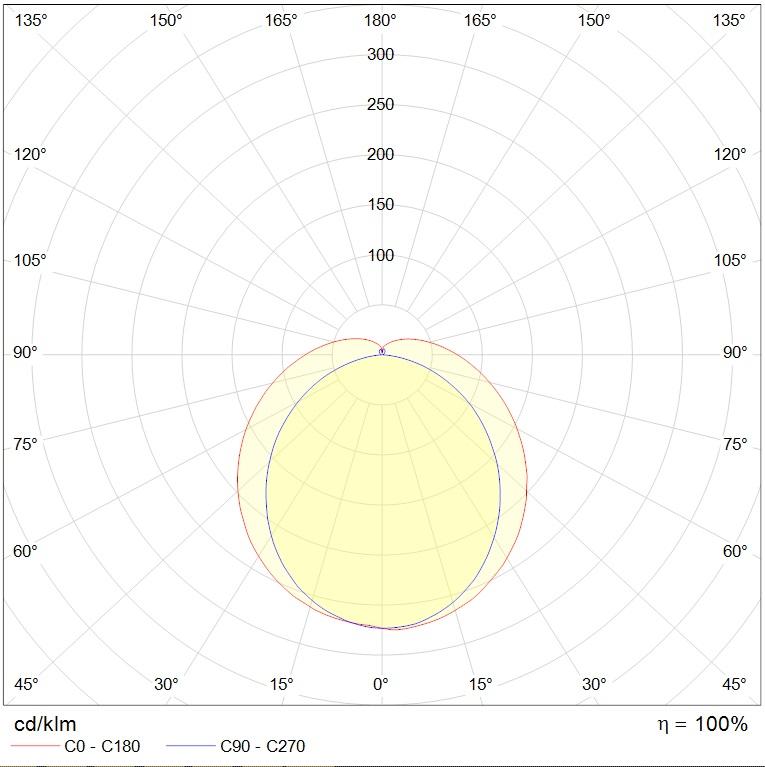

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg110.9 kB
ldt87.6 kB
documents
passport543.3 kB
сертификаты
Certificate of conformity TRTS 012/2011380 kB
Declaration of Conformity TRTS 020/2011283.7 kB
Declaration of Conformity EAEU TR 037/2016283.8 kB
accessories
Cable entry explosion-proof М25х1,5 DSA2MBNS0.164kgarticle: 2327010070color: Неокрашенныйø cable internal: 11,3-19,9ø cable external: 19,9-26,2
