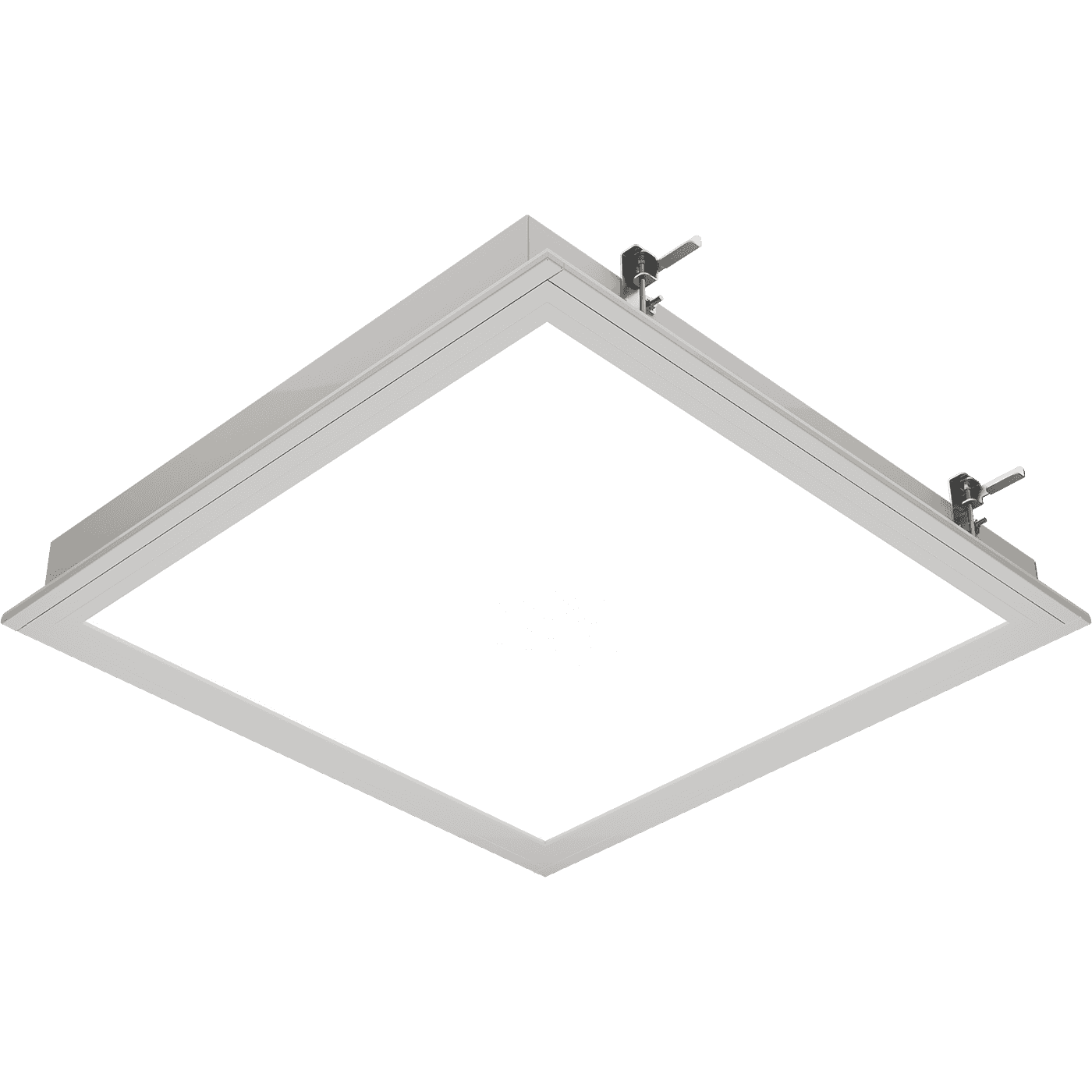

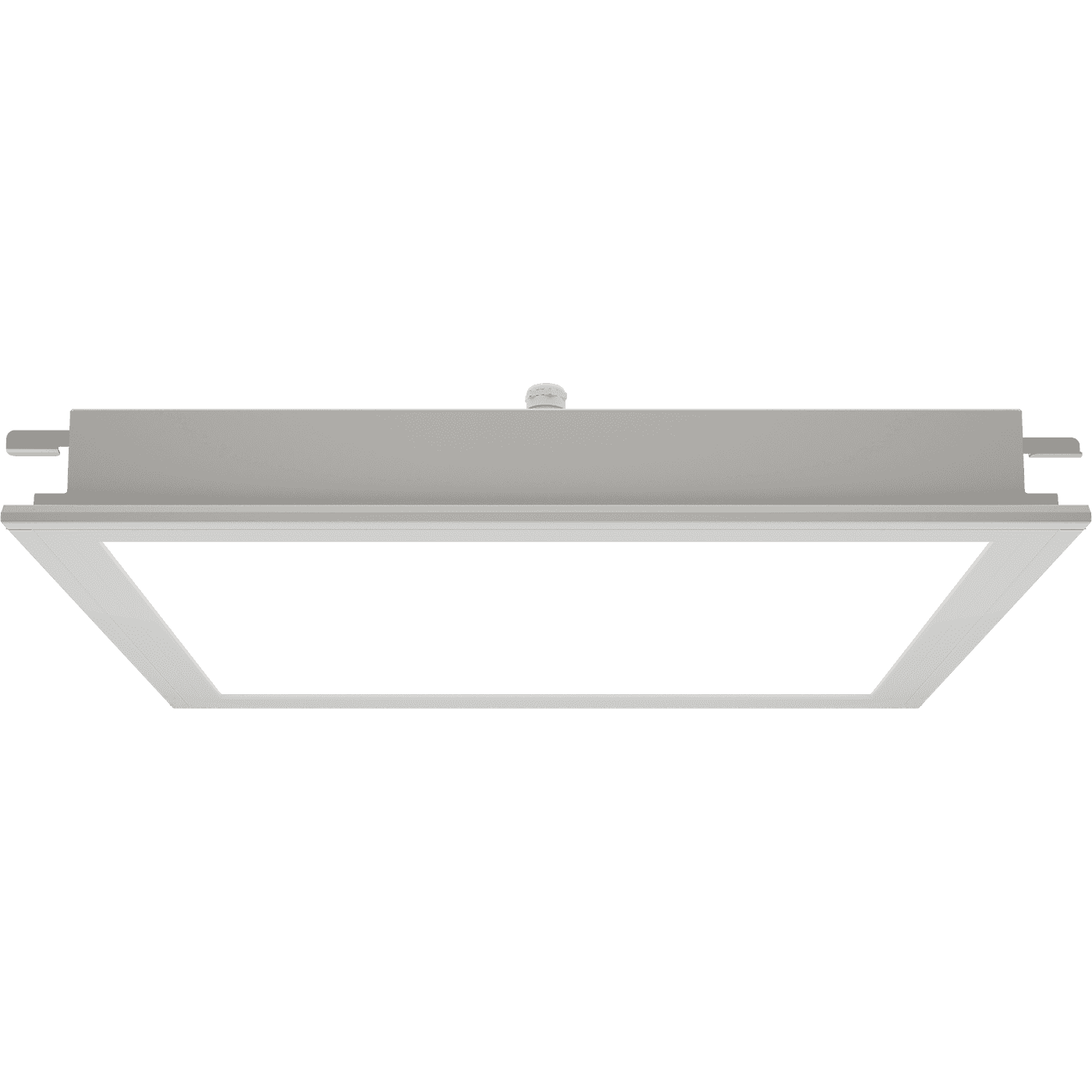

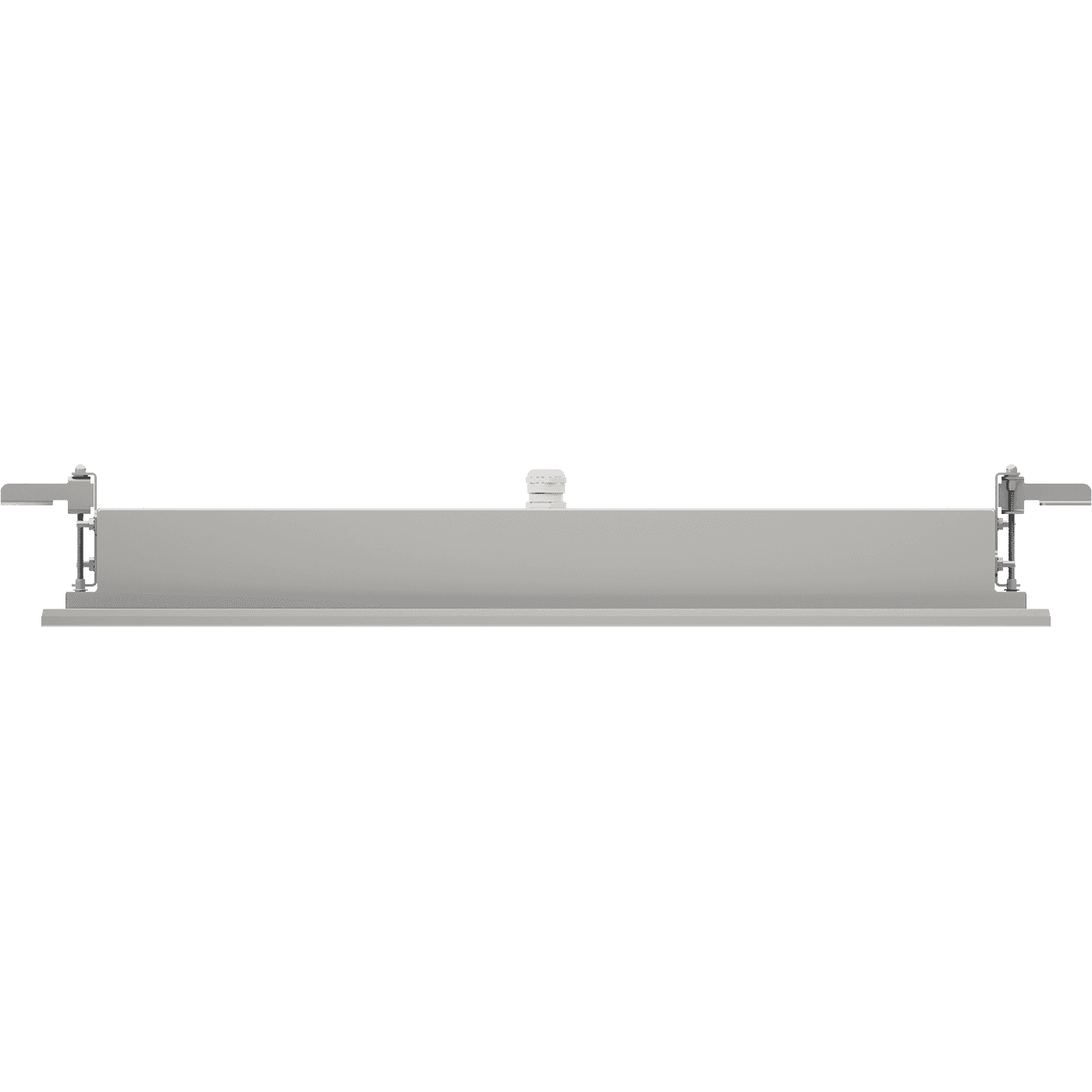

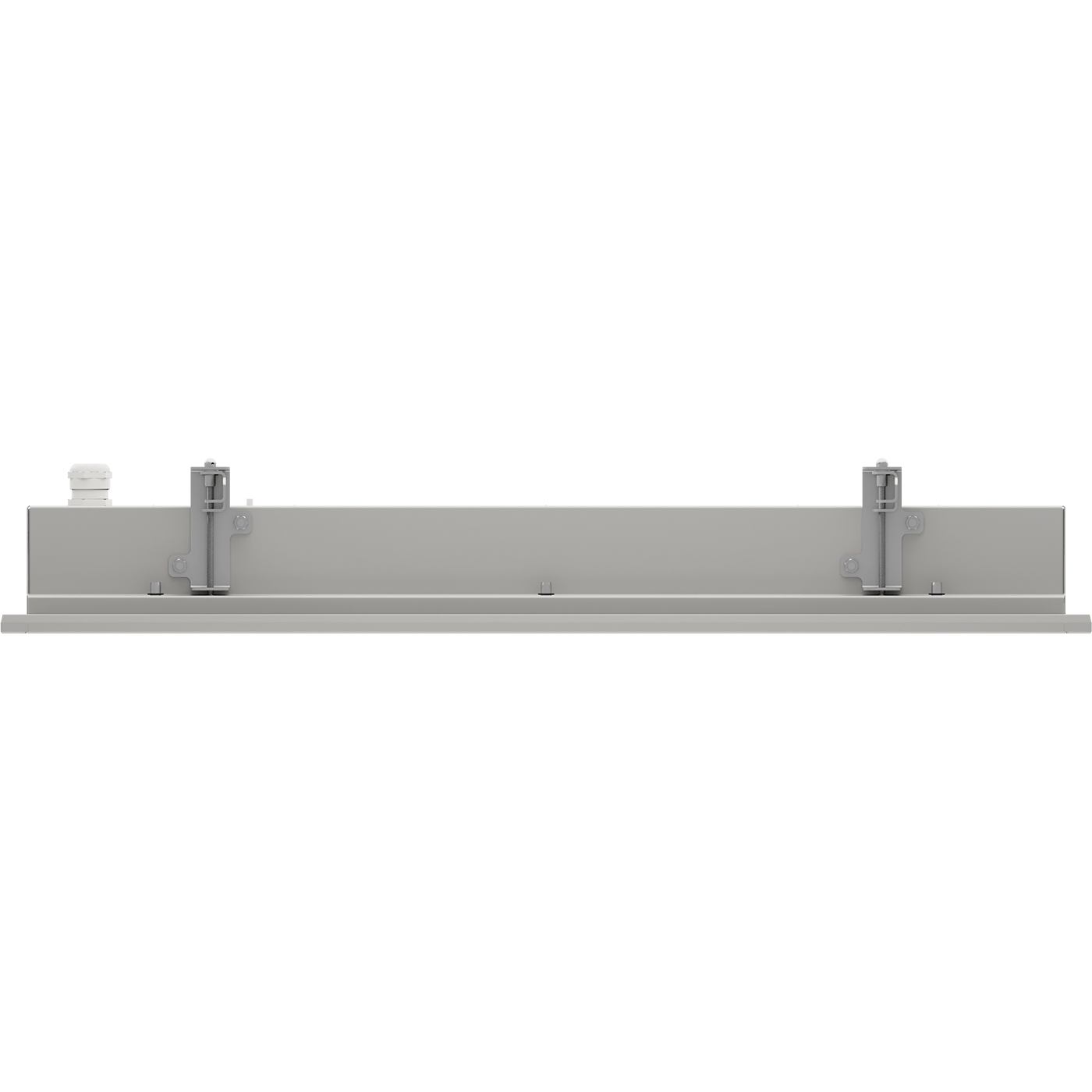

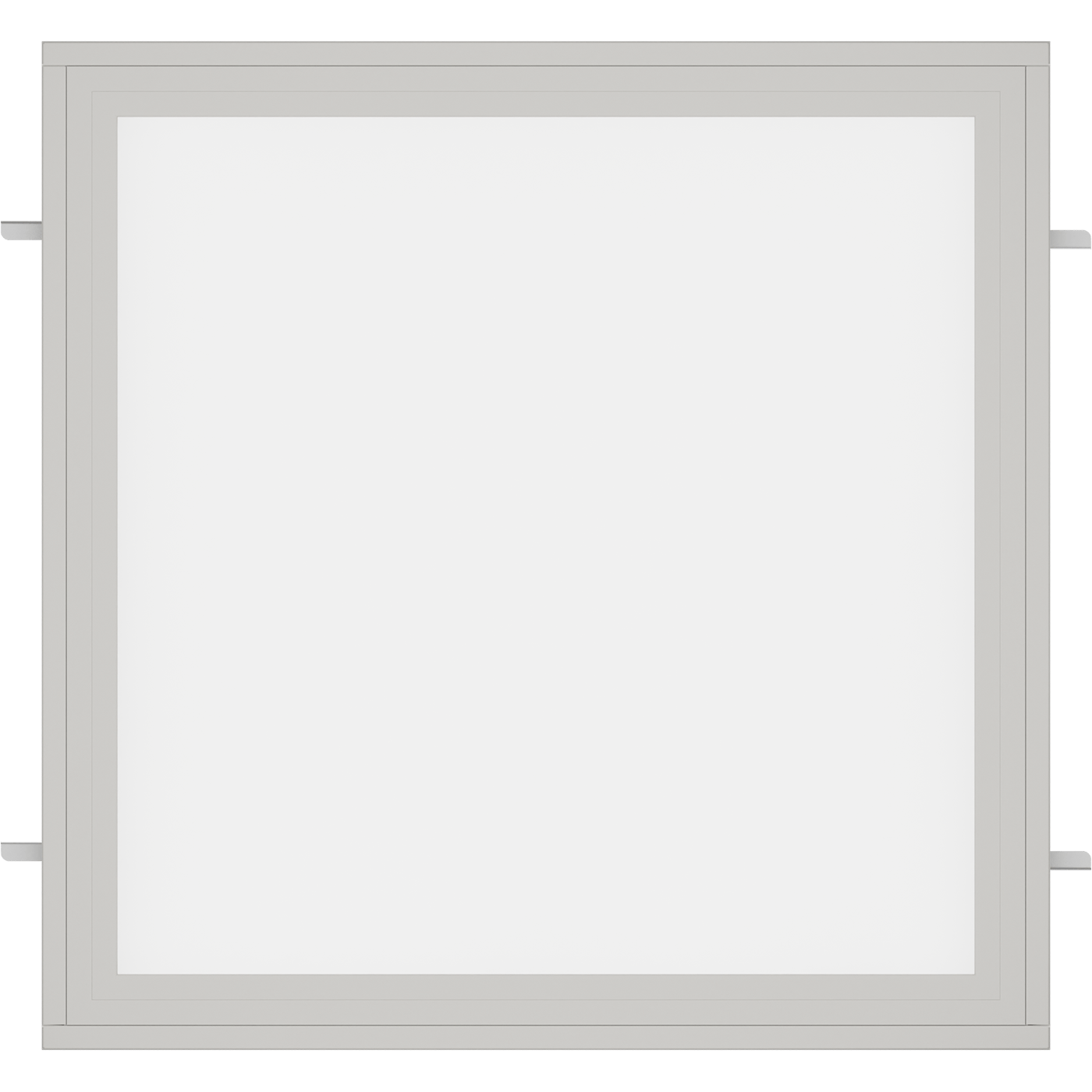

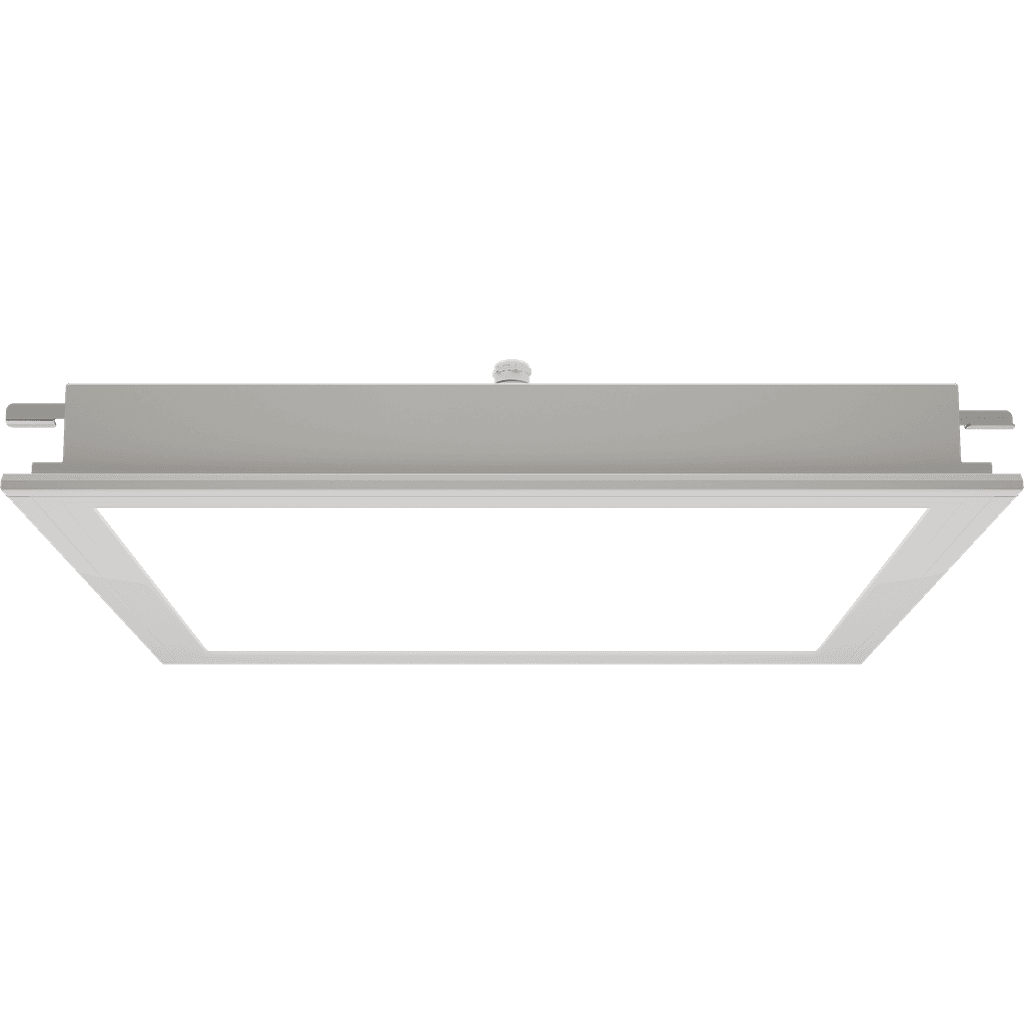

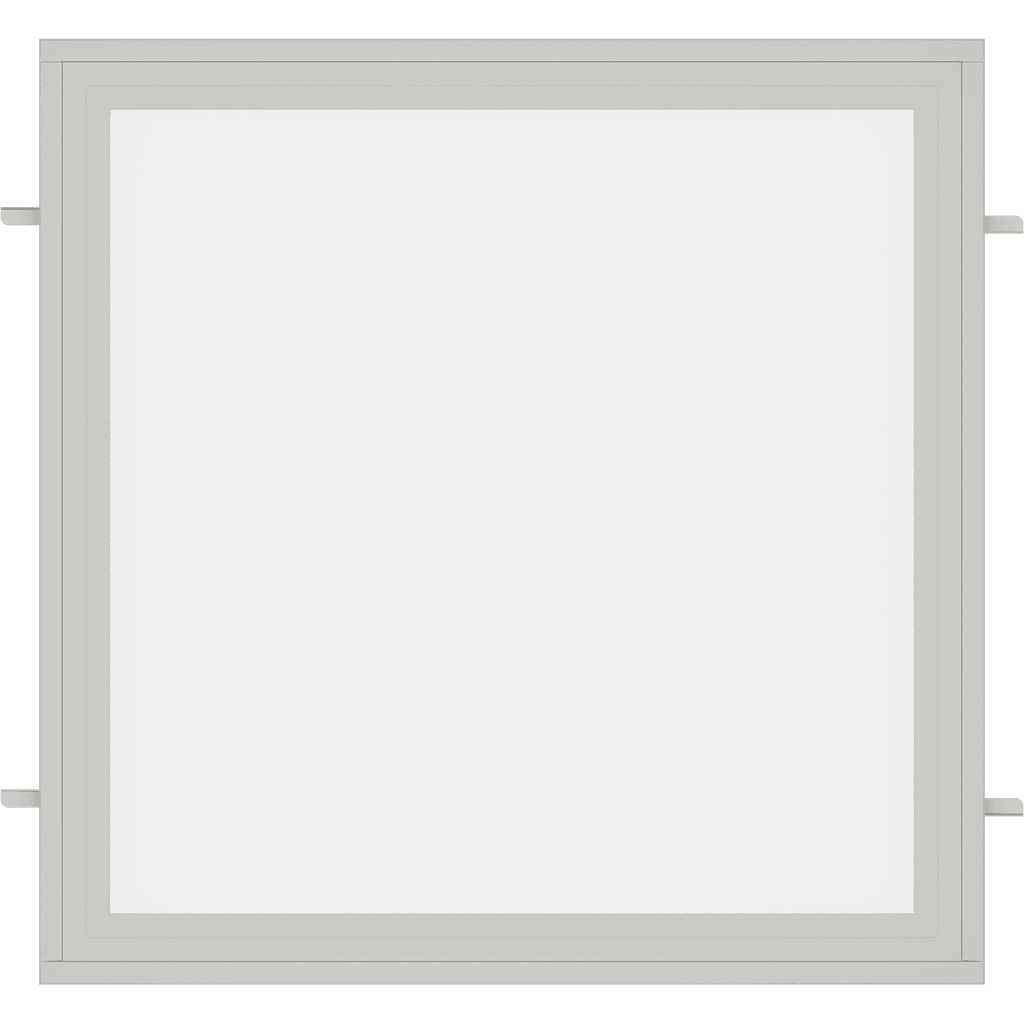

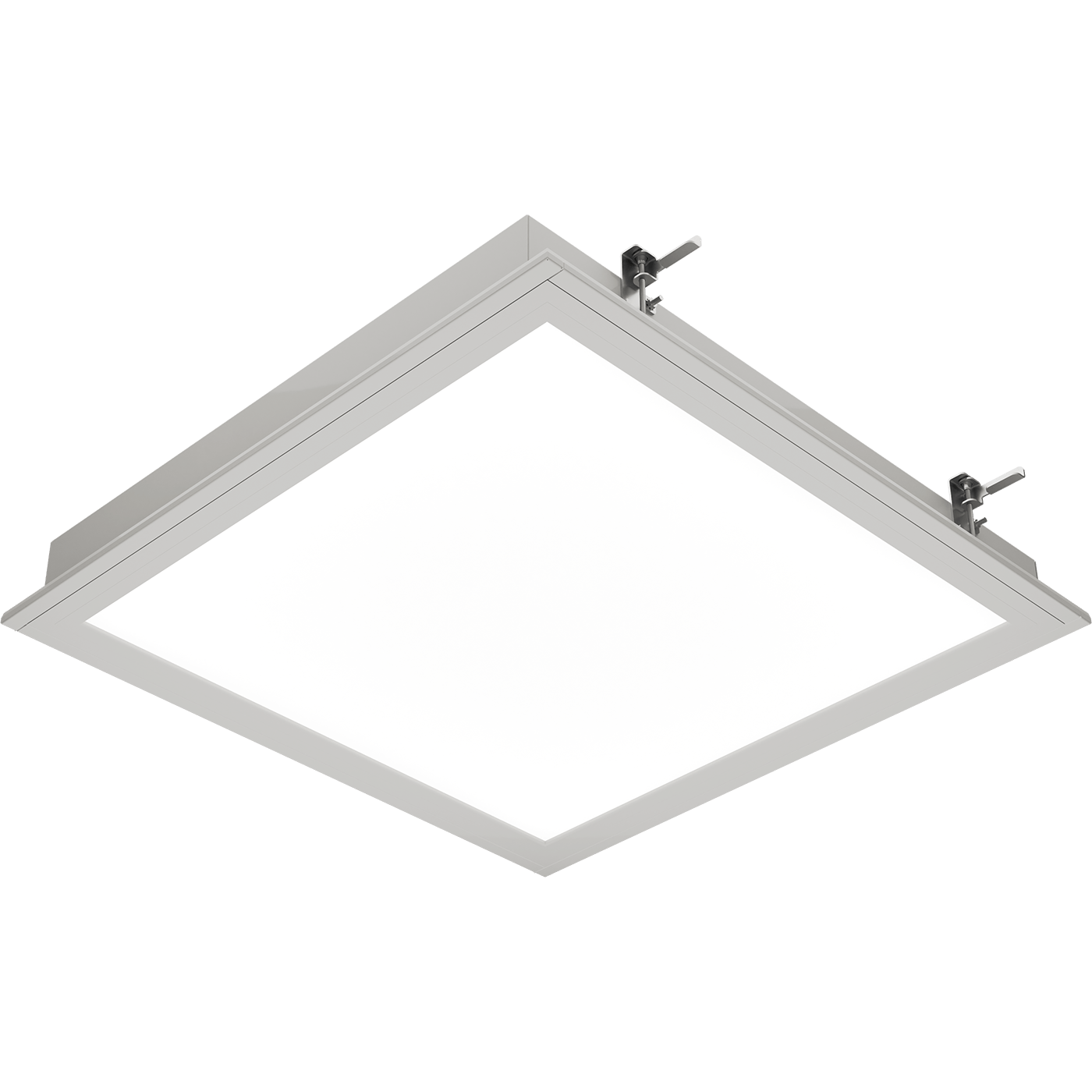

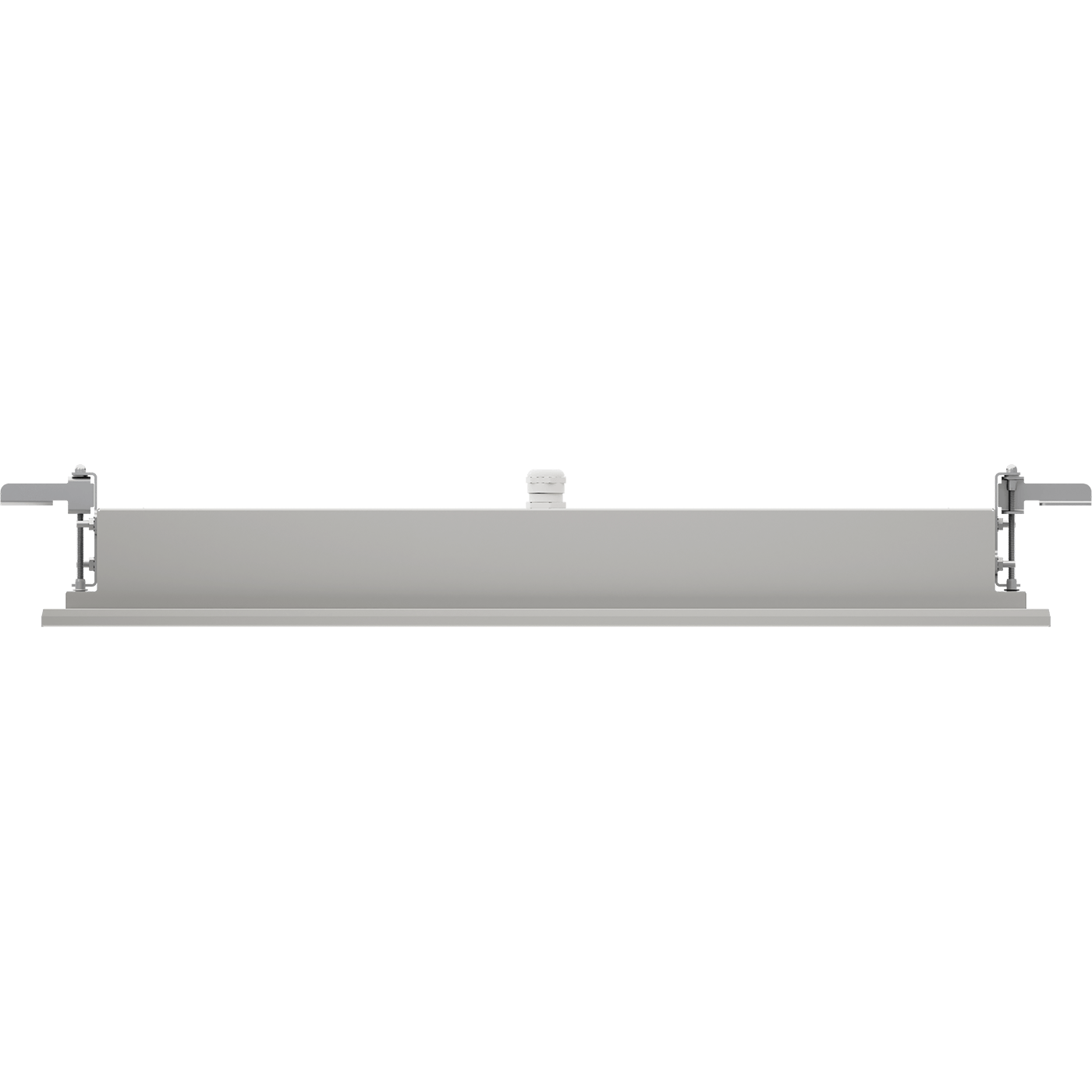

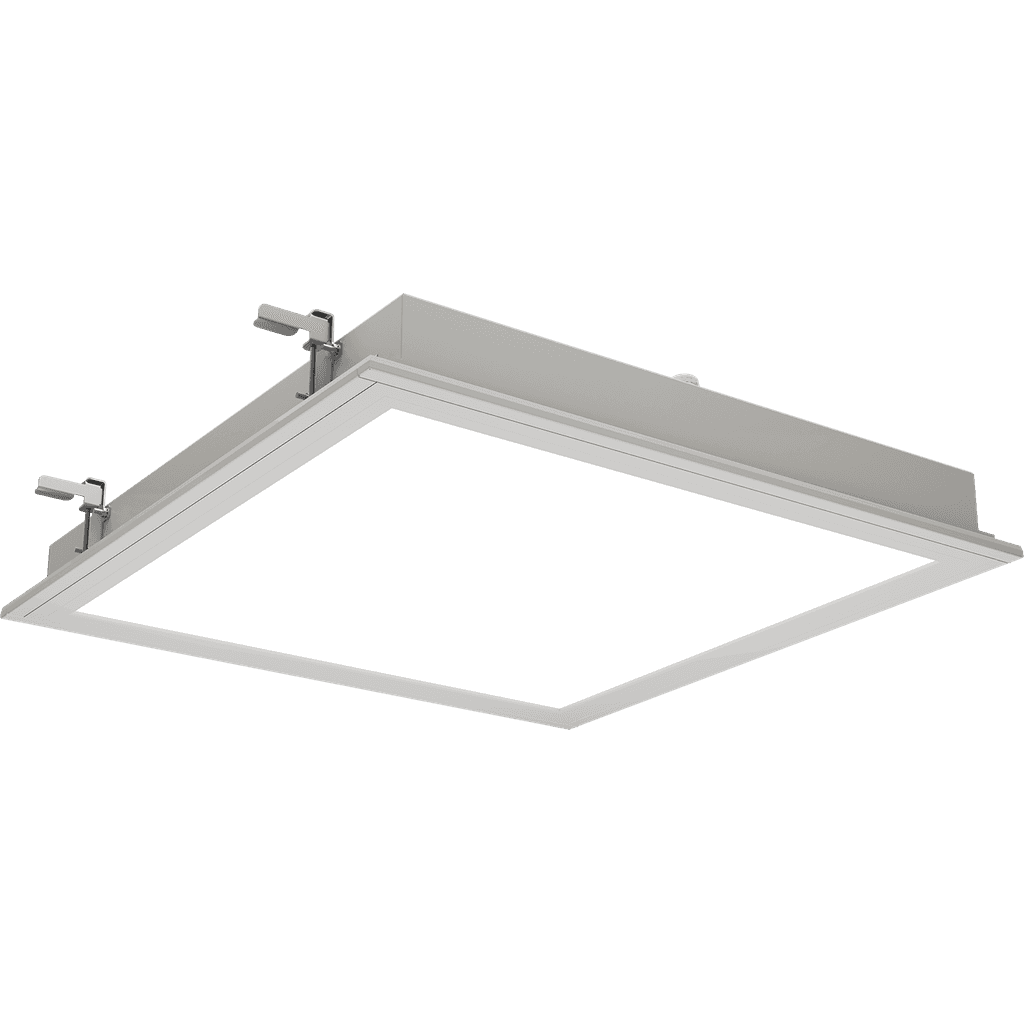

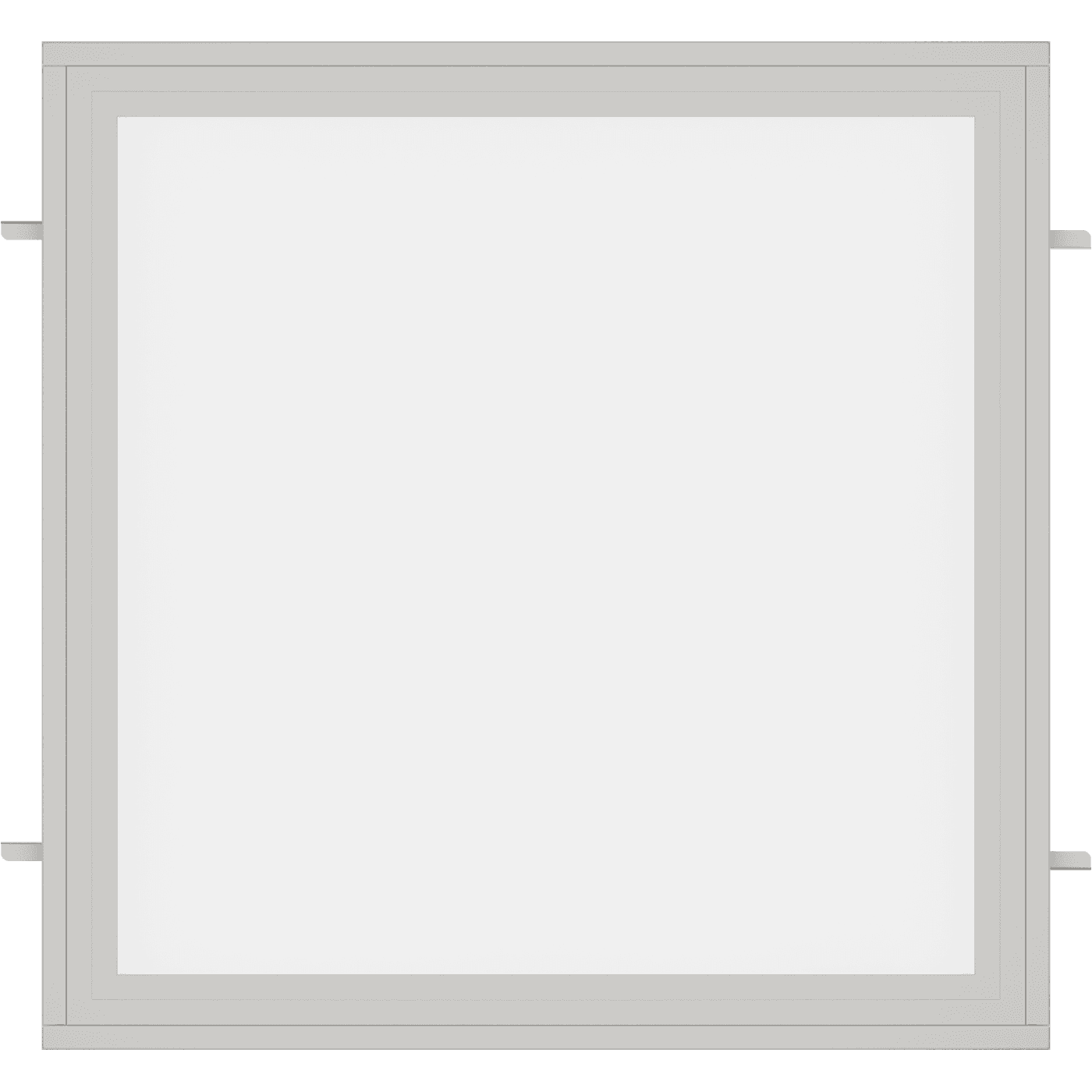

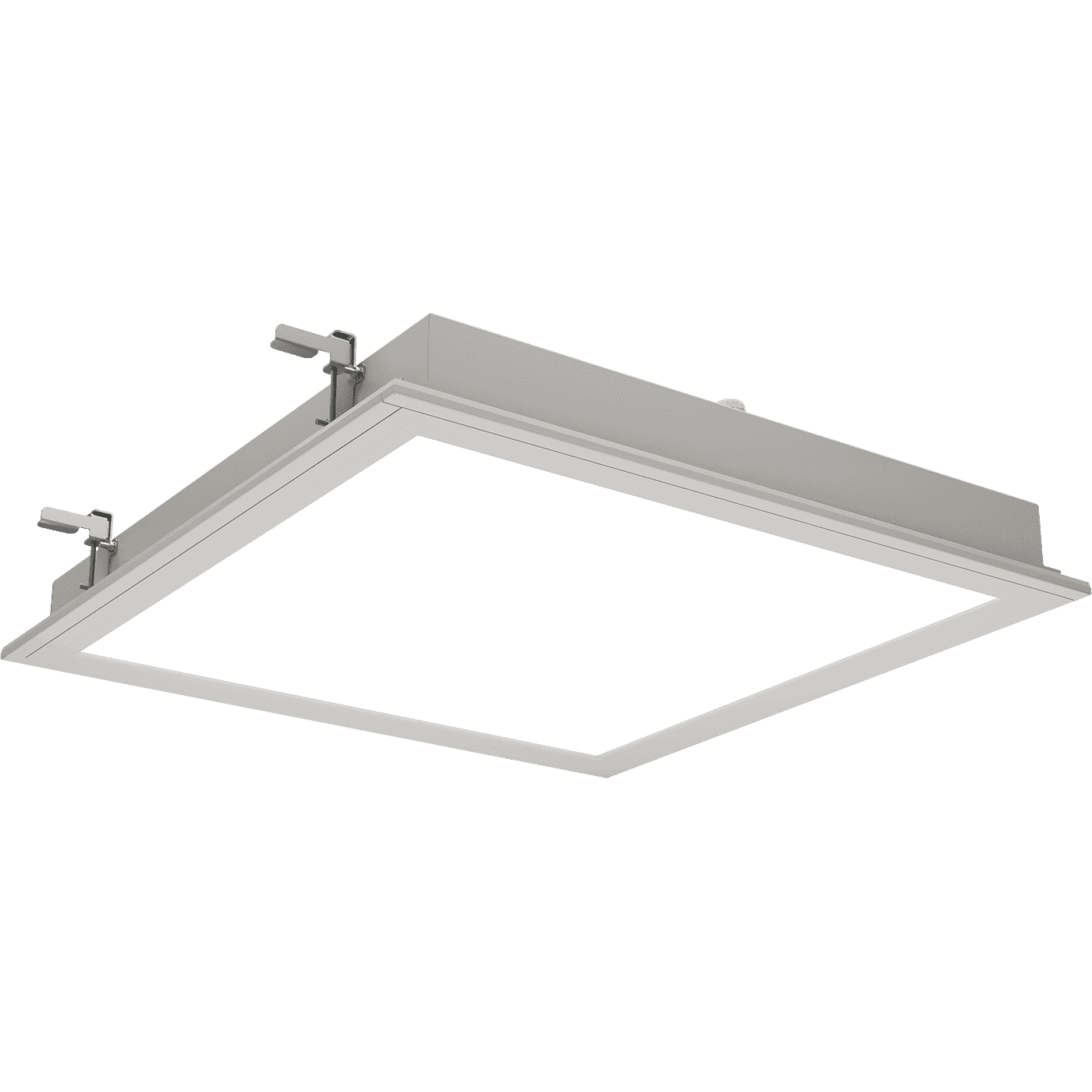

ADV/K UNI LED 645 EM 4000K without mounting kit
add to favorites
36 Wluminaire power
3250 lmlight flow
90 lm/Wenergy efficiency
code1328000340
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. IP protected
  6. ADV/K UNI LED
  7. ADV/K UNI LED 645 EM 4000K without mounting kit
options
свернуть все
electricalconstructionalcommonilluminatingemergency
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP65
climatic performance
УХЛ2*
fire safety class
П-I,II,IIa,ІІІ
material
Сталь
weight
8.6 kg
length, mm
648 mm
width, mm
598 mm
height, mm
105 mm
housing color
Белый
installation length, mm
570 mm
installation width, mm
570 mm
shock resistance (IK)
IK05/0,7 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1328000340
illuminating
color rendition index (CRI)
>80
light flow
3250 lm
flickering factor
<1%
energy efficiency
90 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
11% lm
