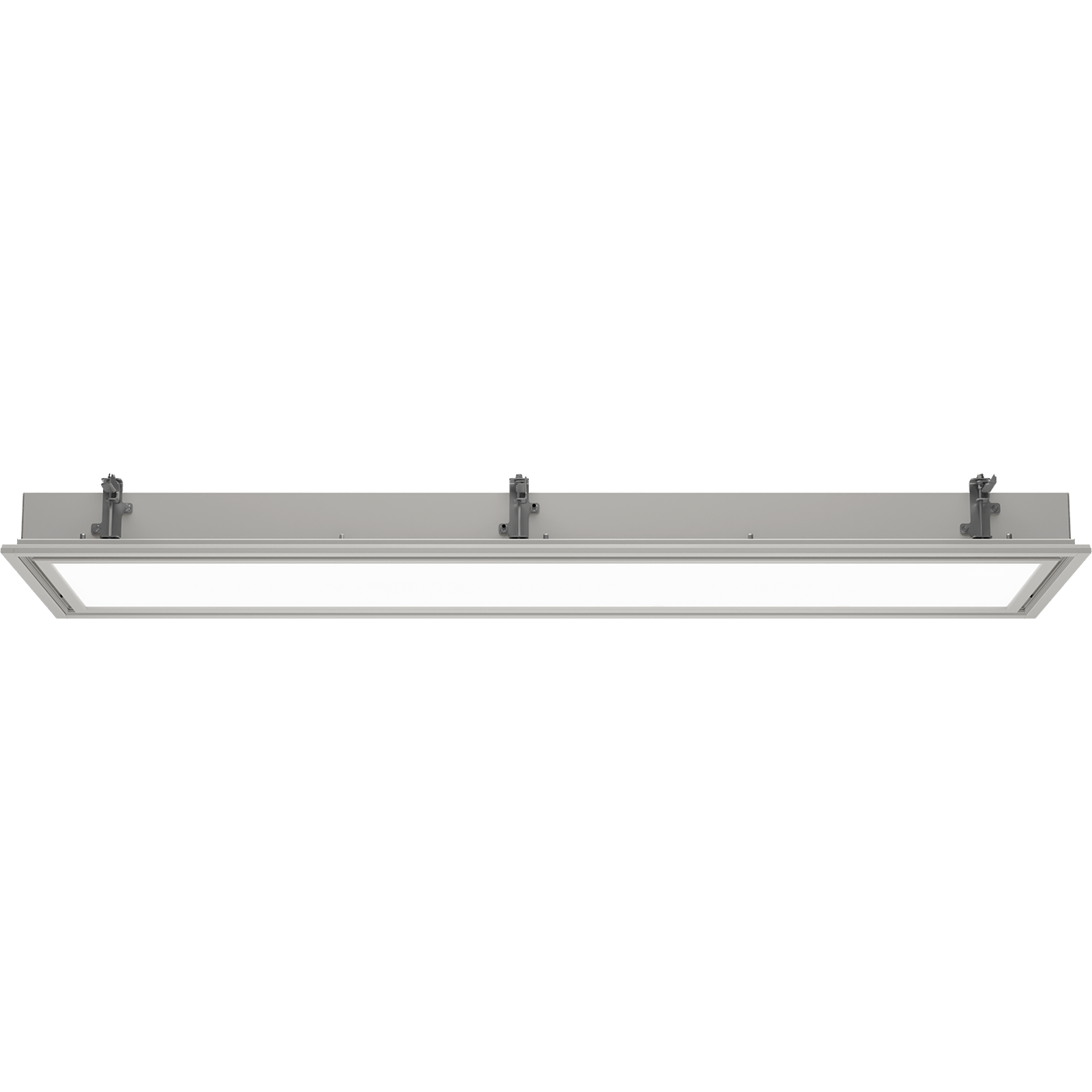

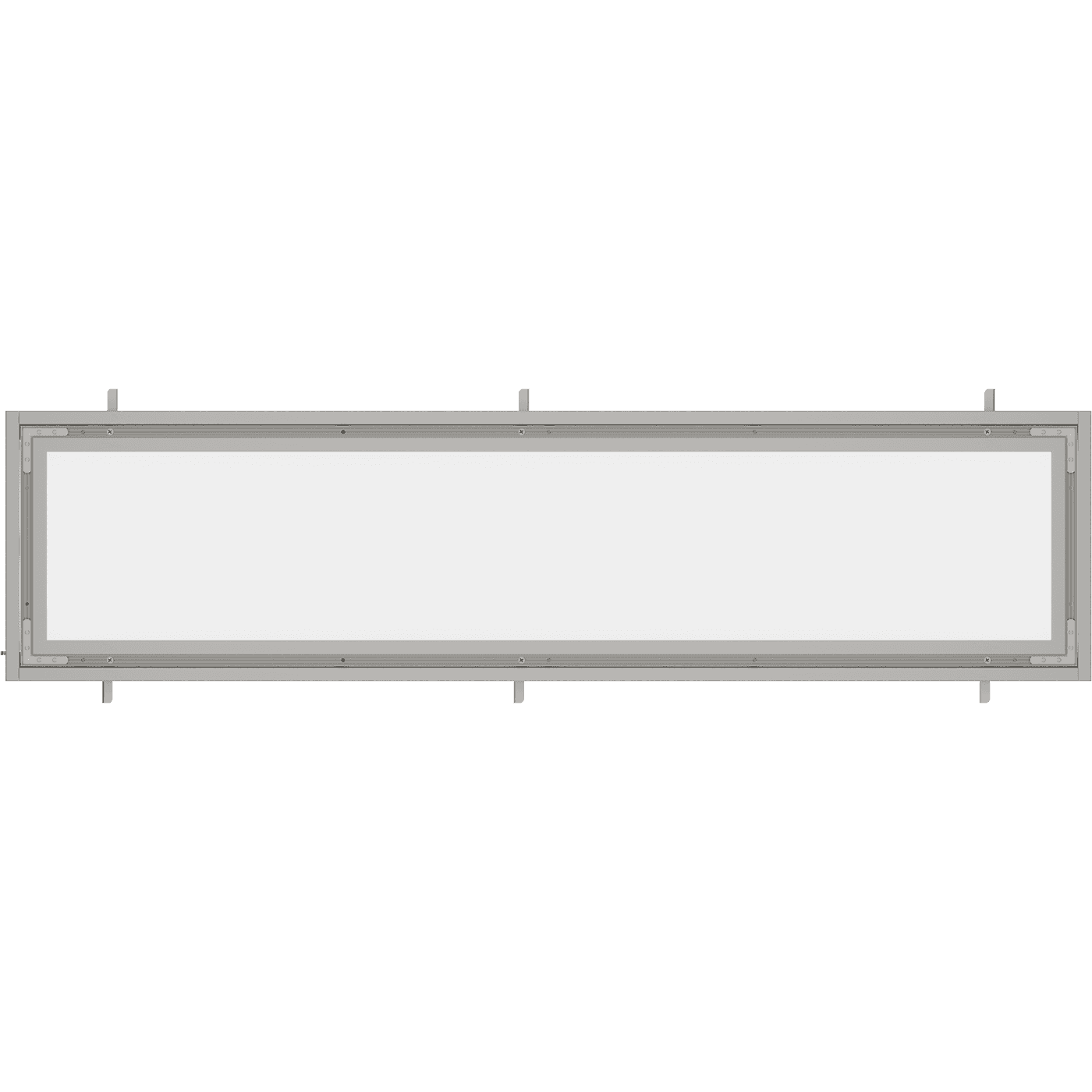

ADV/K UNI LED 1200 HFD 4000K
ADV/K UNI LED 1200 HFD 4000K
34 Wluminaire power
3600 lmlight flow
106 lm/Wenergy efficiency
code1328000230
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
106 lm/Wcolor rendition index (CRI)
>80light flow
3600 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
106 lm/W
color rendition index (CRI)
>80
light flow
3600 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,98
luminaire power
34 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1198 mm
width
346 mm
height
105 mm
installation length
1170 mm
installation width
270 mm
weight
9.1 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK05/0,7 Дж
climatic performance
УХЛ2*
fire safety class
П-I,II,IIa,ІІІ
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
temperature range
от +5 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
code
1328000230
model files
model files
CAD/BIM files

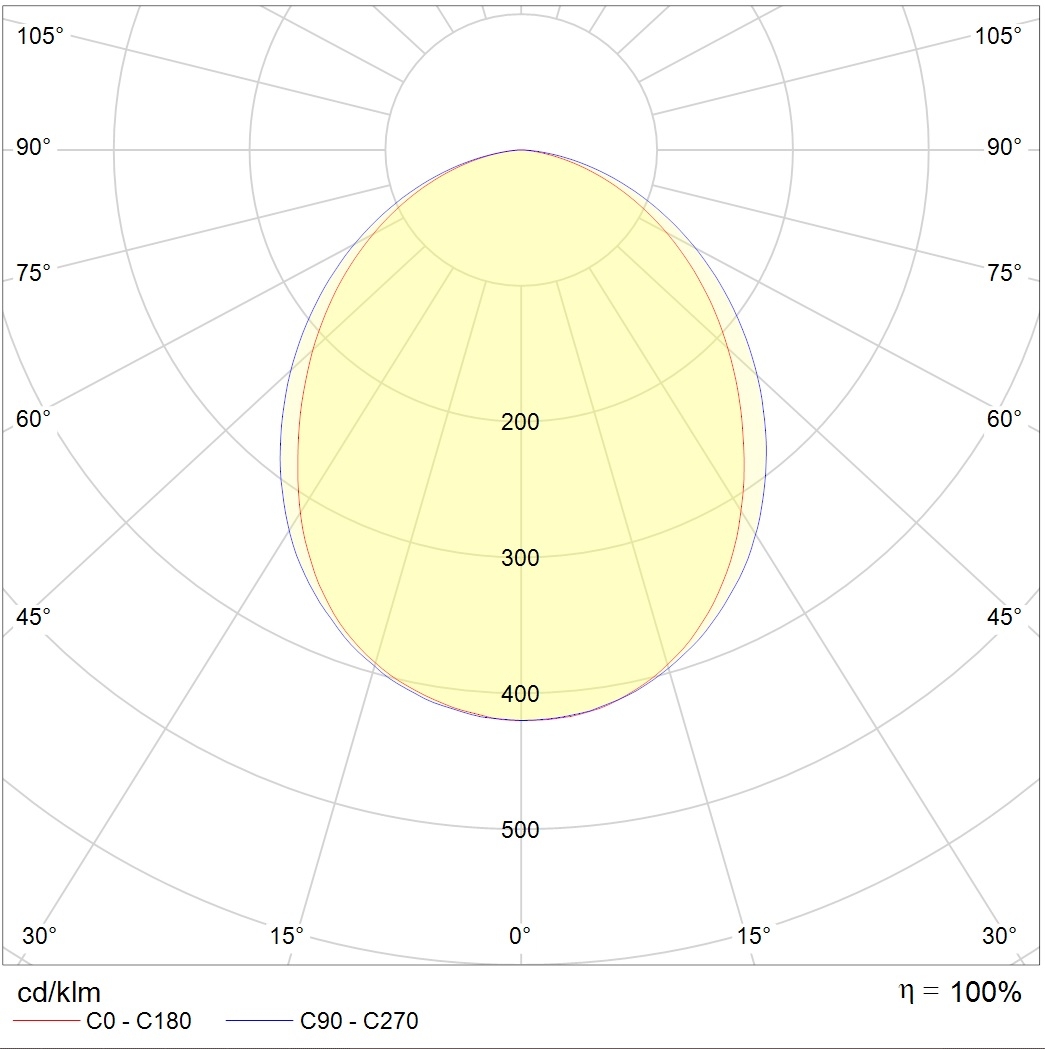

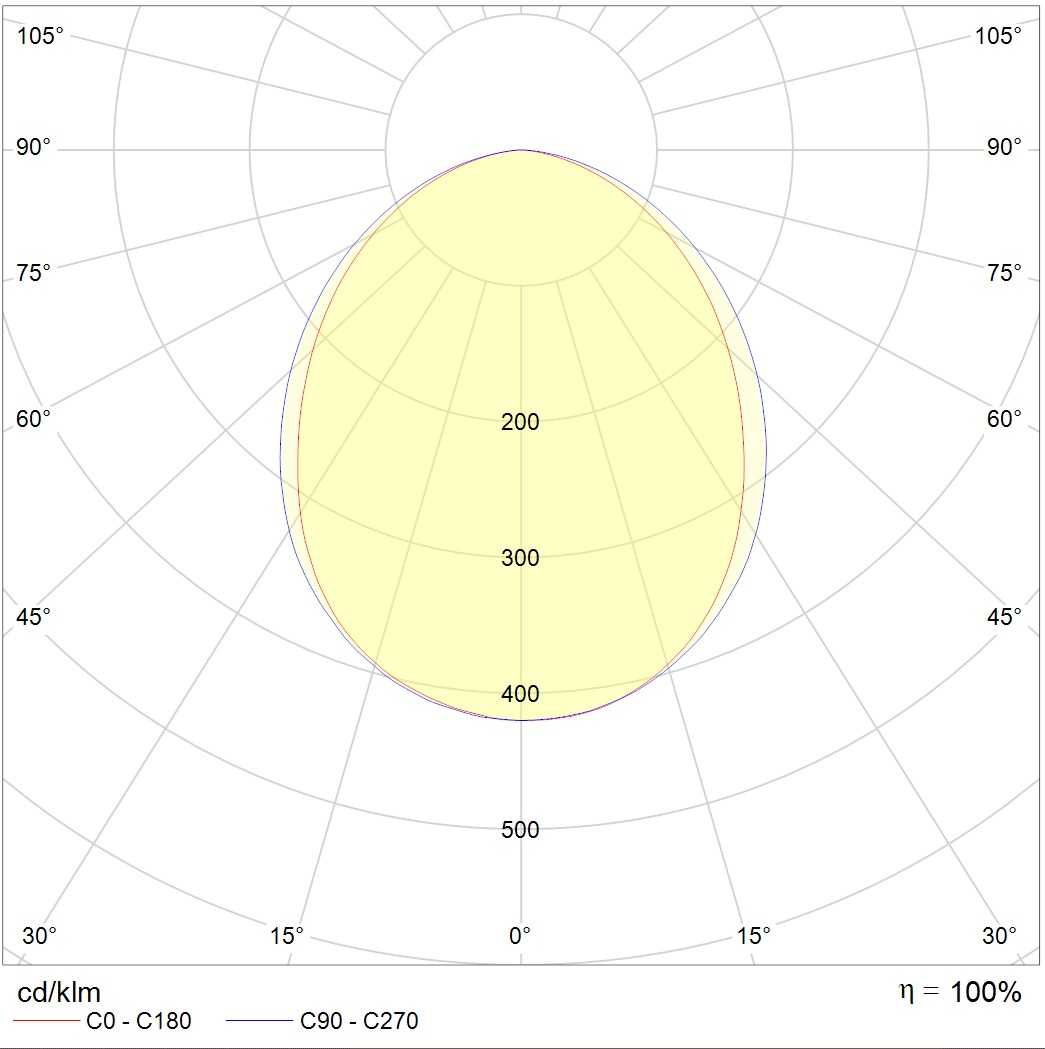

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax436 kB
photometric files
ies263.2 kB
jpg126.7 kB
ldt162.6 kB
documents
passport1.7 mB
сертификаты
Russian origin330.3 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
