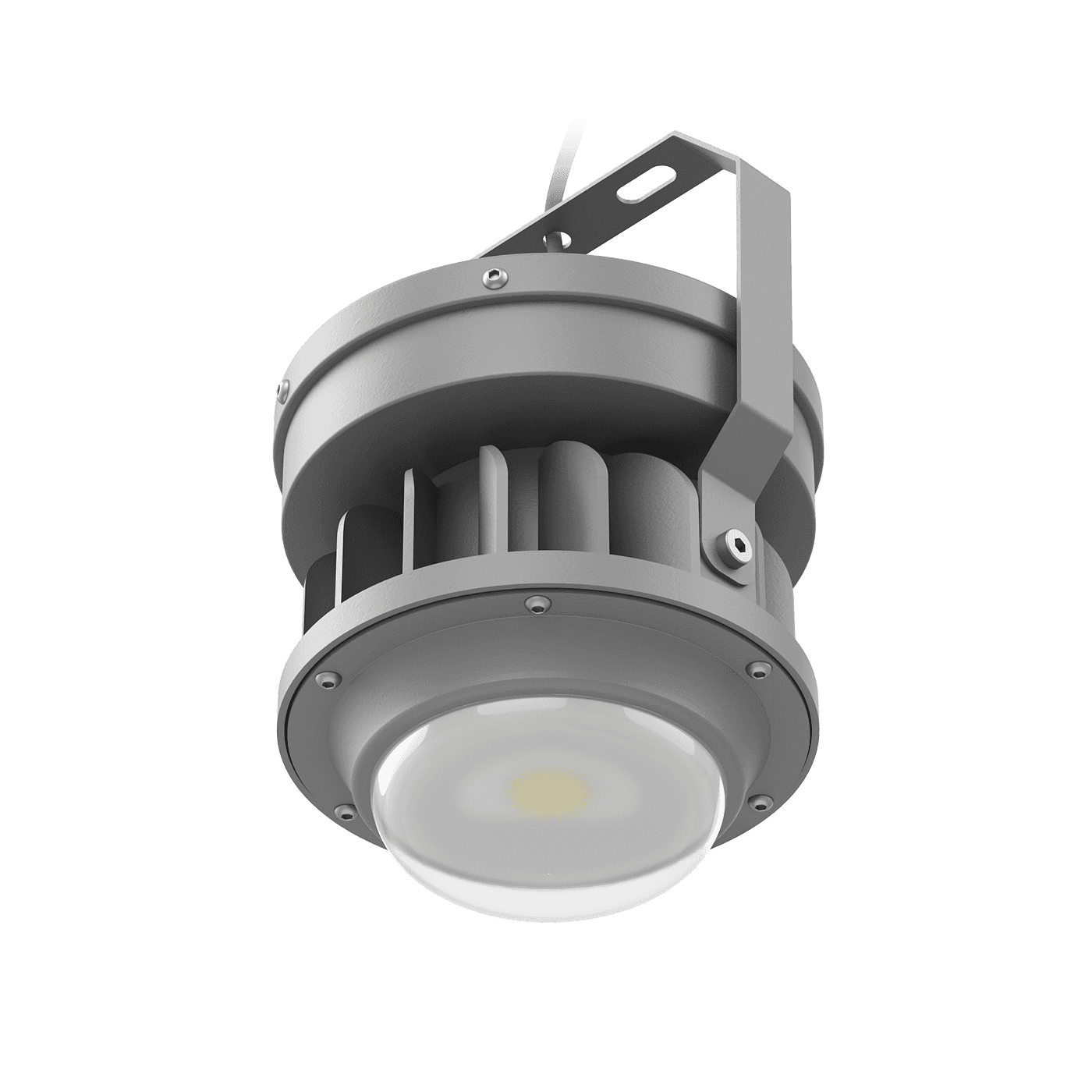

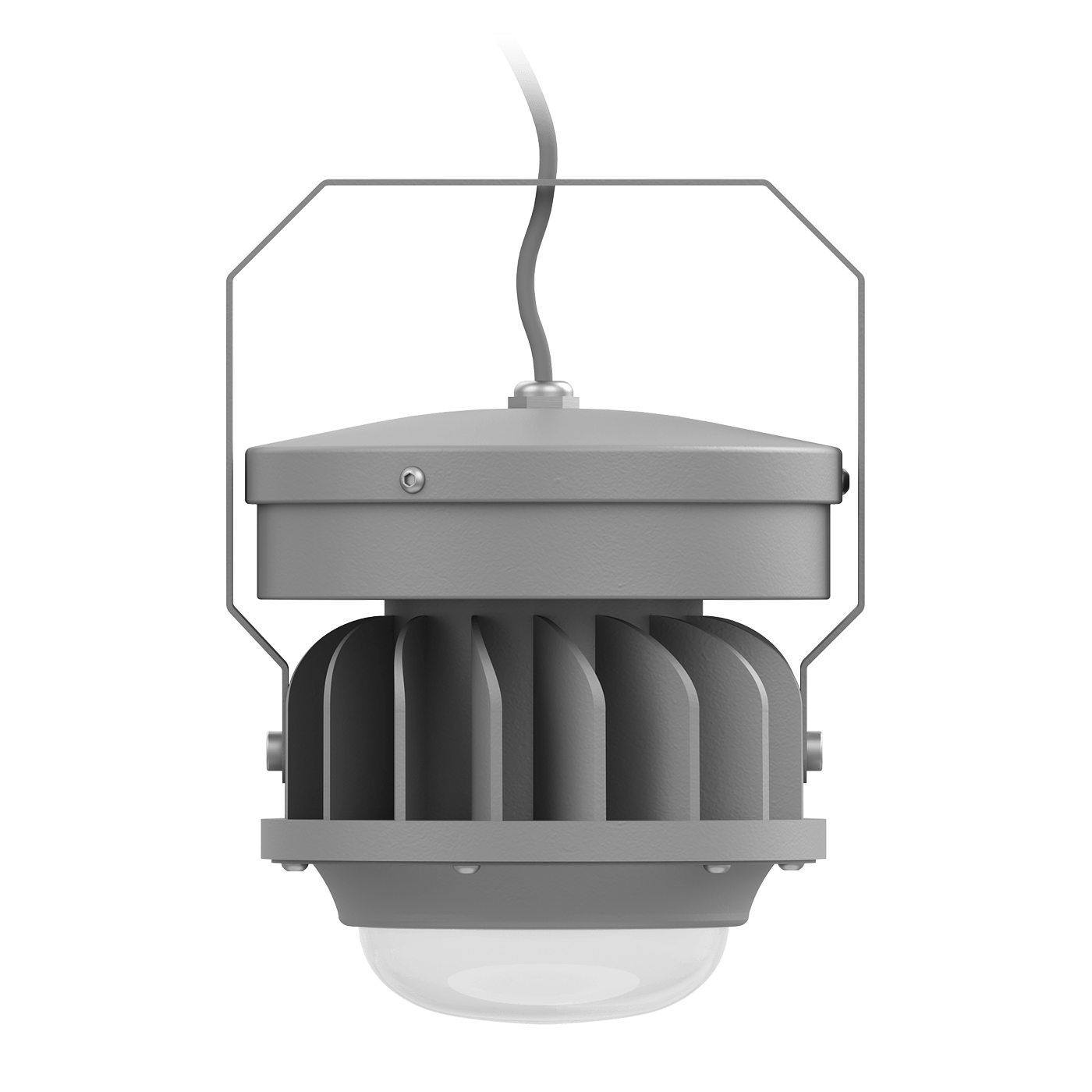

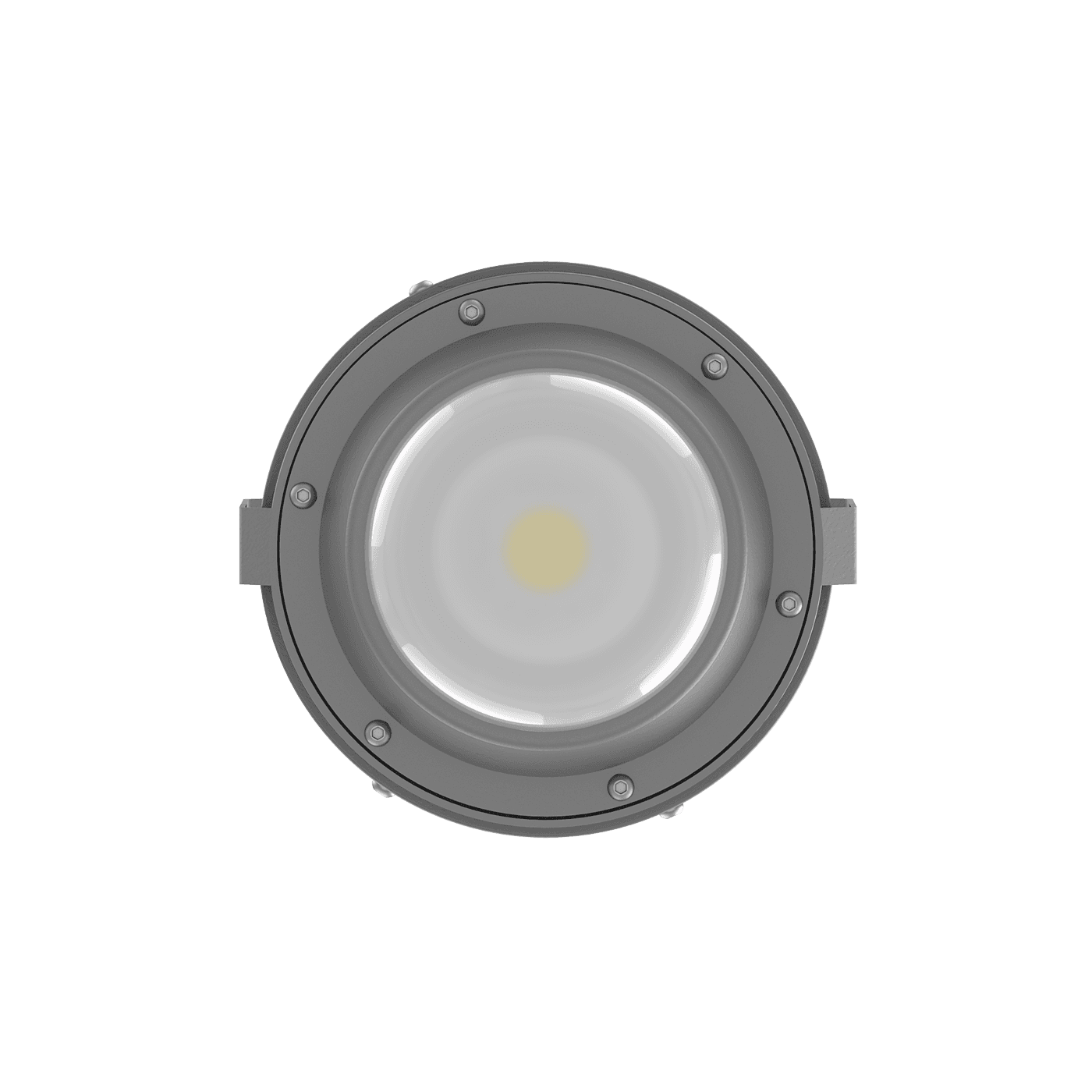

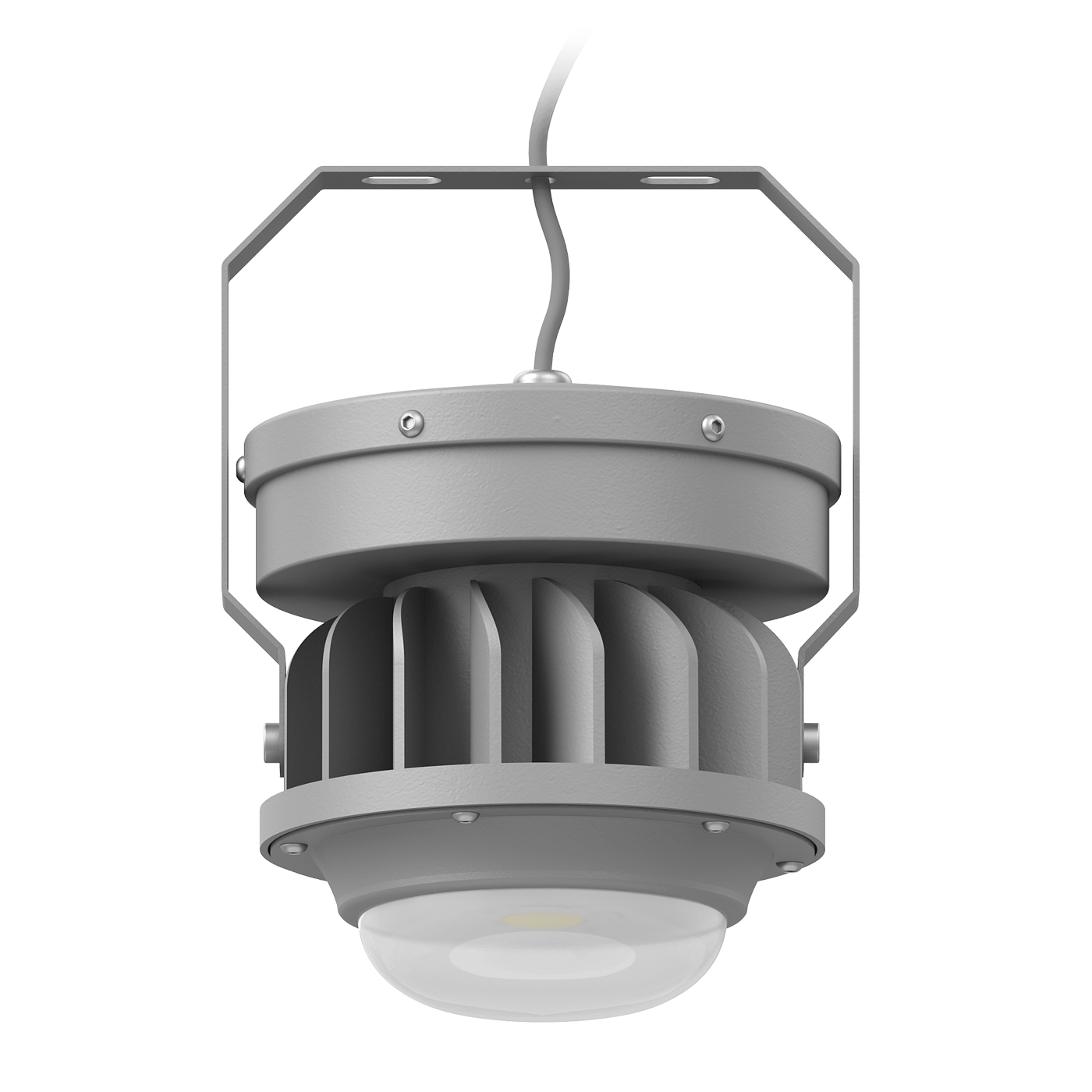

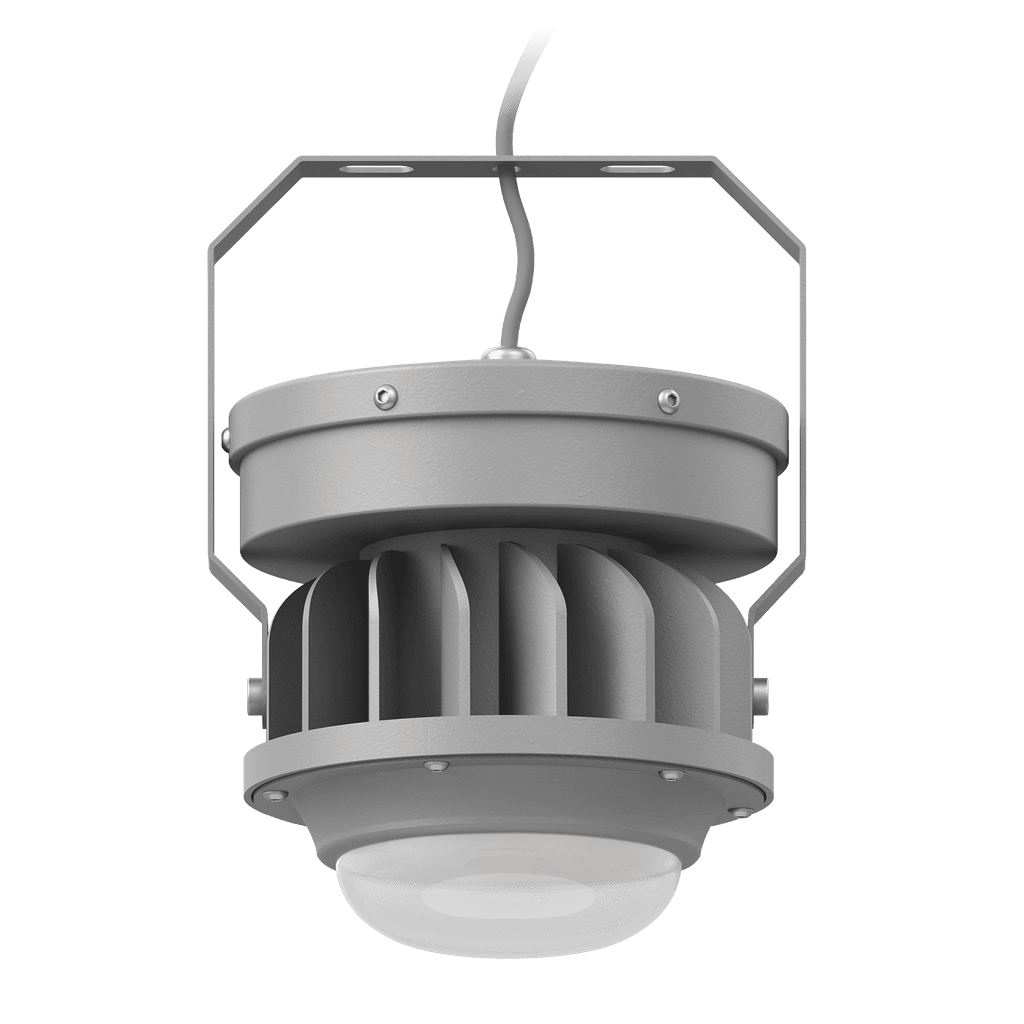

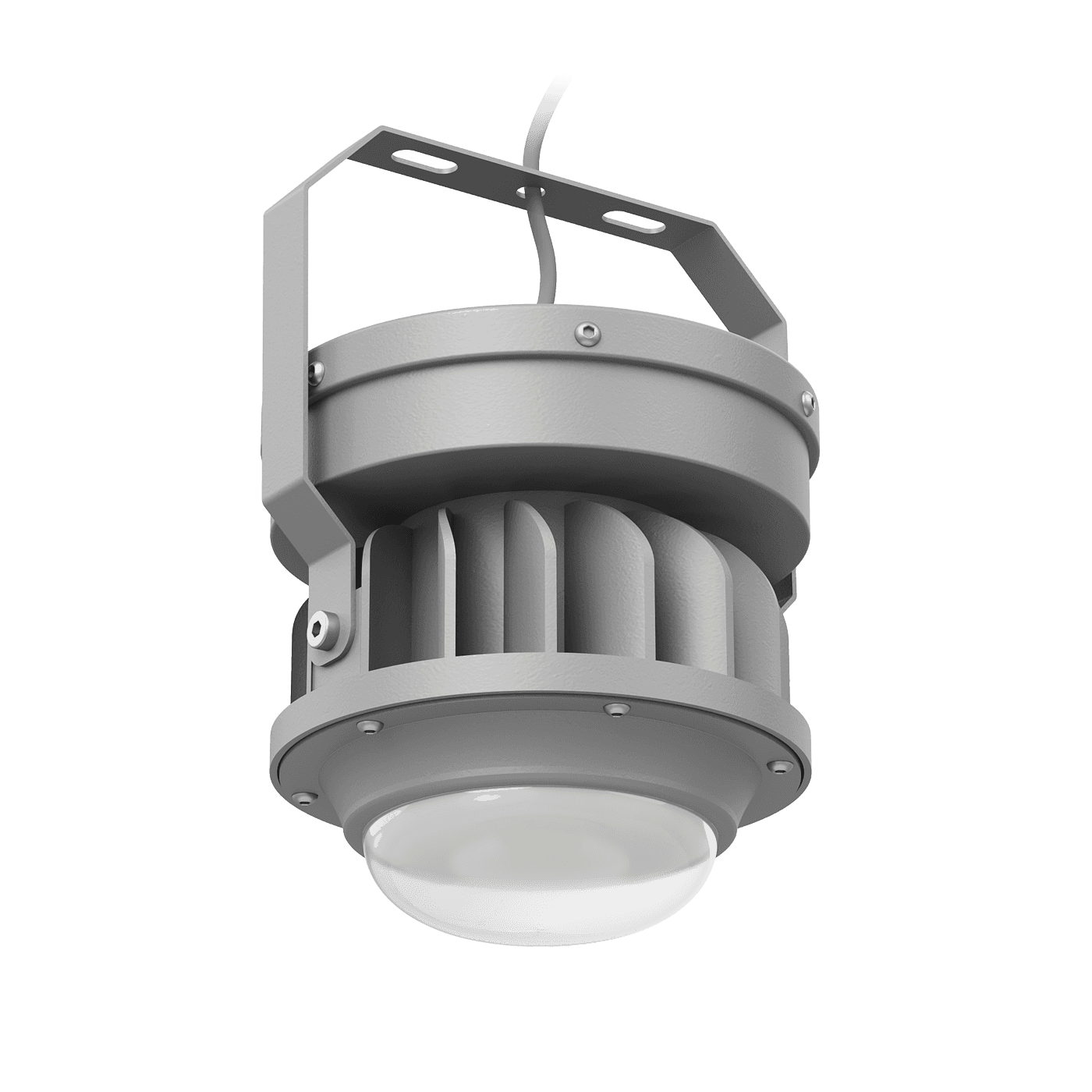

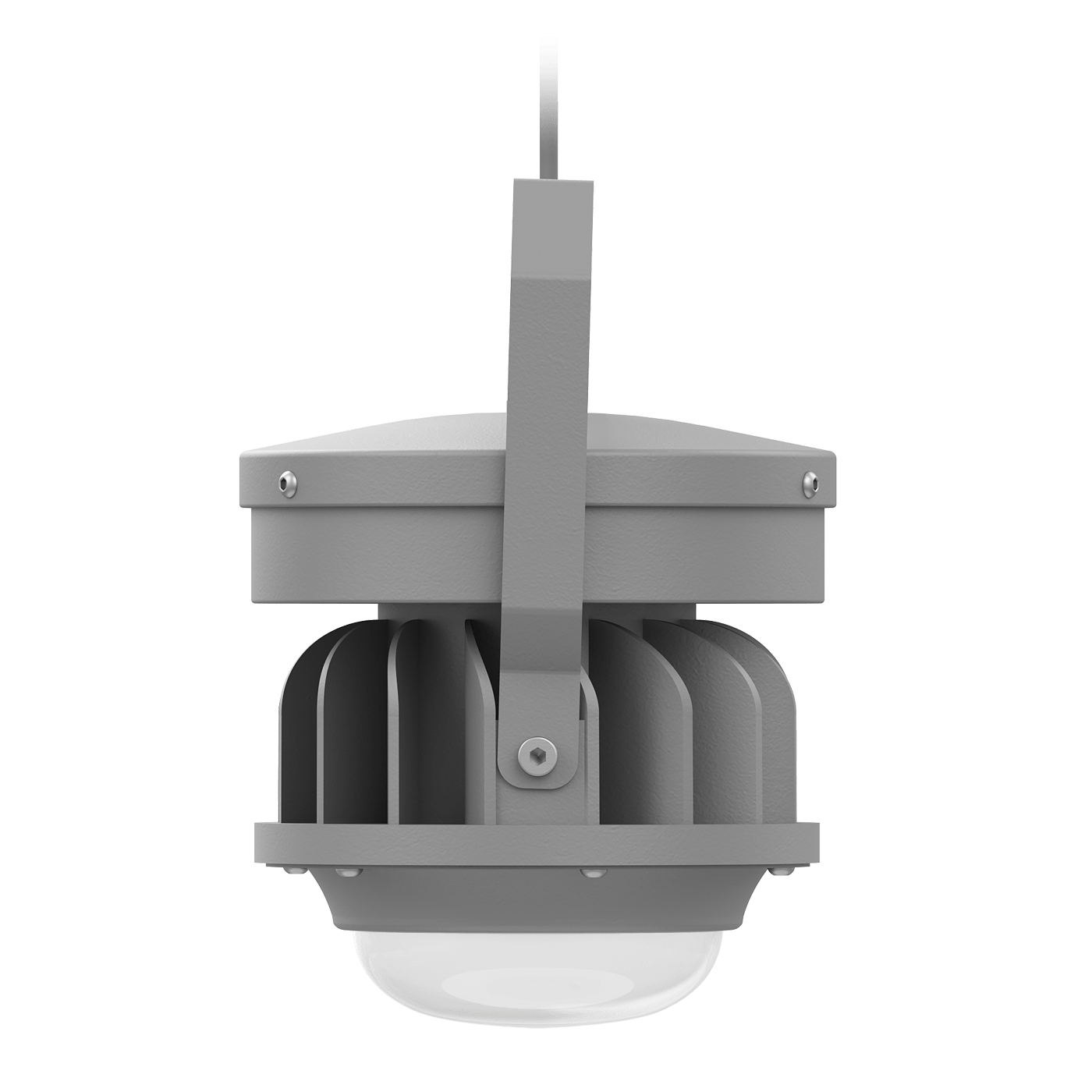

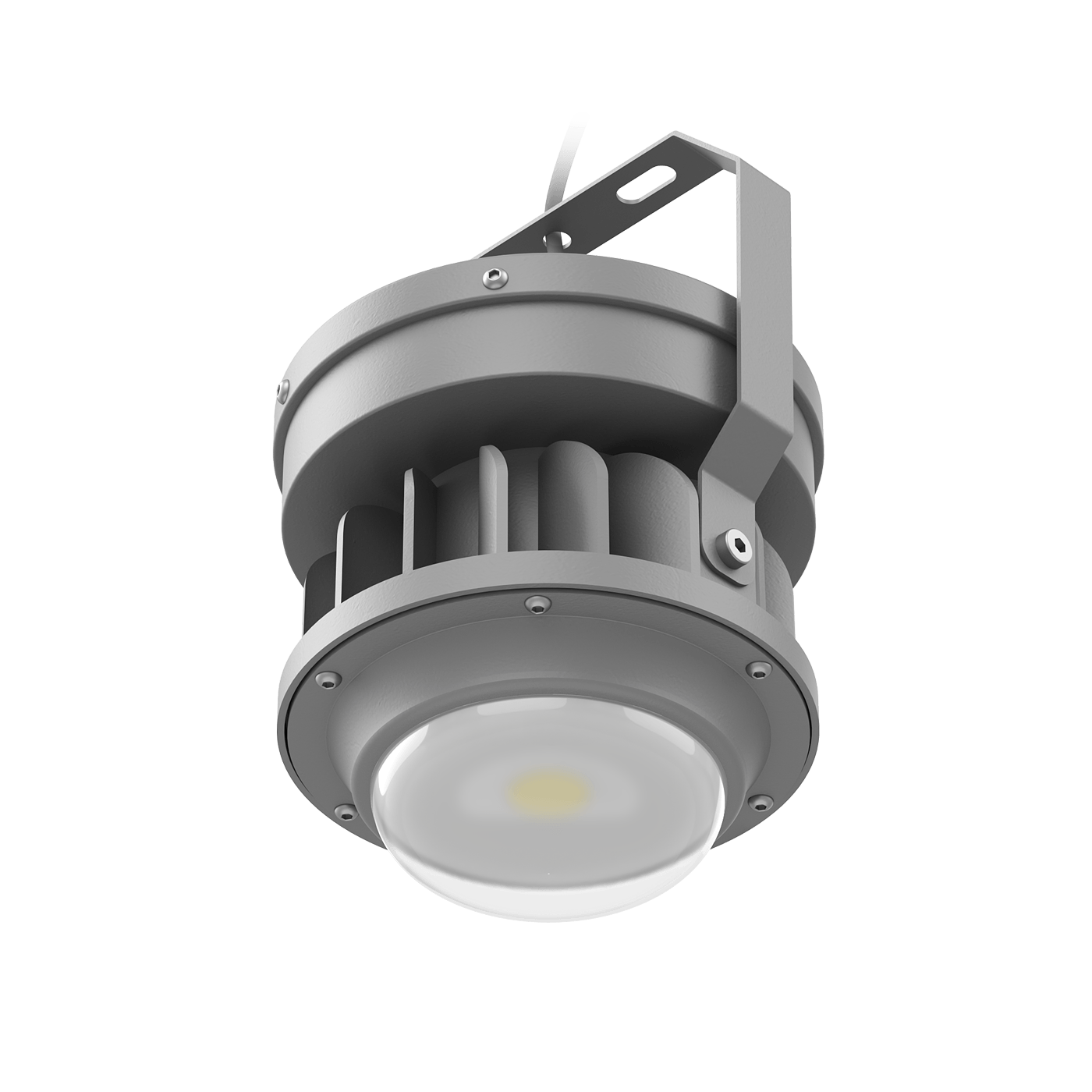

ACORN LED 40 D150 5000K with tempered glass 36 VAC
archive
archive
ACORN LED 40 D150 5000K with tempered glass 36 VAC
36 Wluminaire power
4800 lmlight flow
133 lm/Wenergy efficiency
code1490000370
color temperature5000
beam angleD150
weight1.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
36 Vsupply voltage, alternating current
36 Vluminaire power
36 Welectric shock protection
IIIpower factor
> 0,60supply voltage
36 Velectrical
rated supply voltage, alternating current
36 V
supply voltage, alternating current
36 V
luminaire power
36 W
electric shock protection
III
power factor
> 0,60
supply voltage
36 V
constructional
ingress protection (IP)
IP65
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
1.7 kg
housing color
Серый
climatic performance
УХЛ1*
length, mm
165 mm
width, mm
145 mm
height, mm
195 mm
shock resistance (IK)
IK08/6,5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
90 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +60 C
energy efficiency class
A+
service life, hour
50 000 h
code
1490000370
illuminating
light flow
4800 lm
flickering factor
<1%
energy efficiency
133 lm/W
beam angle
D150
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

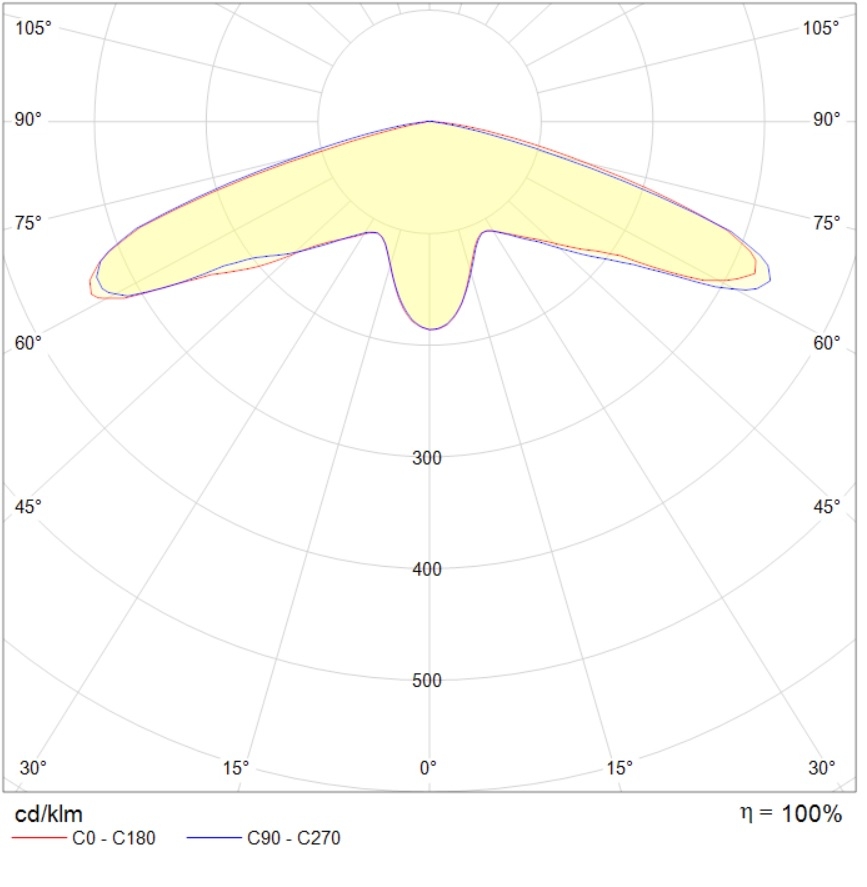

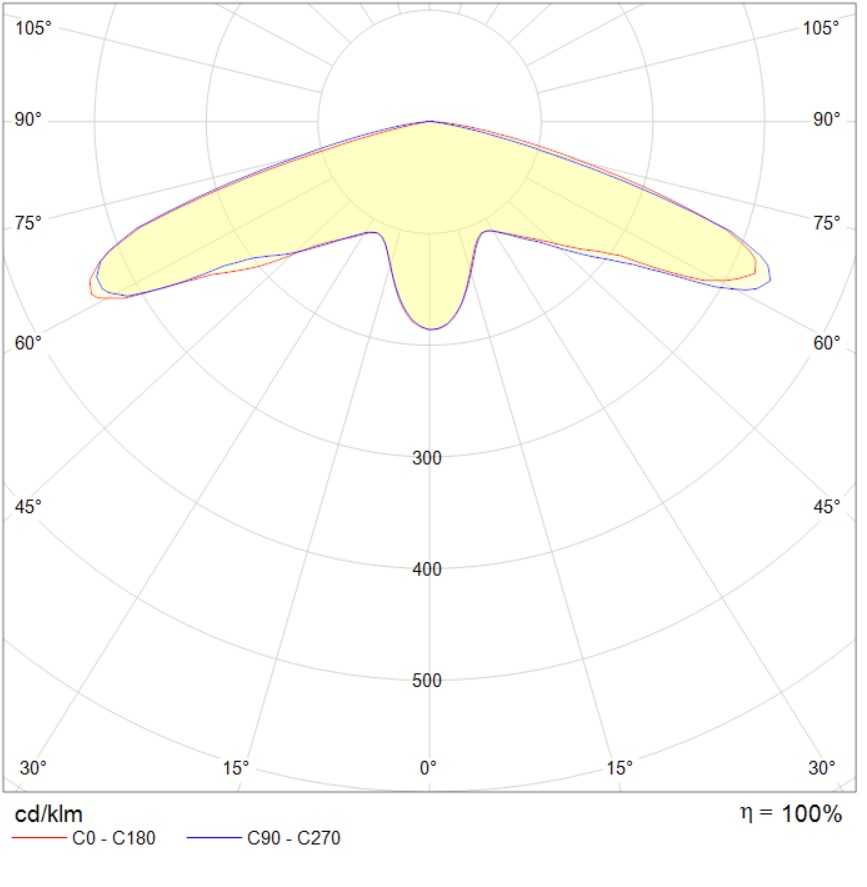

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg83.2 kB
ldt72.8 kB
documents
passport1.2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
accessories
Pipe mounting kit G3/4 for ACORN LED0.05kgarticle: 2490000060
Protective grid for ACORN LED 40 D120/D1500.2kgarticle: 2490000040
