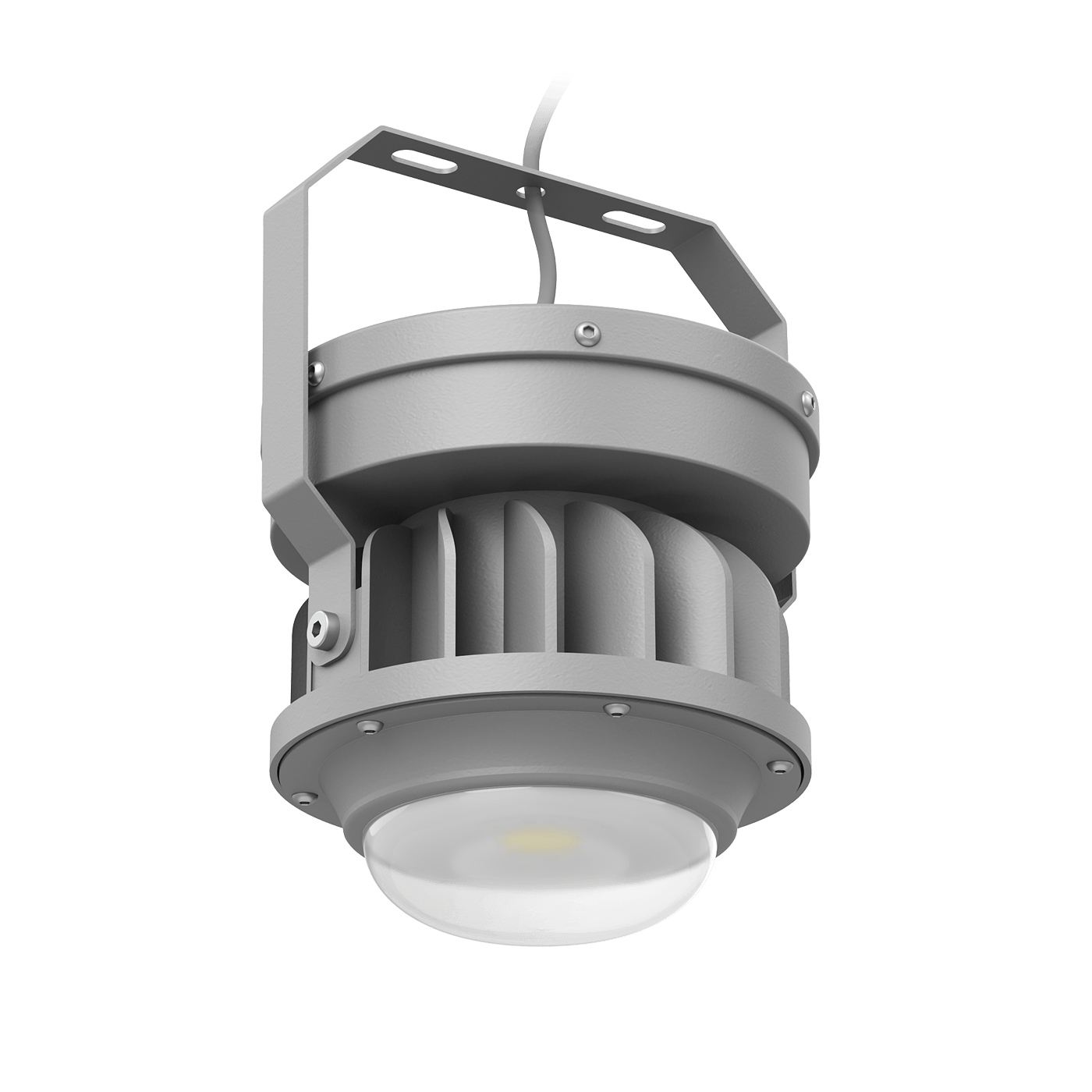

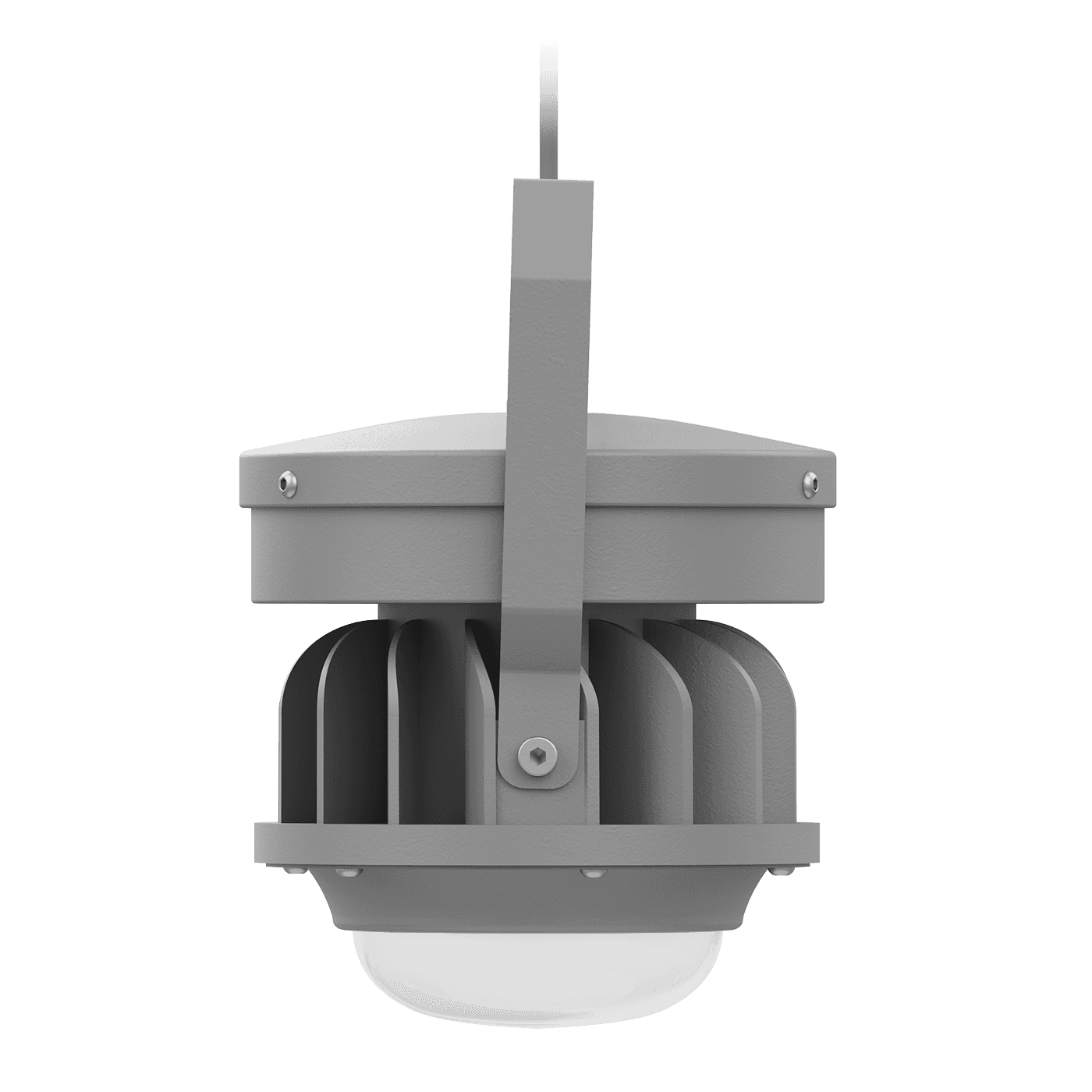

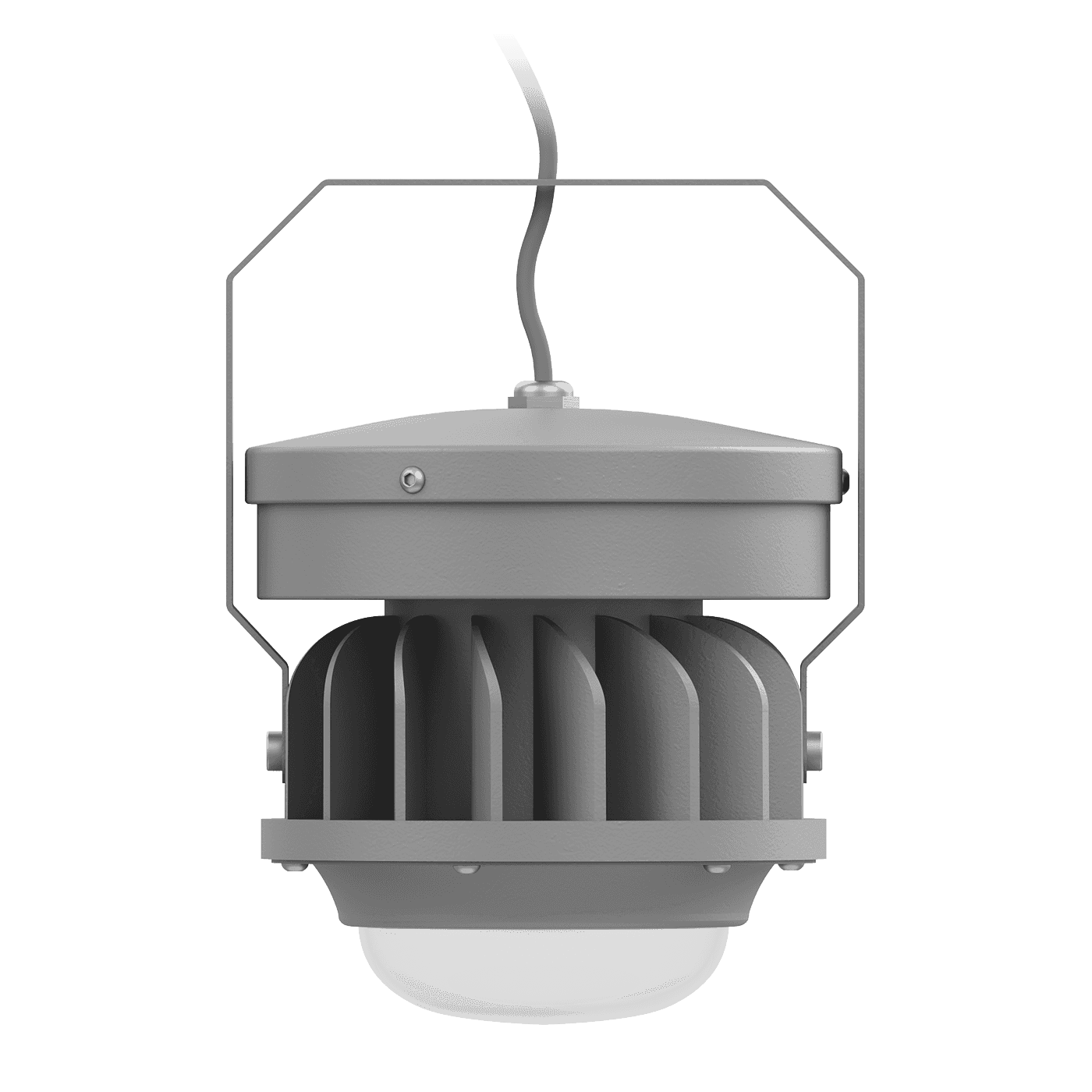

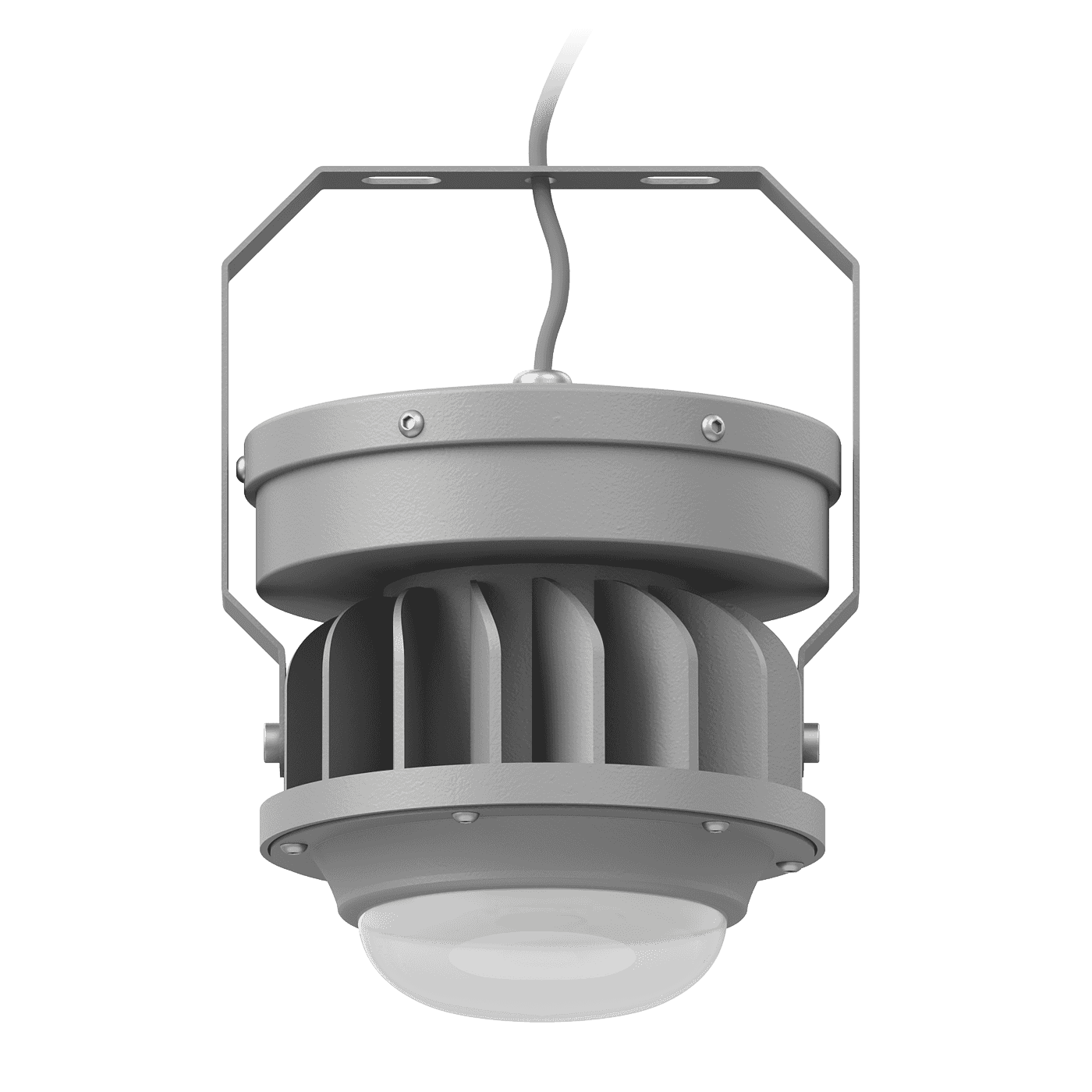

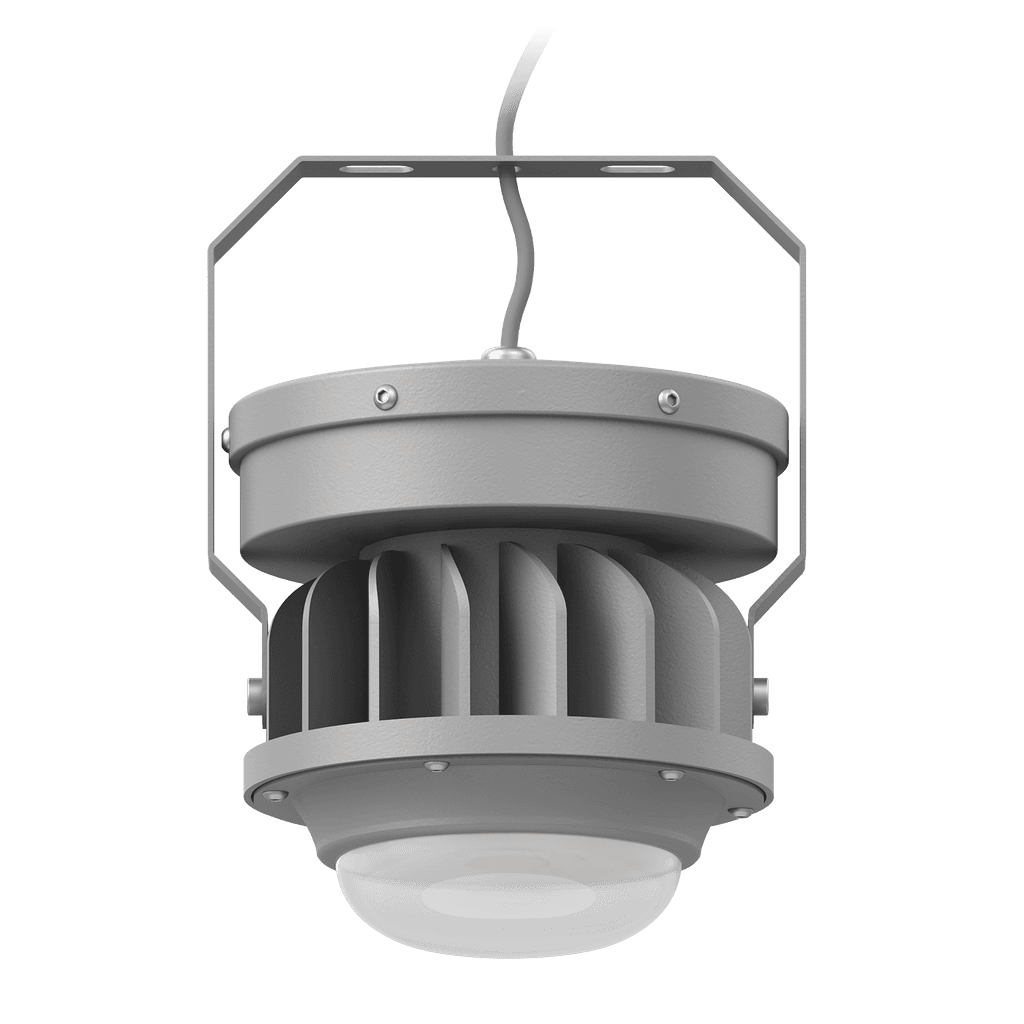

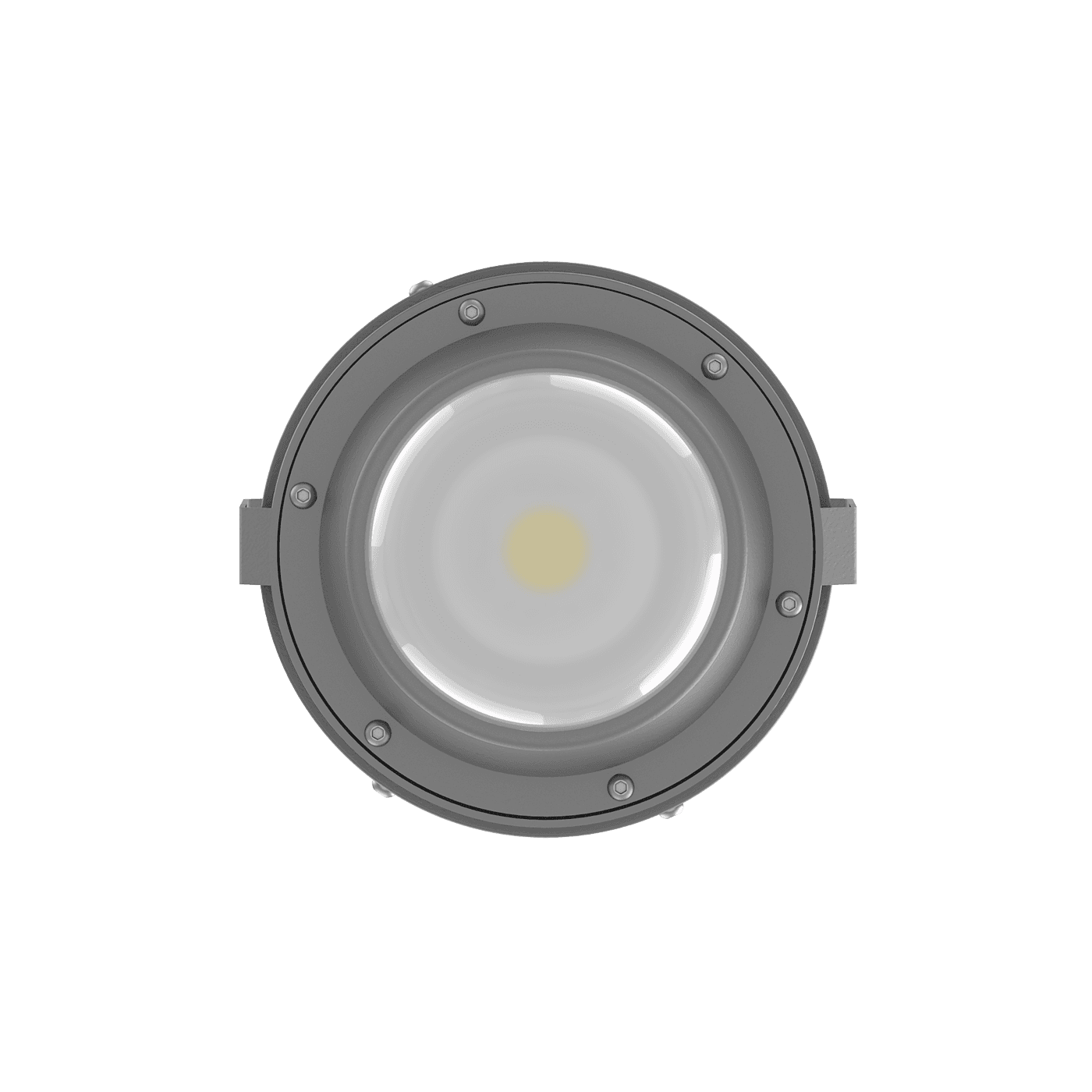

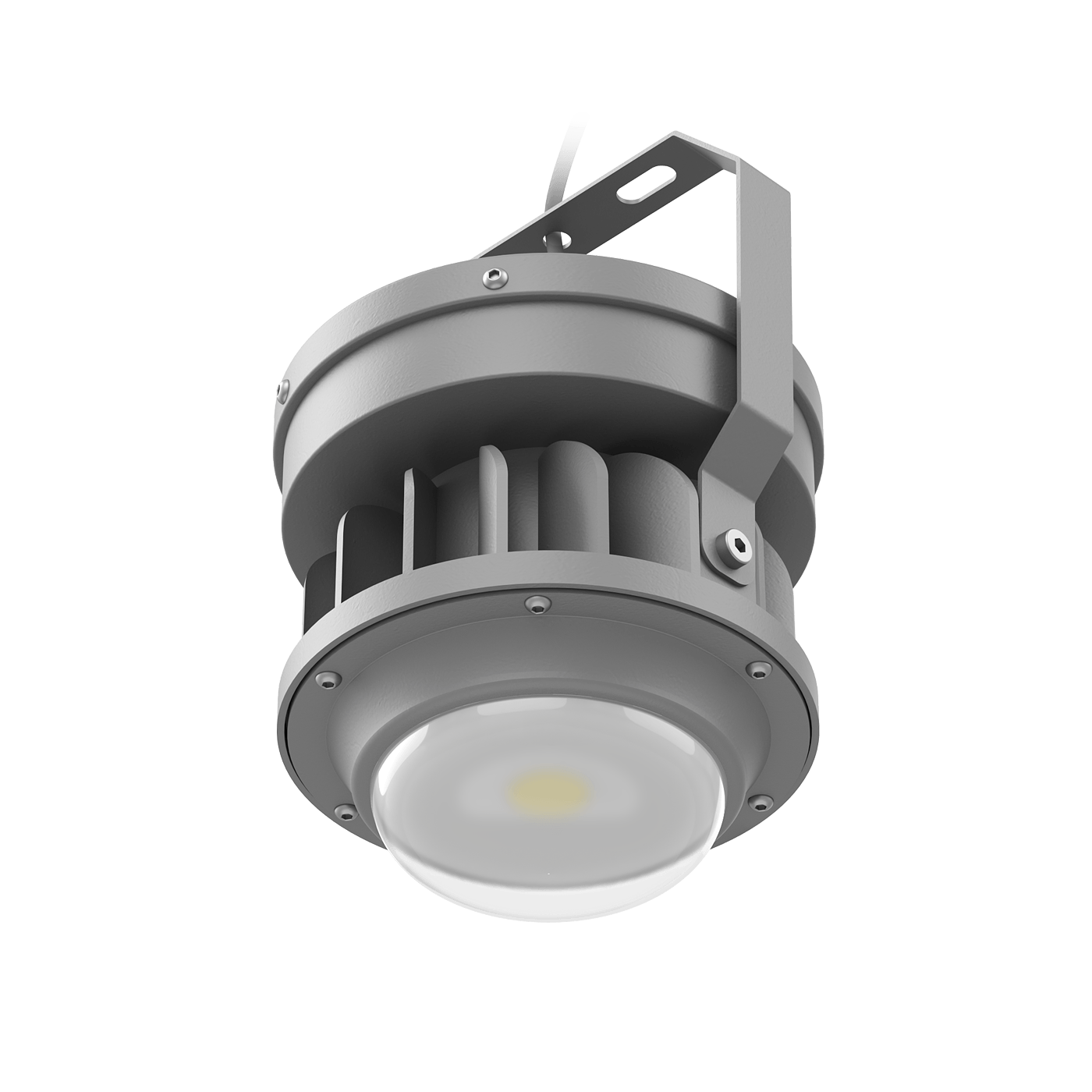

ACORN LED 40 D150 4000K
model is discontinued
model is discontinued
ACORN LED 40 D150 4000K
40 Wluminaire power
5300 lmlight flow
133 lm/Wenergy efficiency
code1490000490
color temperature4000 K
beam angleD150
weight1.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
5300 lmflickering factor
<5%energy efficiency
133 lm/Wbeam angle
D150color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
5300 lm
flickering factor
<5%
energy efficiency
133 lm/W
beam angle
D150
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,90
luminaire power
40 W
electric shock protection
I
supply voltage
230 V
constructional
shock resistance (IK)
IK08/6,5 Дж
climatic performance
УХЛ2*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Серый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP65
weight
1.7 kg
length
165 mm
width
154 mm
height
210 mm
installation length
90 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
code
1490000490
model files
model files

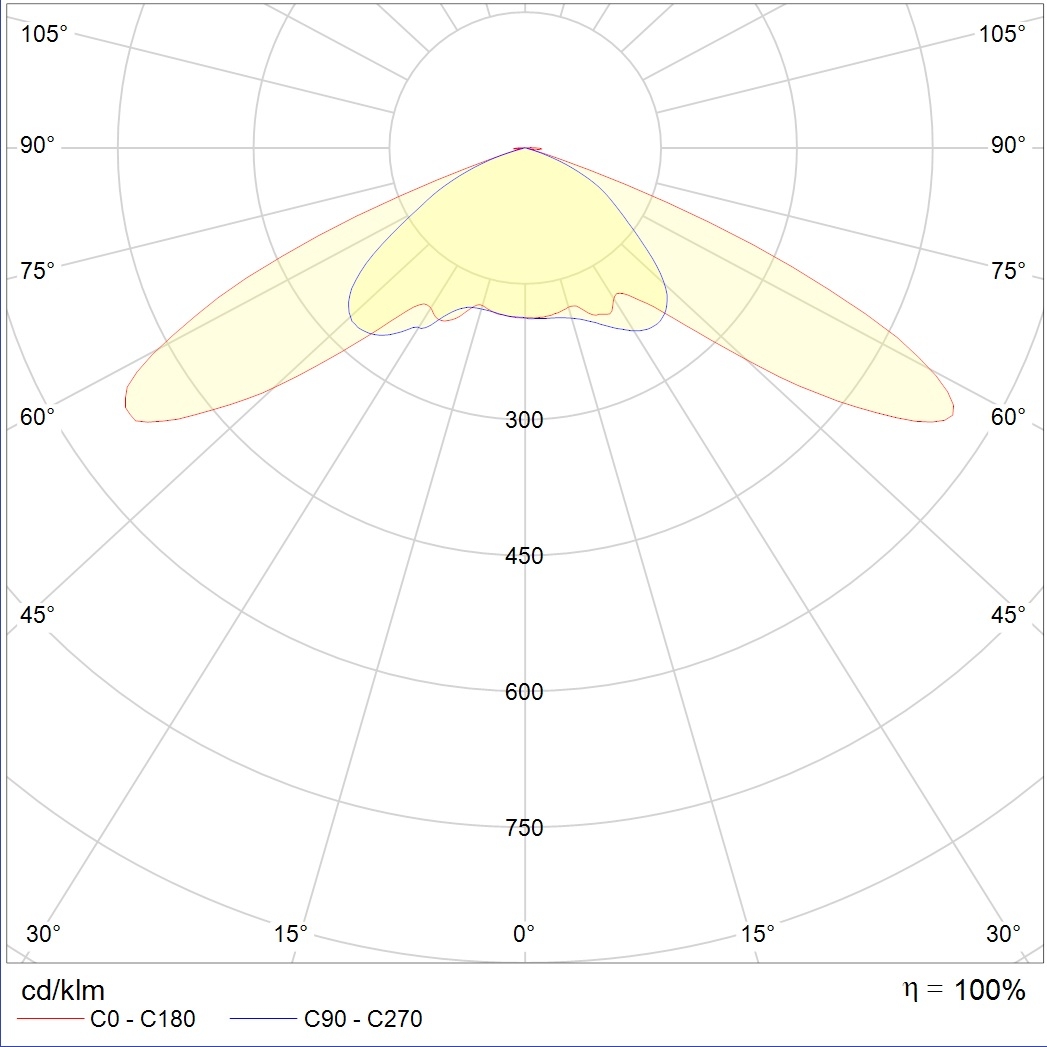

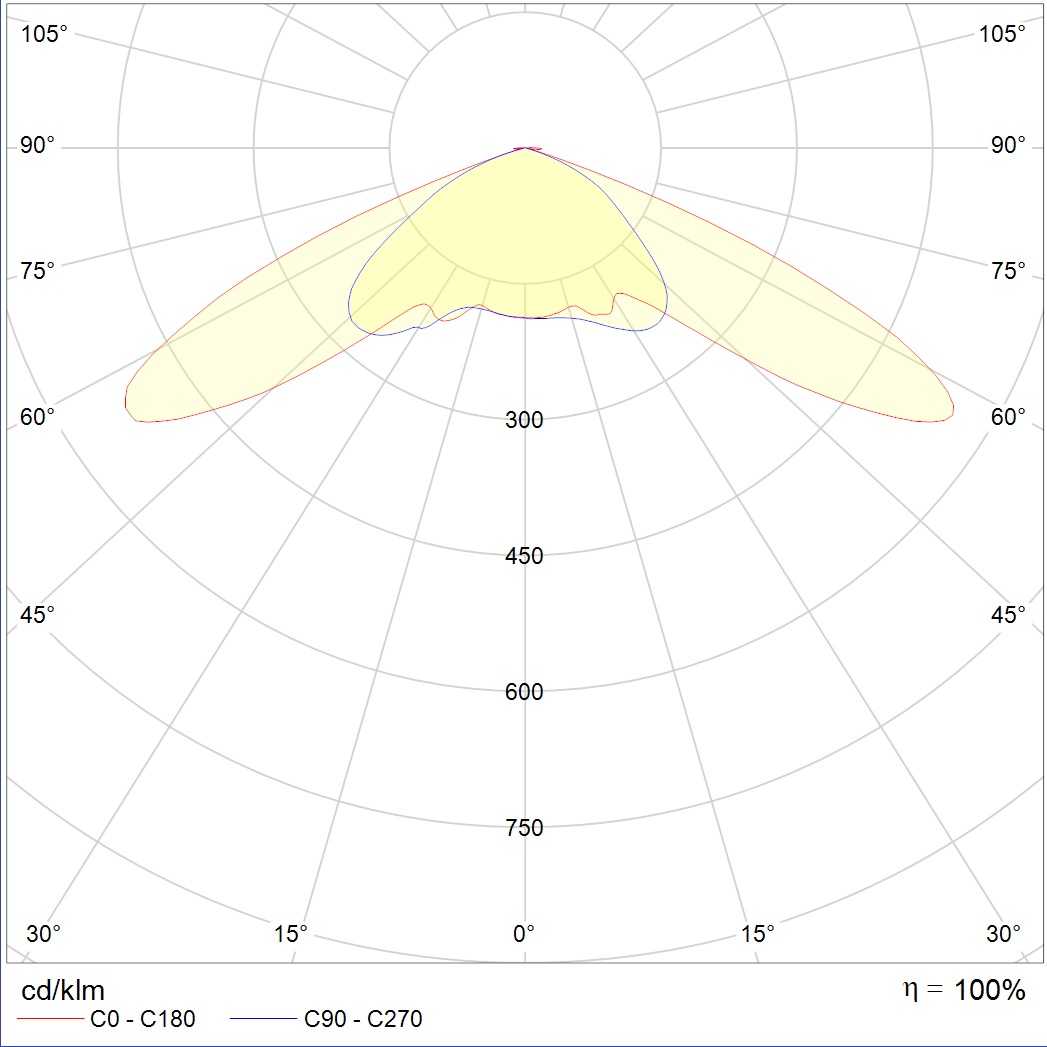

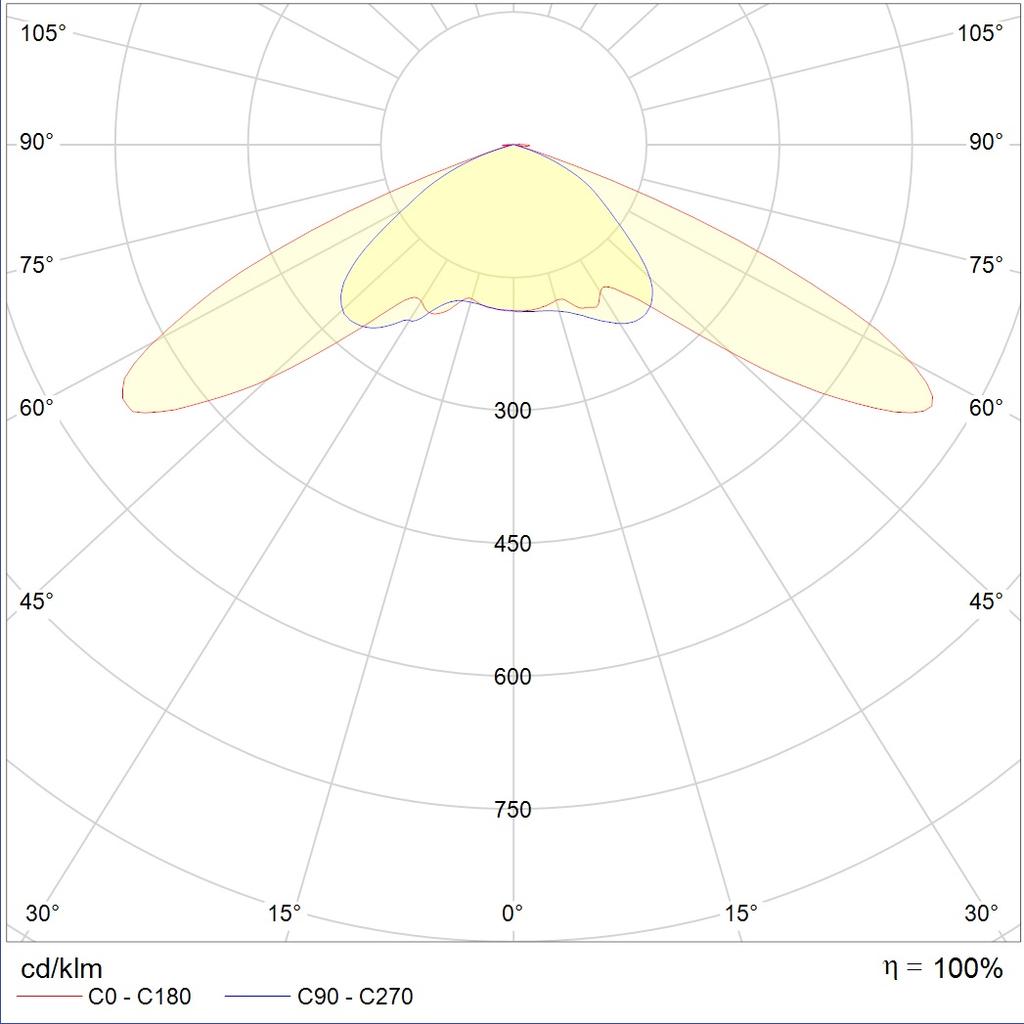

photometric files
сертификаты
photometric files
ies263.2 kB
jpg127.8 kB
ldt201.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
accessories

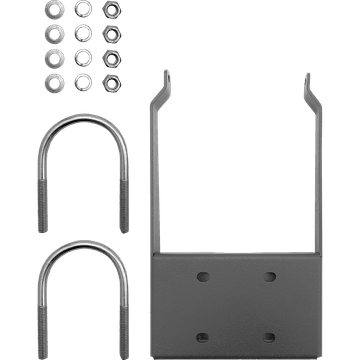

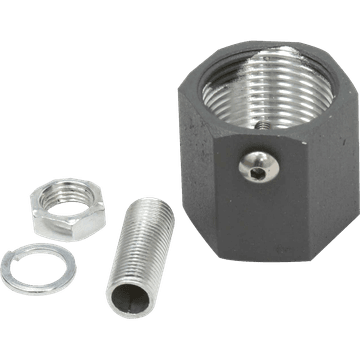

Pipe mounting kit G3/4 for ACORN LED0.05kgarticle: 2490000060

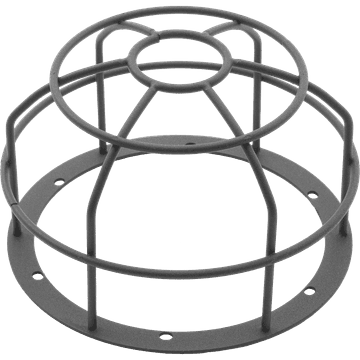

Protective grid for ACORN LED 40 D120/D1500.6kgarticle: 2490000040
Консольное крепление ACORN LED1.15kgarticle: 2490000030
