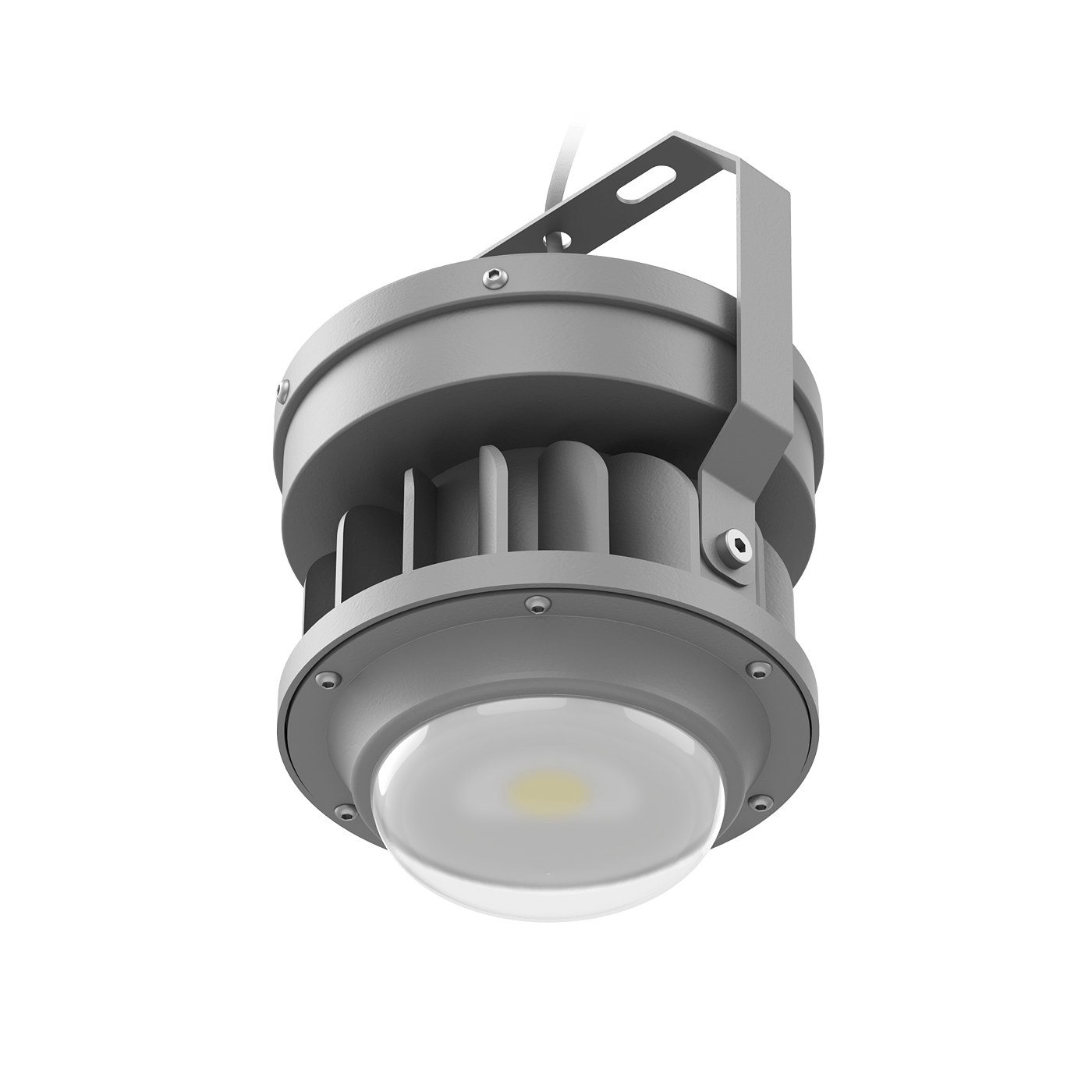

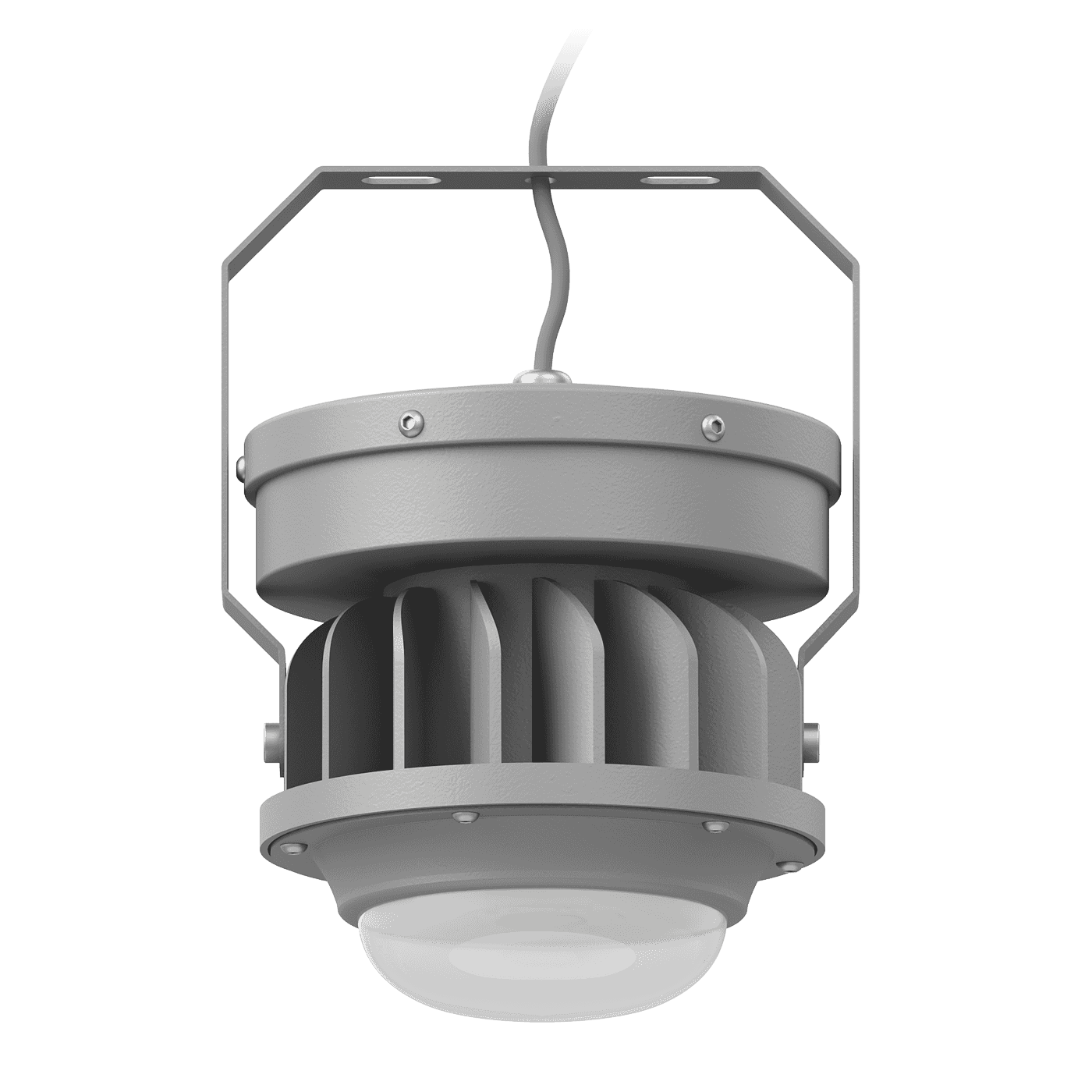

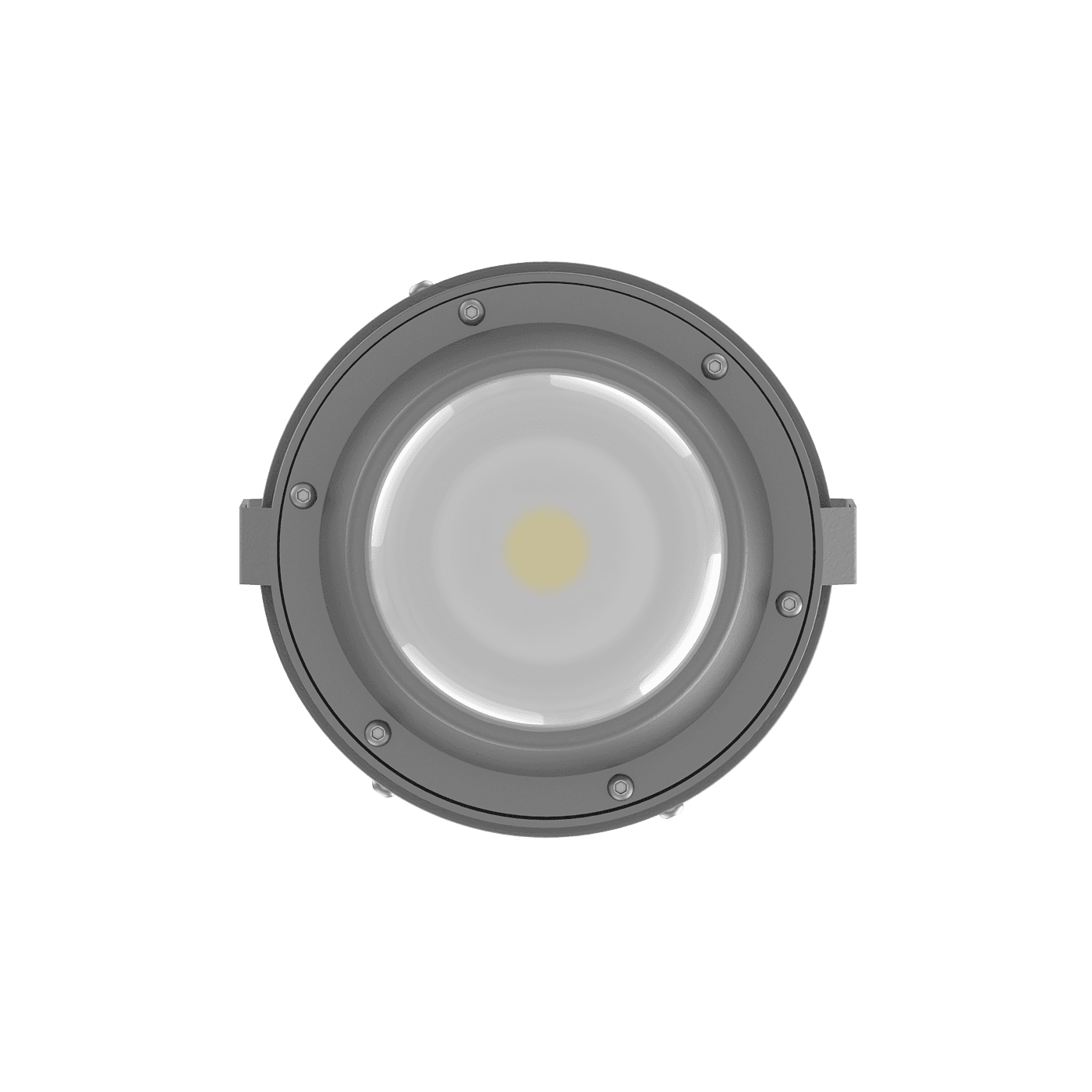

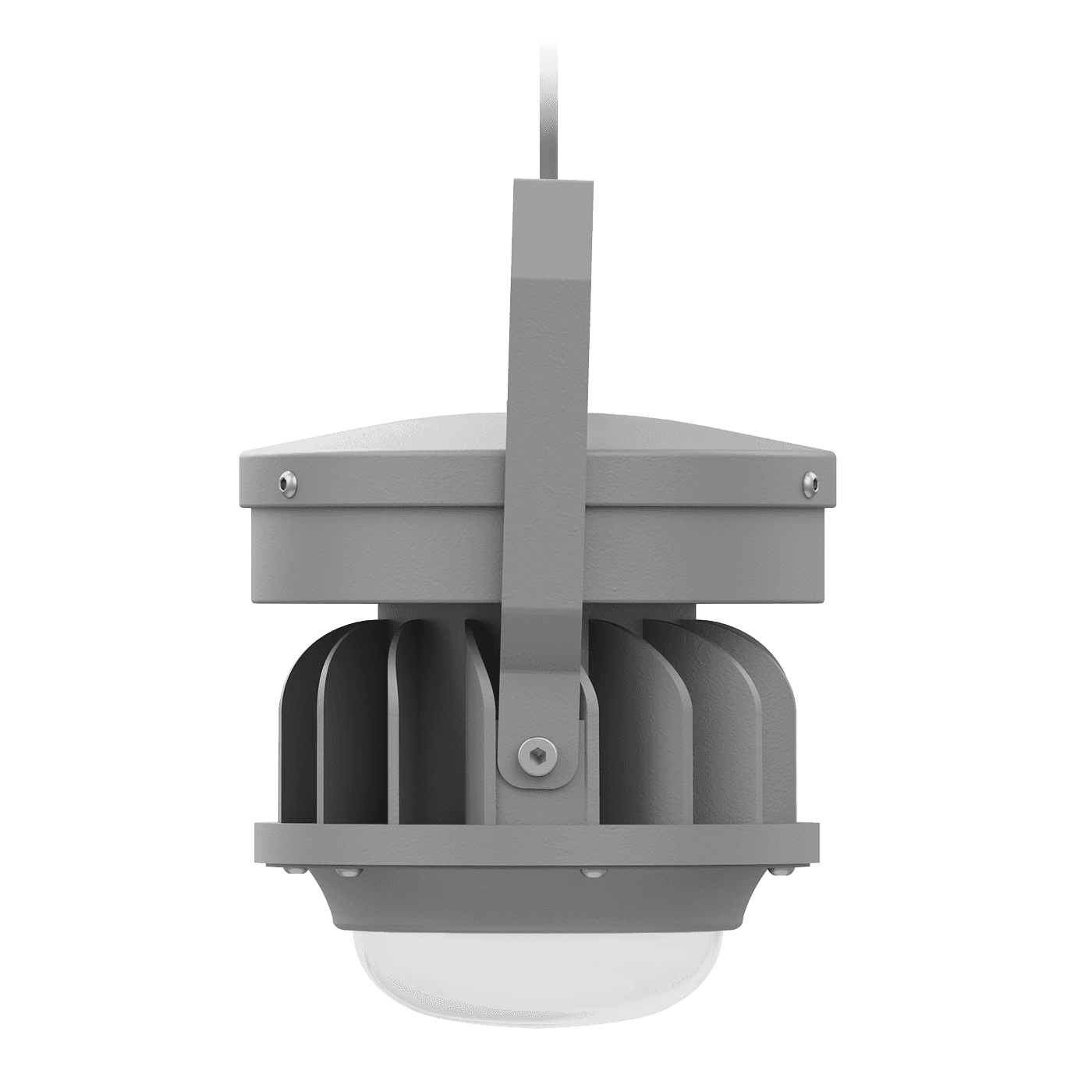

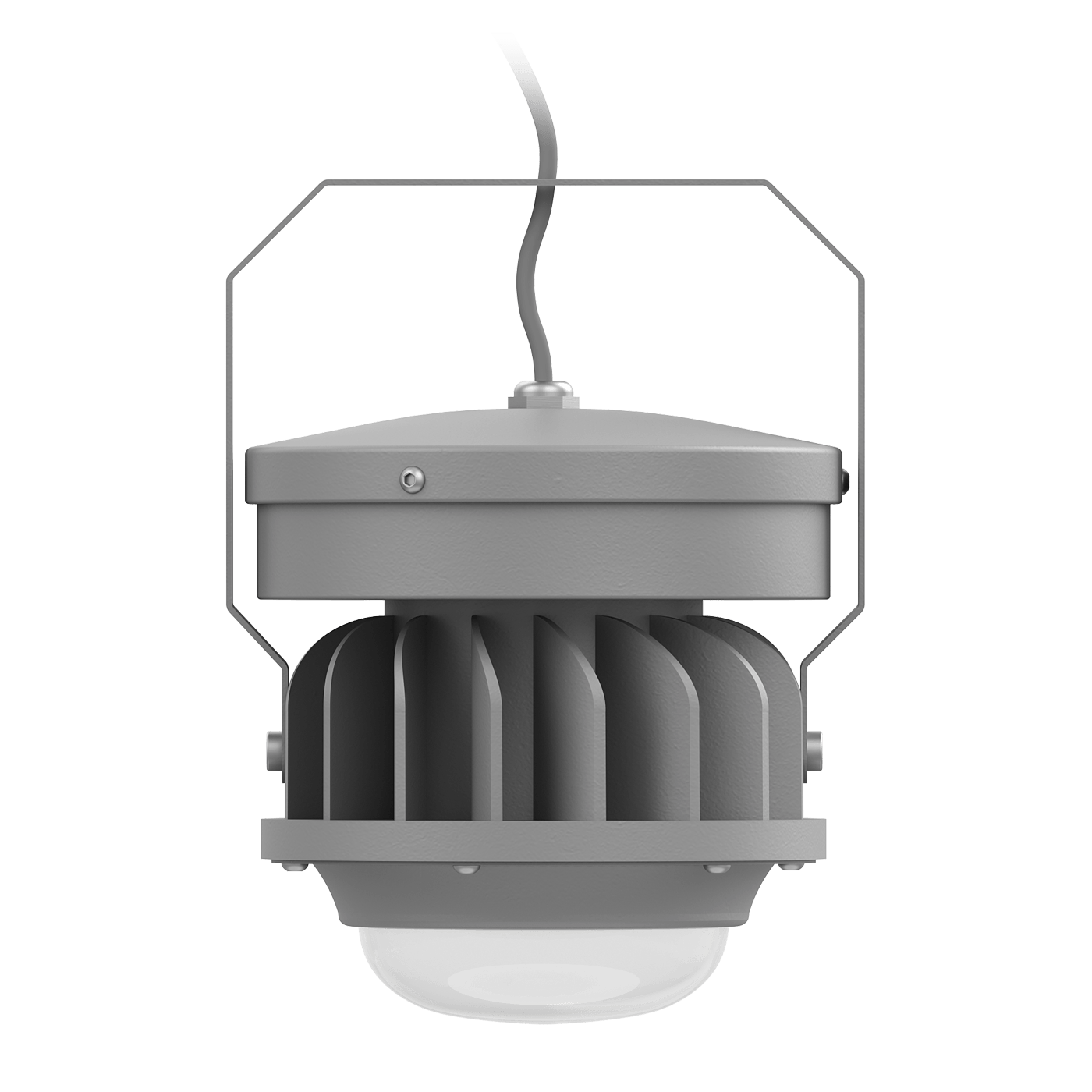

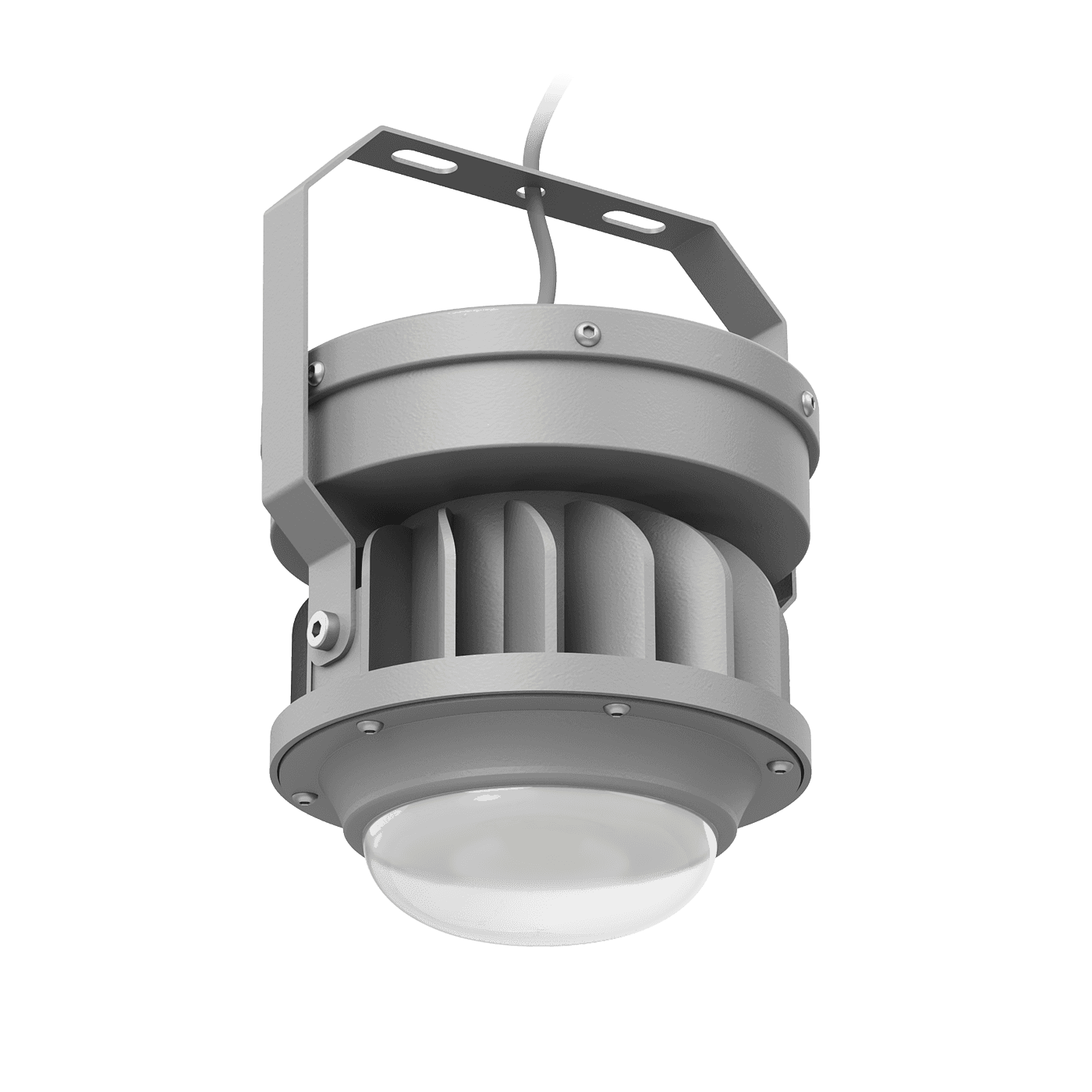

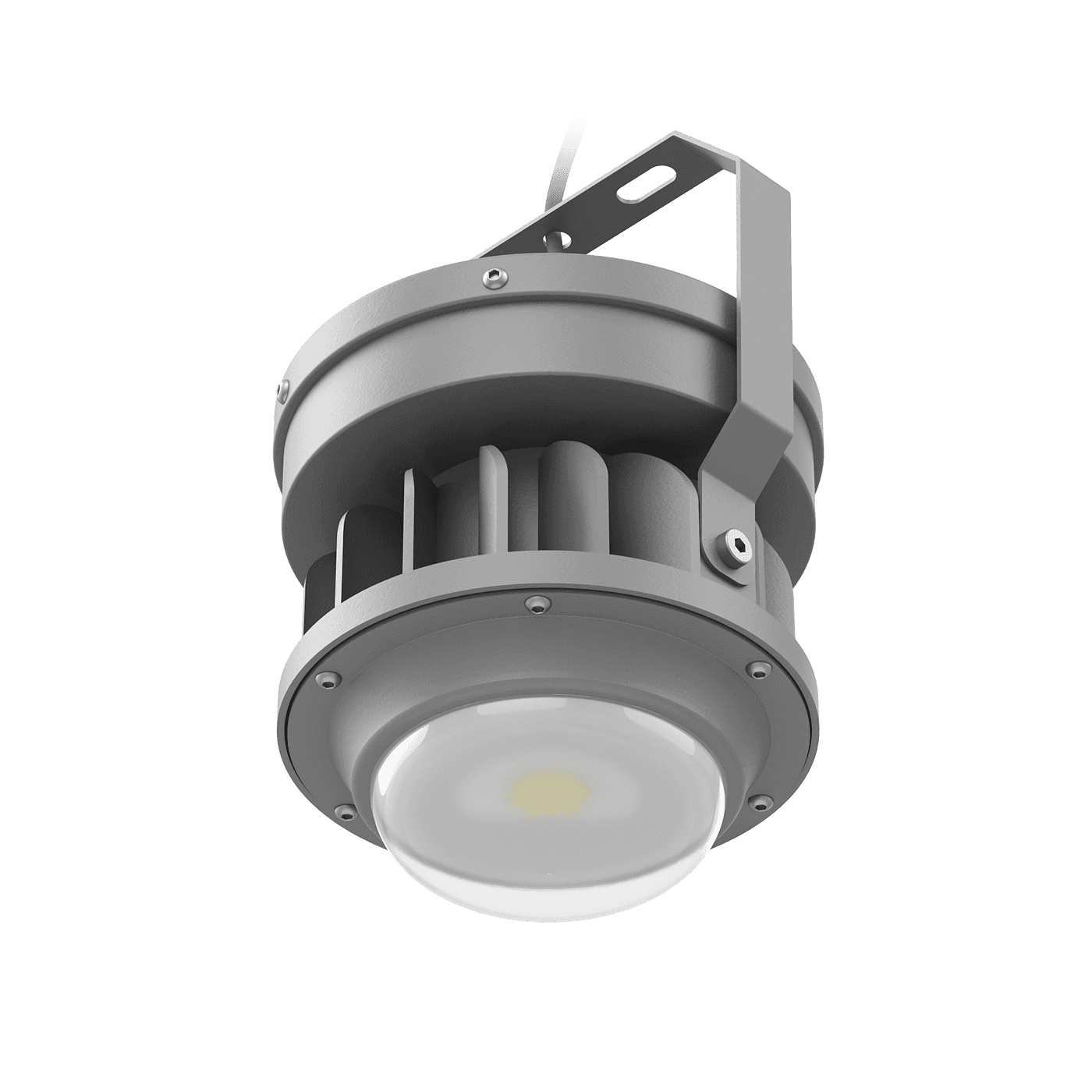

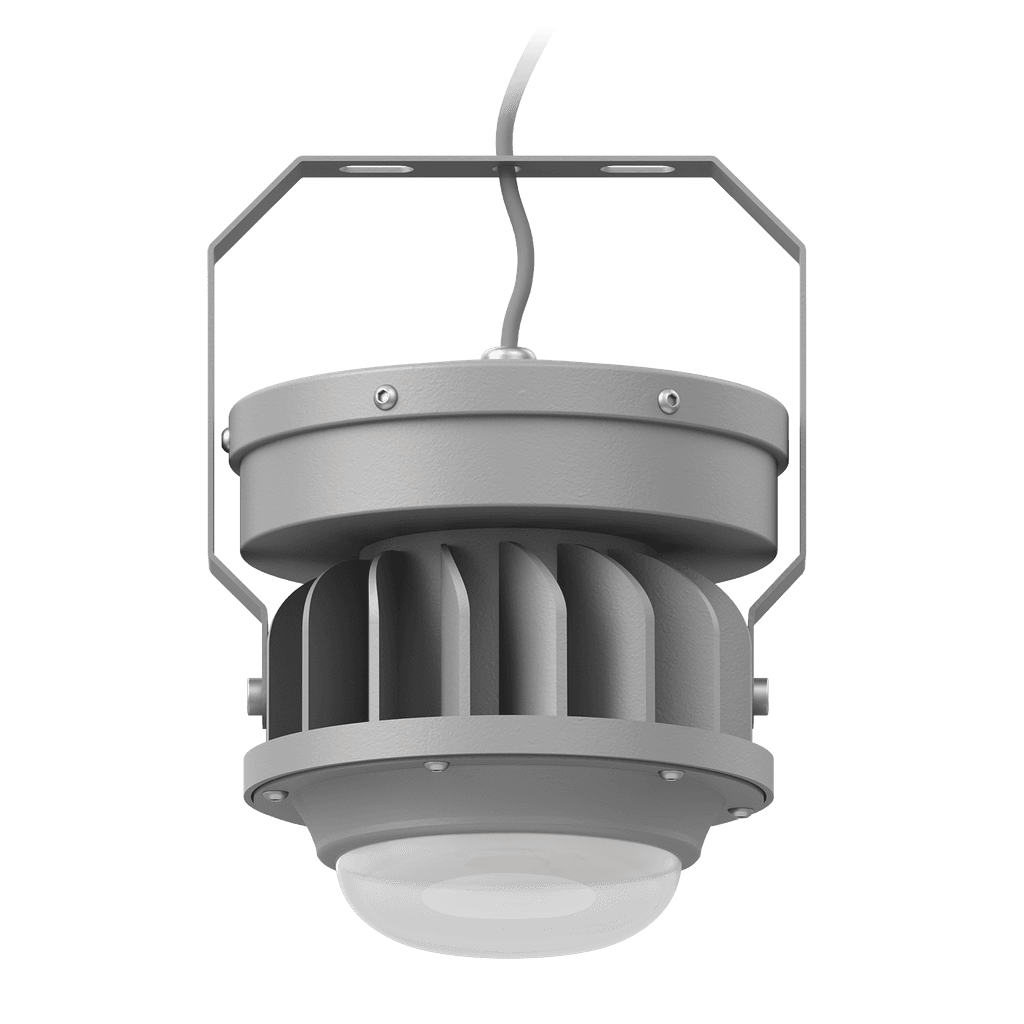

ACORN LED 30W D150 850 HG with tempered glass CD60
29 Wluminaire power
3200 lmlight flow
110 lm/Wenergy efficiency
code1490000400
color temperature5000
beam angleD150
weight1.5 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
85-285 Vsupply voltage, direct current
220-230 Velectric shock protection
Istarting current
32 Astarting current pulse time, µs
2.5 mksluminaire power
29 Wrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vpower factor
> 0,90supply voltage
230 Velectrical
supply voltage, alternating current
85-285 V
supply voltage, direct current
220-230 V
electric shock protection
I
starting current
32 A
starting current pulse time, µs
2.5 mks
luminaire power
29 W
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
power factor
> 0,90
supply voltage
230 V
illuminating
color rendition index (CRI)
>70
light flow
3200 lm
flickering factor
<5%
energy efficiency
110 lm/W
beam angle
D150
color temperature
5000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP65
material
Алюминий
housing color
Серый
length, mm
160 mm
width, mm
120 mm
height, mm
180 mm
weight
1.5 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1
shock resistance (IK)
IK08/6,5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
70 mm
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -60 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1490000400
model files
model files
documents
сертификаты
documents
passport704.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
