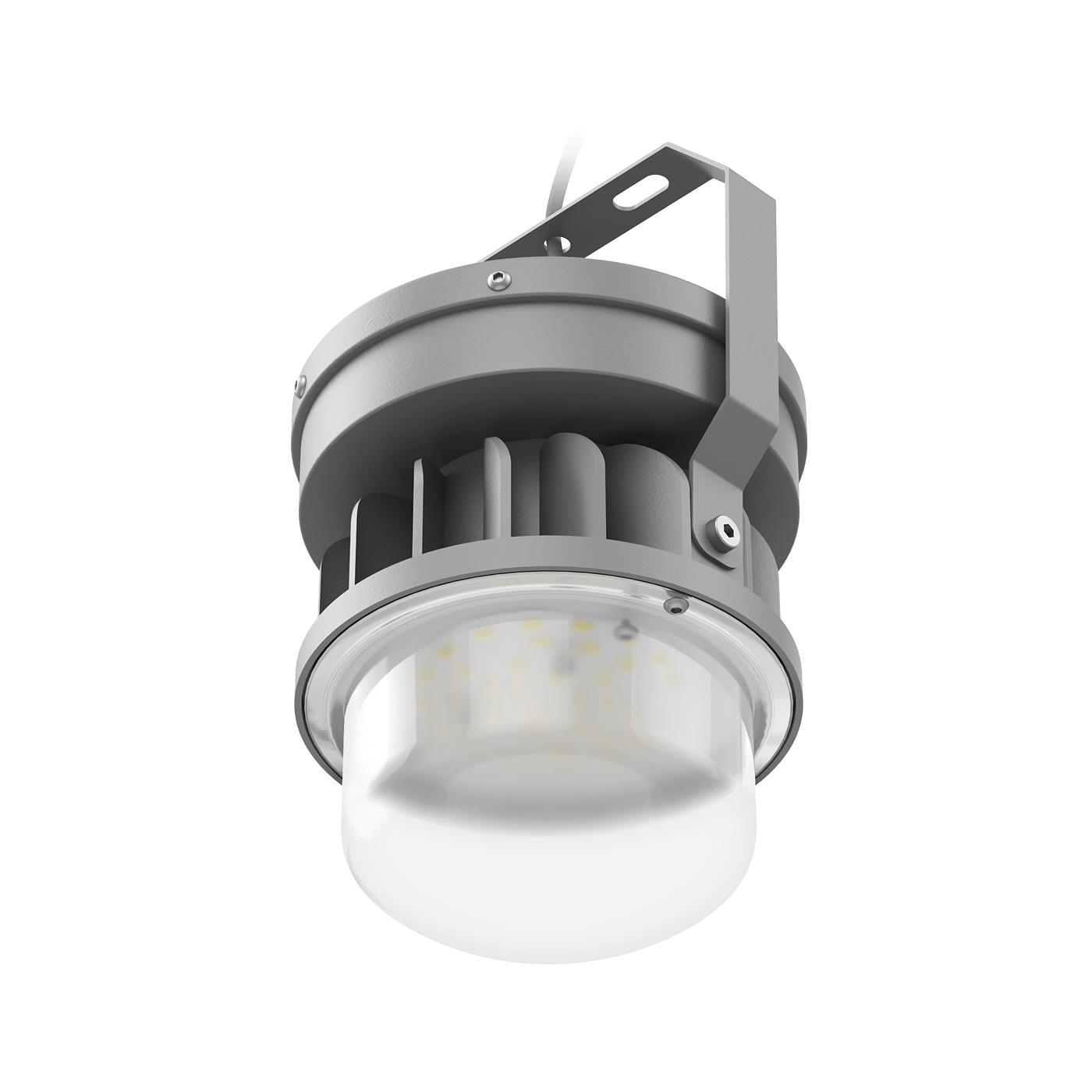

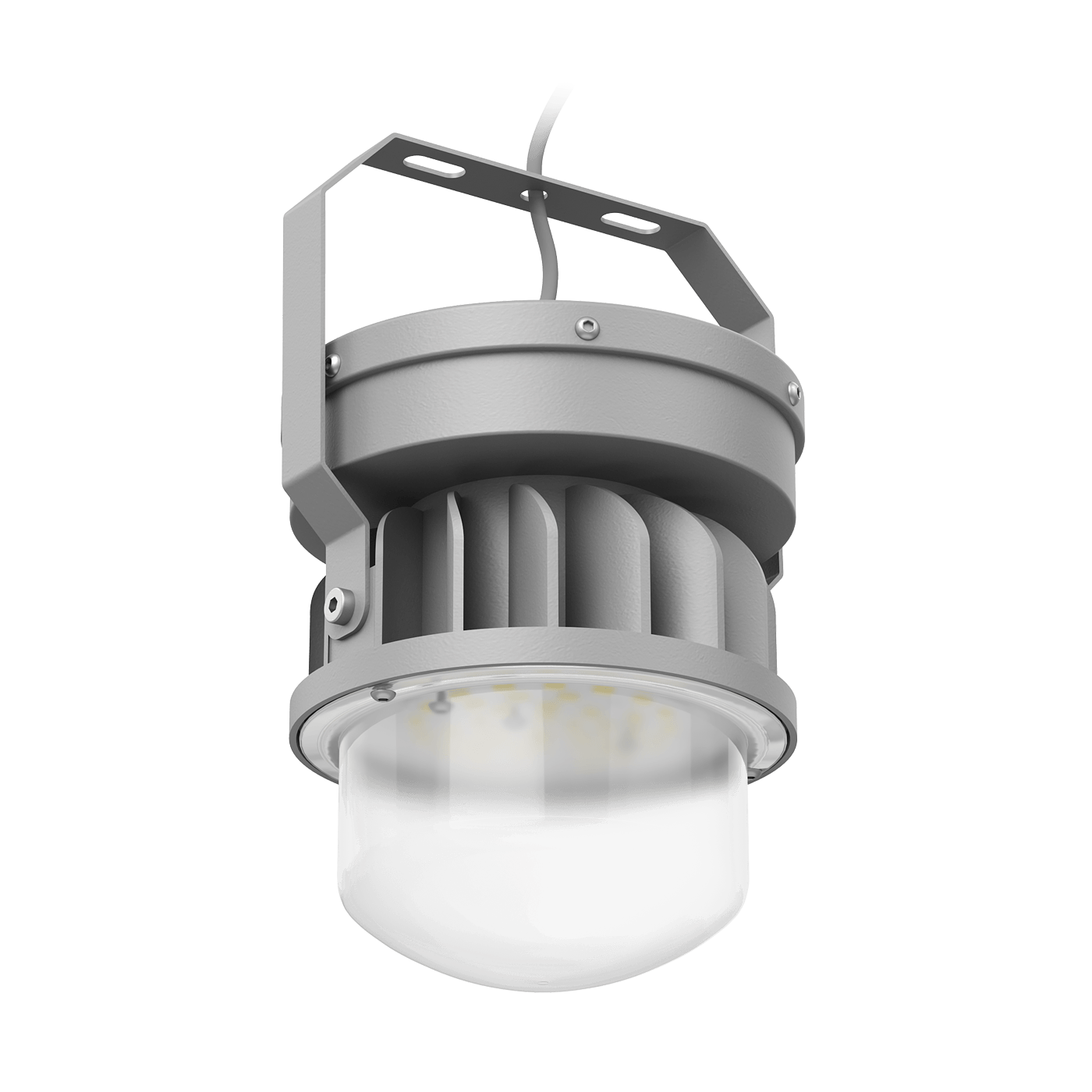

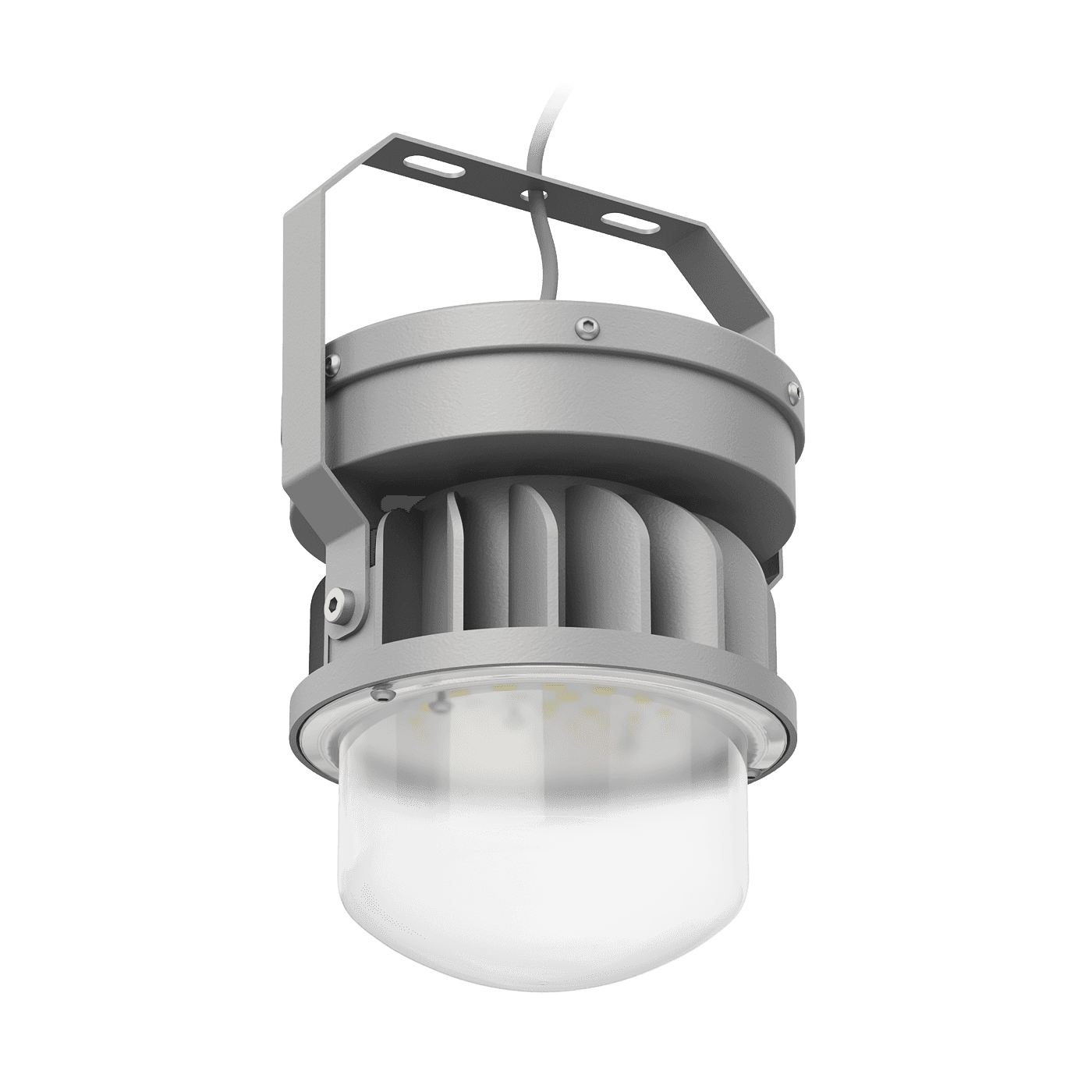

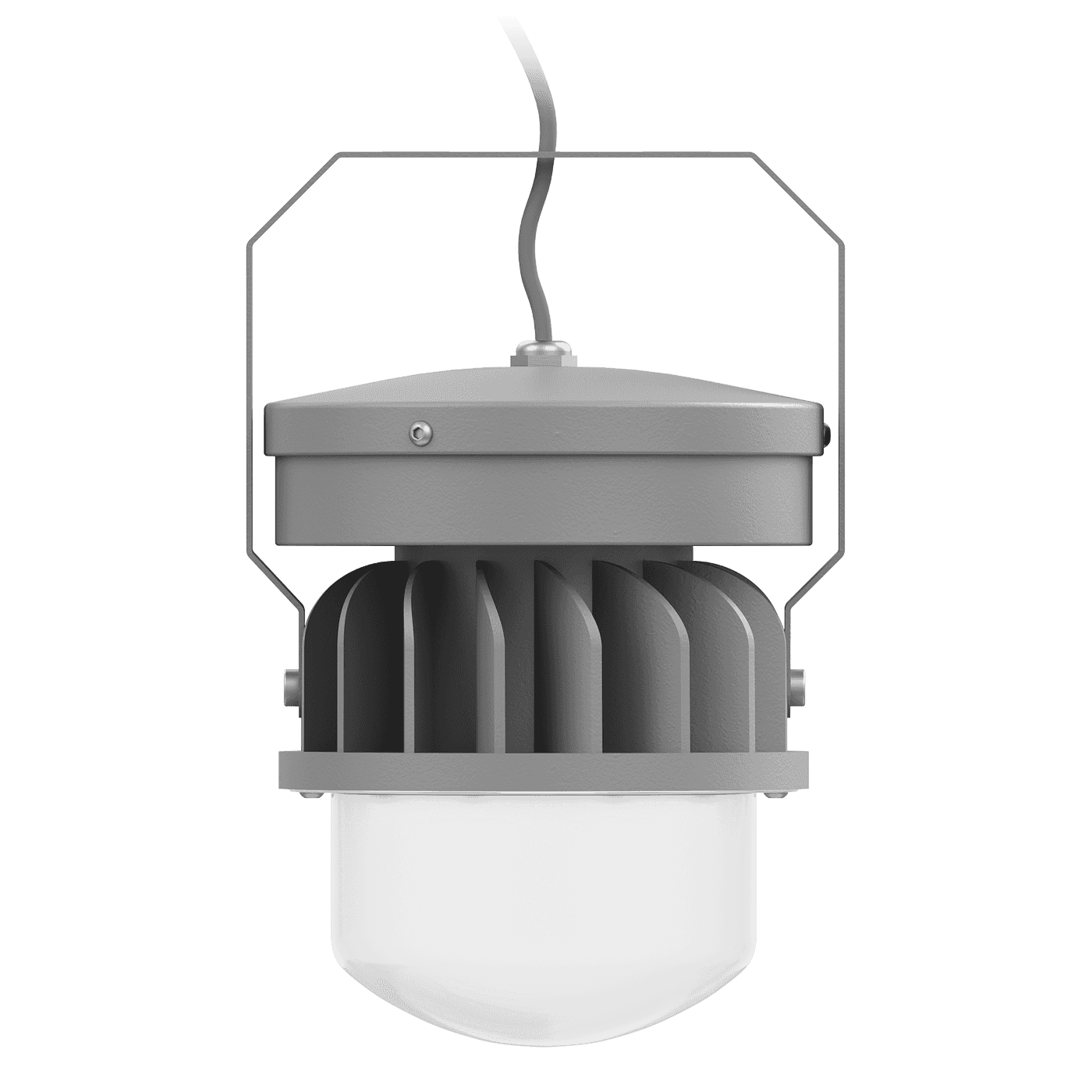

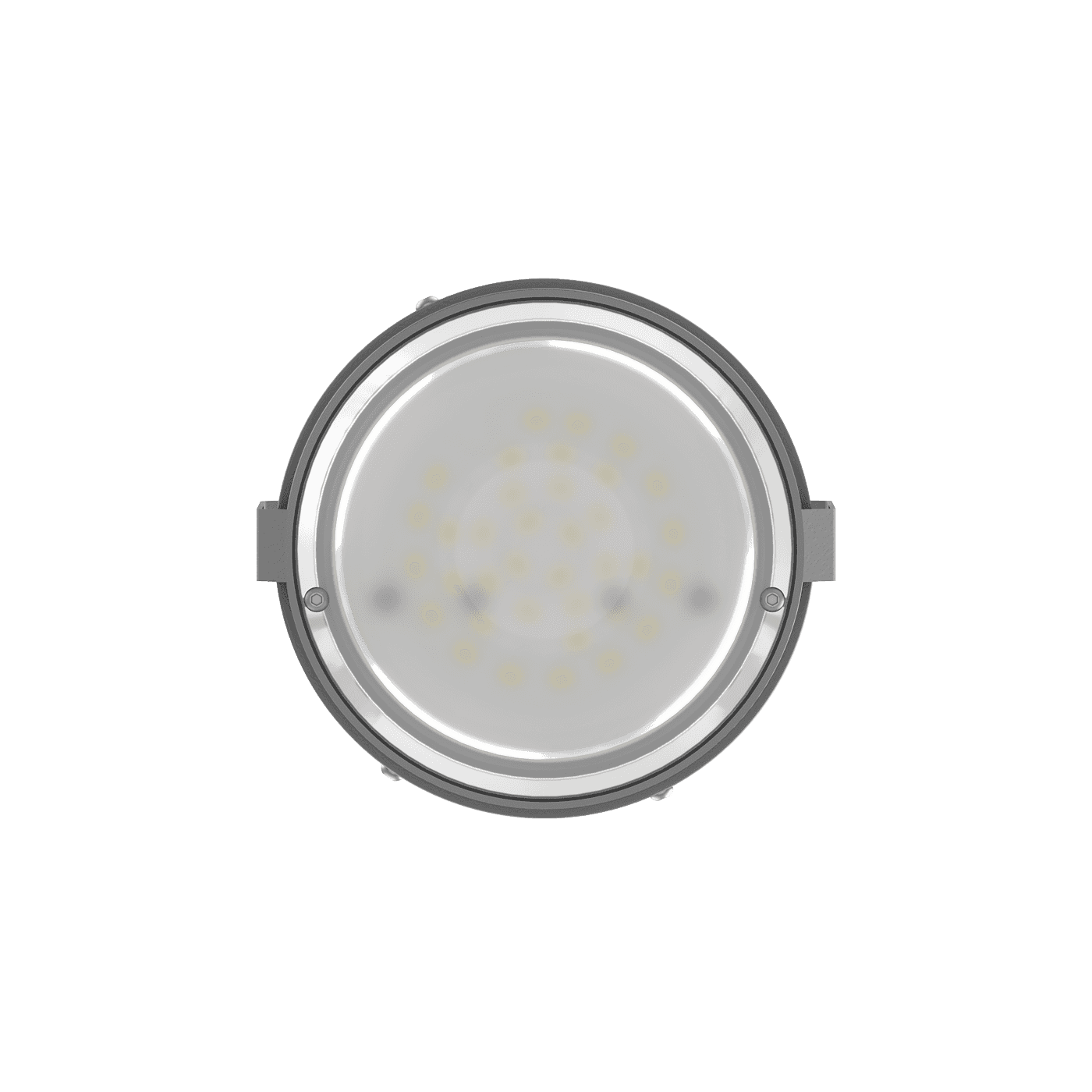

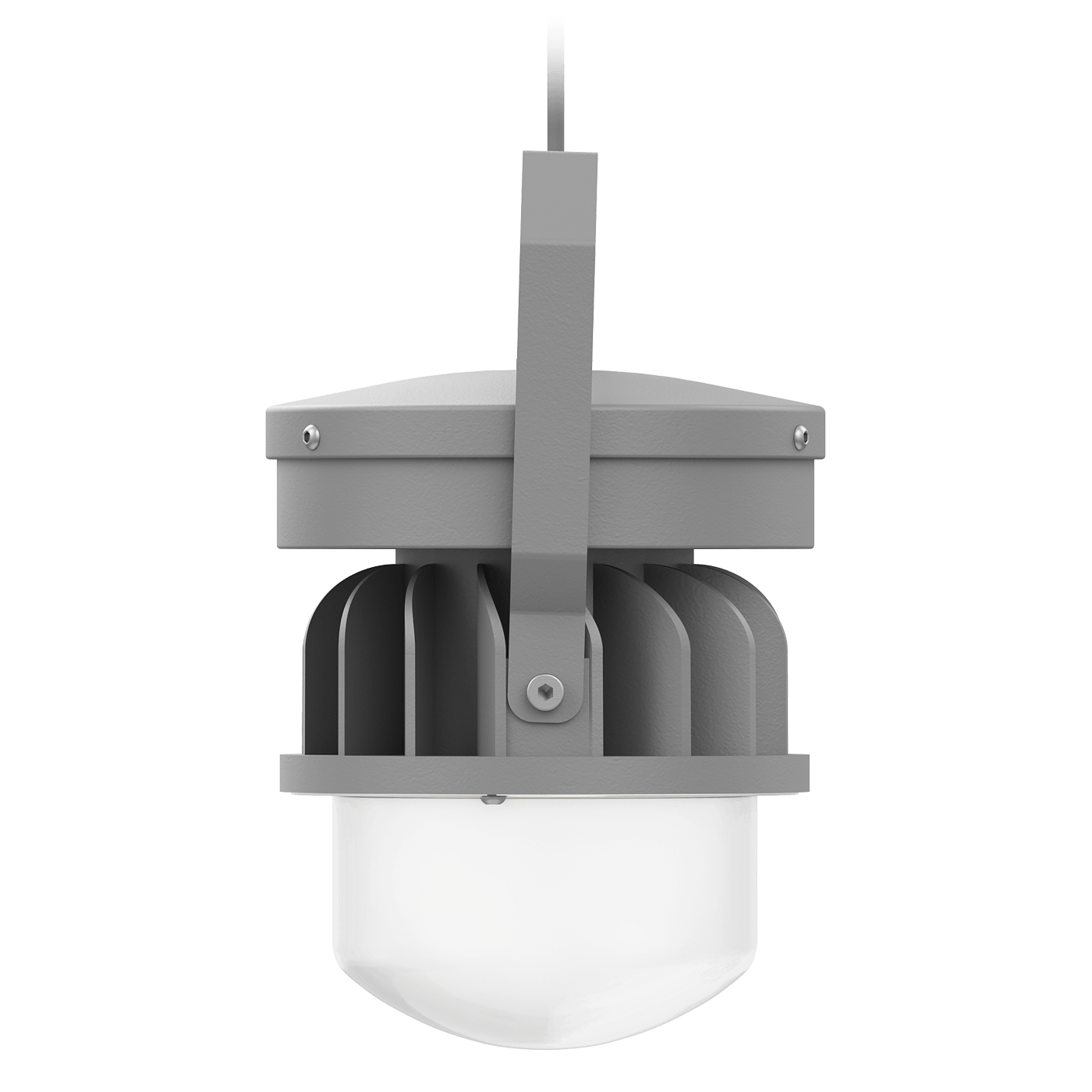

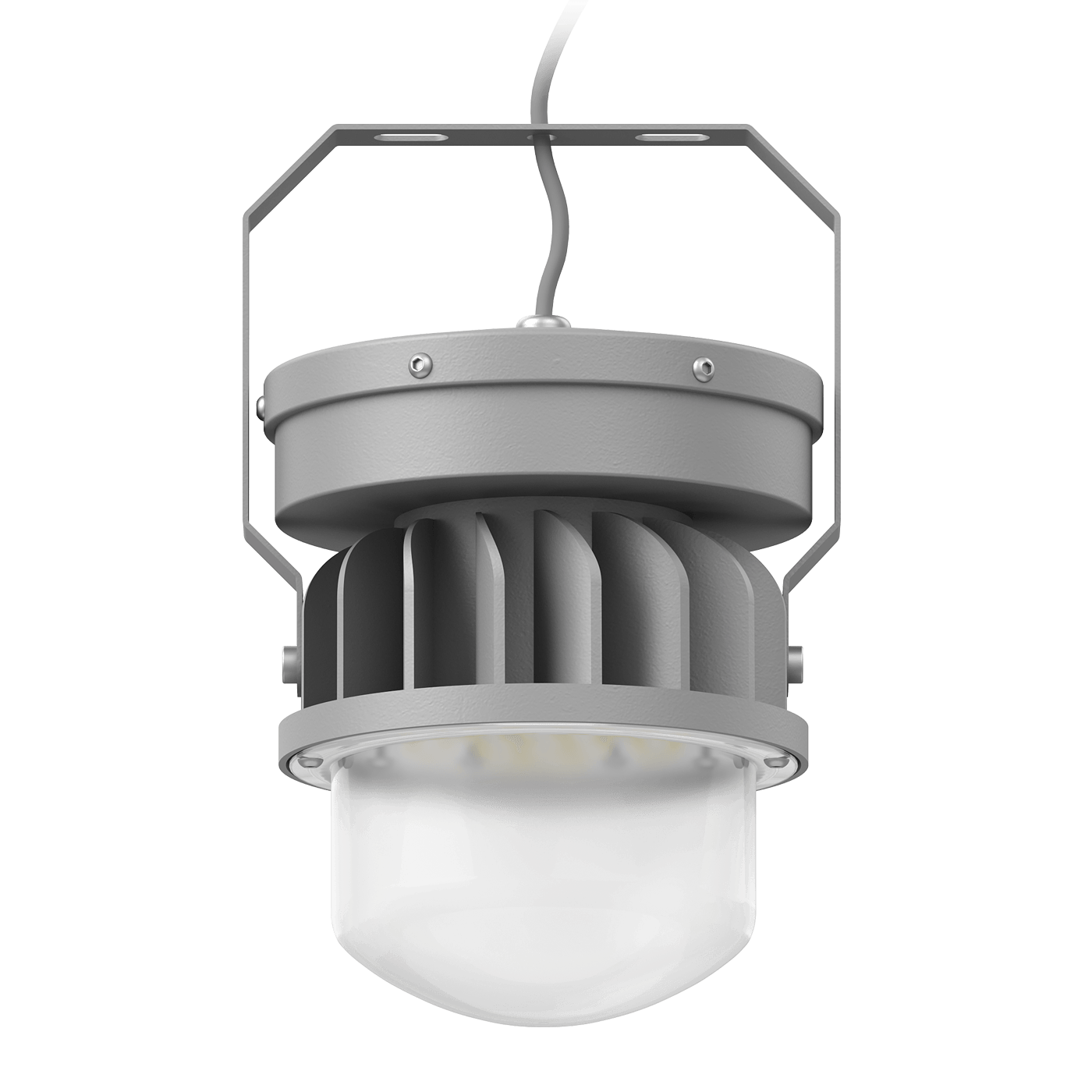

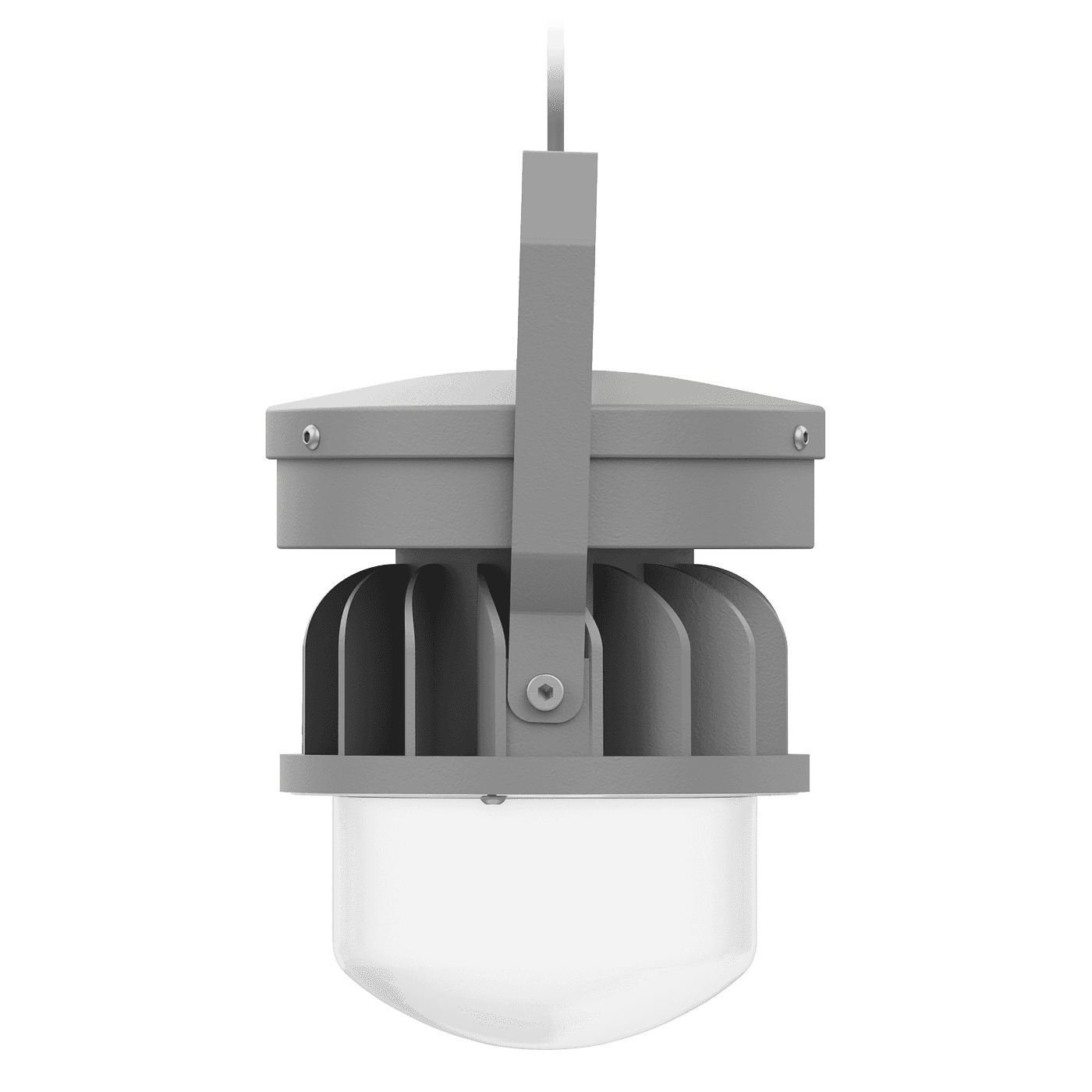

ACORN LED MARINE 40 D120 5000K
зарегистрирована в реестре российской промышленной продукции
ACORN LED MARINE 40 D120 5000K
40 Wluminaire power
5300 lmlight flow
133 lm/Wenergy efficiency
code
1830000220
number from the register of Russian industrial products
10535319
color temperature
5000 K
beam angle
D120
- main page
- catalog
- by product type
- special application
- shipbuilding
- ACORN LED MARINE
- ACORN LED MARINE 40 D120 5000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
color rendition index (CRI)
>80light flow
5300 lmenergy efficiency
133 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
5300 lm
energy efficiency
133 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
luminaire power
40 W
electric shock protection
I
power factor
> 0,90
starting current
36 A
supply voltage
230 V
starting current pulse time
5 µs
constructional
material
Алюминий
width
145 mm
height
230 mm
housing color
Серый
mounting type
length
165 mm
weight
1.7 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK08/6,5 Дж
climatic performance
ОМ1*
fire safety class
П-ІІ
emergency
emergency power supply
Нет
common
code
1830000220
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Комплект крепления (6-гранный ключ – 1 шт, винт М6 – 2 шт, шайба стопорная d6 – 2 шт) - 1 шт.
Лира - 1 шт.
model files
model files
photometric files
documents
сертификаты

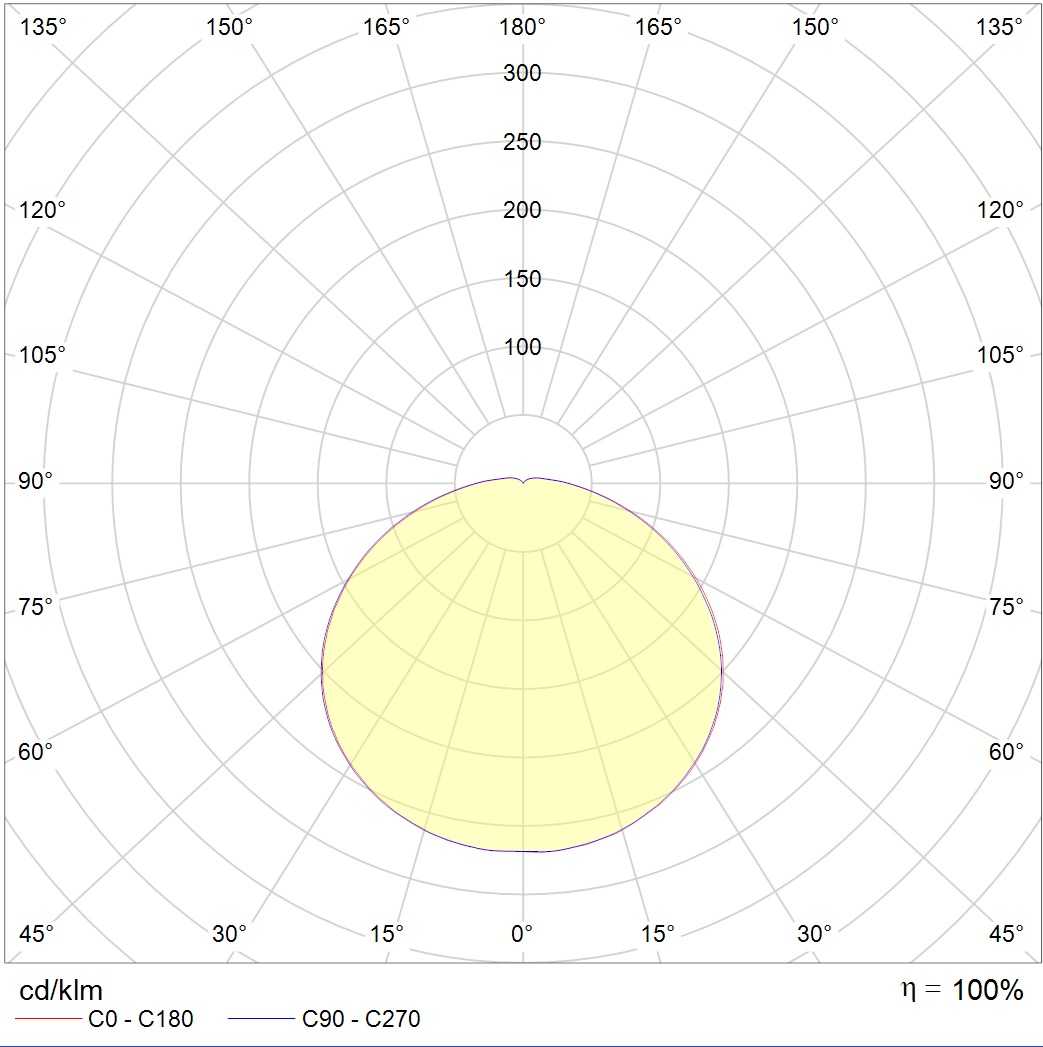

photometric files
ies263.2 kB
jpg162.6 kB
ldt215.3 kB
csv429 B
documents
passport865.8 kB
сертификаты
Russian origin273.8 kB
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/2011530.5 kB
Declaration of Conformity EAEU TR 037/2016508.2 kB
