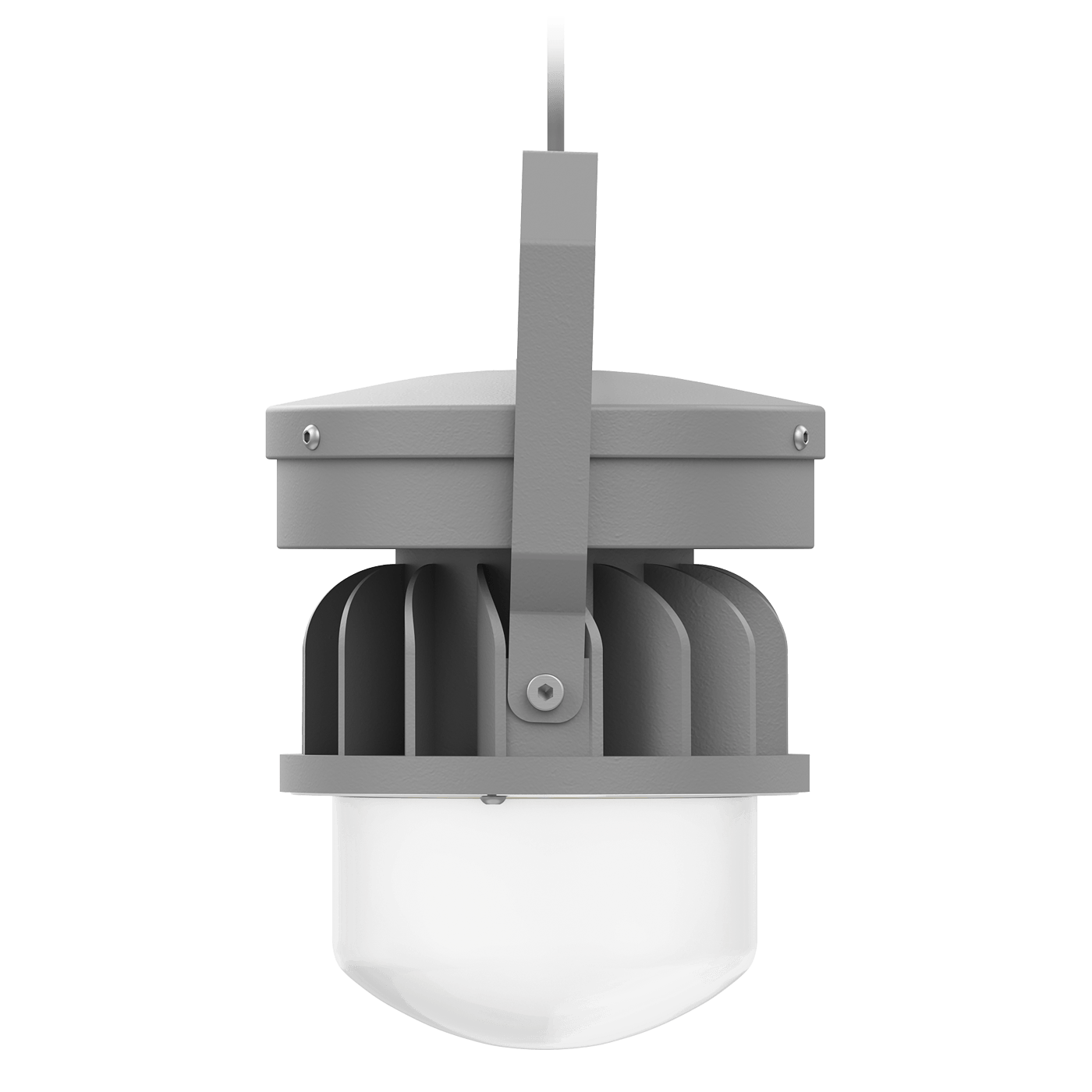

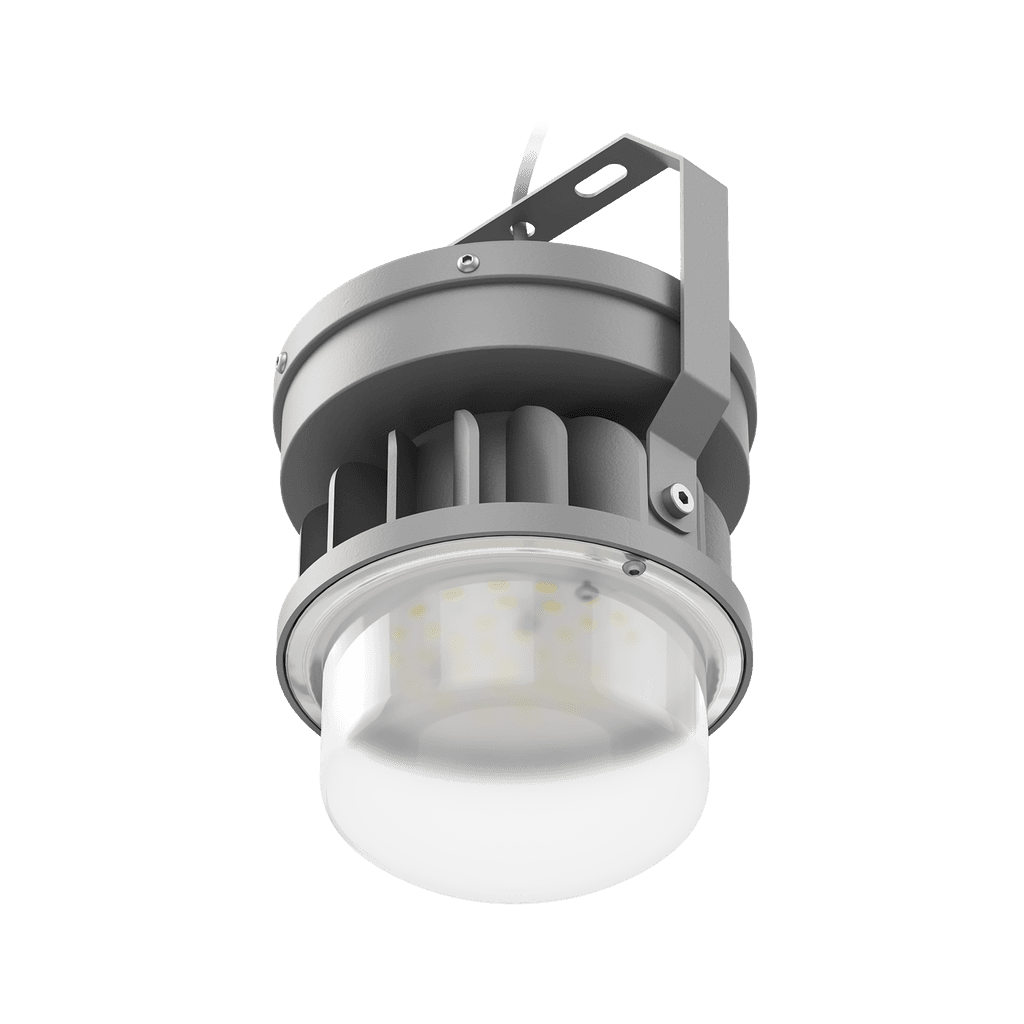

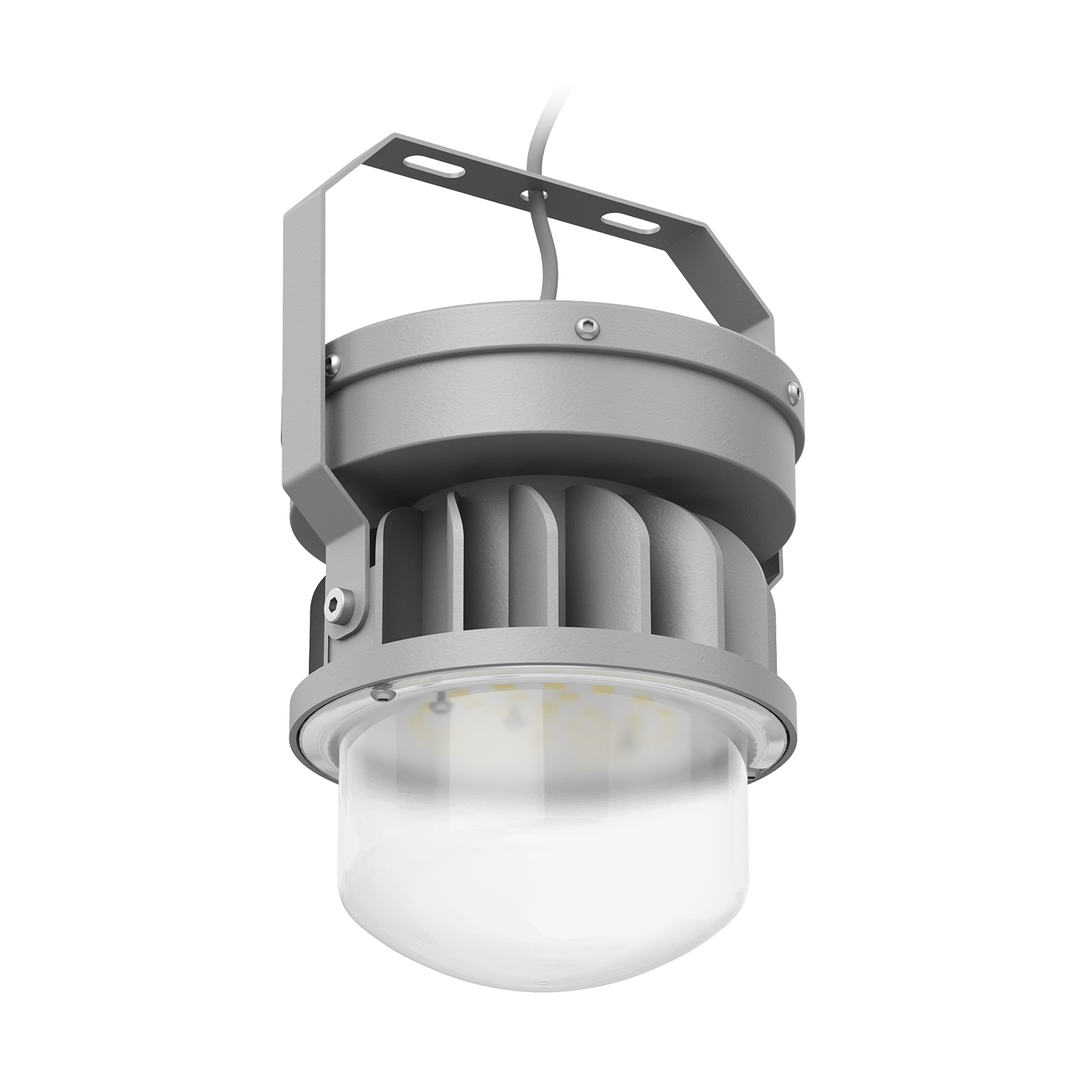

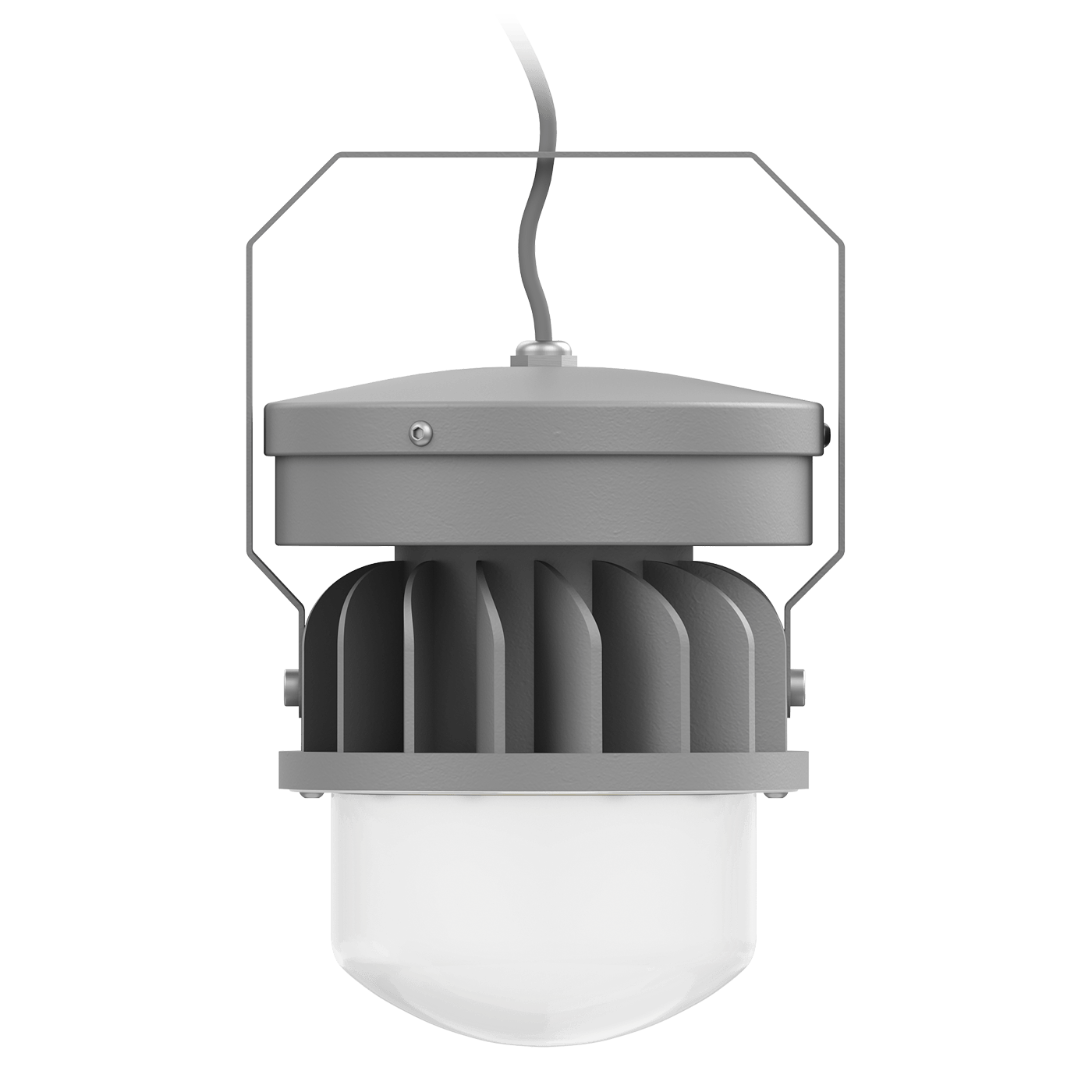

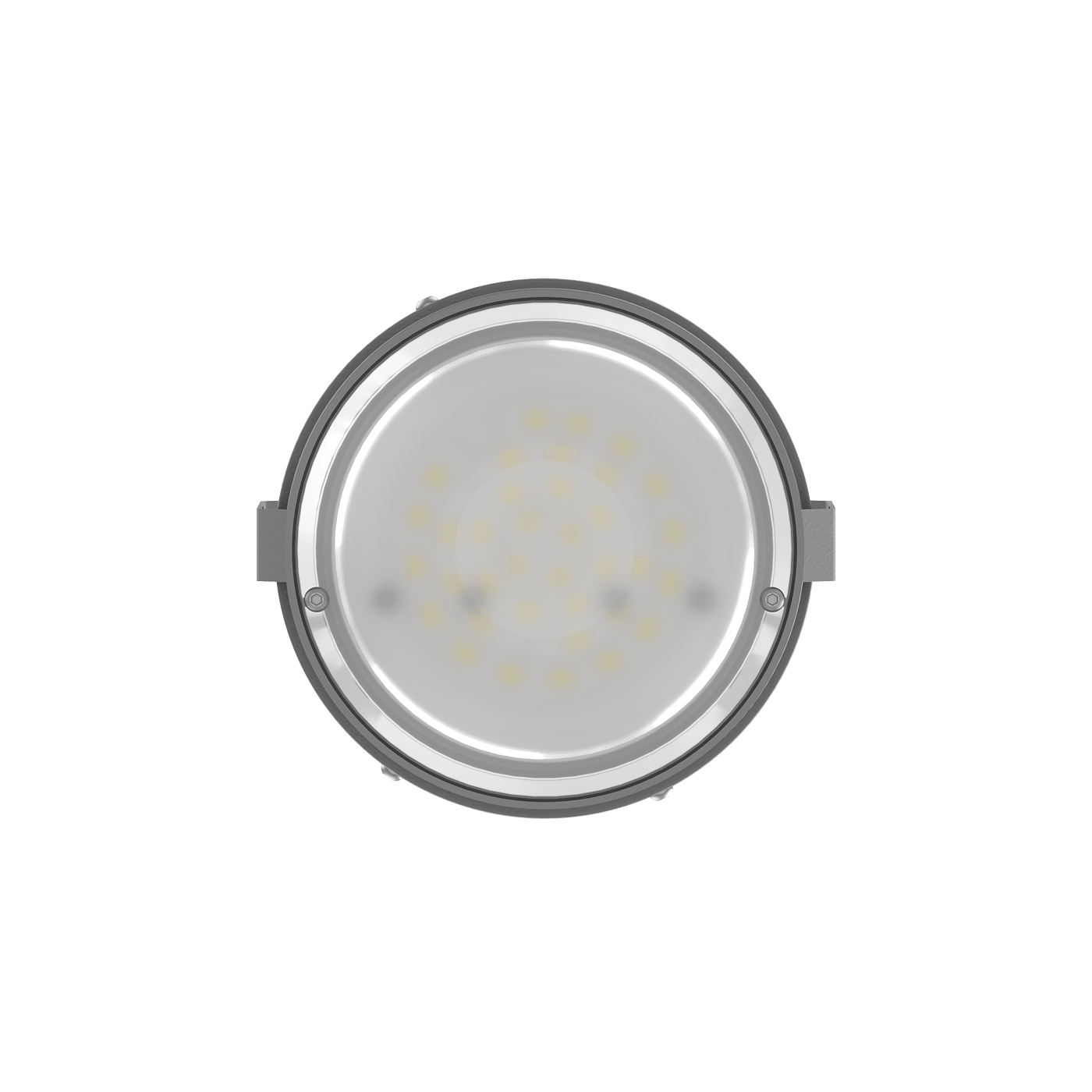

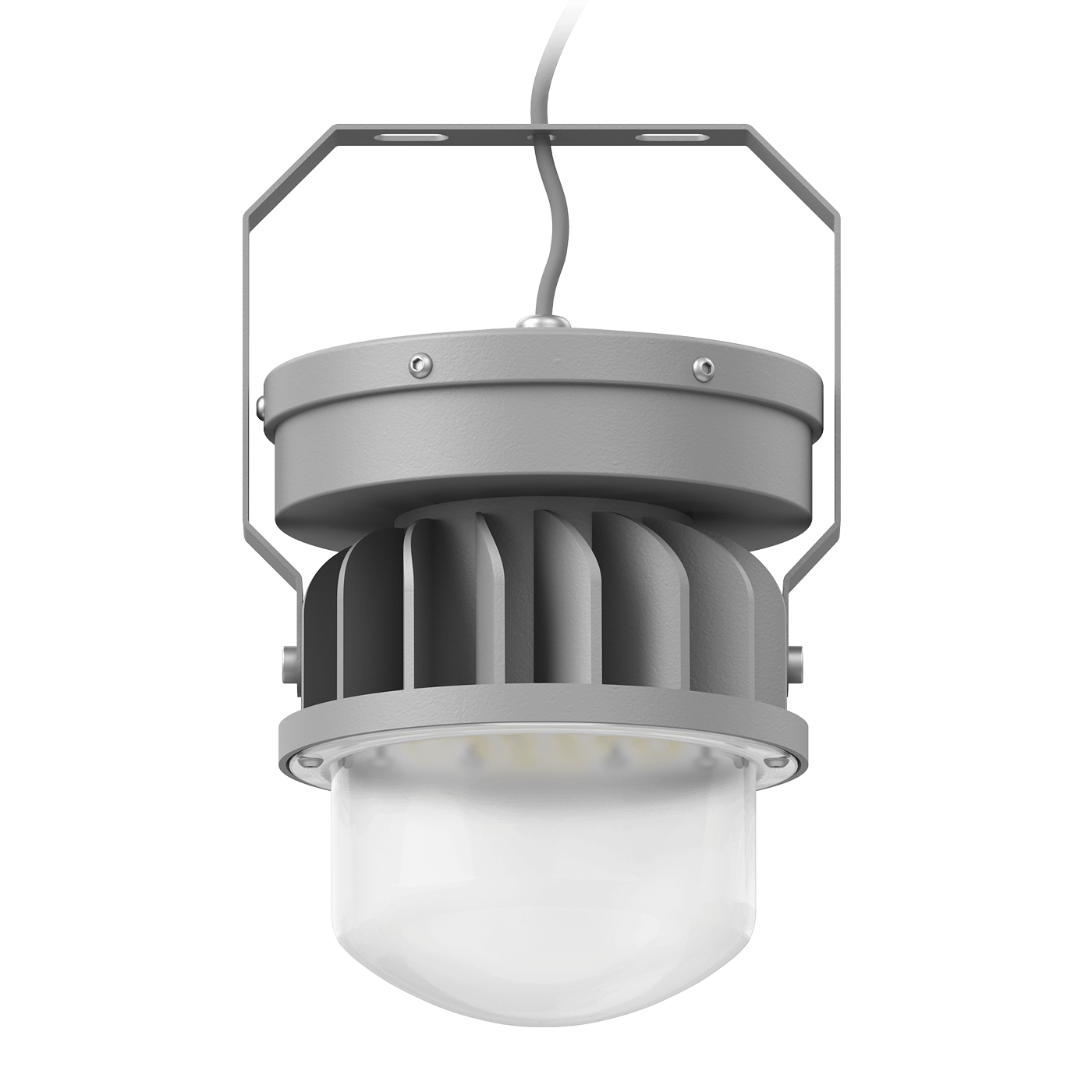

ACORN LED Ex 40W D120 850 HG

ACORN LED Ex 40W D120 850 HG
add to favorites
40 Wluminaire power
5300 lmlight flow
133 lm/Wenergy efficiency
code1490000270
color temperature5000 K
gas marking2 Ex nA mb II T4 Gc X
dust markingEx tb IIIC T130 C Db X
beam angleD120
weight1.7 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 2
  7. ACORN LED EX
  8. ACORN LED Ex 40W D120 850 HG
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
5300 lm
energy efficiency
133 lm/W
flickering factor
<5%

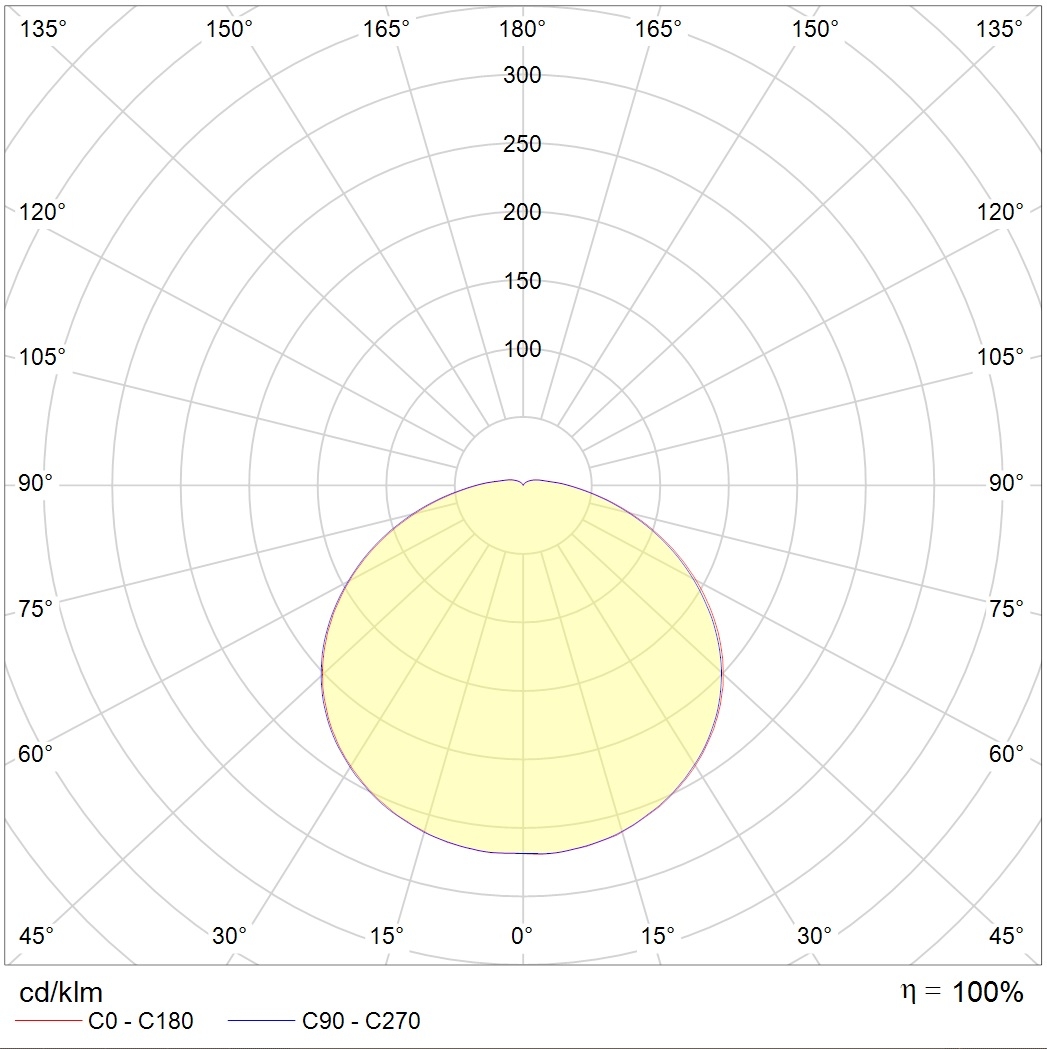

beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
5300 lm
energy efficiency
133 lm/W
flickering factor
<5%
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
230 V
supply voltage, alternating current
230 V
maximum cross-section of the connected cable
2.5 mm2
starting current pulse time
5 µs
luminaire power
40 W
power factor
> 0,90
starting current
36 A
constructional
weight
1.7 kg

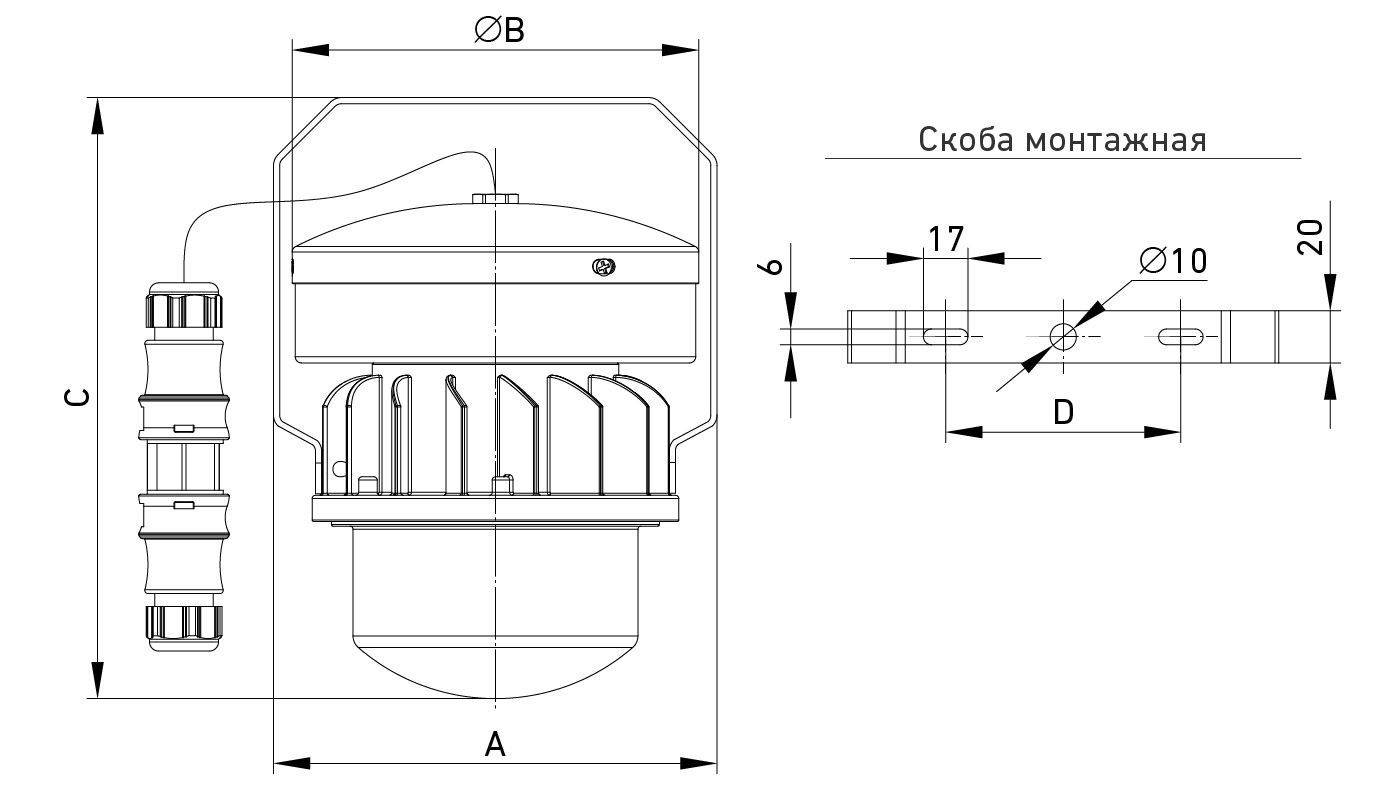

length
165 mm
width
145 mm
height
230 mm
installation length
90 mm
material
Сплав алюминиевый
fire safety class
П-I,II,IIа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/6,5 Дж
housing color
Серый
explosion-proof
gas marking
2 Ex nA mb II T4 Gc X
dust marking
Ex tb IIIC T130 C Db X
gas explosion-proof (type)
Ex nR mb
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
common
code
1490000270
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files
CAD/BIM files
model 3dMax3.1 mB
photometric files
ies263.2 kB
jpg162.6 kB
ldt215.3 kB
documents
passport626.8 kB
сертификаты
Russian origin330.5 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011391 kB
Declaration of Conformity TRTS 020/2011774.6 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate922.7 kB
CAD/BIM files
model 3dMax3.1 mB
photometric files
ies263.2 kB
jpg162.6 kB
ldt215.3 kB
documents
passport626.8 kB
сертификаты
Russian origin330.5 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011391 kB
Declaration of Conformity TRTS 020/2011774.6 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate922.7 kB
accessories
Pipe mounting kit G3/4 for ACORN LED0.05kgarticle: 2490000060
Protective grid for ACORN LED 40 D120/D1500.6kgarticle: 2490000040
