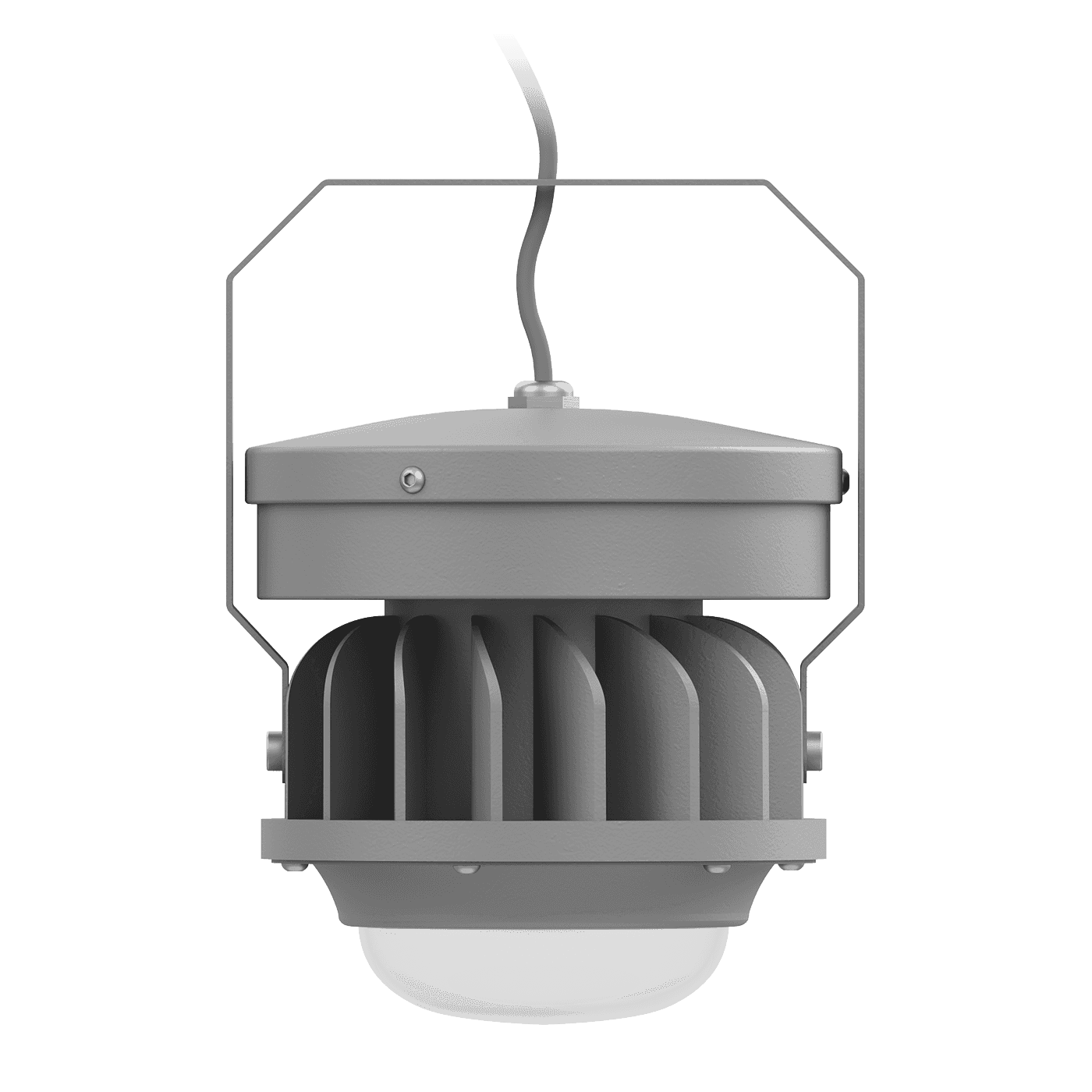

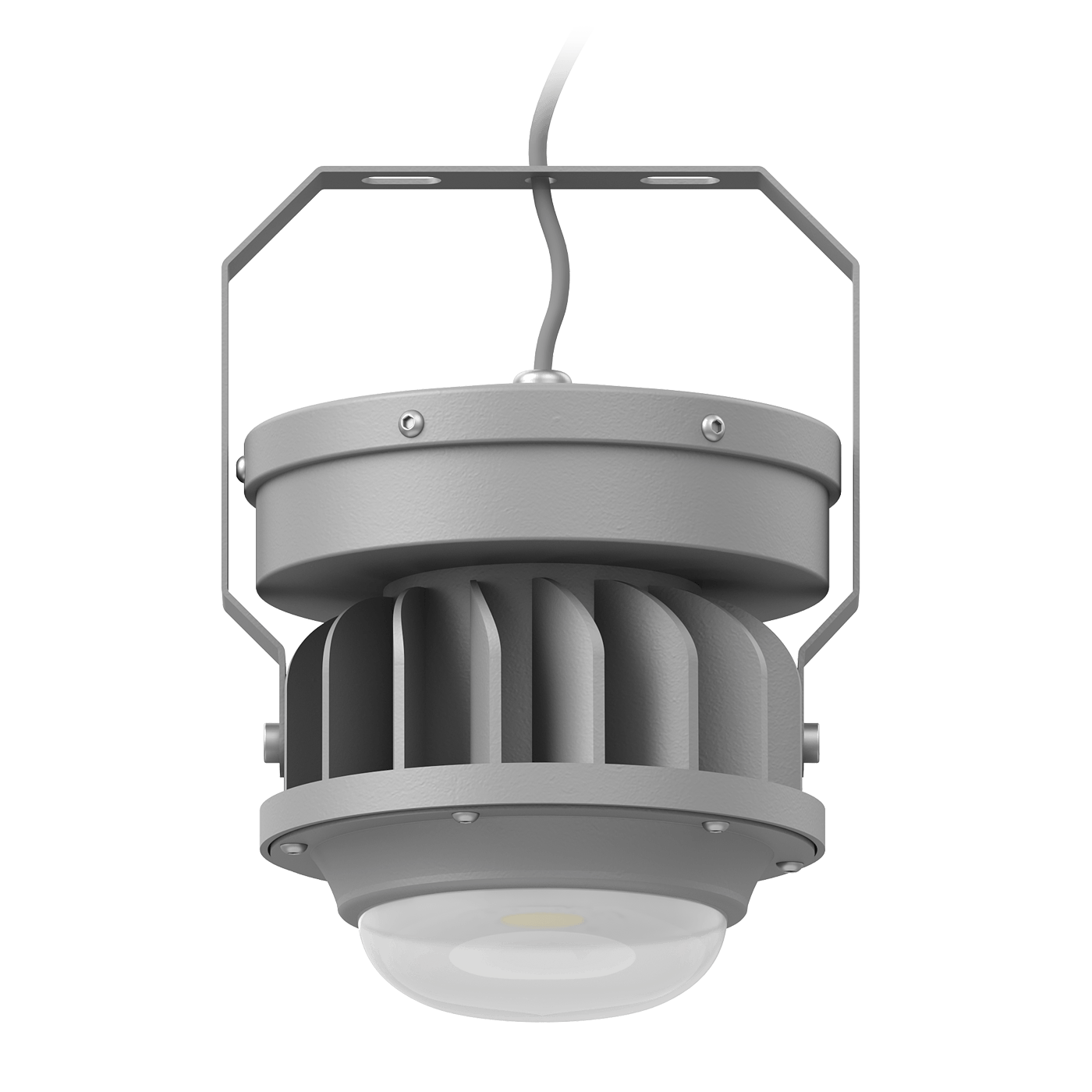

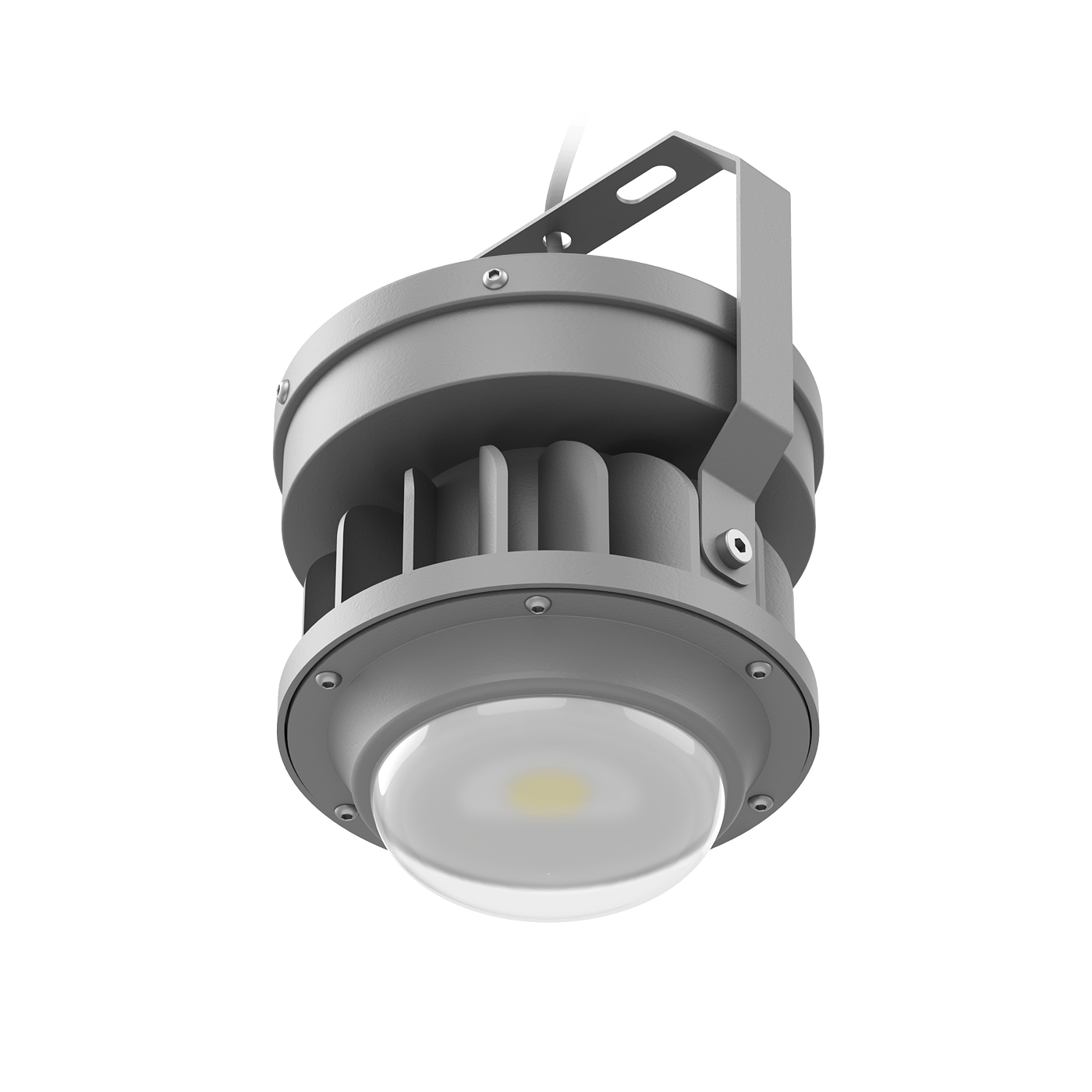

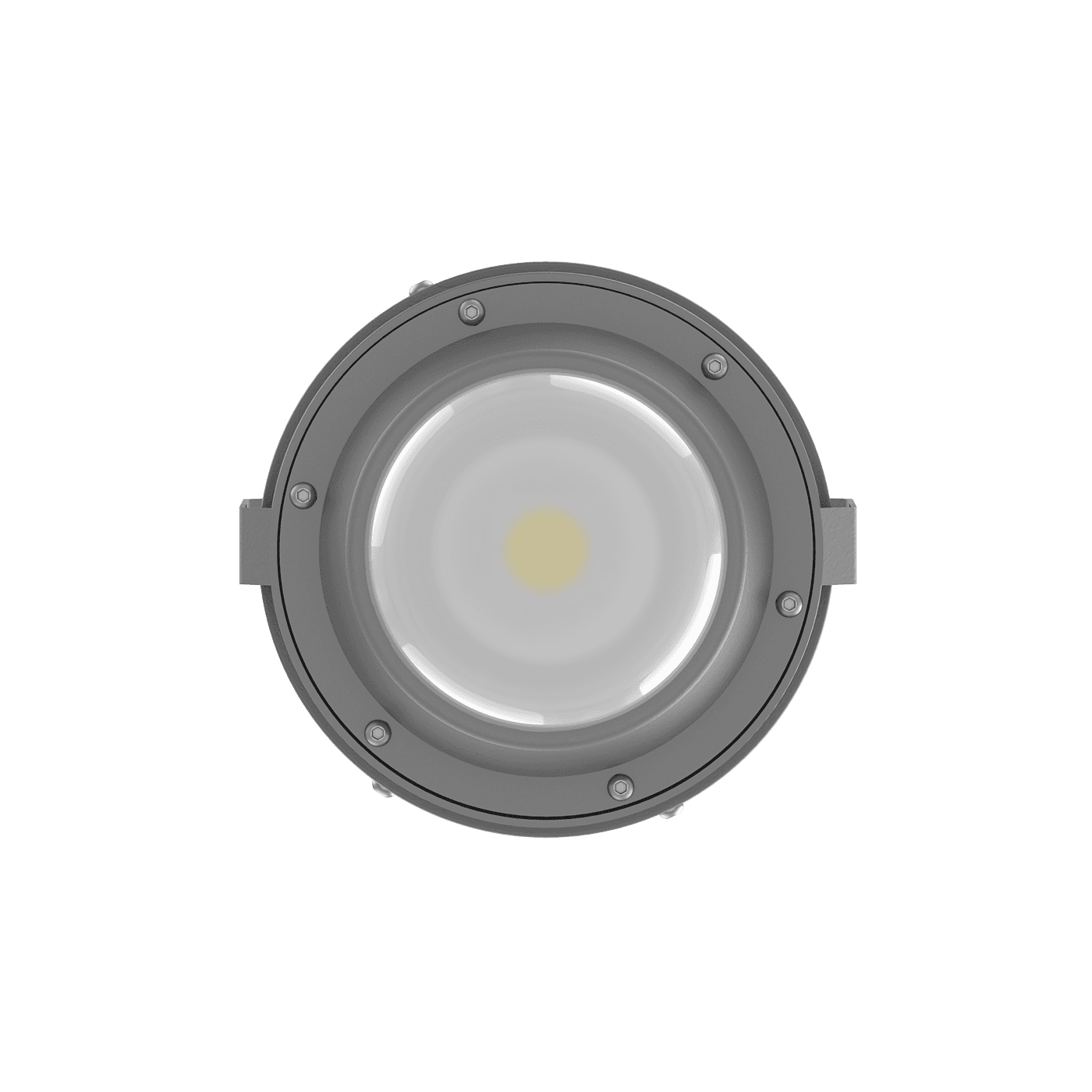

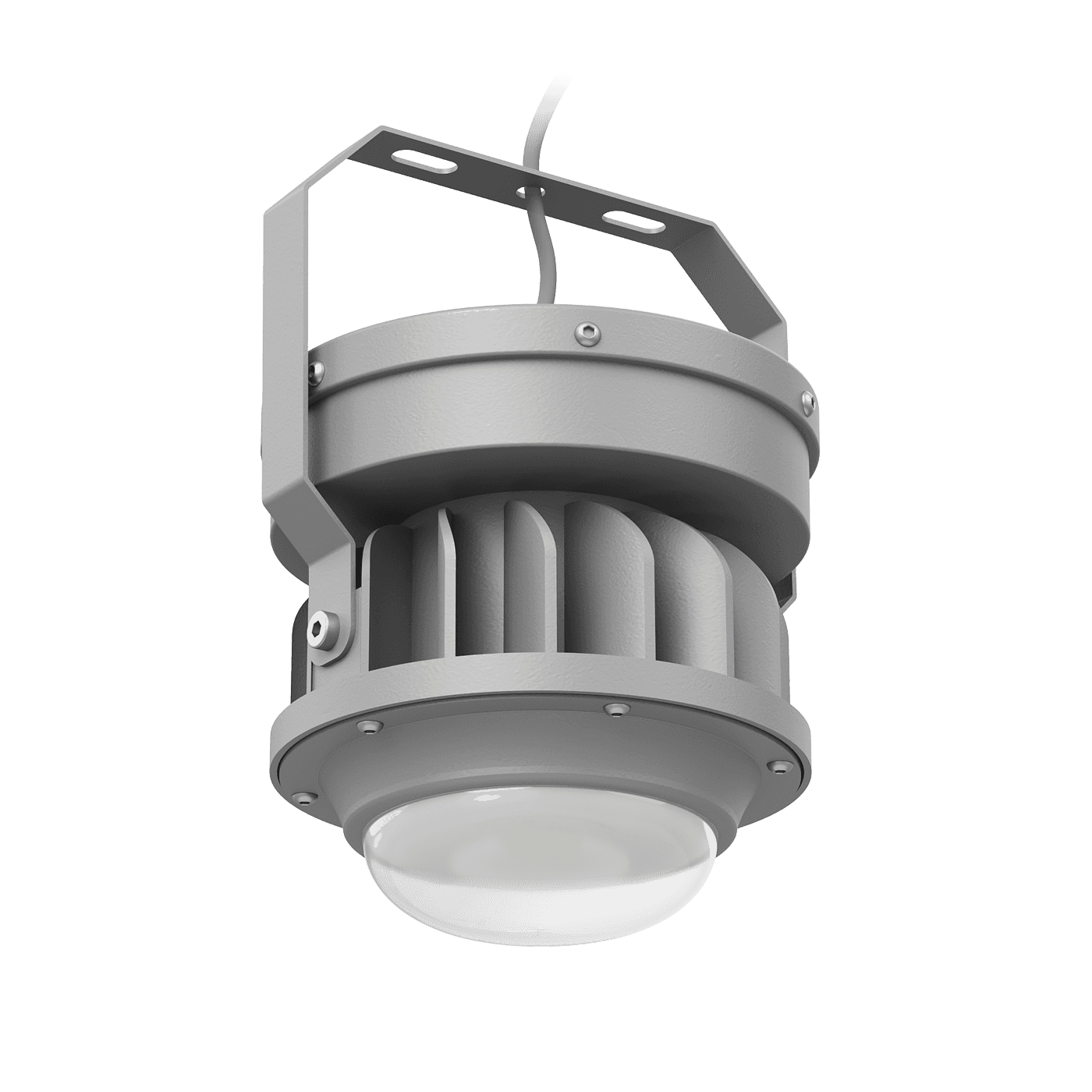

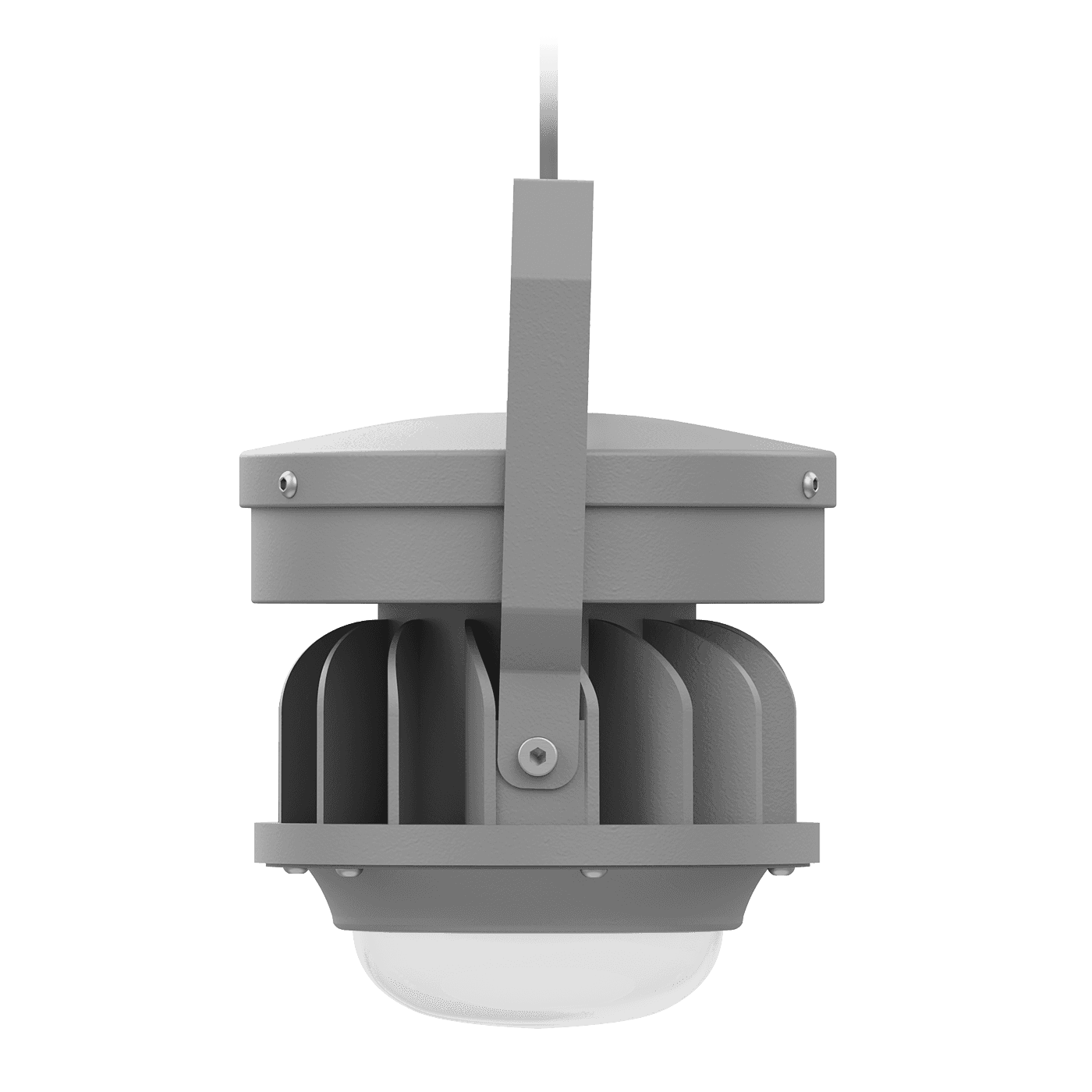

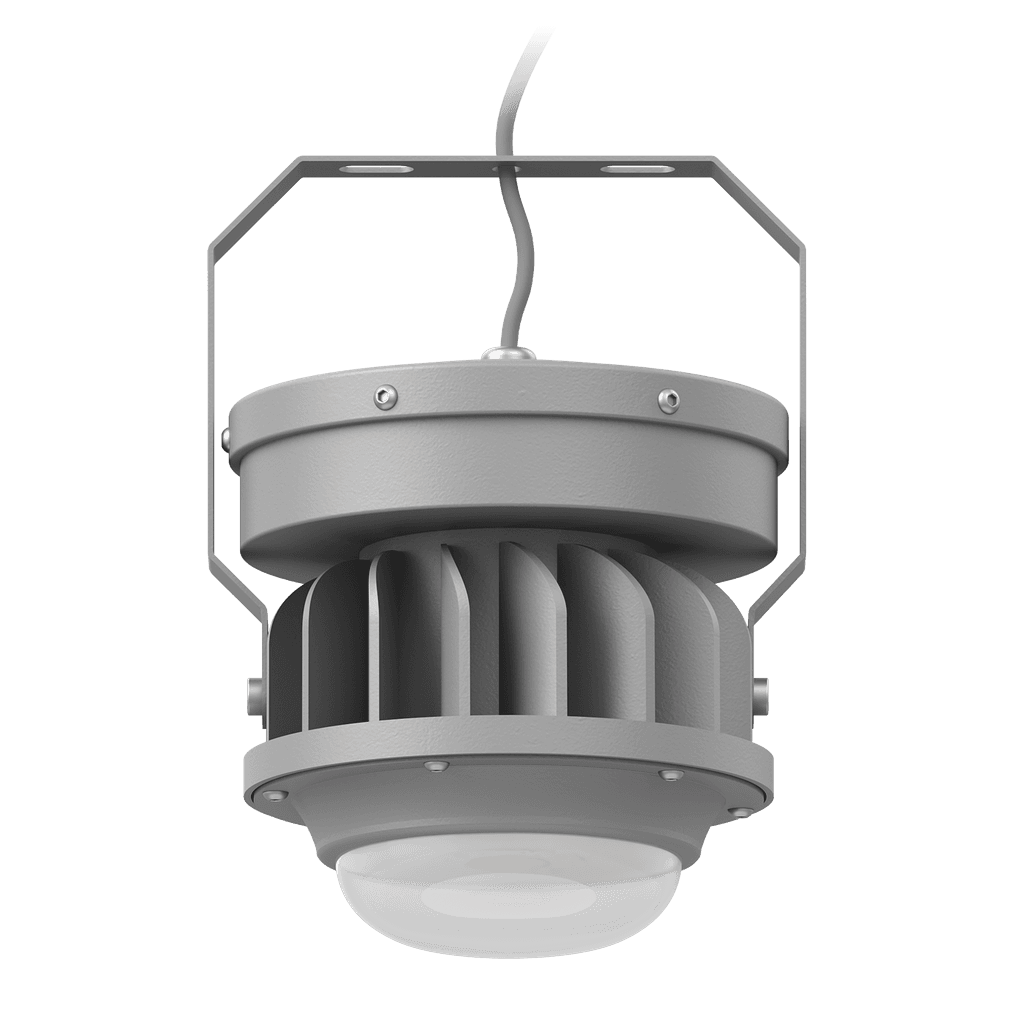

ACORN LED Ex 30W D150 850 HG with tempered glass
ACORN LED Ex 30W D150 850 HG with tempered glass
30 Wluminaire power
3500 lmlight flow
117 lm/Wenergy efficiency
code1490000240
color temperature5000
gas marking2 Ex nA mb II T4 Gc
dust markingEx tb IIIC T130 C Db
beam angleD150
weight1.5 kg
options
свернуть все
electricalconstructionalcommonilluminatingexplosion-proof
rated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Velectric shock protection
Imaximum cross-section of the connected cable, sq. mm
2.5starting current
32 Astarting current pulse time, µs
2.5 mksluminaire power
30 Wsupply voltage, alternating current
230 Vsupply voltage, direct current
230 Vpower factor
> 0,90electrical
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
starting current
32 A
starting current pulse time, µs
2.5 mks
luminaire power
30 W
supply voltage, alternating current
230 V
supply voltage, direct current
230 V
power factor
> 0,90
constructional
ingress protection (IP)
IP66
climatic performance
УХЛ1*
fire safety class
П-I,II,IIа
material
Сплав алюминиевый
weight
1.5 kg

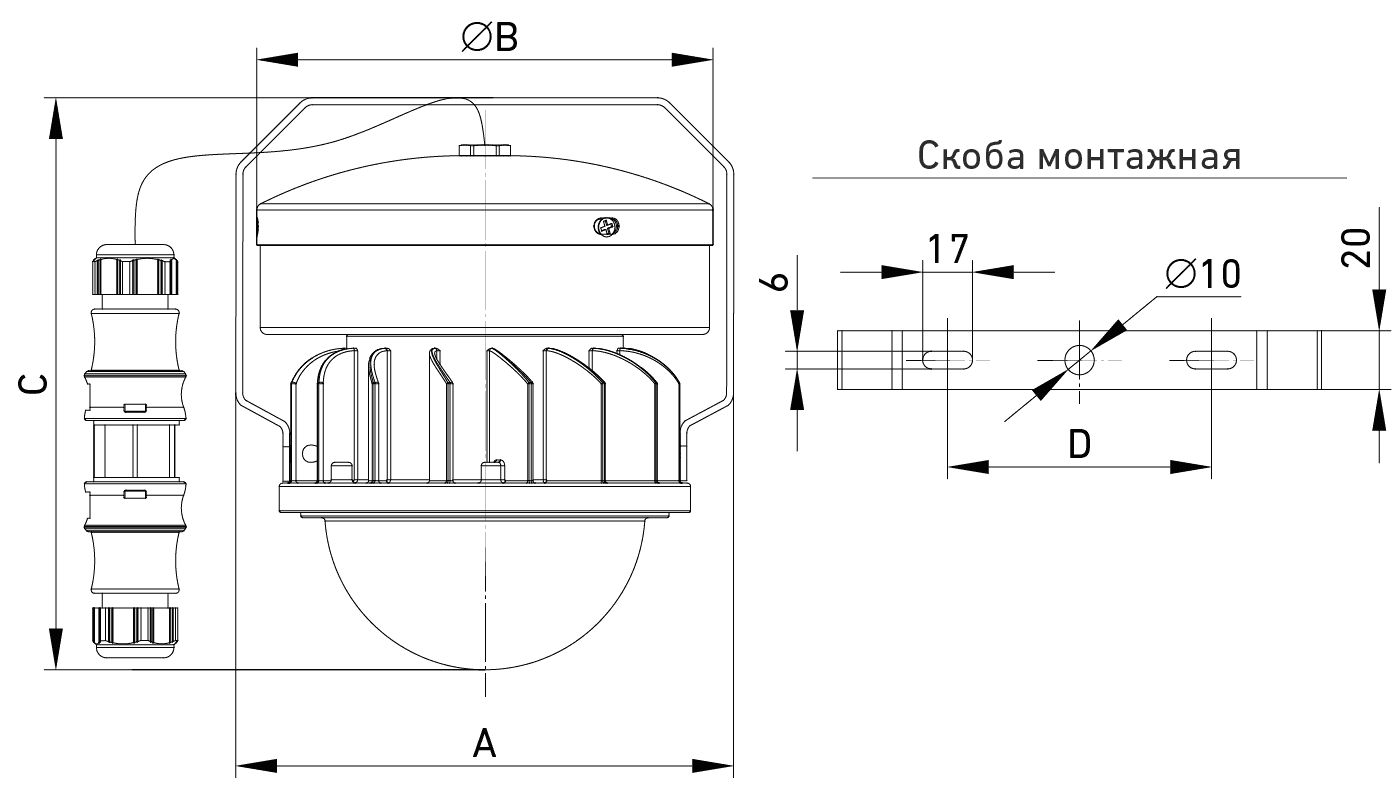

length, mm
160 mm
width, mm
120 mm
height, mm
180 mm
housing color
Серый
installation length, mm
70 mm
shock resistance (IK)
IK08/6,5 Дж
common
code
1490000240
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
3500 lm
energy efficiency
117 lm/W
flickering factor
<5%
beam angle
D150
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
2 Ex nA mb II T4 Gc
dust marking
Ex tb IIIC T130 C Db
gas explosion-proof (type)
Ex nR mb
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
model files
model files
CAD/BIM files

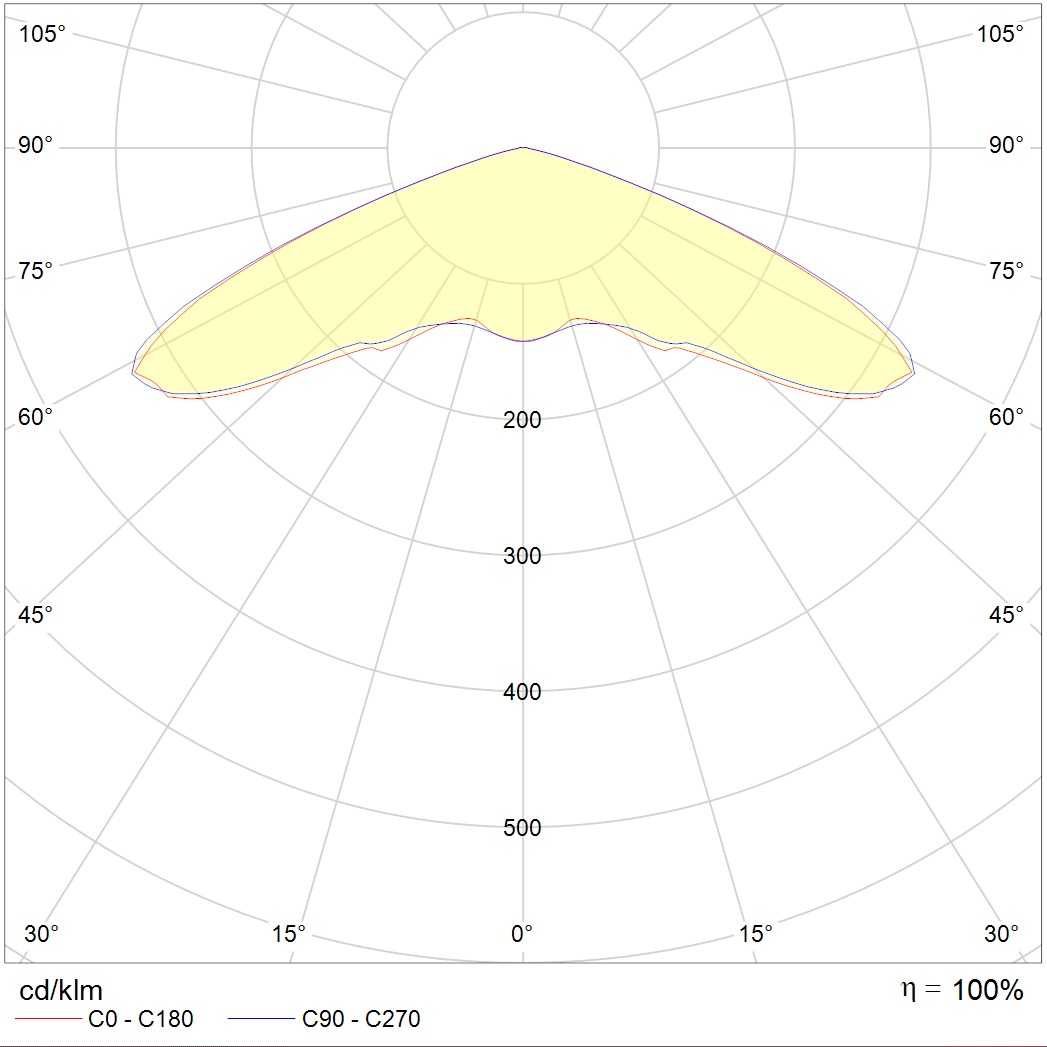

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS511 kB
model 3dMax3.1 mB
photometric files
ies28 kB
jpg127.6 kB
ldt20.7 kB
documents
passport584.1 kB
сертификаты
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/2011391 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
accessories
Protective grid for ACORN LED 20/30 D120/D1500.117kgarticle: 2490000050
