VULCANO 300 4000K
VULCANO 300 4000K
32 Wluminaire power
2200 lmlight flow
69 lm/Wenergy efficiency
code1665000040
color temperature4000 K

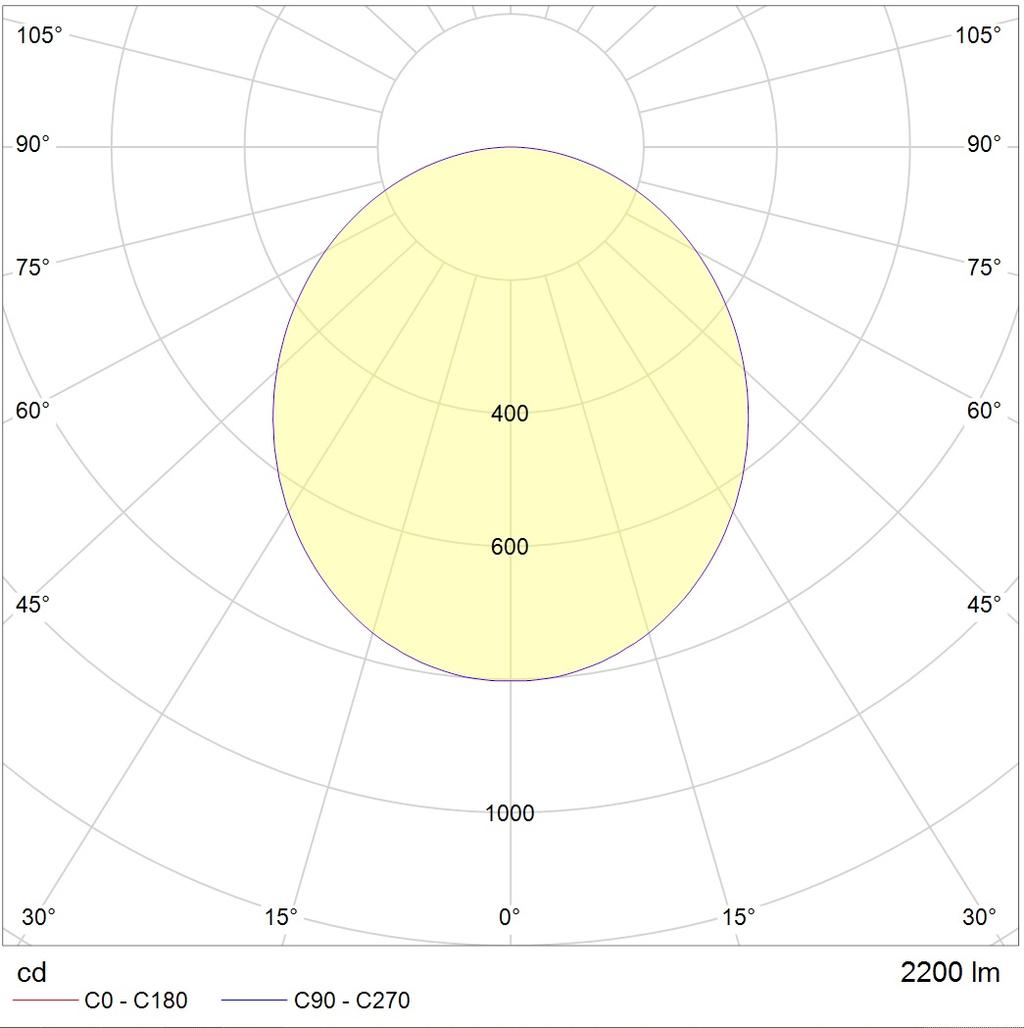

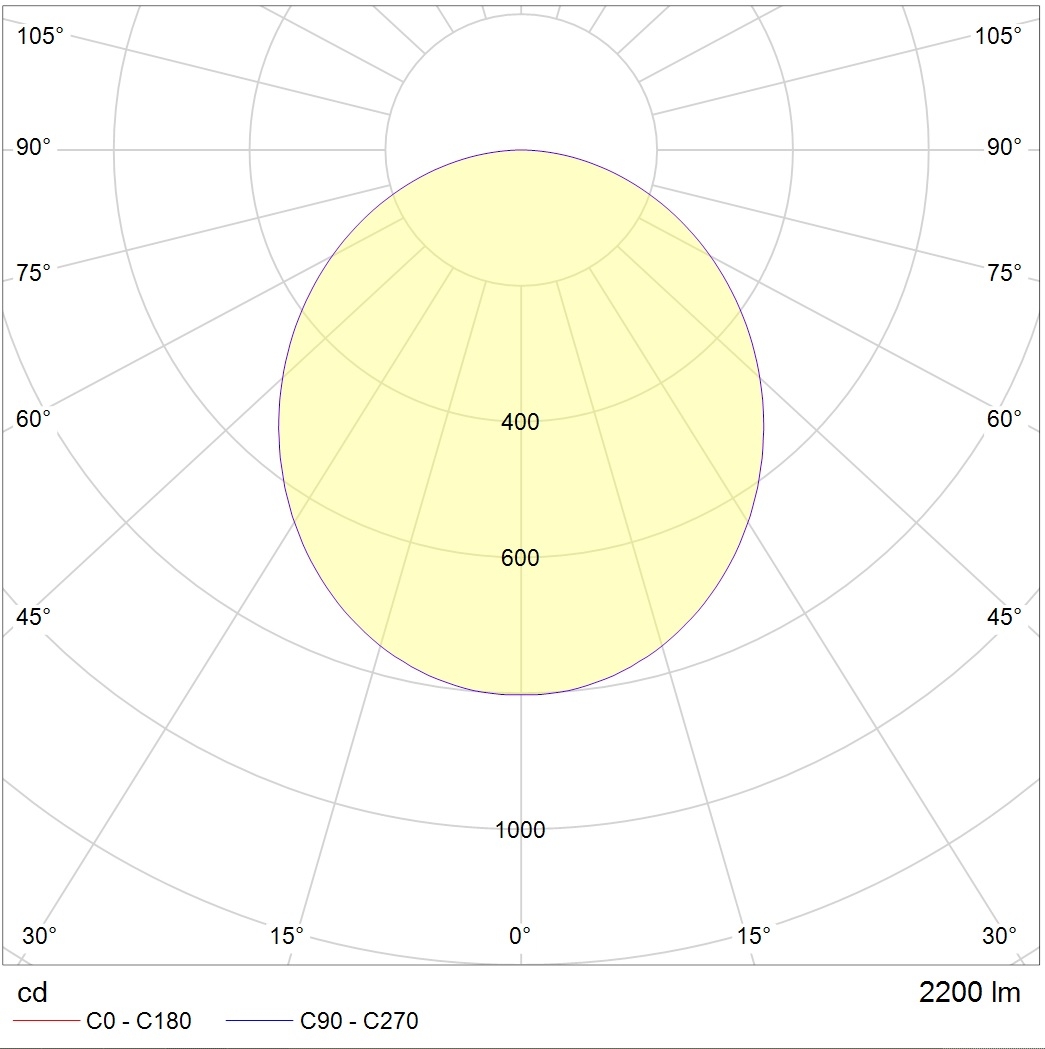

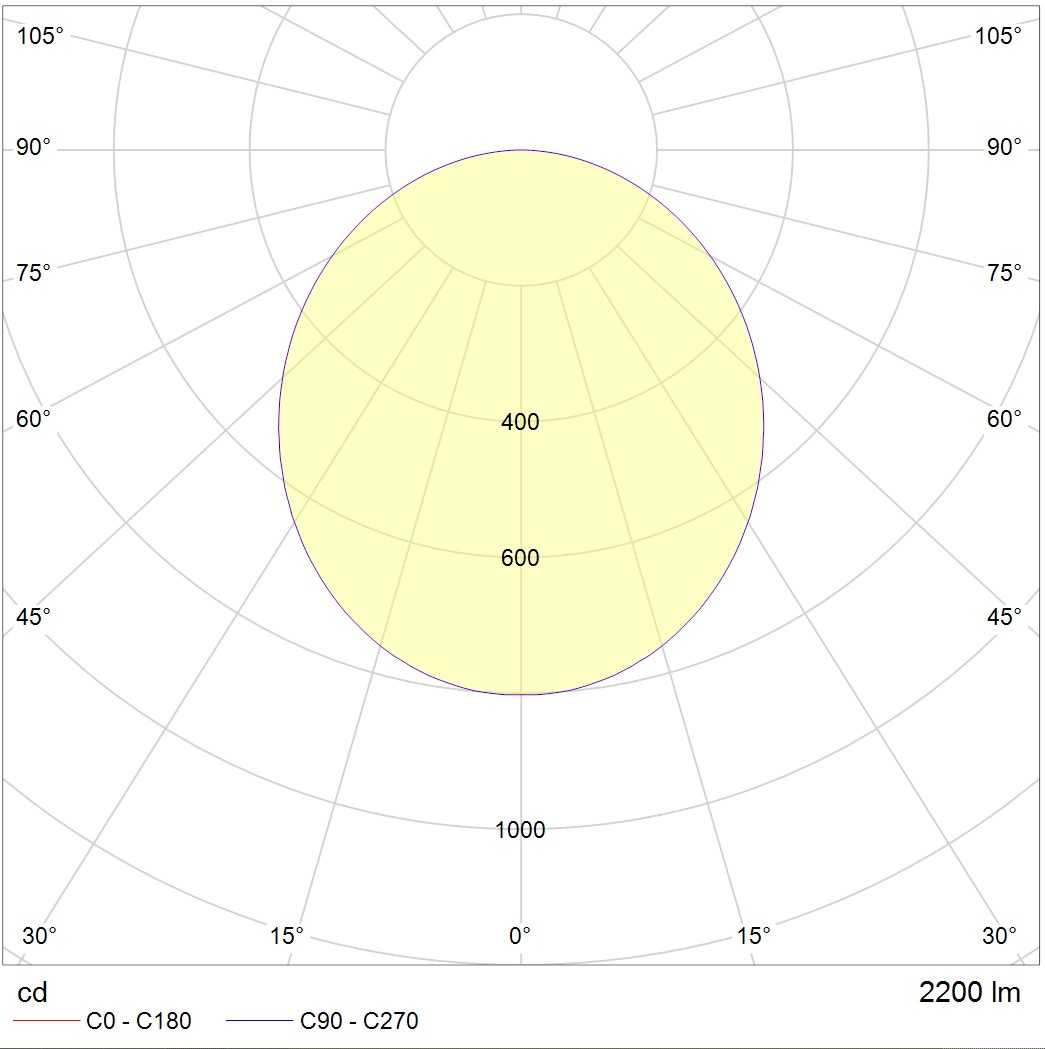

beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
69 lm/Wcolor rendition index (CRI)
>80light flow
2200 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
69 lm/W
color rendition index (CRI)
>80
light flow
2200 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
300 µs
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
15 A
constructional

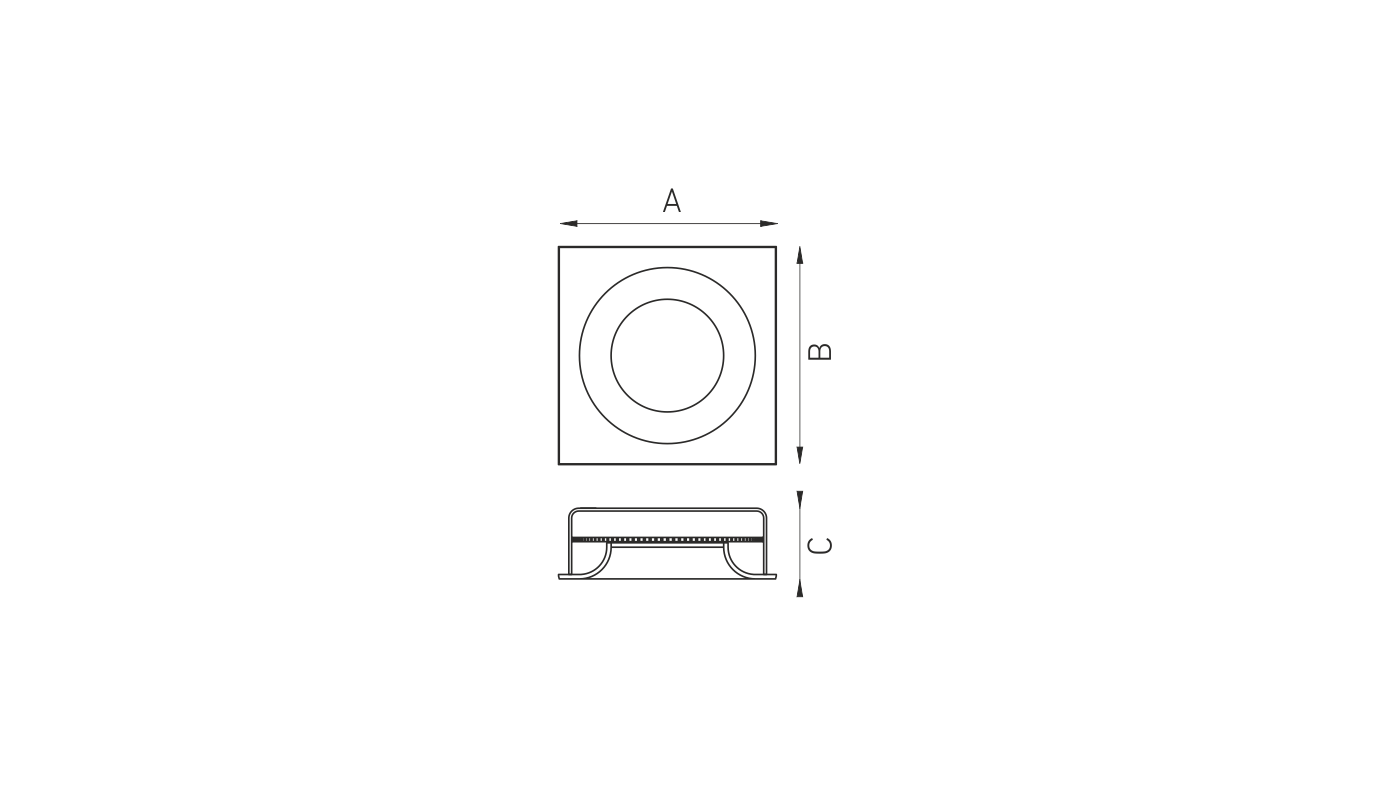

length
605 mm
width
605 mm
height
200 mm
installation length
545 mm
installation width
545 mm
weight
10.2 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Гипс
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A
ETIM class
Настенно-потолочный светильник
code
1665000040
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
model 3dMax2 mB
photometric files
ies3.1 kB
jpg118.9 kB
ldt3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
