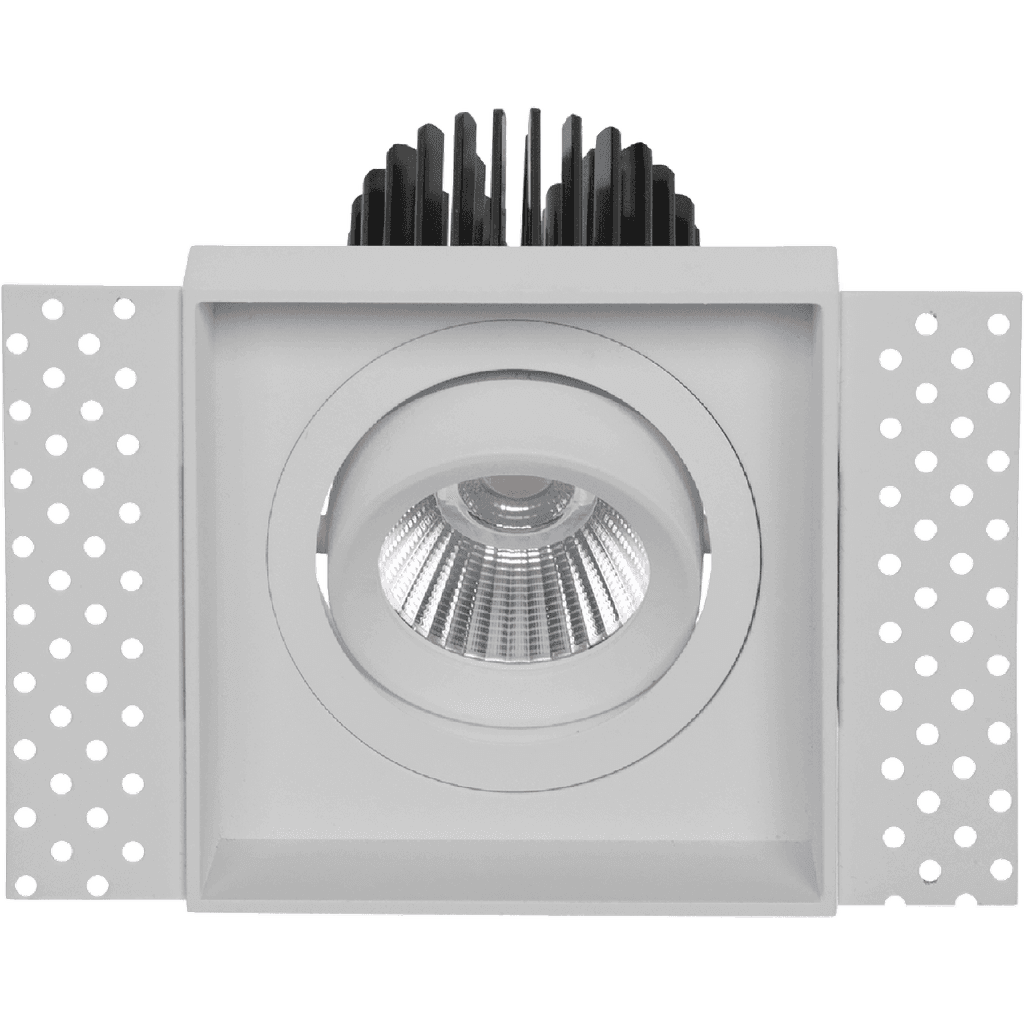

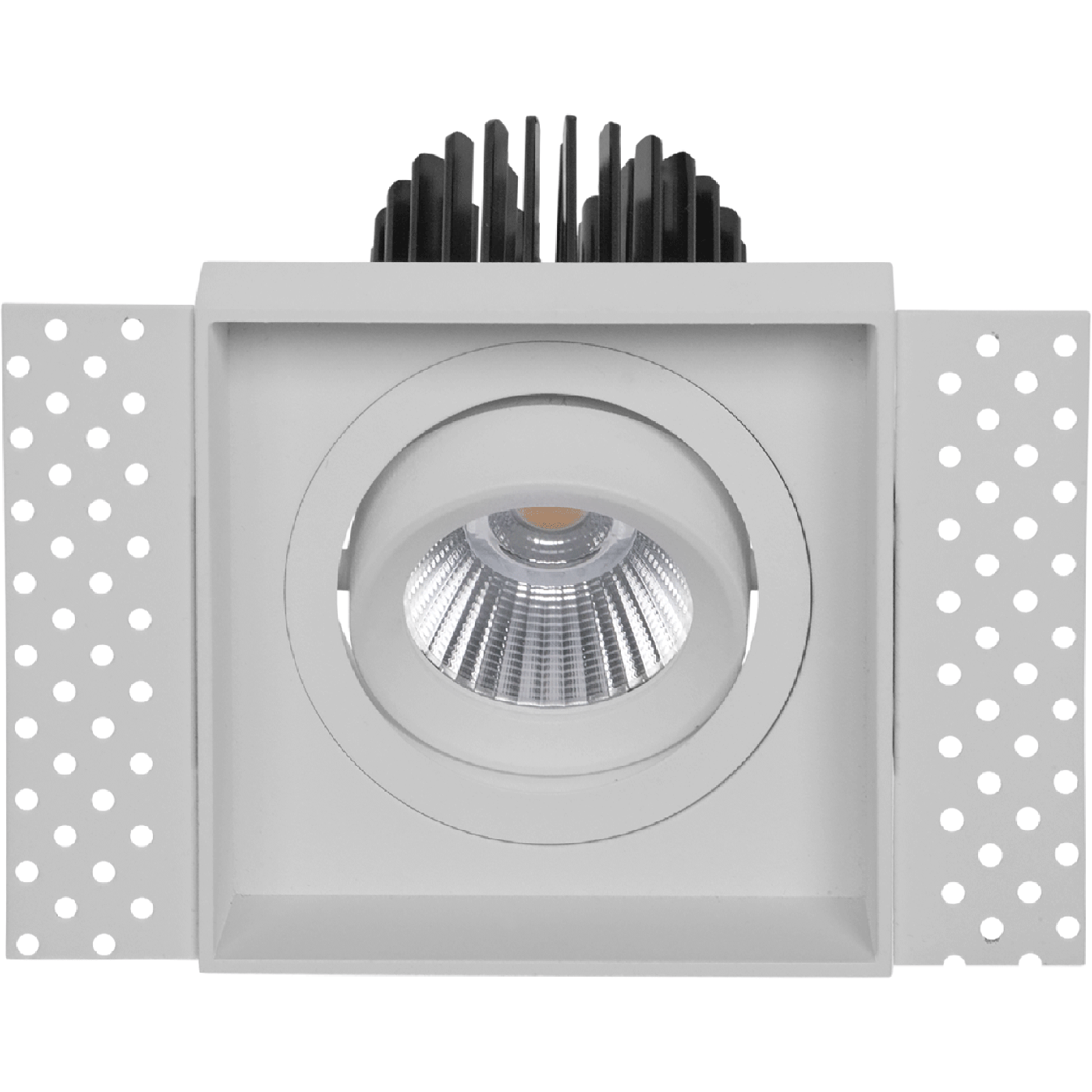

UMO 18 WH D45 4000K (with driver)

UMO 18 WH D45 4000K (with driver)
add to favorites
20 Wluminaire power
2200 lmlight flow
110 lm/Wenergy efficiency
code1252000140
color temperature4000
beam angleD45
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. downlights
  6. UMO
  7. UMO 18 WH D45 4000K (with driver)
options
свернуть все
electricalconstructionalcommonilluminating
starting current
5 A
starting current pulse time, µs
50 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
170-250 V
supply voltage, direct current
170-250 V
luminaire power
20 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
electrical
starting current
5 A
starting current pulse time, µs
50 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
170-250 V
supply voltage, direct current
170-250 V
luminaire power
20 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
0.63 kg
length, mm
146 mm
width, mm
146 mm
height, mm
120 mm
housing color
Белый
installation length, mm
94 mm
installation width, mm
94 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1252000140
illuminating
color rendition index (CRI)
>80
light flow
2200 lm
flickering factor
<5%
energy efficiency
110 lm/W
beam angle
D45
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
CAD model 3DS1.1 kB
model 3dMax8.4 mB
photometric files
ies68.7 kB
jpg115.6 kB
ldt42.7 kB
documents
passport310.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS1.1 kB
model 3dMax8.4 mB
photometric files
ies68.7 kB
jpg115.6 kB
ldt42.7 kB
documents
passport310.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
LINE PRISM SPOTLIGHT 06-18W0.05kgarticle: 2701002170
SQ PRISM SPOTLIGHT 06-18W0.005kgarticle: 2701002140
HONEYCOMB Spotlight 07-18W0.05kgarticle: 2701002060
