UM Sport 1000H R9/F22° SET

model is discontinued
model is discontinued

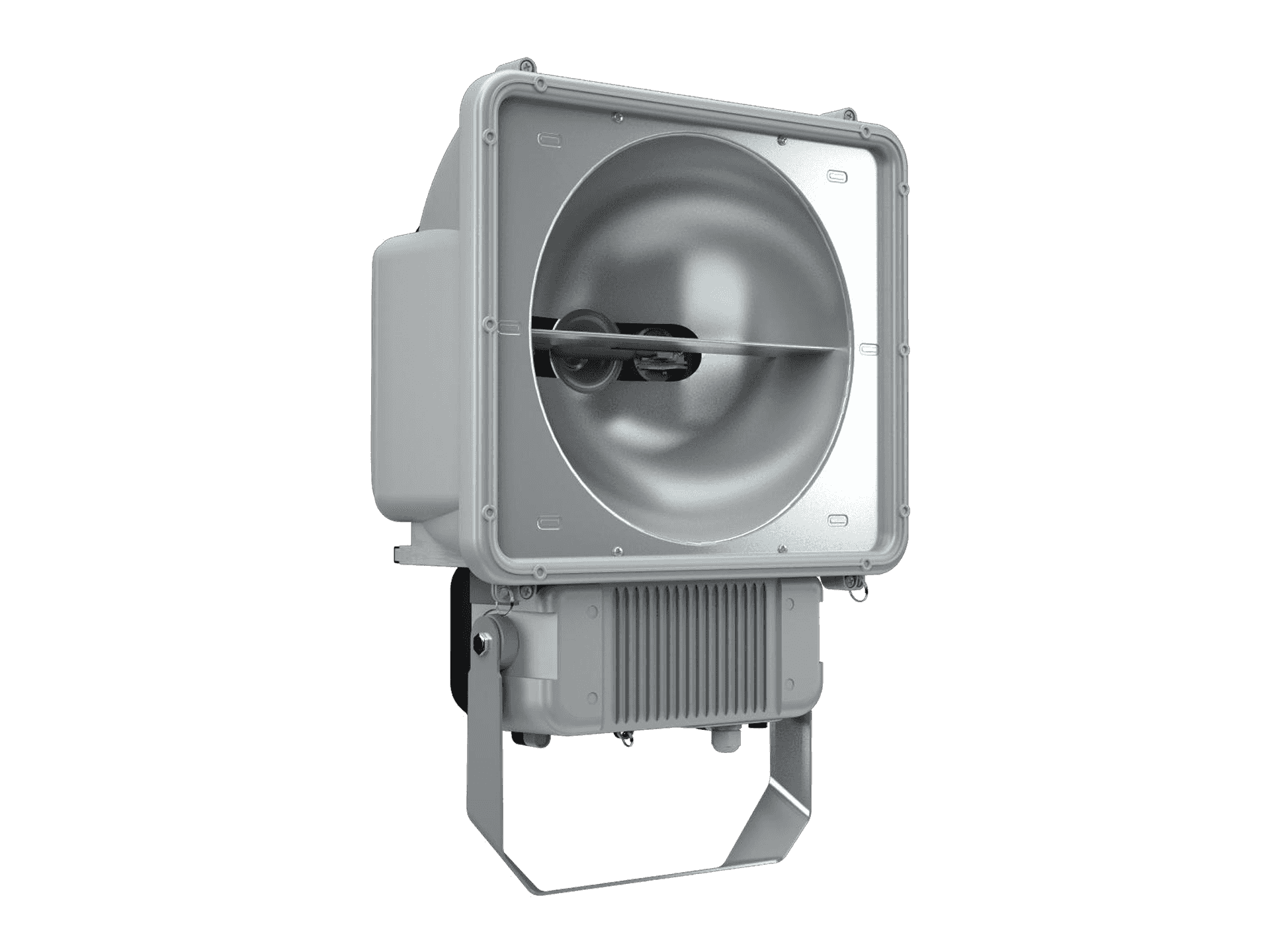

UM Sport 1000H R9/F22° SET
add to favorites
1000 Wluminaire power
code1367000090
weight28.4 kg
number of lamps1
  1. main page
  2. catalog
  3. by product type
  4. outdoor lighting
  5. lamp luminaires
  6. UM SPORT 1000 - 2000
  7. UM Sport 1000H R9/F22° SET
options
свернуть все
illuminatingelectricalconstructionalcommon
flickering factor
<50%
light source type
МГЛ
emission color
Белый
illuminating
flickering factor
<50%
light source type
МГЛ
emission color
Белый
electrical
supply voltage
230 V
rated supply voltage, alternating current
230 V
power factor
> 0,85
electric shock protection
I
luminaire power
1000 W

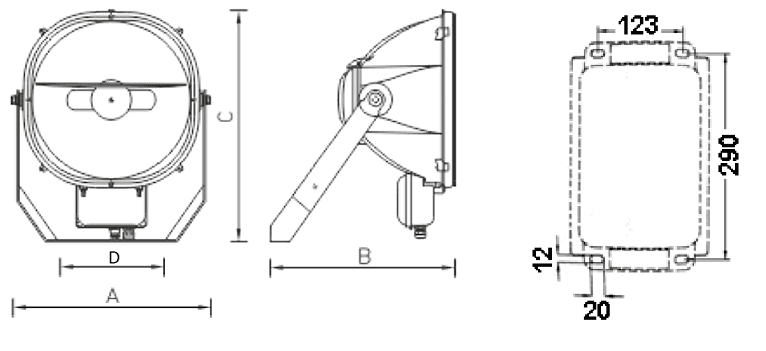

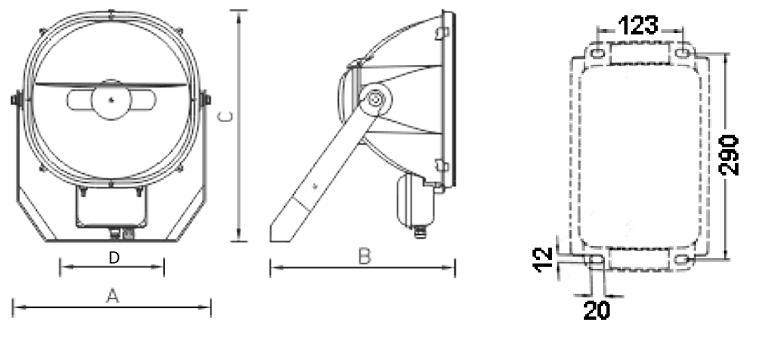

constructional
height
315 mm
installation length
120 mm
width
625 mm
length
535 mm
common
energy efficiency class
A+
service life
30 000 h
warranty
36 month
code
1367000090
temperature range
от -40 до +40 C
ETIM class
Прожектор / Светильник направленного света
model files
model files
CAD/BIM files
model 3dMax2.1 mB

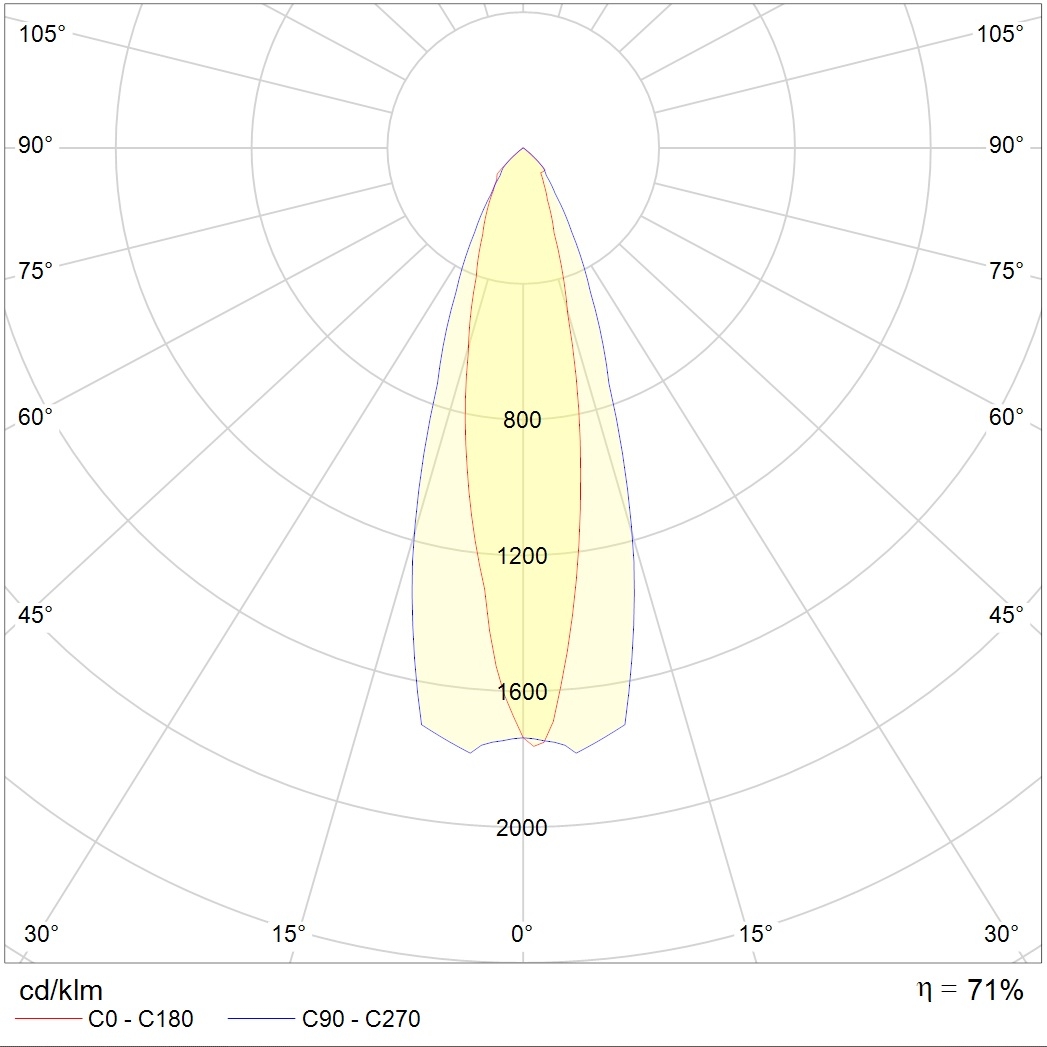

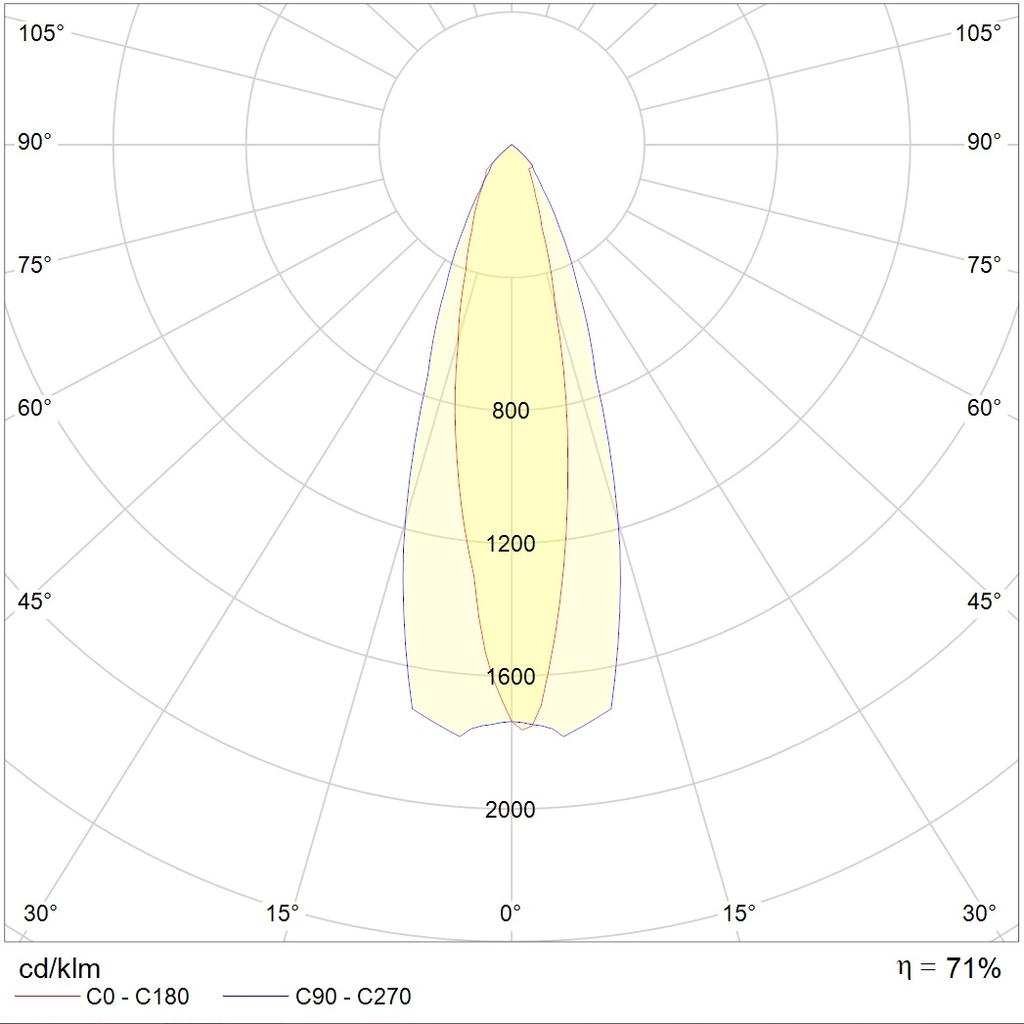

photometric files
ies49.5 kB
jpg124.9 kB
ldt28.3 kB
documents
passport954.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016300.6 kB
CAD/BIM files
model 3dMax2.1 mB
photometric files
ies49.5 kB
jpg124.9 kB
ldt28.3 kB
documents
passport954.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016300.6 kB
