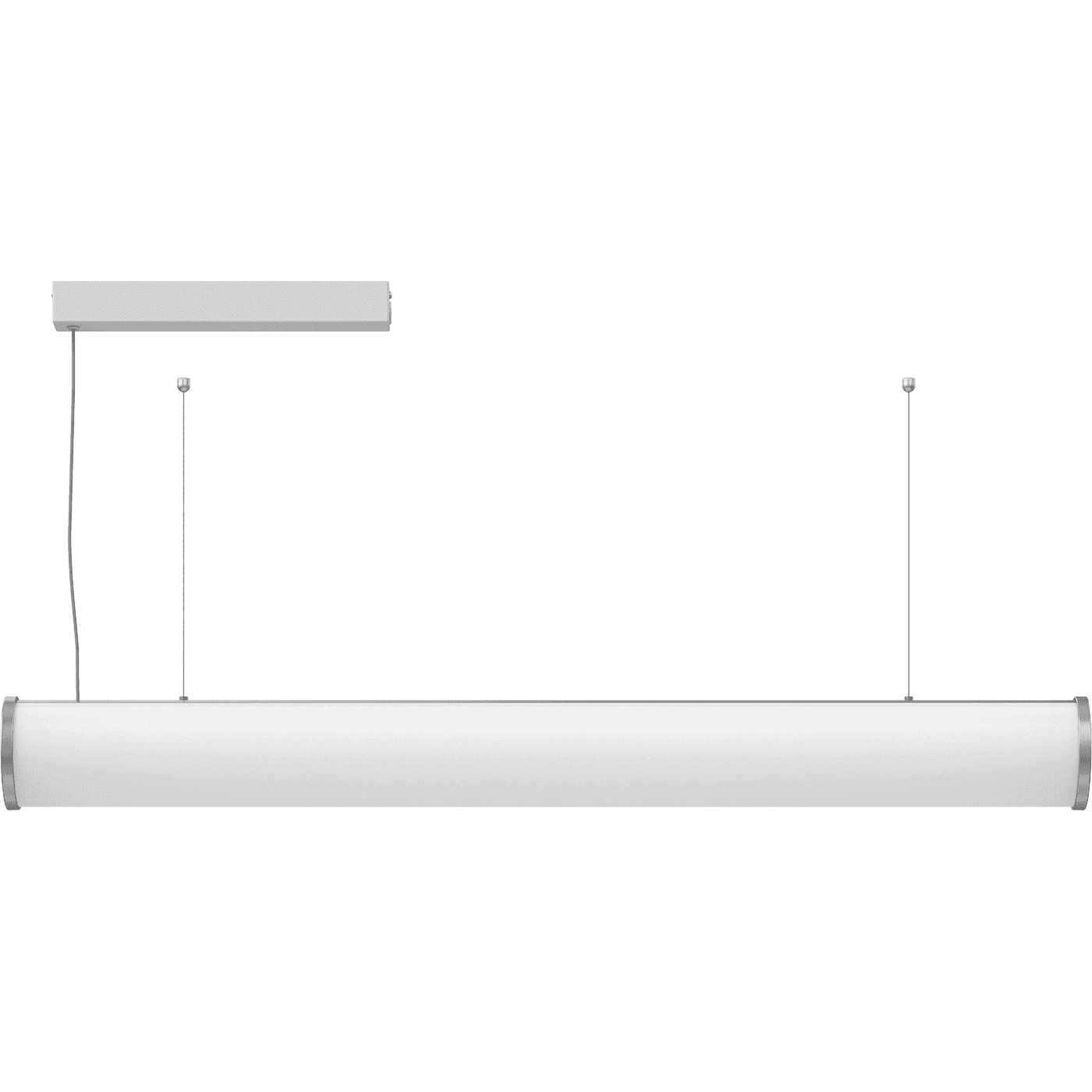

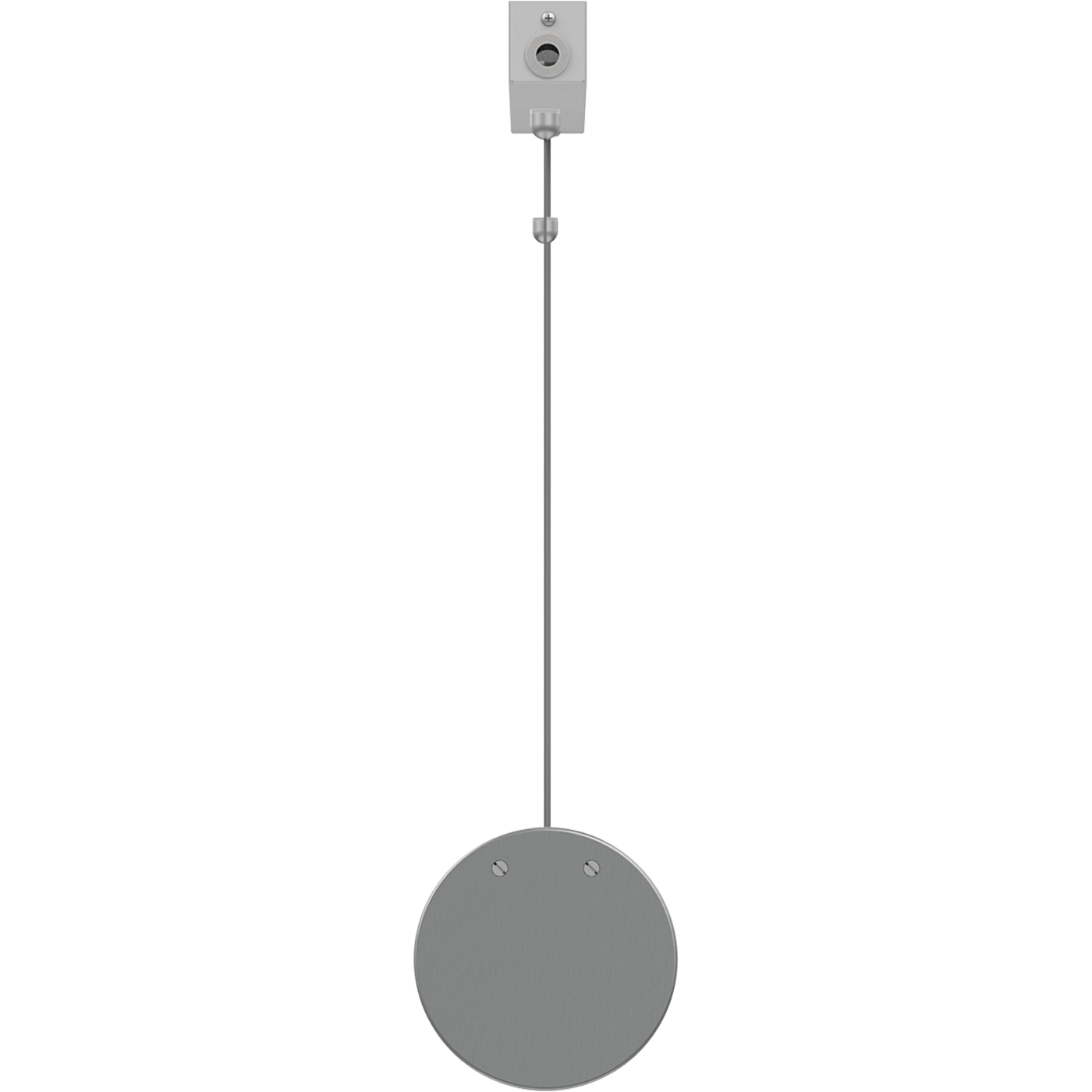

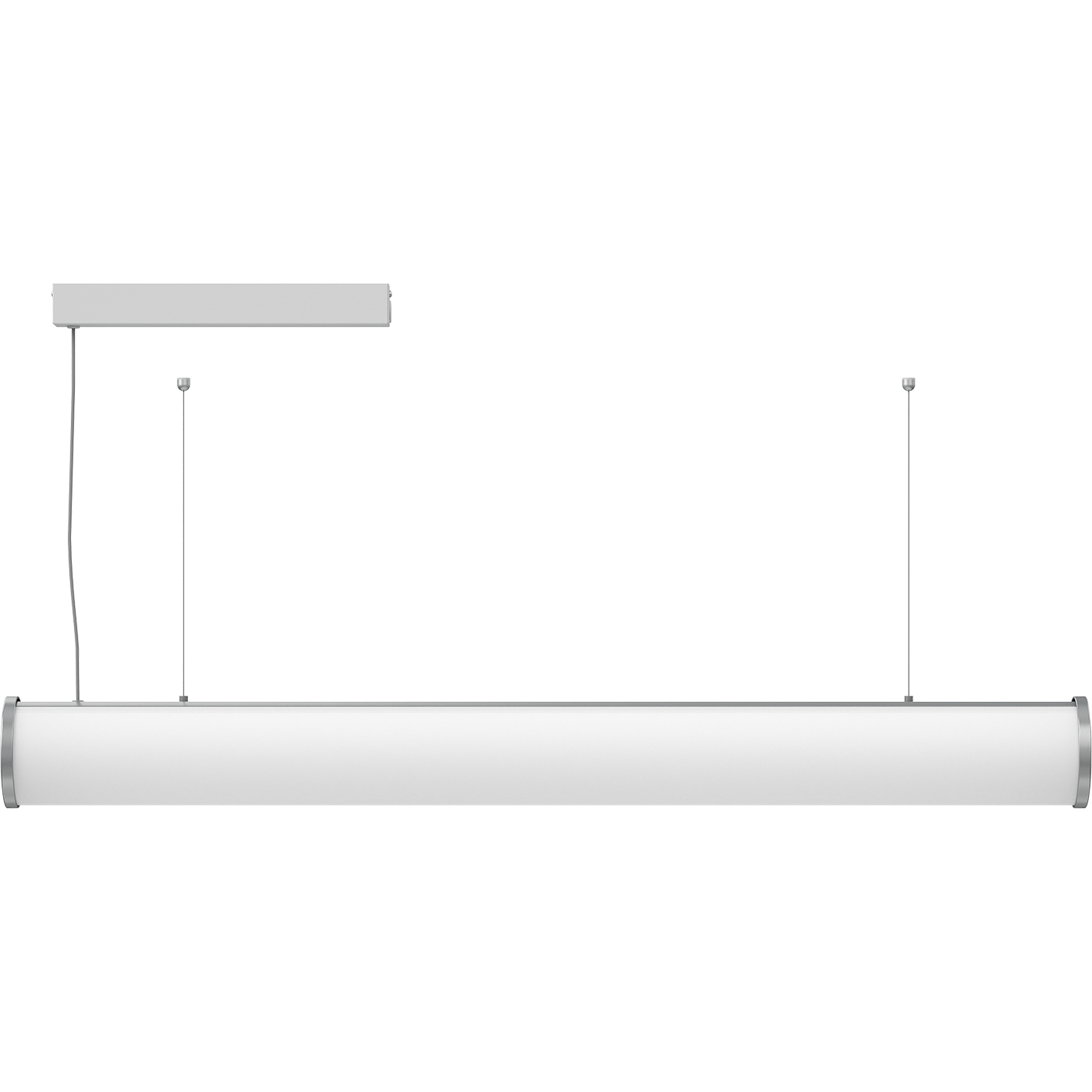

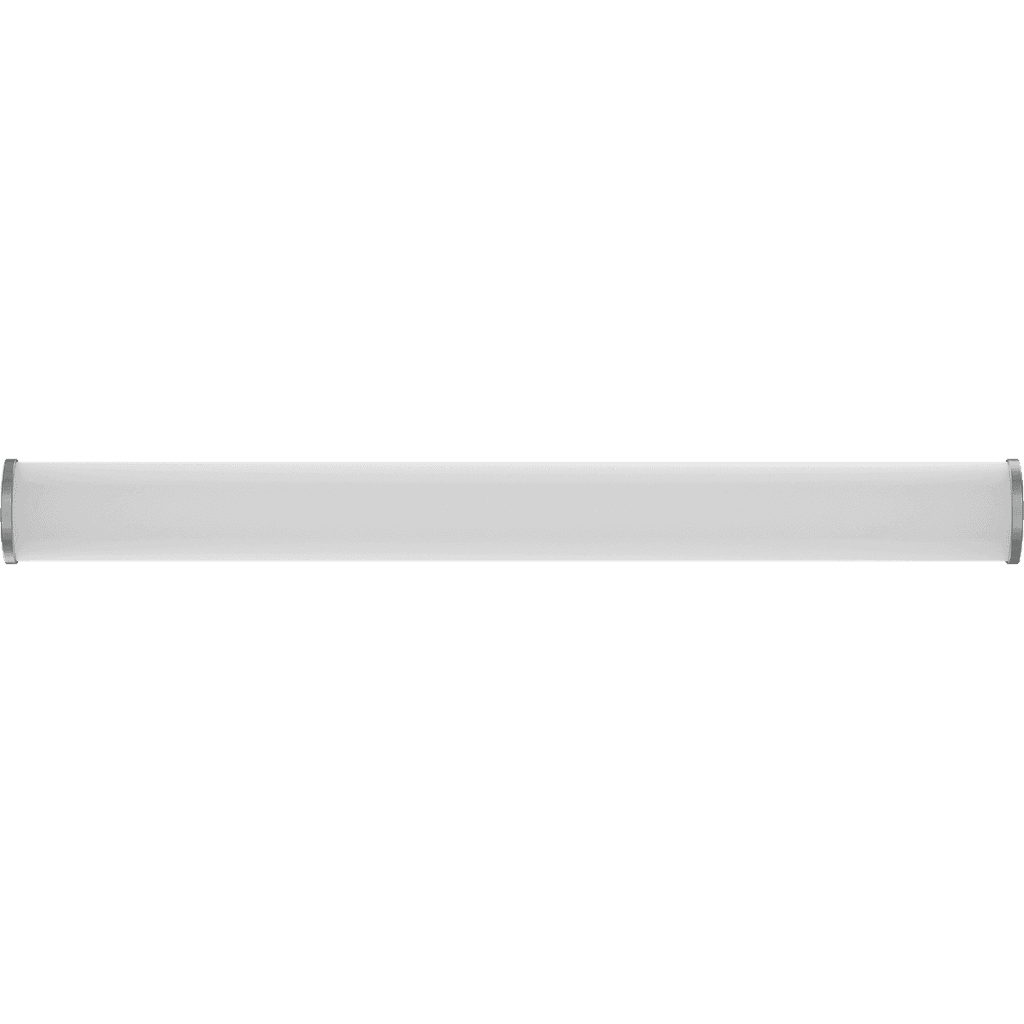

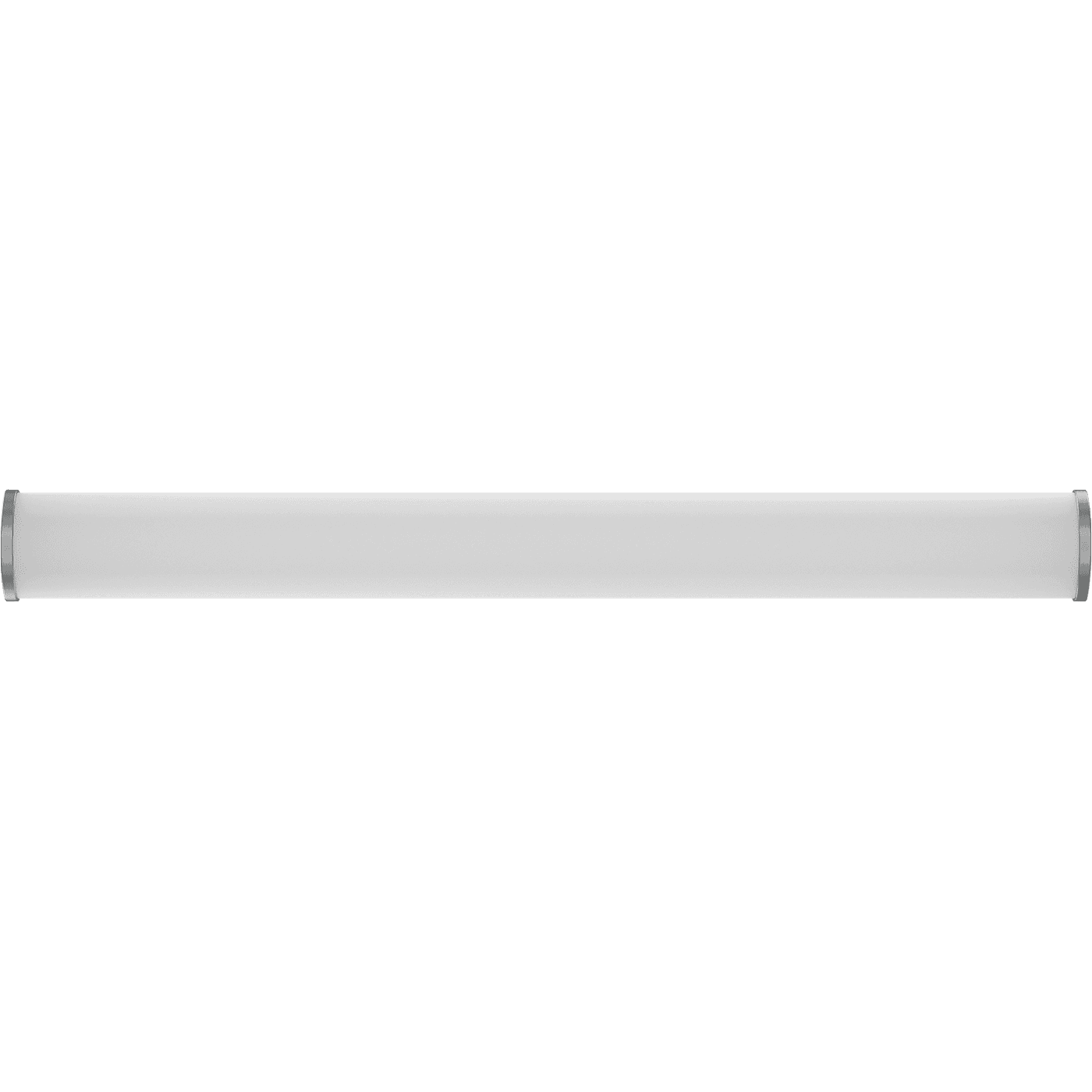

T120 LED 2250 3000K DALI IP20 (38W)

T120 LED 2250 3000K DALI IP20 (38W)
40 Wluminaire power
4600 lmlight flow
115 lm/Wenergy efficiency
code1250000410
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
115 lm/W
color rendition index (CRI)
>80
light flow
4600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
115 lm/W
color rendition index (CRI)
>80
light flow
4600 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
40 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A

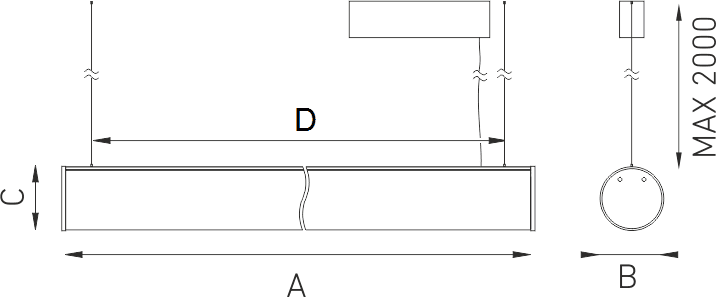

constructional
length
2240 mm
width
127 mm
height
140 mm
installation length
1050 mm
weight
3.5 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, пластик
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от 0 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1250000410
model files
model files

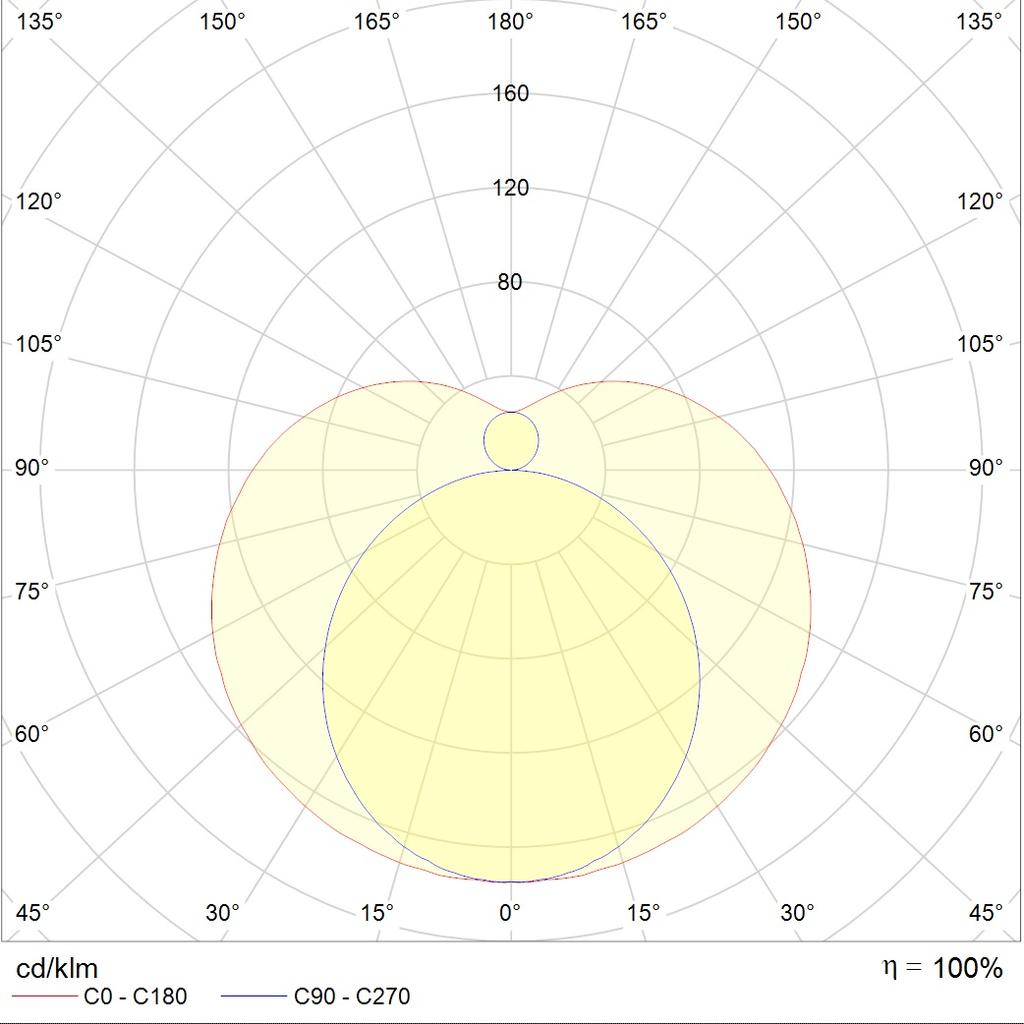

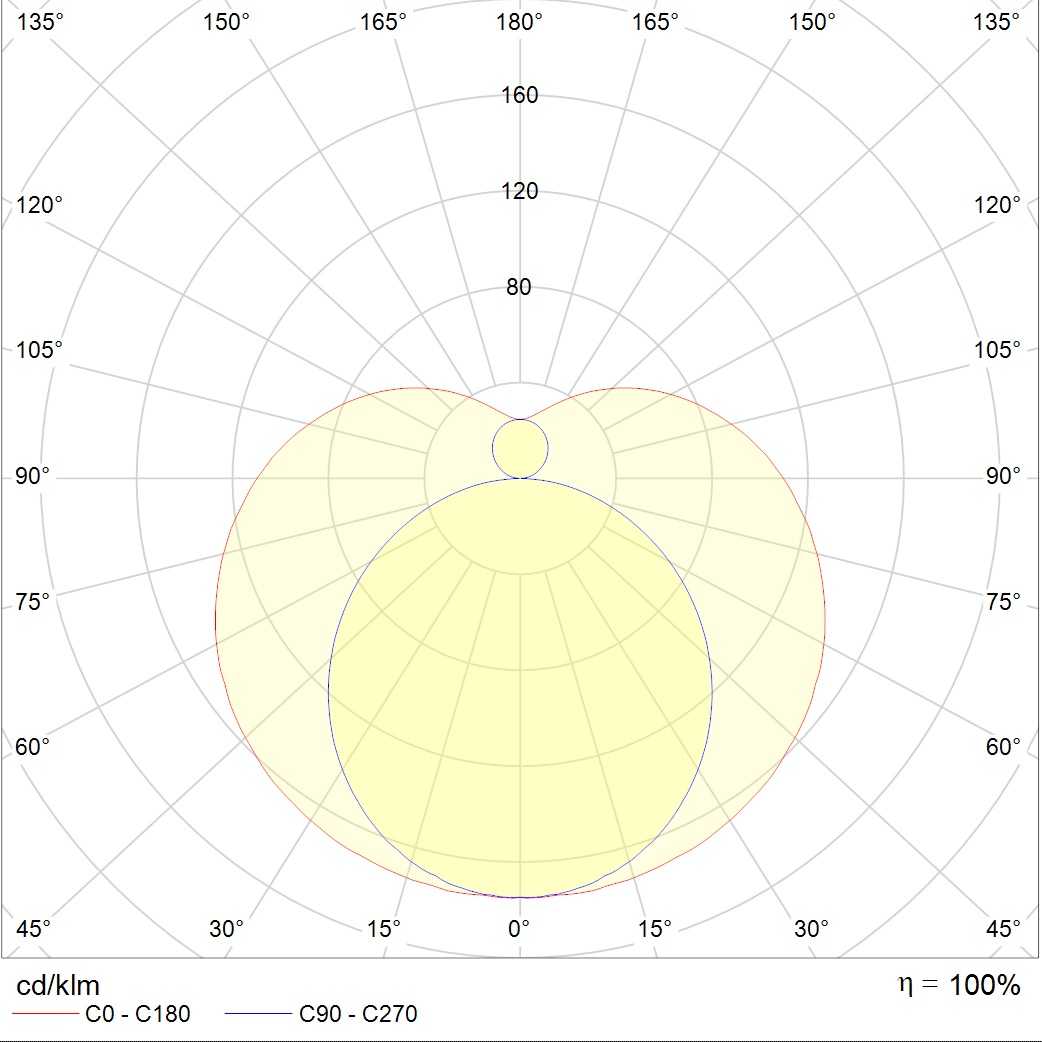

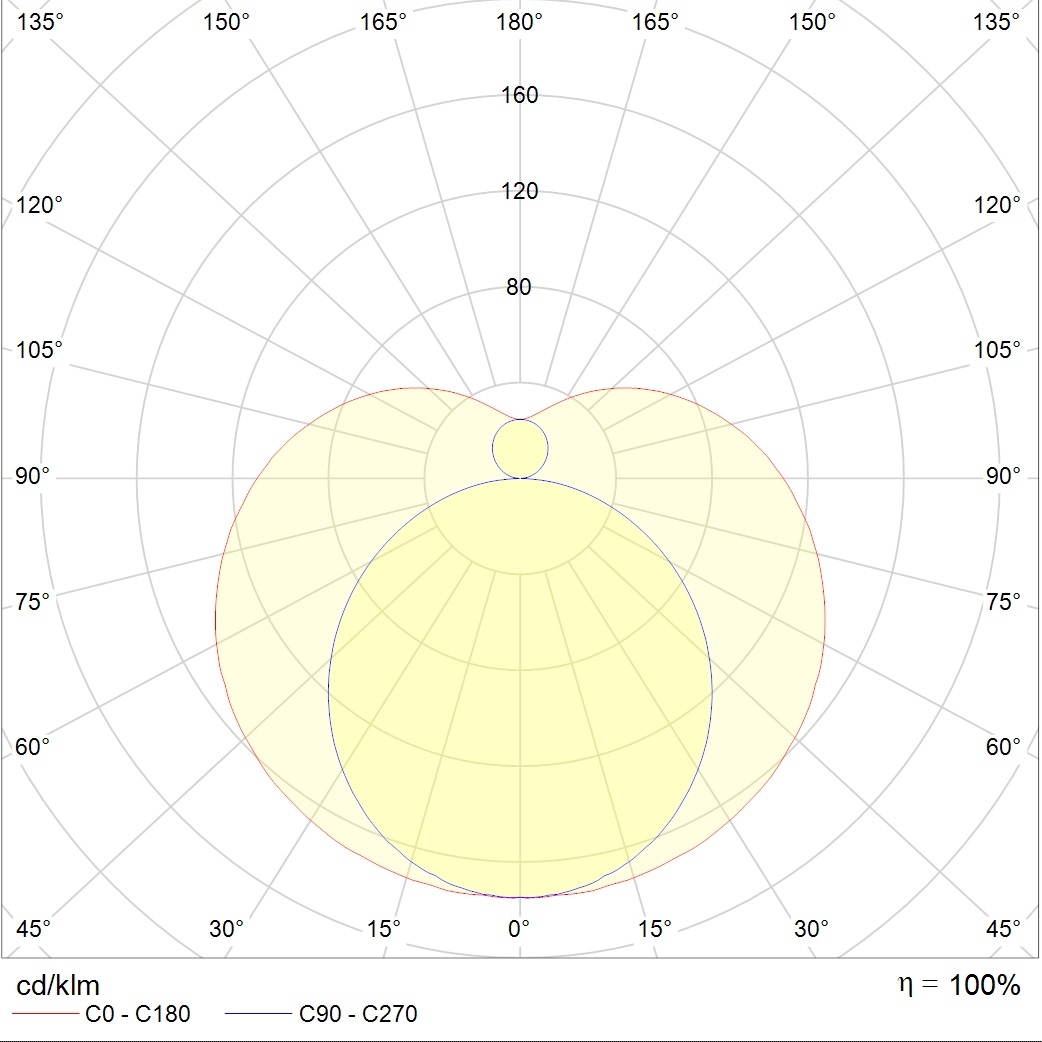

photometric files
