SIRAH 6500-3 LED 24V
SIRAH 6500-3 LED 24V
3 Wluminaire power
180 kd/m2average luminance
code4502003620
battery / battery Ni-CdНет аккумулятора
type of operation / type of operation of the emergency luminaireцентрализованного электропитания
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
light flow
100 lmaverage luminance
180 kd/m2flickering factor
<5%light source type
LEDenergy efficiency
33 lm/Wemission color
Белыйilluminating
light flow
100 lm
average luminance
180 kd/m2
flickering factor
<5%
light source type
LED
energy efficiency
33 lm/W
emission color
Белый
electrical
supply voltage
24 V
constructional
material
Поликарбонат
ballast
Драйвер
weight
0.7 kg
length
271 mm
width
146 mm
height
75 mm
shock resistance (IK)
IK02/0,2 Дж
ingress protection (IP)
IP65
climatic performance
УХЛ4
emergency
battery / battery Ni-Cd
Нет аккумулятора
type of operation / type of operation of the emergency luminaire
централизованного электропитания
common
ETIM class
Светильник аварийный
warranty
36 month
temperature range
от -30 до +40 C
energy efficiency class
B
code
4502003620
model files
model files

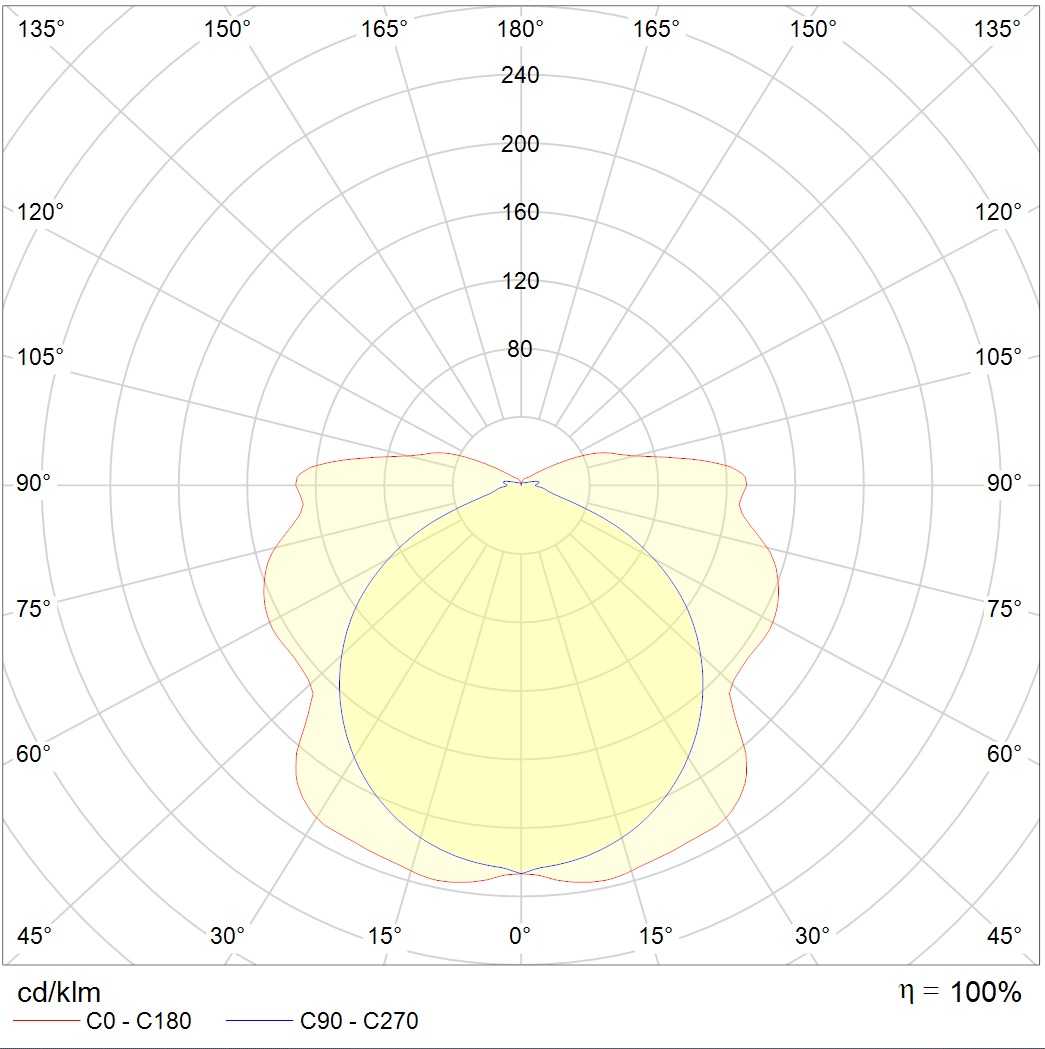

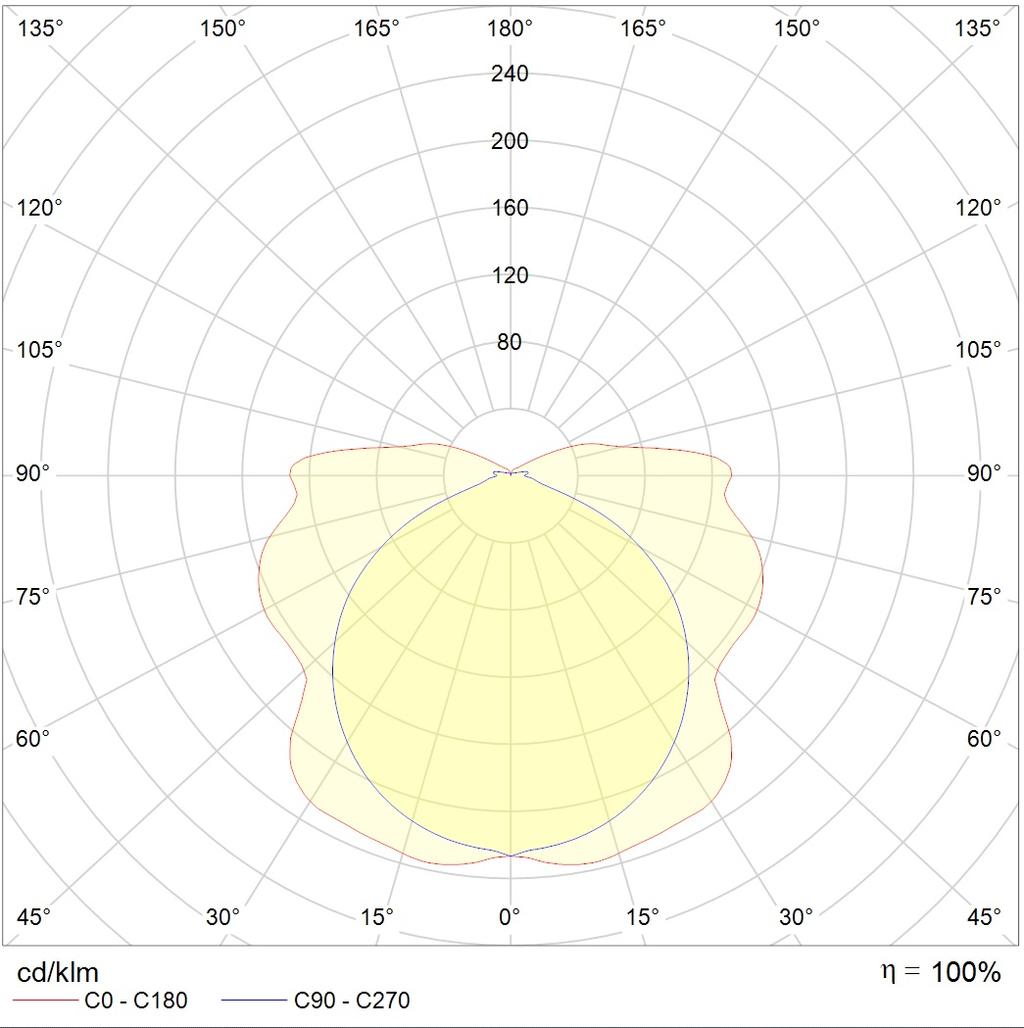

photometric files
documents
сертификаты
photometric files
ies54.6 kB
jpg172.2 kB
ldt47.8 kB
documents
passport466.8 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016291.1 kB
accessories
PEU 011 Exit (135х260) SIRAH IP650.0092kgarticle: 2502002680
PPB 0003 Fire extinguisher (135х260) SIRAH IP650.0092kgarticle: 2502002580
PEU 001 Exit to the left (135х260) SIRAH IP650.0092kgarticle: 2502002590
