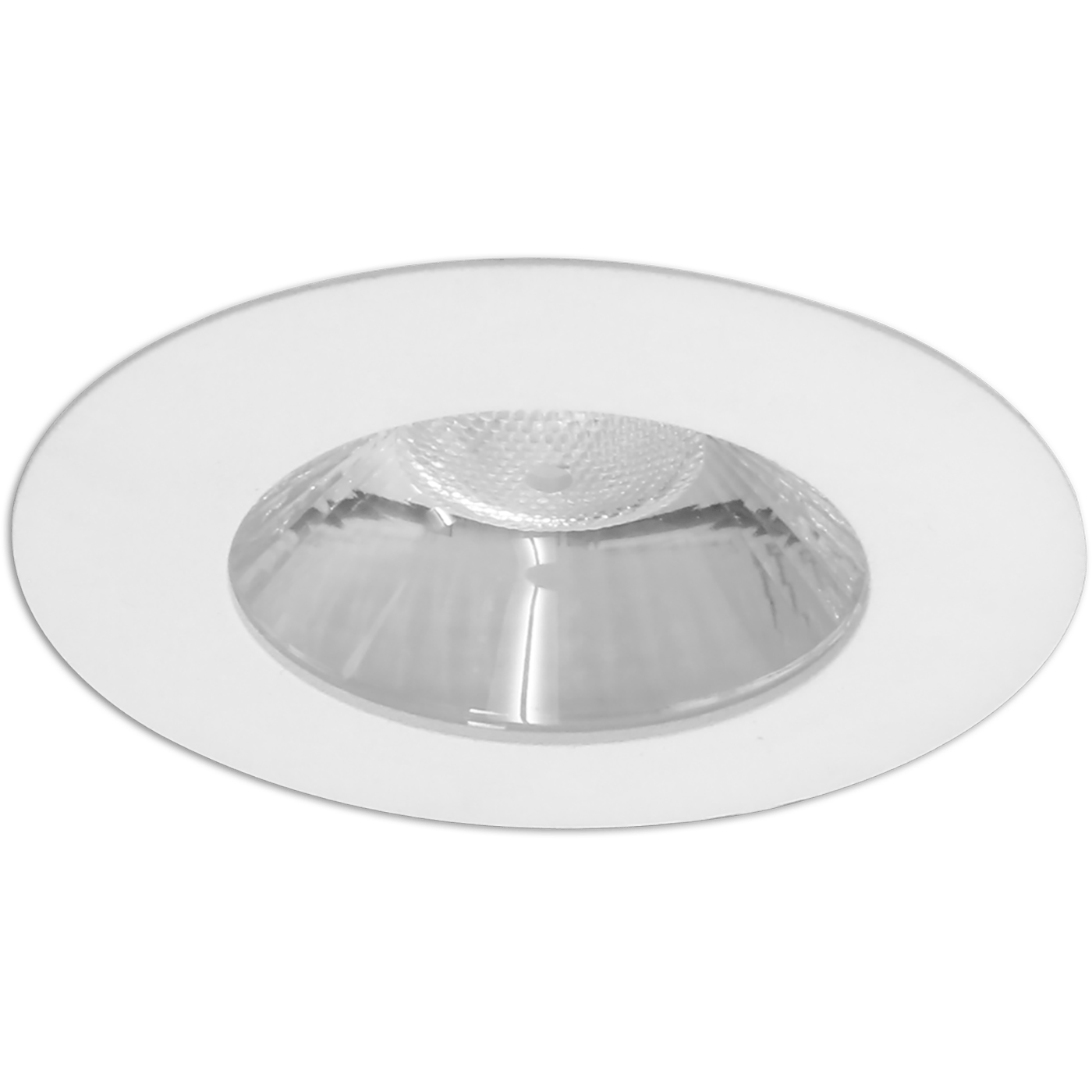

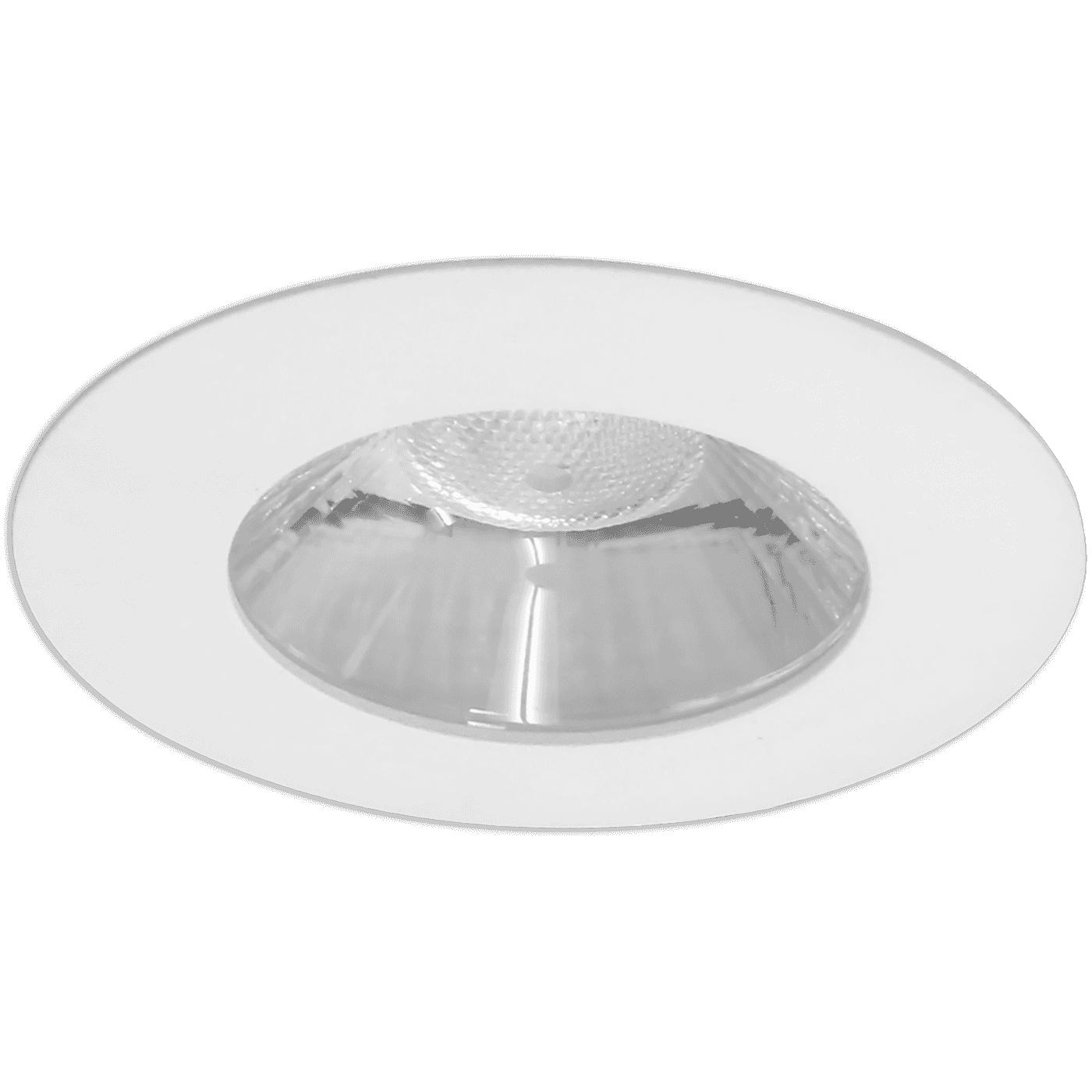

QUO 07 WH D45 2700K (with driver)
.jpg&w=1920&q=50)
.jpg&w=1024&q=50)
QUO 07 WH D45 2700K (with driver)
9 Wluminaire power
700 lmlight flow
78 lm/Wenergy efficiency
code1507001120
color temperature2700
beam angleD45
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
43 Astarting current pulse time, µs
2.28 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
198-264 Vluminaire power
9 Welectric shock protection
IIpower factor
> 0,90supply voltage
230 Velectrical
starting current
43 A
starting current pulse time, µs
2.28 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
198-264 V
luminaire power
9 W
electric shock protection
II
power factor
> 0,90
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
0.37 kg

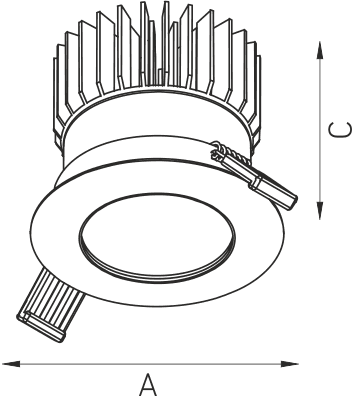

diameter, mm
65 mm
height, mm
56 mm
housing color
Белый
installation diameter, mm
58 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A
code
1507001120
illuminating
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
energy efficiency
78 lm/W
beam angle
D45
color temperature
2700
light source type
LED
emission color
Белый
model files
model files

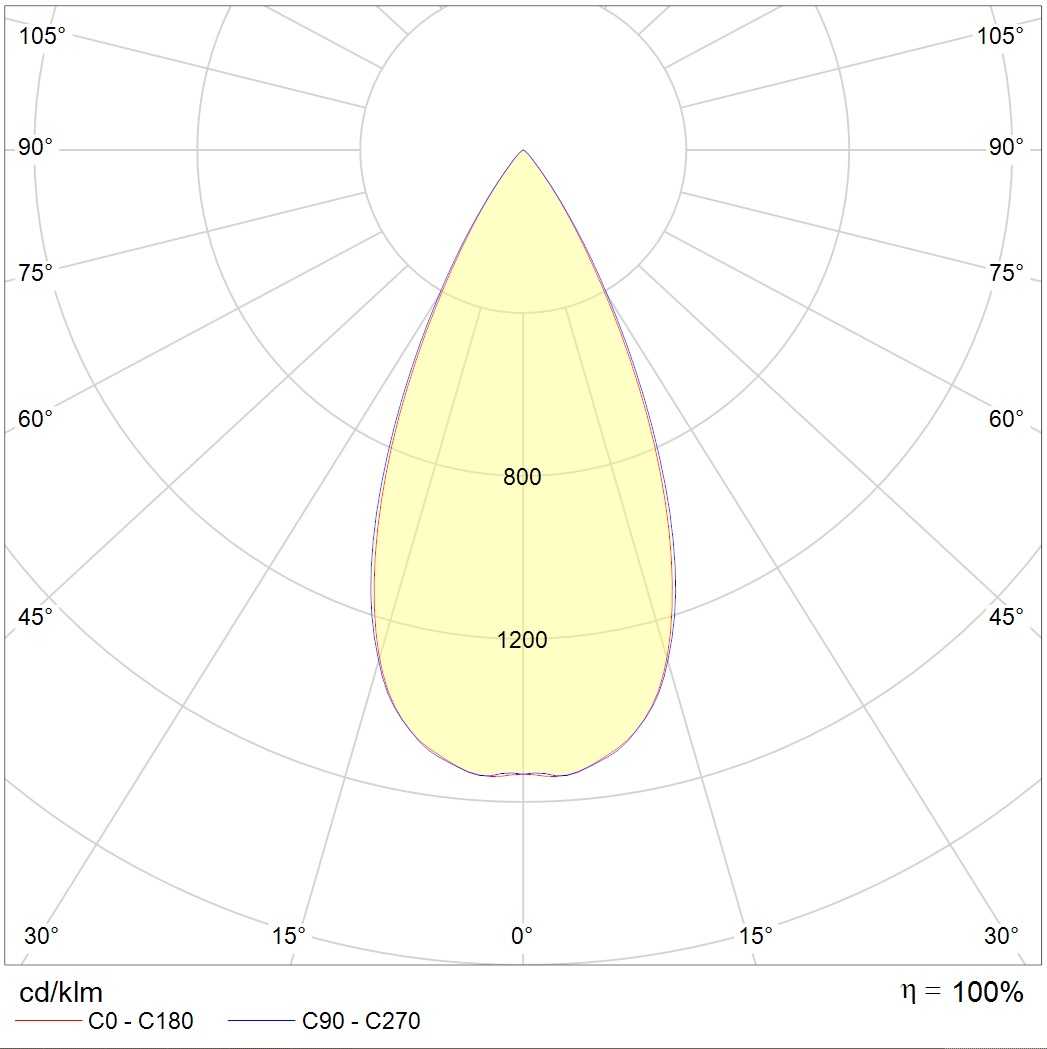

photometric files
documents
сертификаты
photometric files
ies68.7 kB
jpg114.3 kB
ldt42.6 kB
documents
passport1.6 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
accessories
LINE PRISM SPOTLIGHT 06-18W0.05kgarticle: 2701002170
SQ PRISM SPOTLIGHT 06-18W0.005kgarticle: 2701002140
HONEYCOMB Spotlight 07-18W0.05kgarticle: 2701002060
