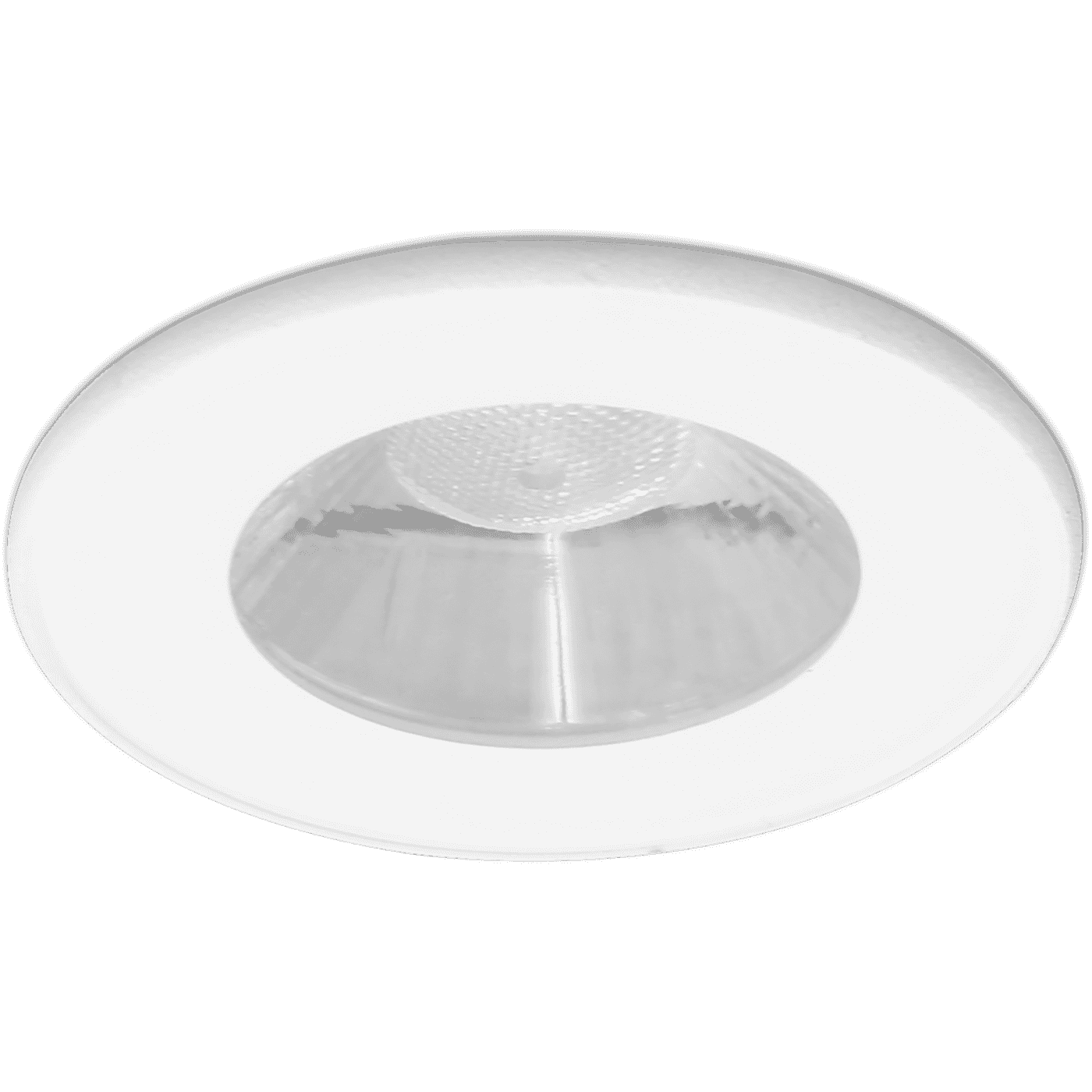

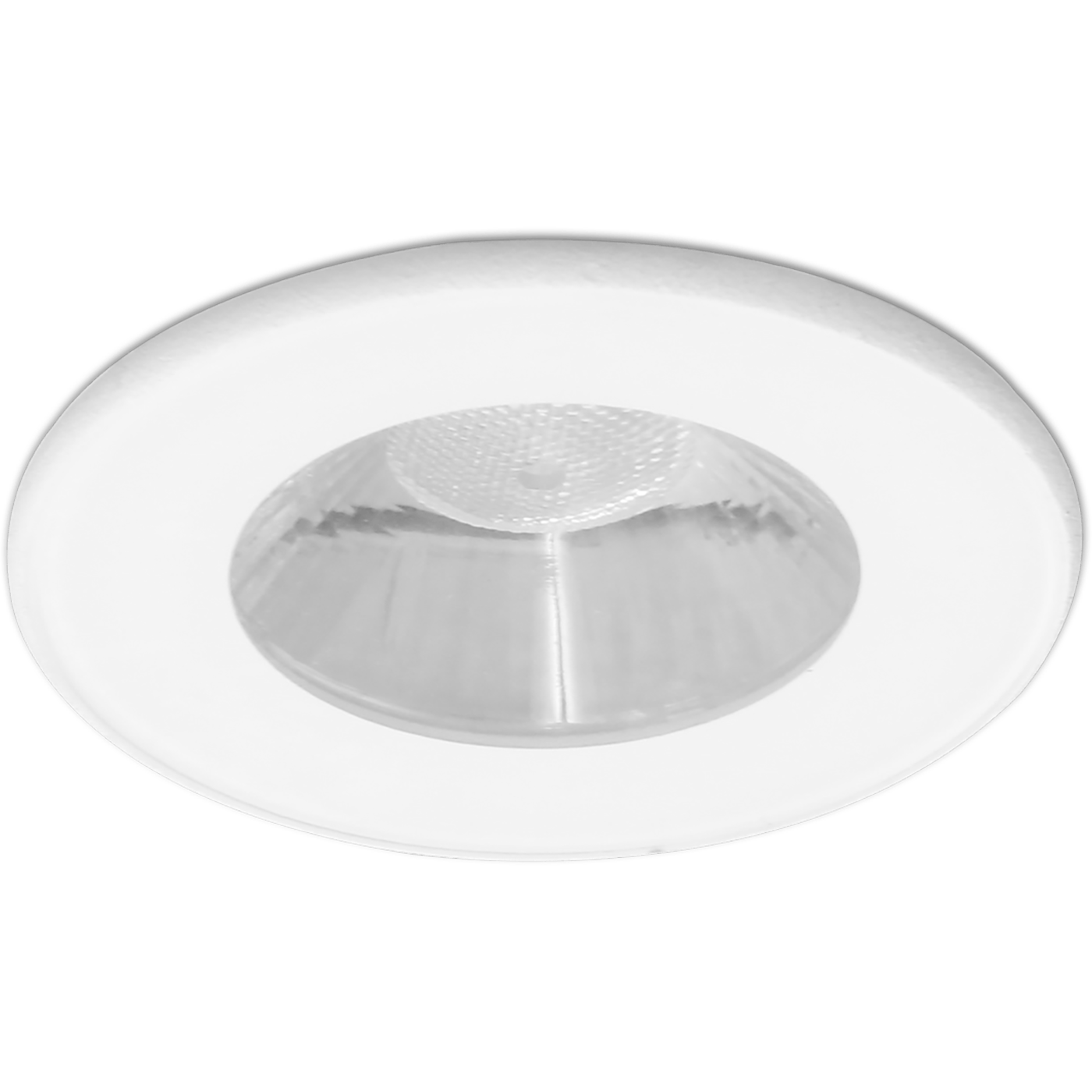

QUO IP65/IP20 07 WH D45 3000K 1-10V

QUO IP65/IP20 07 WH D45 3000K 1-10V
9 Wluminaire power
700 lmlight flow
78 lm/Wenergy efficiency
code1507000890
color temperature3000 K
beam angleD45
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
78 lm/W
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
beam angle
D45
color temperature
3000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
78 lm/W
color rendition index (CRI)
>80
light flow
700 lm
flickering factor
<5%
beam angle
D45
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
50 µs
electric shock protection
II
luminaire power
9 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
5 A
constructional

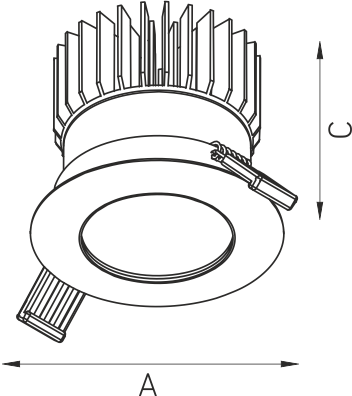

diameter
65 mm
height
39 mm
installation diameter
37 mm
weight
0.37 kg
ingress protection (IP)
IP65/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІа
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер 1-10В
LMS options
dimming
1-10 V
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A
ETIM class
Прожектор / Светильник направленного света
code
1507000890
model files
model files
CAD/BIM files
model 3dMax1.7 mB
photometric files
ies68.6 kB
jpg74.3 kB
ldt42.6 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
model 3dMax1.7 mB
photometric files
ies68.6 kB
jpg74.3 kB
ldt42.6 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
