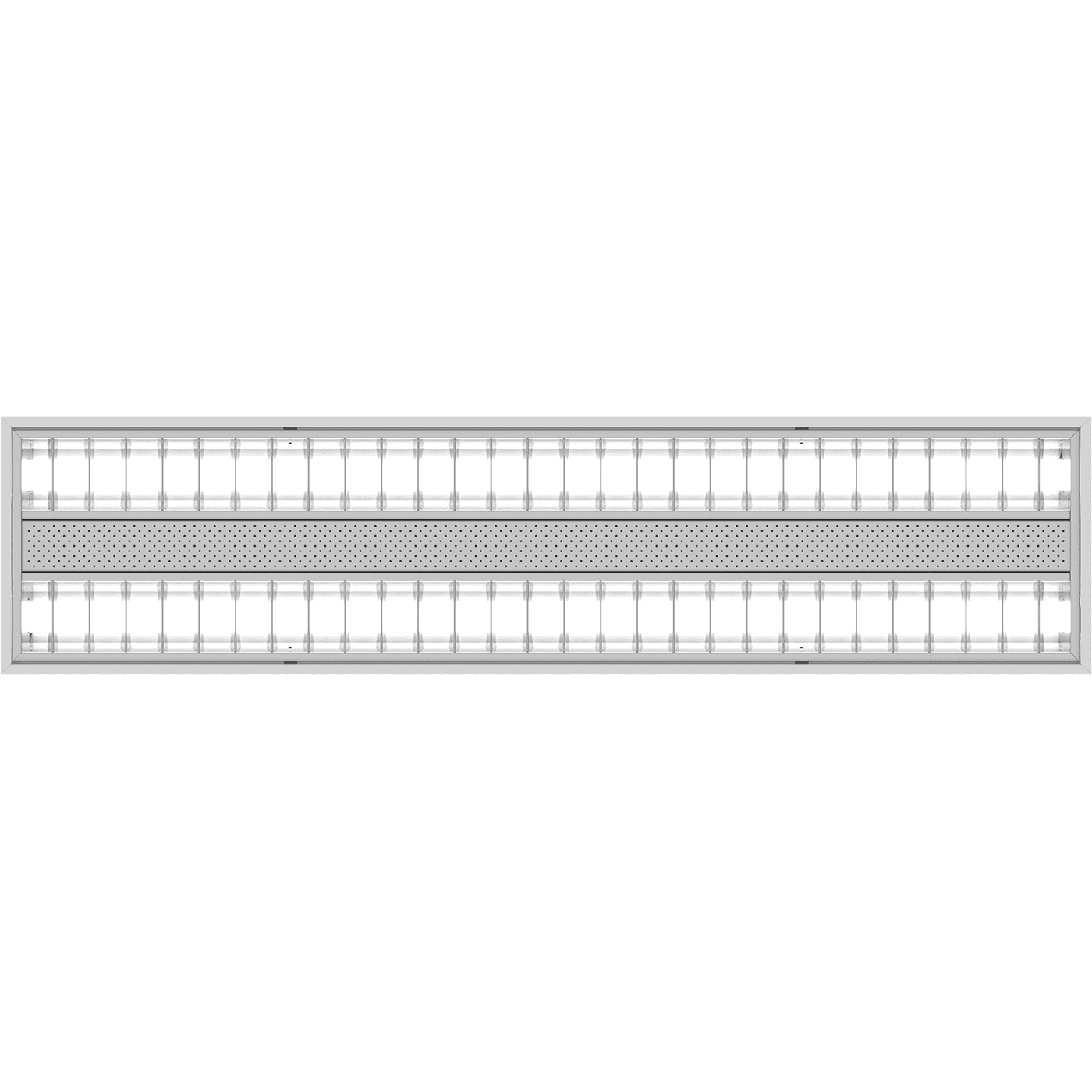

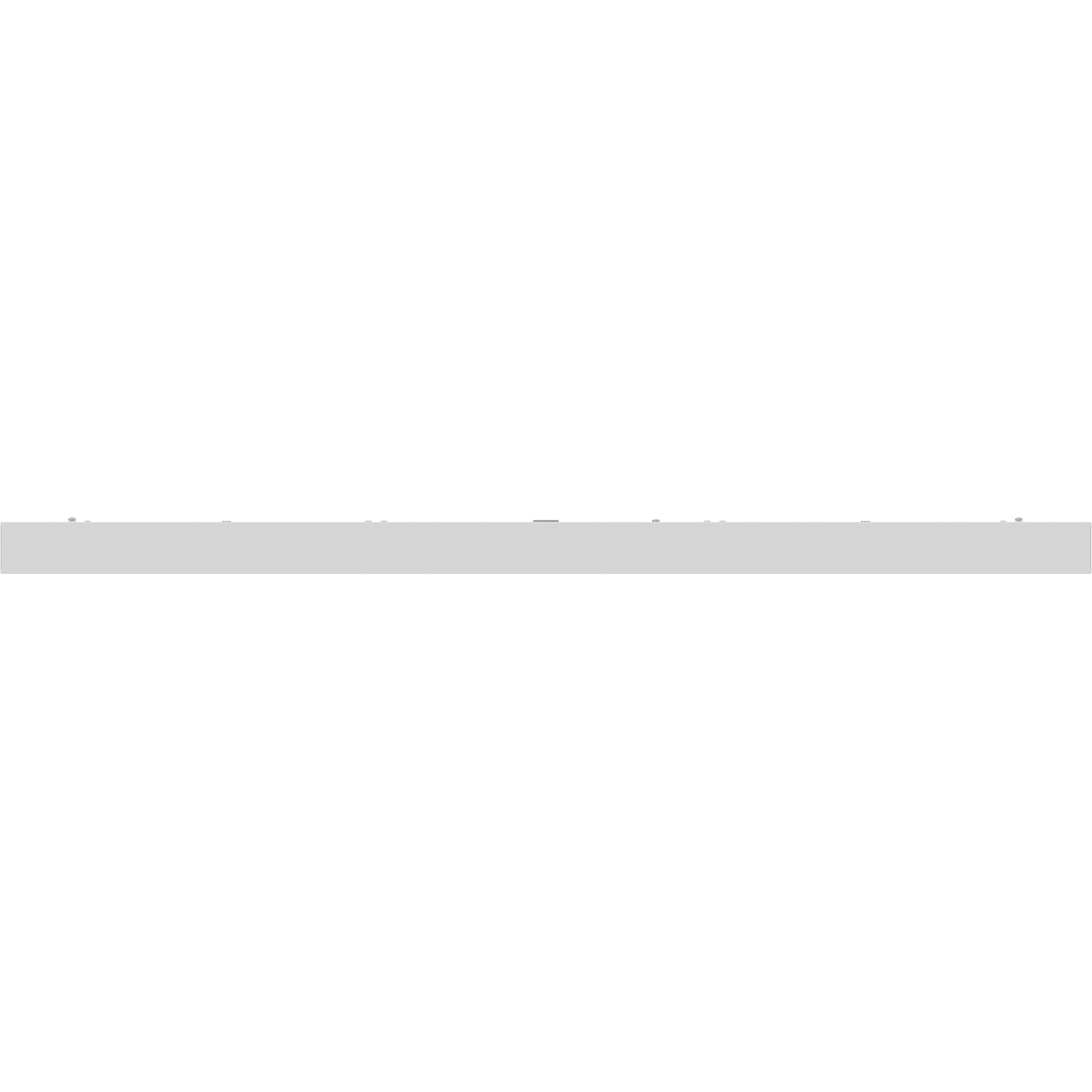

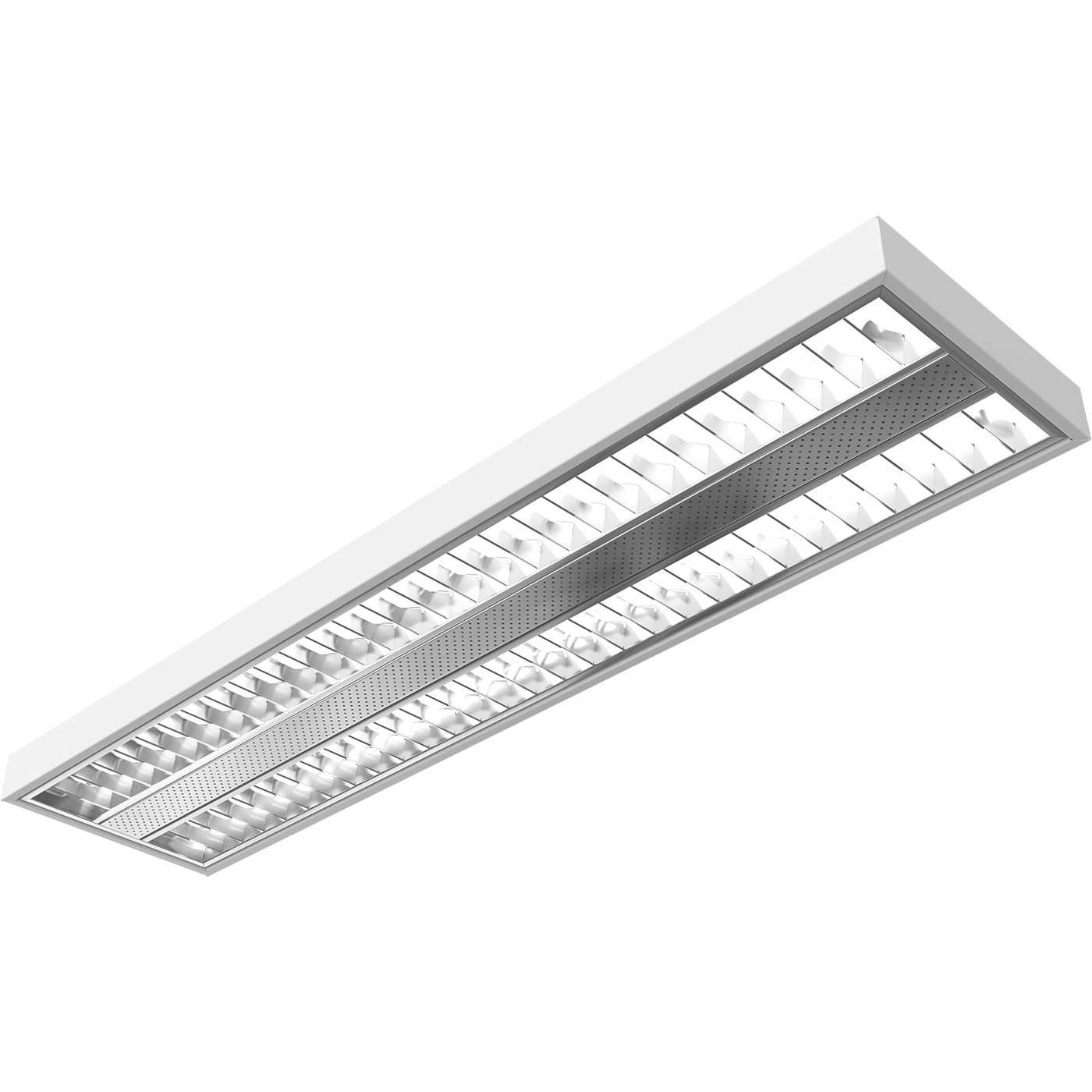

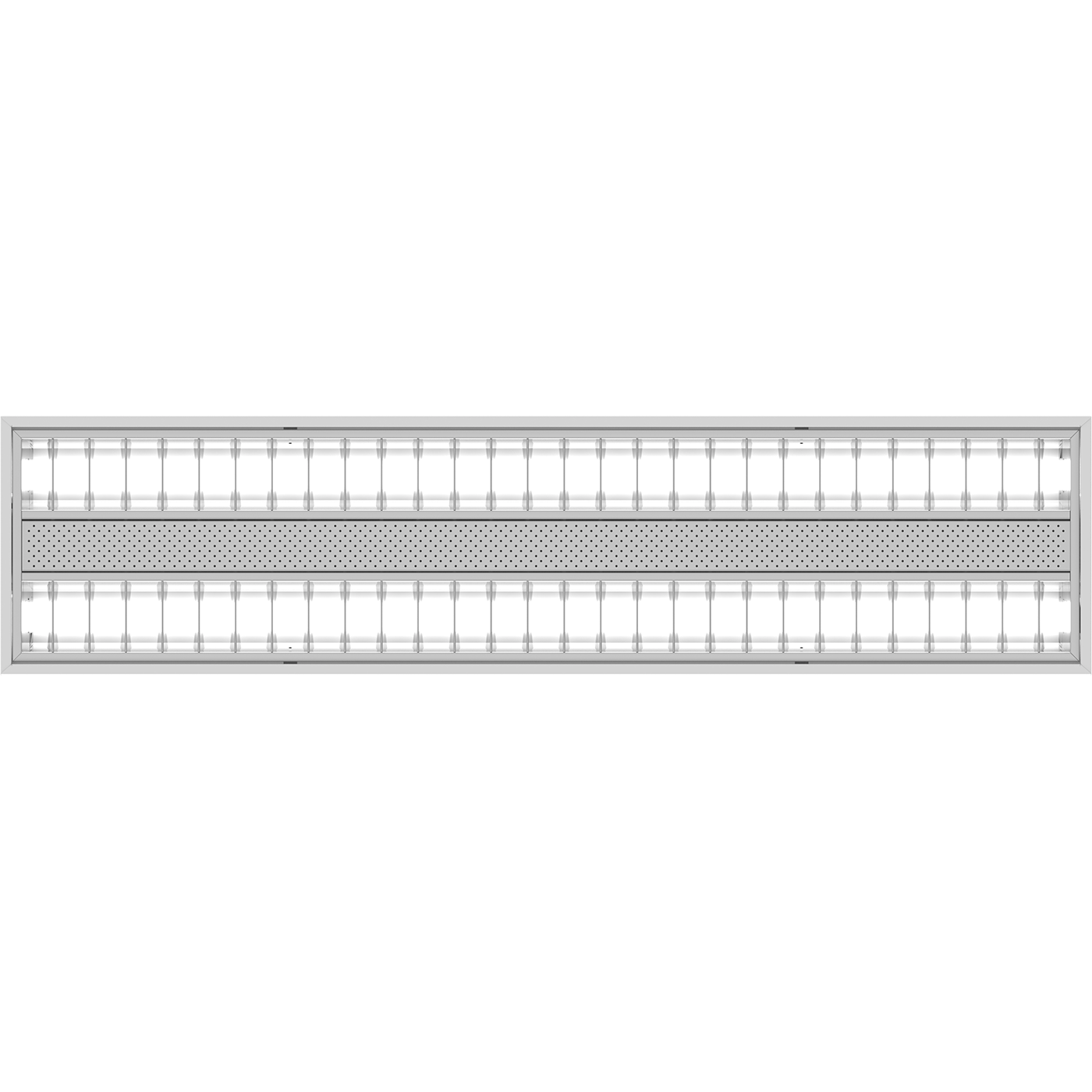

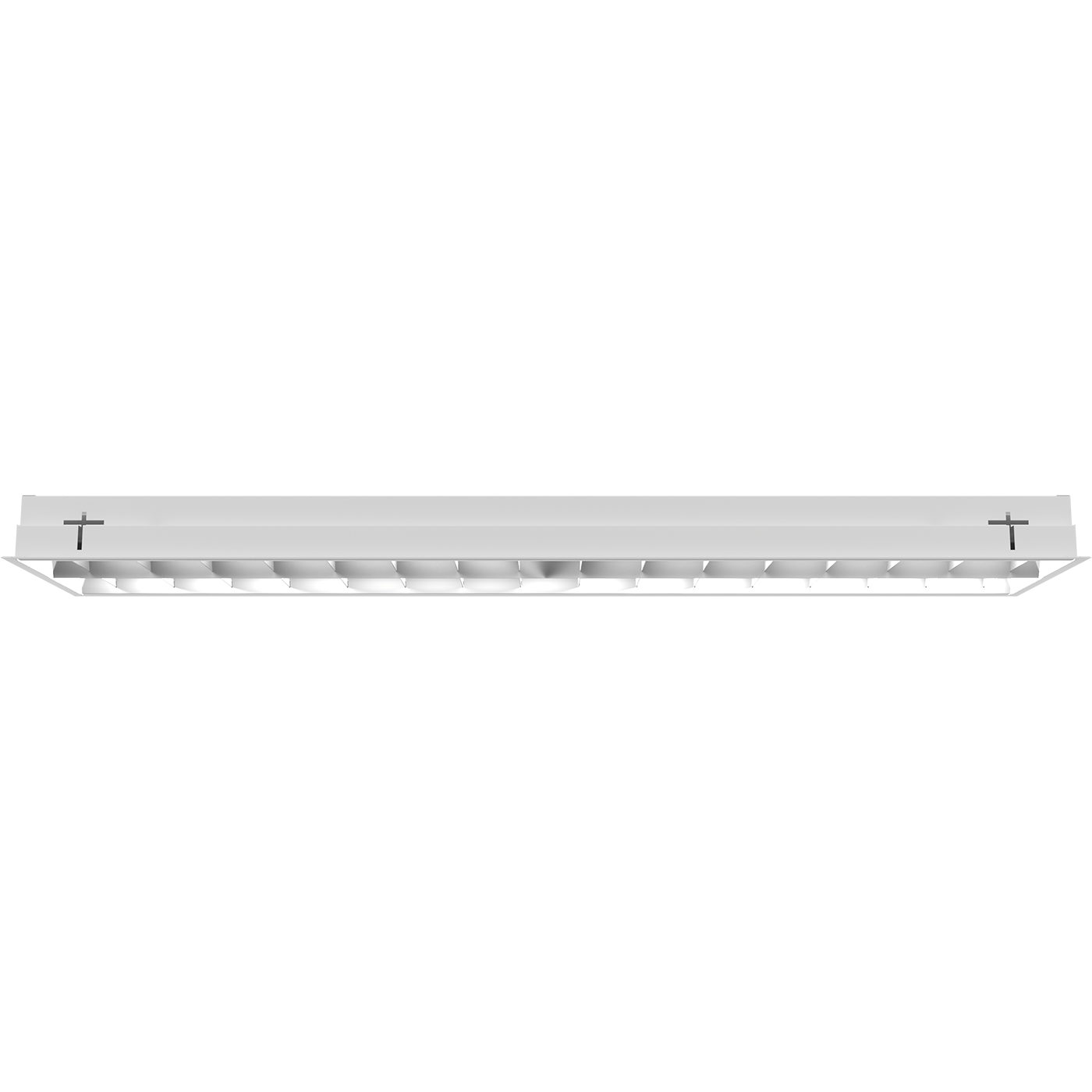

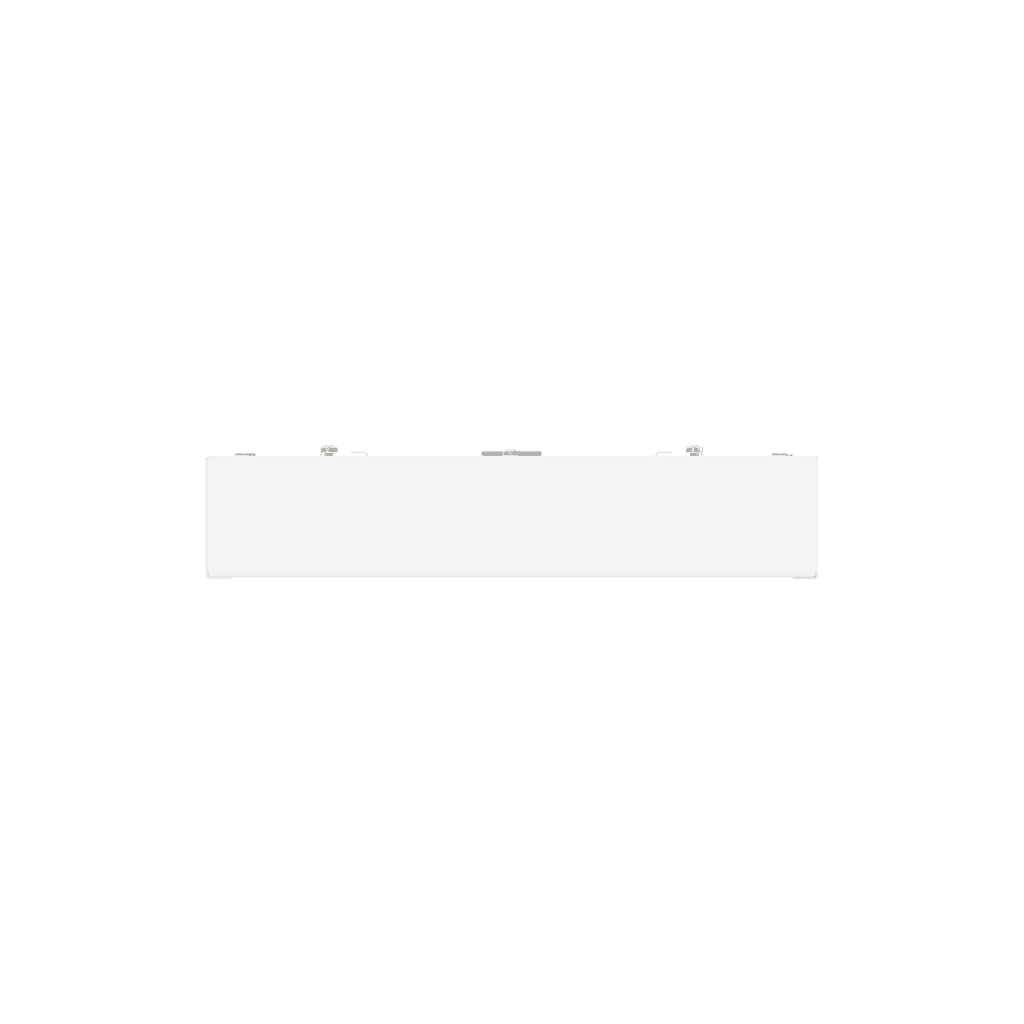

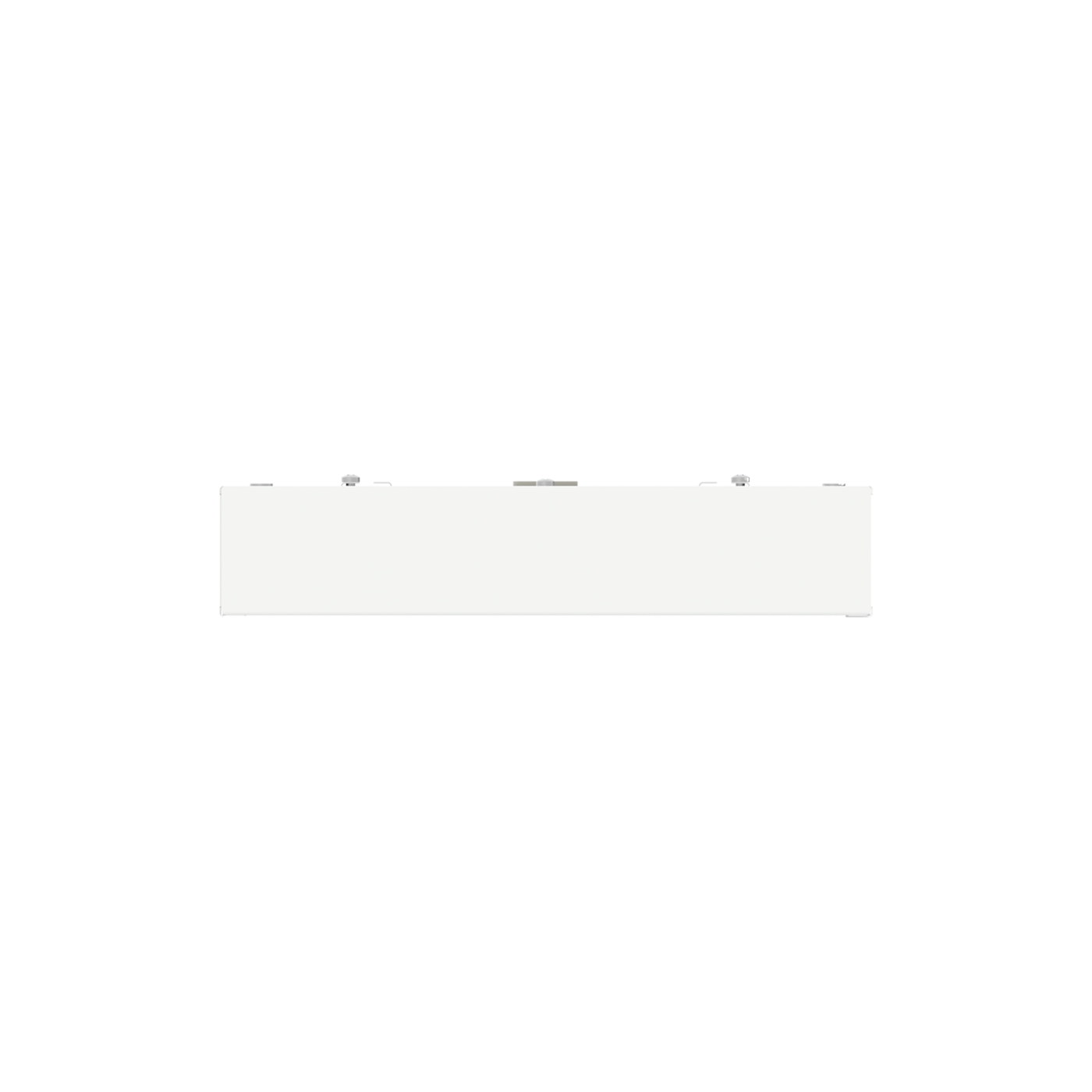

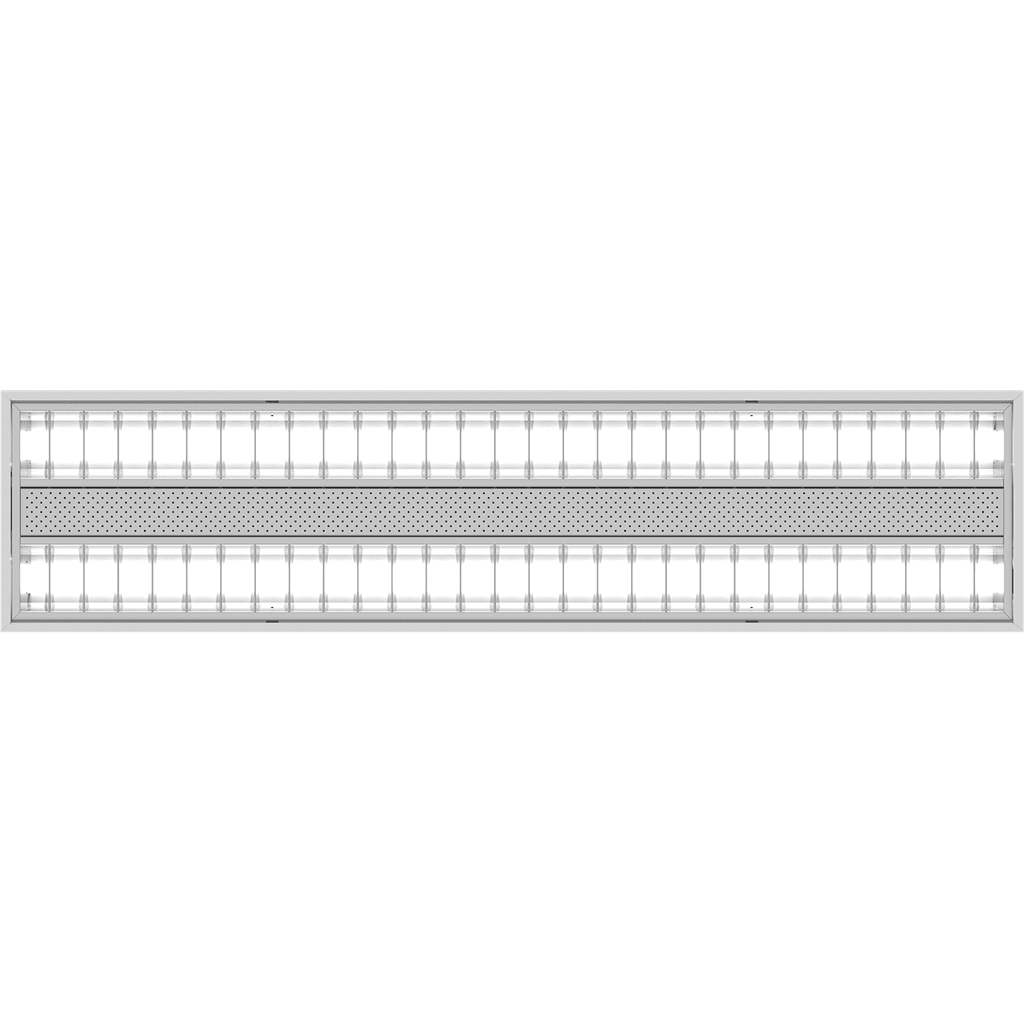

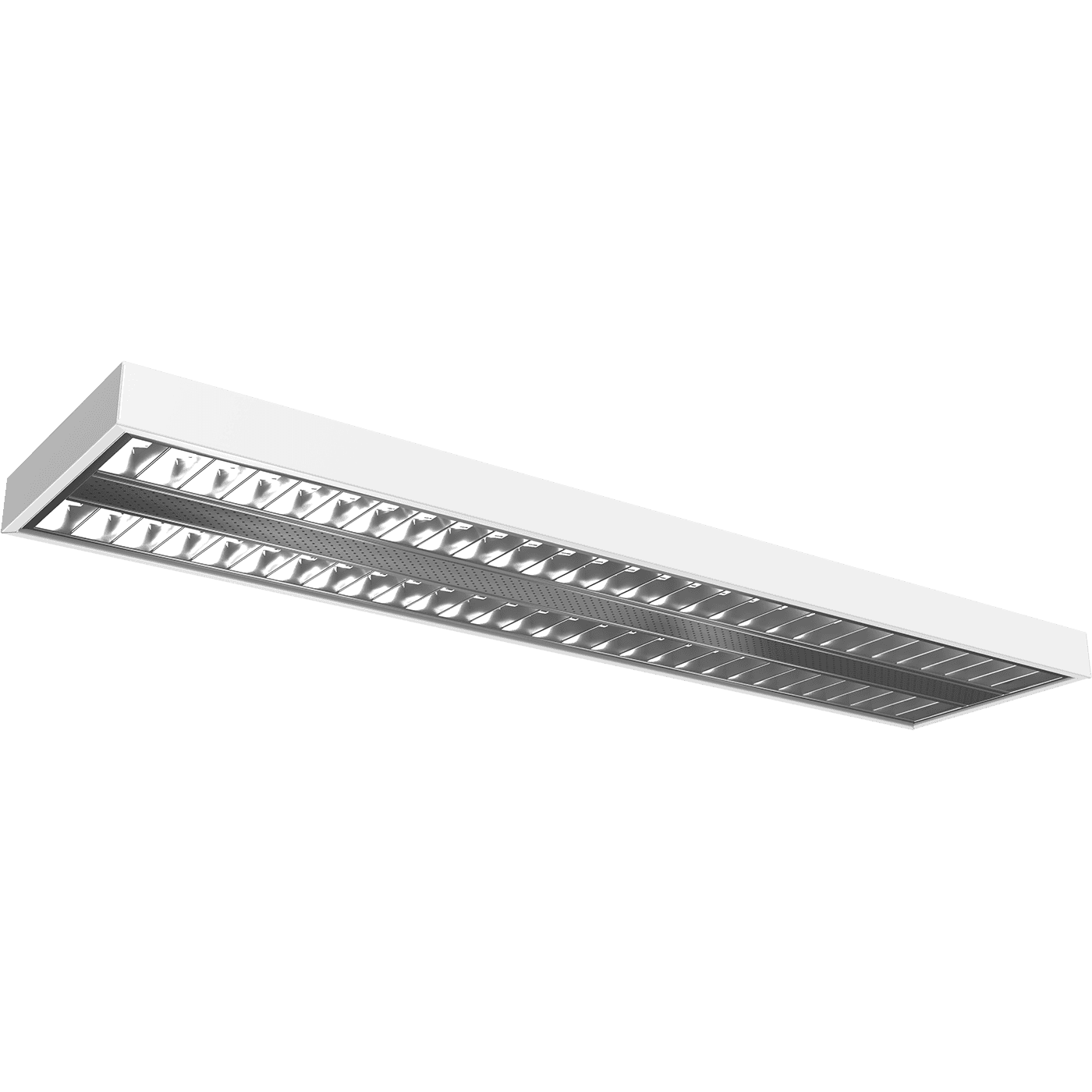

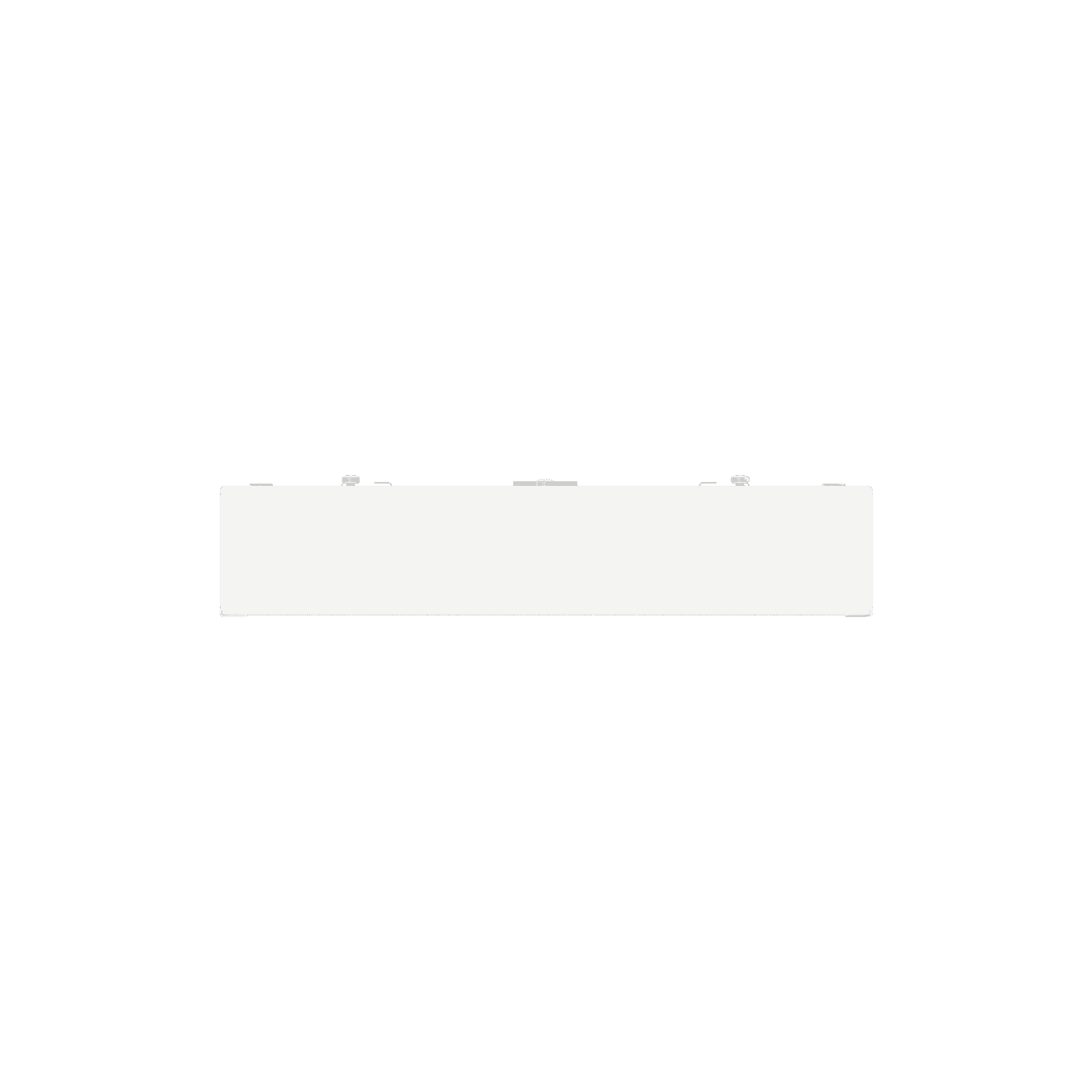

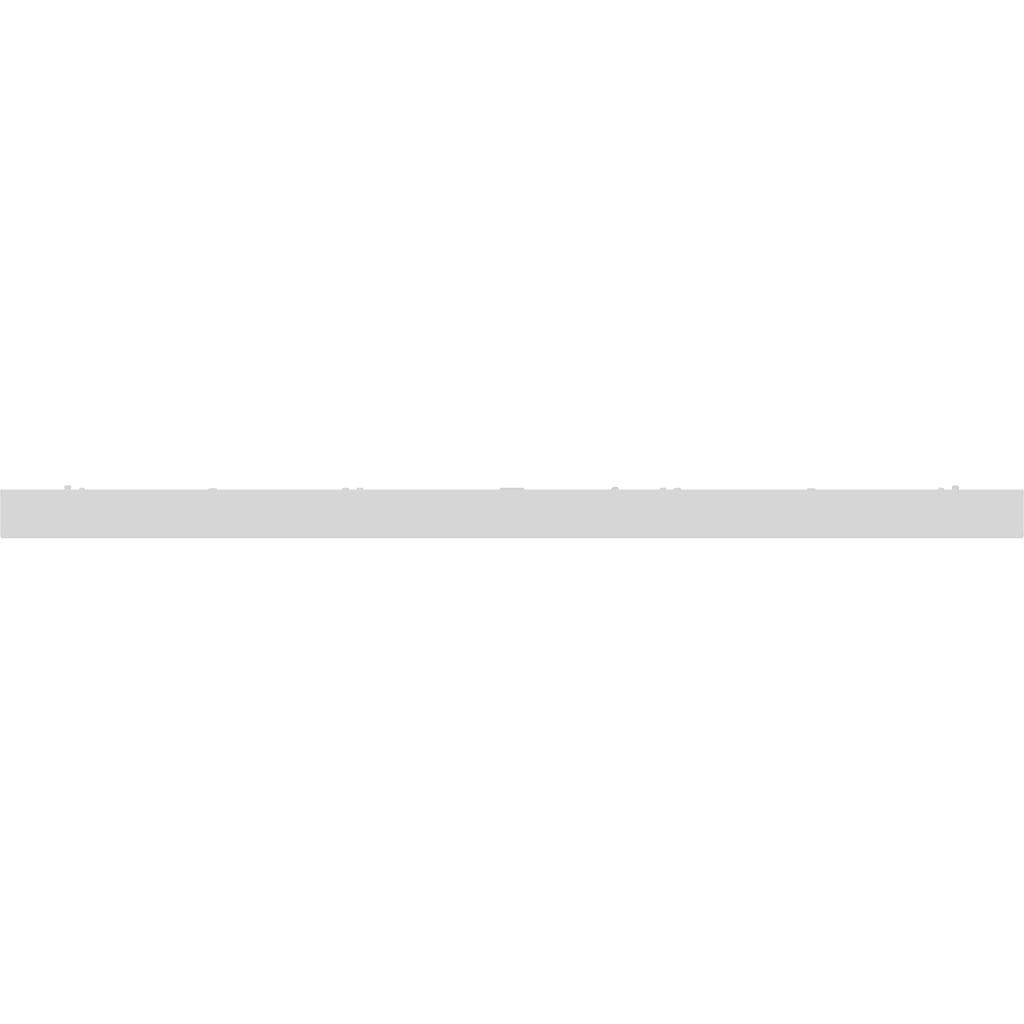

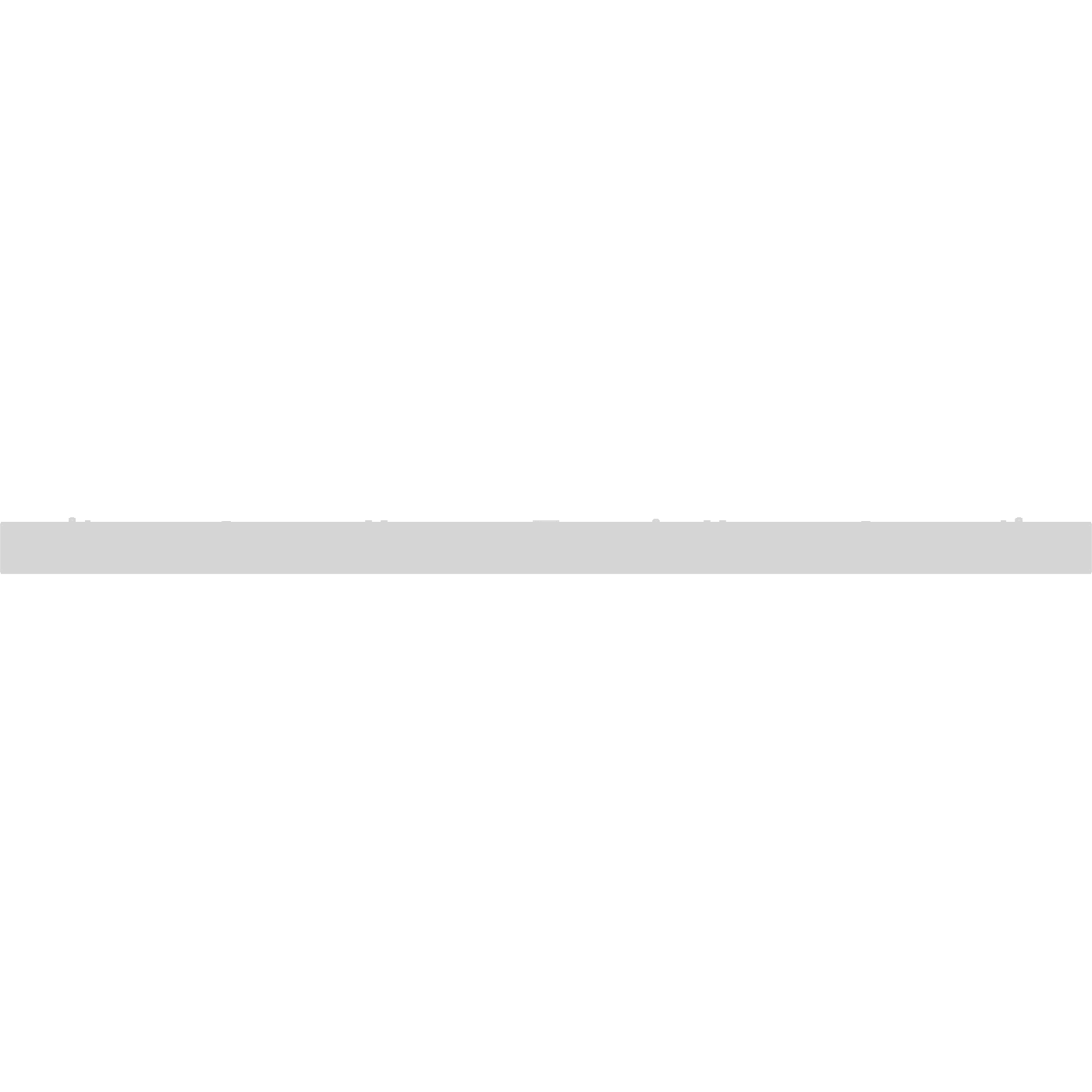

PTF UNI LED 1200 EM 4000K

PTF UNI LED 1200 EM 4000K
add to favorites
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1048000090
color temperature4000
beam angleD120
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. recessed ceiling
  6. PTF UNI LED
  7. PTF UNI LED 1200 EM 4000K
options
свернуть все
electricalconstructionalcommonilluminatingemergency
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
32 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
5.55 kg

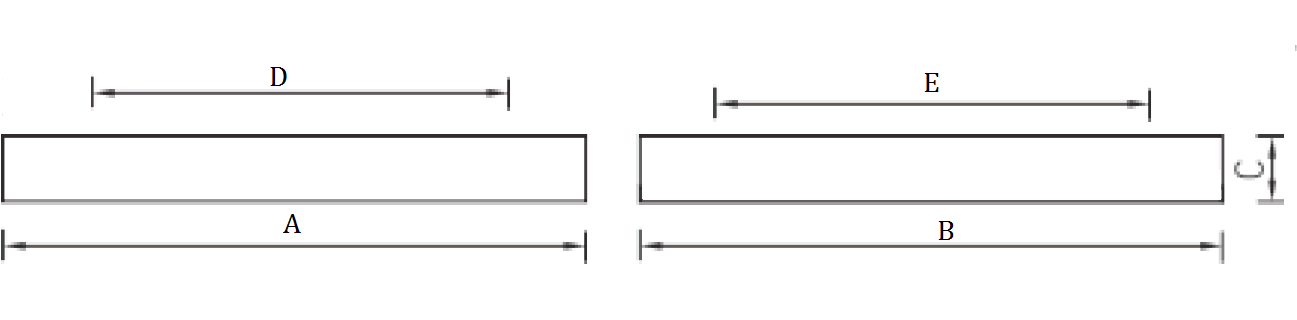

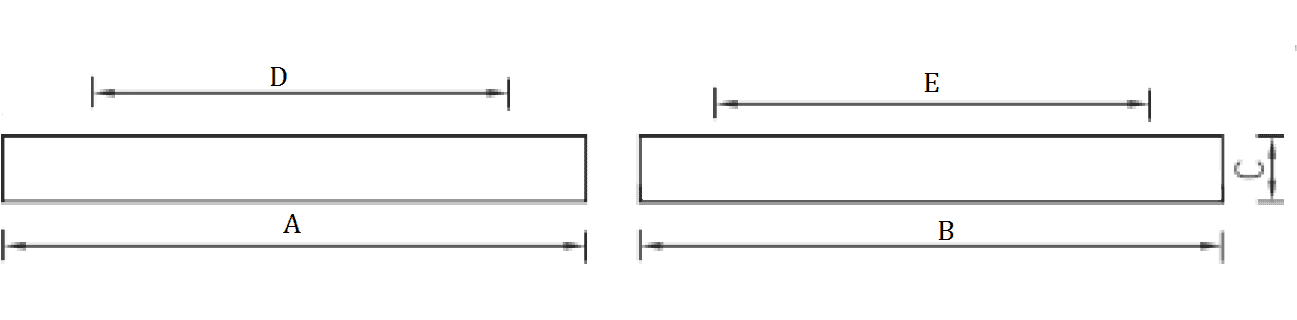

length, mm
1195 mm
width, mm
295 mm
height, mm
58 mm
housing color
Белый
installation length, mm
1175 mm
installation width, mm
275 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1048000090
illuminating
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<5%
energy efficiency
100 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
emergency
operating time in emergency mode, hours
1 h
luminous flux in emergency mode
12% lm
model files
model files
CAD/BIM files
CAD model 3DS264.4 kB
model 3dMax760 kB

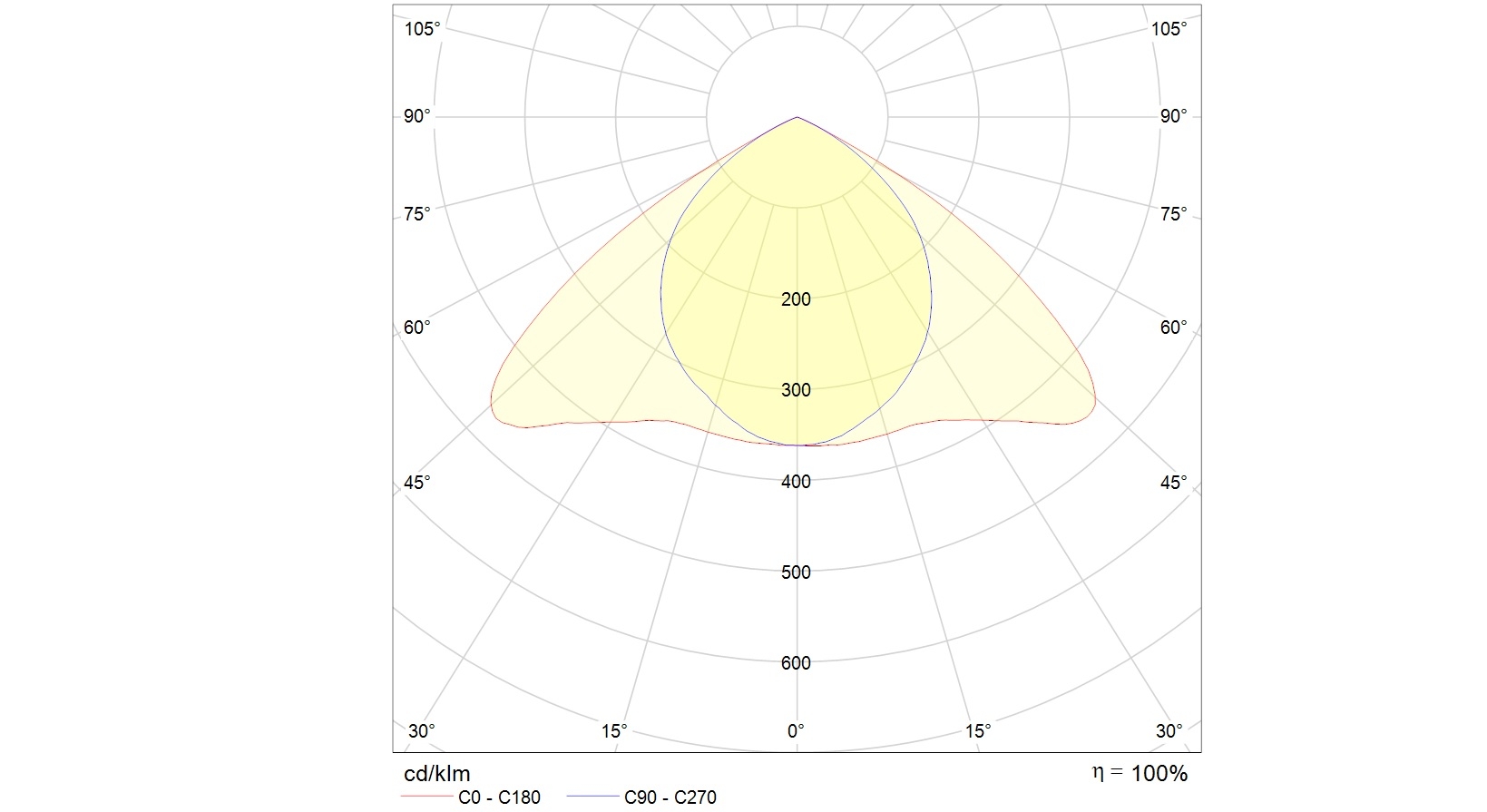

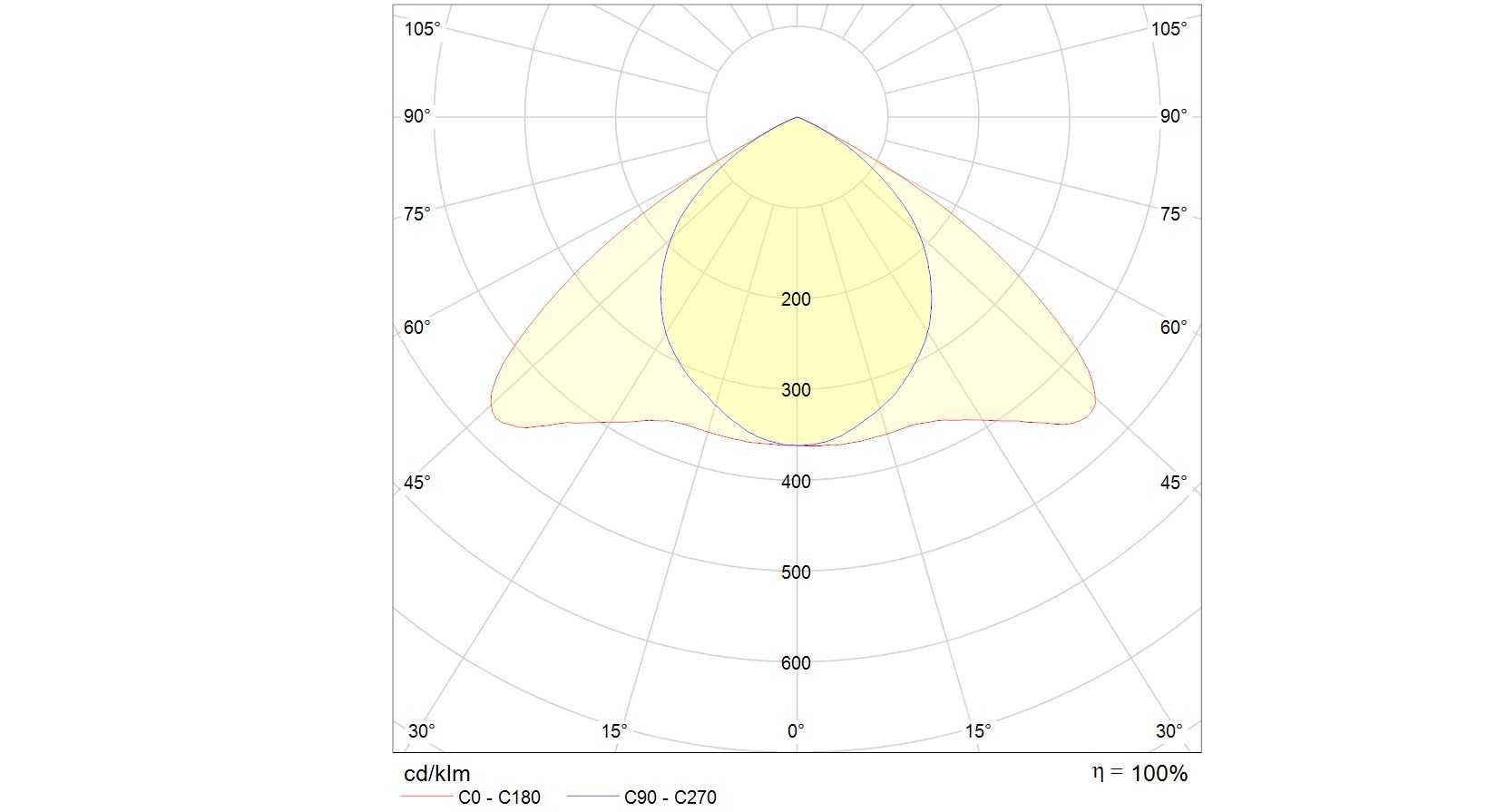

photometric files
ies263.2 kB
jpg118.9 kB
ldt147.7 kB
documents
passport1.7 mB
сертификаты
Russian origin1.2 mB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
CAD/BIM files
CAD model 3DS264.4 kB
model 3dMax760 kB
photometric files
ies263.2 kB
jpg118.9 kB
ldt147.7 kB
documents
passport1.7 mB
сертификаты
Russian origin1.2 mB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
