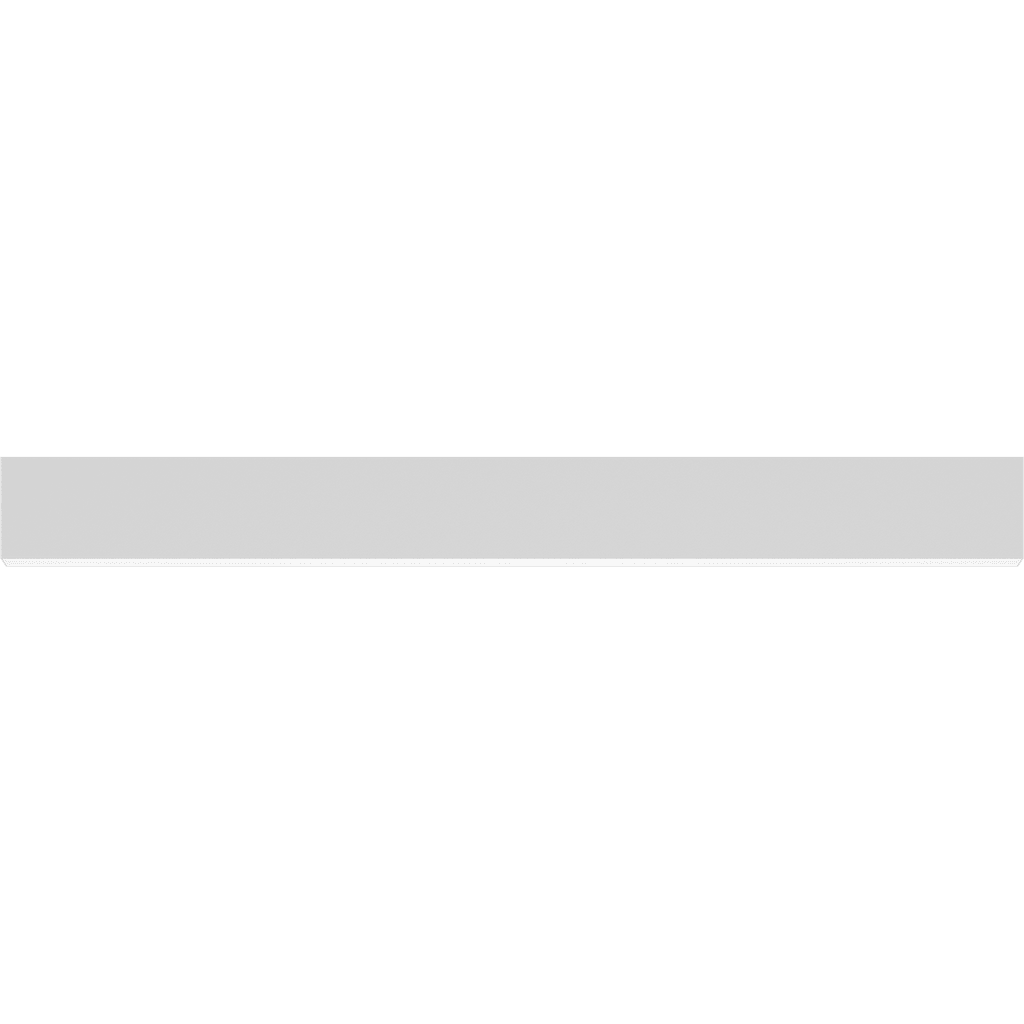

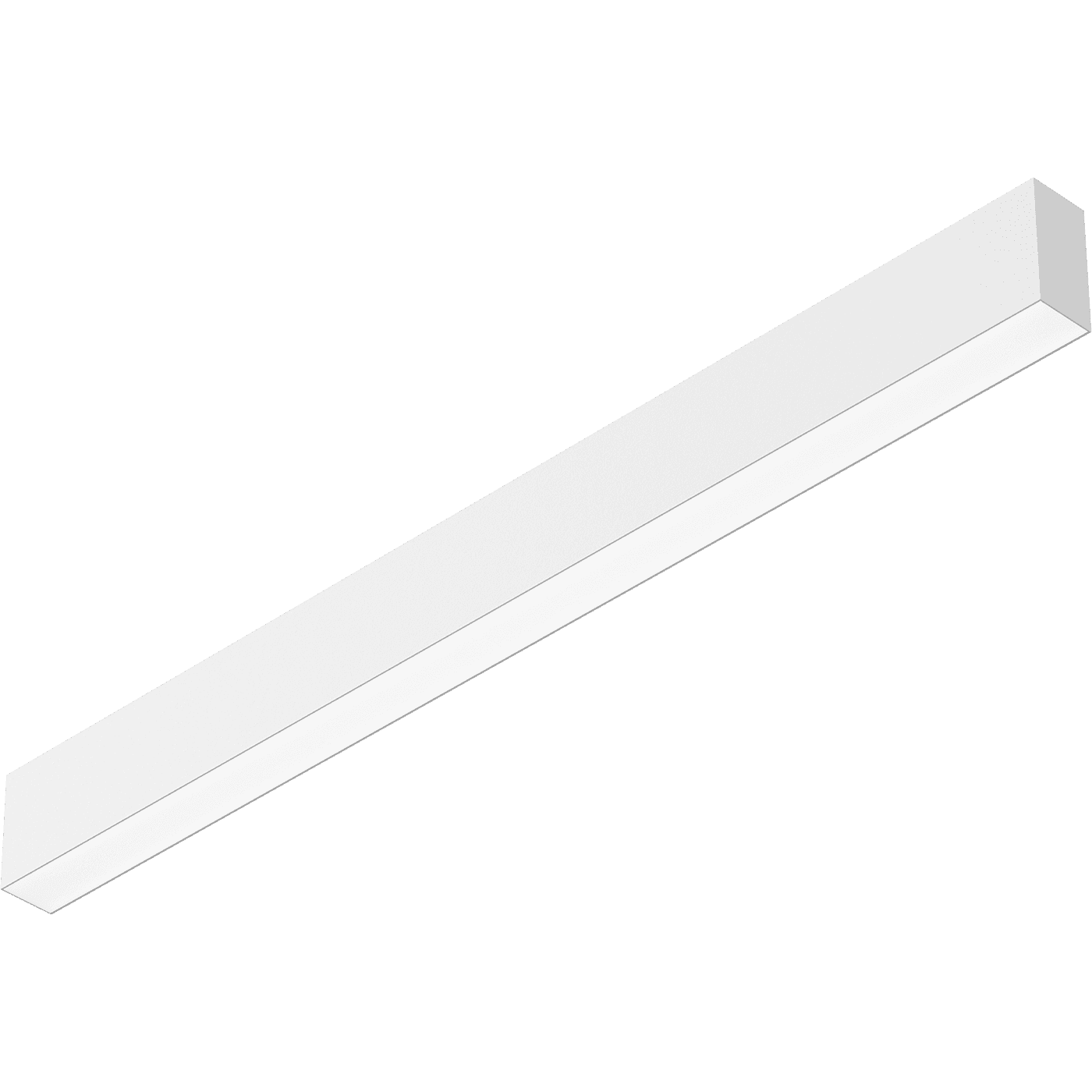

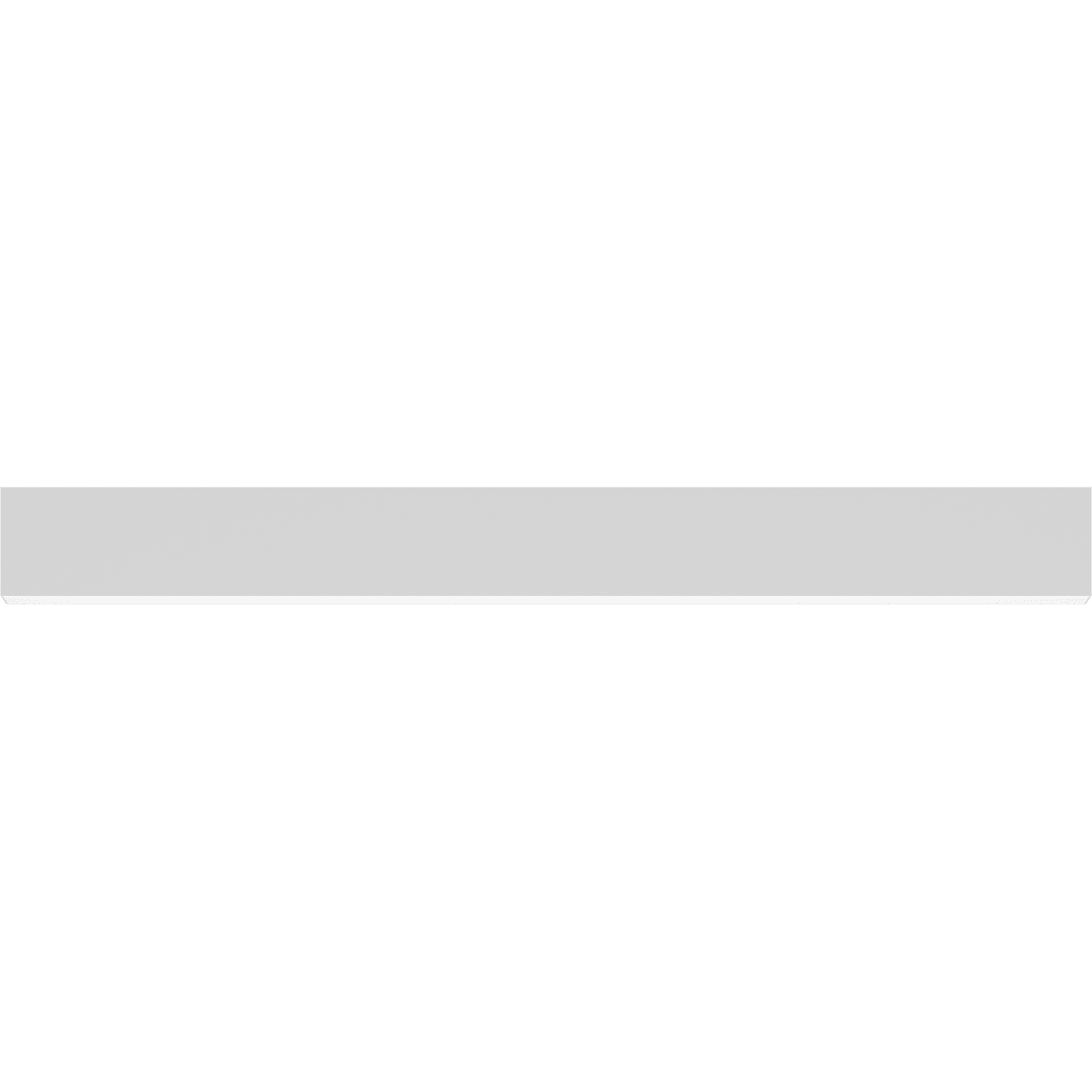

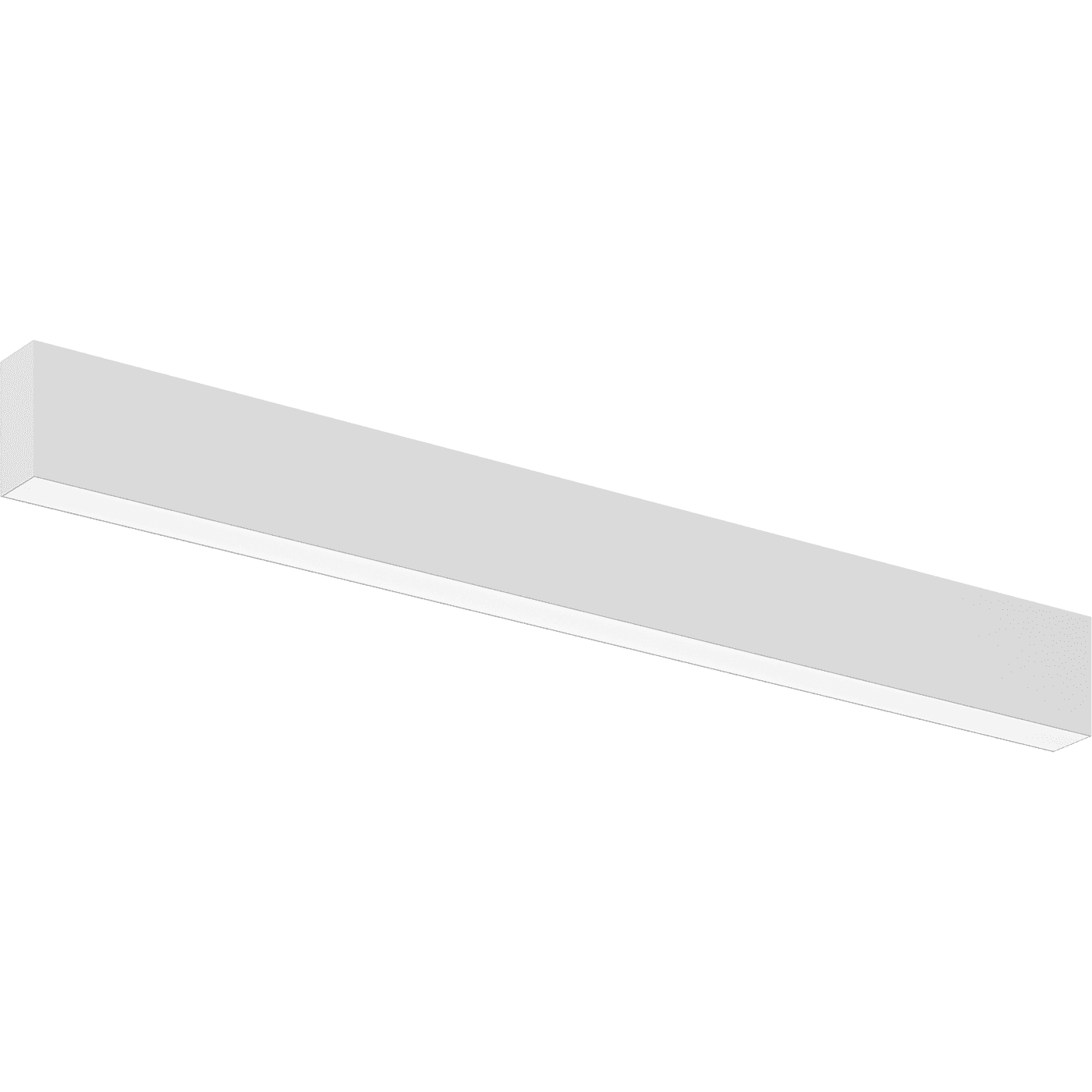

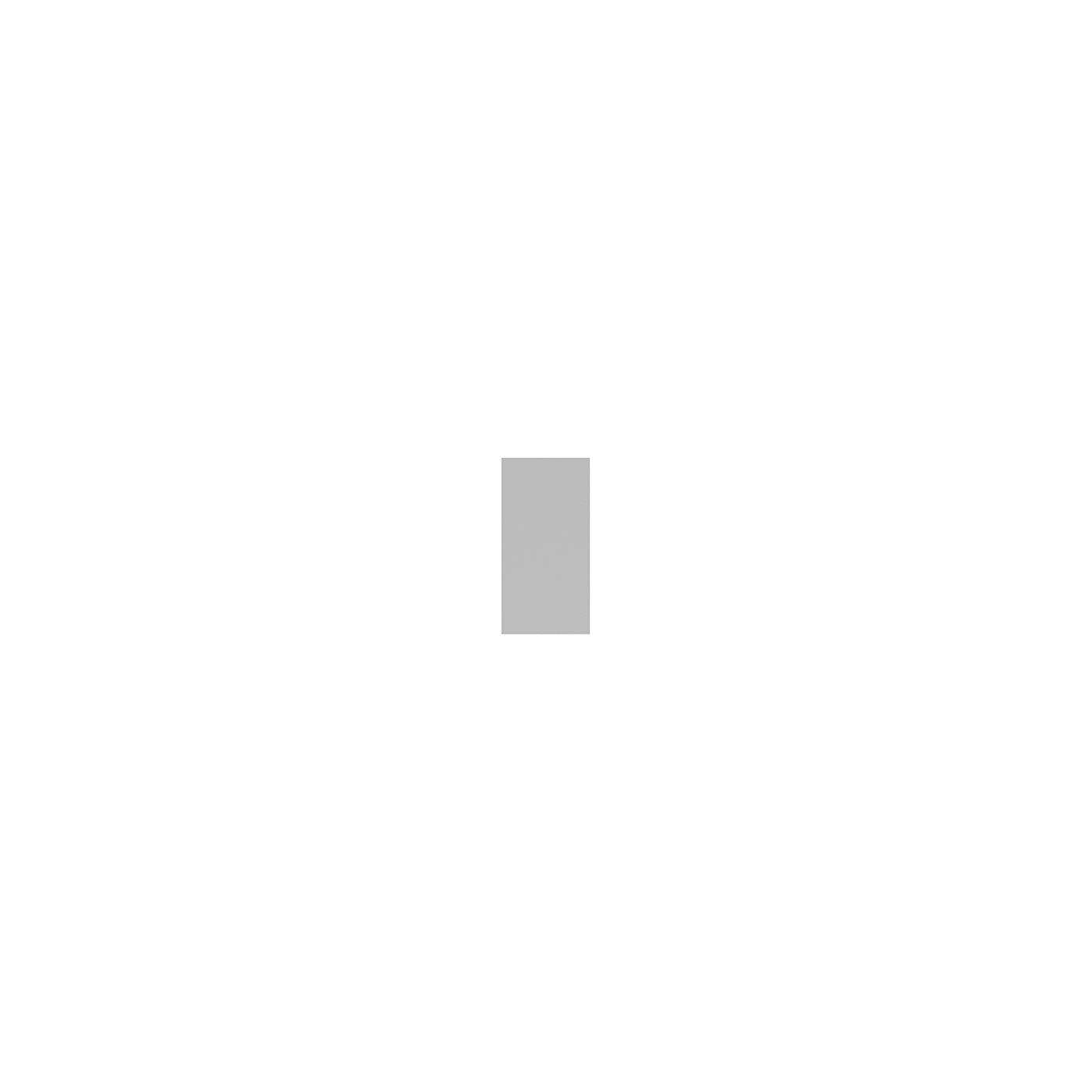

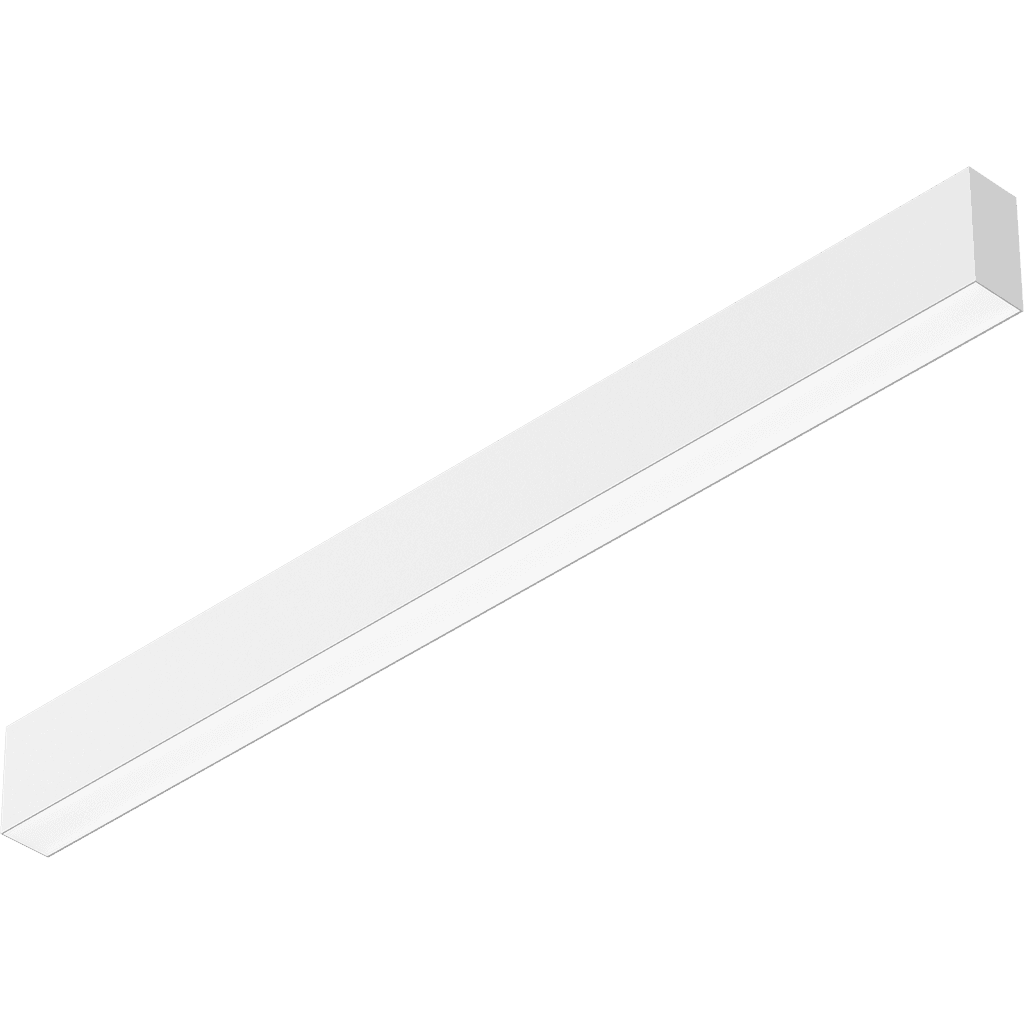

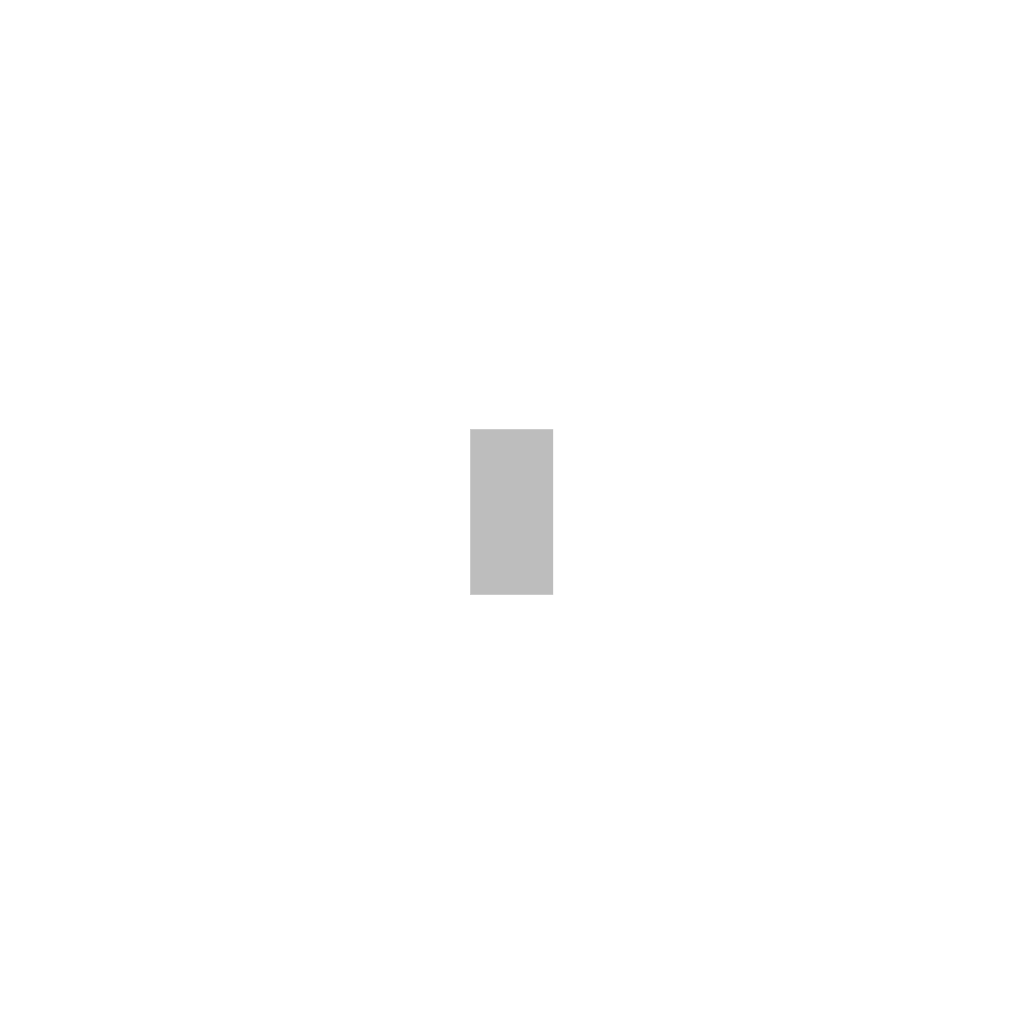

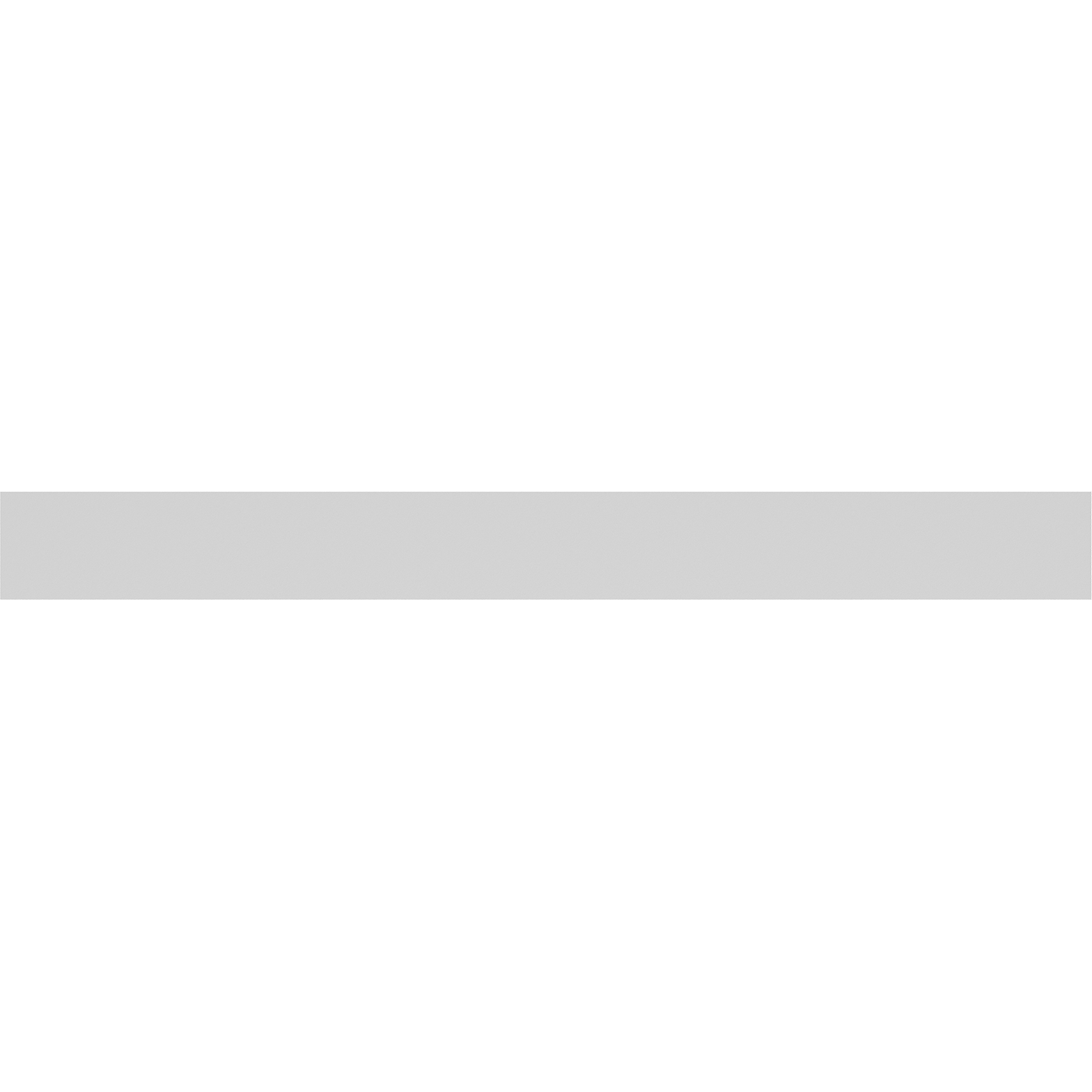

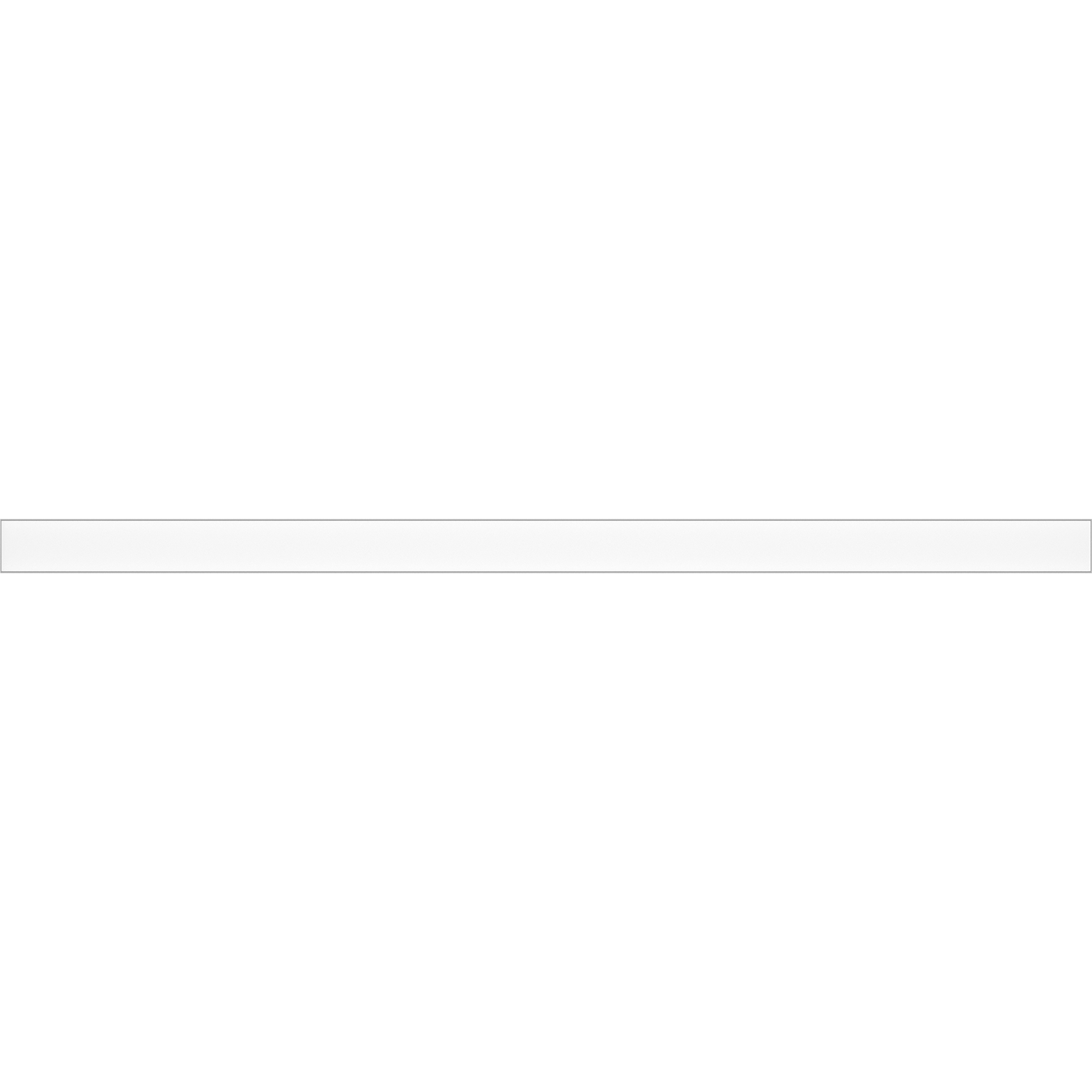

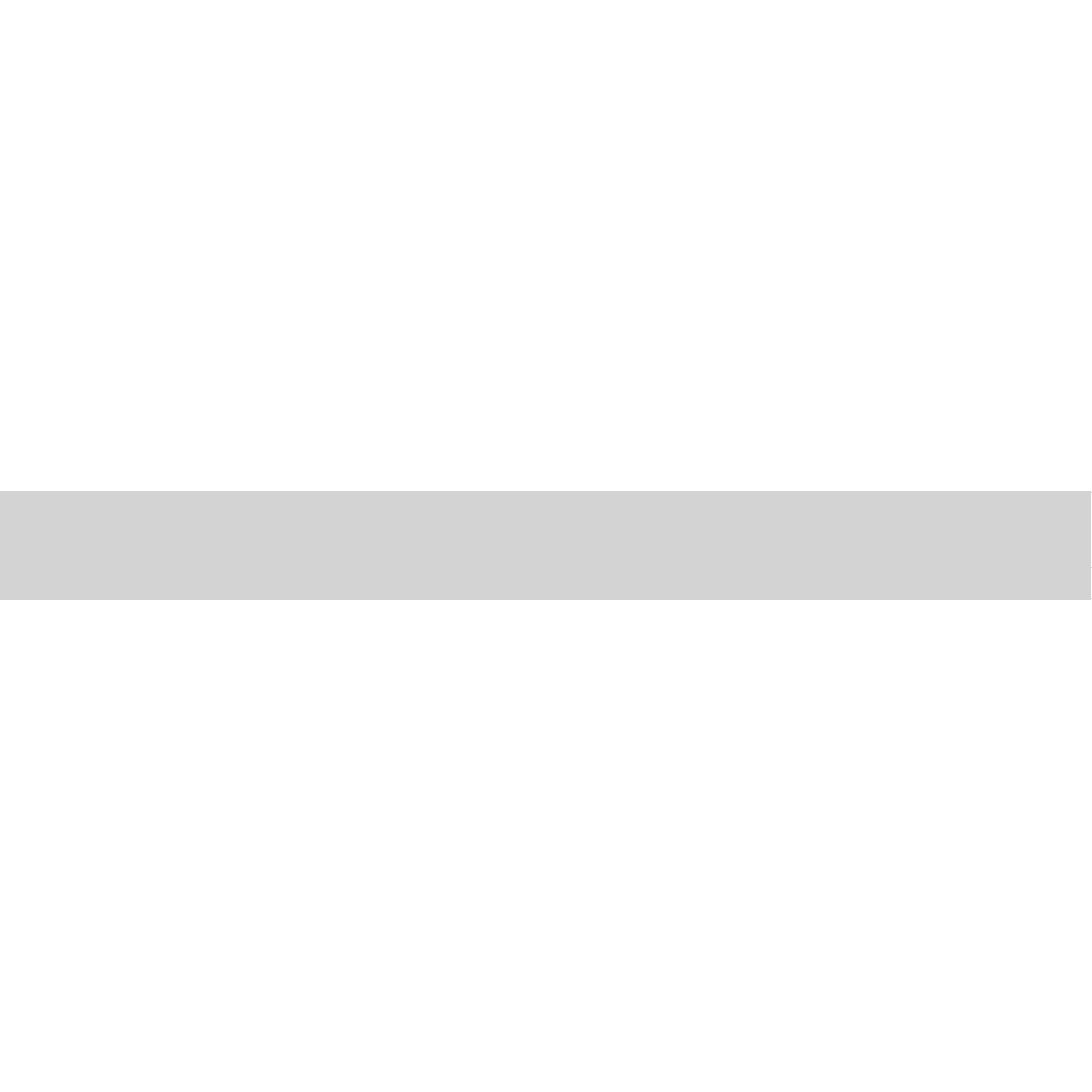

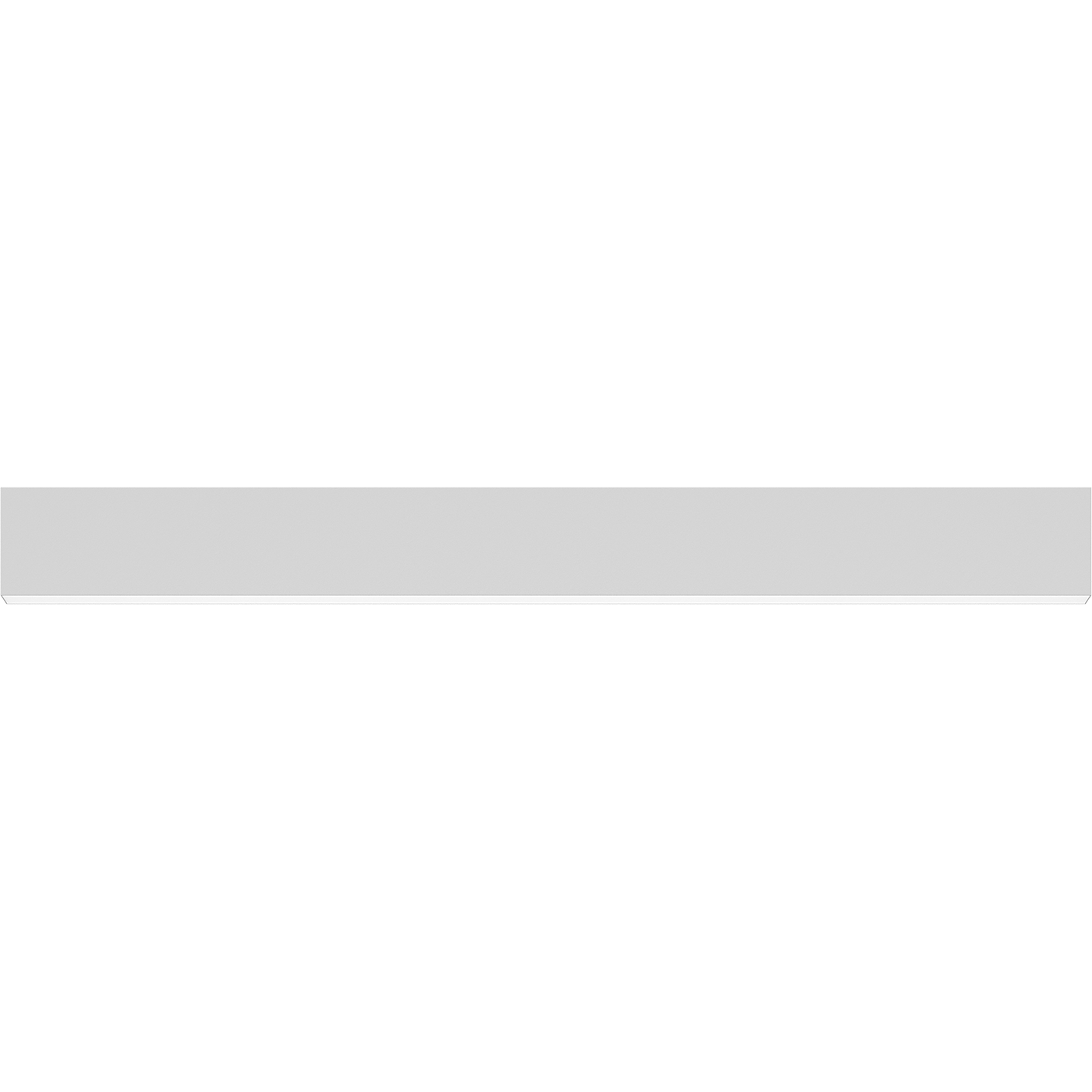

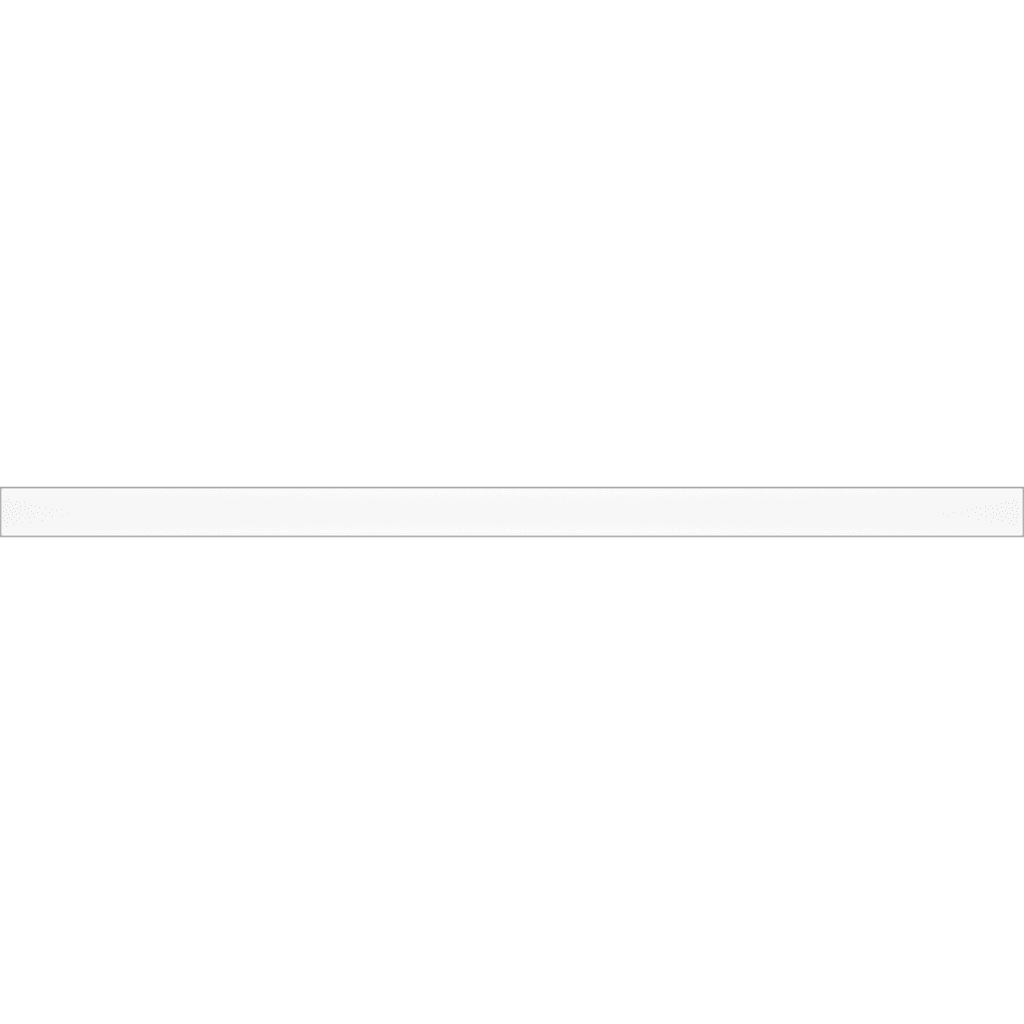

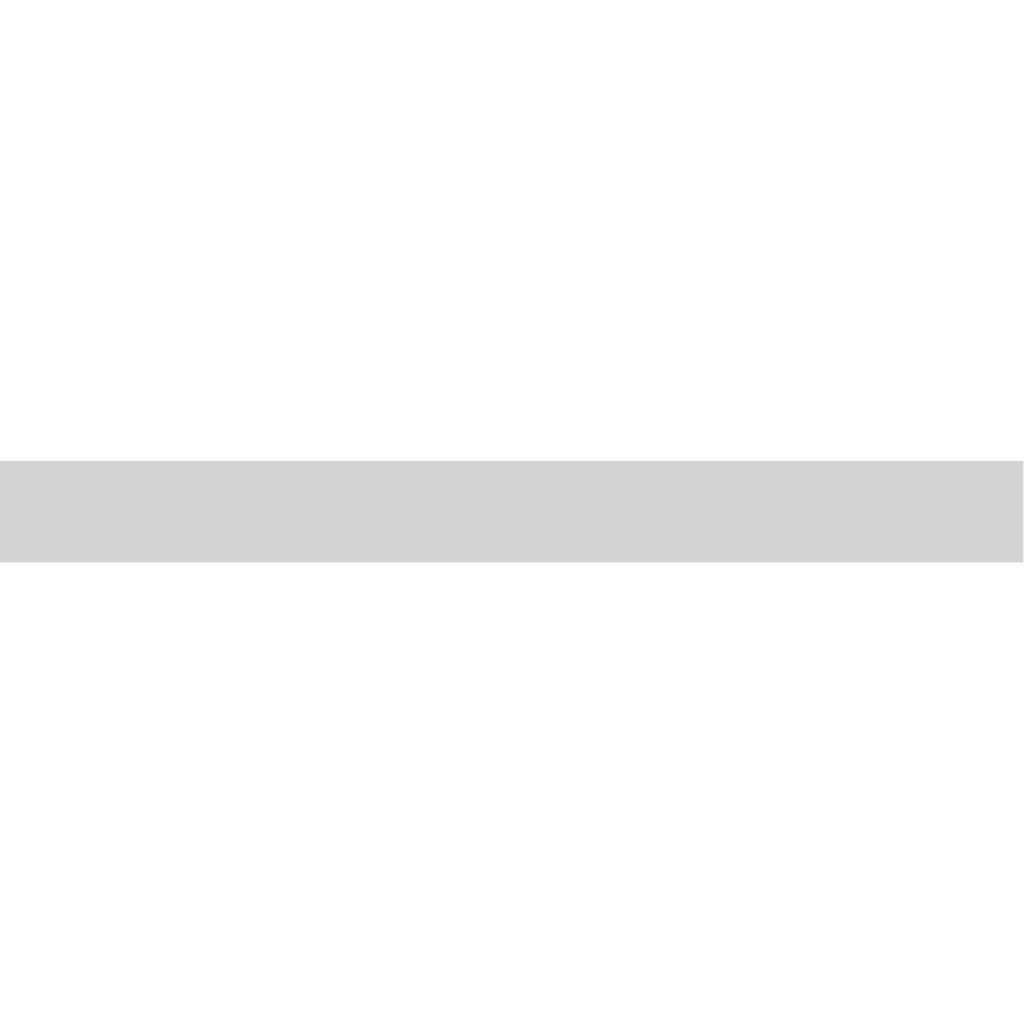

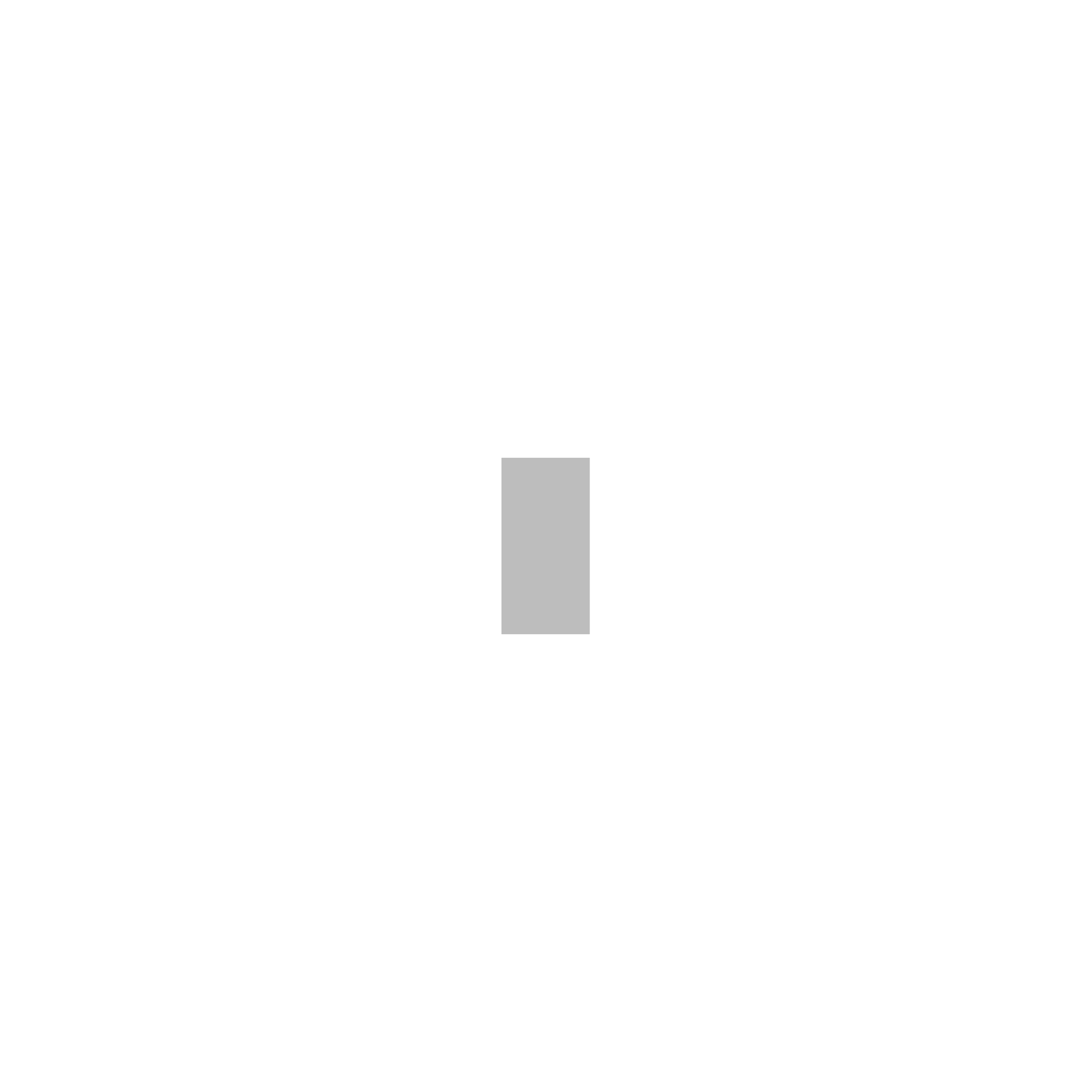

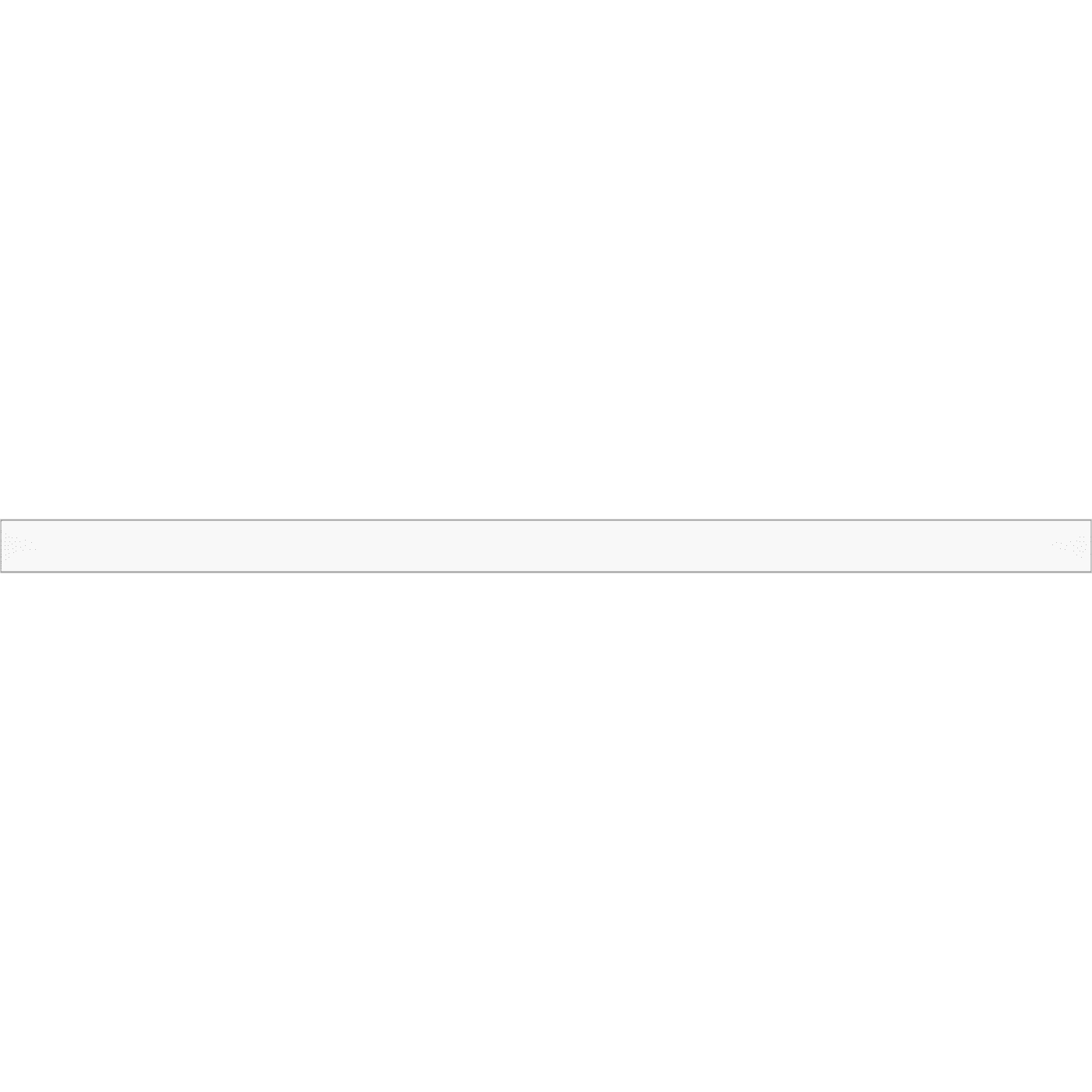

PROFILE 60H WH 1000 2.0x10.0W 4000K
model is discontinued
model is discontinued
PROFILE 60H WH 1000 2.0x10.0W 4000K
60 Wluminaire power
1000 lmlight flow
17 lm/Wenergy efficiency
code1248000540
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
17 lm/Wcolor rendition index (CRI)
>80light flow
1000 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDilluminating
energy efficiency
17 lm/W
color rendition index (CRI)
>80
light flow
1000 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
electrical
starting current pulse time, µs
200 mks
electric shock protection
I
luminaire power
60 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable, sq. mm
1.5
starting current
20 A
constructional
length, mm
1000 mm
width, mm
60 mm
height, mm
120 mm
installation length, mm
400 mm
installation width, mm
60 mm
weight
3 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4
fire safety class
П-ІІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от 0 до +40 C
service life, hour
50 000 h
energy efficiency class
D
ETIM class
Светильник подвесной
code
1248000540
model files
model files
documents
сертификаты
documents
passport490.1 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112 mB
Declaration of Conformity EAEU TR 037/2016535.9 kB
Fire Safety Certificate2.5 mB
