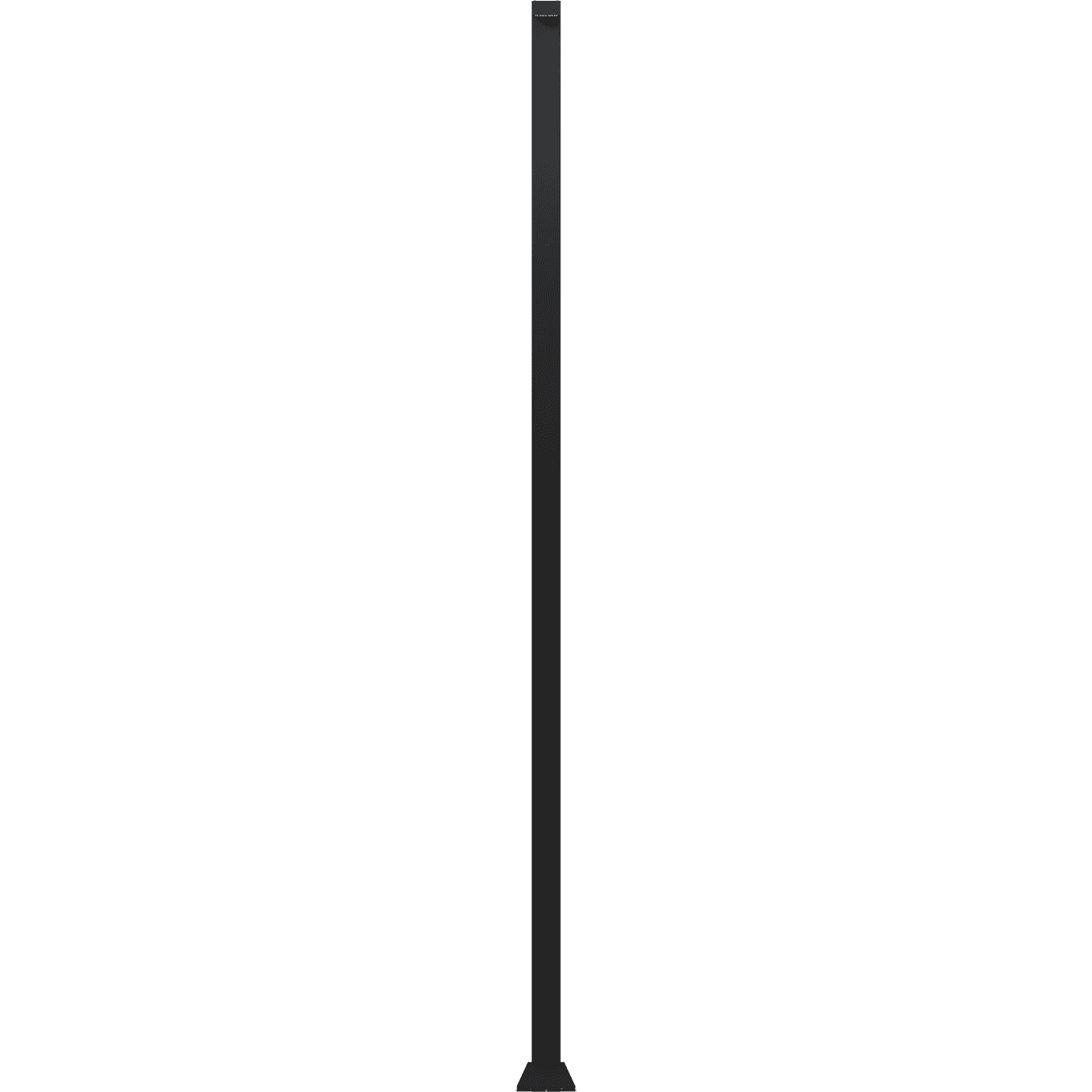

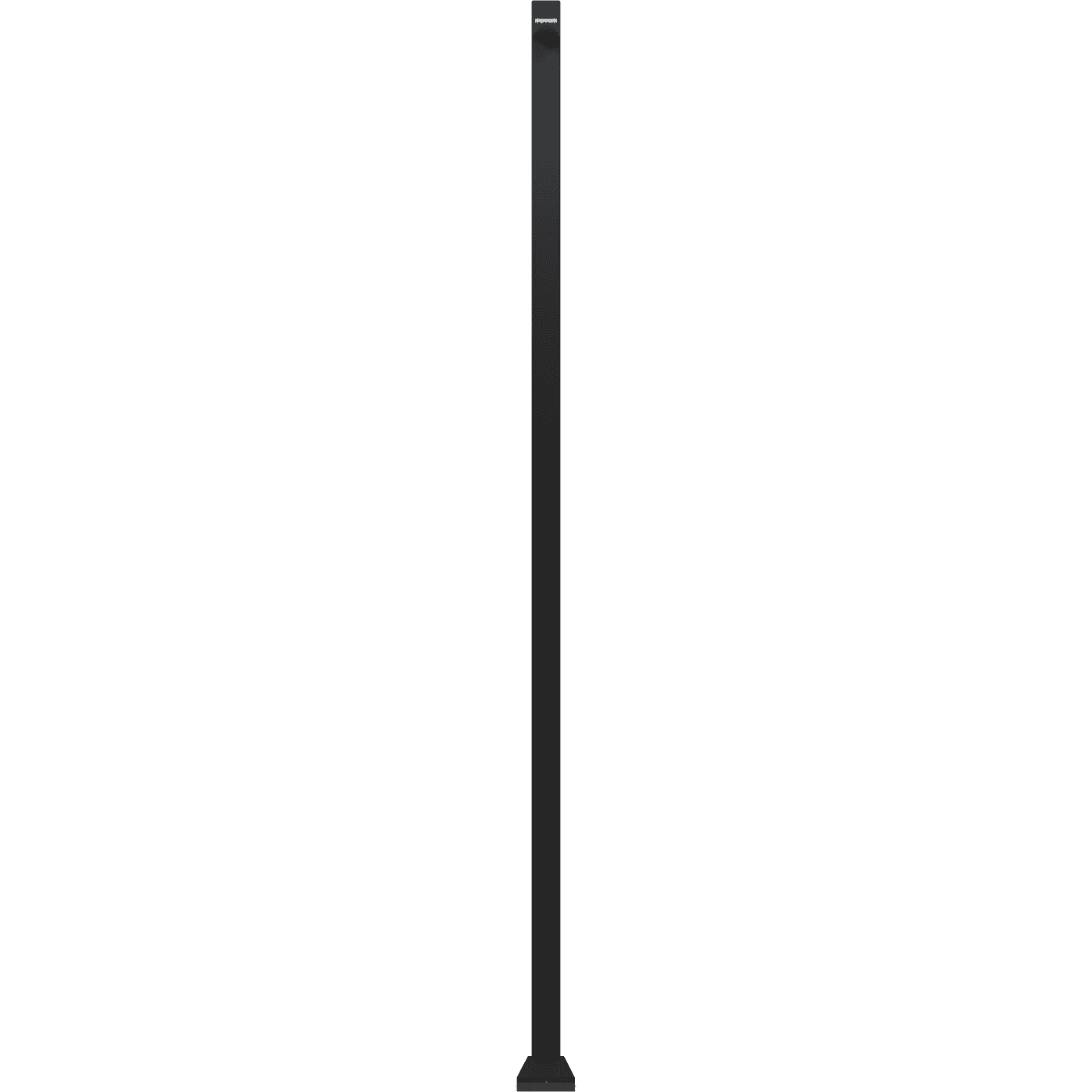

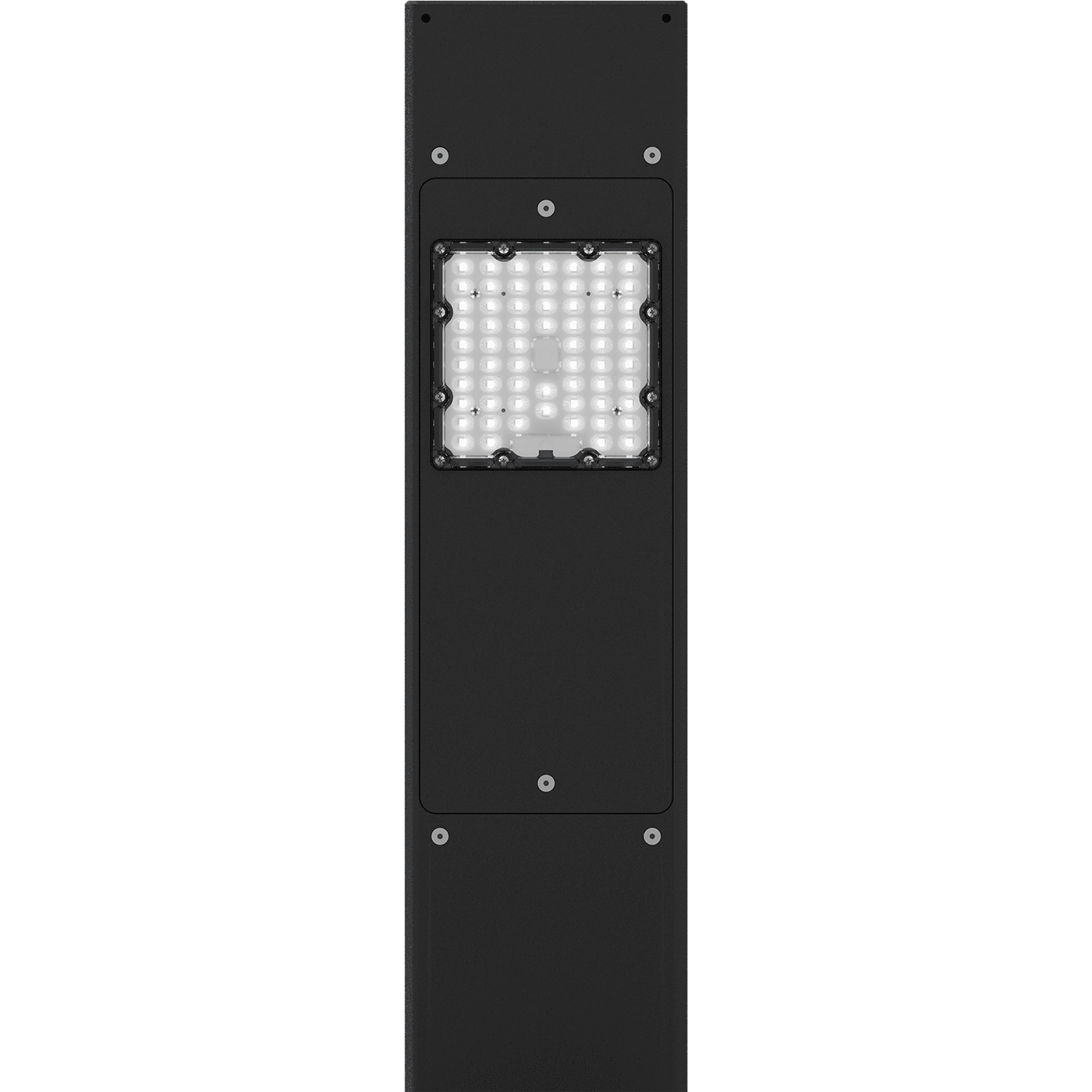

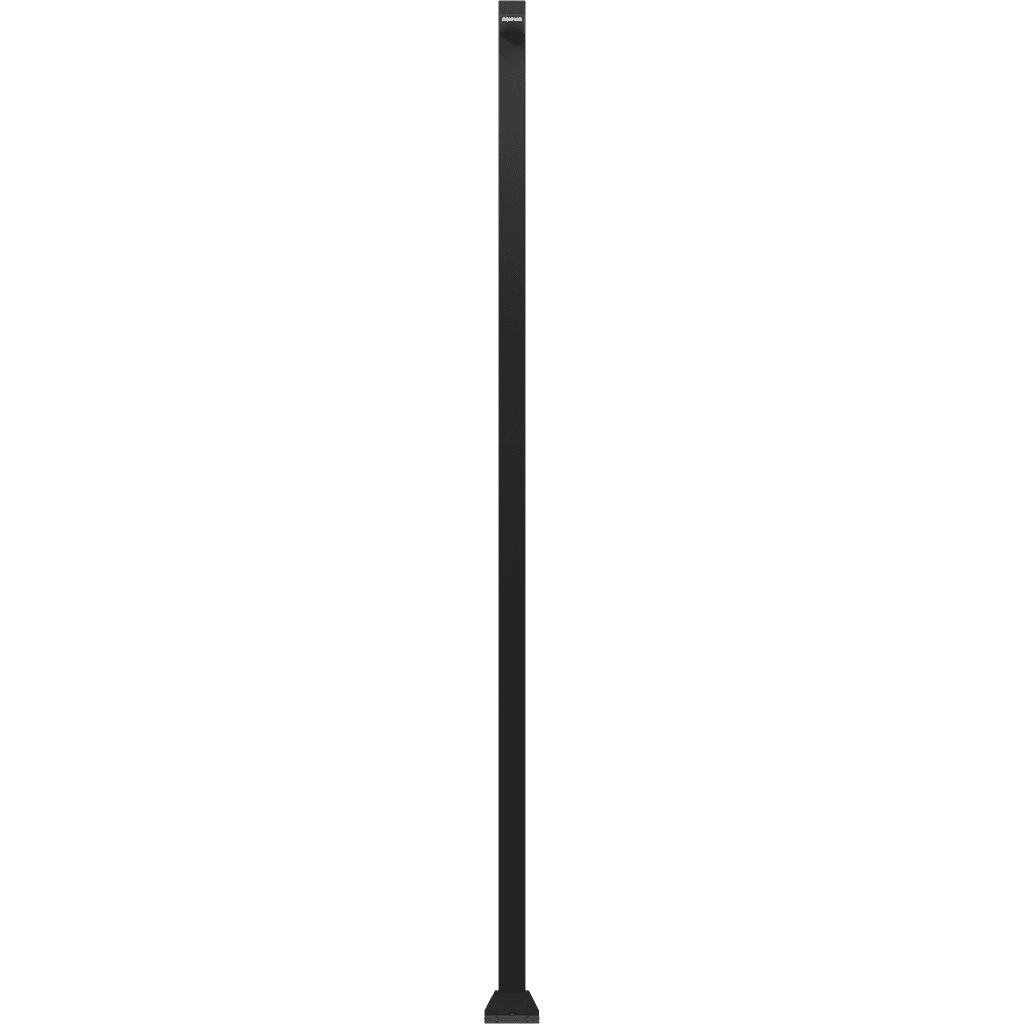

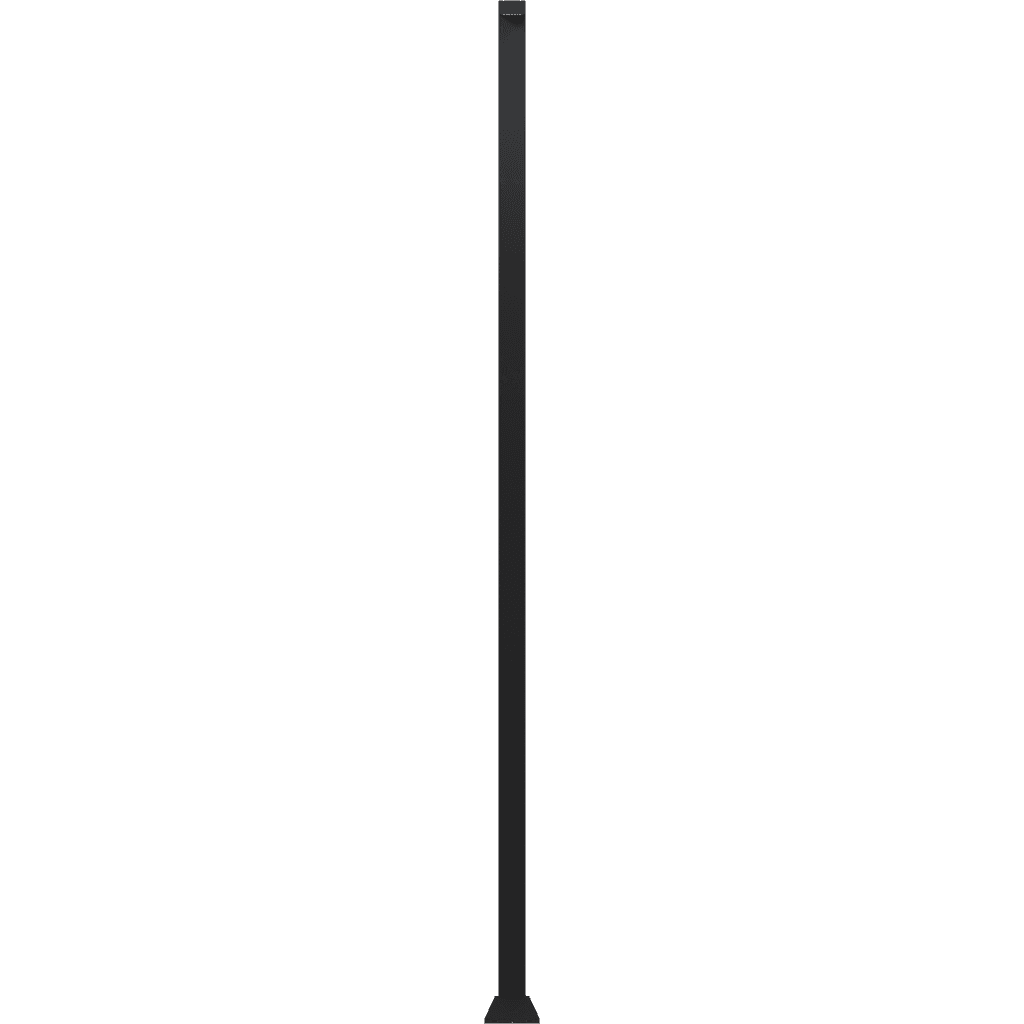

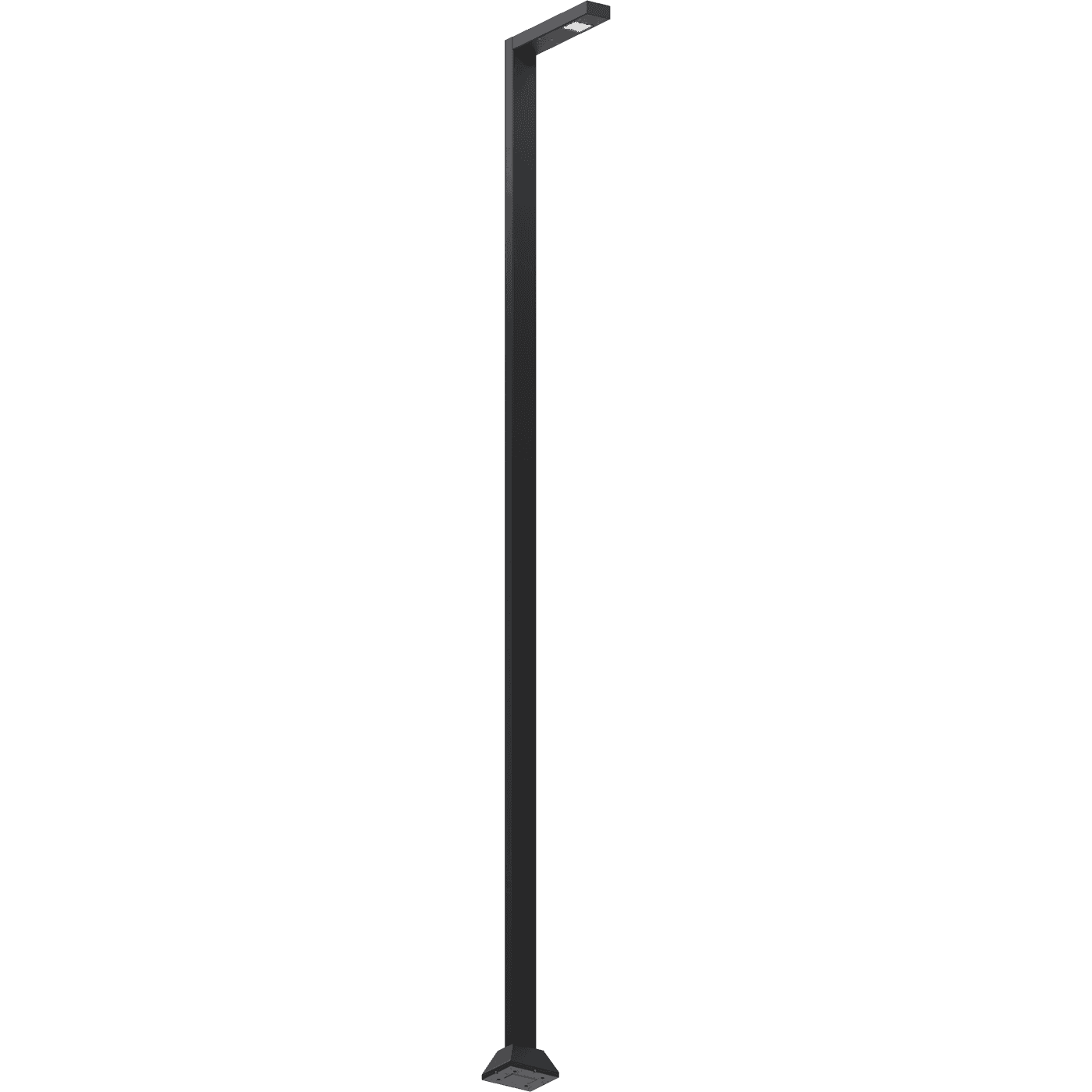

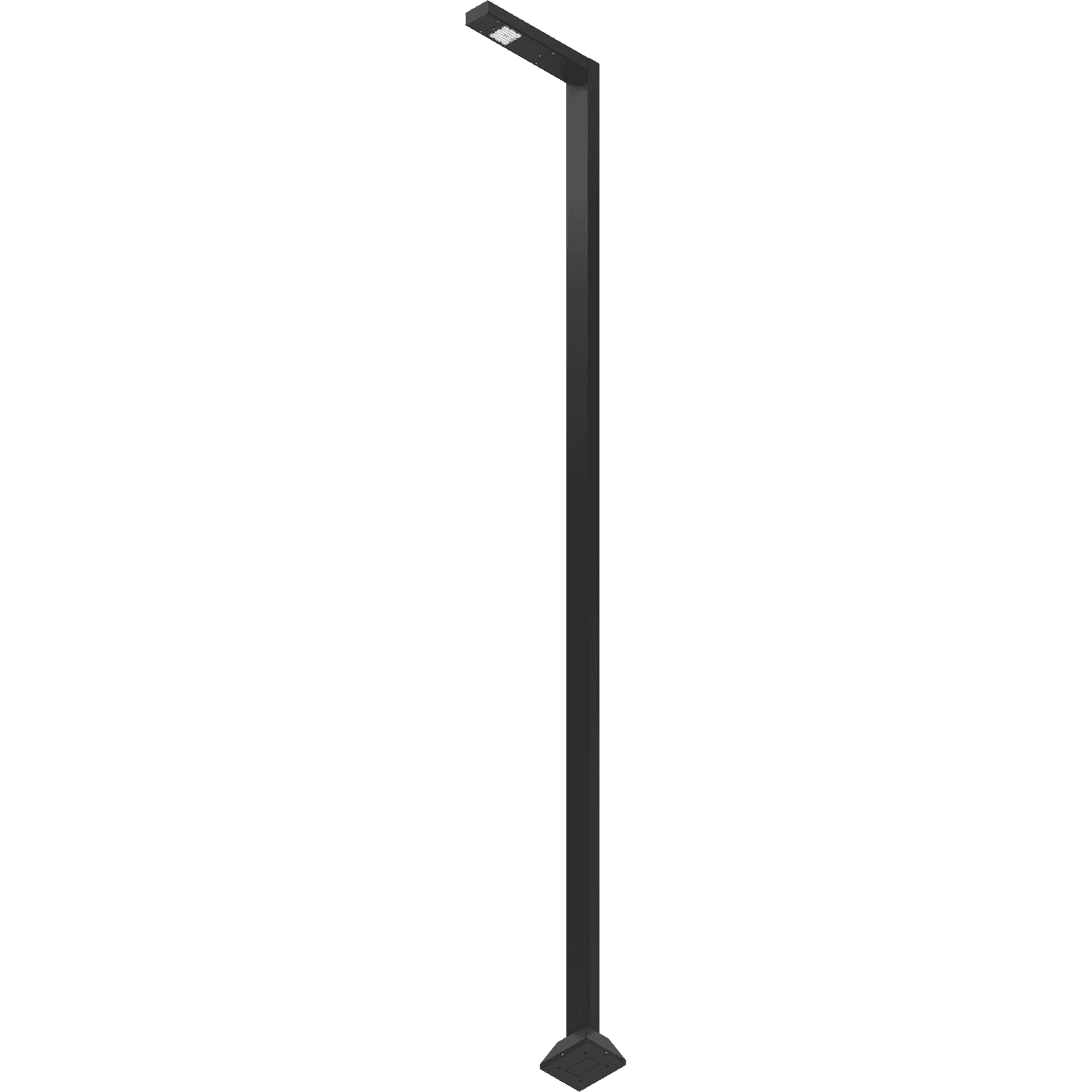

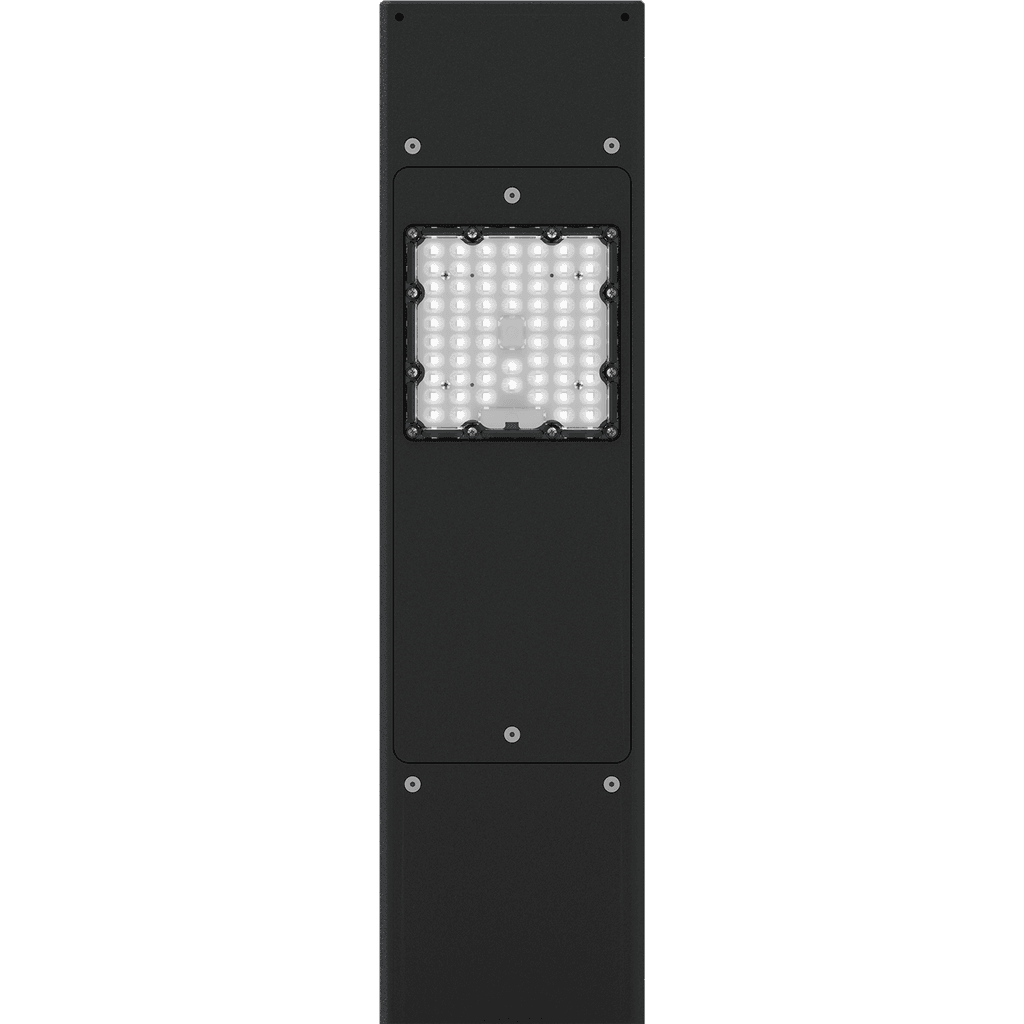

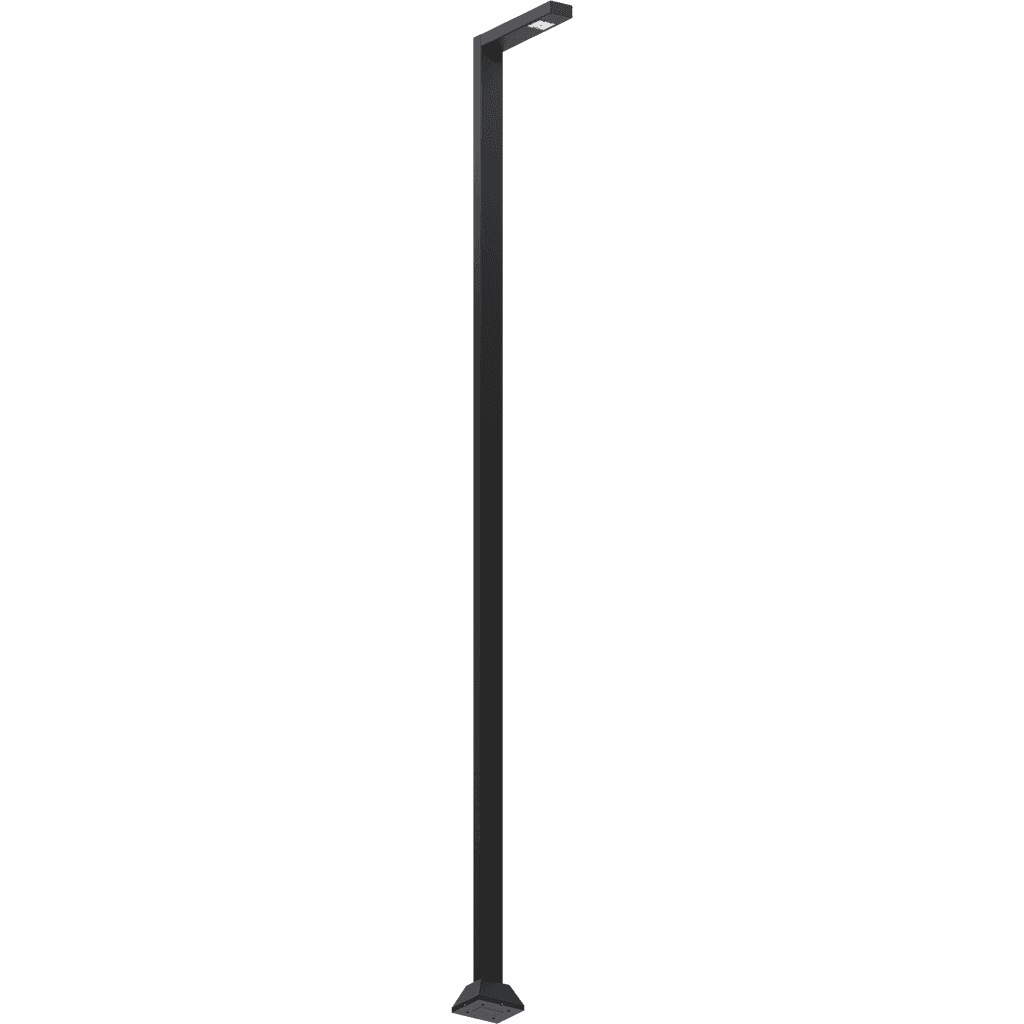

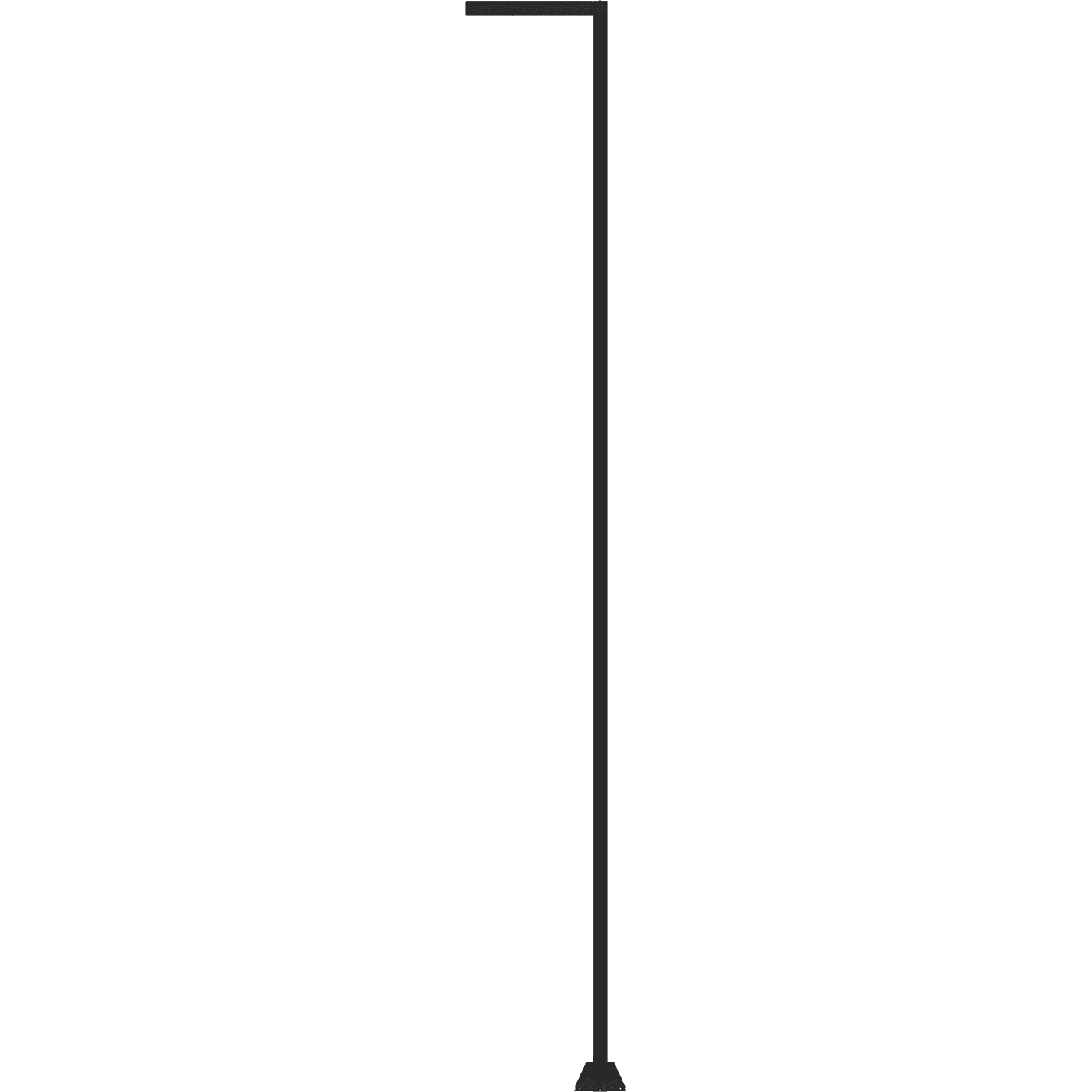

POKER LED 70 (W) L-SHAPE 4M 3000K (без ЗДФ)
archive
_l-shape_0-45-125.png&w=1920&q=50)
_l-shape_180-0-180.png&w=1920&q=50)
_l-shape_0-325-110.png&w=1920&q=50)
_l-shape_0-0-90.png&w=1920&q=50)
_l-shape_90-0-90.png&w=1920&q=50)
_l-shape_0-90-100.png&w=1920&q=50)
_l-shape_0-45-125.png&w=1024&q=50)
_l-shape_180-0-180.png&w=1024&q=50)
_l-shape_0-325-110.png&w=1024&q=50)
_l-shape_0-0-90.png&w=1024&q=50)
_l-shape_90-0-90.png&w=1024&q=50)
_l-shape_0-90-100.png&w=1024&q=50)
archive
POKER LED 70 (W) L-SHAPE 4M 3000K (без ЗДФ)
40 Wluminaire power
10600 lmlight flow
265 lm/Wenergy efficiency
code1739000150
beam angleD120
color temperature3000
weight3.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
40 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
40 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-ІІІ
material
Алюминий
weight
3.7 kg

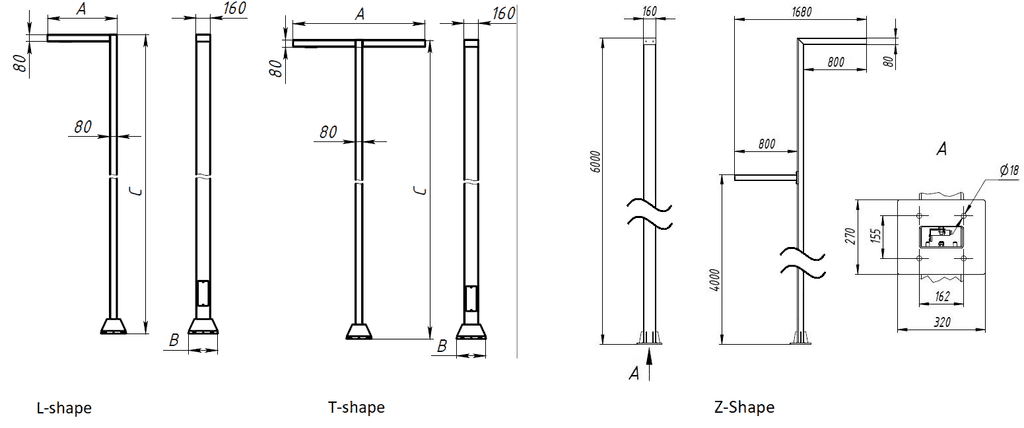

length, mm
530 mm
width, mm
172 mm
height, mm
84 mm
housing color
Белый
climatic performance
УХЛ1
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK09/10 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1739000150
ETIM class
Светильник для освещения улиц и площадей
warranty
36 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
265 lm/W
color rendition index (CRI)
>75
light flow
10600 lm
flickering factor
<5%
beam angle
D120
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.5 mB
Declaration of Conformity EAEU TR 037/2016331.9 kB
