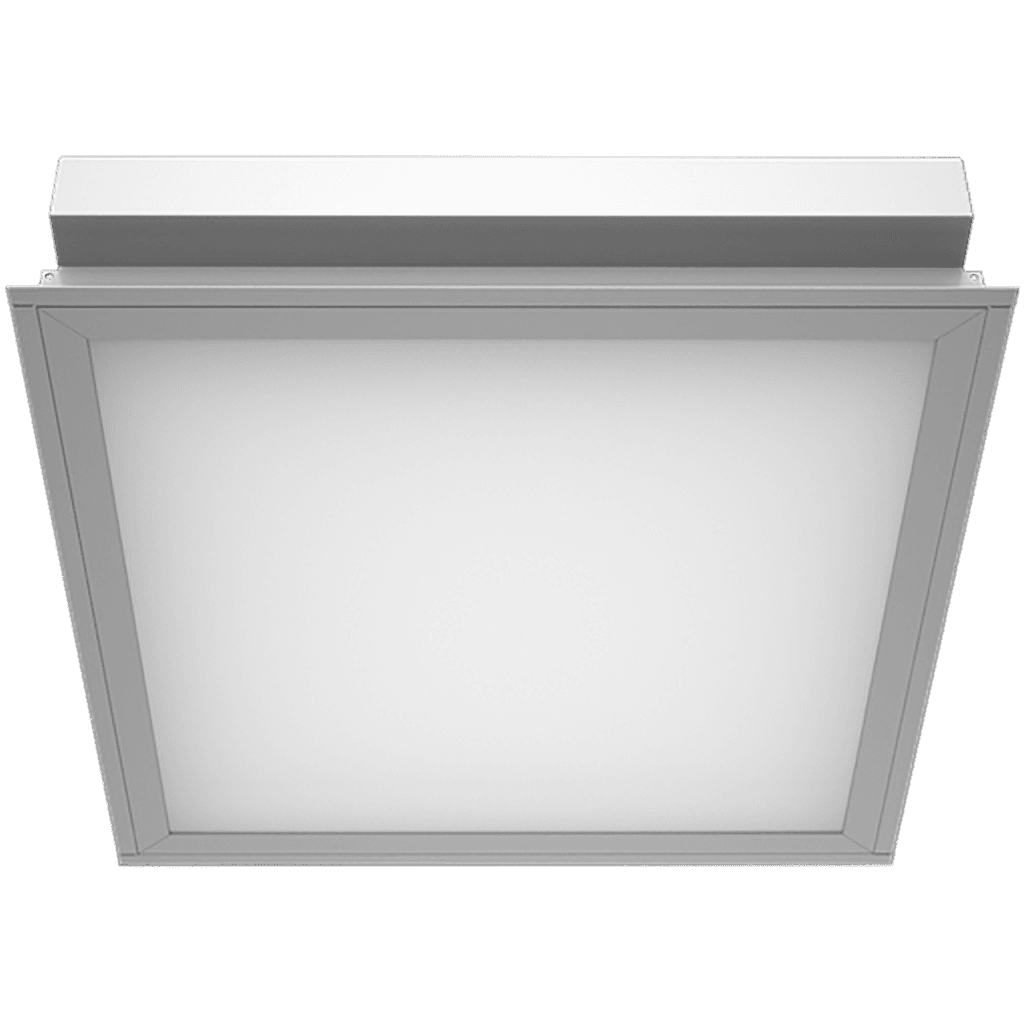

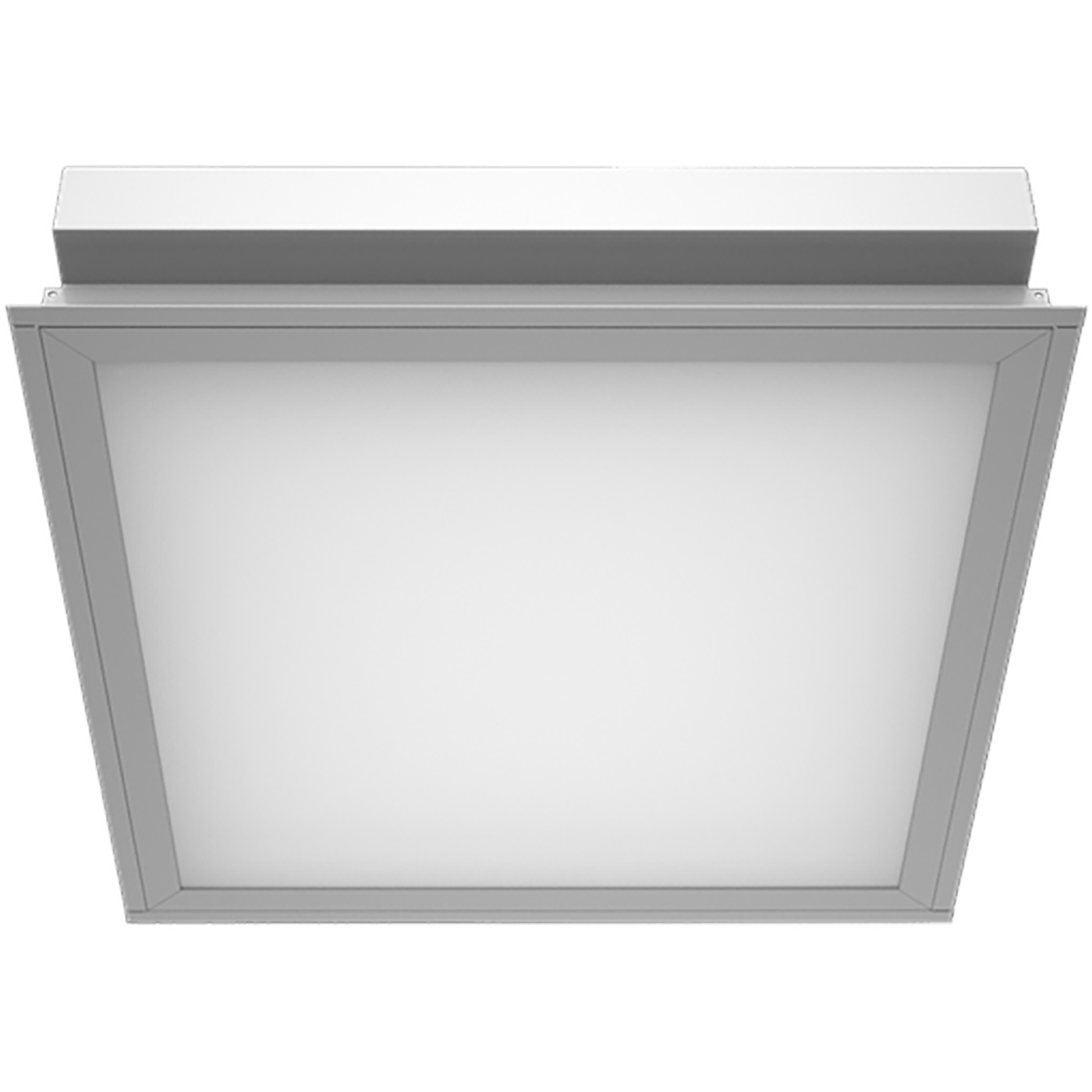

OWP OPTIMA LED 1200x600 IP54/IP54 4000K Clip-On

model is discontinued
model is discontinued
OWP OPTIMA LED 1200x600 IP54/IP54 4000K Clip-On
74 Wluminaire power
7400 lmlight flow
100 lm/Wenergy efficiency
code1372001510
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
7400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
7400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
267 µs
electric shock protection
I
luminaire power
74 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
32 A
constructional
length
1200 mm
width
600 mm
height
90 mm
installation length
1195 mm
installation width
595 mm
weight
9.7 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1372001510
