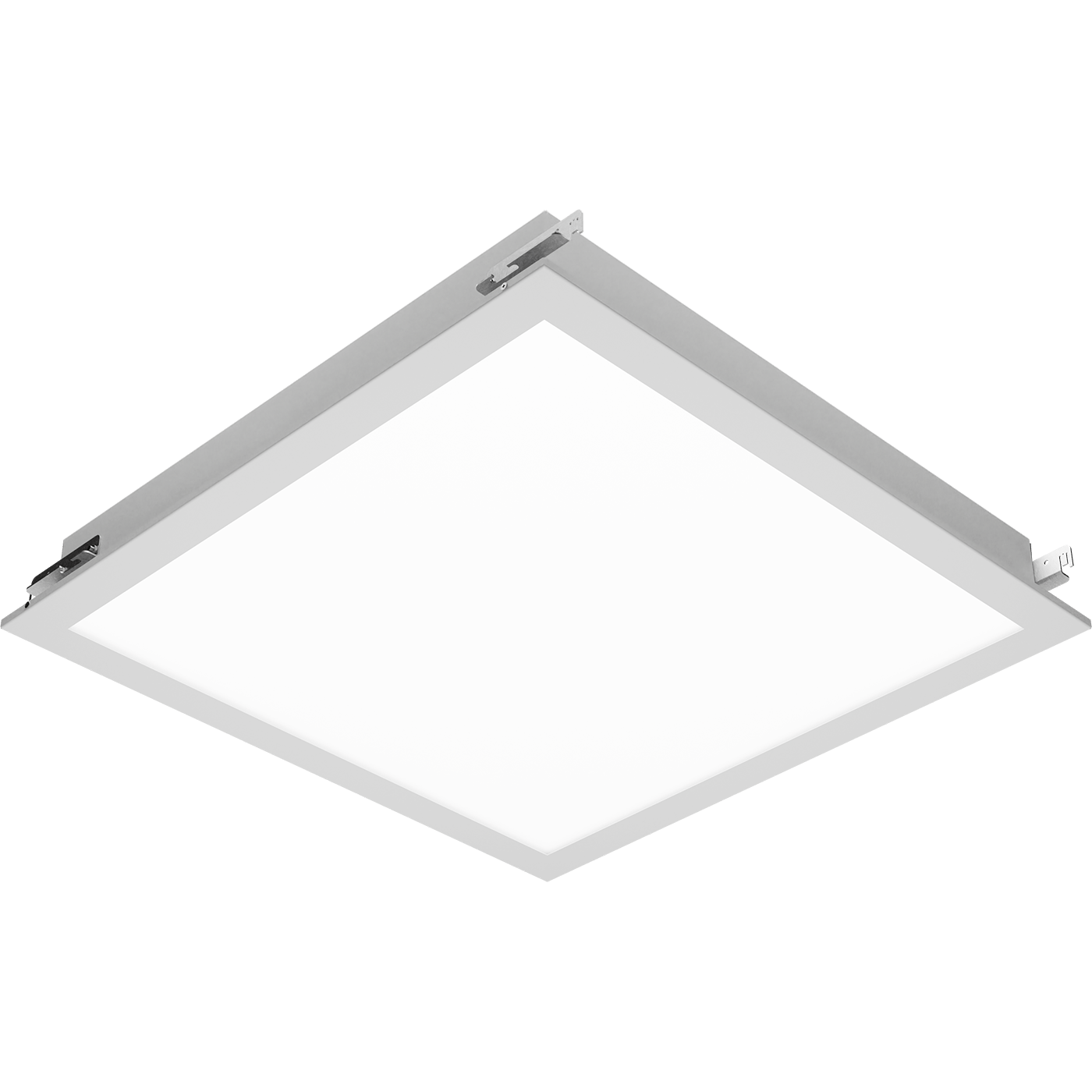

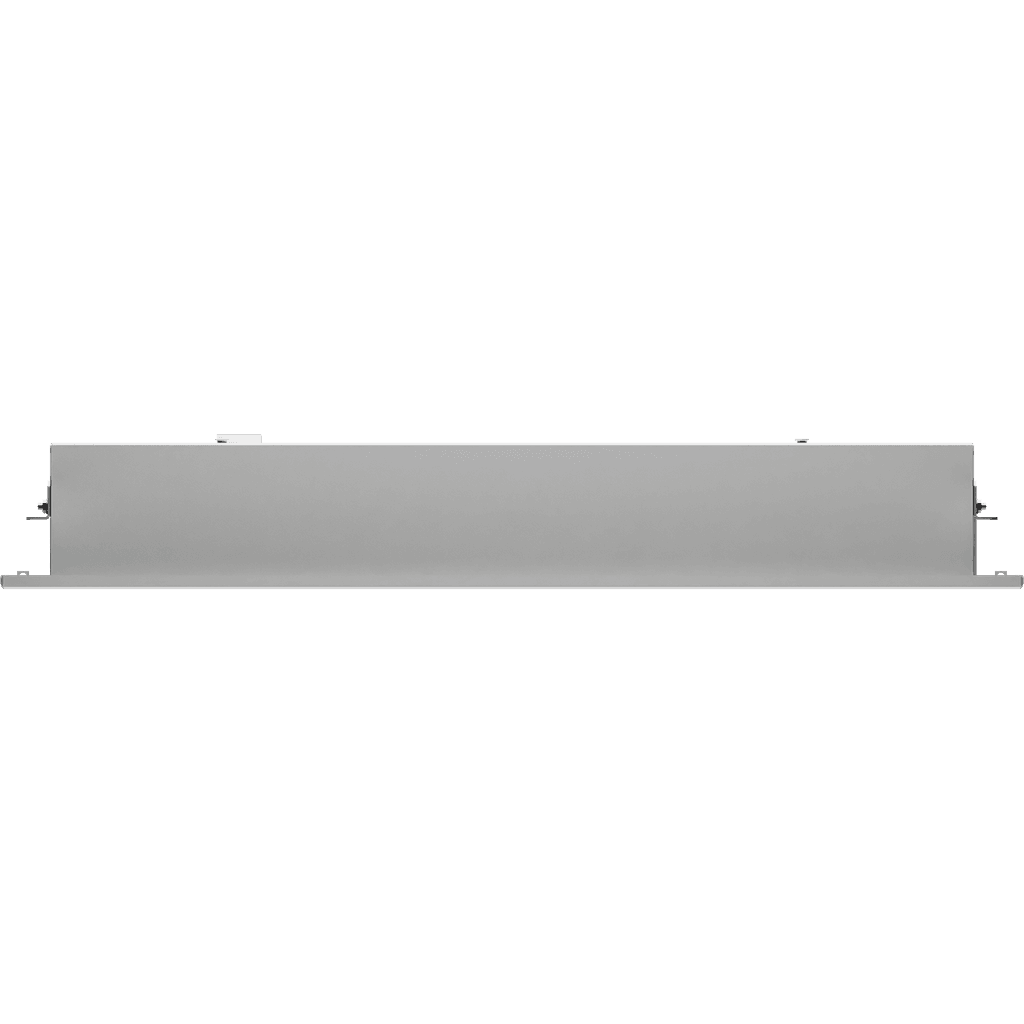

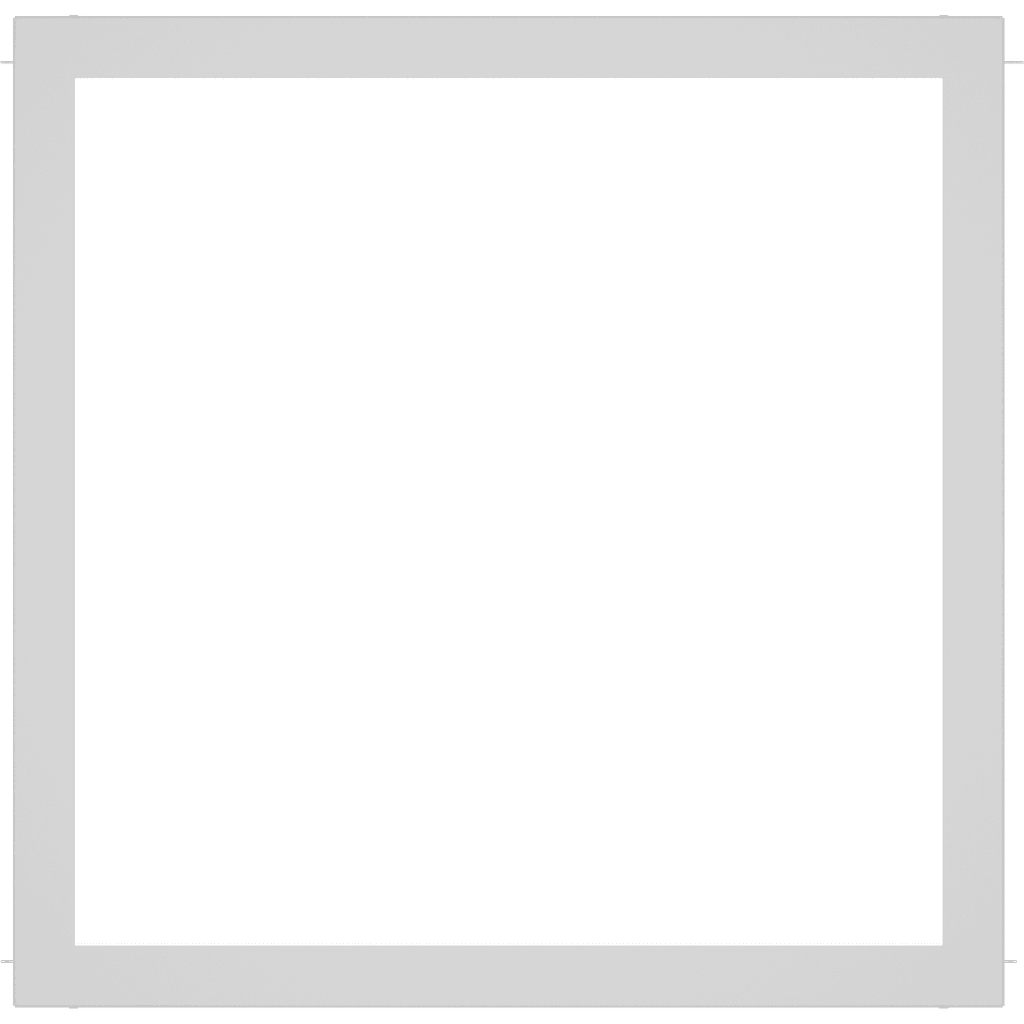

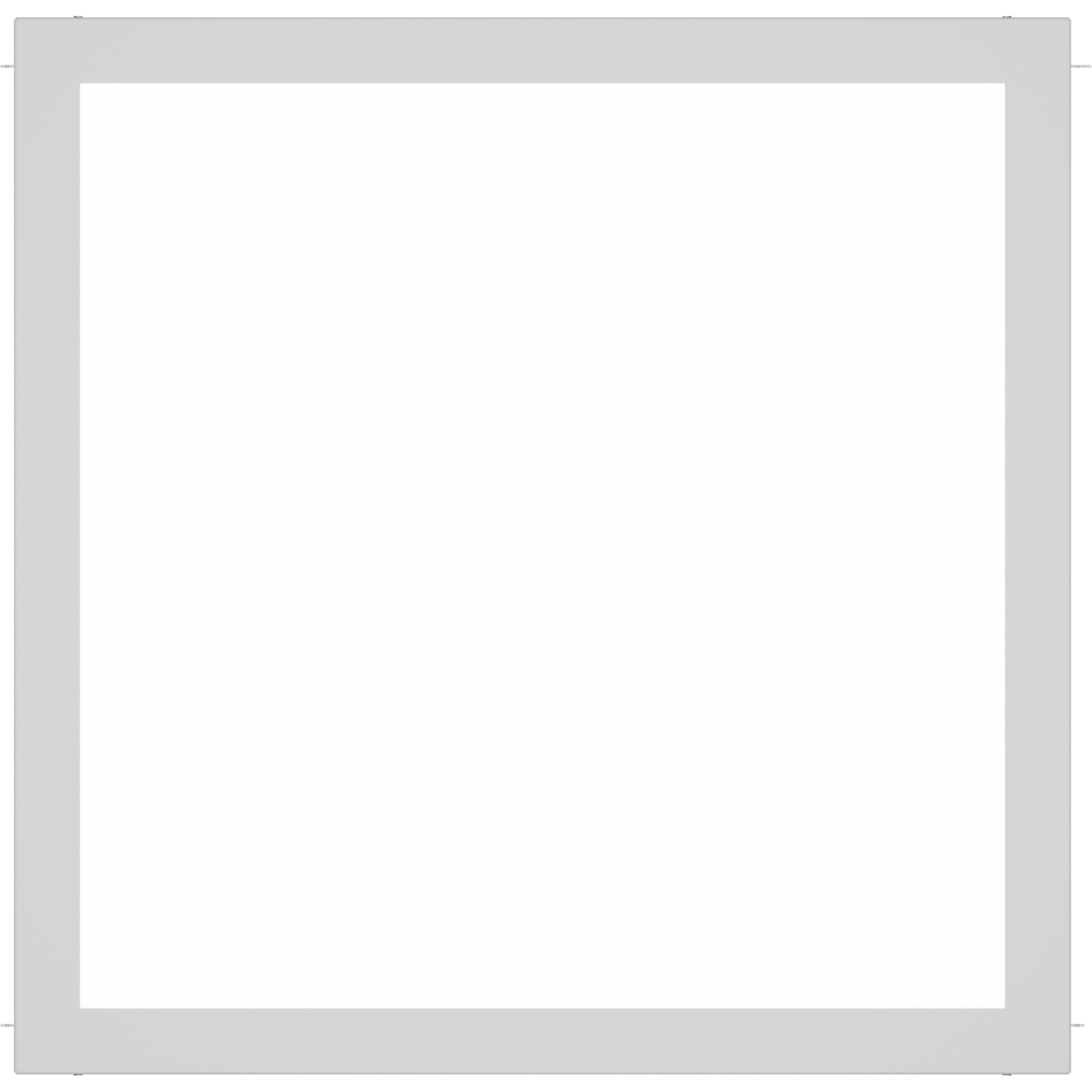

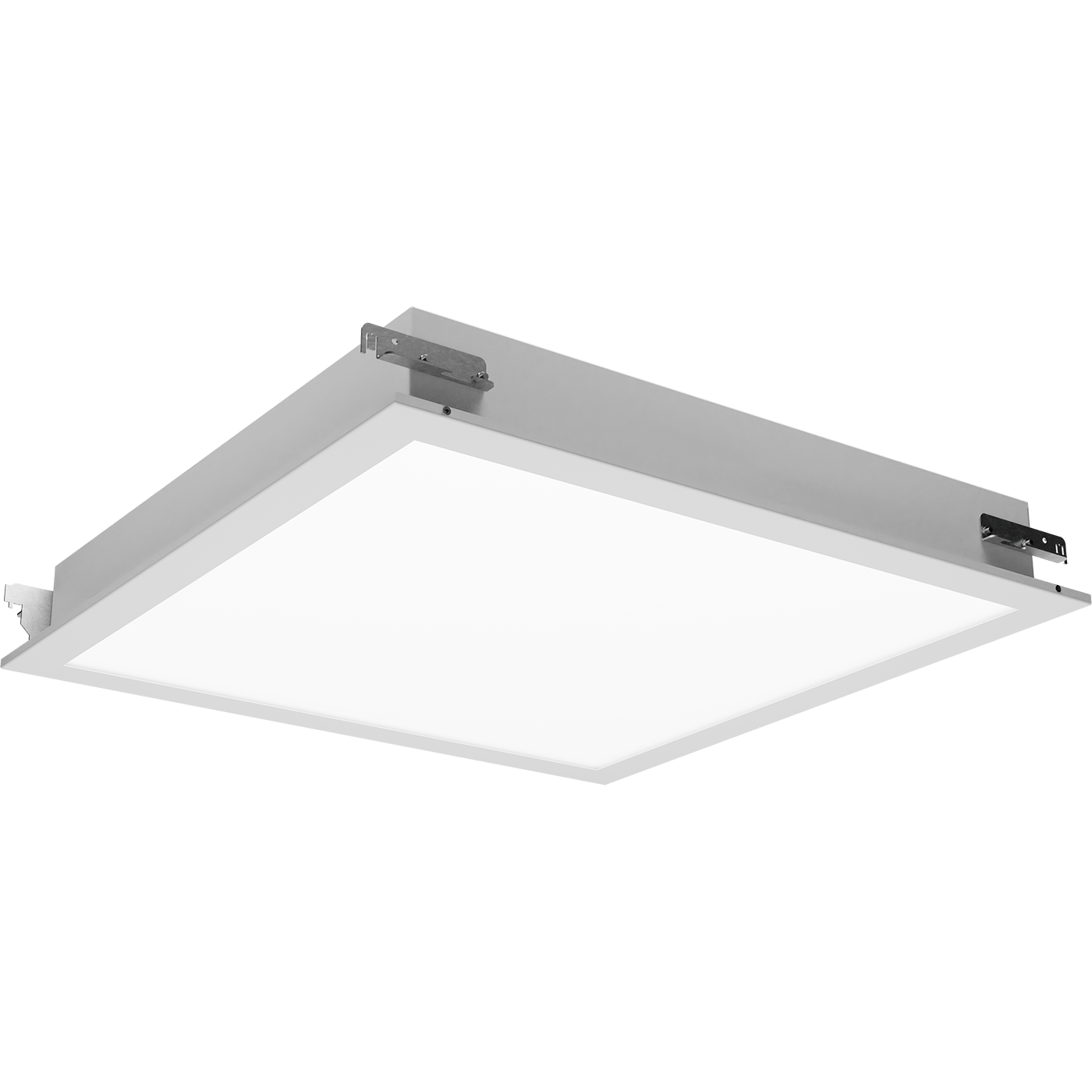

OWP OPTIMA LED 600 IP54/IP54 4000K Clip-In (GemaGrid)
model is discontinued
model is discontinued
OWP OPTIMA LED 600 IP54/IP54 4000K Clip-In (GemaGrid)
33 Wluminaire power
3450 lmlight flow
105 lm/Wenergy efficiency
code1372000800
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
105 lm/Wcolor rendition index (CRI)
>80light flow
3450 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
105 lm/W
color rendition index (CRI)
>80
light flow
3450 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
electric shock protection
I
luminaire power
33 W
supply voltage
230 V
power factor
> 0,90
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
600 mm
width
600 mm
height
100 mm
installation length
580 mm
installation width
580 mm
weight
4.7 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ2*
material
Сталь
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +40 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1372000800
model files
model files
documents
сертификаты
documents
passport661 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
