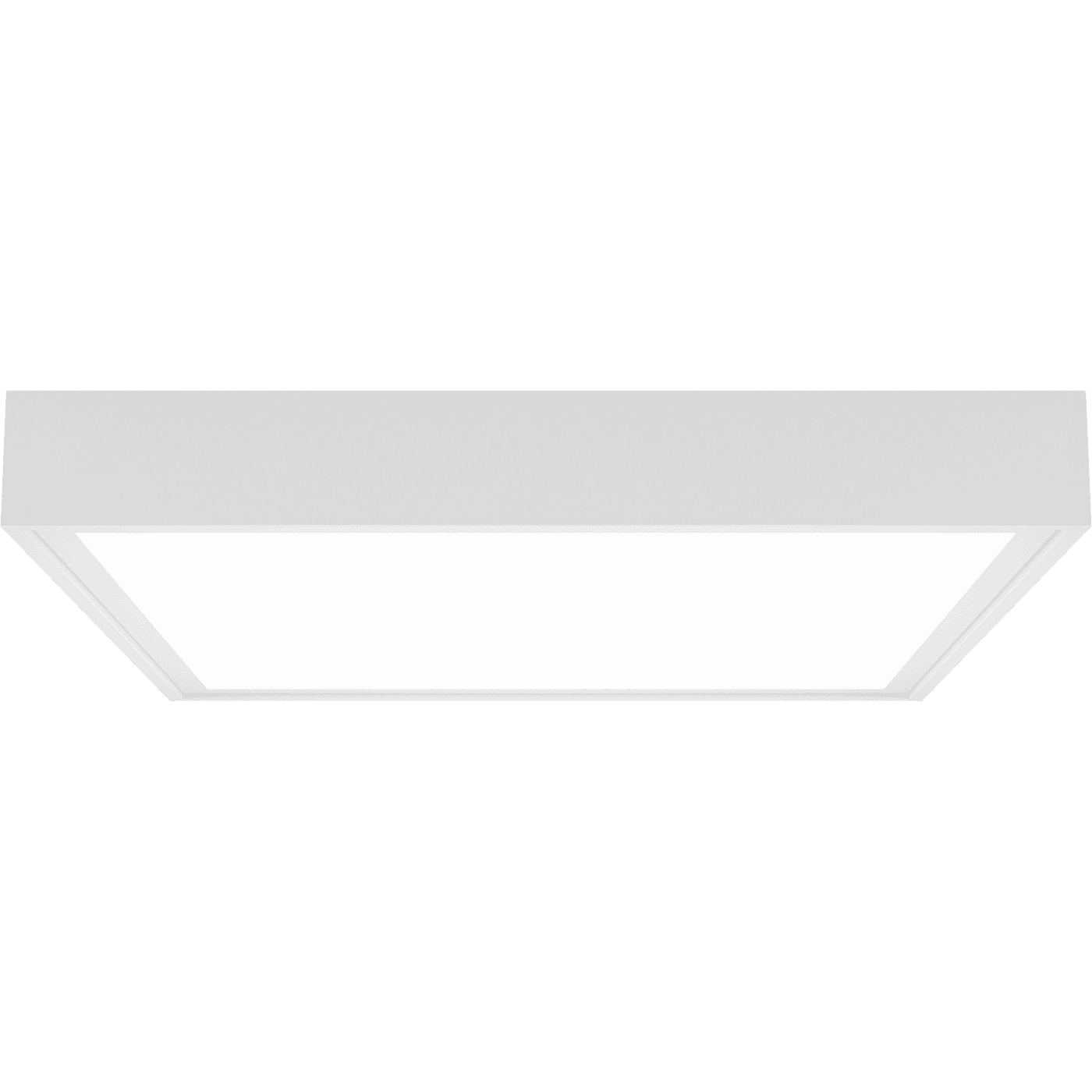

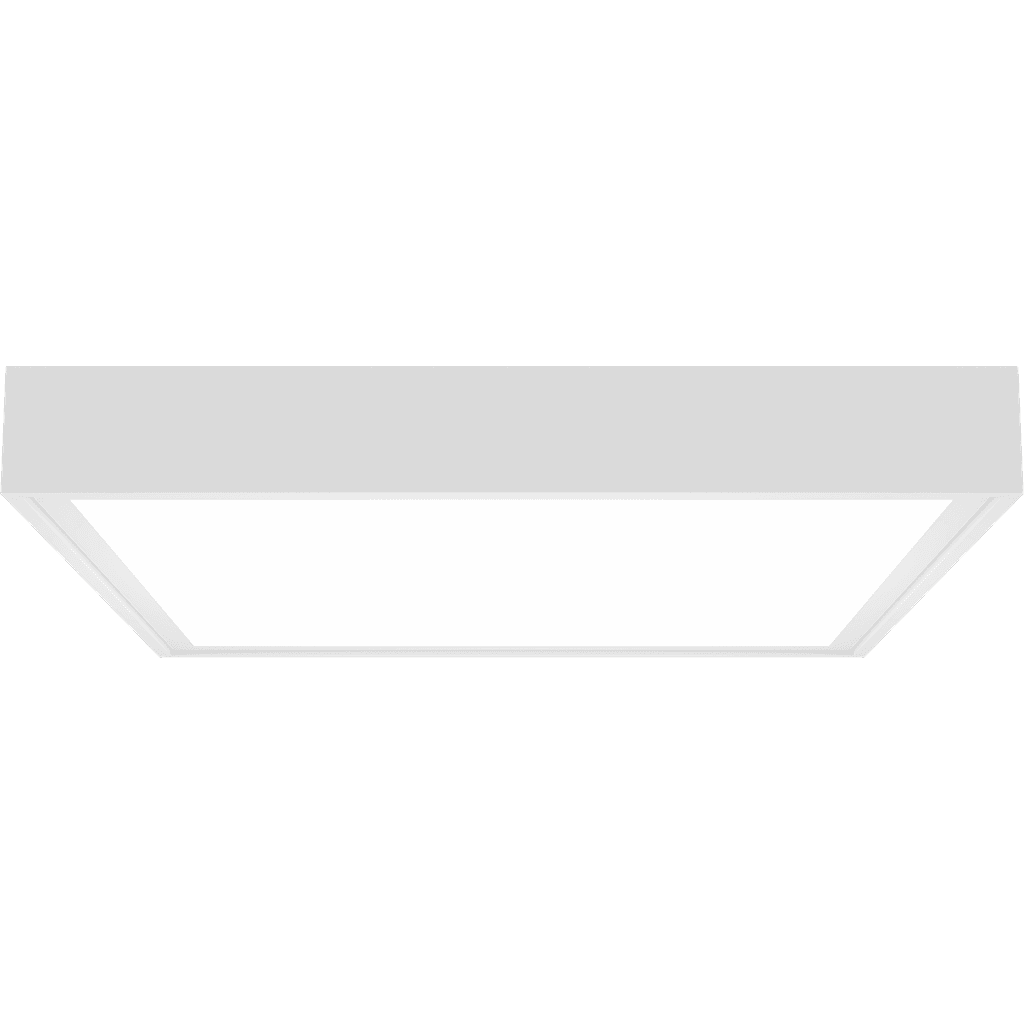

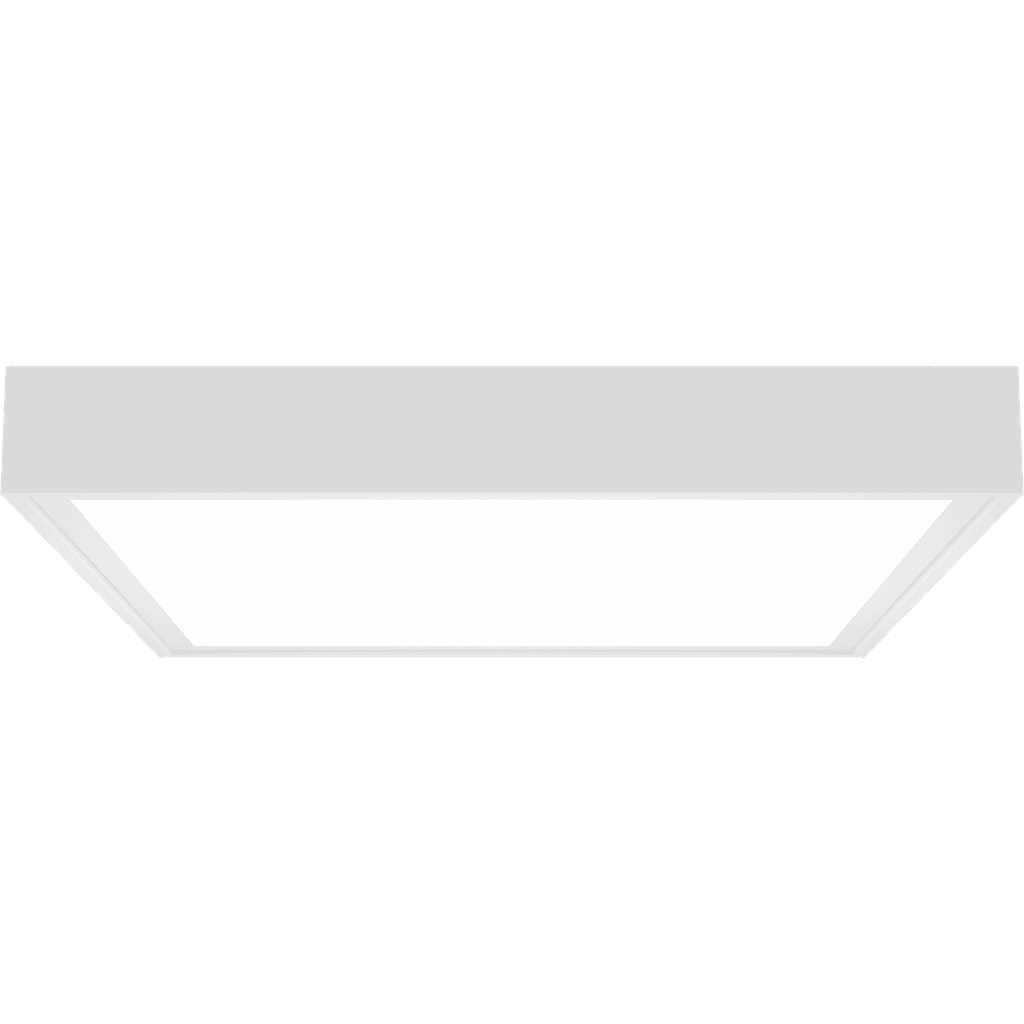

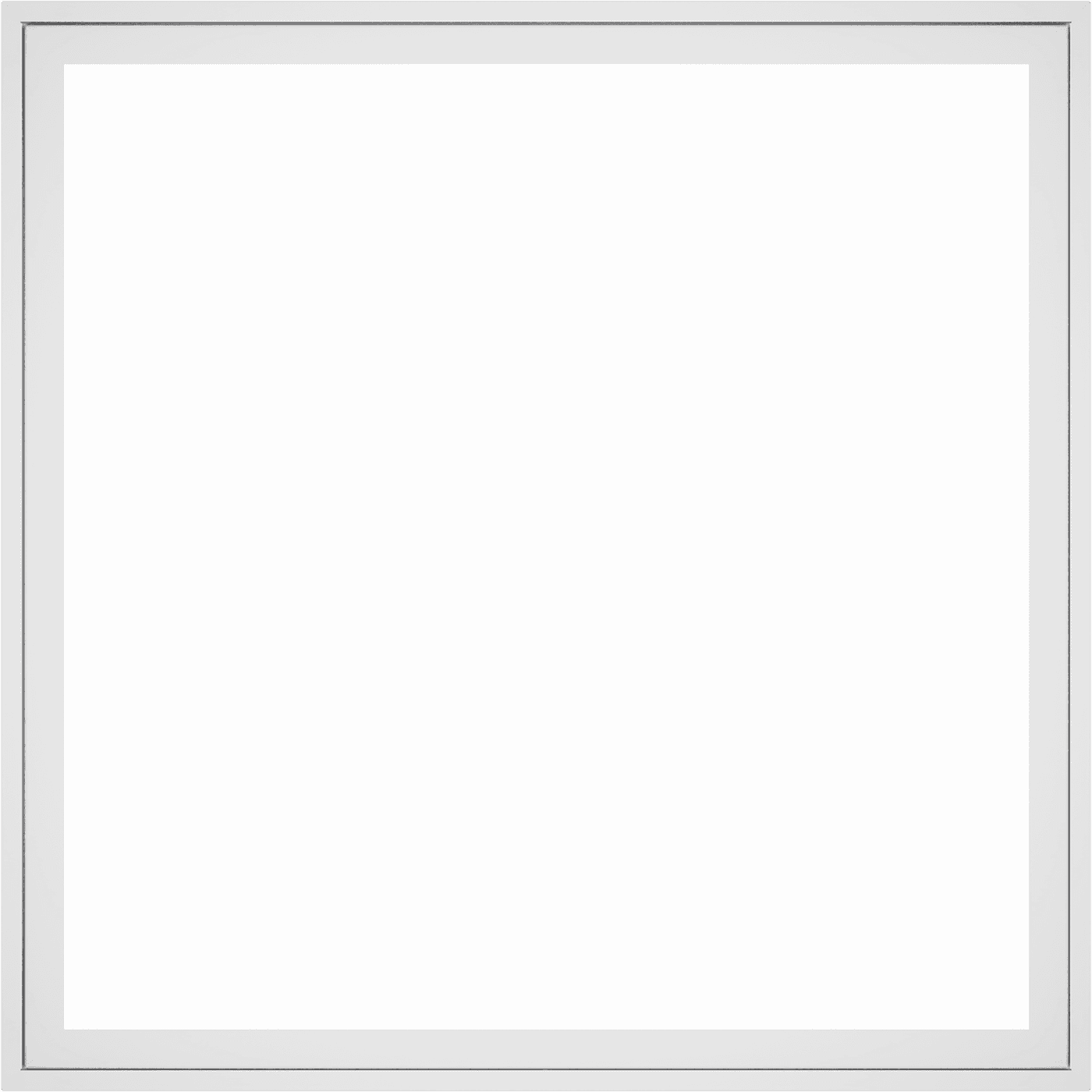

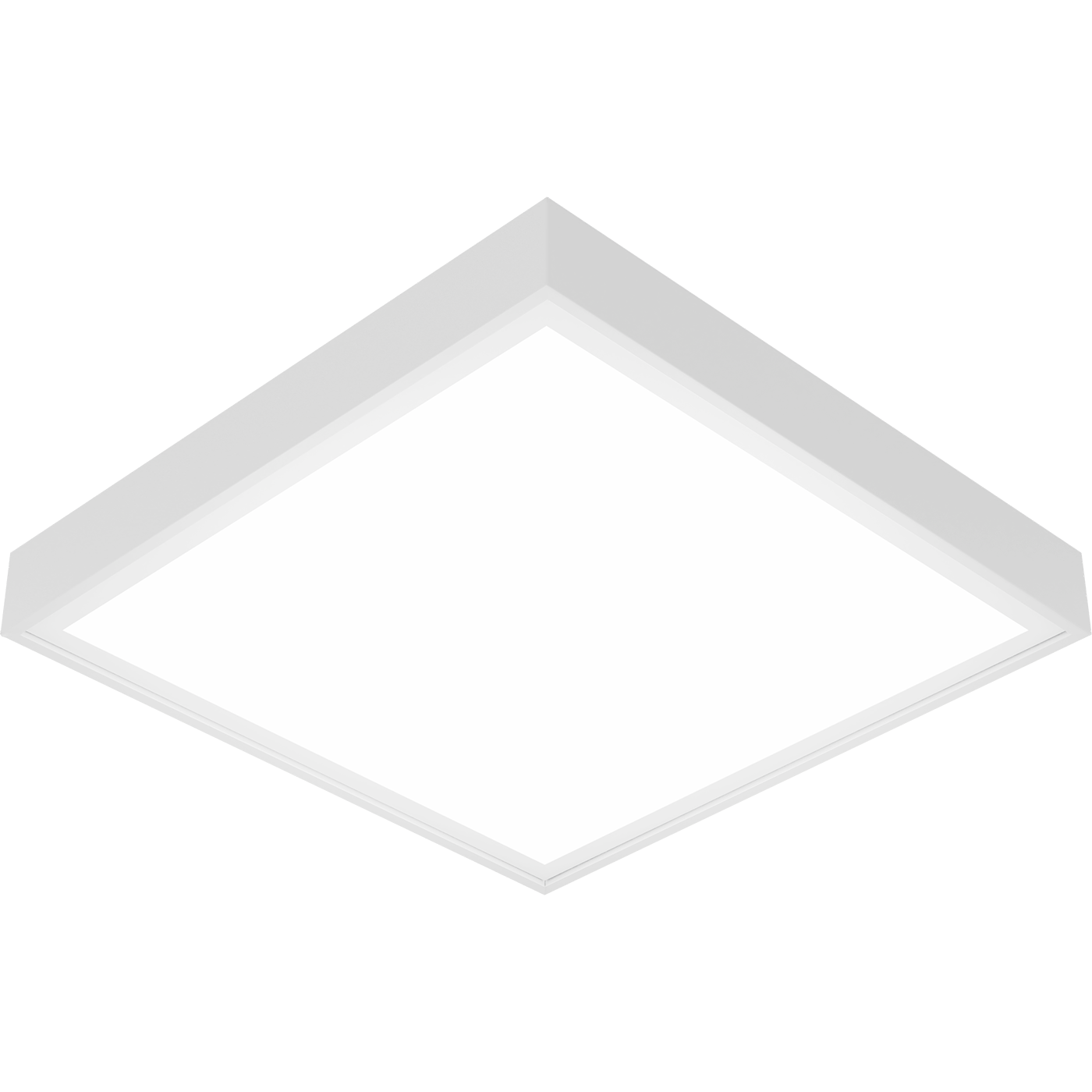

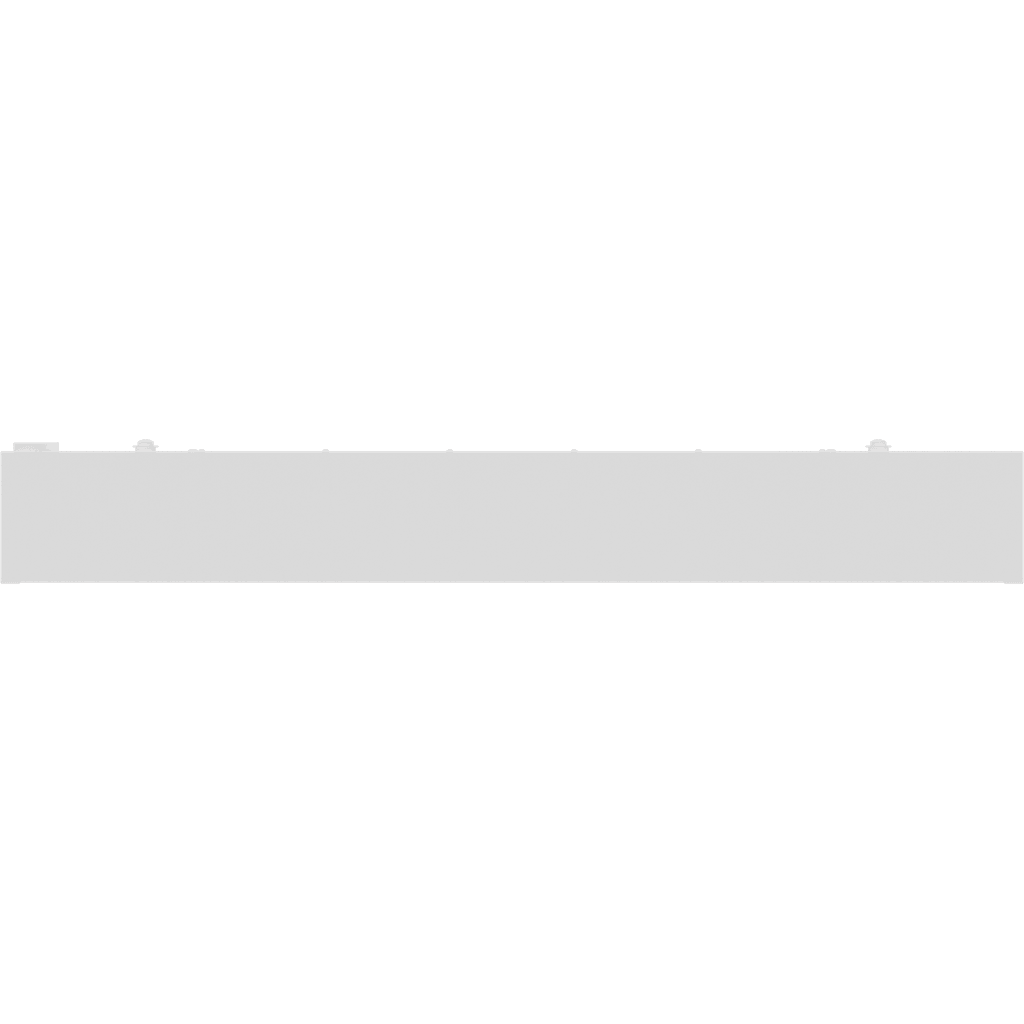

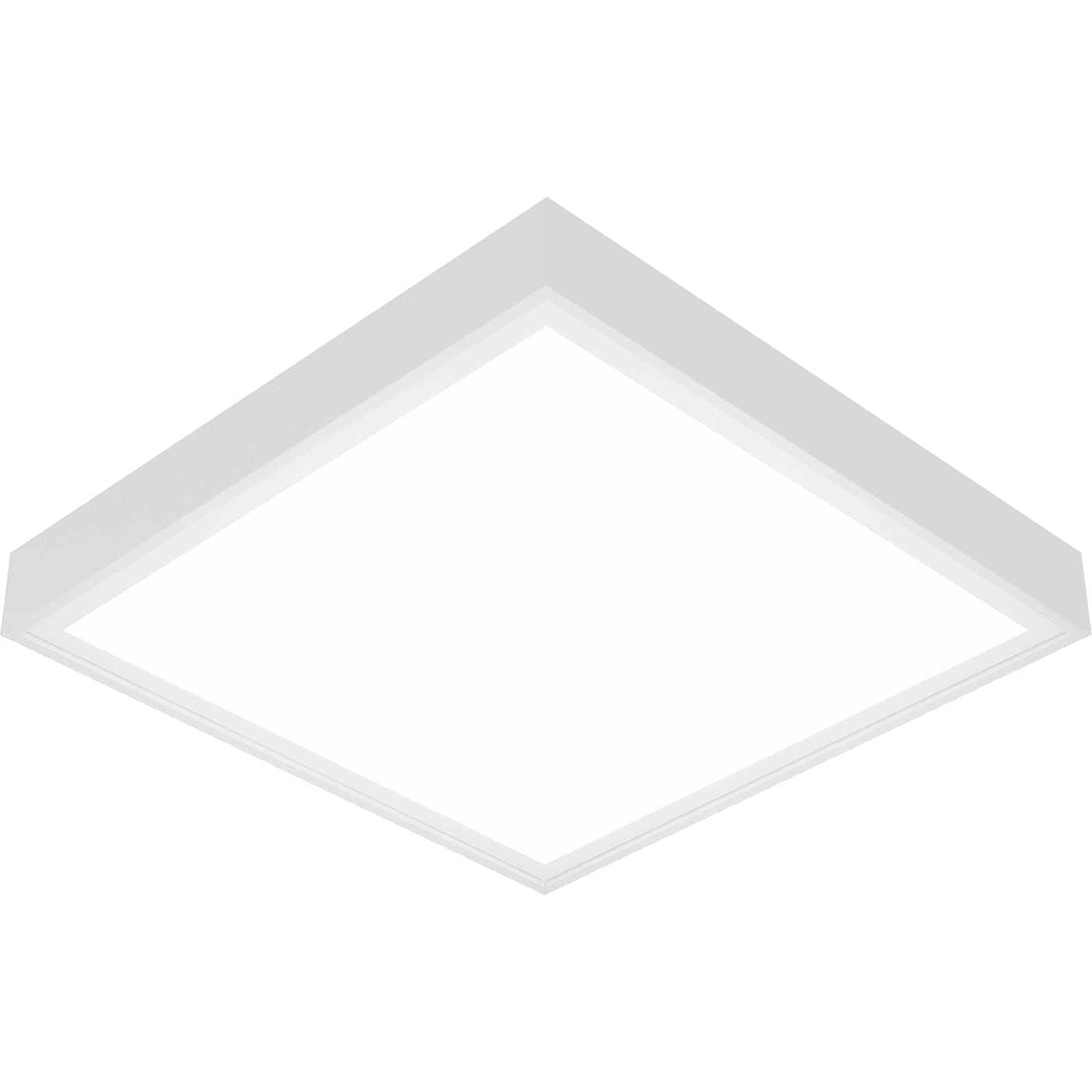

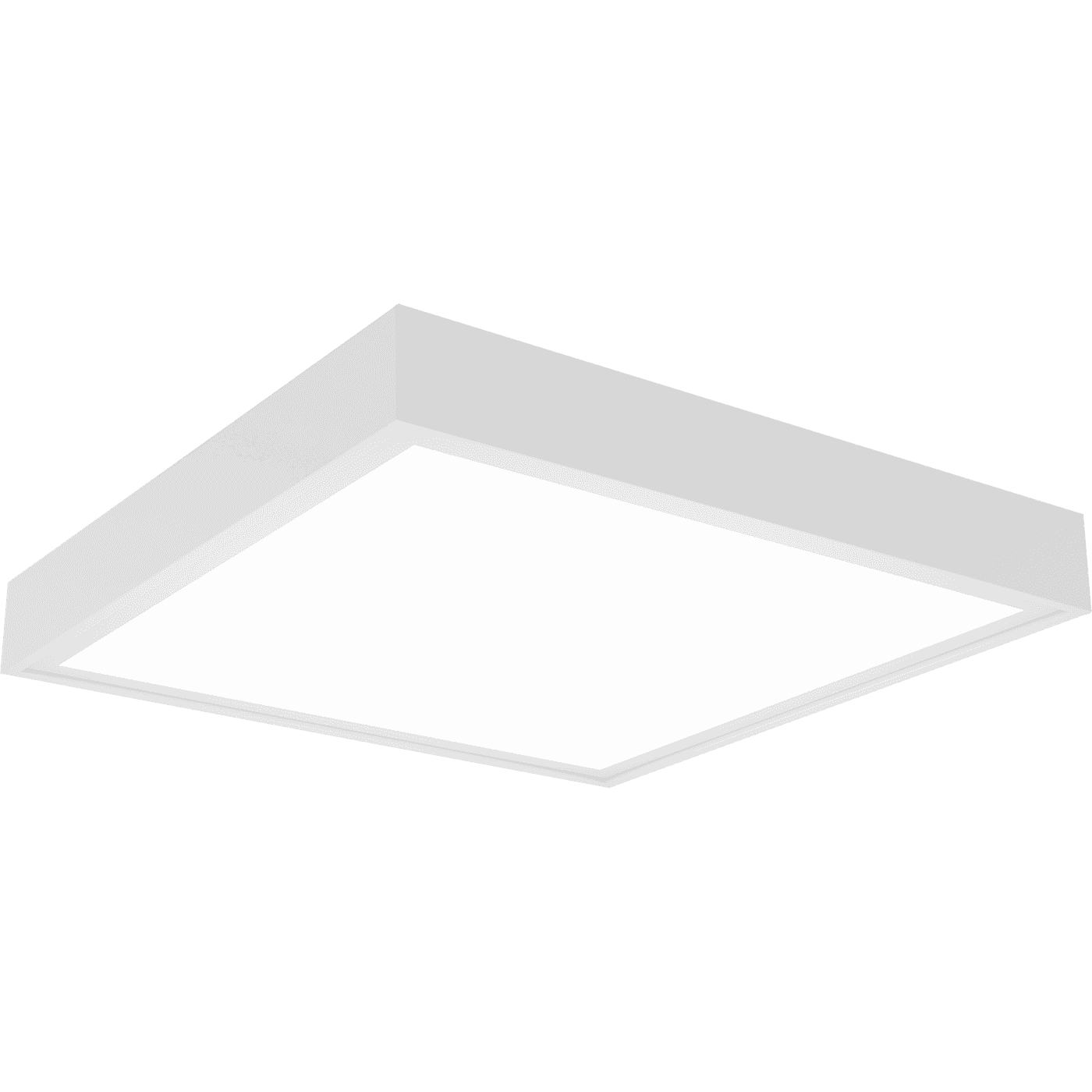

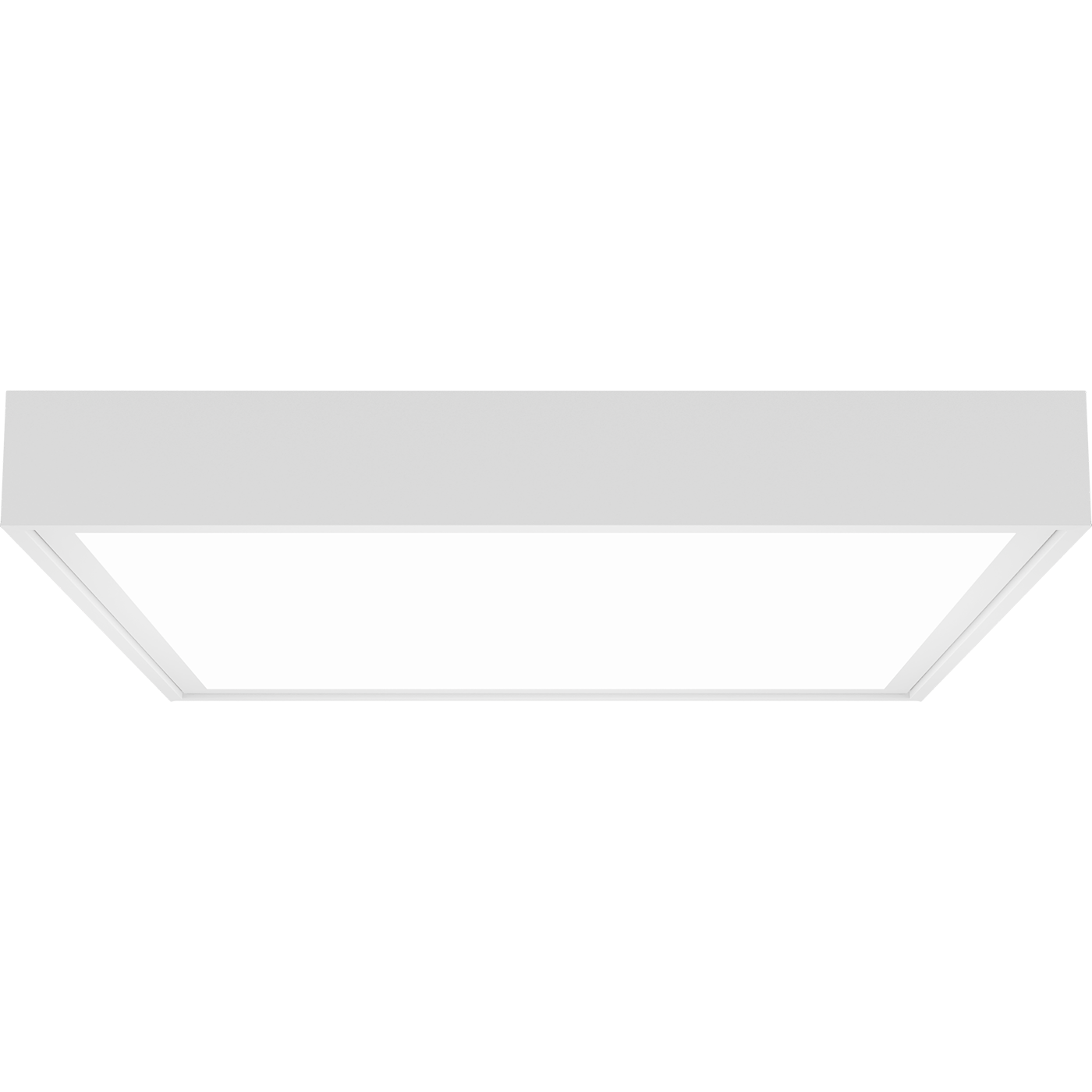

OWP OPTIMA LED 595 IP54/IP54 CH CF

OWP OPTIMA LED 595 IP54/IP54 CH CF
add to favorites
34 Wluminaire power
3200 lmlight flow
94 lm/Wenergy efficiency
code1372000660
color temperature2700-5700
beam angleD120
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. IP protected
  6. OWP OPTIMA LED CF
  7. OWP OPTIMA LED 595 IP54/IP54 CH CF
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
electric shock protection
I
starting current
42 A
starting current pulse time, µs
189 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
190-280 V
luminaire power
34 W
power factor
> 0,95
supply voltage
230 V
electrical
electric shock protection
I
starting current
42 A
starting current pulse time, µs
189 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
198-264 V
supply voltage, direct current
190-280 V
luminaire power
34 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
material
Сталь
housing color
Белый

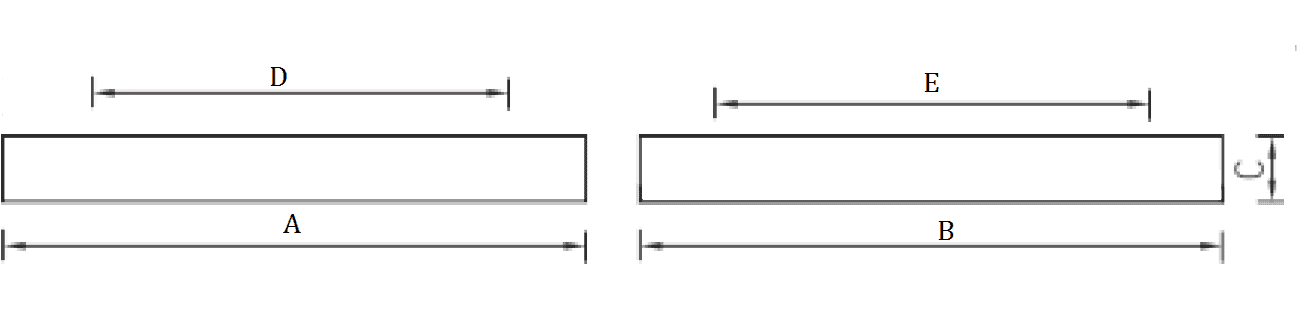

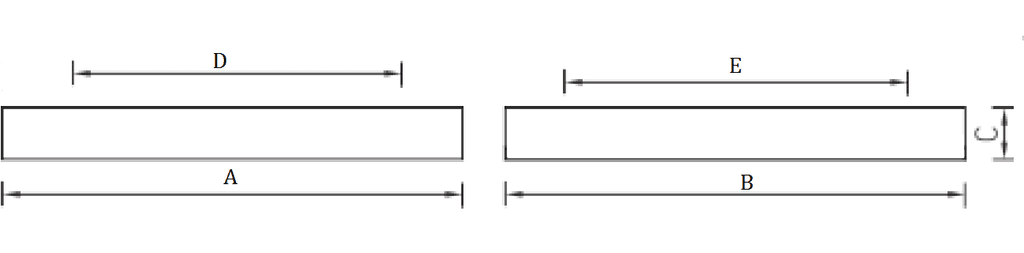

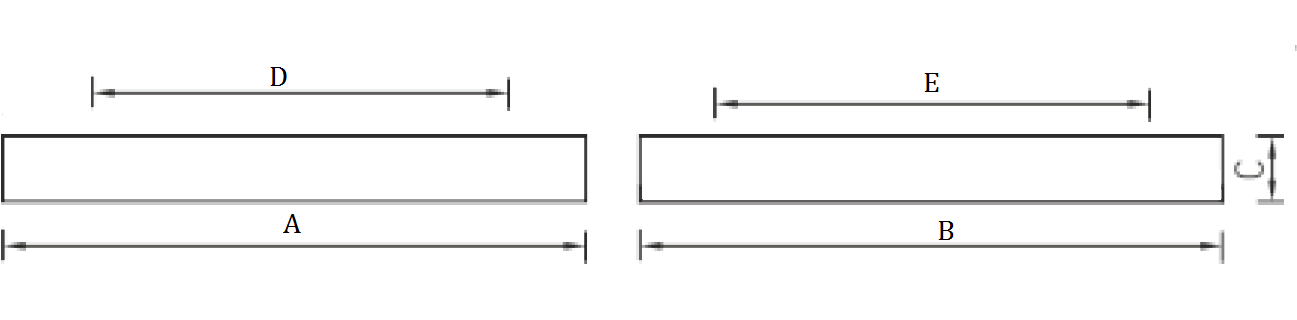

length, mm
595 mm
width, mm
595 mm
height, mm
80 mm
weight
6.1 kg
climatic performance
УХЛ2*
installation length, mm
425 mm
installation width, mm
425 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI DT8
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
service life, hour
50 000 h
code
1372000660
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<5%
beam angle
D120
color temperature
2700-5700
light source type
LED
emission color
Белый
energy efficiency
94 lm/W
LMS options
dimming
DALI DT8
model files
model files

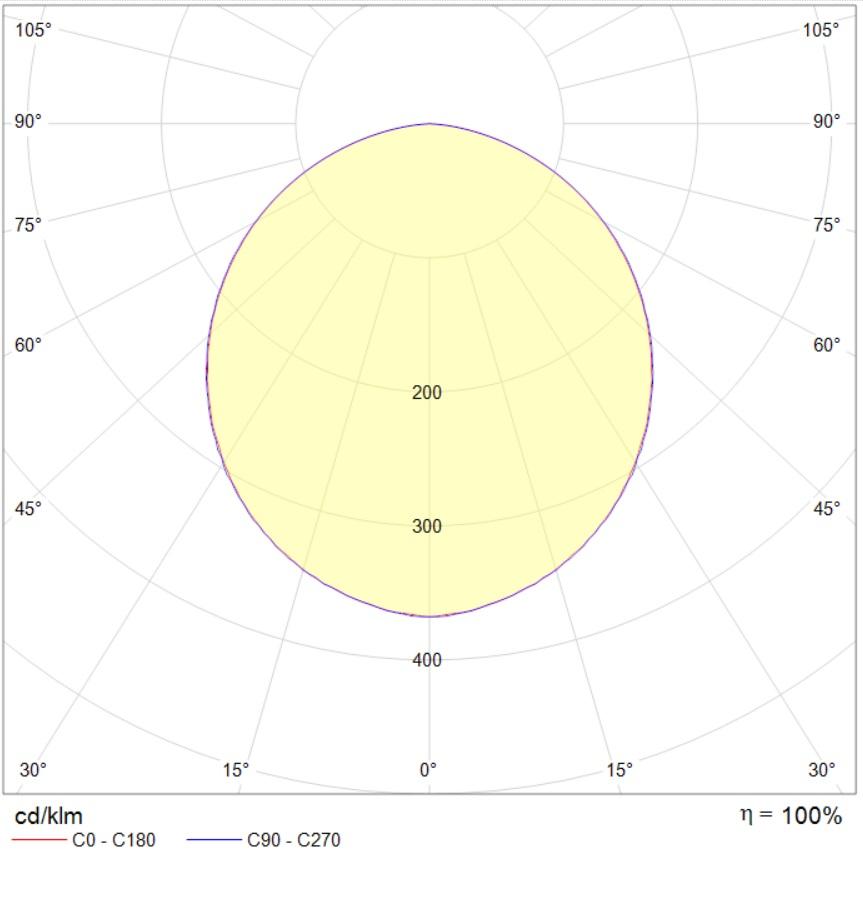

photometric files
ies134.1 kB
jpg77.8 kB
ldt84.5 kB
csv438 B
documents
passport848.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
photometric files
ies134.1 kB
jpg77.8 kB
ldt84.5 kB
csv438 B
documents
passport848.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
