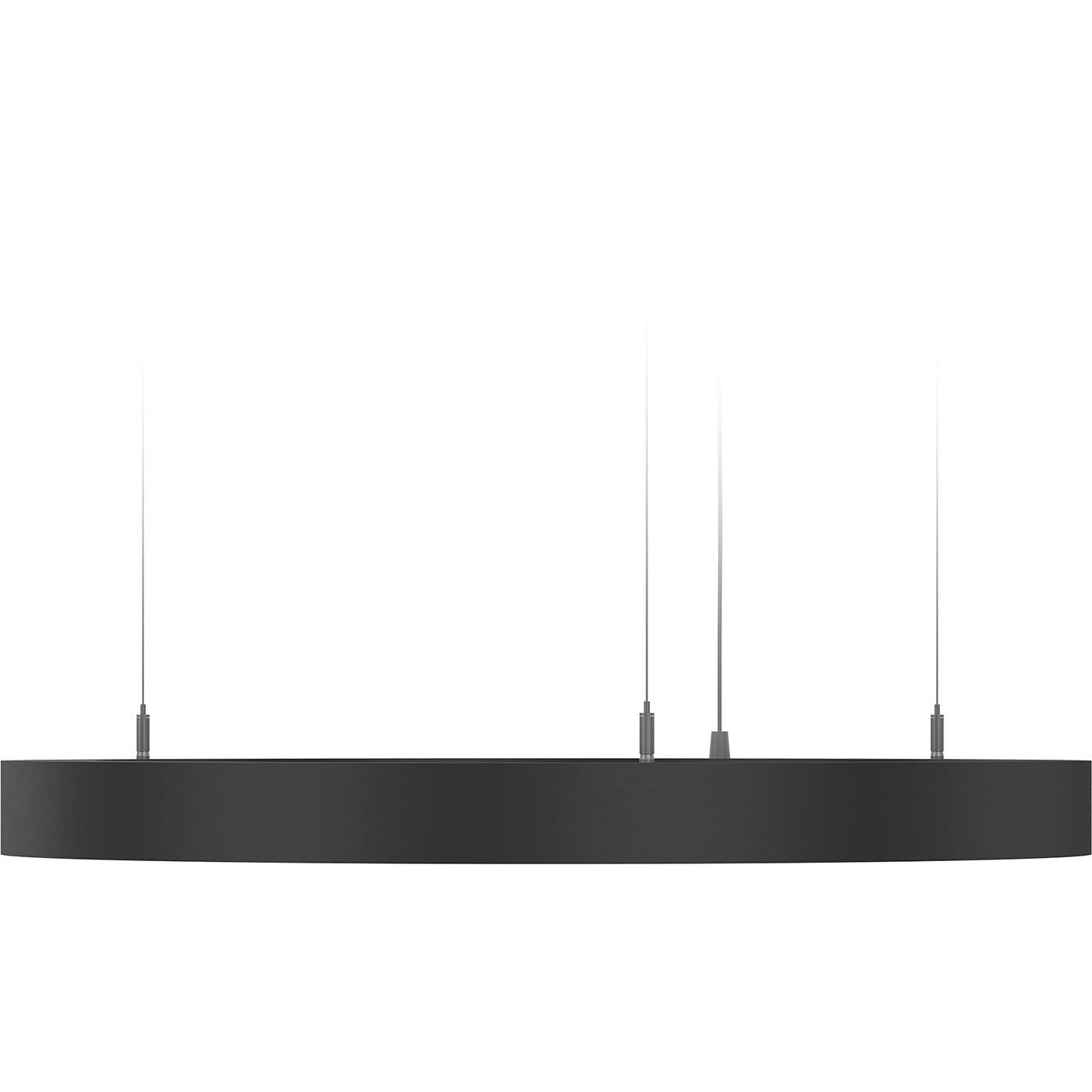

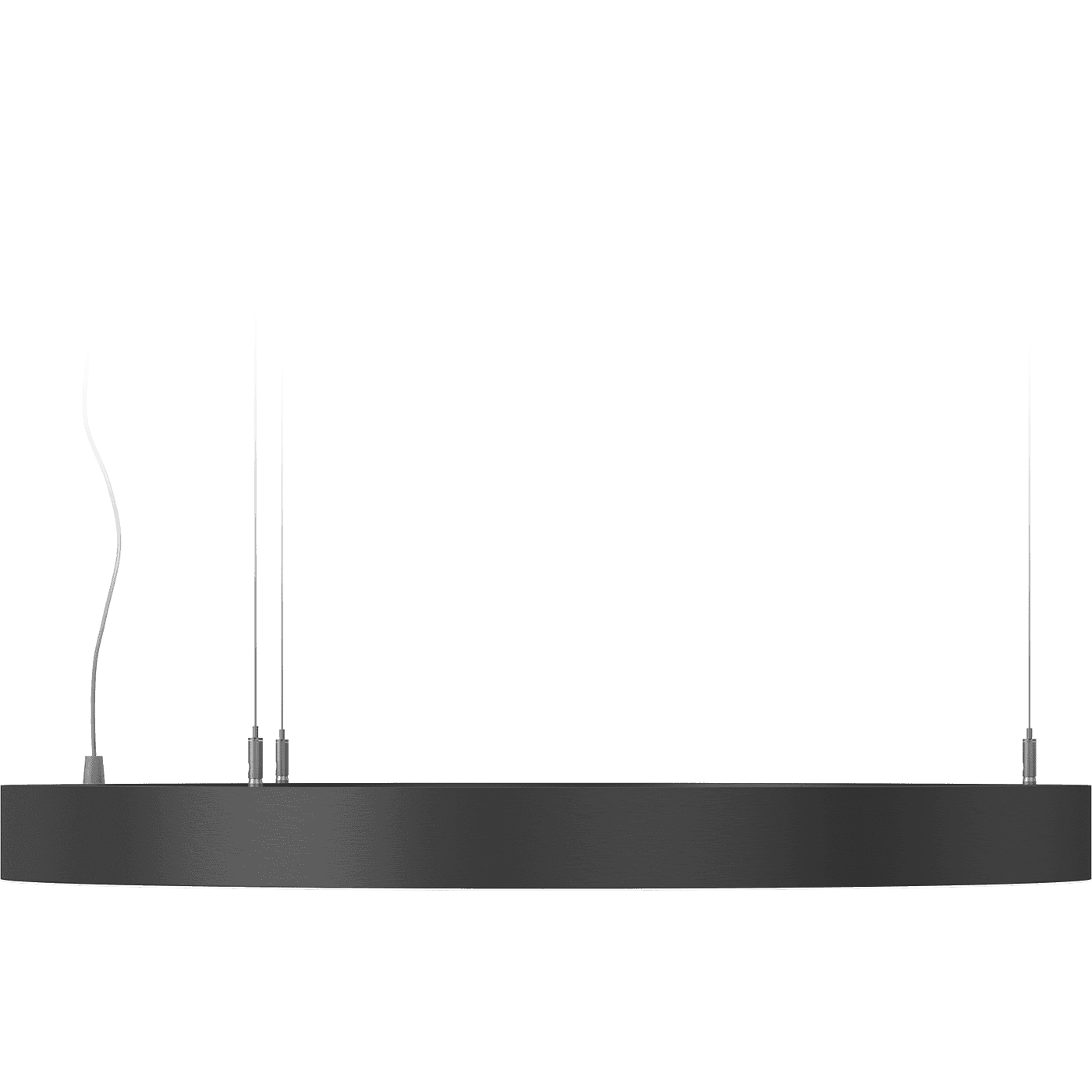

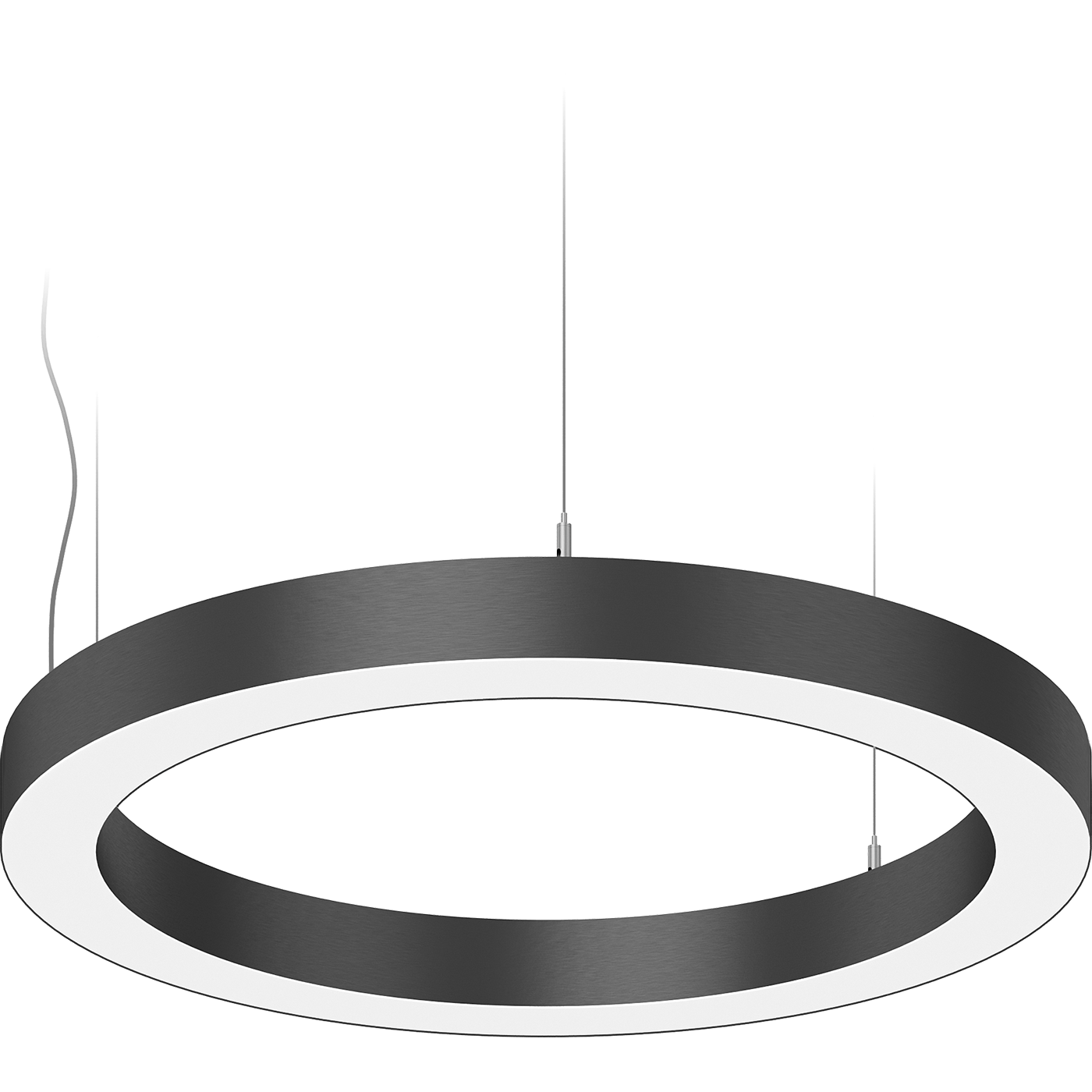

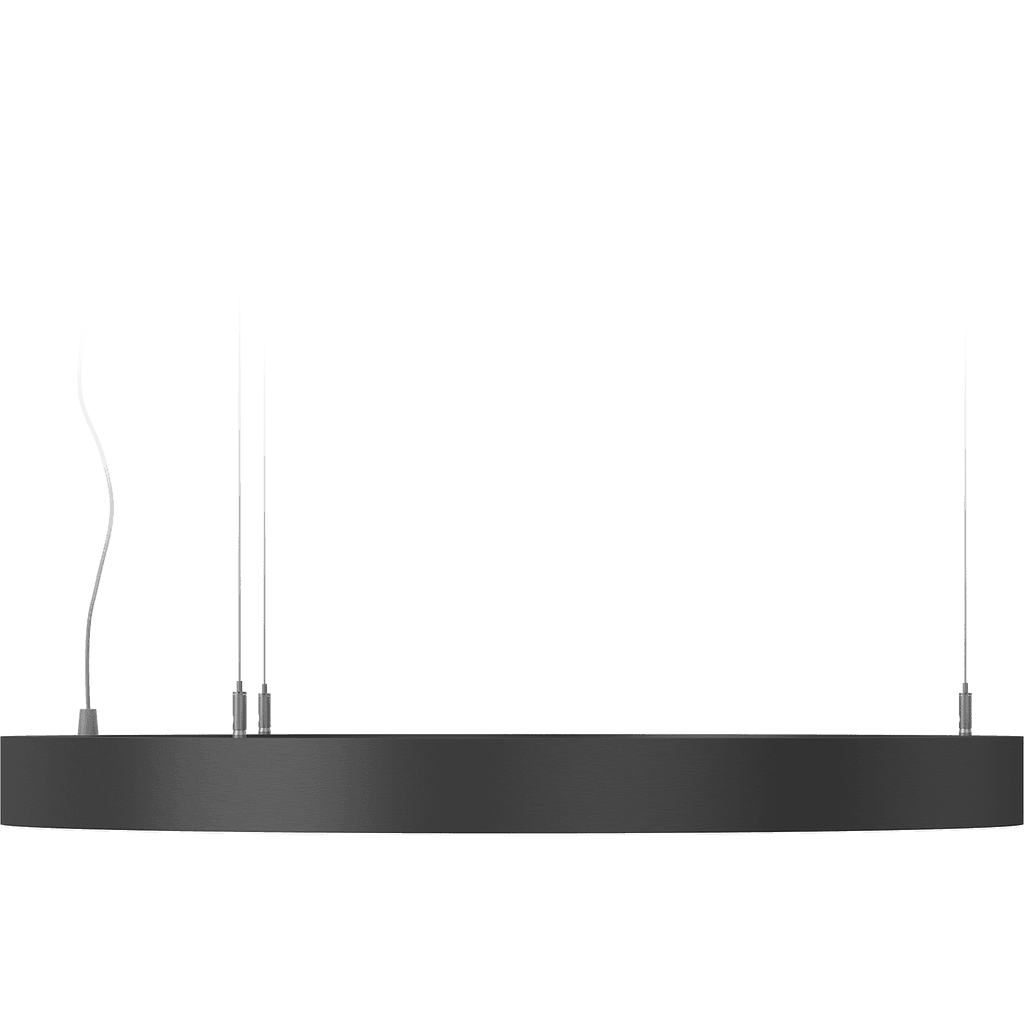

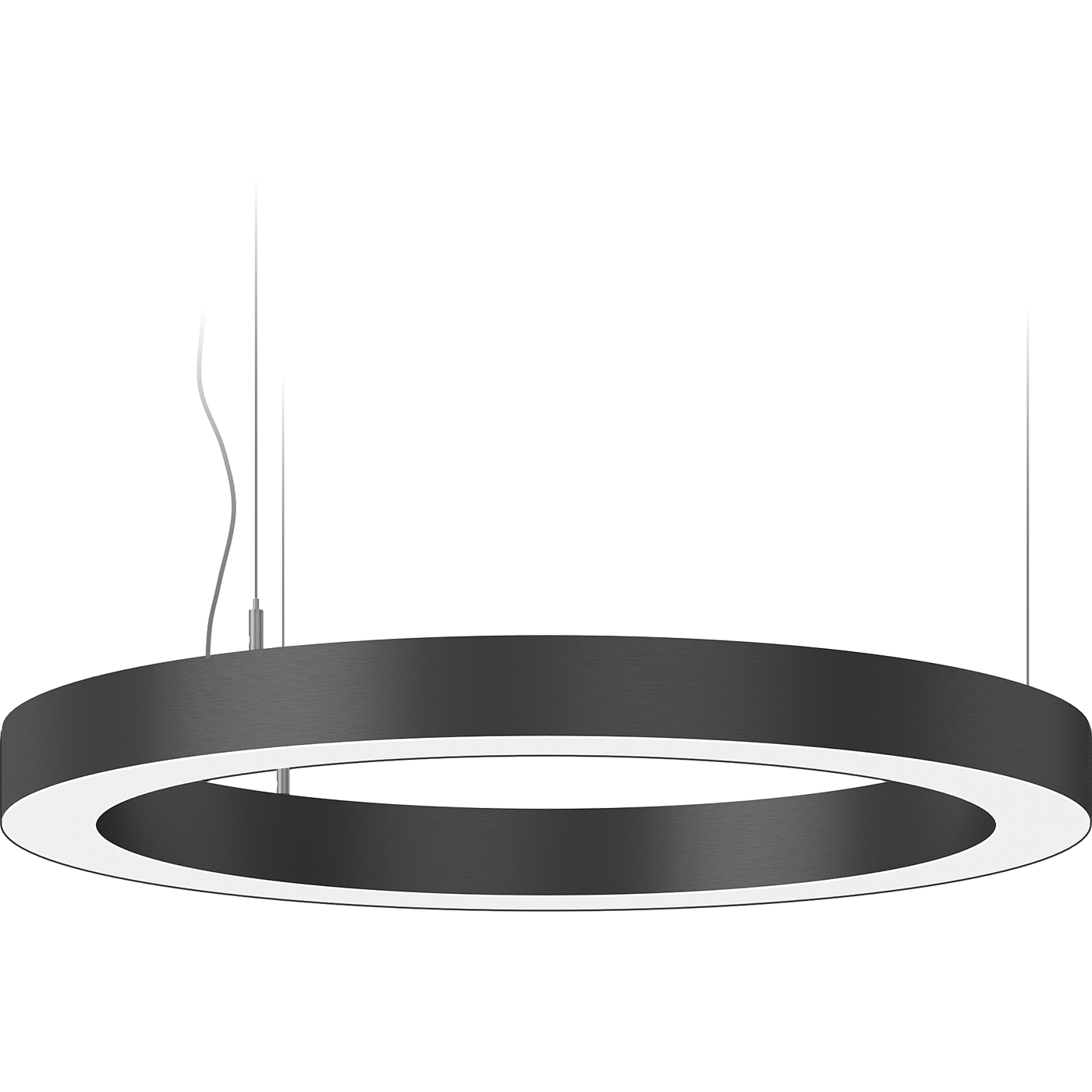

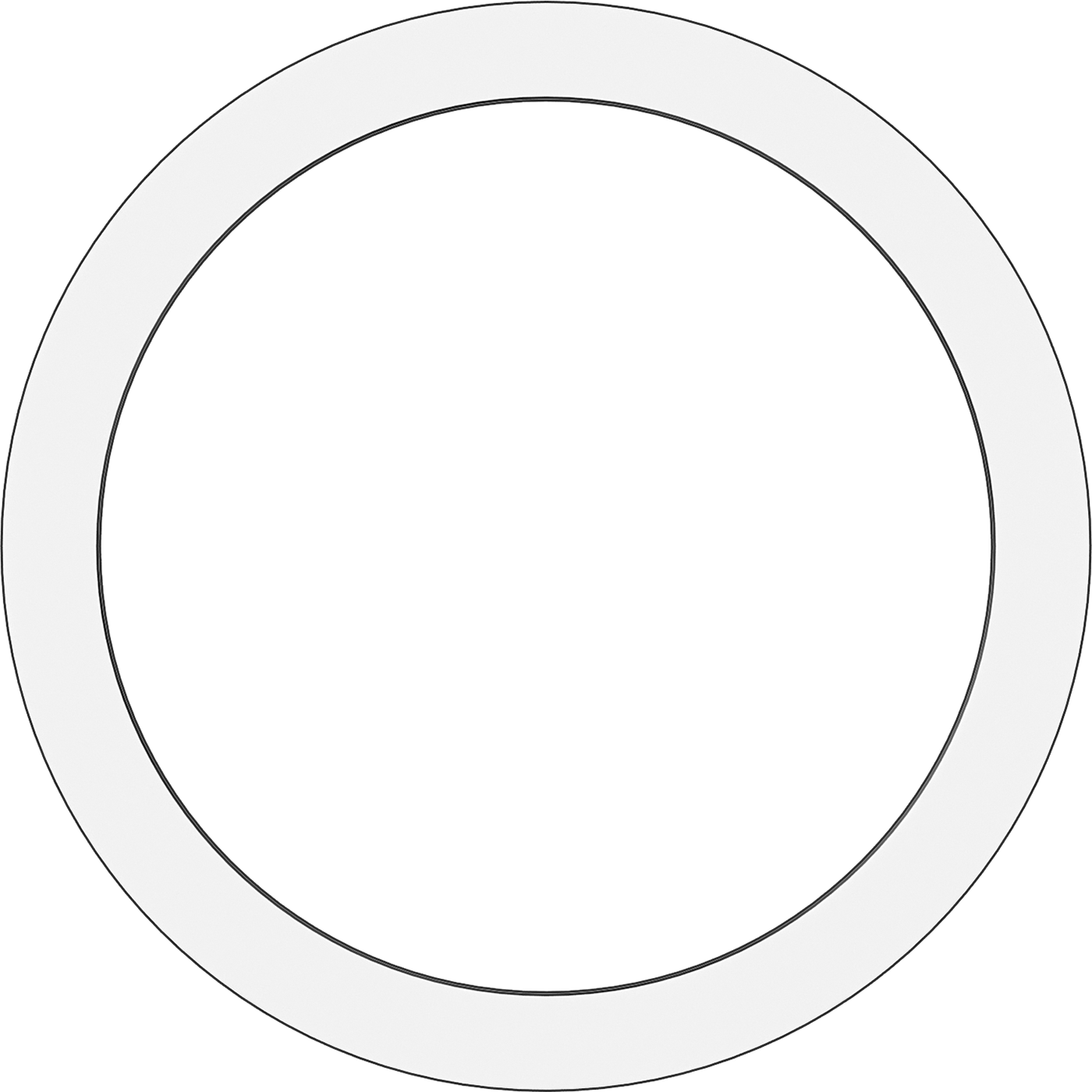

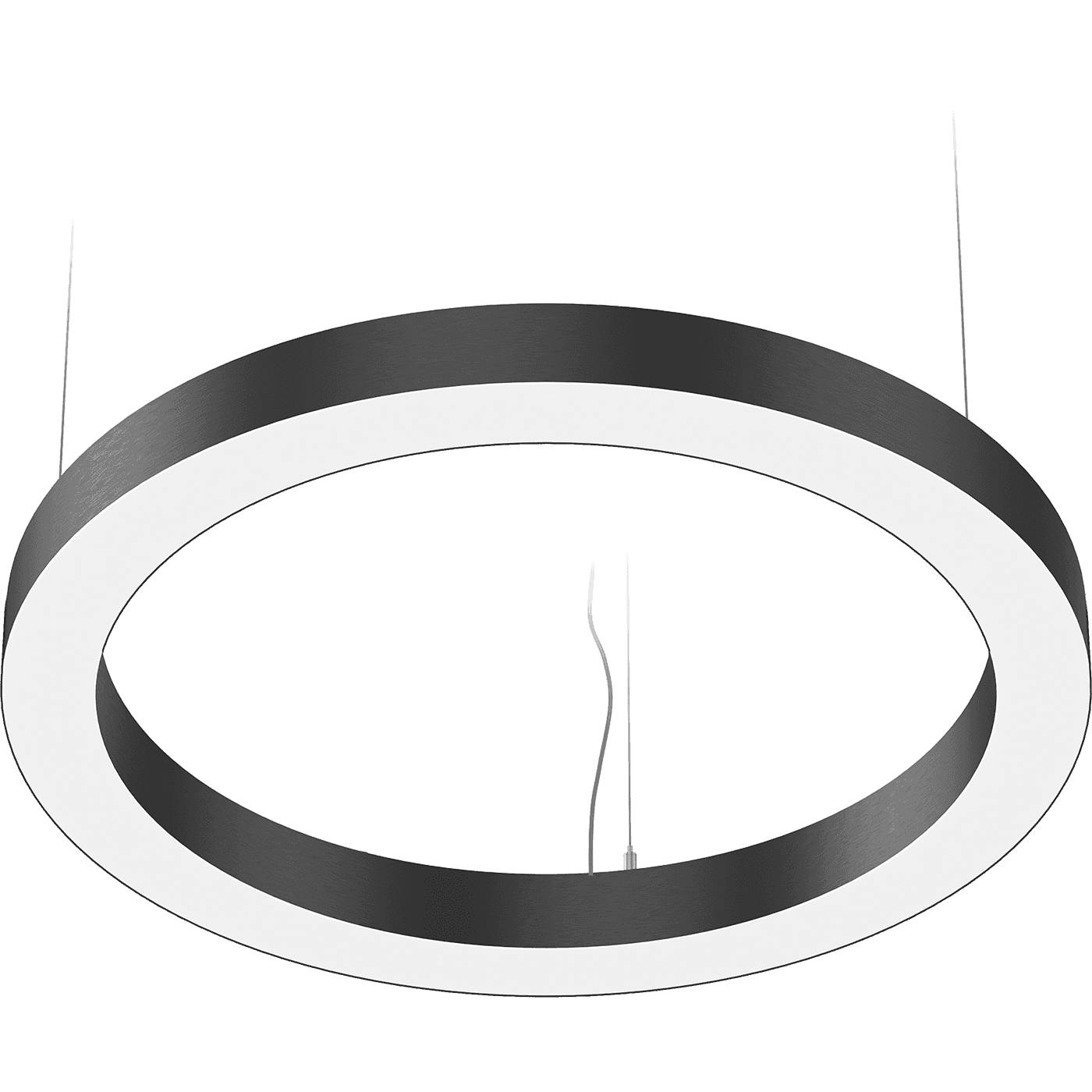

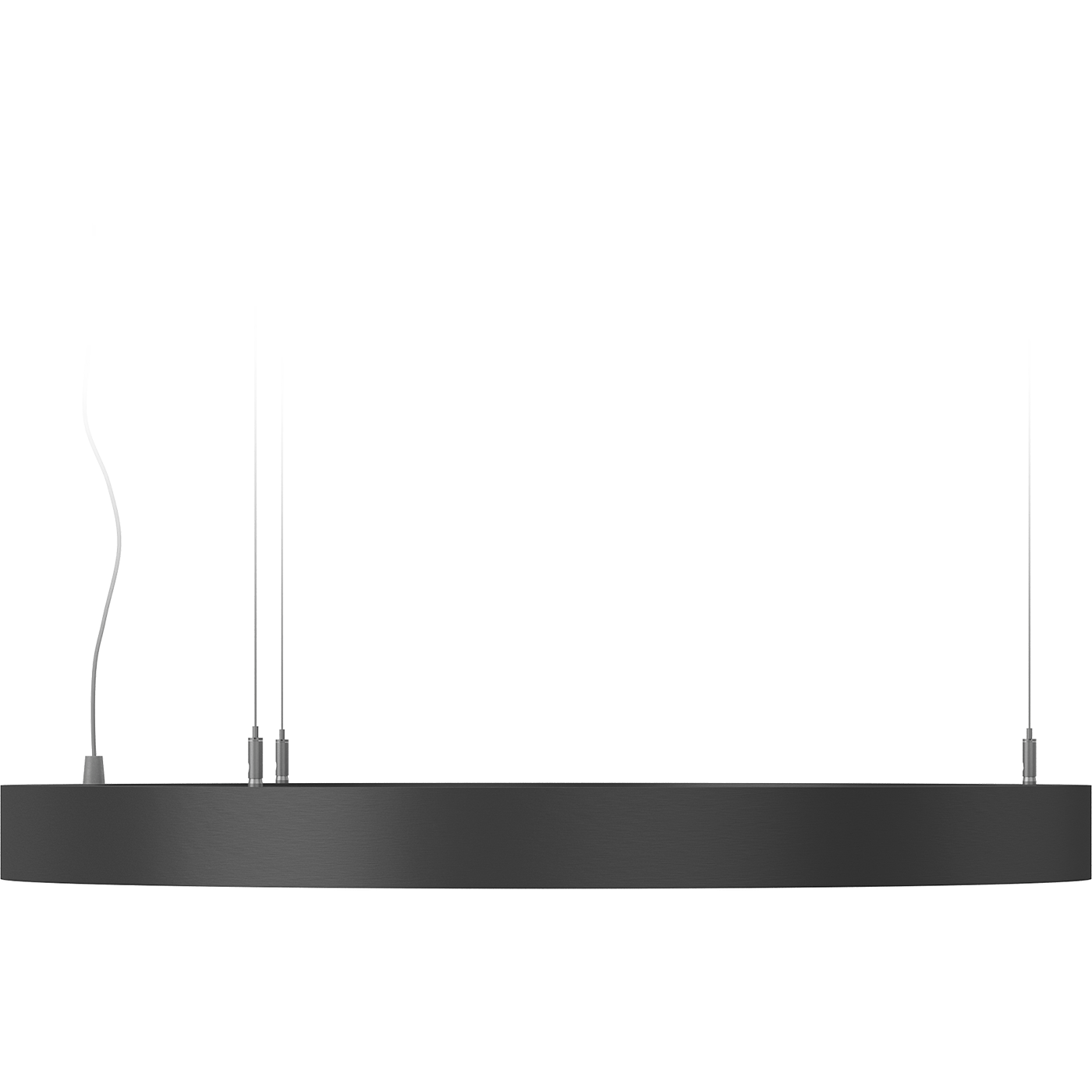

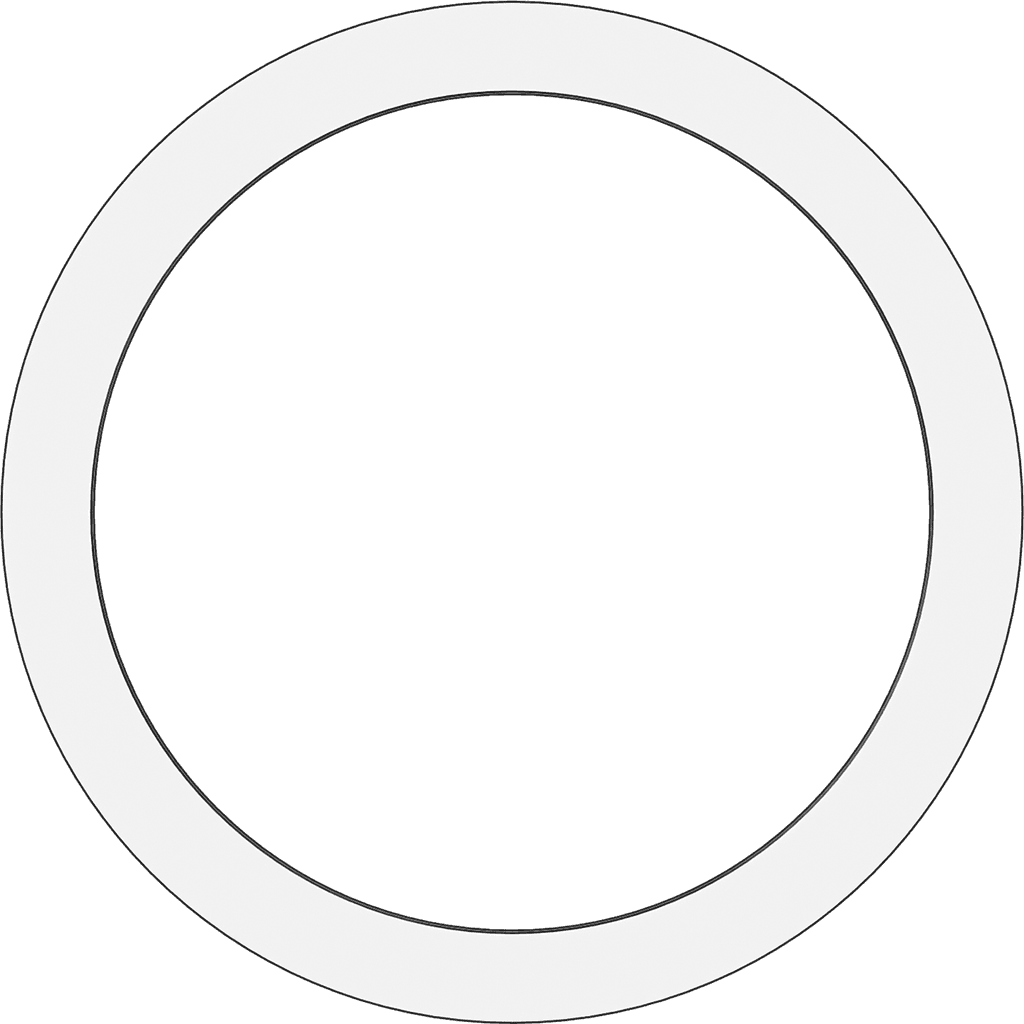

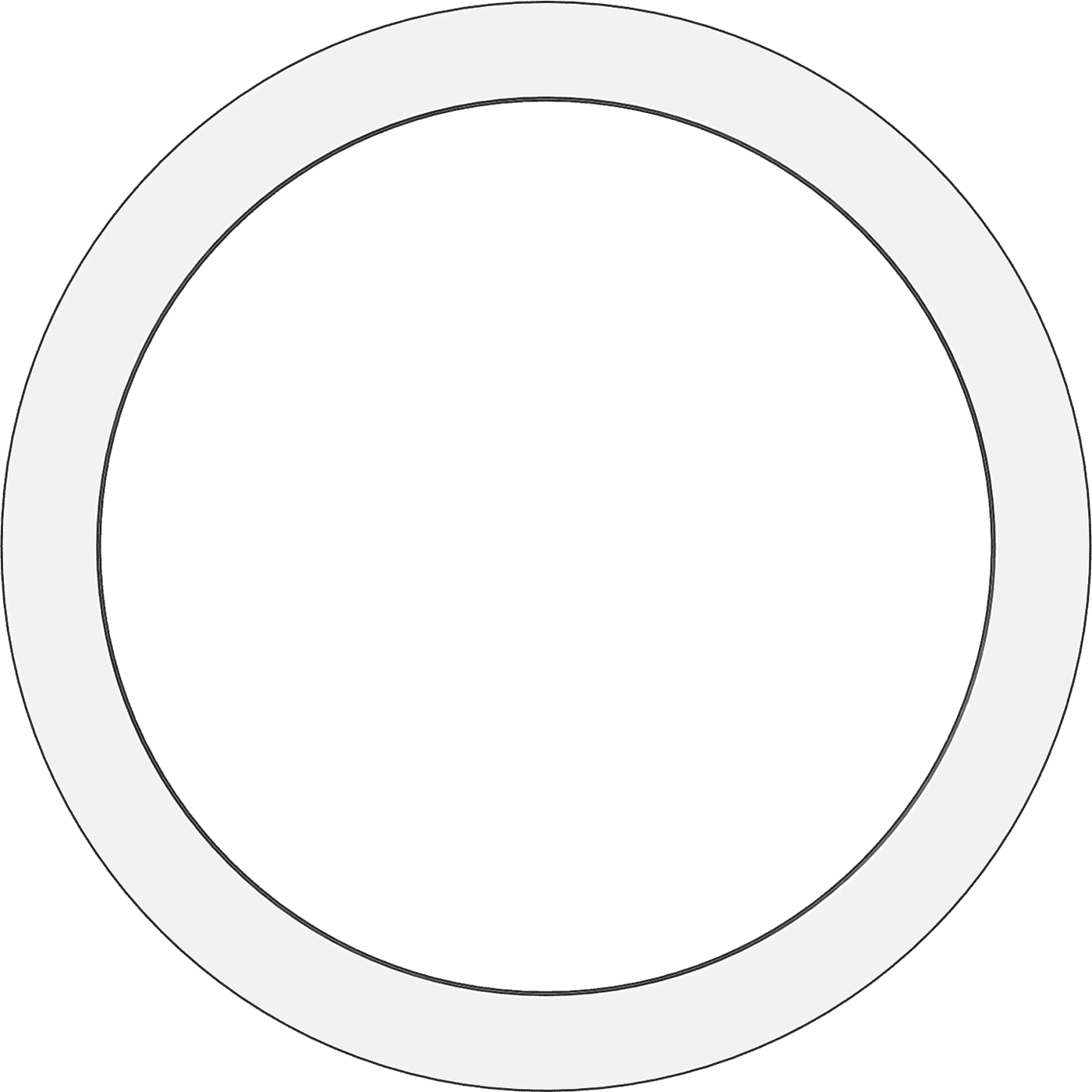

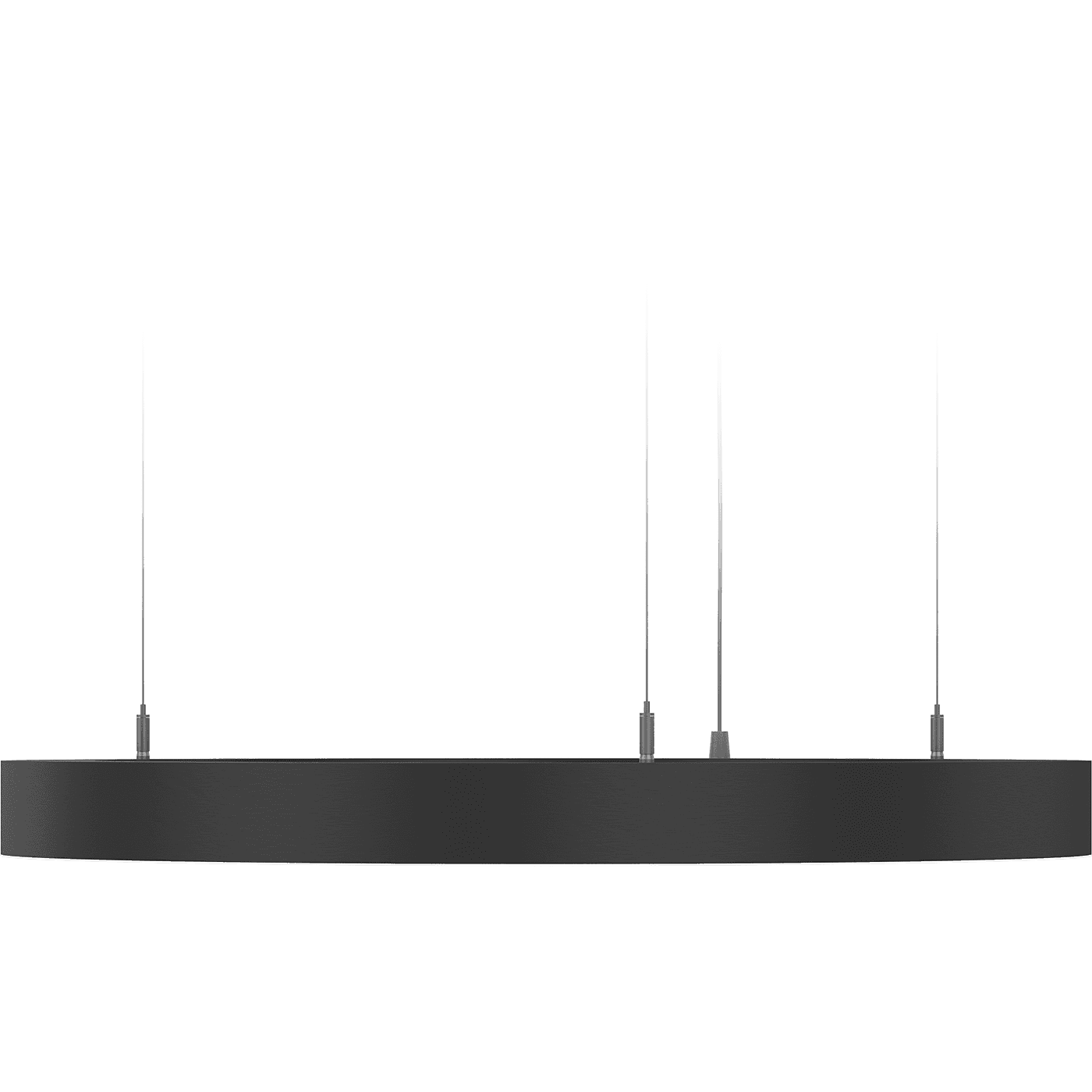

OREOL WIDE FLD/P (700x300x60) 940 RD DALI

model is discontinued
model is discontinued
OREOL WIDE FLD/P (700x300x60) 940 RD DALI
36 Wluminaire power
3200 lmlight flow
89 lm/Wenergy efficiency
code1813001860
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
89 lm/W
color rendition index (CRI)
>90
light flow
3200 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
89 lm/W
color rendition index (CRI)
>90
light flow
3200 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
electric shock protection
I
luminaire power
36 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
21 A
constructional
diameter
1250 mm
height
60 mm
installation length
871 mm
installation width
1005 mm
weight
4.65 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Красный
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
LMS options
dimming
DALI
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1813001860
