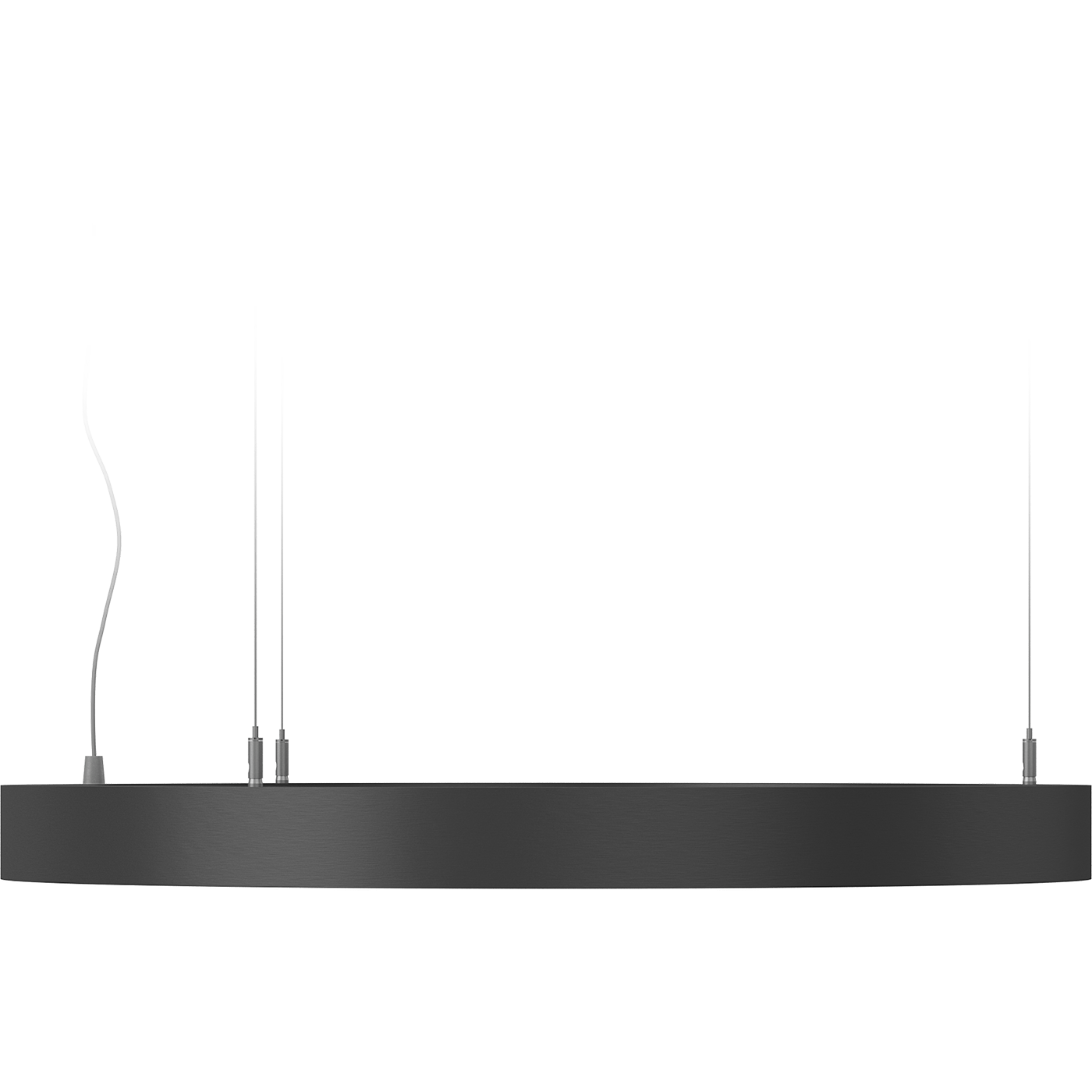

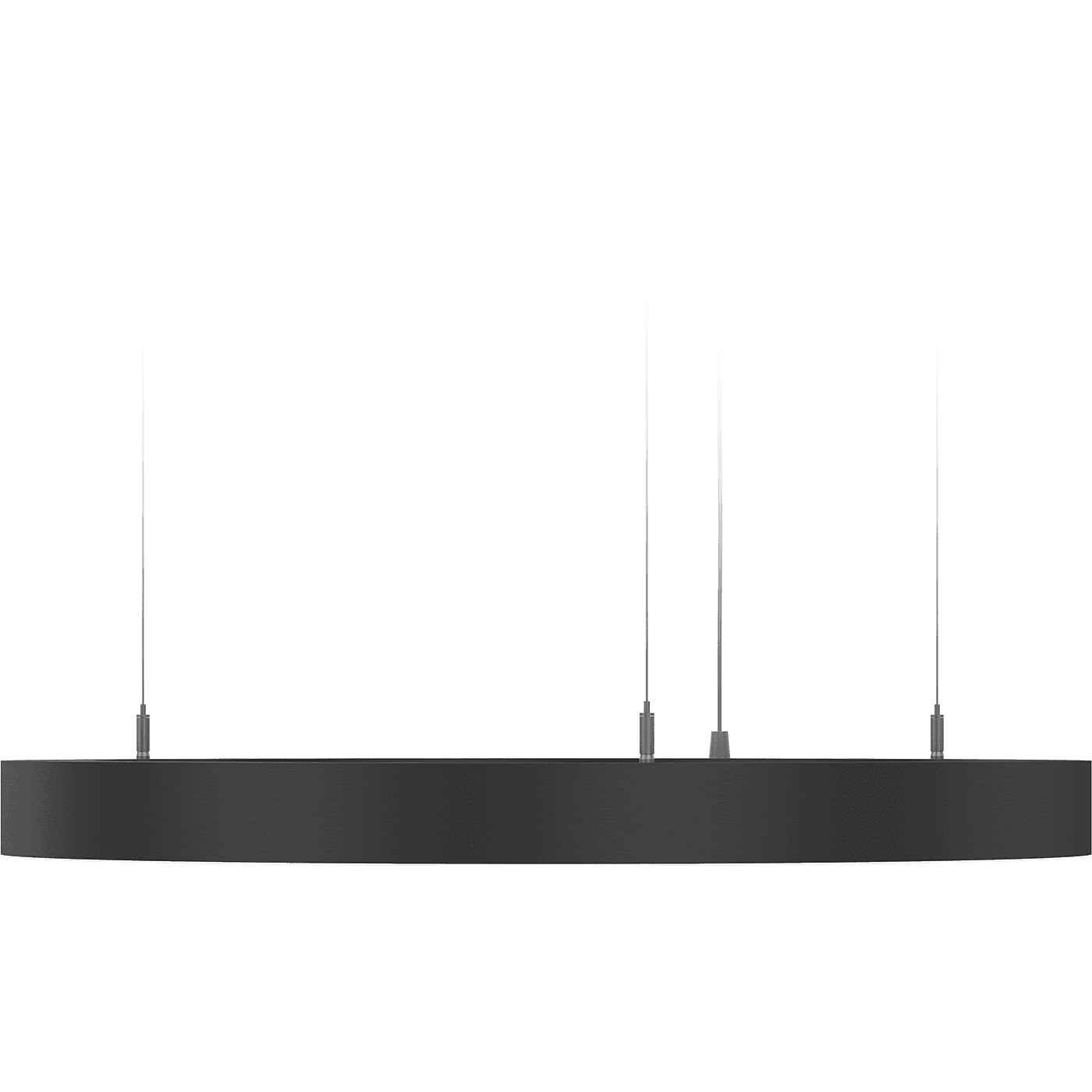

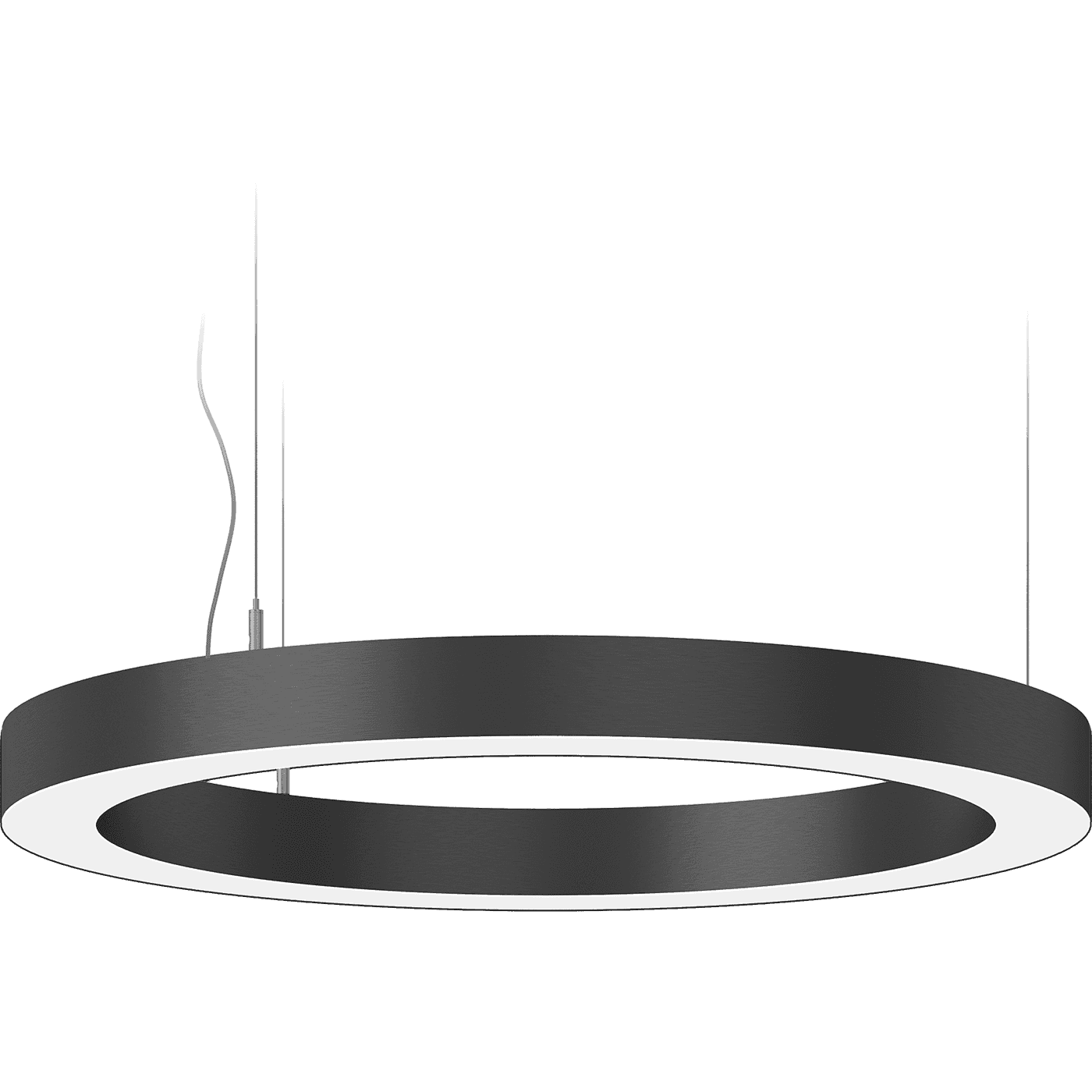

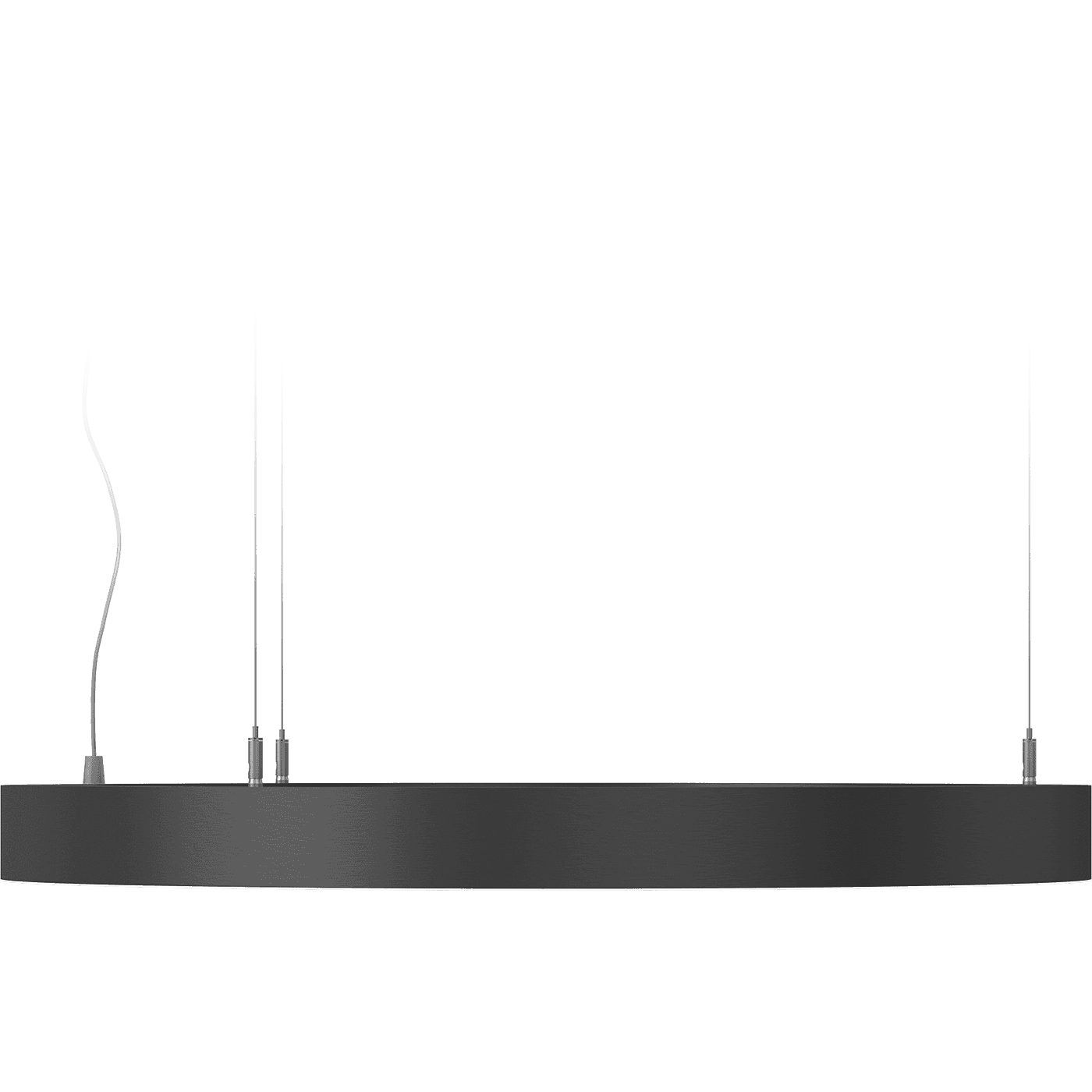

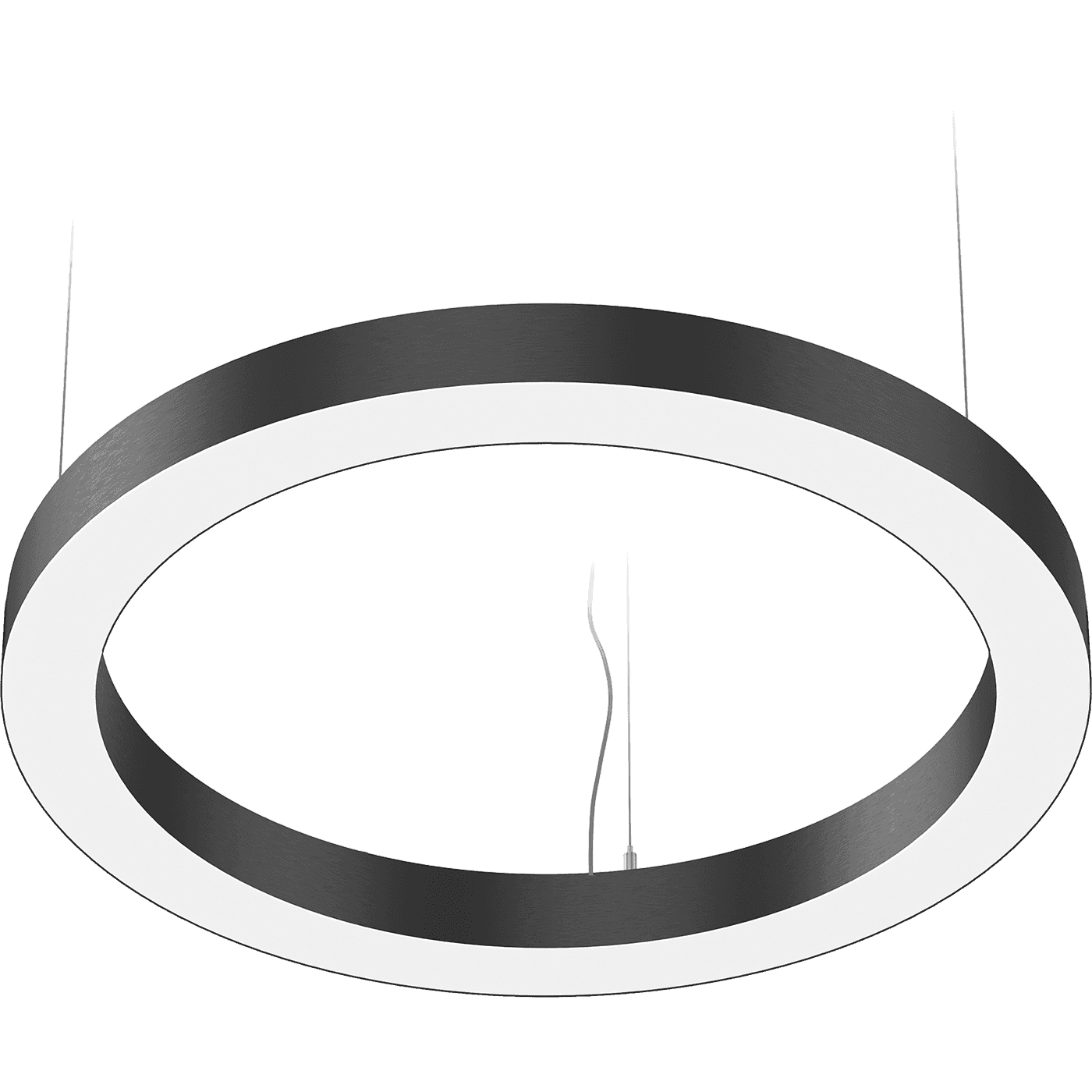

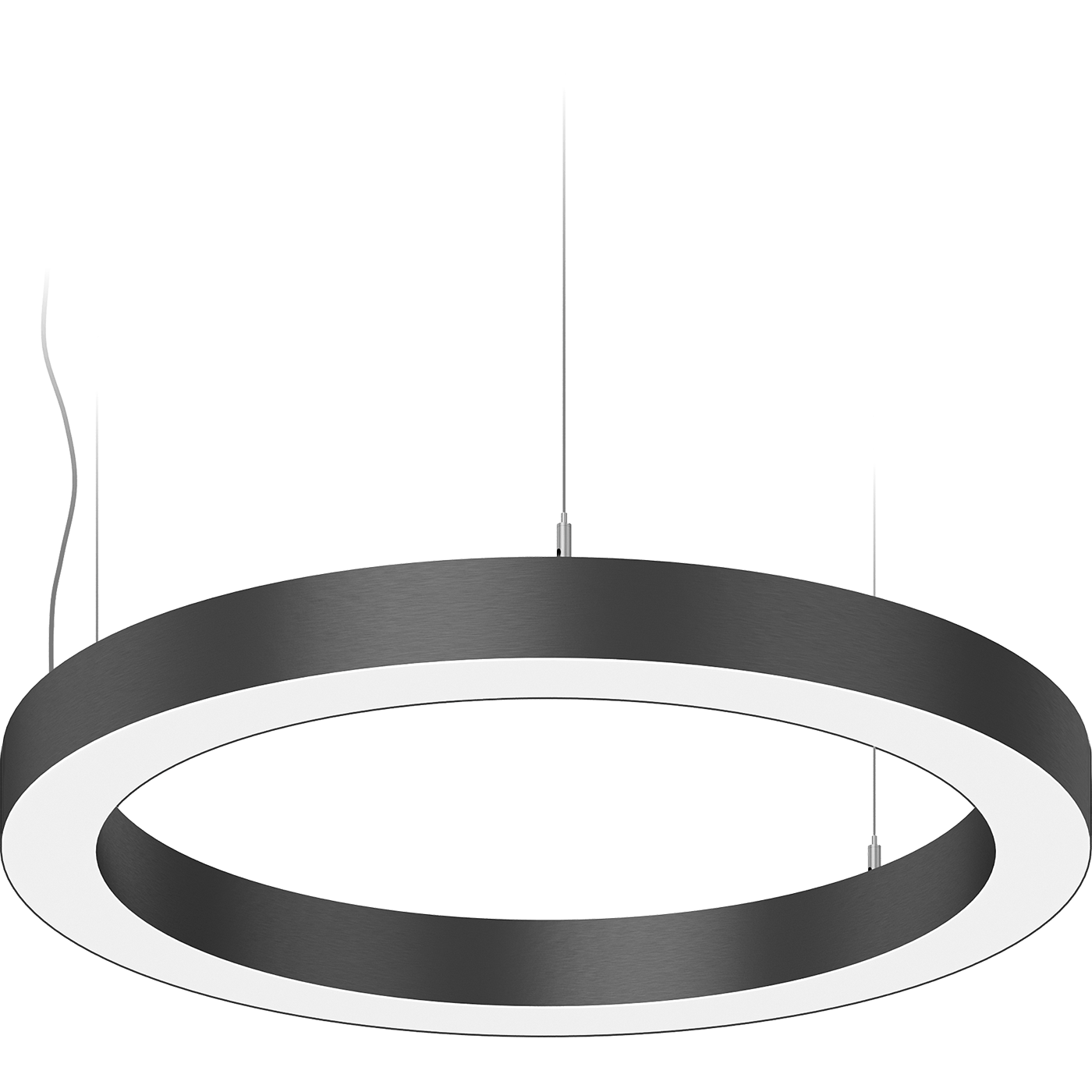

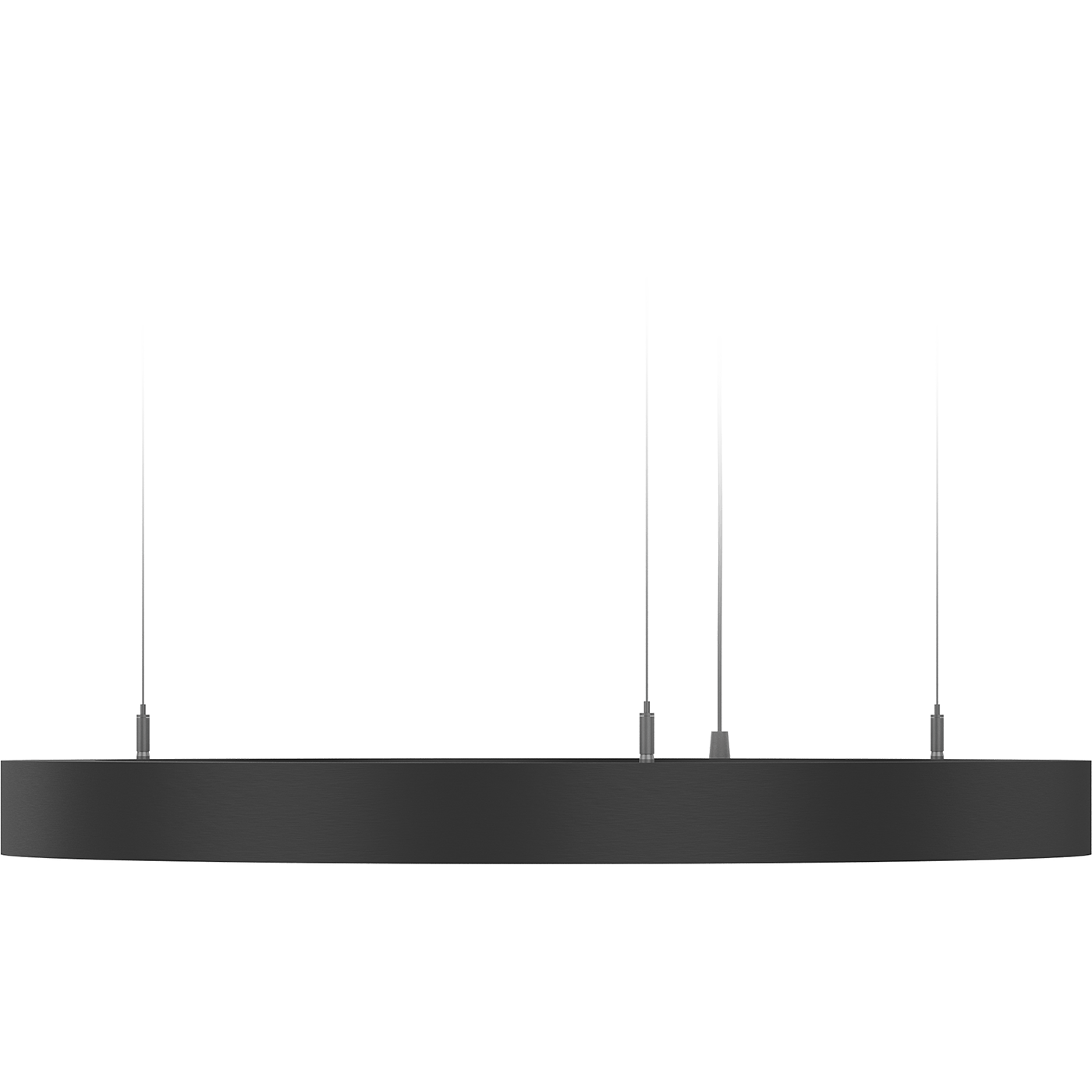

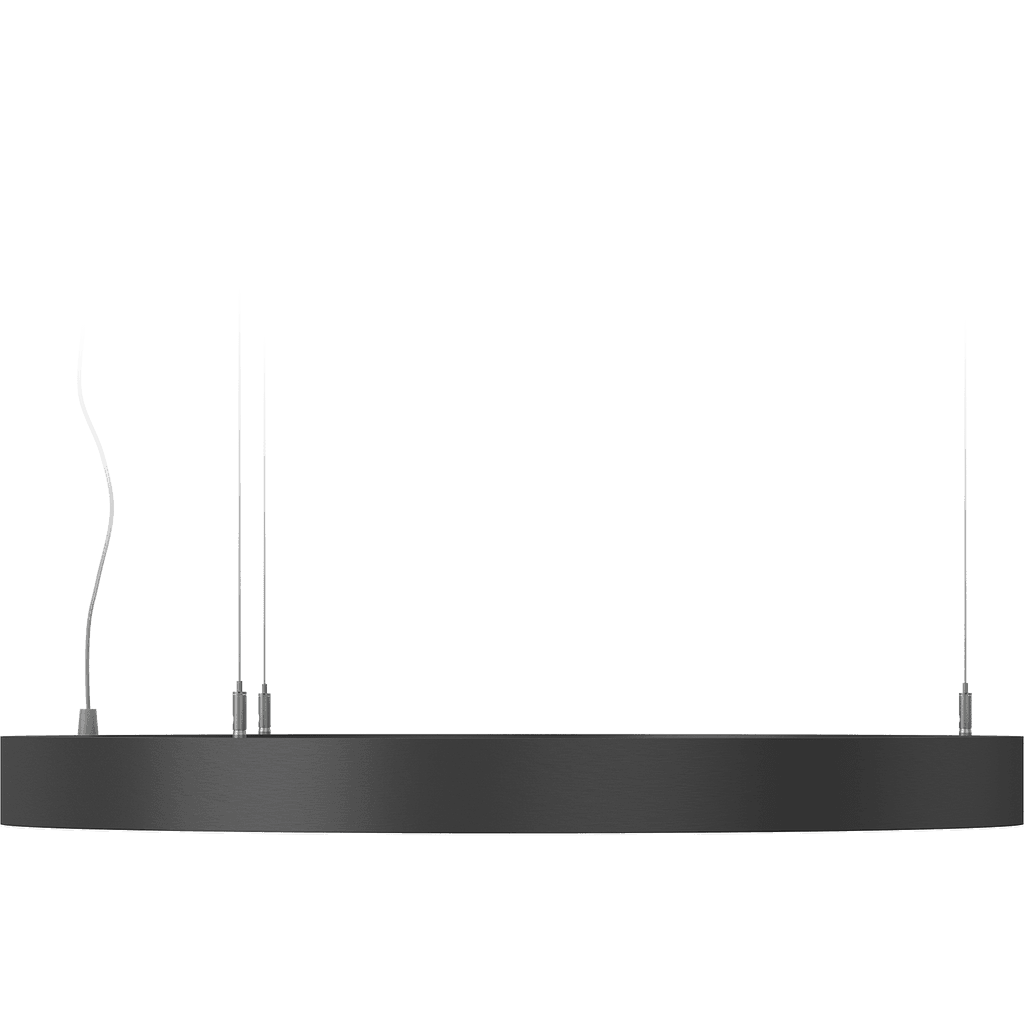

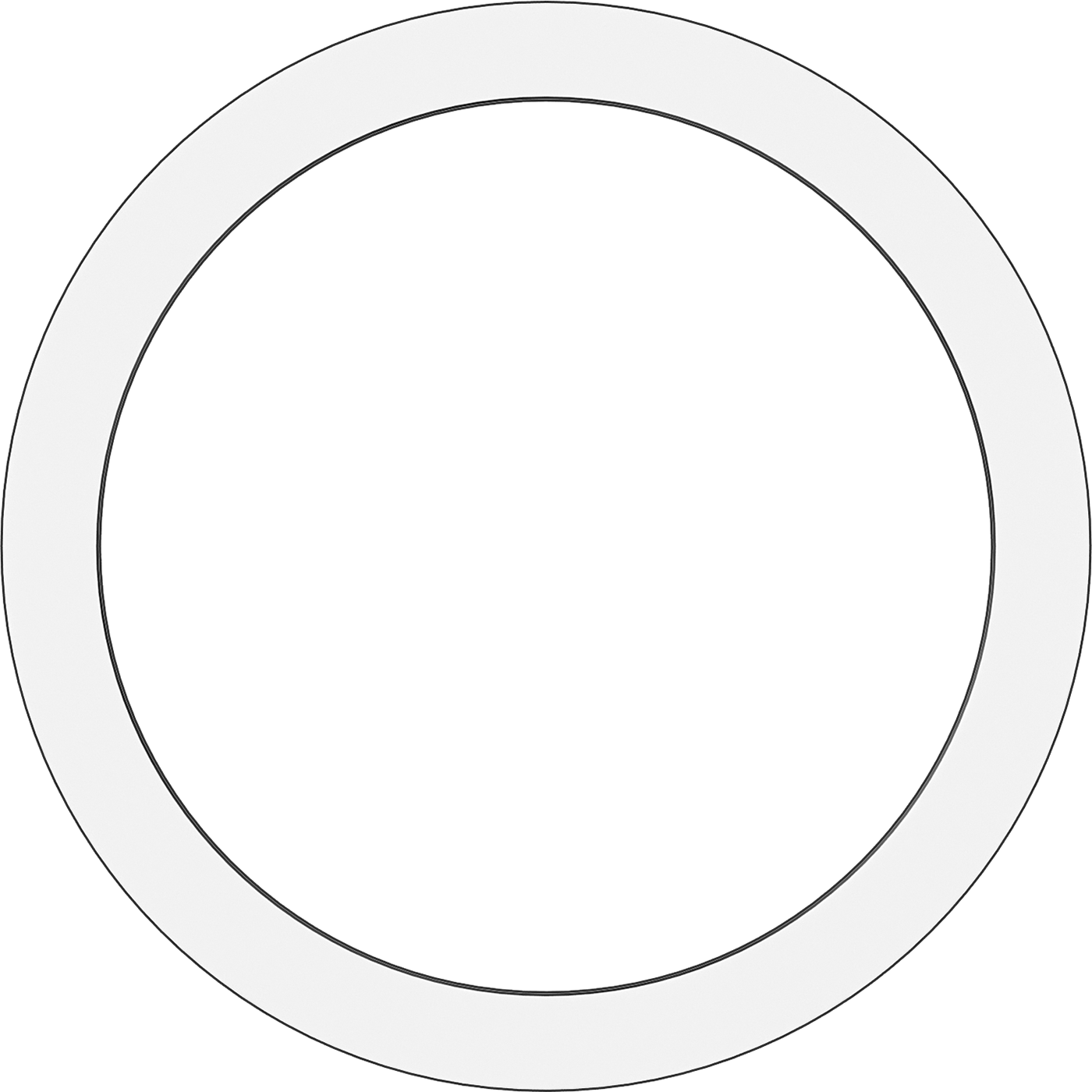

OREOL WIDE FLD/P (1200x500x60) 840 WH (5400 lm)
model is discontinued
model is discontinued
OREOL WIDE FLD/P (1200x500x60) 840 WH (5400 lm)
58 Wluminaire power
5400 lmlight flow
93 lm/Wenergy efficiency
code1813001780
color temperature4000 K
beam angleD120
old nameOREOL WIDE FLD/P (1200x500x60) 840 WH
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
93 lm/Wcolor rendition index (CRI)
>80light flow
5400 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
93 lm/W
color rendition index (CRI)
>80
light flow
5400 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
85 µs
electric shock protection
I
luminaire power
58 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
diameter
1200 mm
height
60 mm
installation length
638 mm
installation width
736 mm
weight
14 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1813001780
