OPL/R 414 /595/ HF Edge 24-02
add to favorites
56 Wluminaire power
1200 lmlight flow
58 lm/Wenergy efficiency
code1027001510
beam angleD120
number of lamps4
performance factor68
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. lamp luminaires
  6. OPL/R
  7. OPL/R 414 /595/ HF Edge 24-02
options
свернуть все
electricalconstructionalcommonilluminating
starting current
10 A
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
electrical
starting current
10 A
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
56 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Сталь
weight
5.2 kg

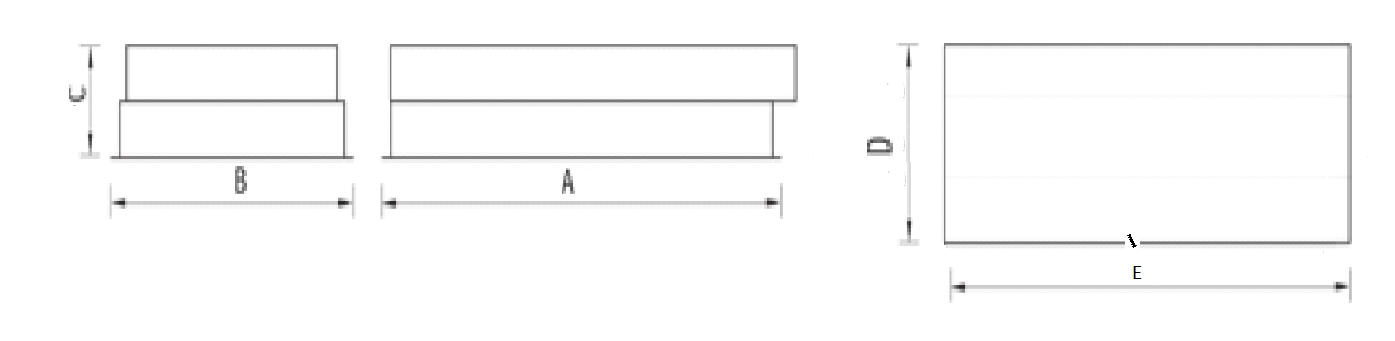

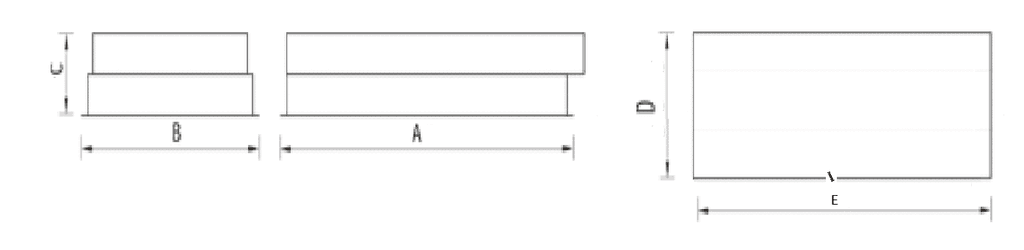

length, mm
610 mm
width, mm
600 mm
height, mm
85 mm
housing color
Белый
installation length, mm
600 mm
installation width, mm
600 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
G5
number of lamps
4
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A…A+
service life, hour
30 000 h
code
1027001510
illuminating
light flow
1200 lm
flickering factor
<5%
energy efficiency
58 lm/W
beam angle
D120
light source type
ЛЛ
emission color
Белый
model files
model files
documents
passport1.1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
documents
passport1.1 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
