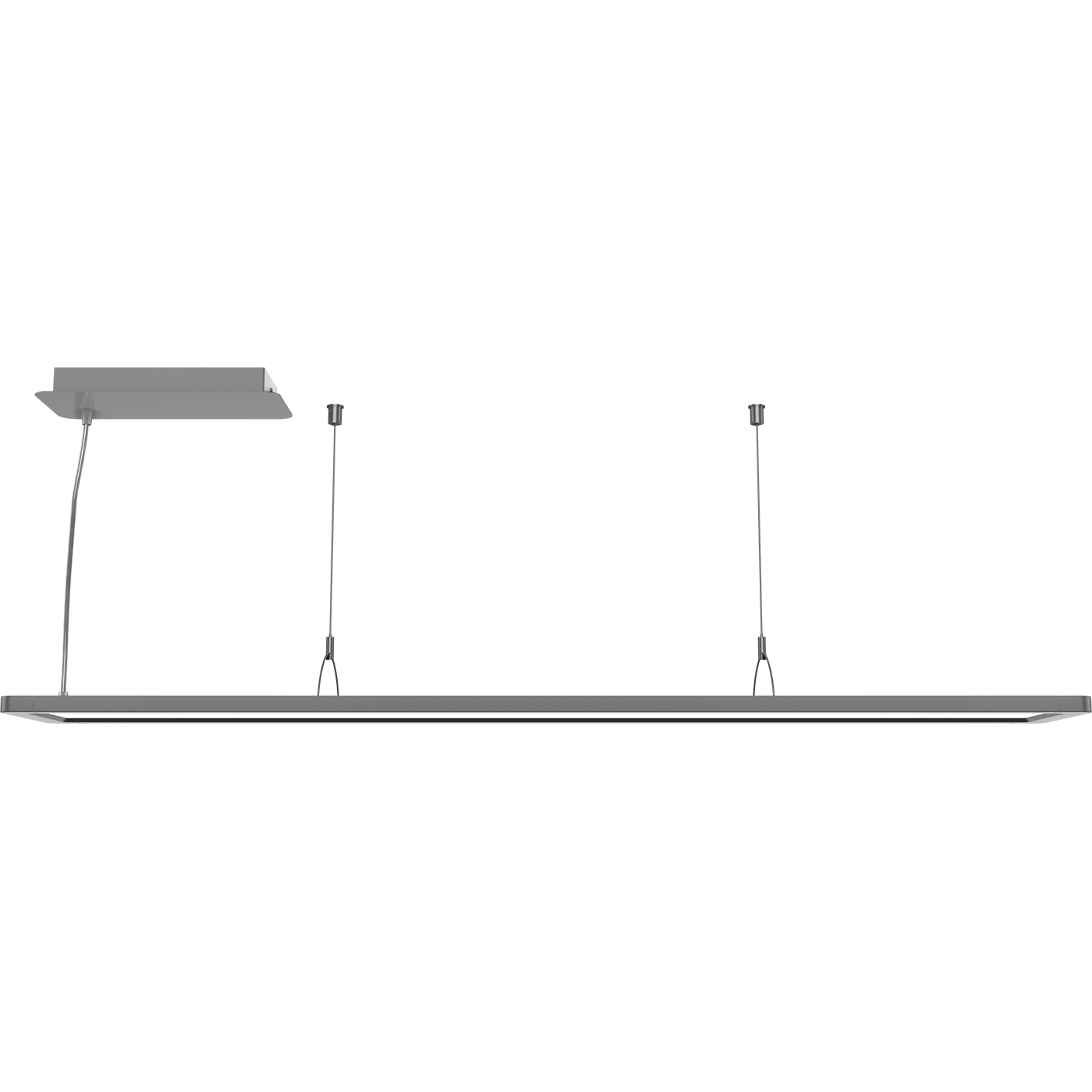

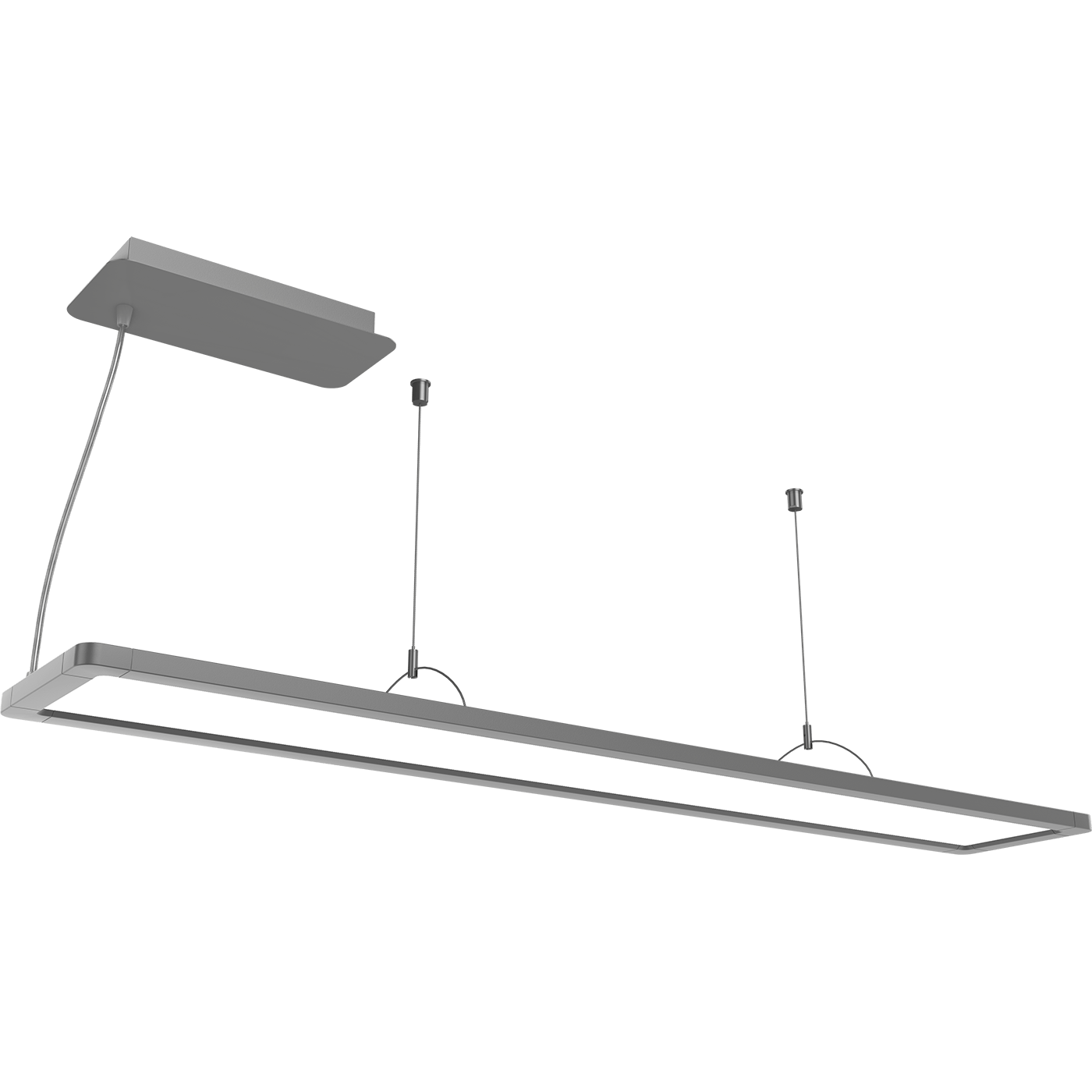

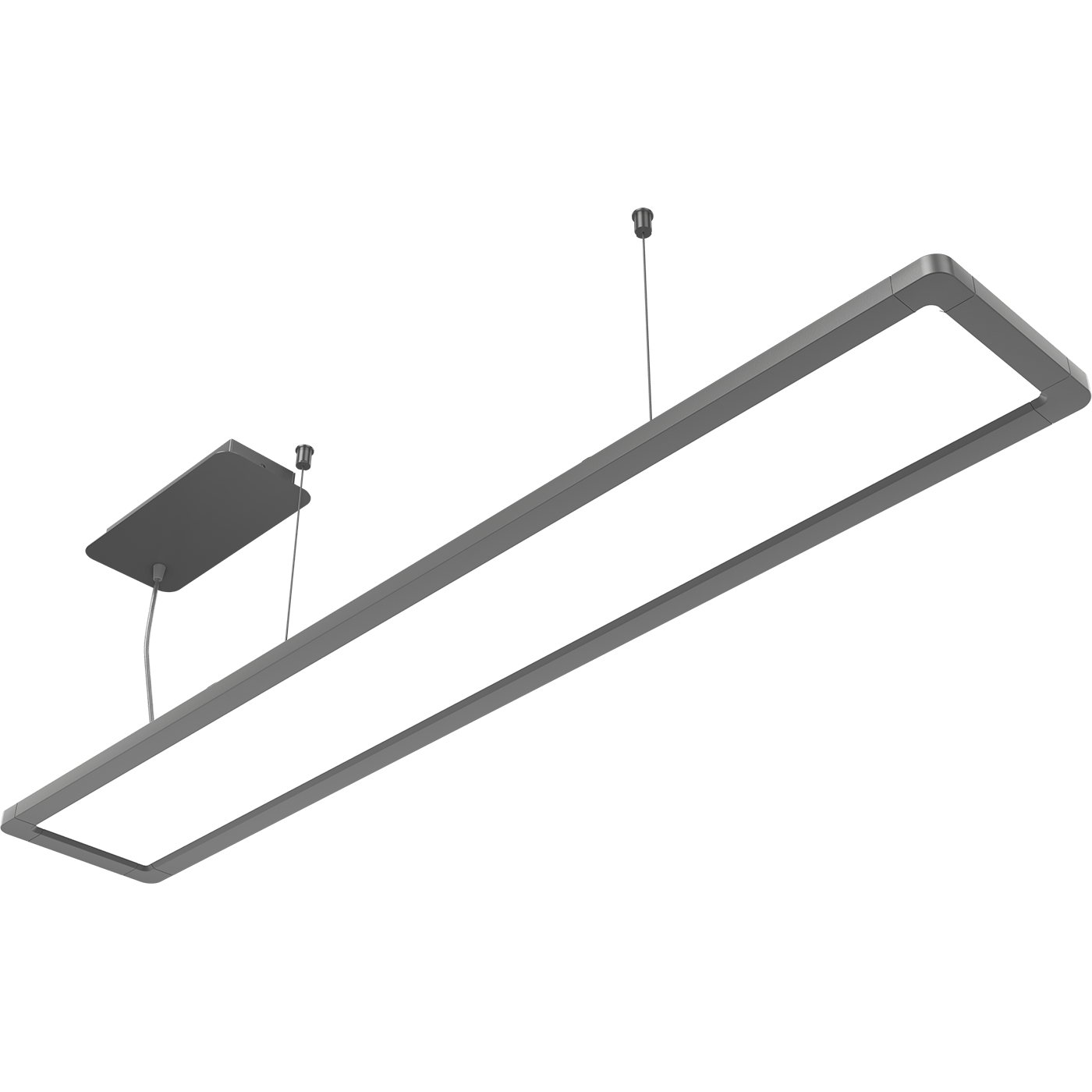

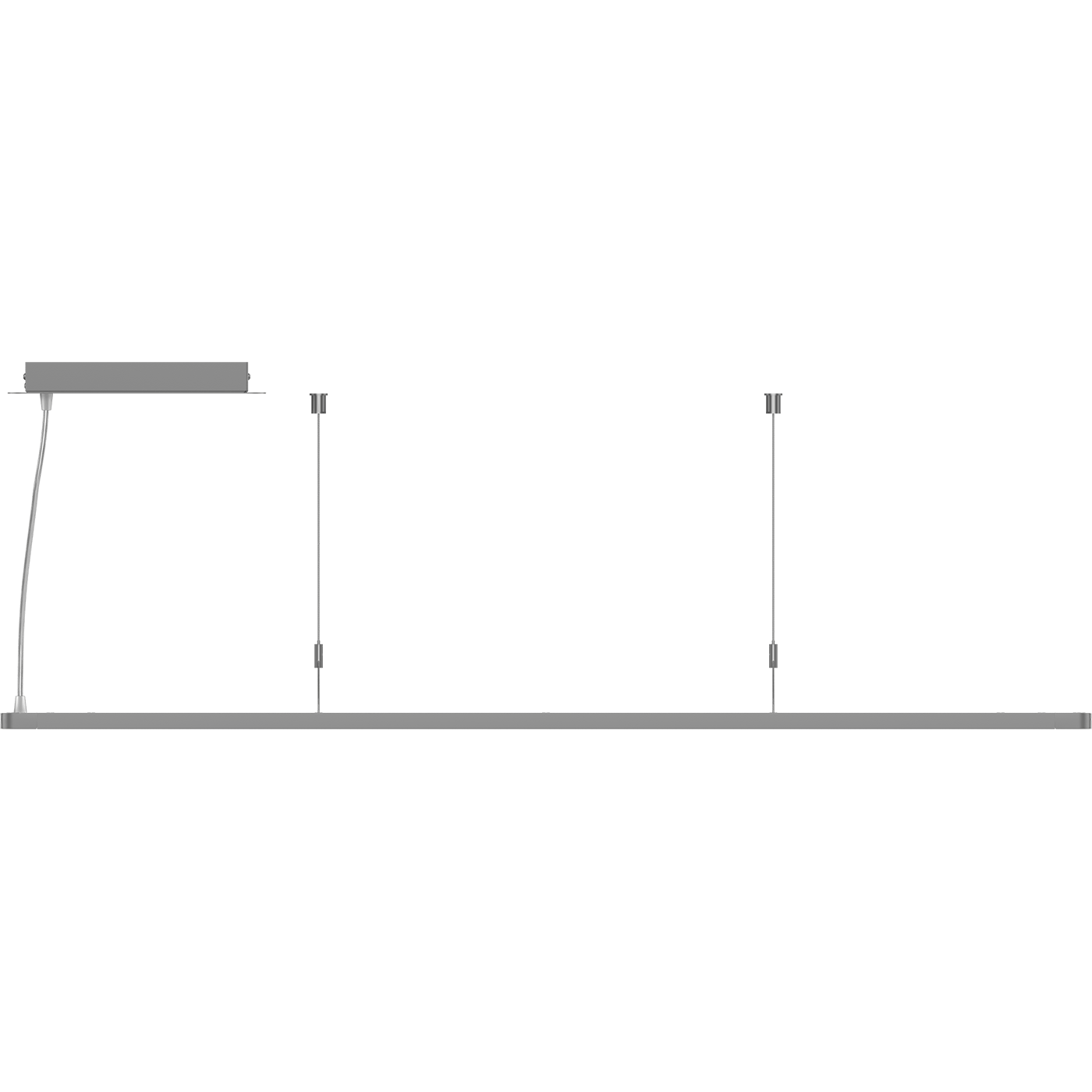

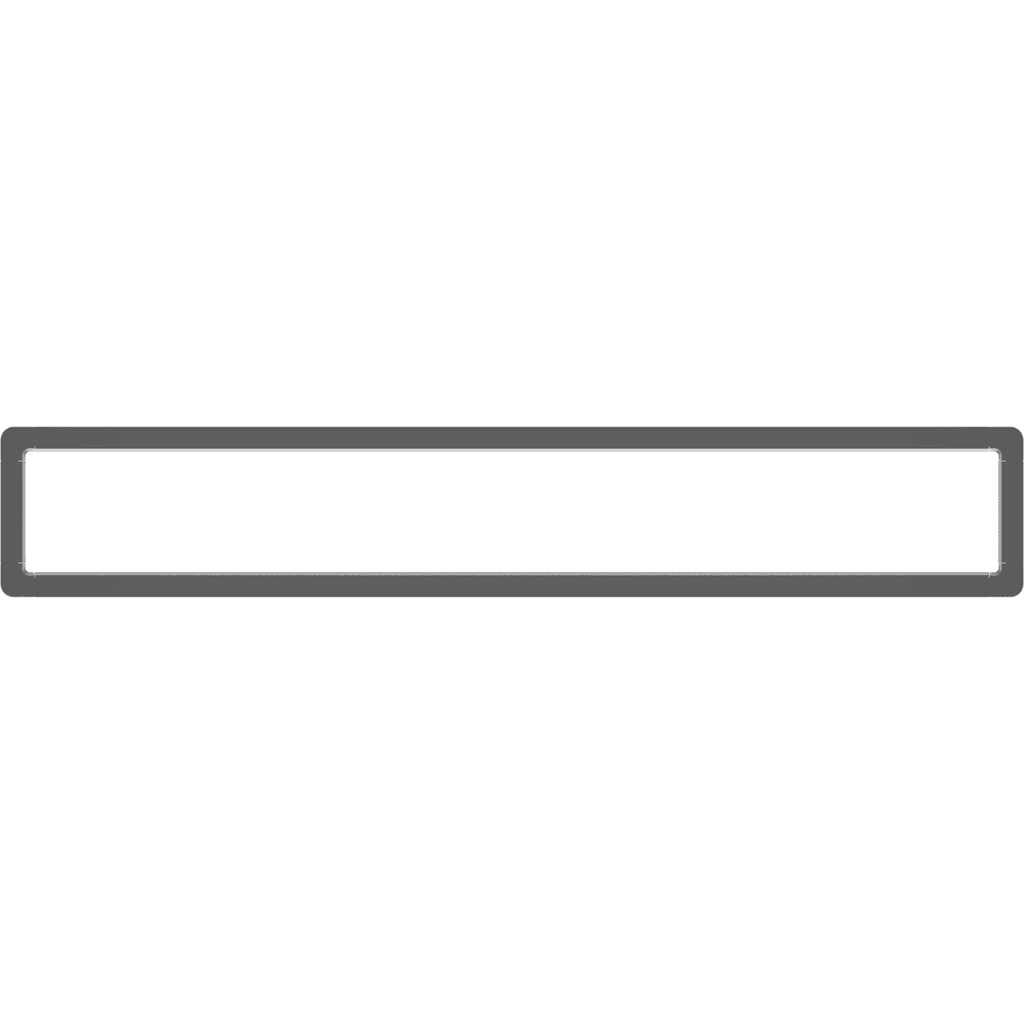

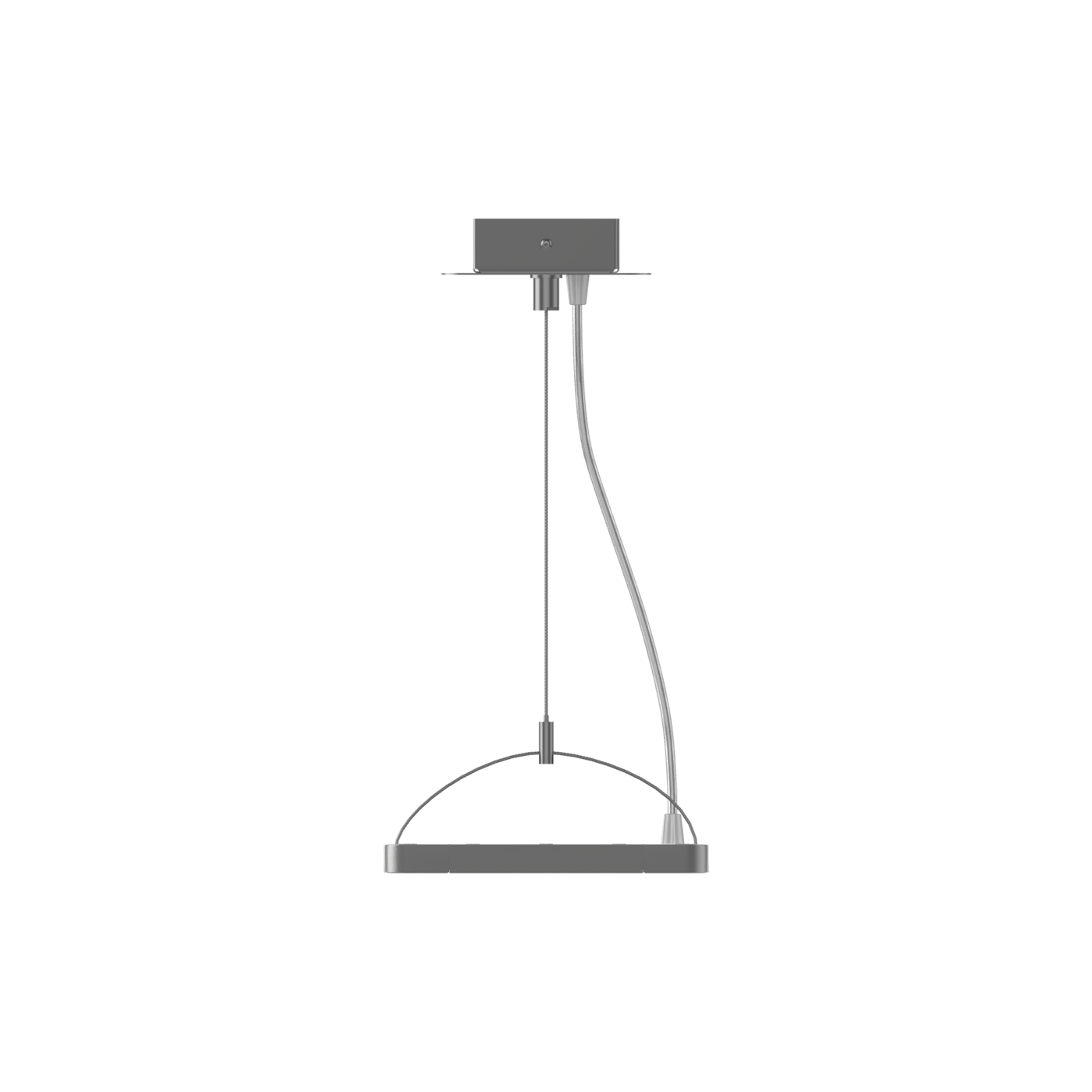

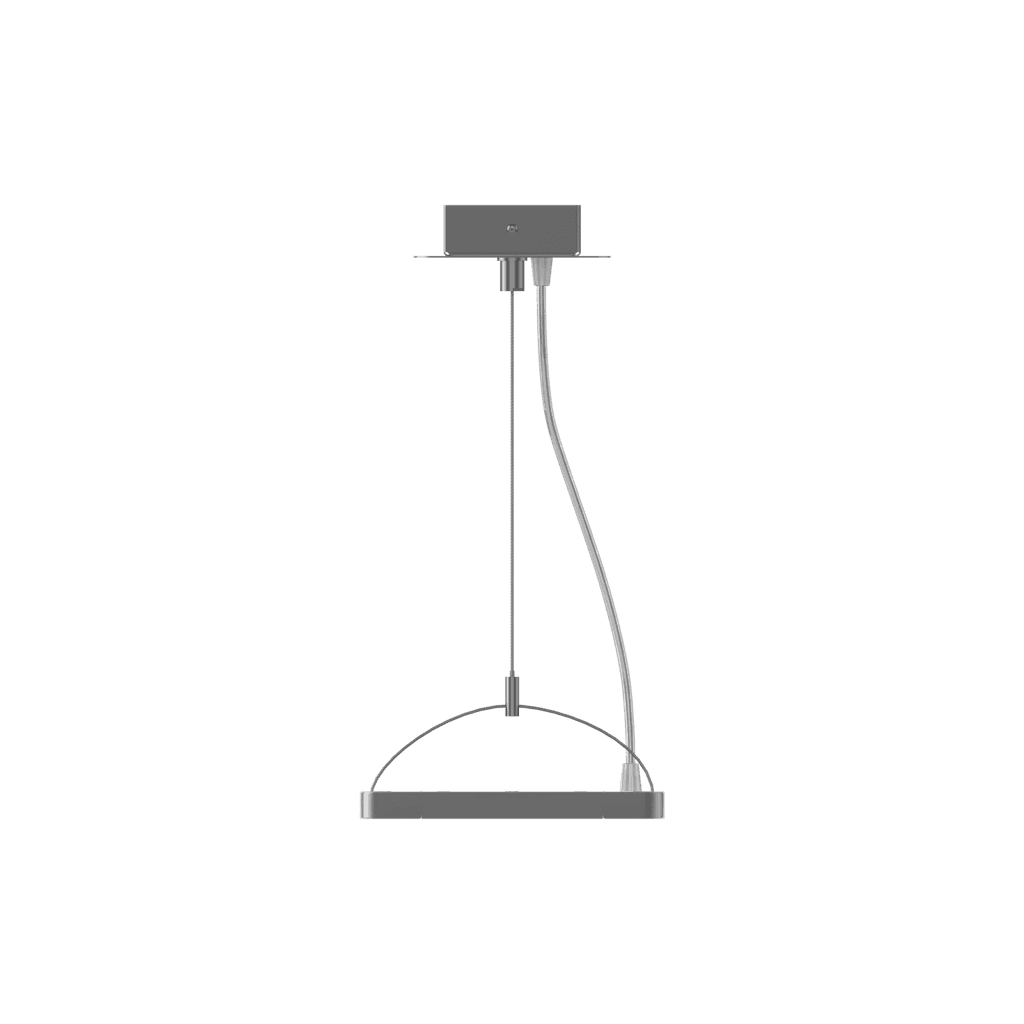

OBLAKO/P LGP (1200x200) OPL 840 SL up/down
OBLAKO/P LGP (1200x200) OPL 840 SL up/down
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1845000020
color temperature4000 K
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
3200 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
400 µs
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1200 mm
width
200 mm
height
18 mm
installation length
450 mm
weight
4 kg
ingress protection (IP)
IP40/IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Металл, пластик
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
36 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Светильник подвесной
code
1845000020
model files
model files

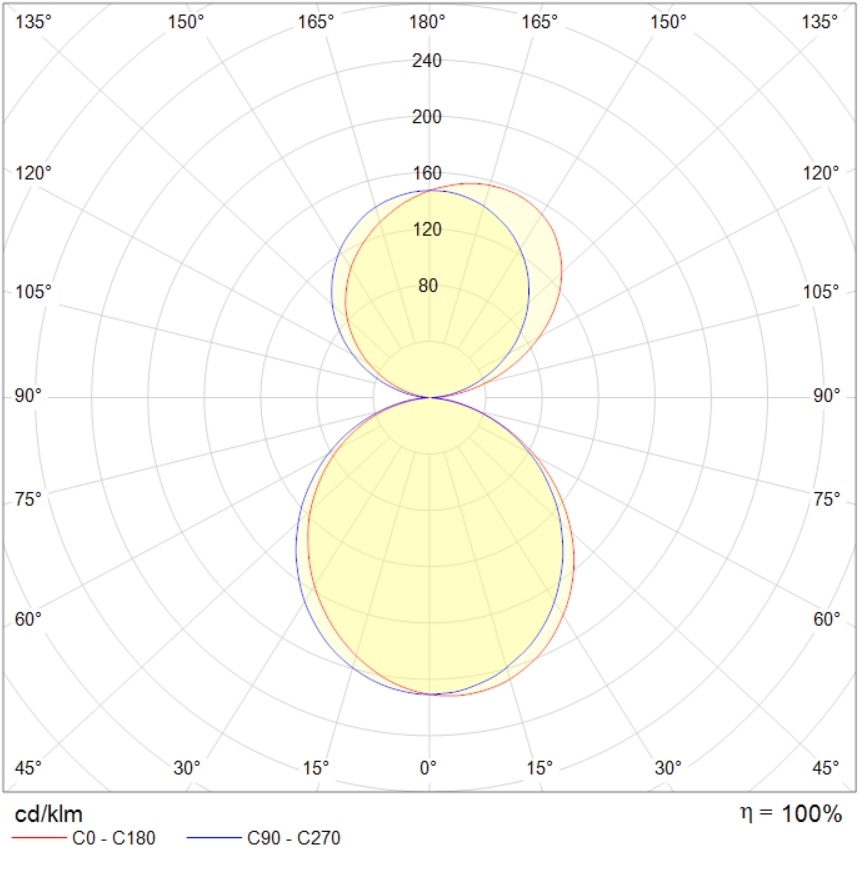

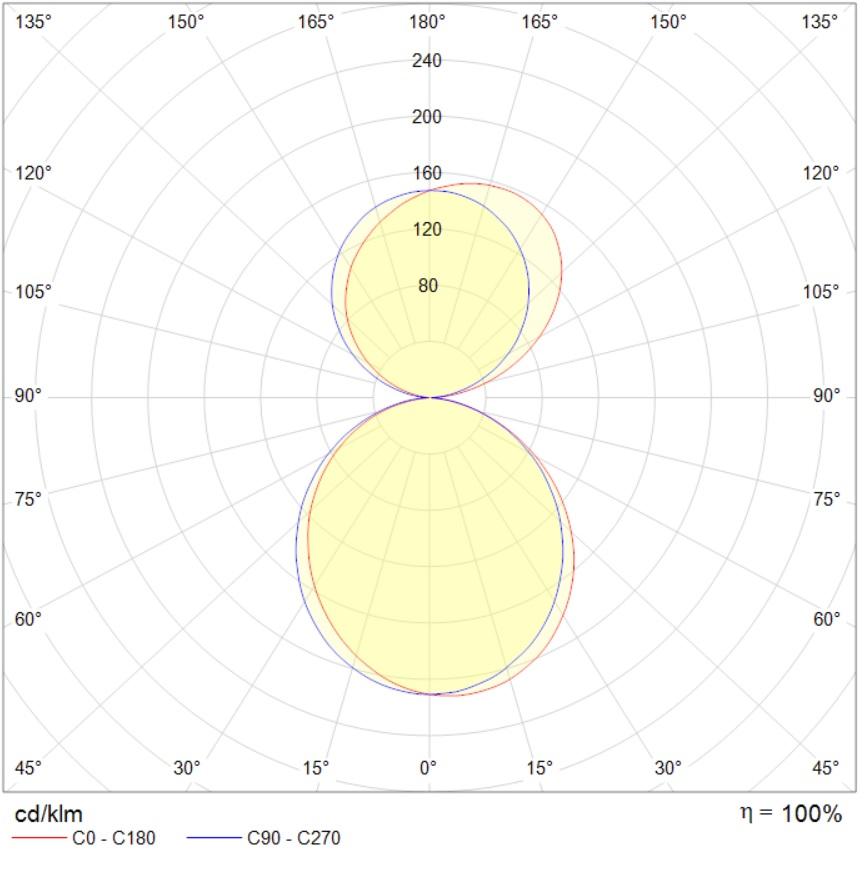

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg111.5 kB
ldt78.8 kB
documents
passport946.4 kB
сертификаты
Russian origin275.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
