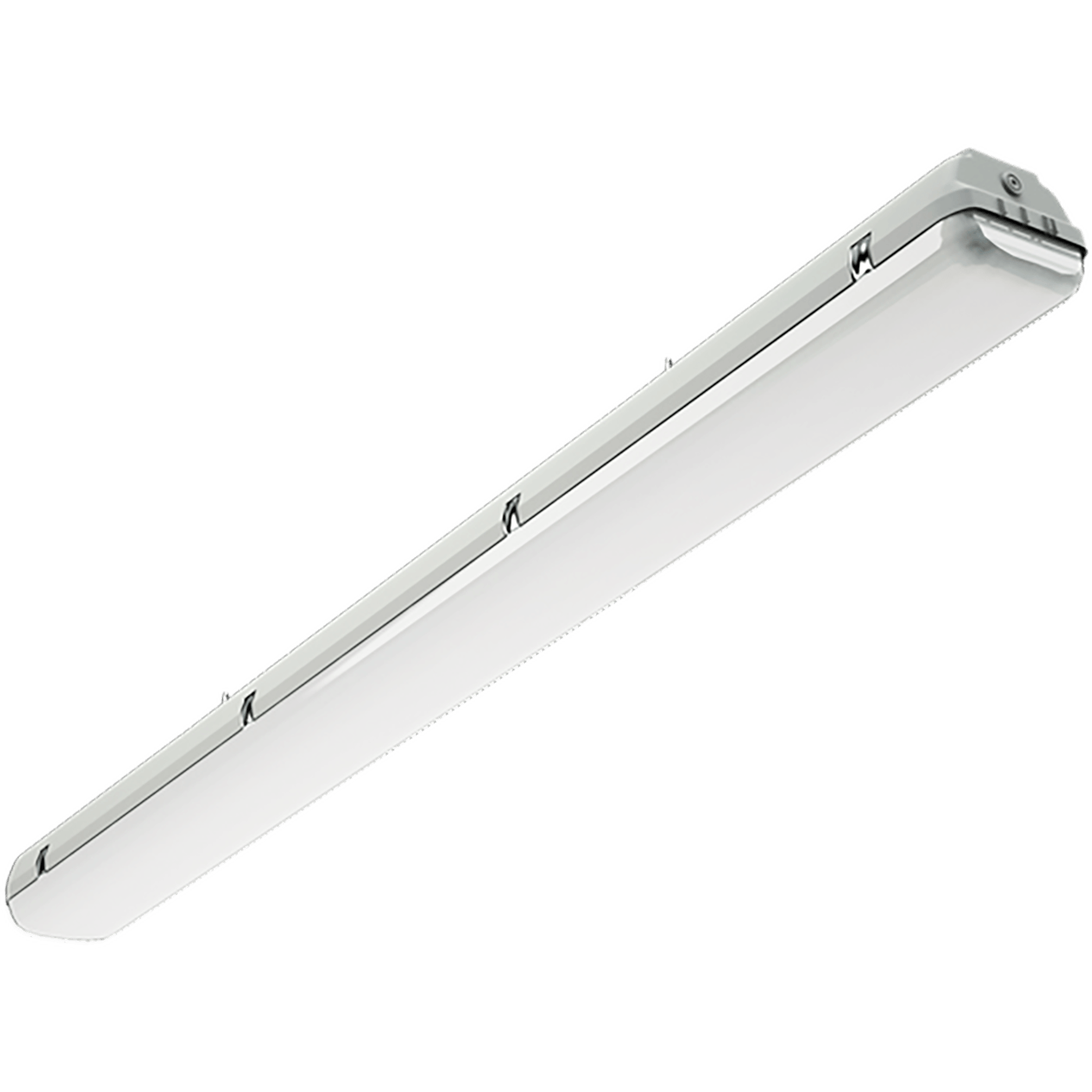

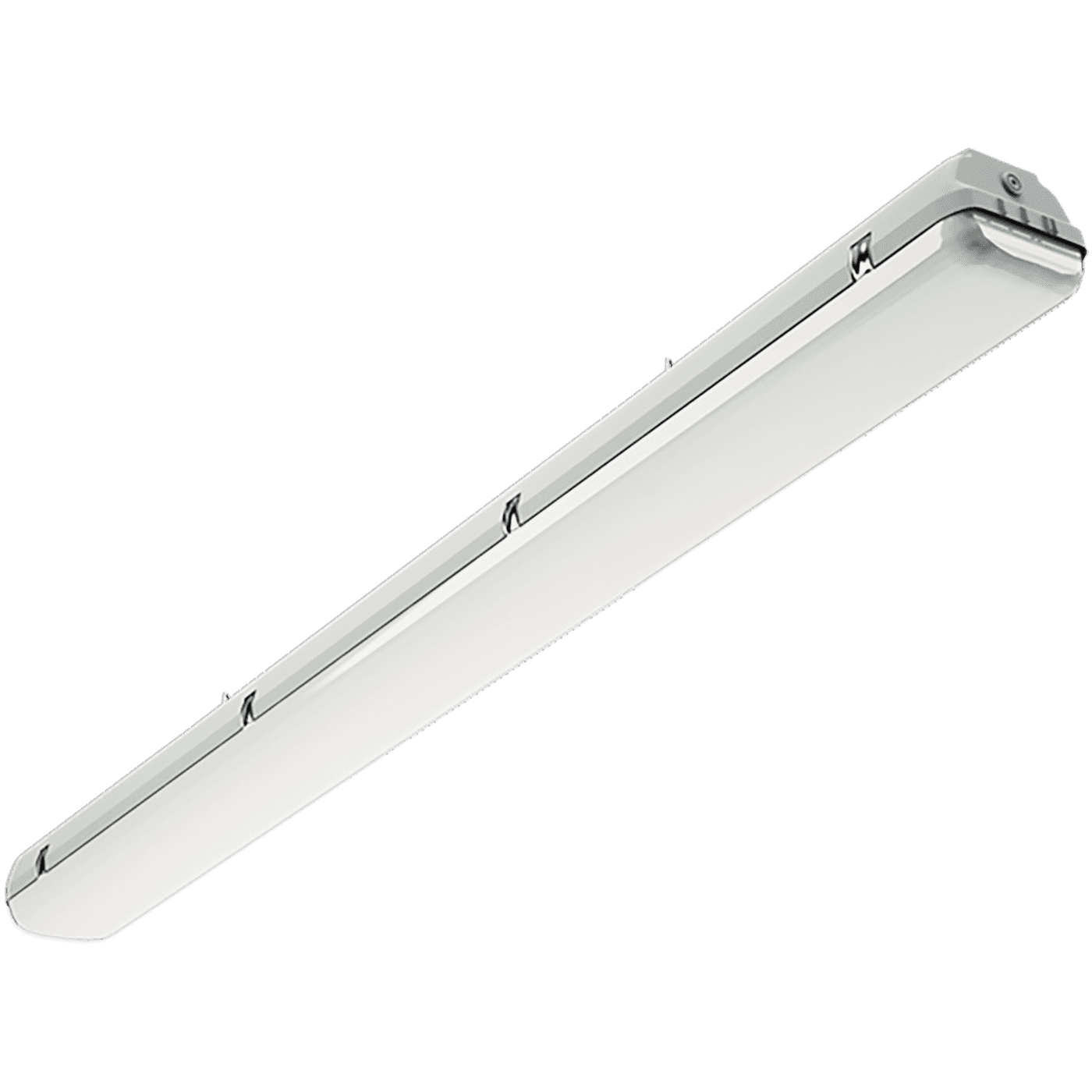

LZ.OPL ECO LED 1200 5000K MT
archive
archive
LZ.OPL ECO LED 1200 5000K MT
45 Wluminaire power
4800 lmlight flow
107 lm/Wenergy efficiency
code1074000800
color temperature5000
beam angleD120
weight3.7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
32 Astarting current pulse time, µs
267 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
176-264 Vsupply voltage, direct current
176-264 Vluminaire power
45 Welectric shock protection
IIpower factor
> 0,96supply voltage
230 Velectrical
starting current
32 A
starting current pulse time, µs
267 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
45 W
electric shock protection
II
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Поликарбонат
weight
3.7 kg
housing color
Серый
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
1272 mm
width, mm
173 mm
height, mm
103 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
800 mm
common
ETIM class
Настенно-потолочный светильник
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1074000800
illuminating
light flow
4800 lm
flickering factor
<5%
energy efficiency
107 lm/W
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files
documents
сертификаты
documents
passport472.1 kB
сертификаты
Russian origin550.5 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
