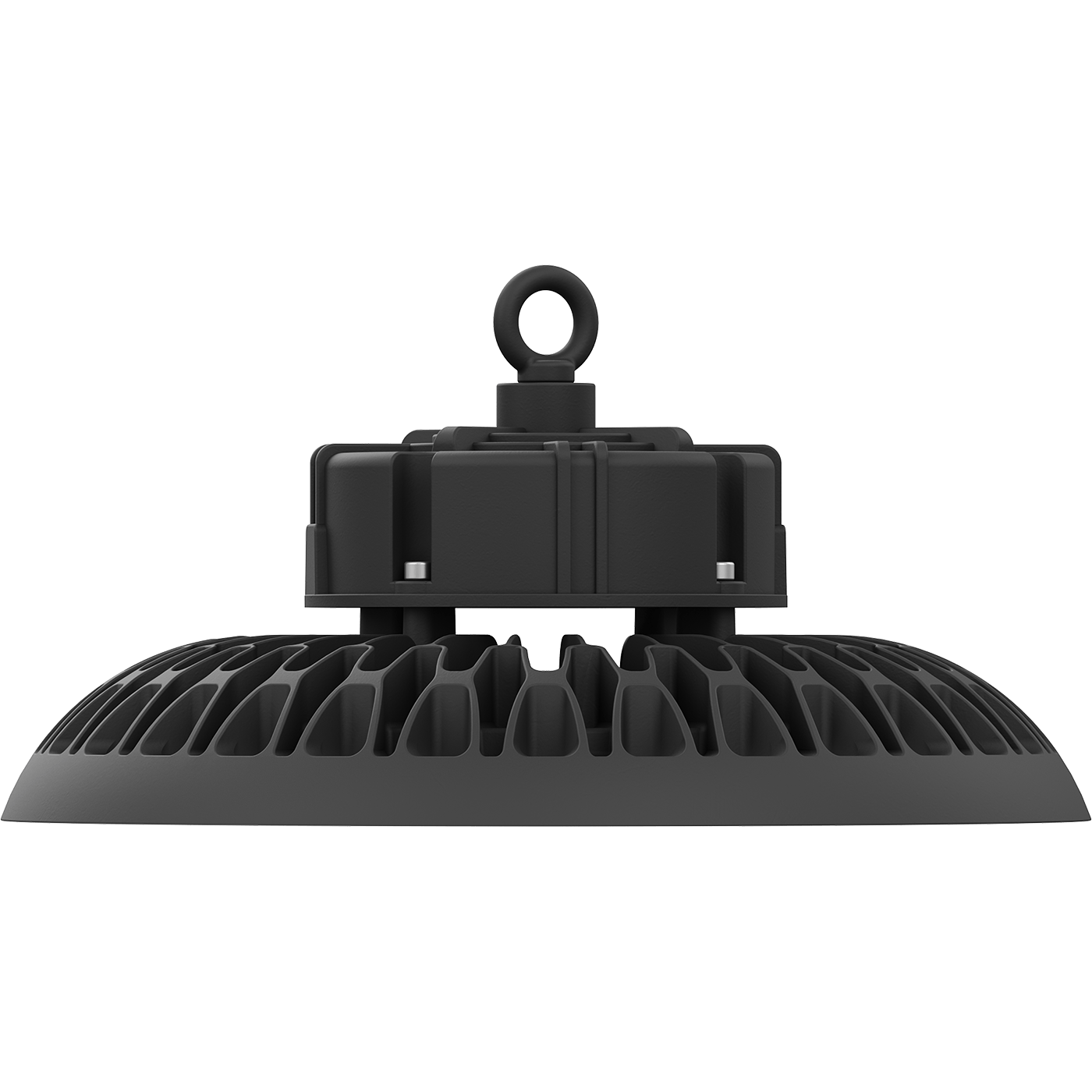

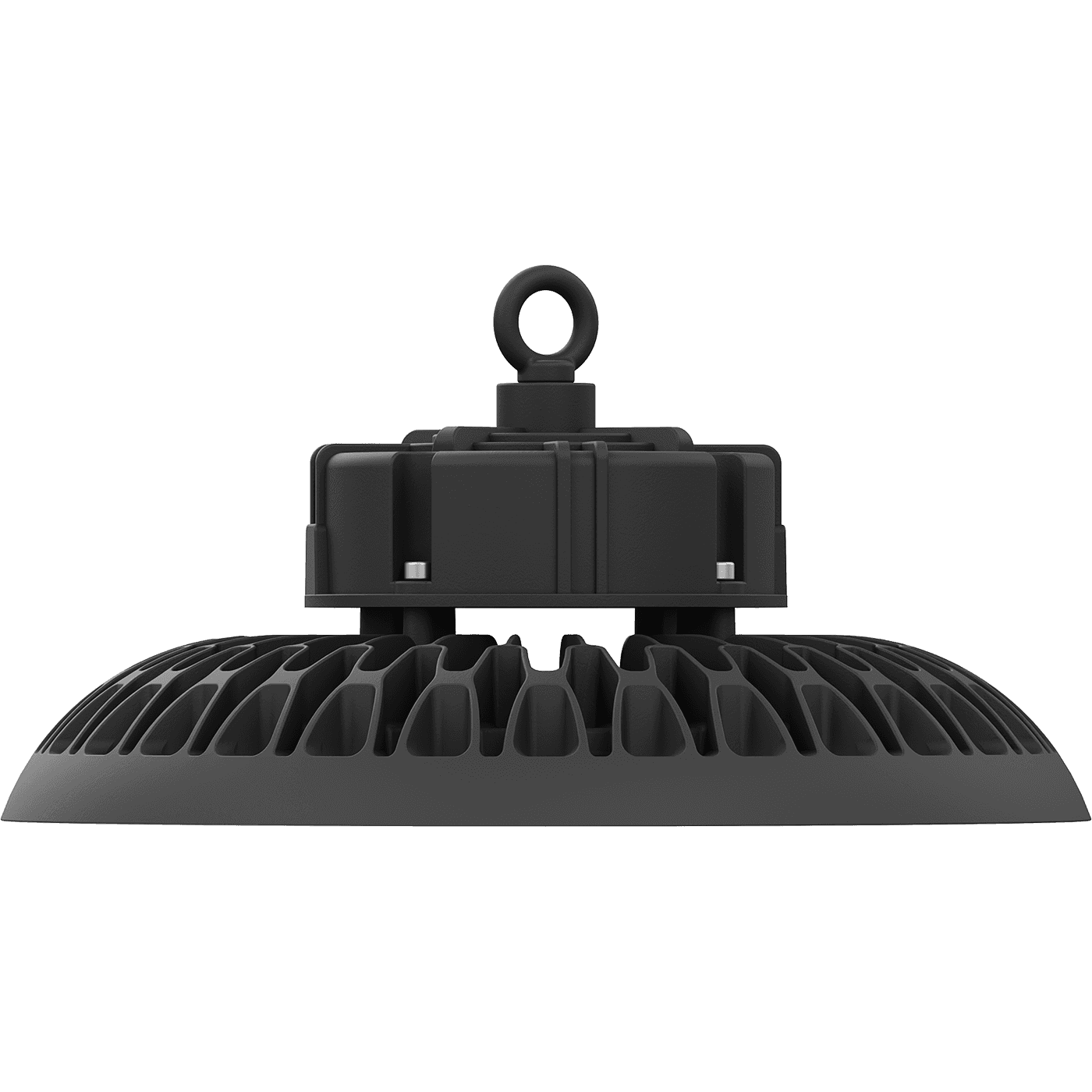

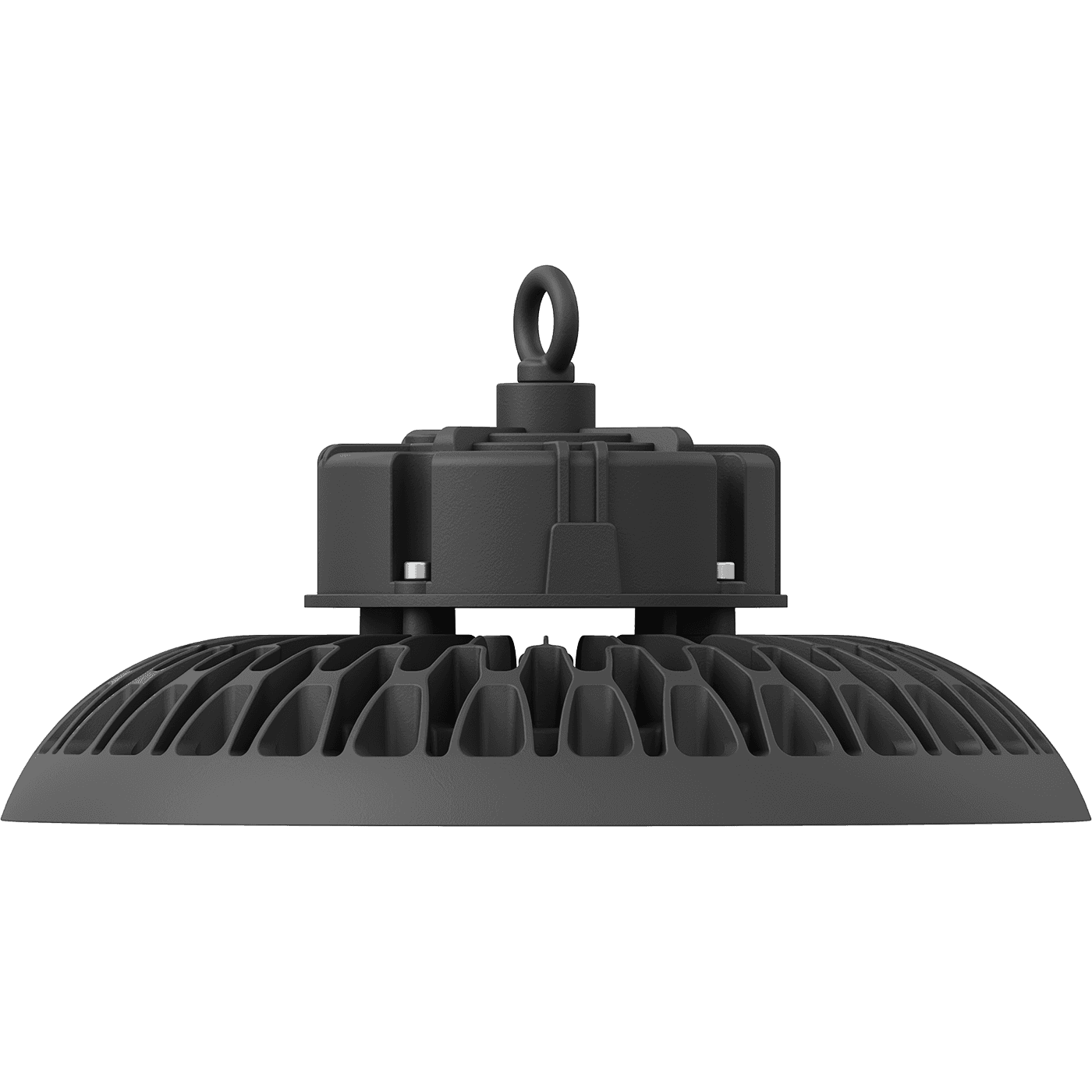

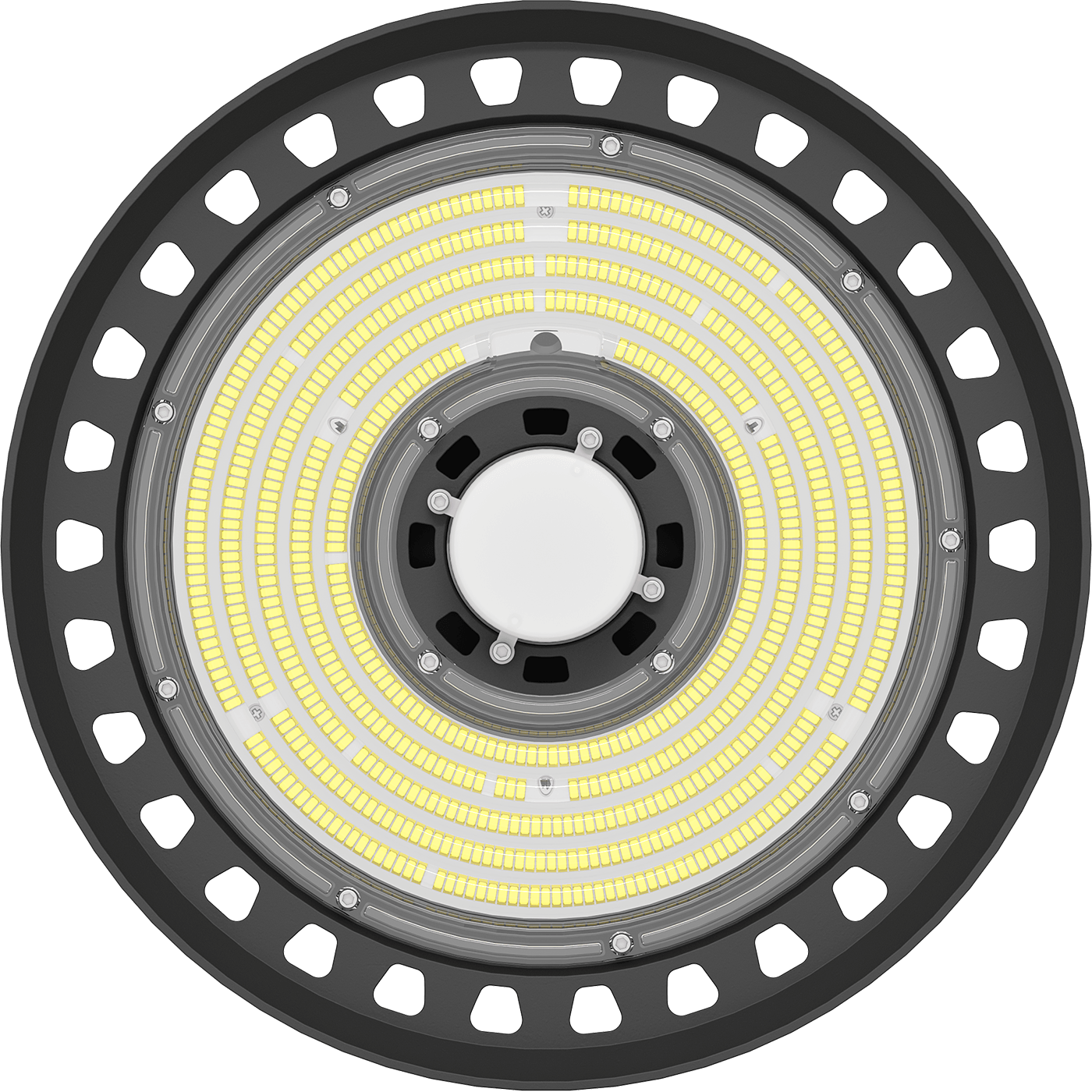

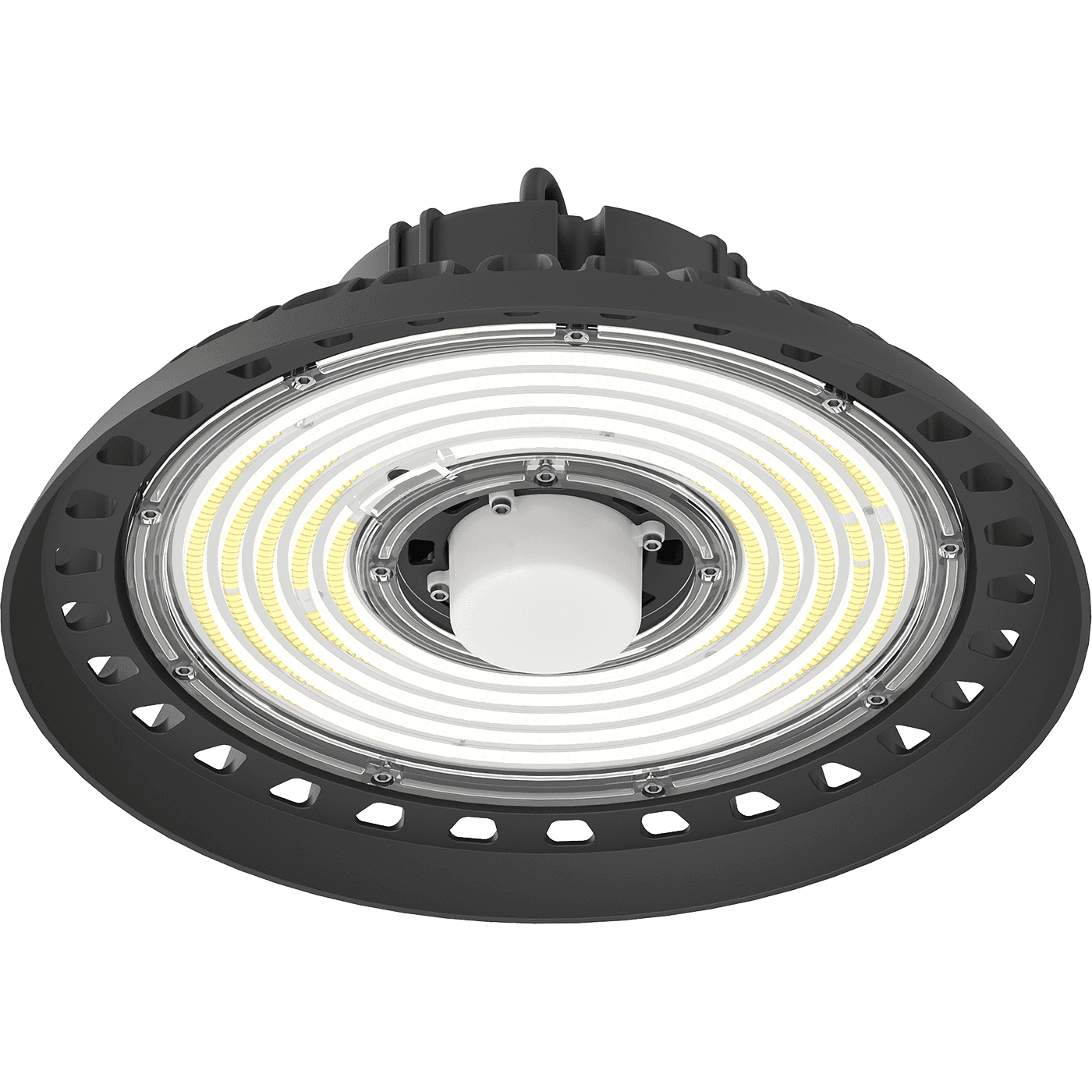

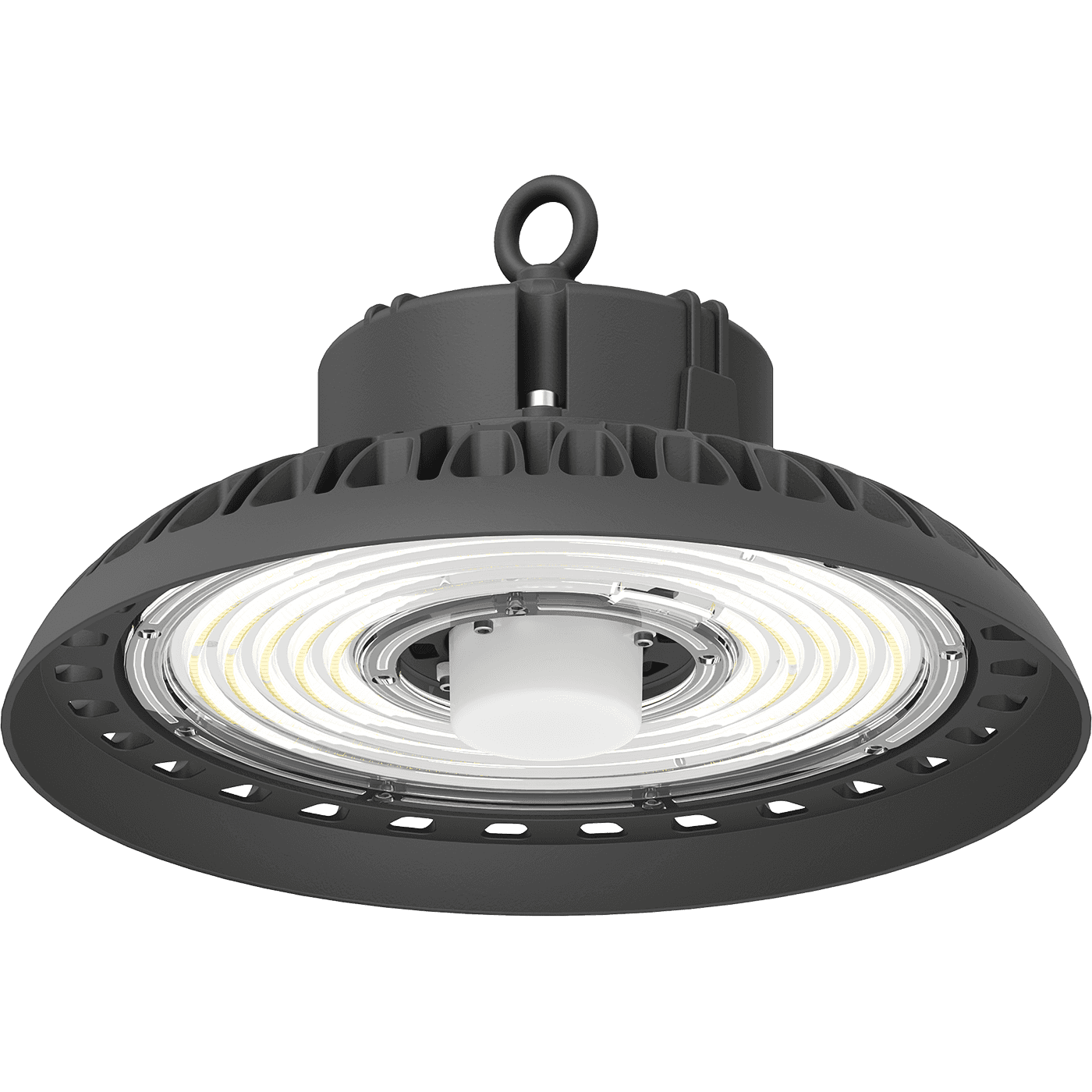

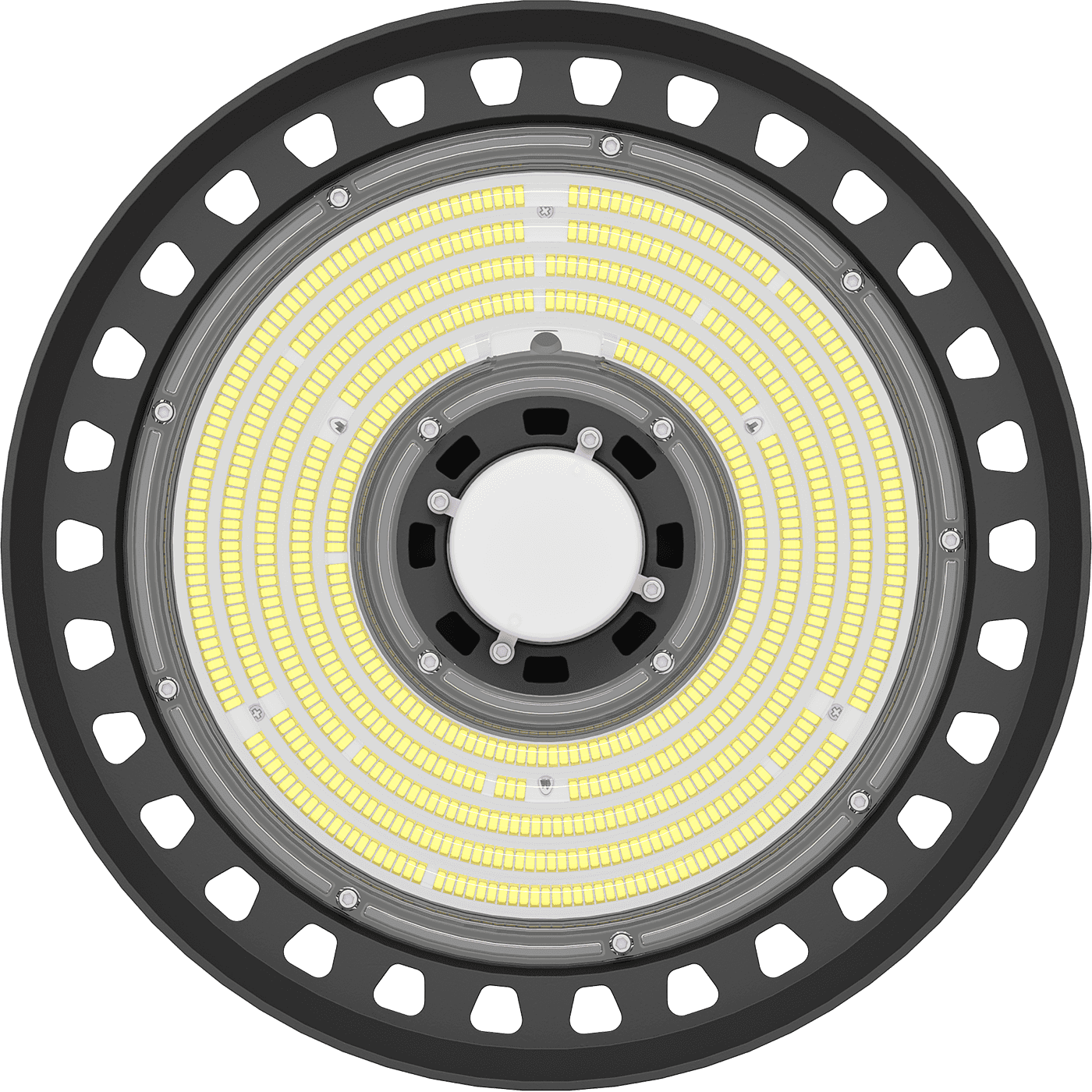

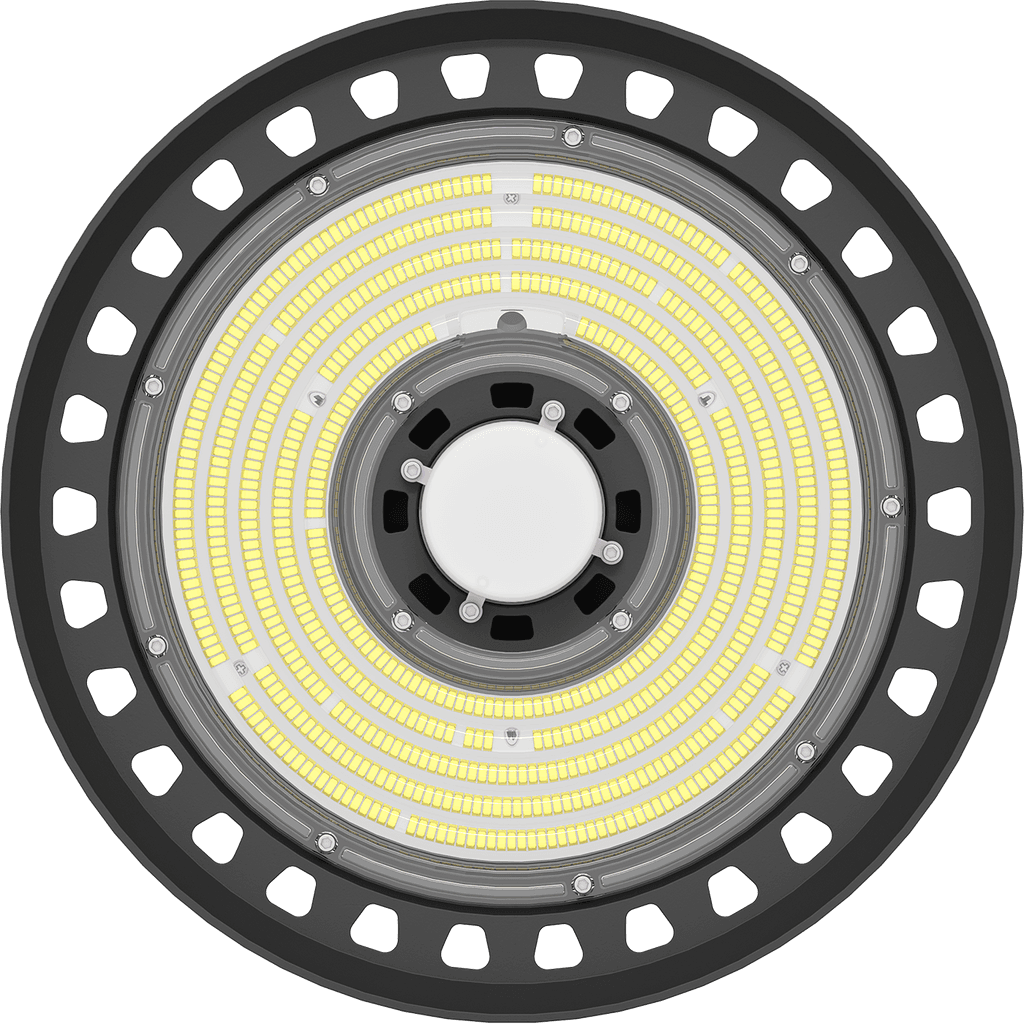

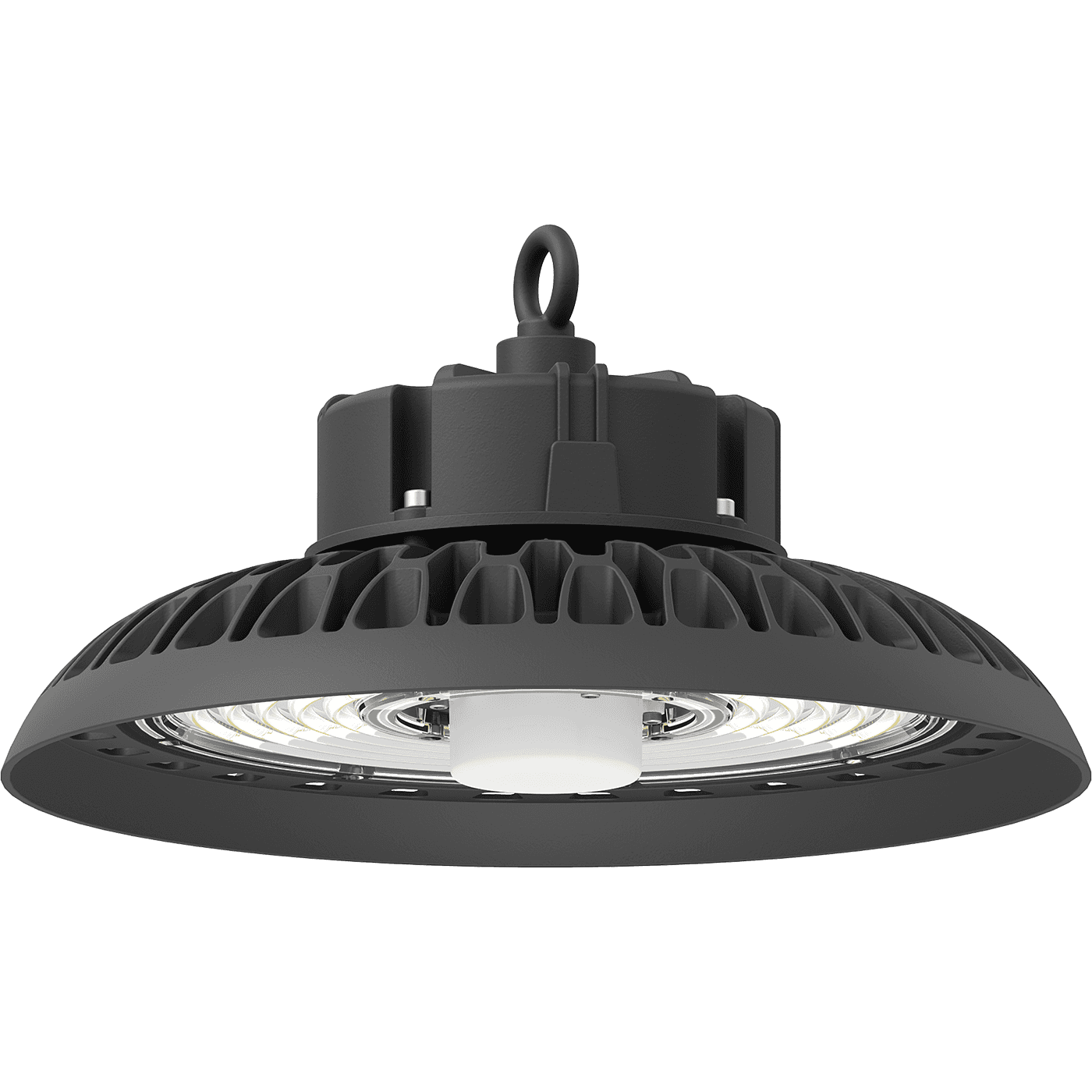

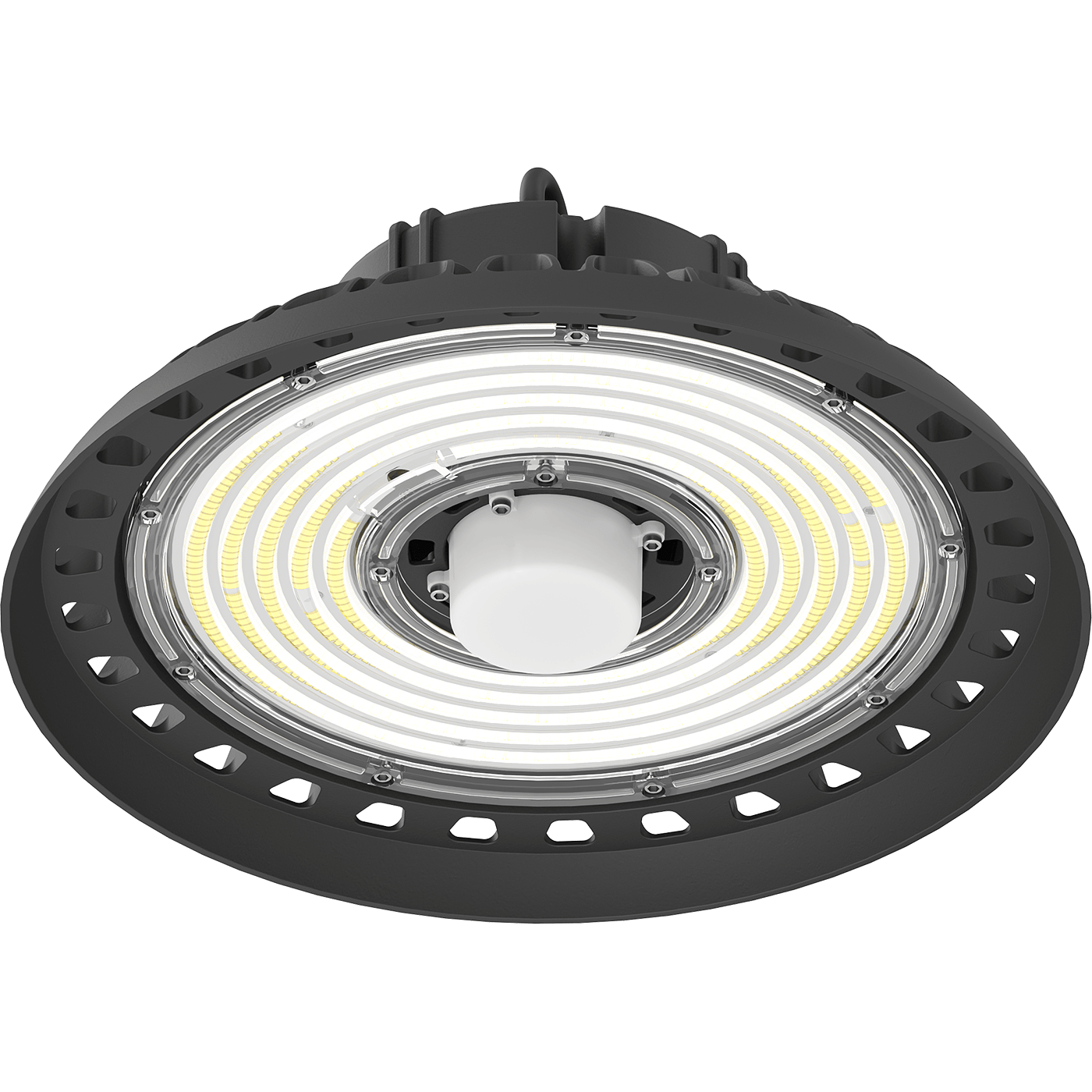

LODESTAR ECO LED 150 D90 HFD 5000K G2
LODESTAR ECO LED 150 D90 HFD 5000K G2
148 Wluminaire power
26600 lmlight flow
180 lm/Wenergy efficiency
code1449000390
color temperature5000
beam angleD90
weight2.9 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
rated supply voltage, alternating current
220 Vsupply voltage, alternating current
100-277 Vluminaire power
148 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
220 V
supply voltage, alternating current
100-277 V
luminaire power
148 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІ
material
Алюминий
weight
2.9 kg
housing color
Черный
climatic performance
УХЛ2*
maximum cross-section of the connected cable, sq. mm
2.5
diameter, mm
340 mm
height, mm
185 mm
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1449000390
illuminating
light flow
26600 lm
flickering factor
<3%
energy efficiency
180 lm/W
beam angle
D90
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>70
LMS options
dimming
DALI
model files
model files

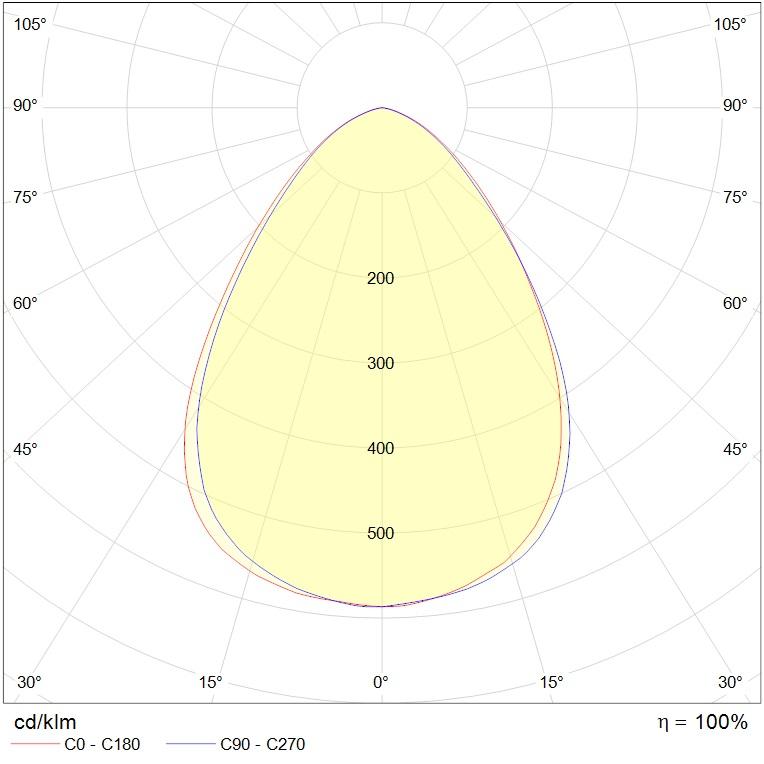

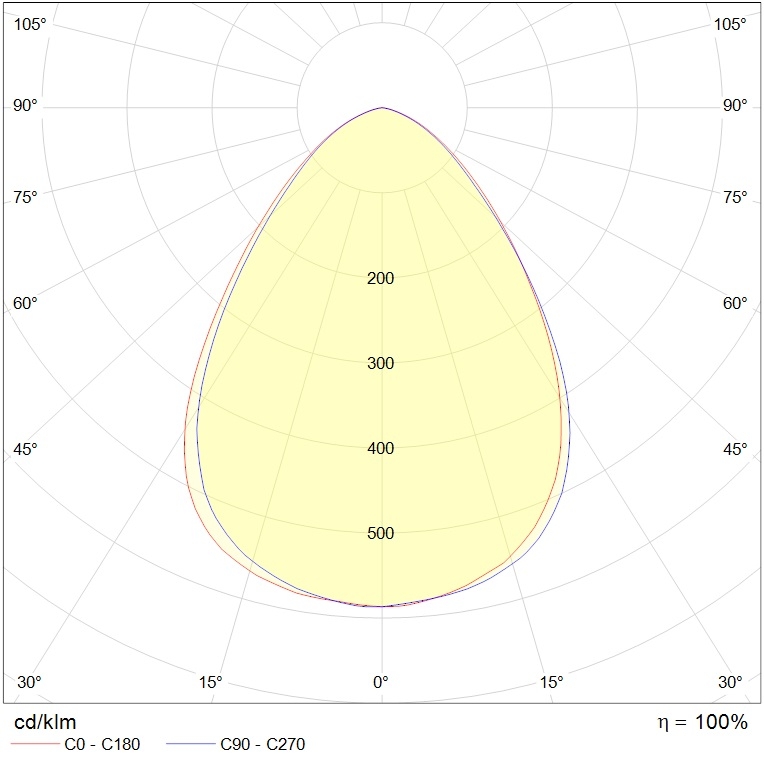

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg84.3 kB
ldt65 kB
documents
passport2 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
