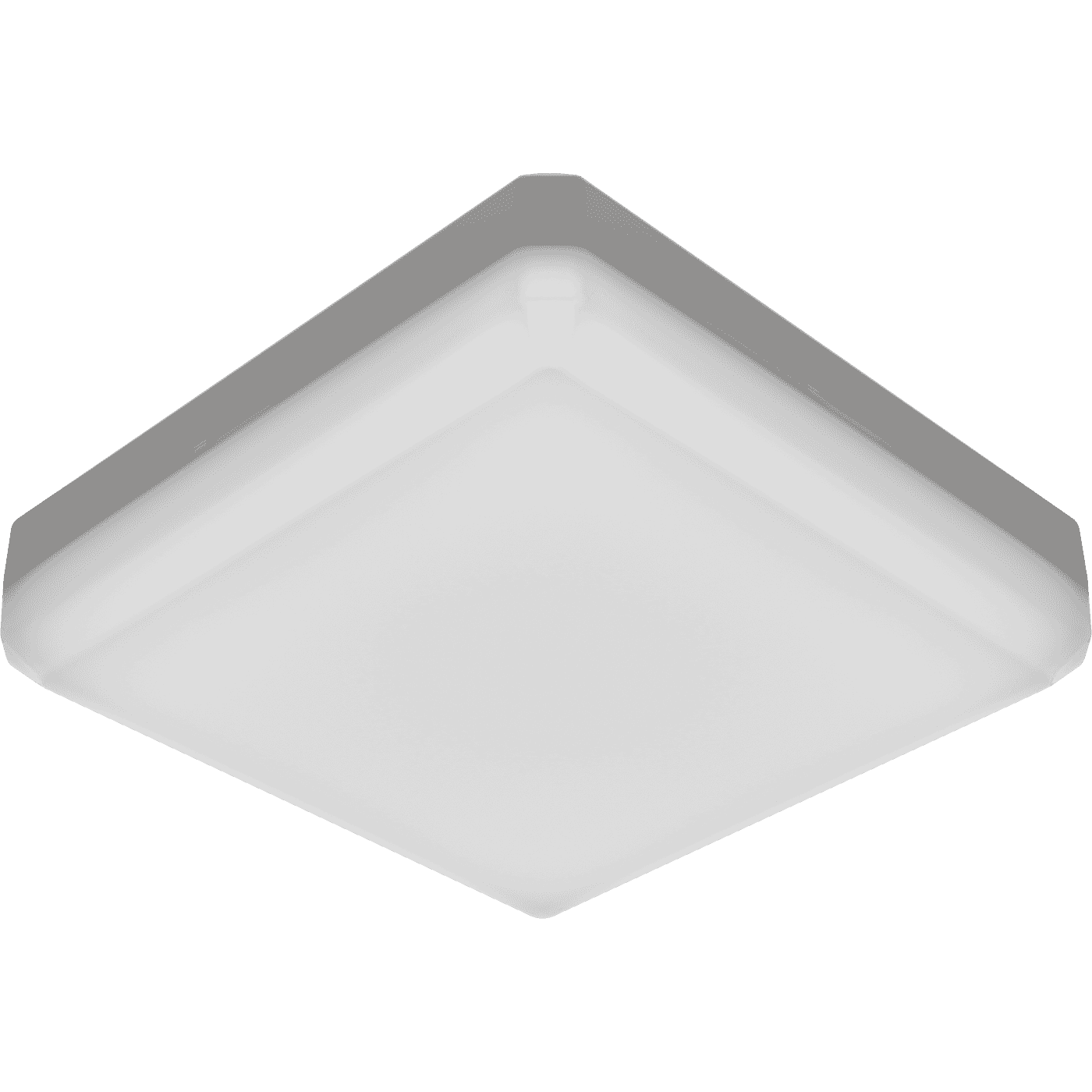

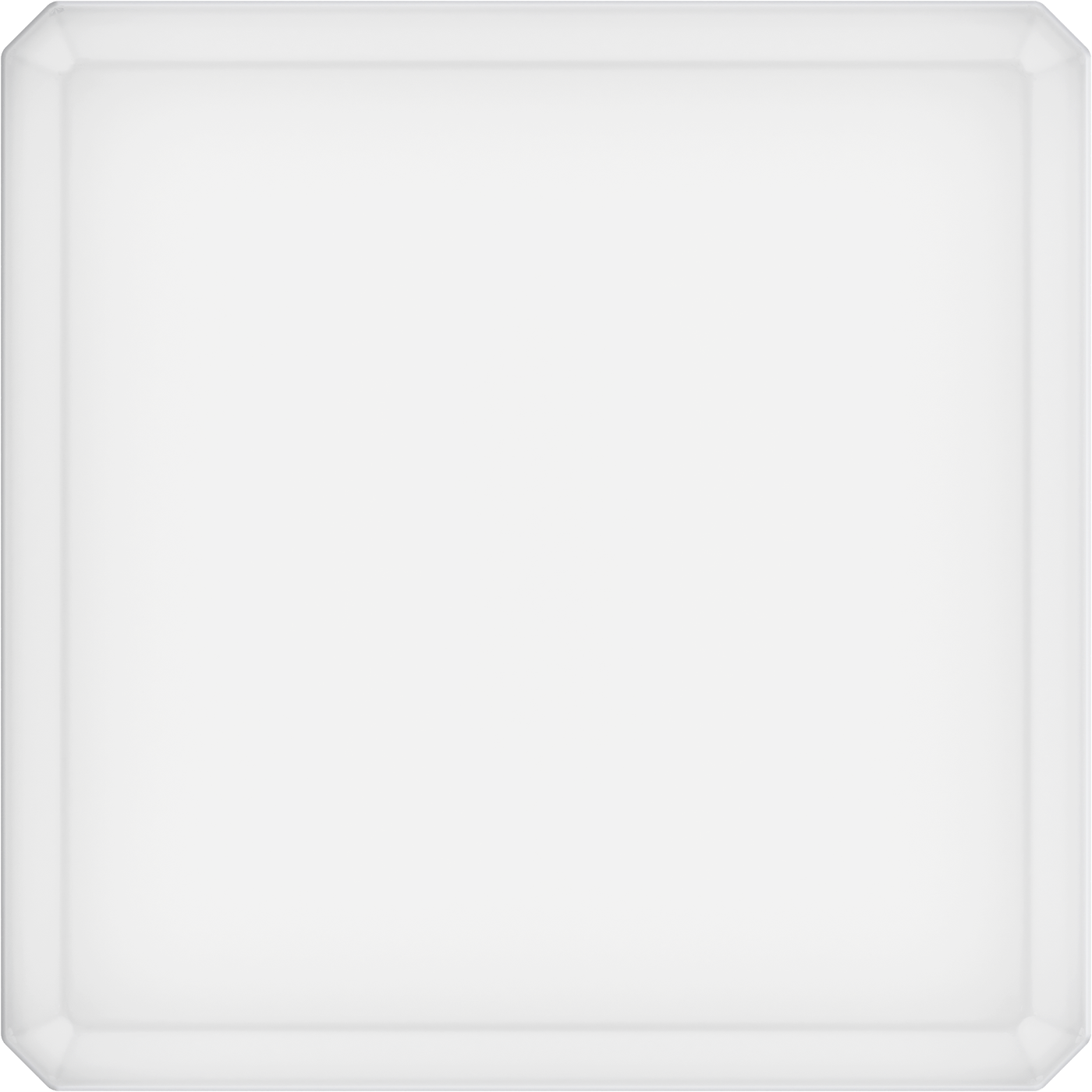

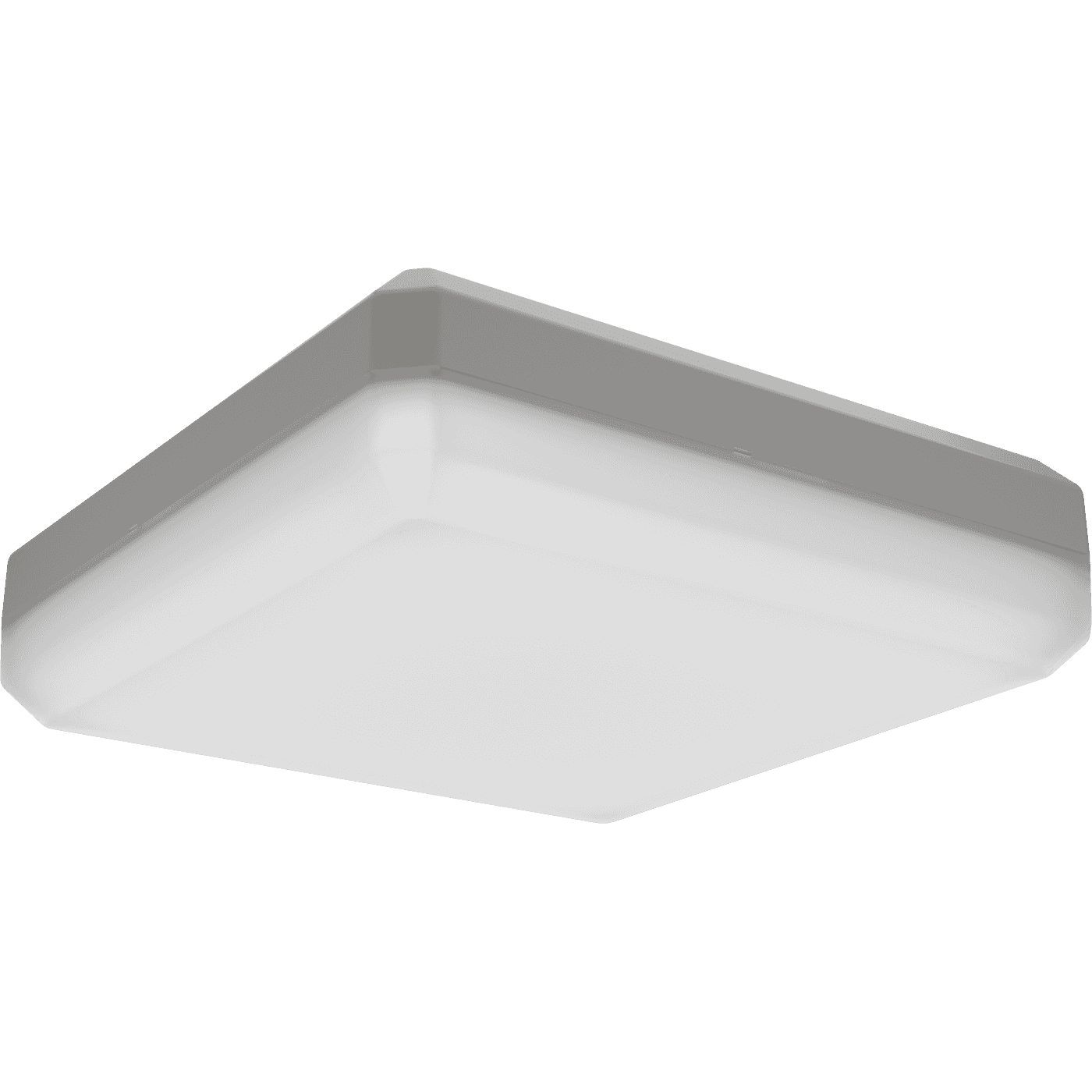

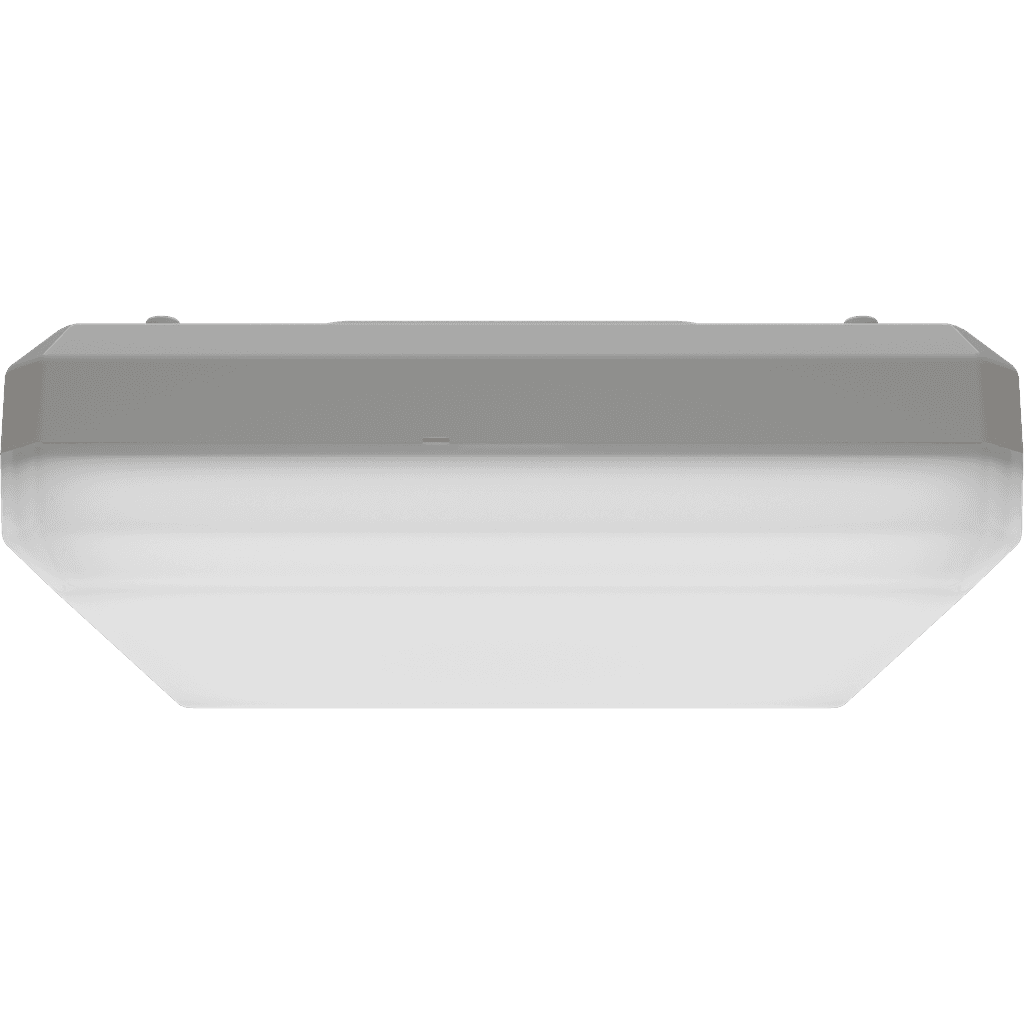

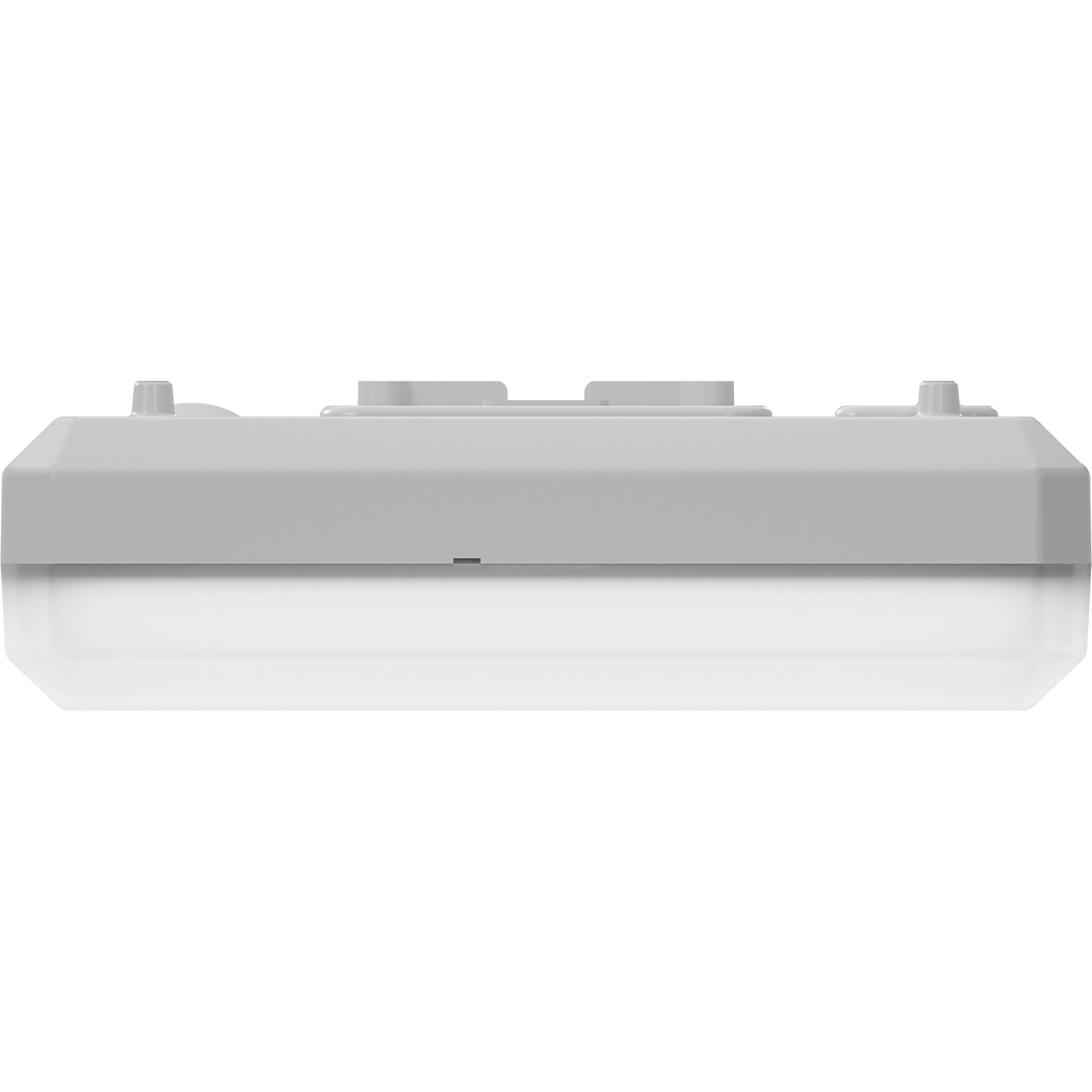

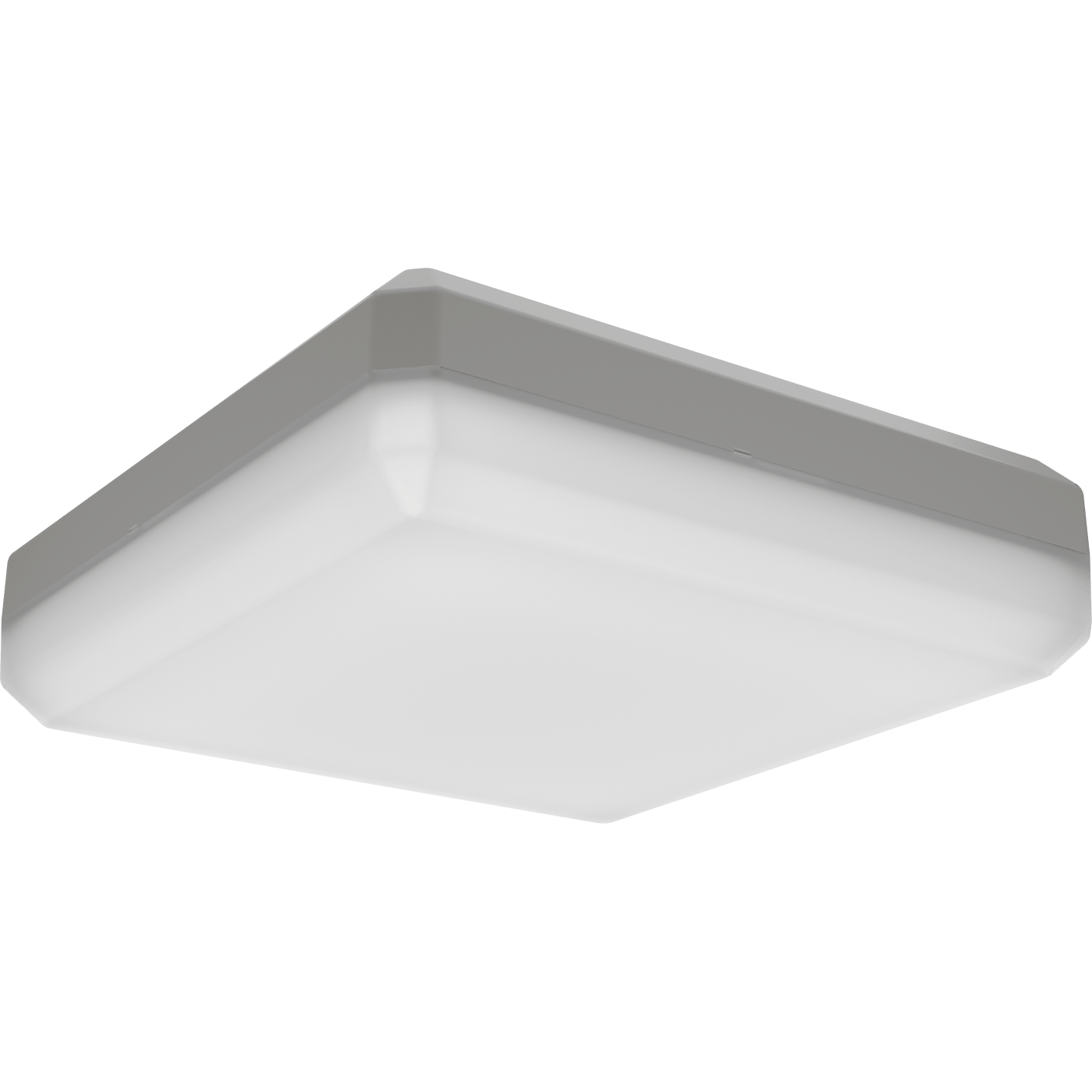

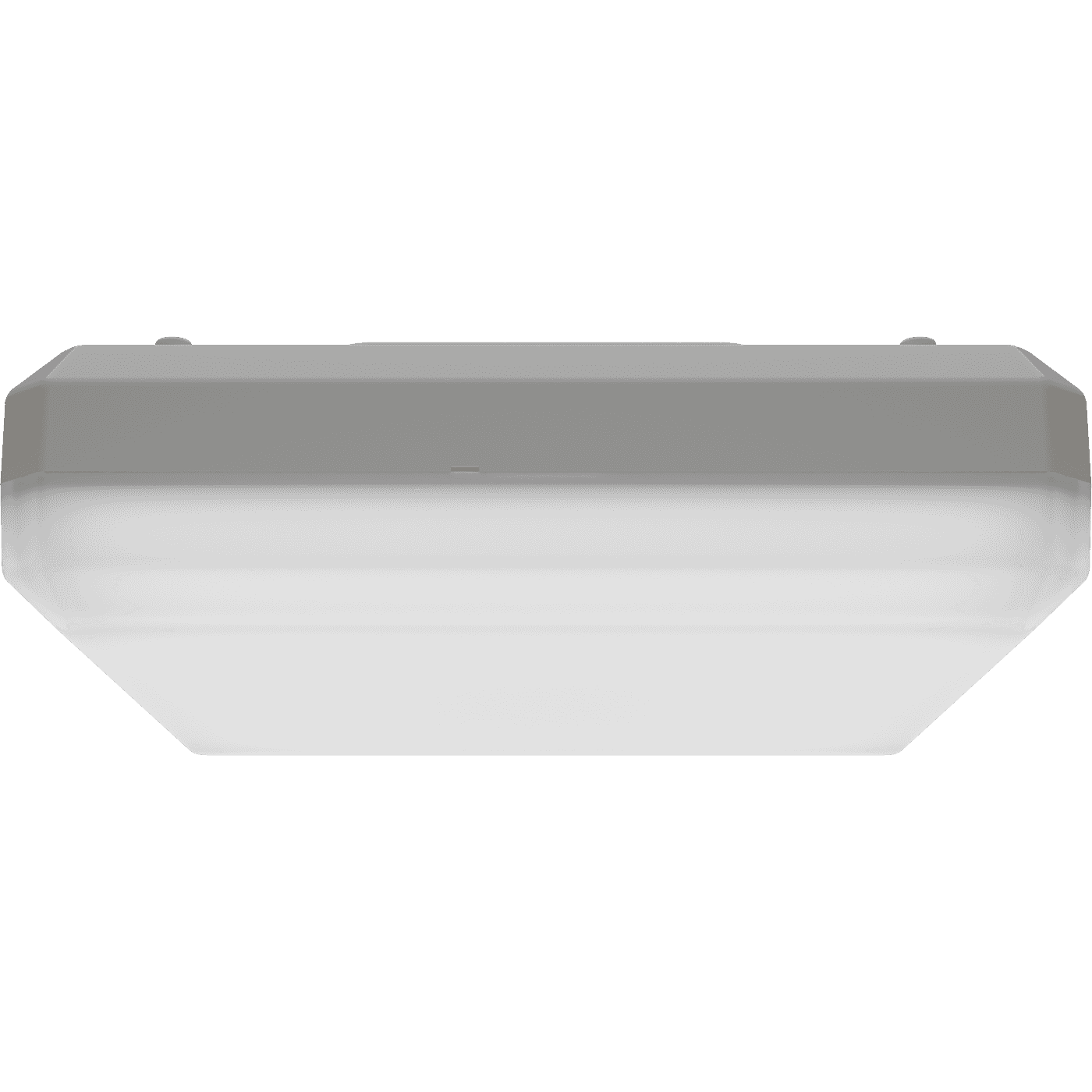

K 300/218 HF new
K 300/218 HF new
36 Wluminaire power
1200 lmlight flow
24 lm/Wenergy efficiency
code1135000210
beam angleD140
number of lamps2
performance factor36
options
свернуть все
electricalconstructionalcommonilluminating
rated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
36 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
36 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
2.5
ingress protection (IP)
IP54
climatic performance
УХЛ2*
material
Полиамид
weight
1.7 kg
length, mm
300 mm
width, mm
300 mm
height, mm
87 mm
housing color
Белый
installation length, mm
200 mm
installation width, mm
200 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
2G11
number of lamps
2
ballast
ЭПРА
common
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
B…A+
service life, hour
24 000 h
code
1135000210
illuminating
light flow
1200 lm
flickering factor
<5%
energy efficiency
24 lm/W
beam angle
D140
light source type
КЛЛ
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS48 kB
model 3dMax896 kB

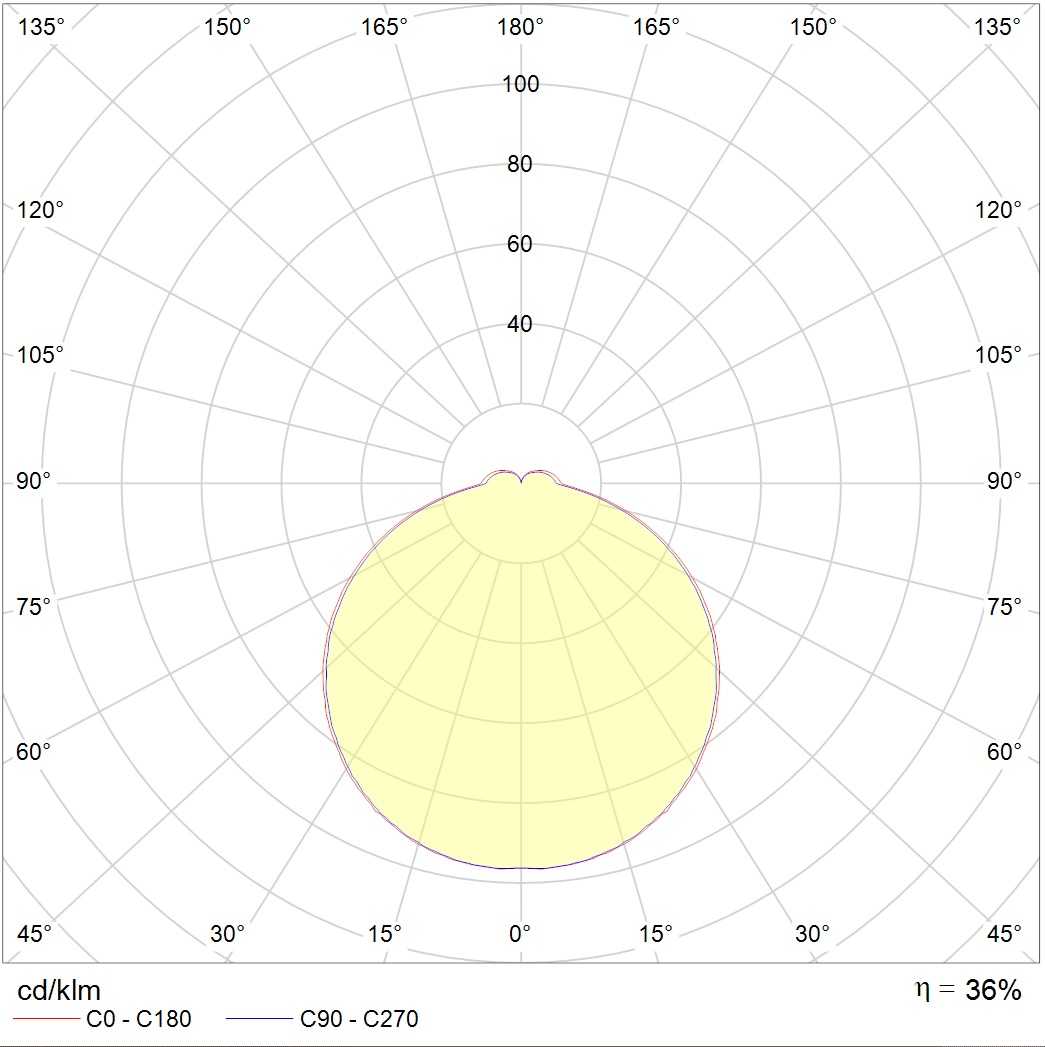

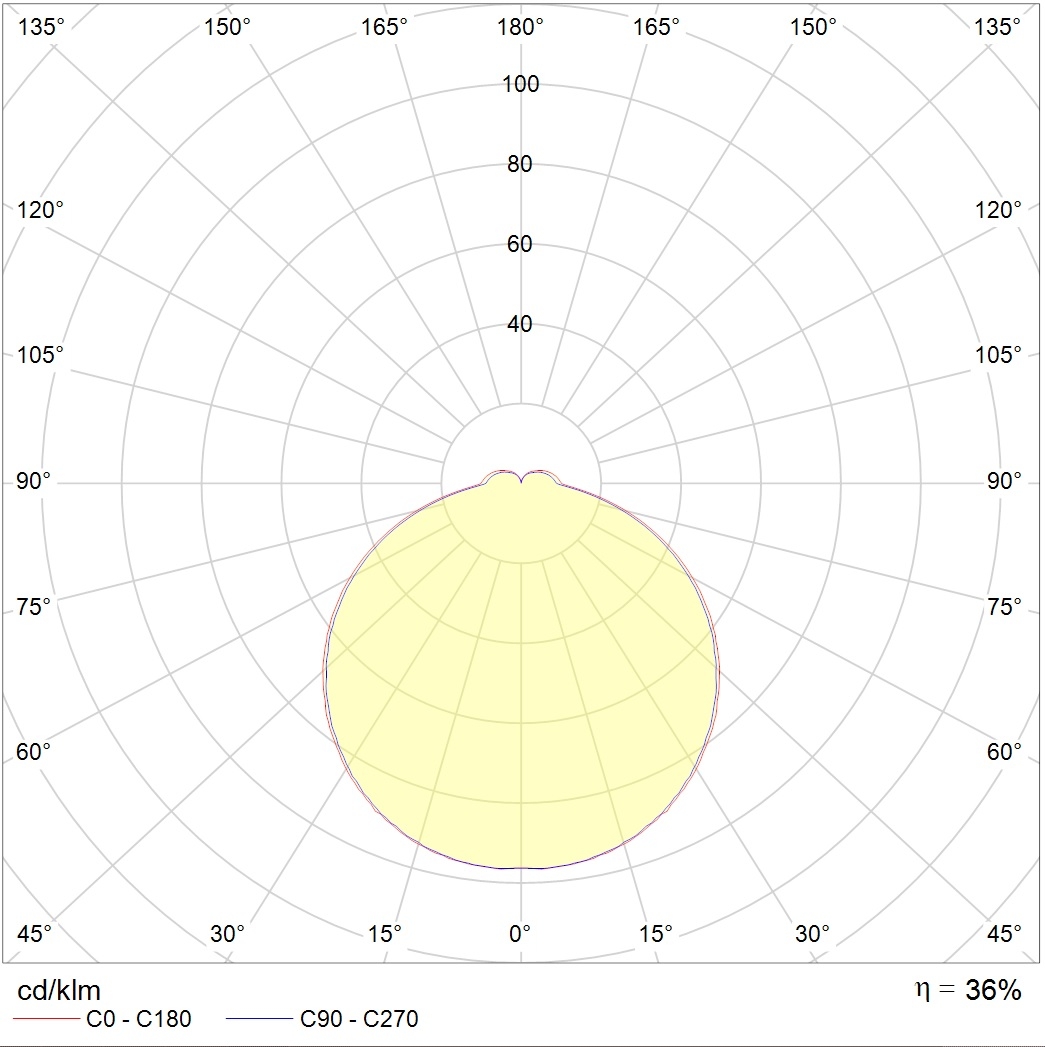

photometric files
ies134.1 kB
jpg156.9 kB
ldt84.7 kB
documents
passport1.7 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
accessories
PEU 003 Pointer arrow (250х250) K300/OBERON0.0171kgarticle: 2502001640
PPB 0002 Fire hydrant (250х250) K300/OBERON0.0171kgarticle: 2501001080
PPB 0001 Fire fighting crane (250х250) K300/OBERON0.0171kgarticle: 2501001070
