INSEL LB/S LED G3 260W D15 757 WH SB
INSEL LB/S LED G3 260W D15 757 WH SB
270 Wluminaire power
39800 lmlight flow
147 lm/Wenergy efficiency
code1334002760
color temperature5700
beam angleD15
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
39800 lmflickering factor
<5%energy efficiency
147 lm/Wbeam angle
D15color temperature
5700light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
39800 lm
flickering factor
<5%
energy efficiency
147 lm/W
beam angle
D15
color temperature
5700
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
270 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP67
weight
7 kg
length, mm
331 mm
width, mm
331 mm
height, mm
169 mm
installation length, mm
200 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1334002760
model files
model files

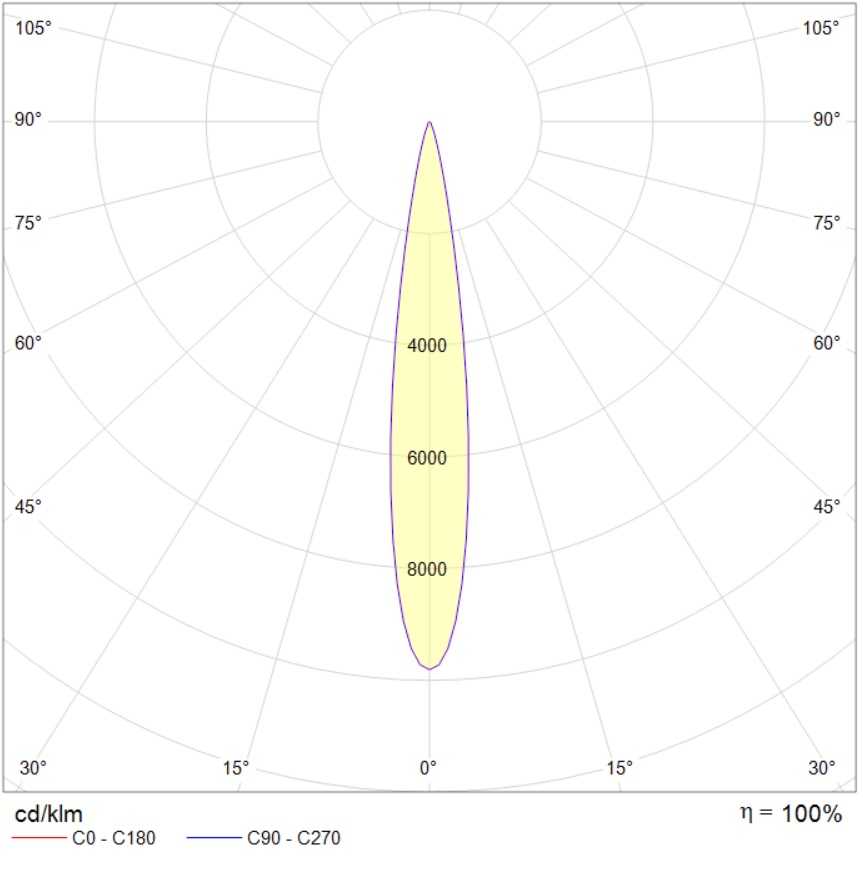

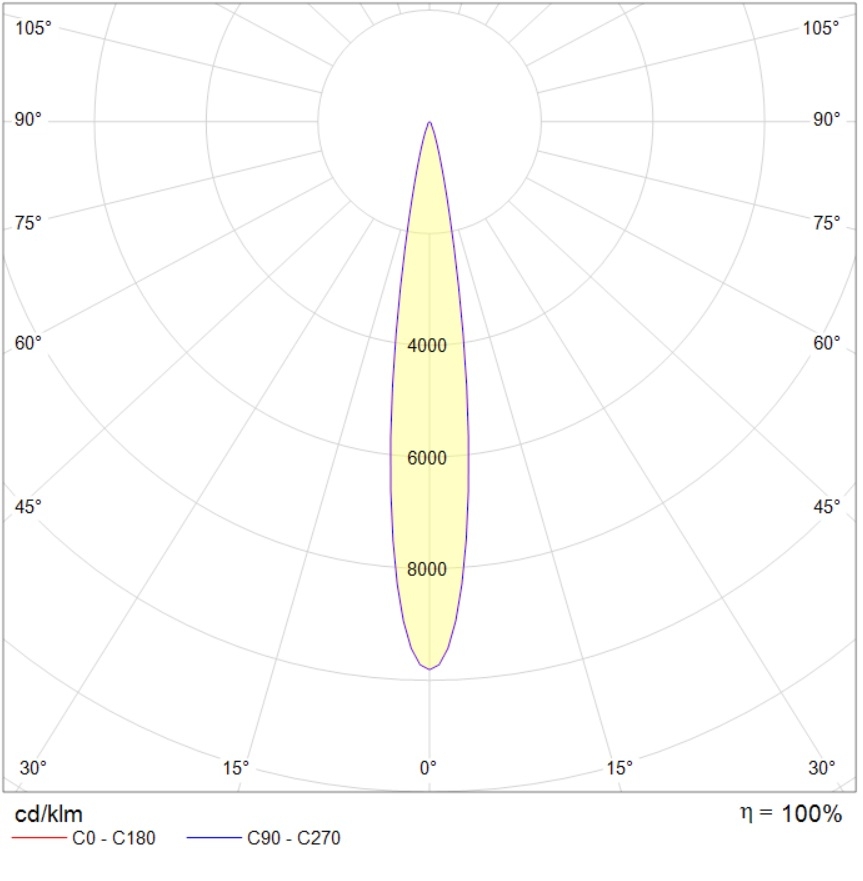

photometric files
сертификаты
photometric files
ies134.1 kB
jpg78.9 kB
ldt84.4 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
