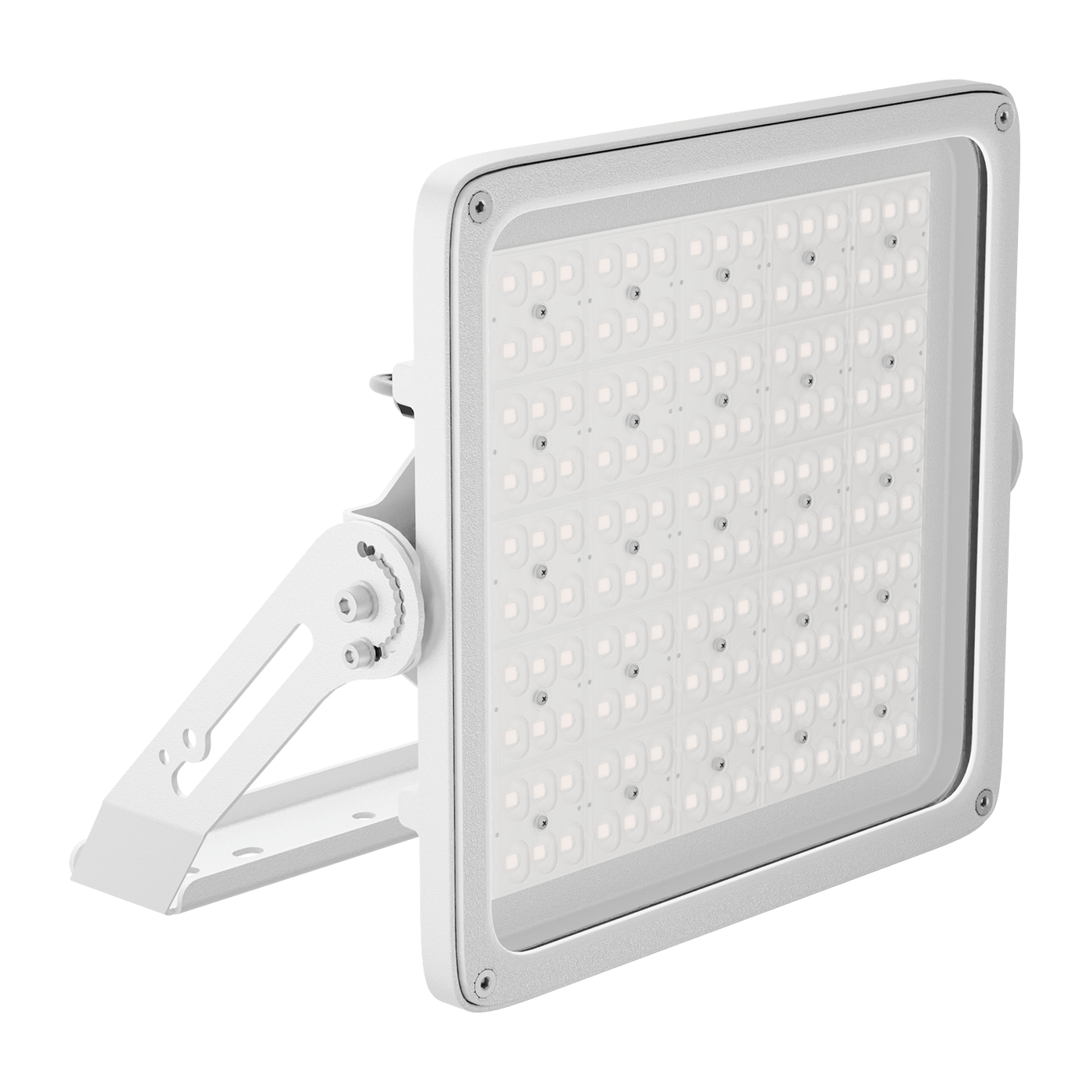

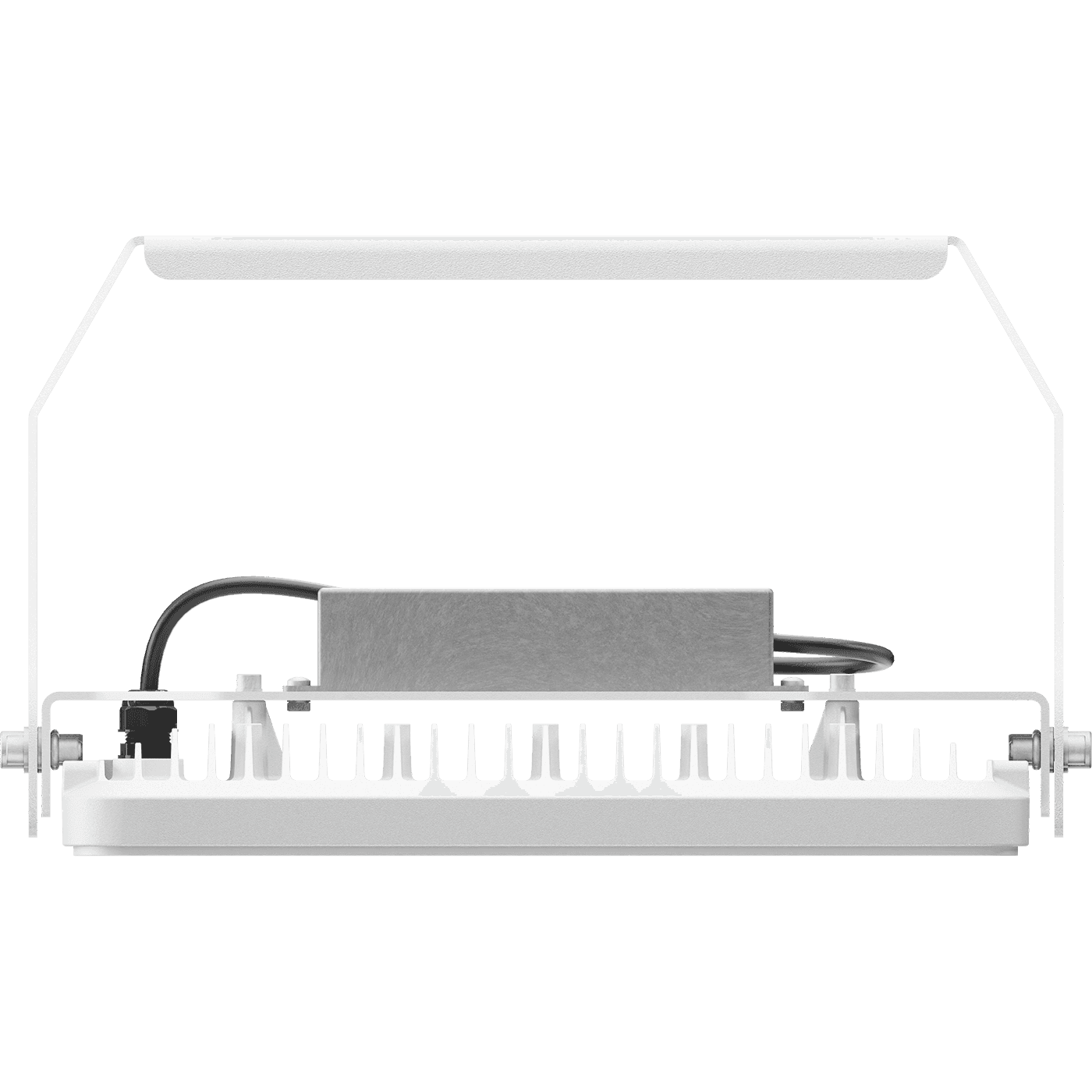

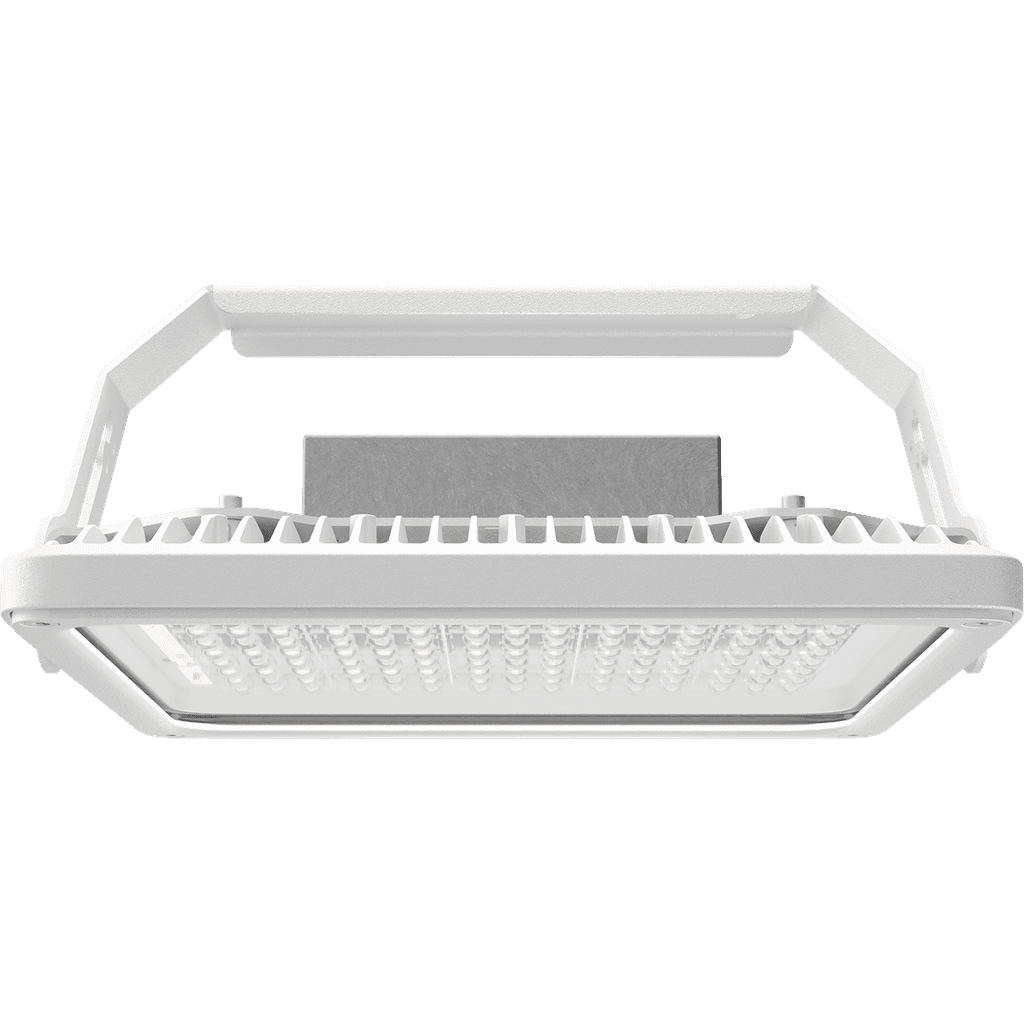

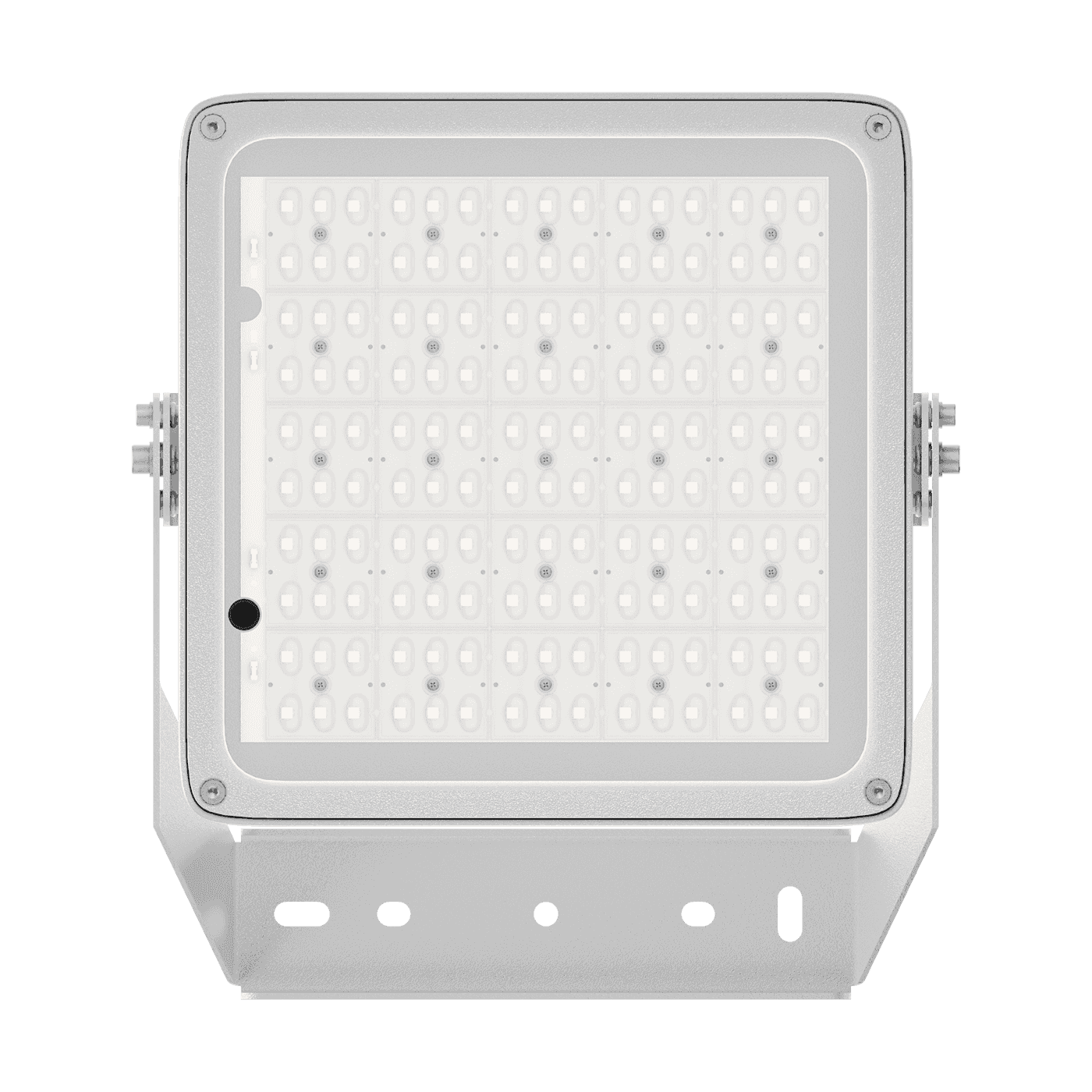

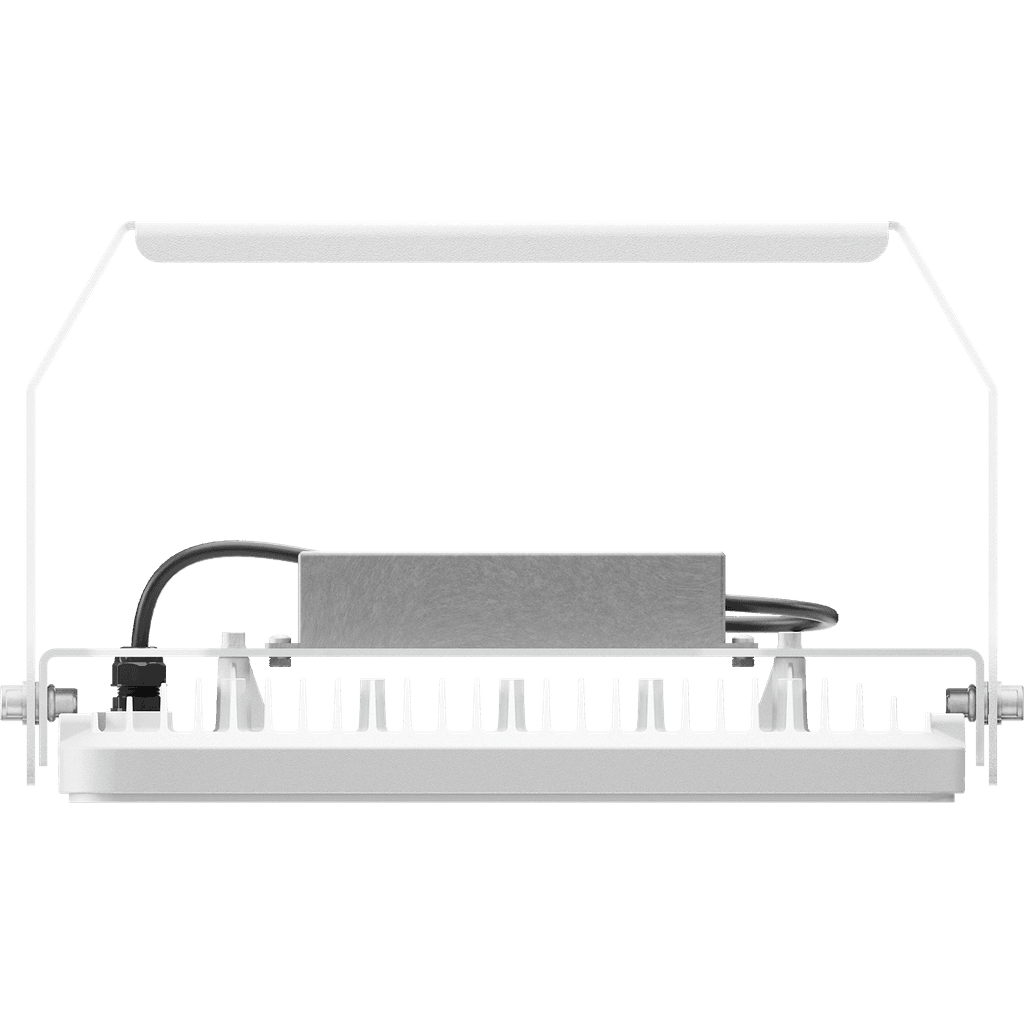

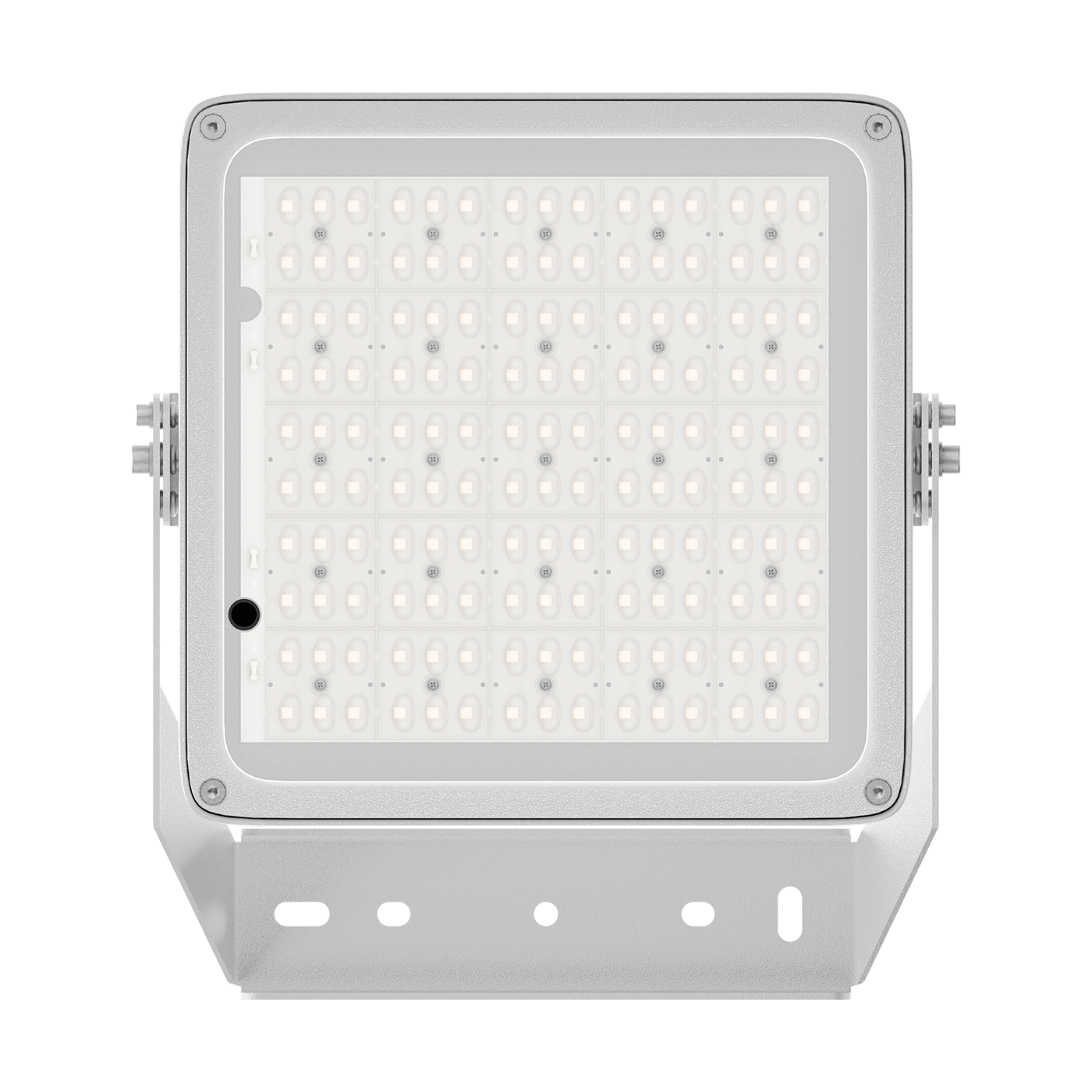

INSEL LB/S LED G3 230W A30 840 WH FB

INSEL LB/S LED G3 230W A30 840 WH FB
240 Wluminaire power
34000 lmlight flow
142 lm/Wenergy efficiency
code1334006040
color temperature4000 K
beam angleA30
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80
light flow
34000 lm
flickering factor
<5%
energy efficiency
142 lm/W
beam angle
A30
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
color rendition index (CRI)
>80
light flow
34000 lm
flickering factor
<5%
energy efficiency
142 lm/W
beam angle
A30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
240 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP67
weight
8 kg
length
385 mm
width
410 mm
height
215 mm
installation length
220 mm
installation width
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +40 C
code
1334006040
model files
model files

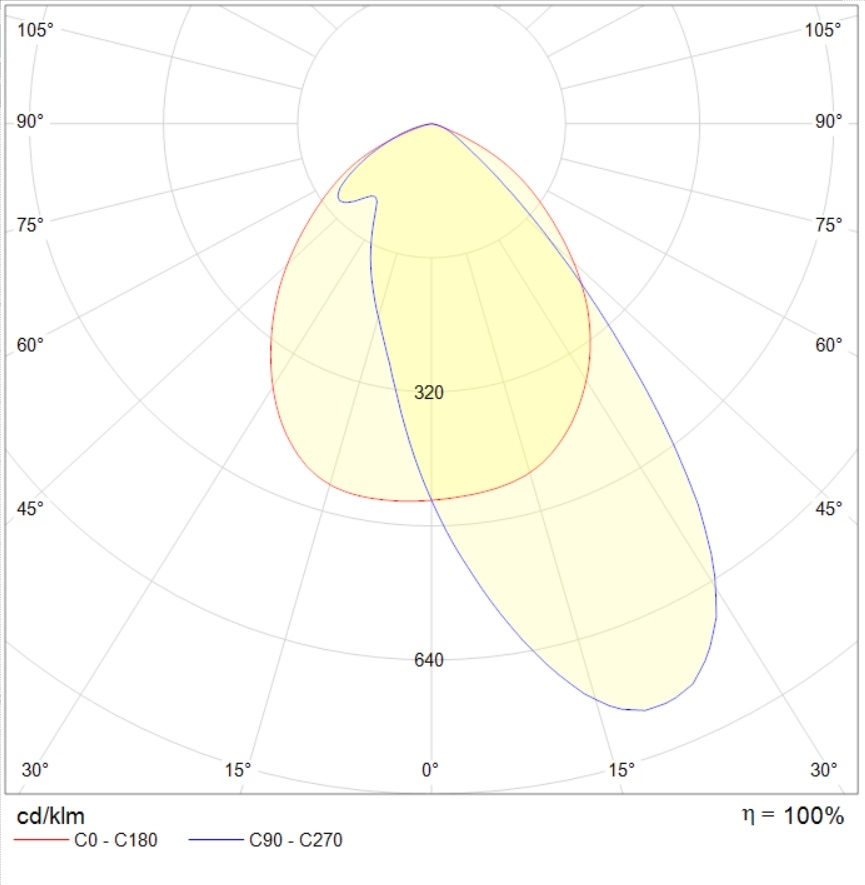

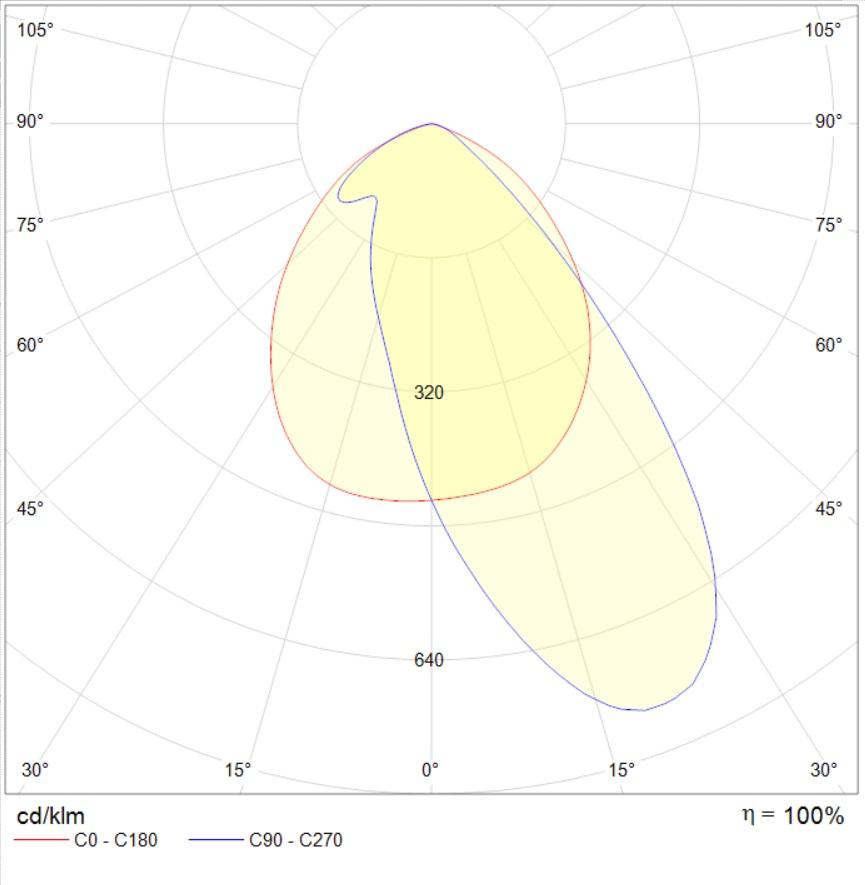

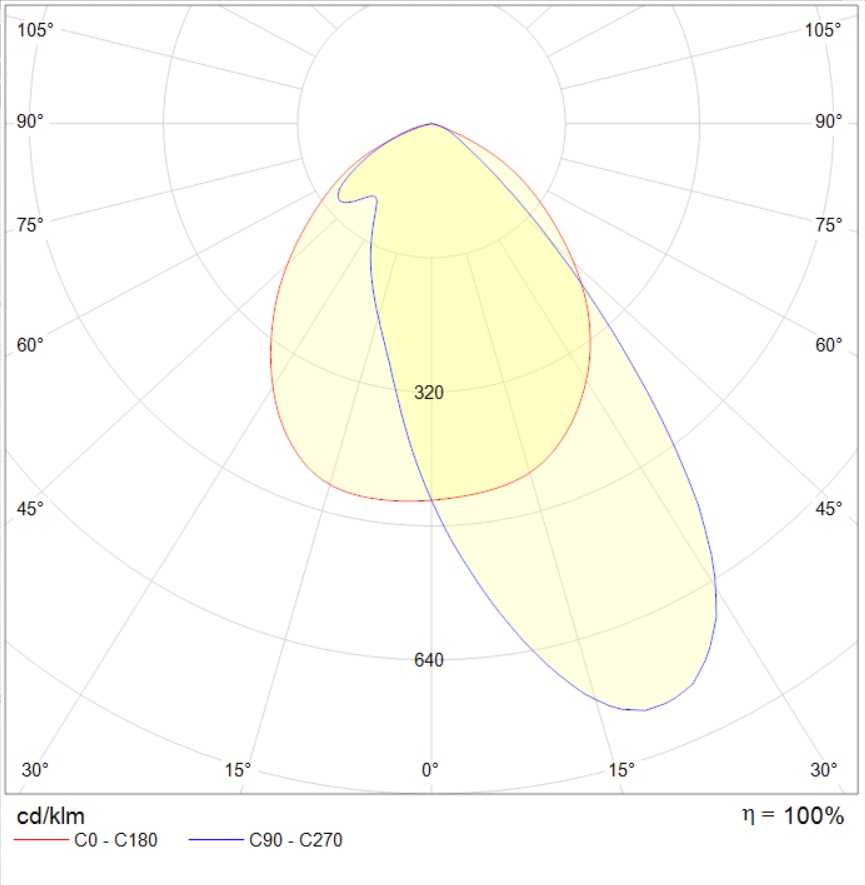

photometric files
ies107.1 kB
jpg82.3 kB
ldt66 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
photometric files
ies107.1 kB
jpg82.3 kB
ldt66 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
