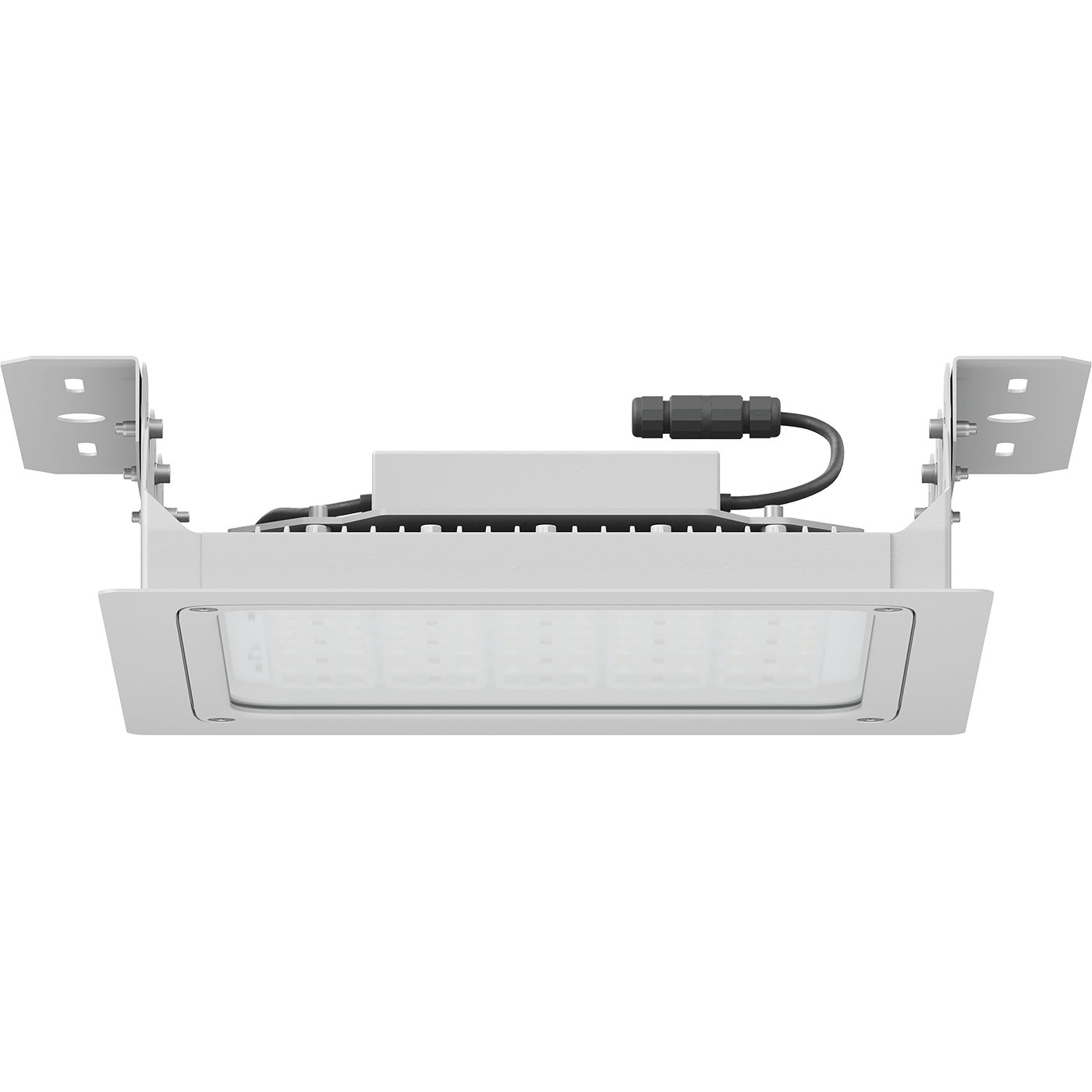

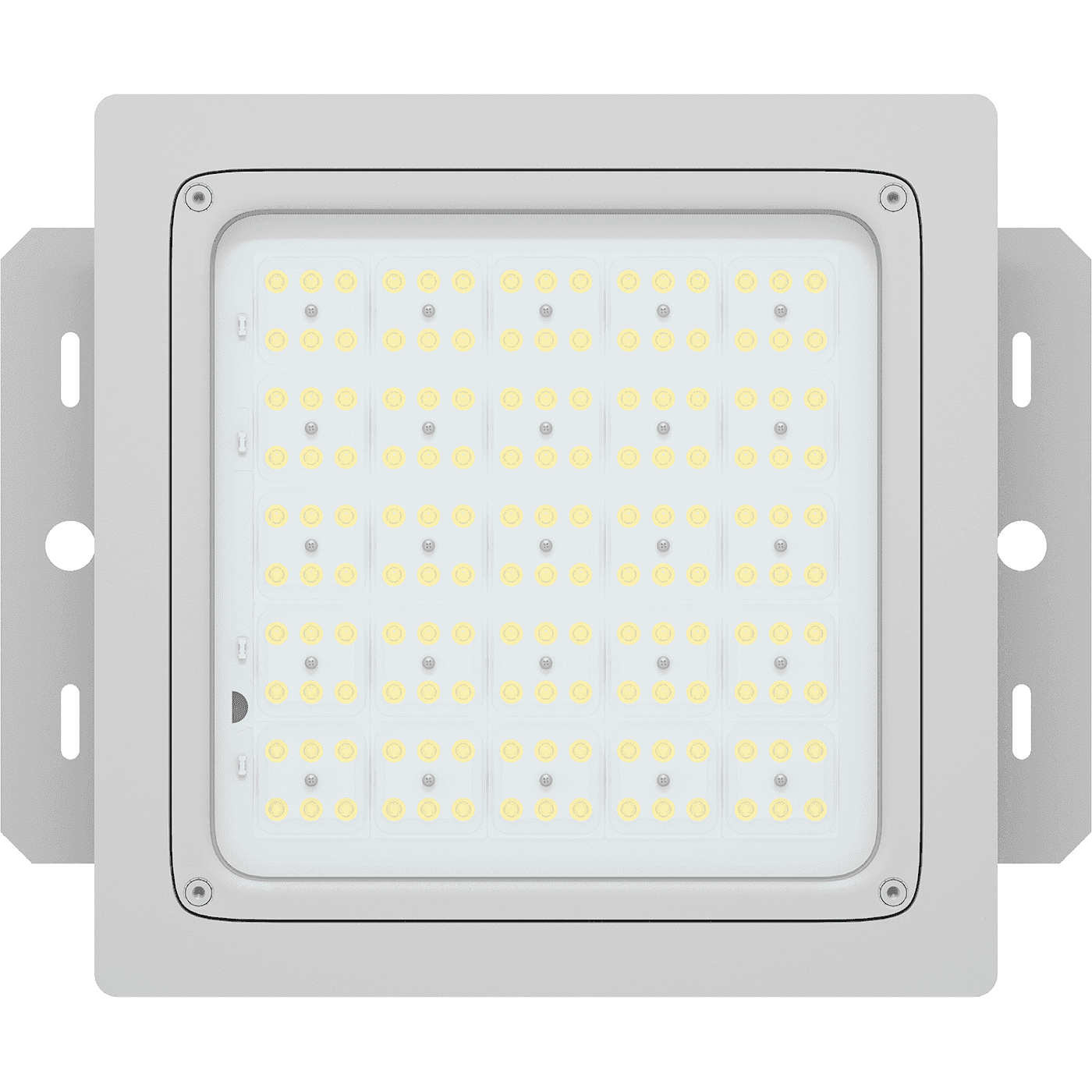

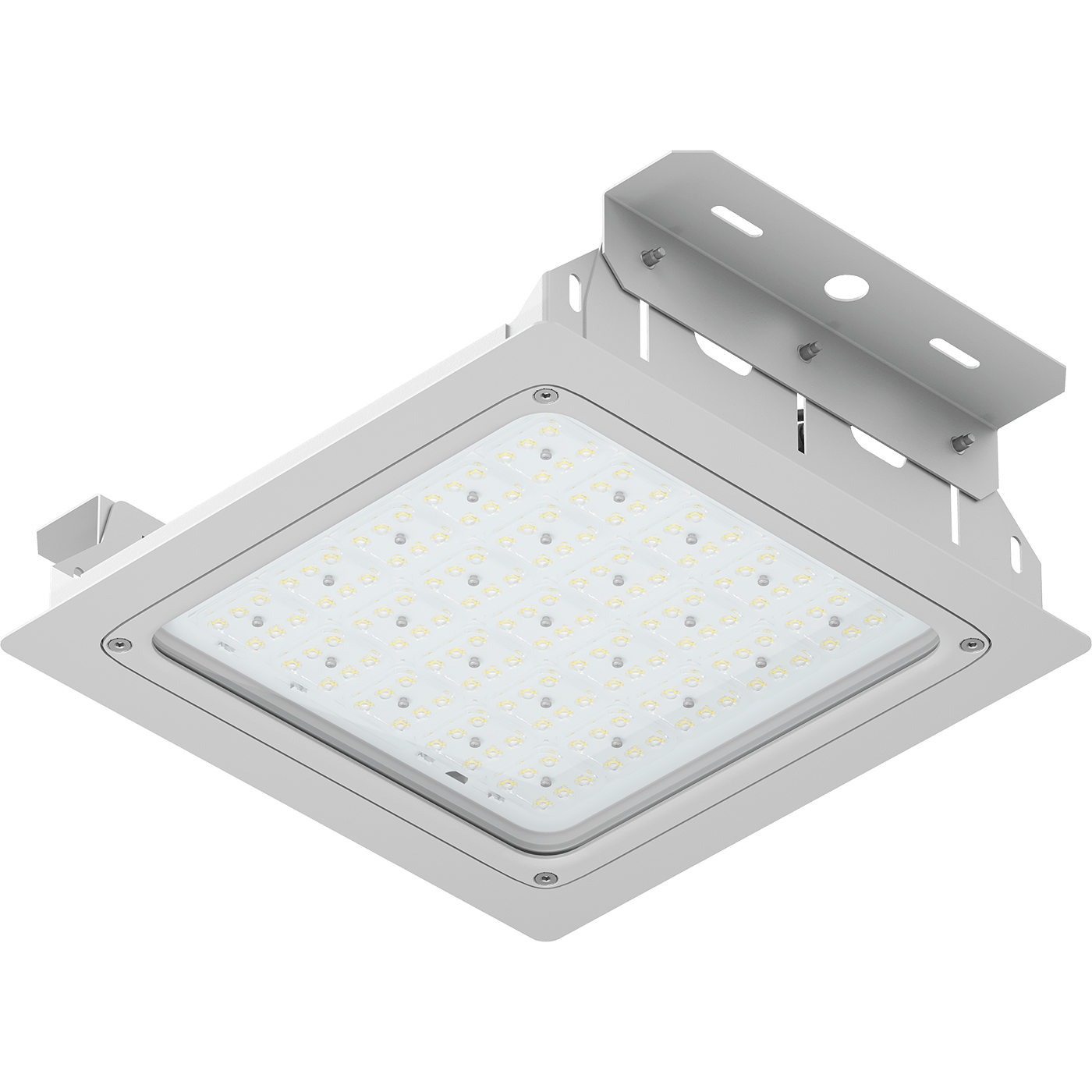

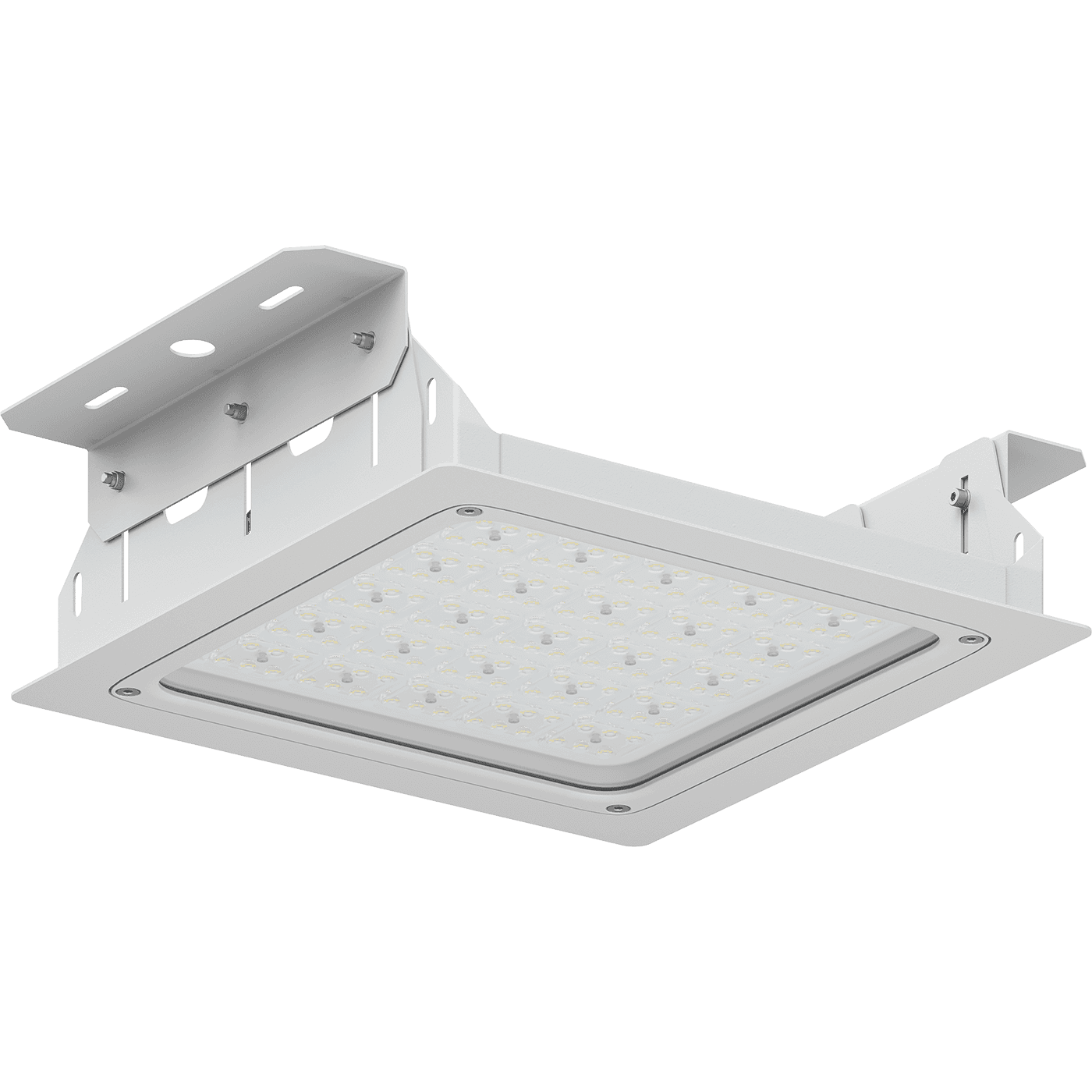

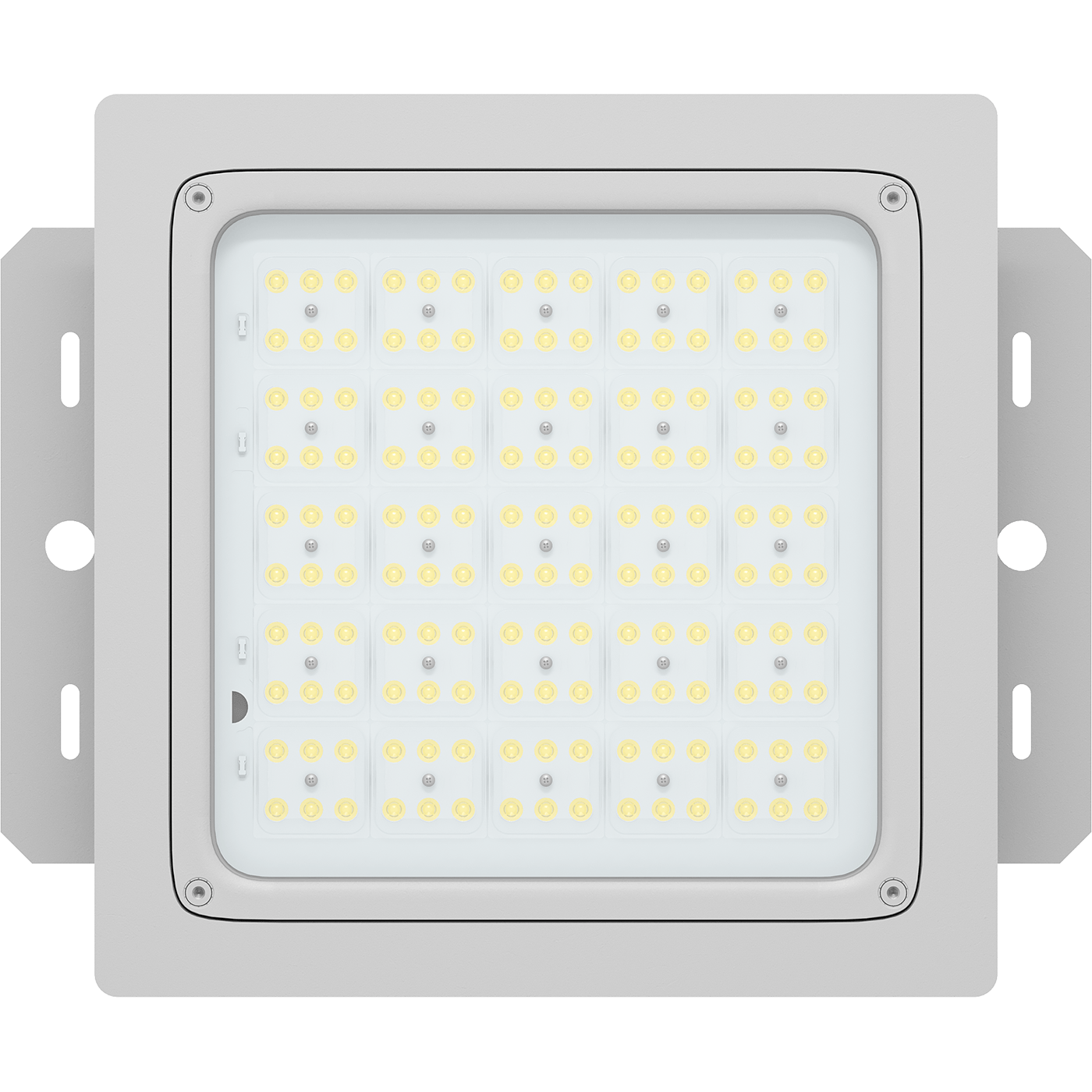

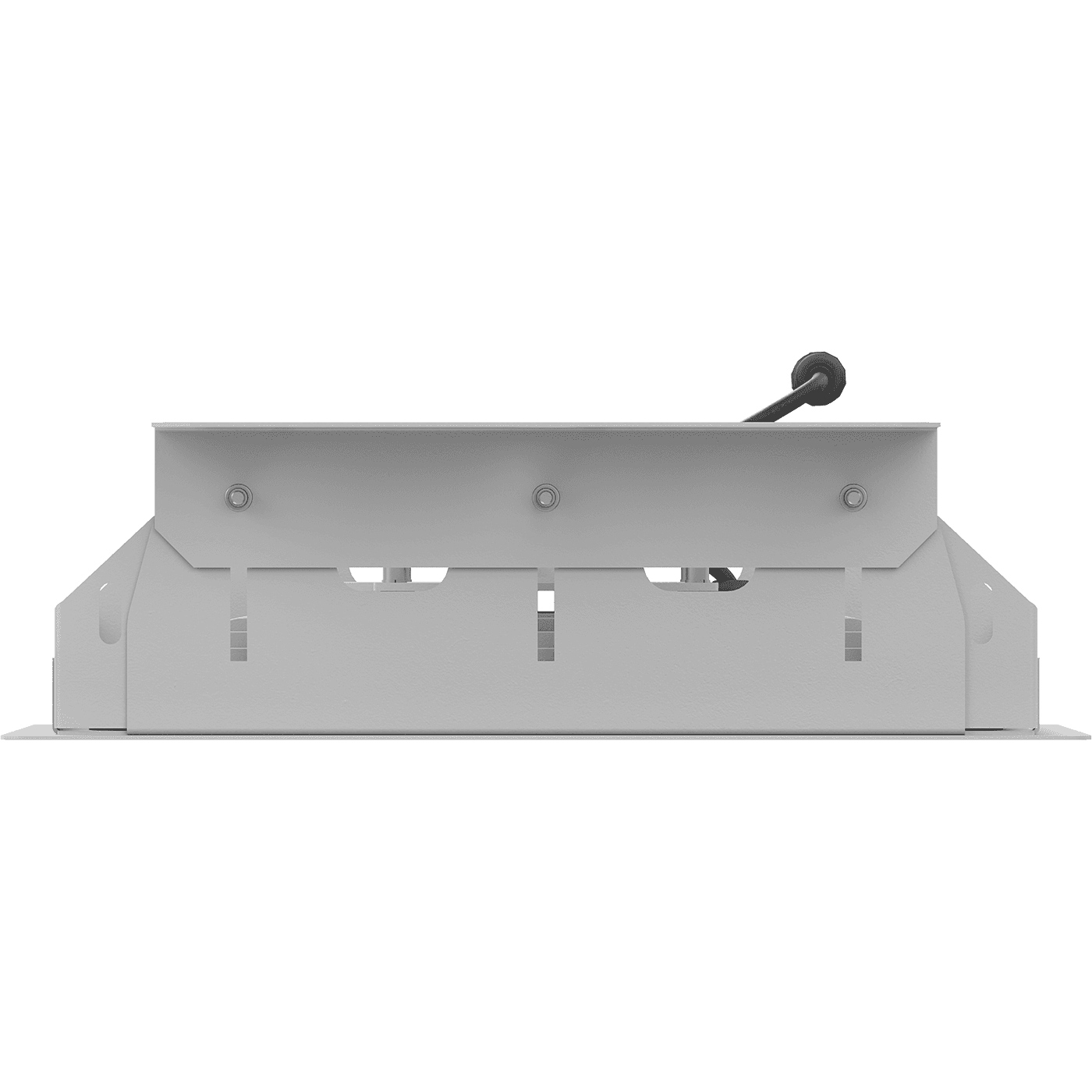

INSEL LB/R LED G3 100W D120 840 WH
INSEL LB/R LED G3 100W D120 840 WH
106 Wluminaire power
17000 lmlight flow
160 lm/Wenergy efficiency
code1332002740
color temperature4000
beam angleD120
weight8.4 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Velectric shock protection
Istarting current
50 Astarting current pulse time, µs
500 mksluminaire power
106 Wrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,96supply voltage
230 Velectrical
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
electric shock protection
I
starting current
50 A
starting current pulse time, µs
500 mks
luminaire power
106 W
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
17000 lm
flickering factor
<1%
energy efficiency
160 lm/W

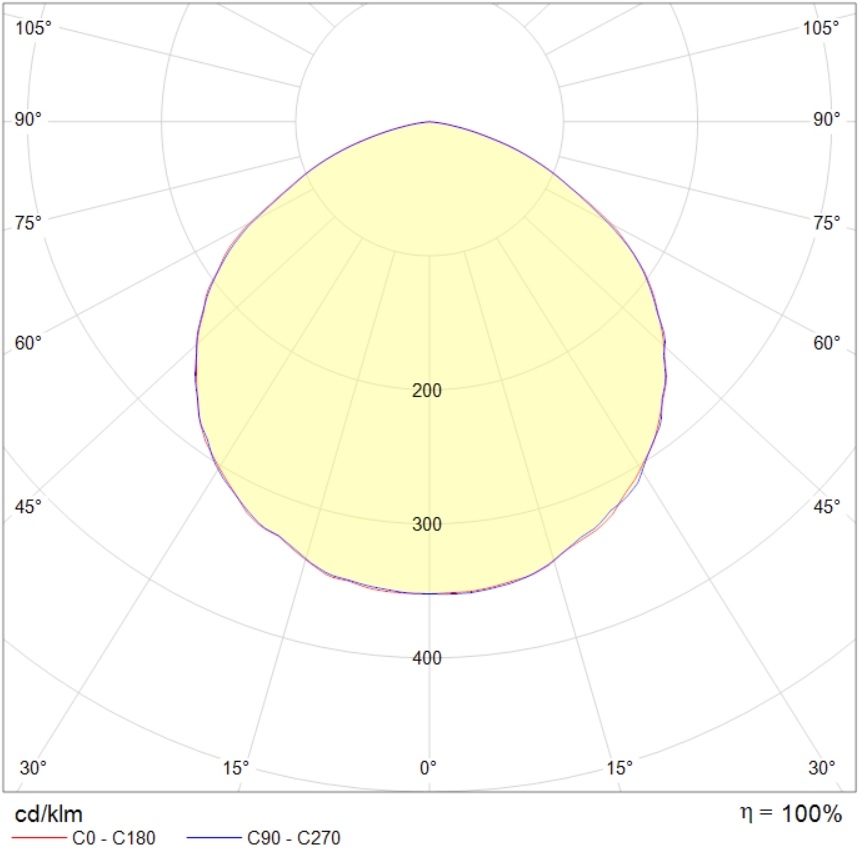

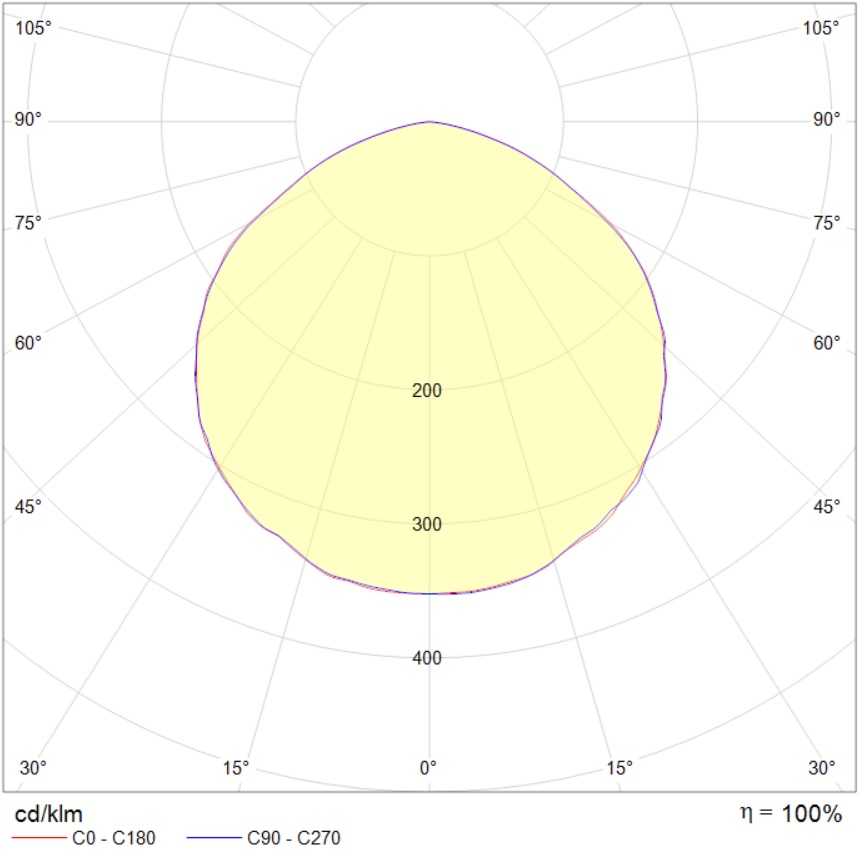

beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP66/IP67
material
Алюминий
housing color
Белый
length, mm
390 mm
width, mm
390 mm
height, mm
112 mm
weight
8.4 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
360 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
100 000 h
code
1332002740
