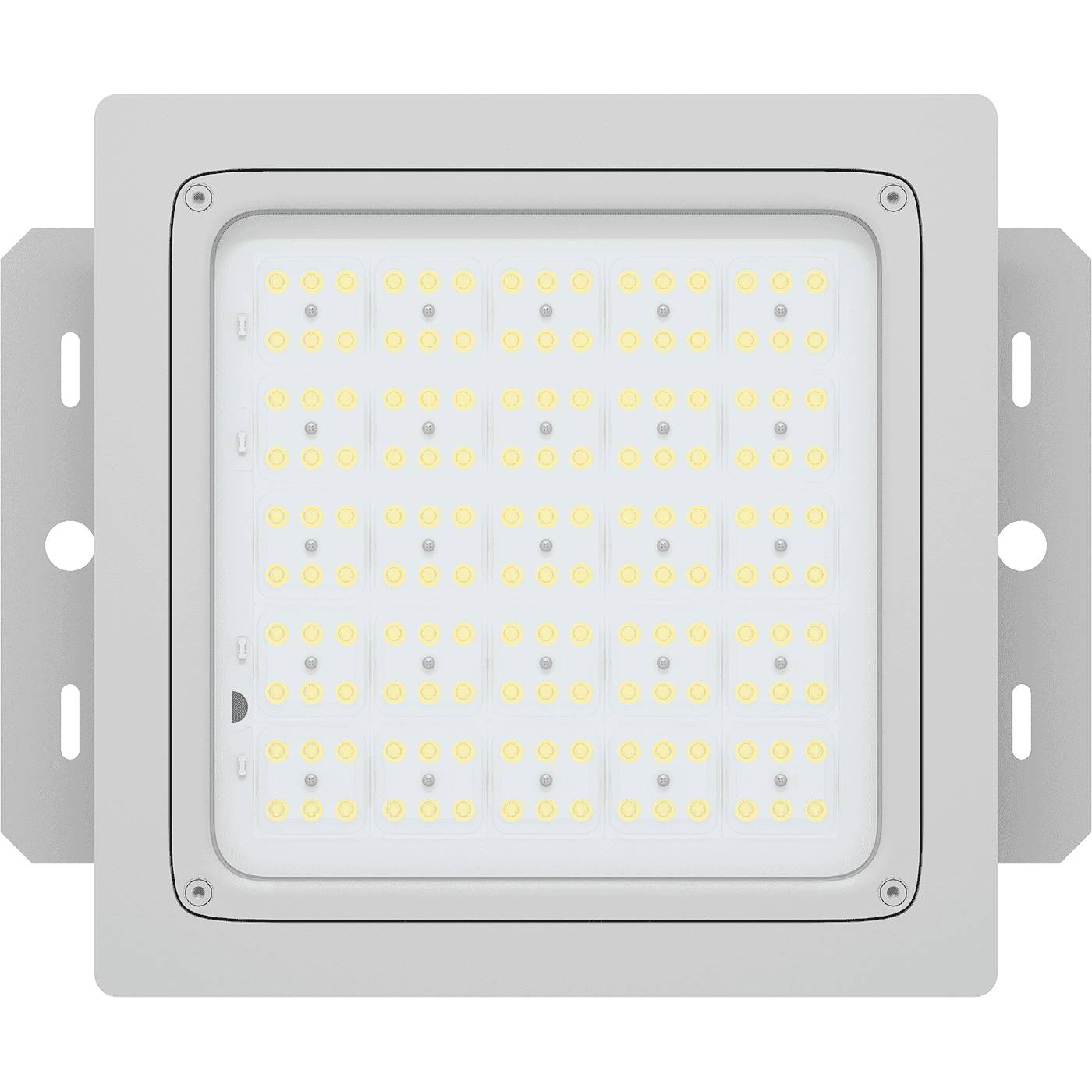

INSEL LB/R LED G3 100W D120 757 WH
INSEL LB/R LED G3 100W D120 757 WH
108 Wluminaire power
17400 lmlight flow
161 lm/Wenergy efficiency
code1332002440
color temperature5700
beam angleD120
weight8.4 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
33 Astarting current pulse time, µs
380 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
108 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
33 A
starting current pulse time, µs
380 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
108 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8.4 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5

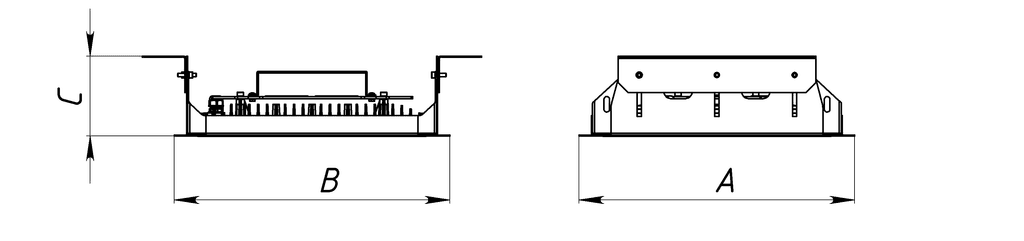

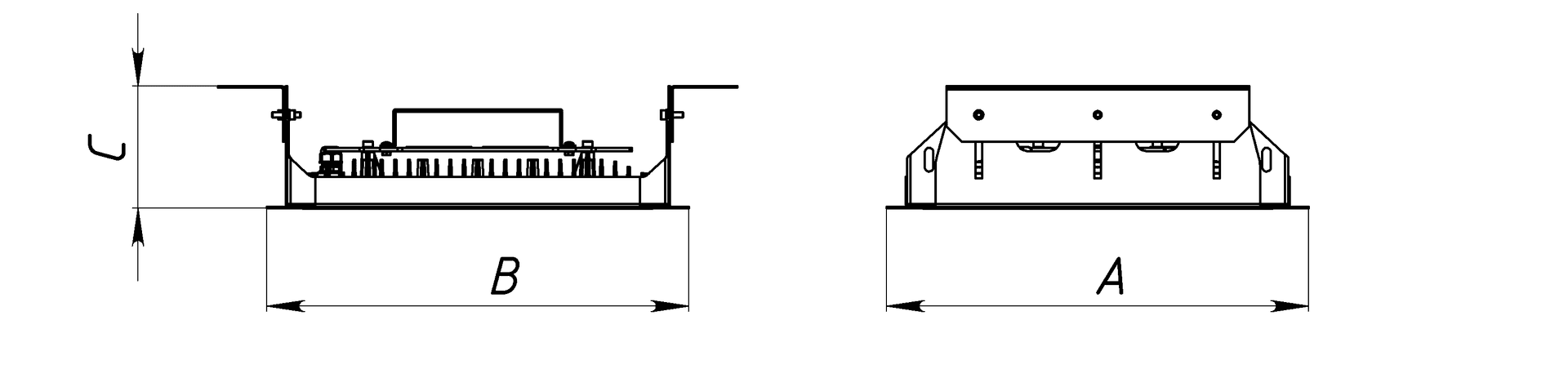

length, mm
390 mm
width, mm
390 mm
height, mm
112 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
360 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
code
1332002440
illuminating
light flow
17400 lm
flickering factor
<1%
energy efficiency
161 lm/W

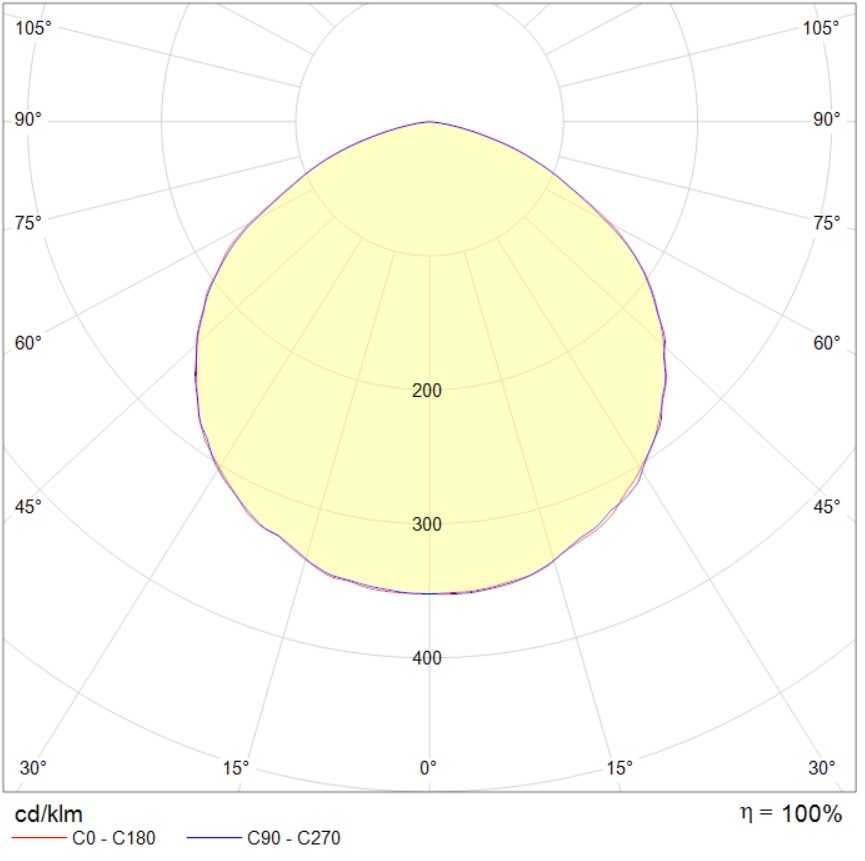

beam angle
D120
color temperature
5700
light source type
LED
emission color
Белый
color rendition index (CRI)
>70
model files
model files
сертификаты
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
