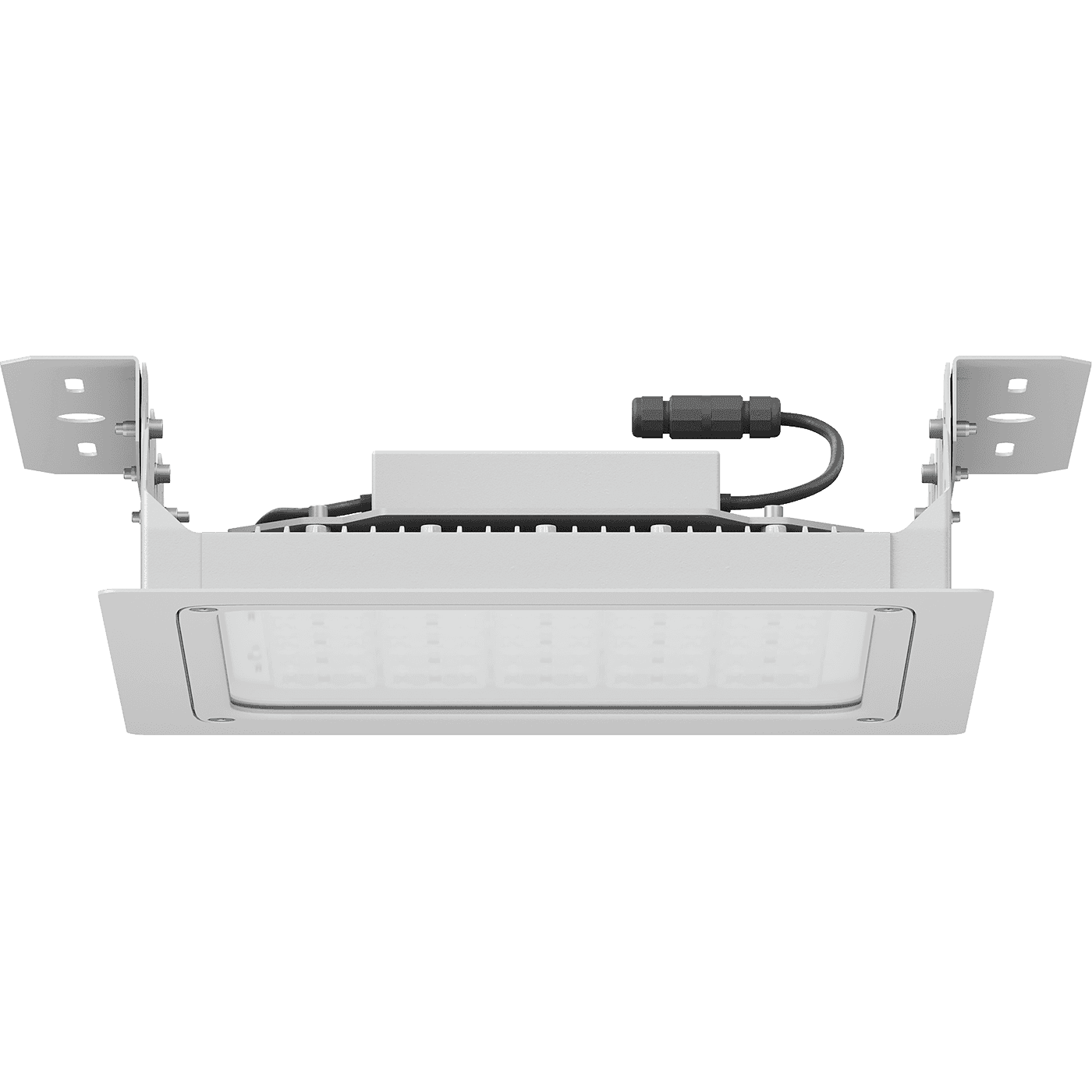

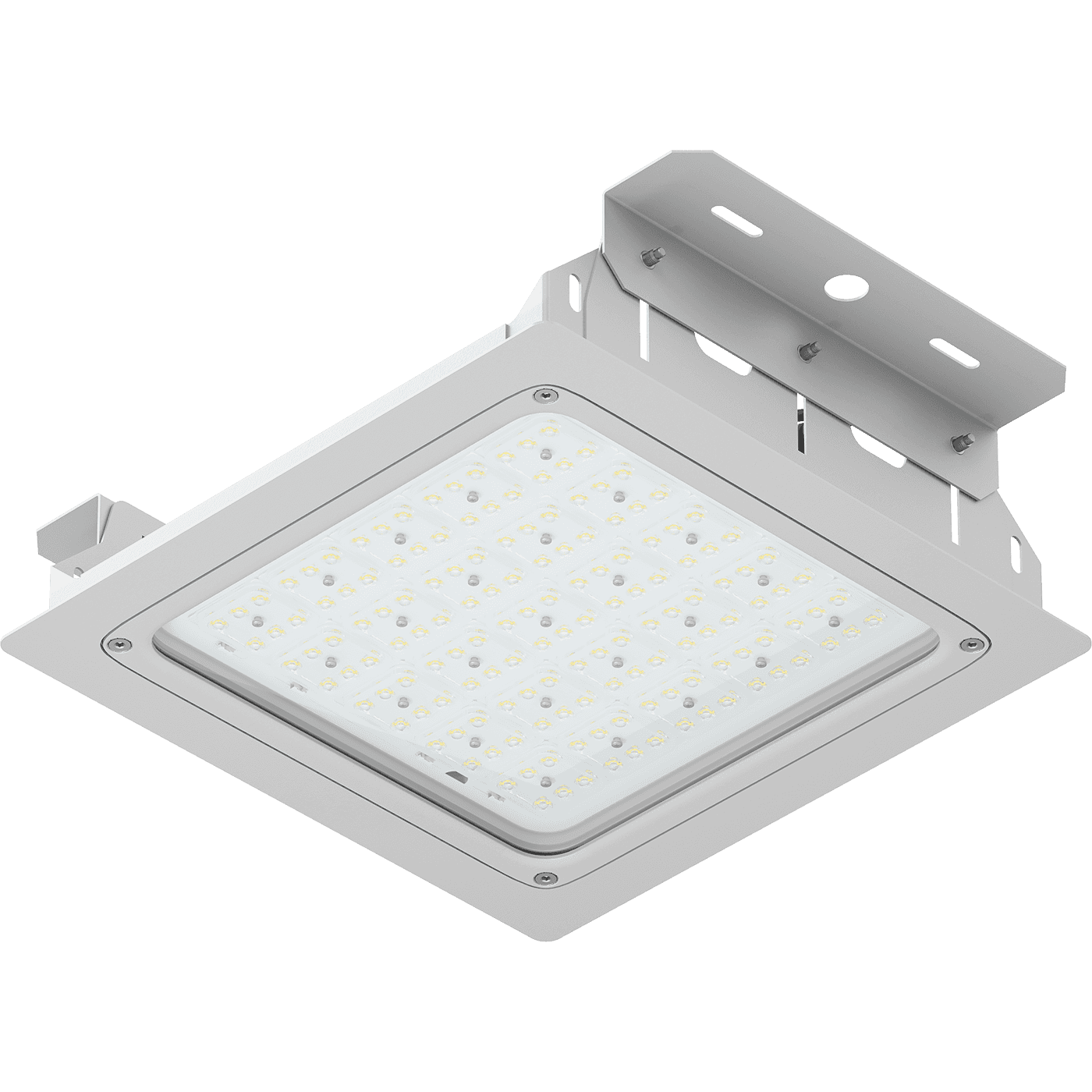

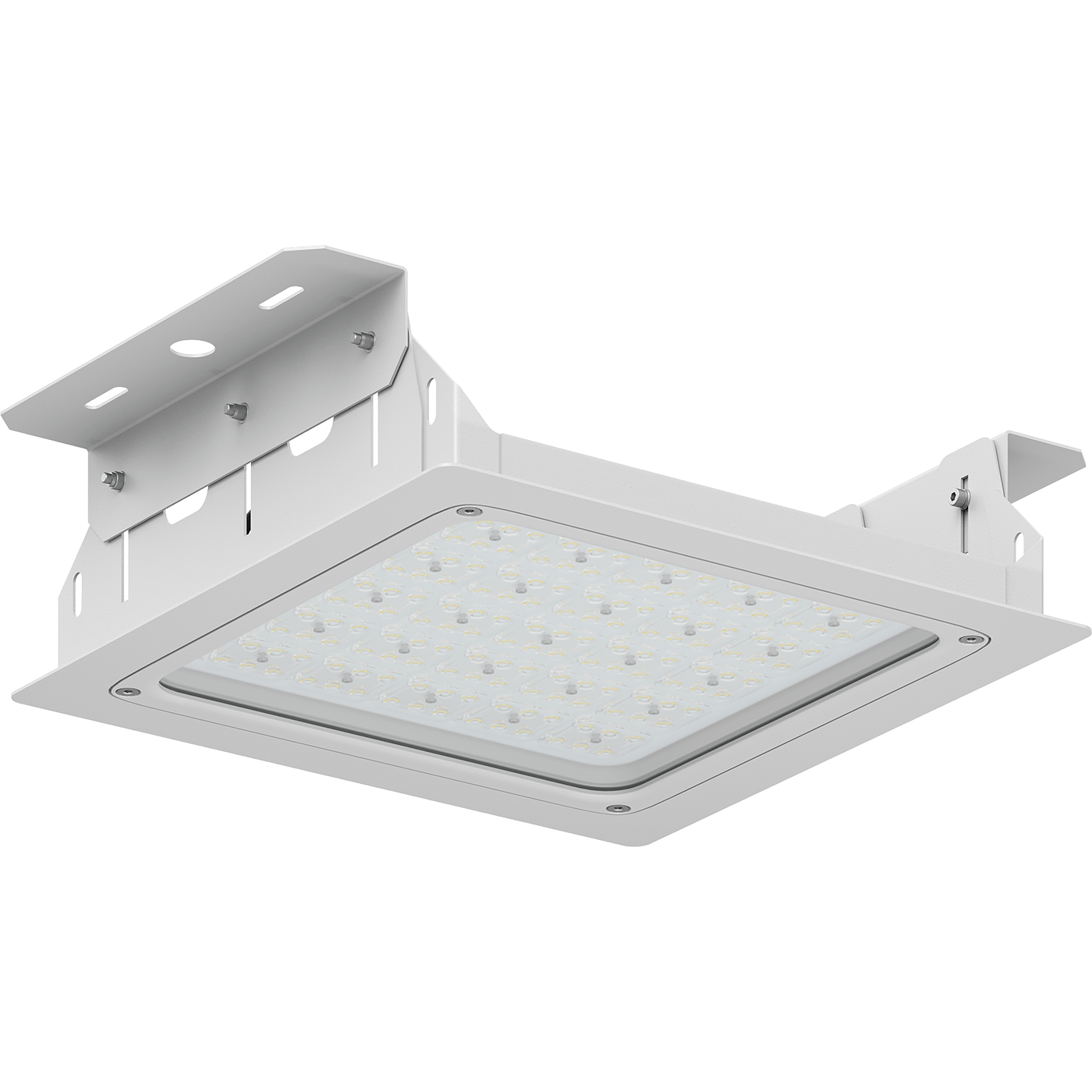

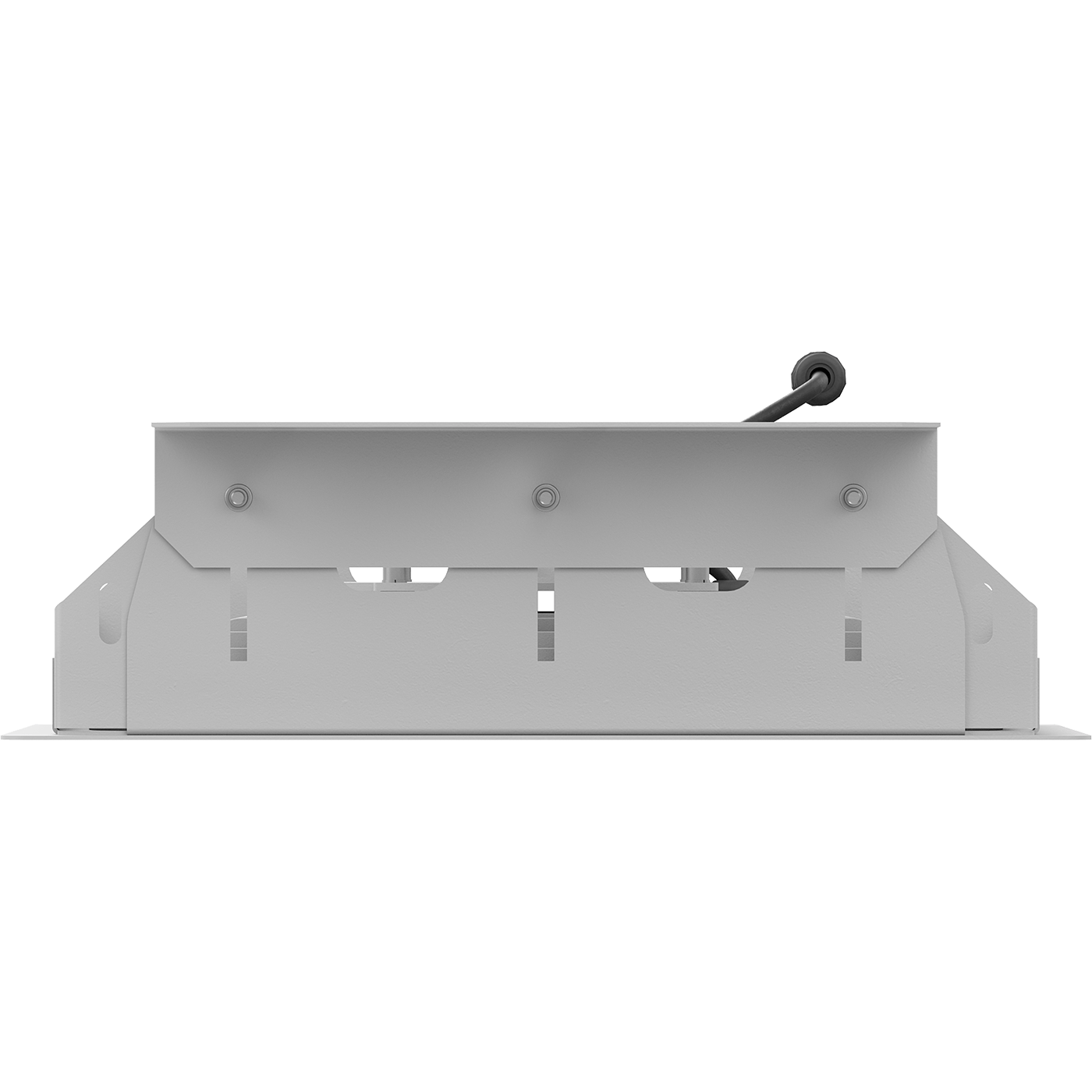

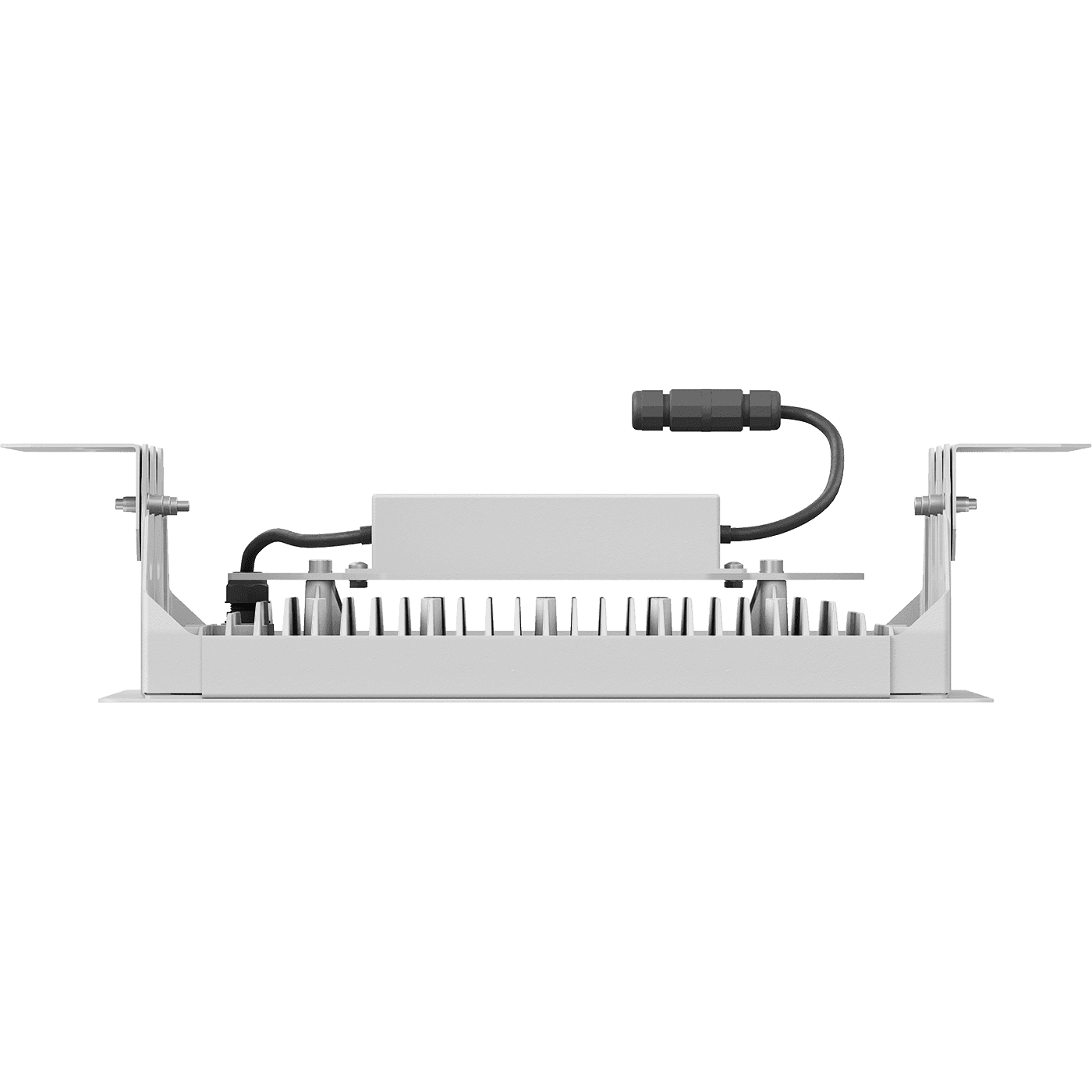

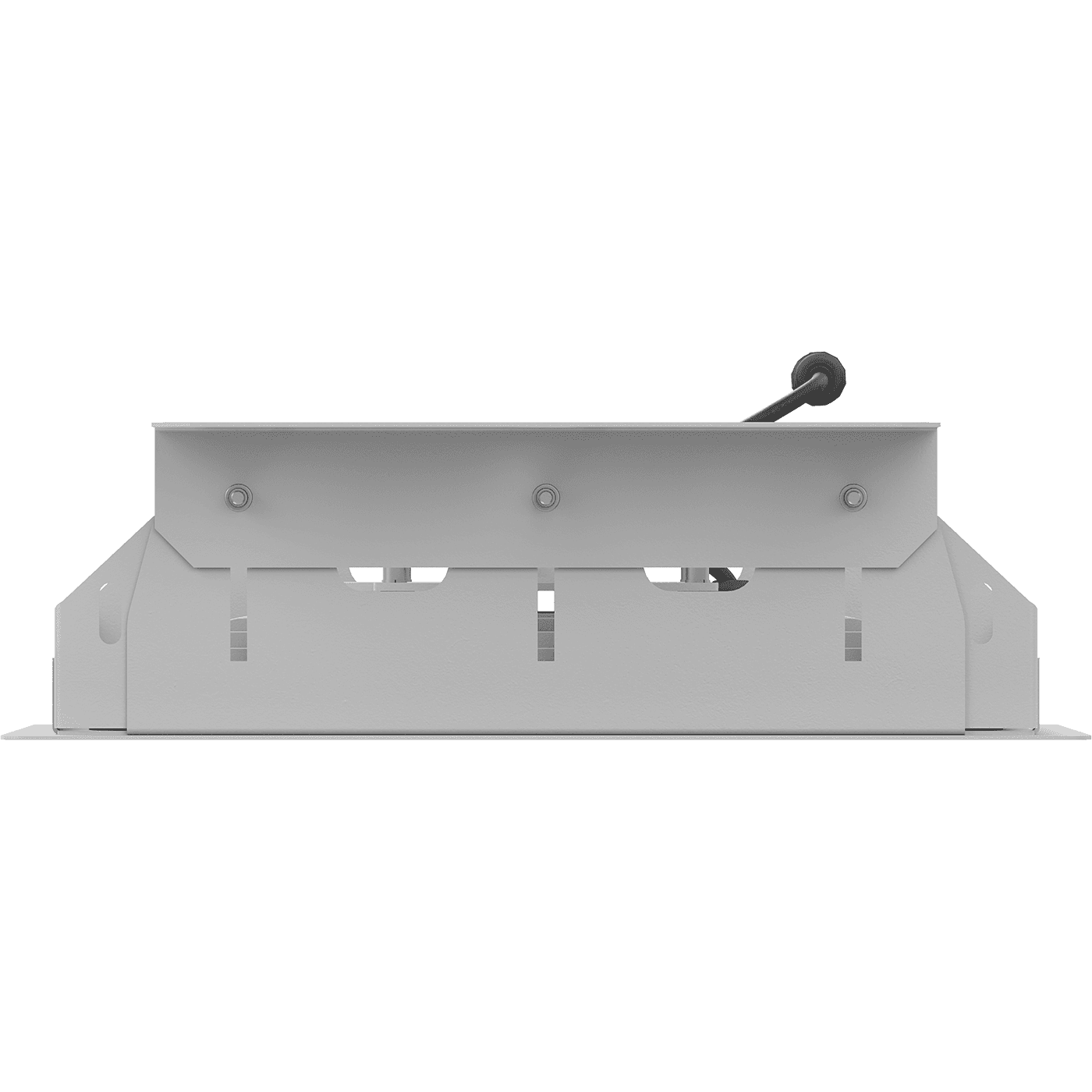

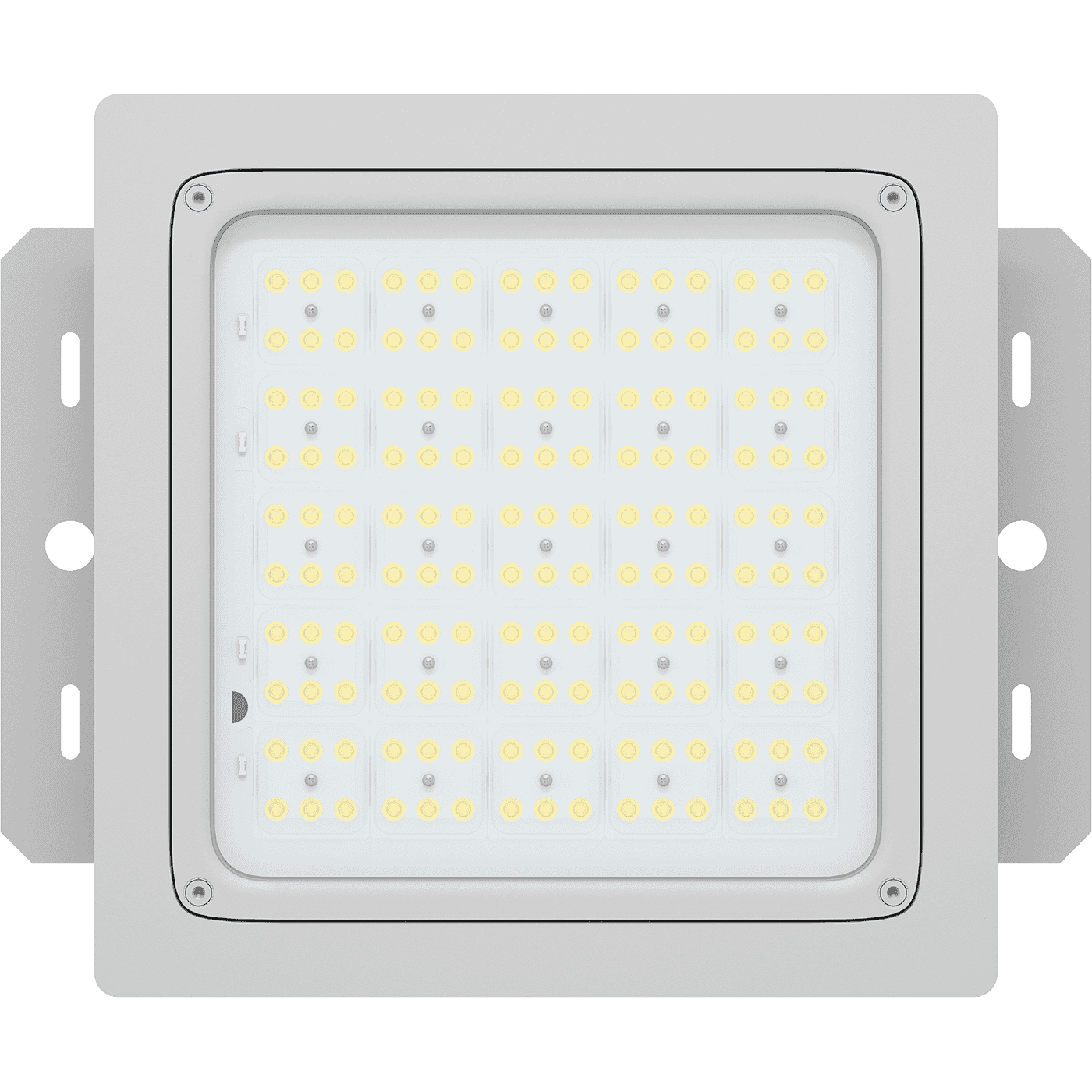

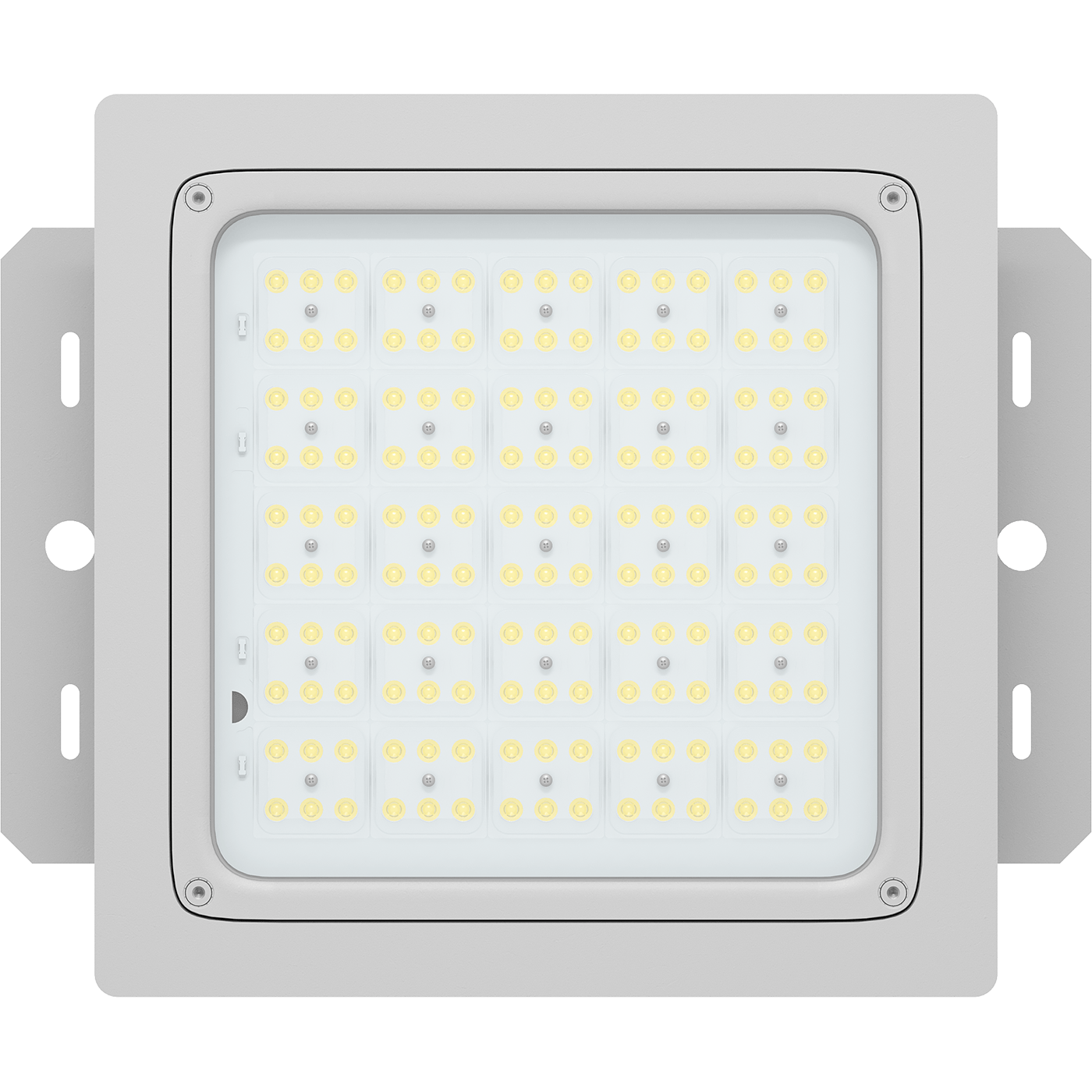

INSEL LB/R LED G3 100W A30 840 WH
INSEL LB/R LED G3 100W A30 840 WH
100 Wluminaire power
16200 lmlight flow
162 lm/Wenergy efficiency
code1332002730
color temperature4000 K
beam angleA30
weight8.4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
16200 lmflickering factor
<1%energy efficiency
162 lm/Wbeam angle
A30color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
16200 lm
flickering factor
<1%
energy efficiency
162 lm/W
beam angle
A30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
100 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
33 A
supply voltage
230 V
starting current pulse time
380 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP67
weight
8.4 kg
length
390 mm
width
390 mm
height
112 mm
installation length
360 mm
installation width
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +60 C
code
1332002730
model files
model files

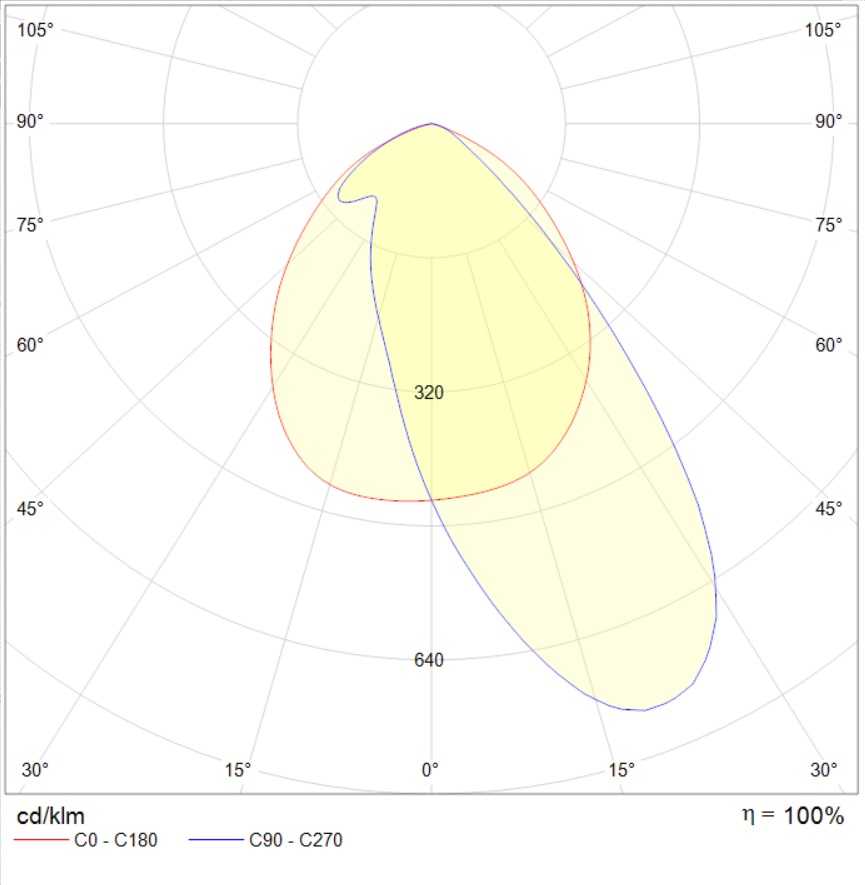

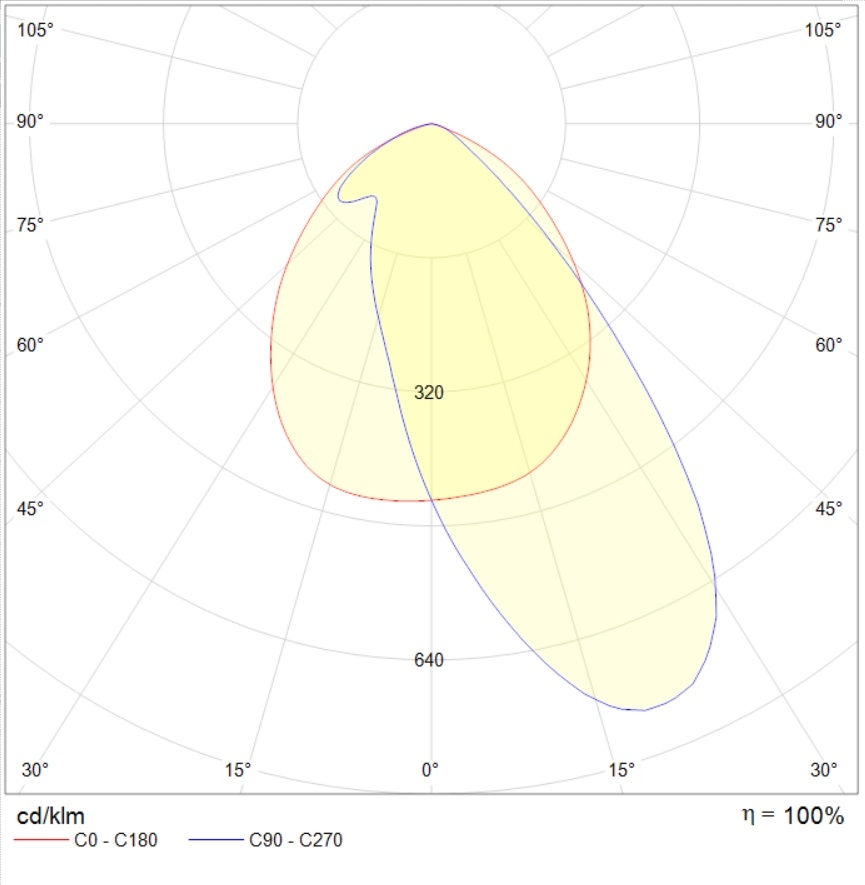

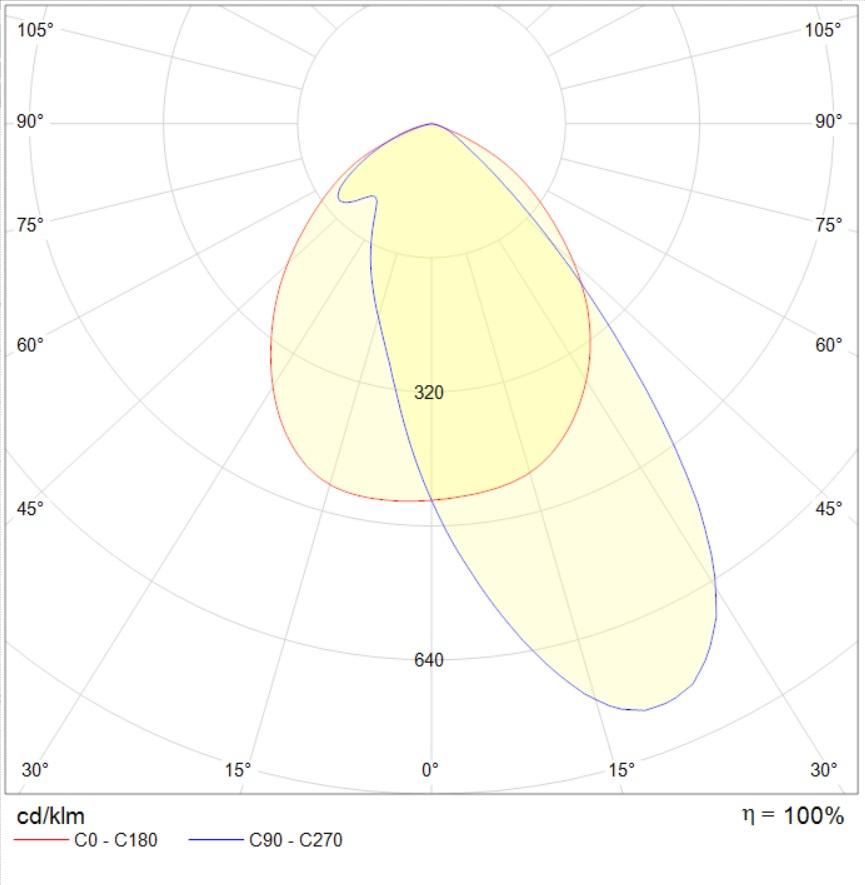

photometric files
сертификаты
photometric files
ies107 kB
jpg82.3 kB
ldt66 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
