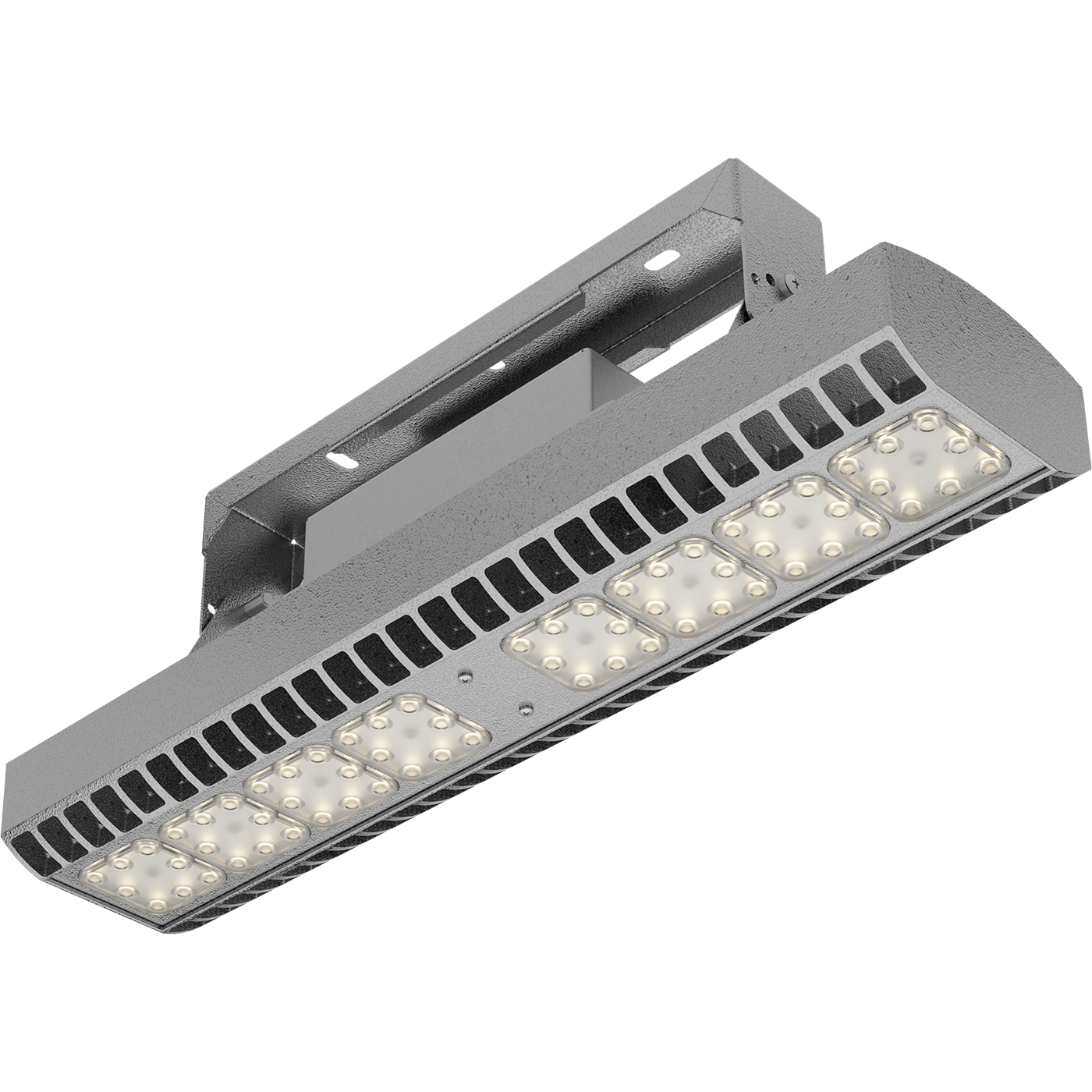

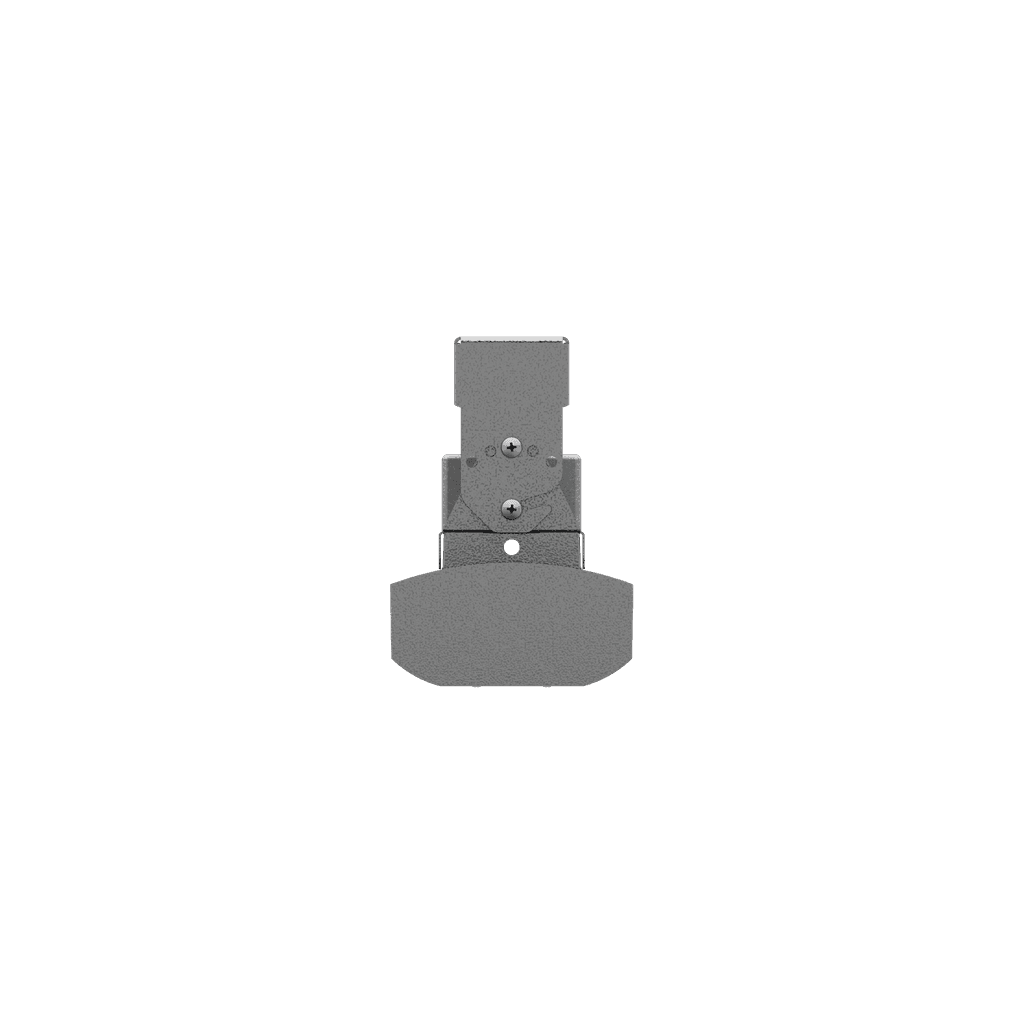

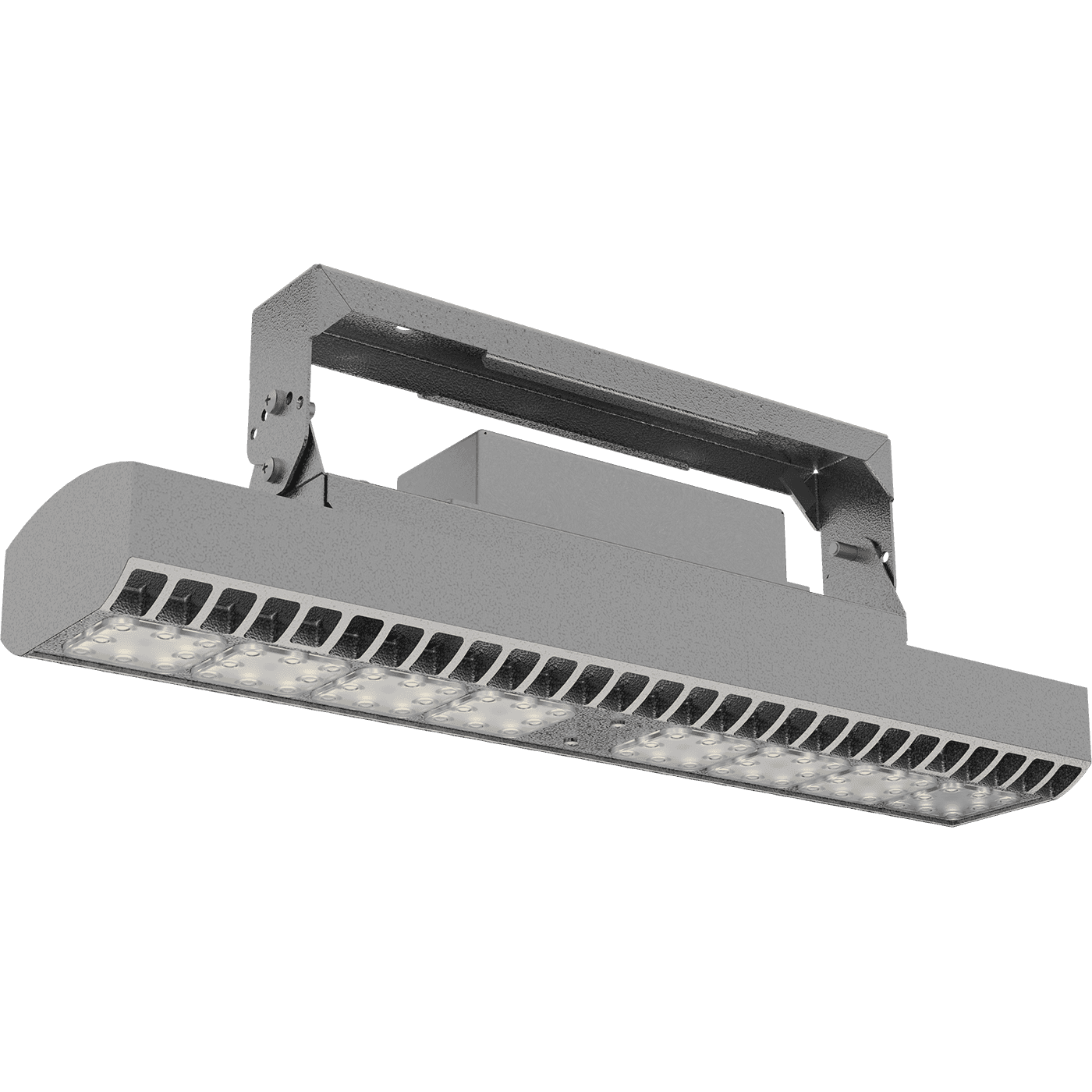

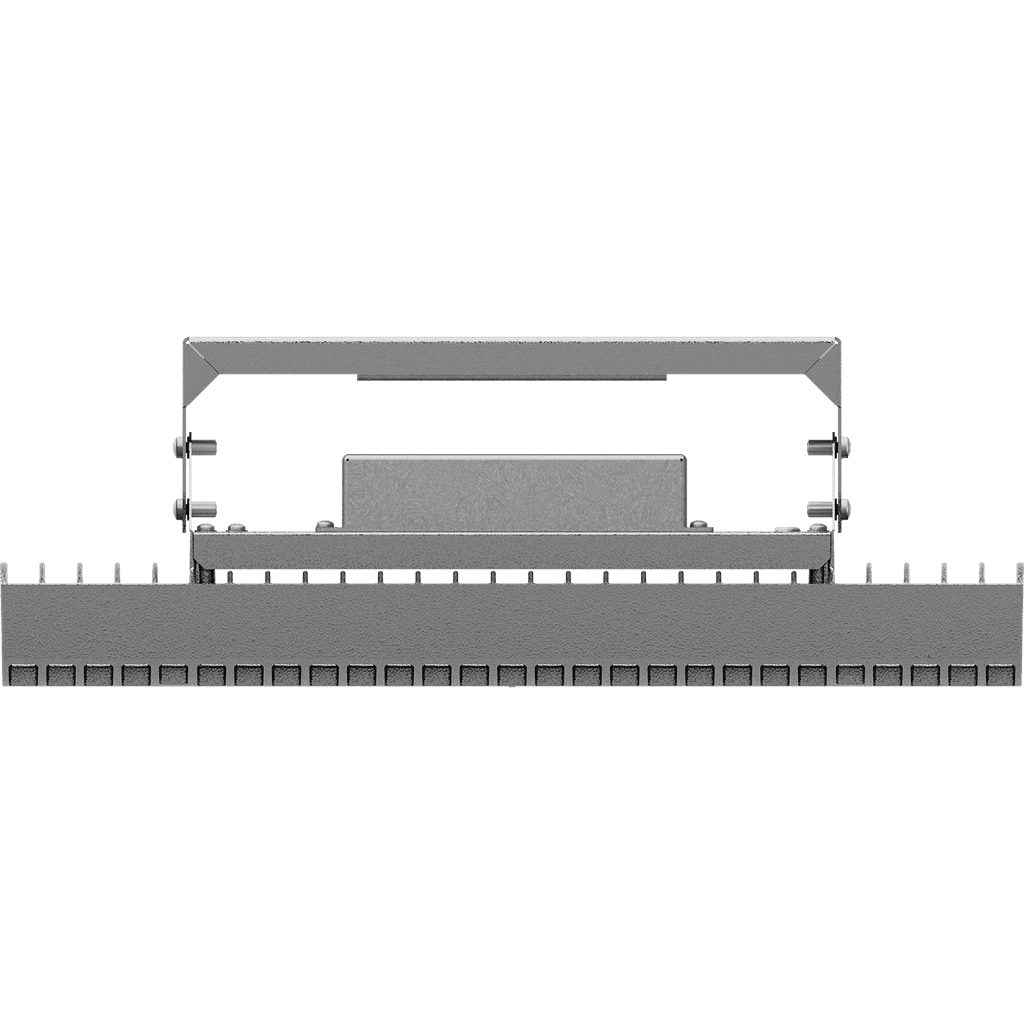

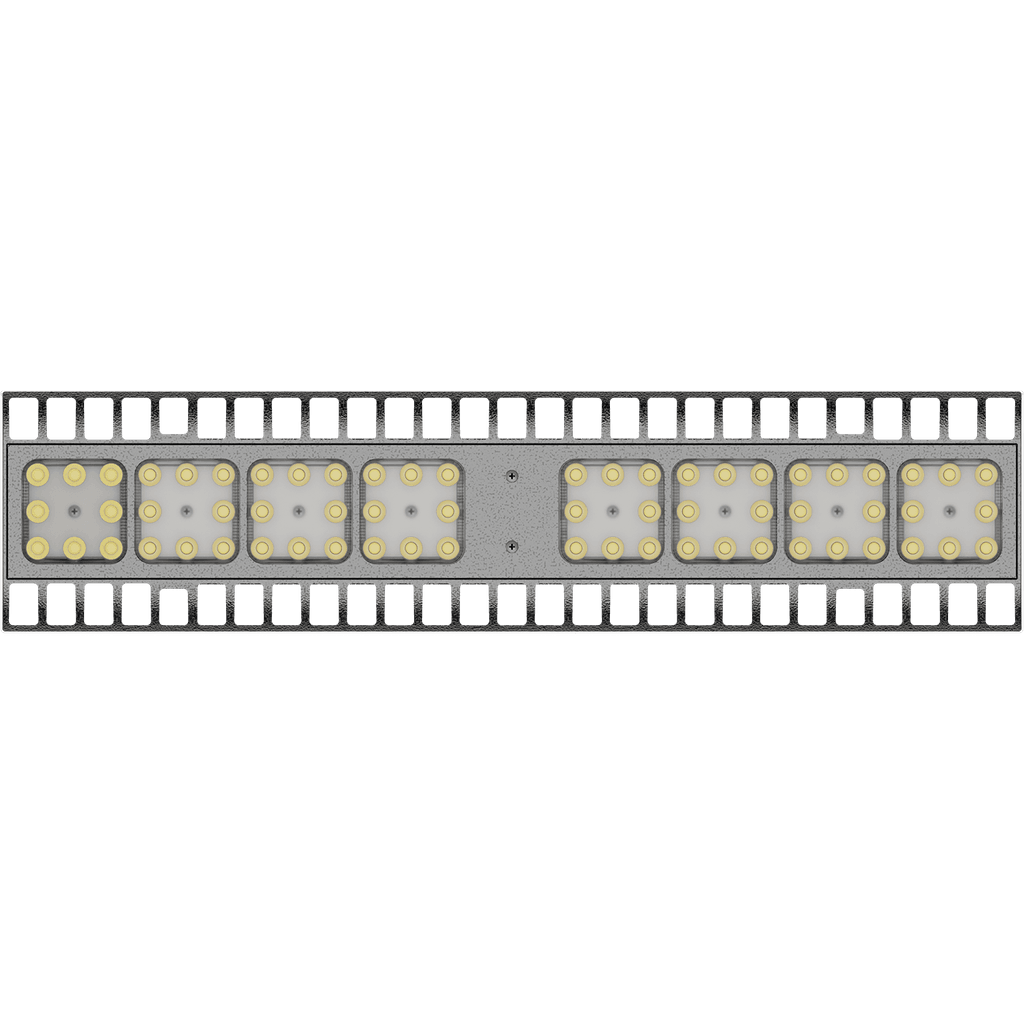

HB LED 1x150 D30 5000K
HB LED 1x150 D30 5000K
140 Wluminaire power
17800 lmlight flow
127 lm/Wenergy efficiency
code1224004920
color temperature5000
beam angleD30
weight4 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
90-305 Vsupply voltage, direct current
128-431 Velectric shock protection
Istarting current
75 Astarting current pulse time, µs
375 mksluminaire power
140 Wrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,97supply voltage
230 Velectrical
supply voltage, alternating current
90-305 V
supply voltage, direct current
128-431 V
electric shock protection
I
starting current
75 A
starting current pulse time, µs
375 mks
luminaire power
140 W
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
17800 lm
flickering factor
<1%
energy efficiency
127 lm/W
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP66
material
Алюминий
housing color
Металлик

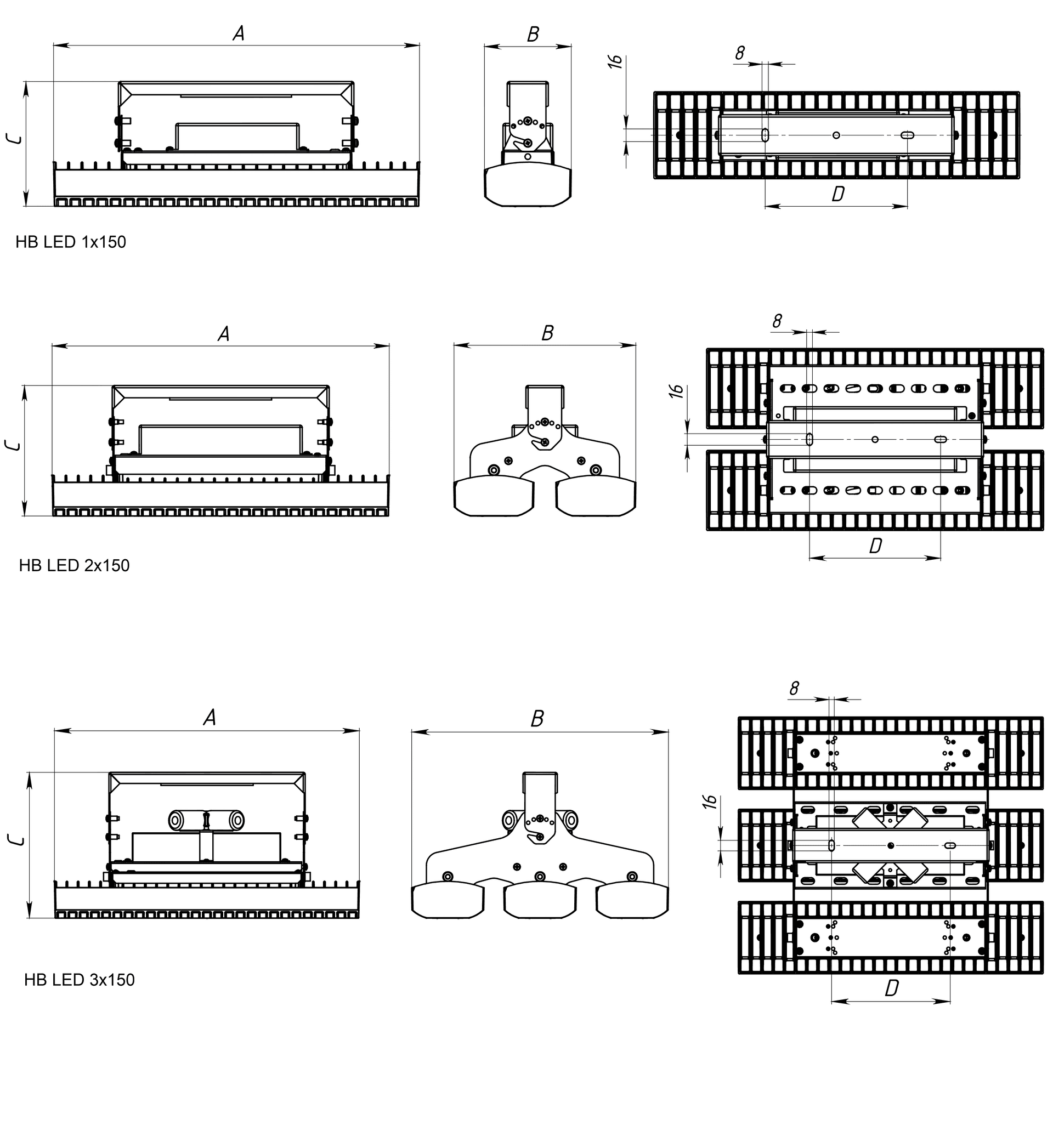

length, mm
463 mm
width, mm
110 mm
height, mm
155 mm
weight
4 kg
fire safety class
П-I,II,ІІІ
climatic performance
УХЛ1*
shock resistance (IK)
IK07/2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
180 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1224004920
model files
model files

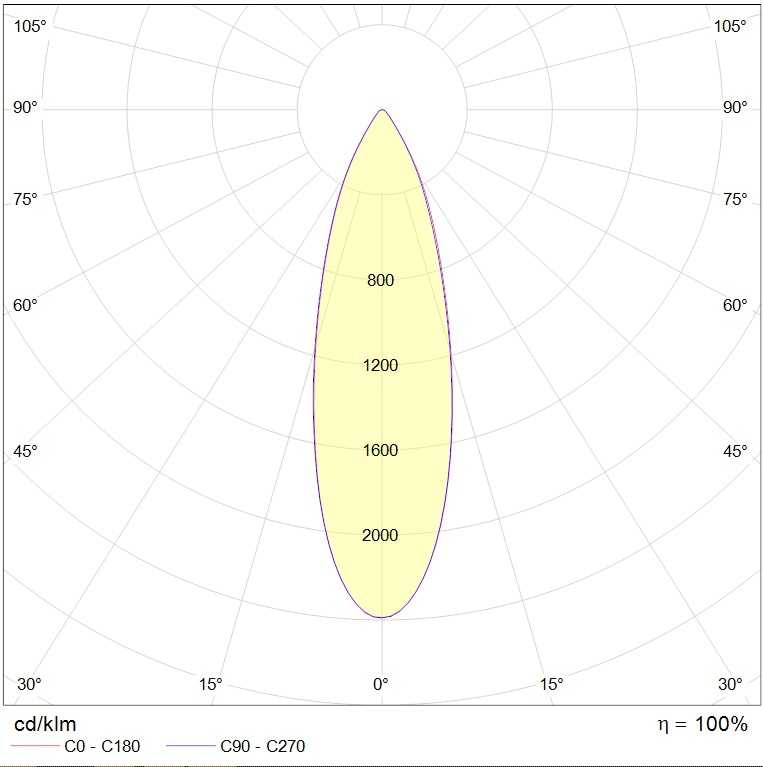

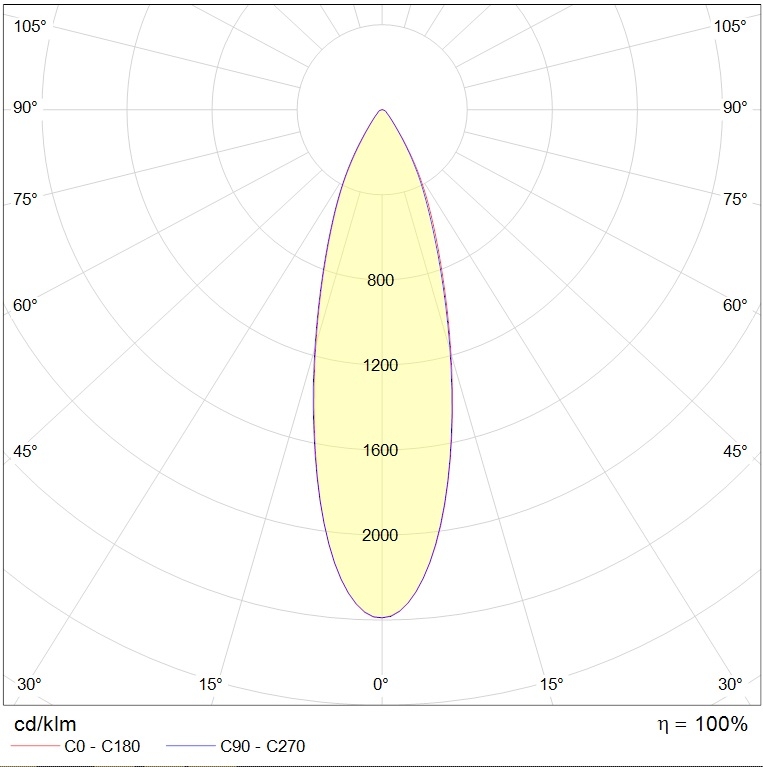

photometric files
