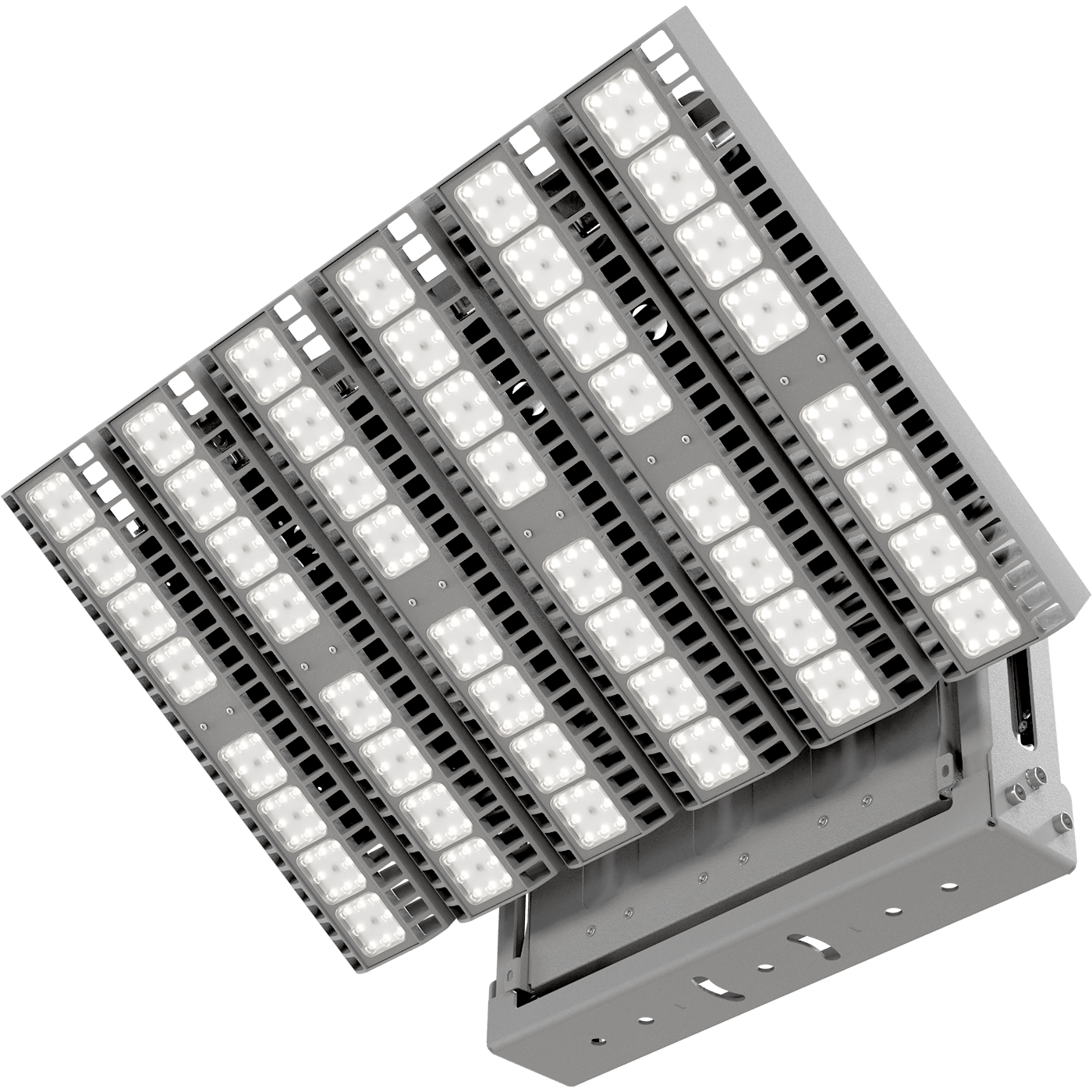

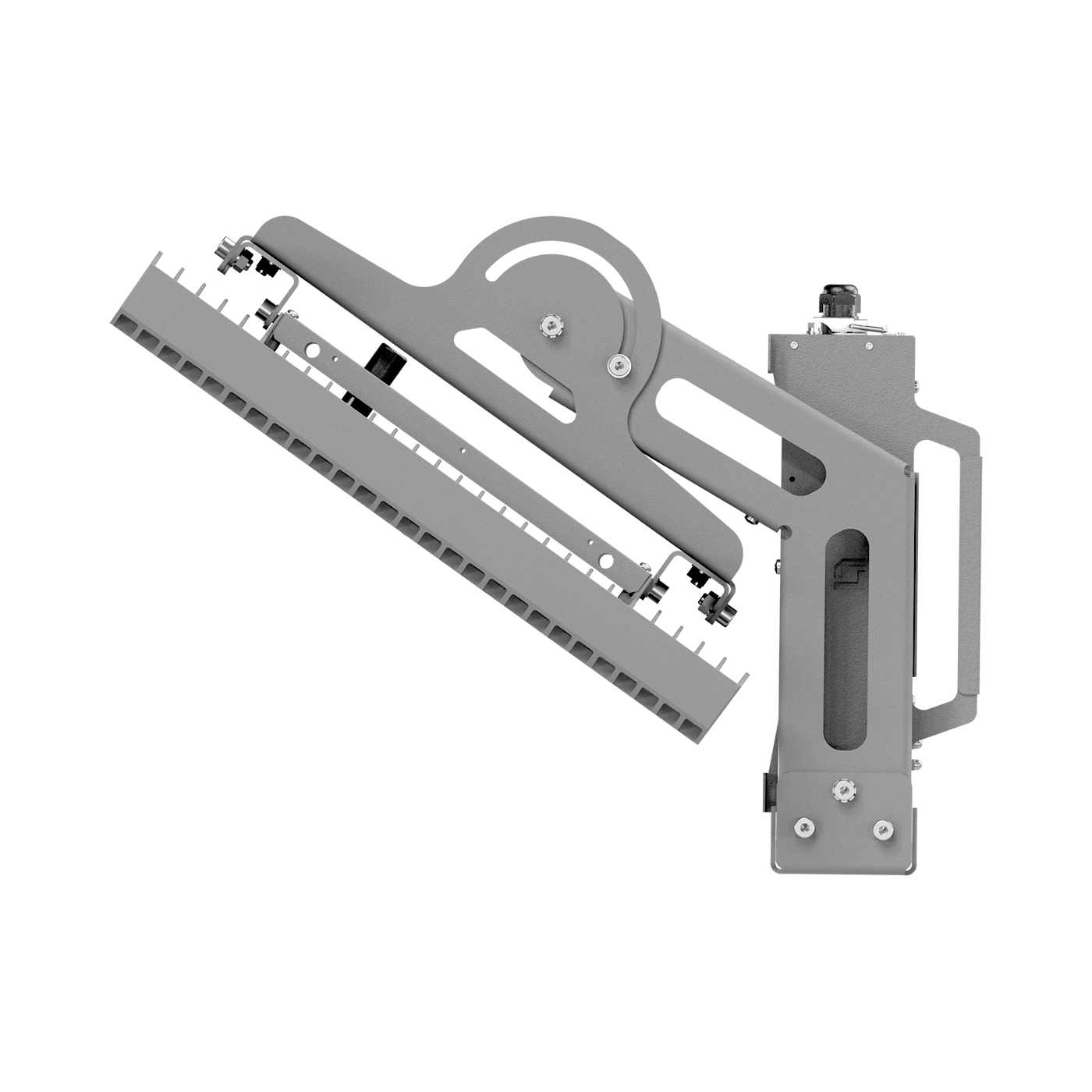

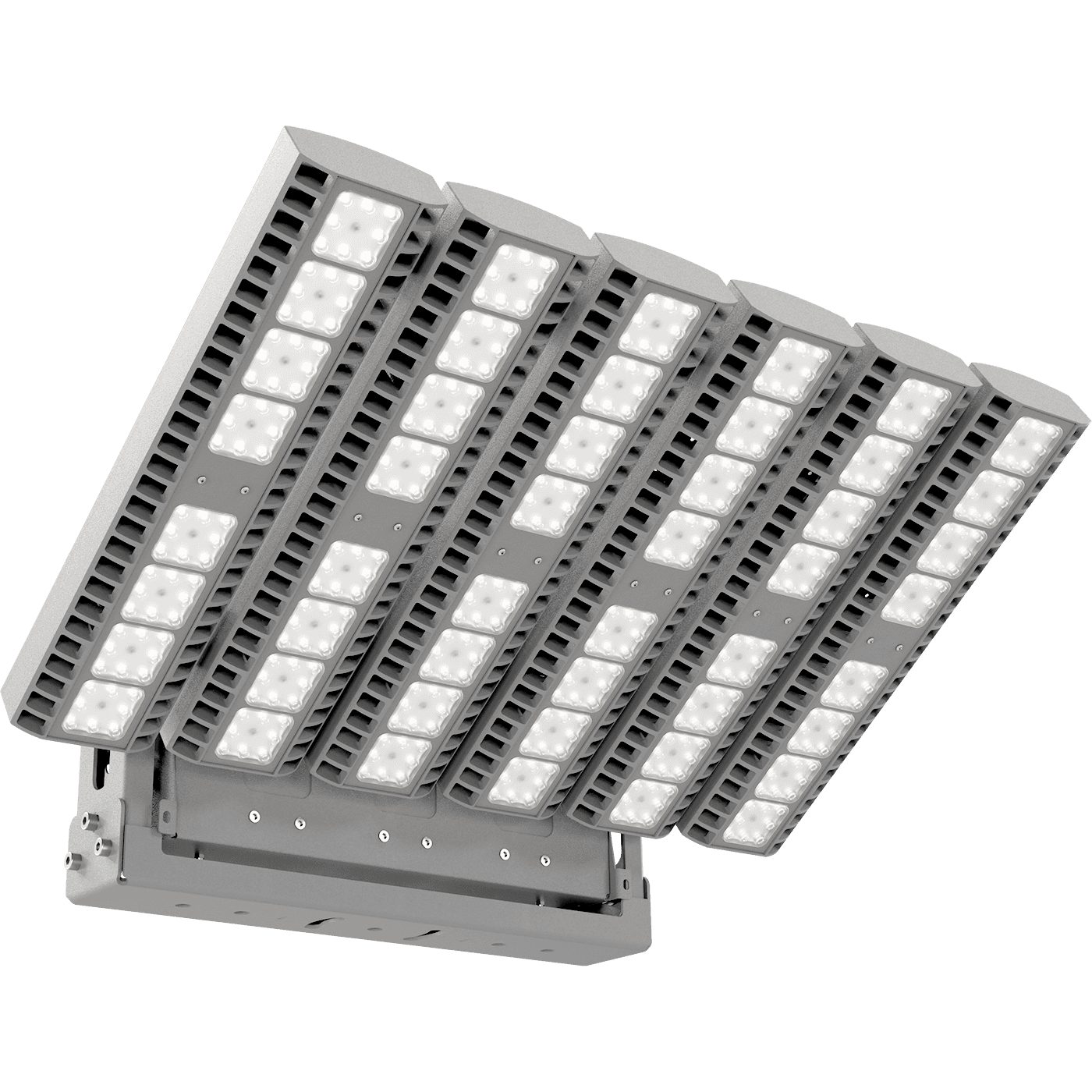

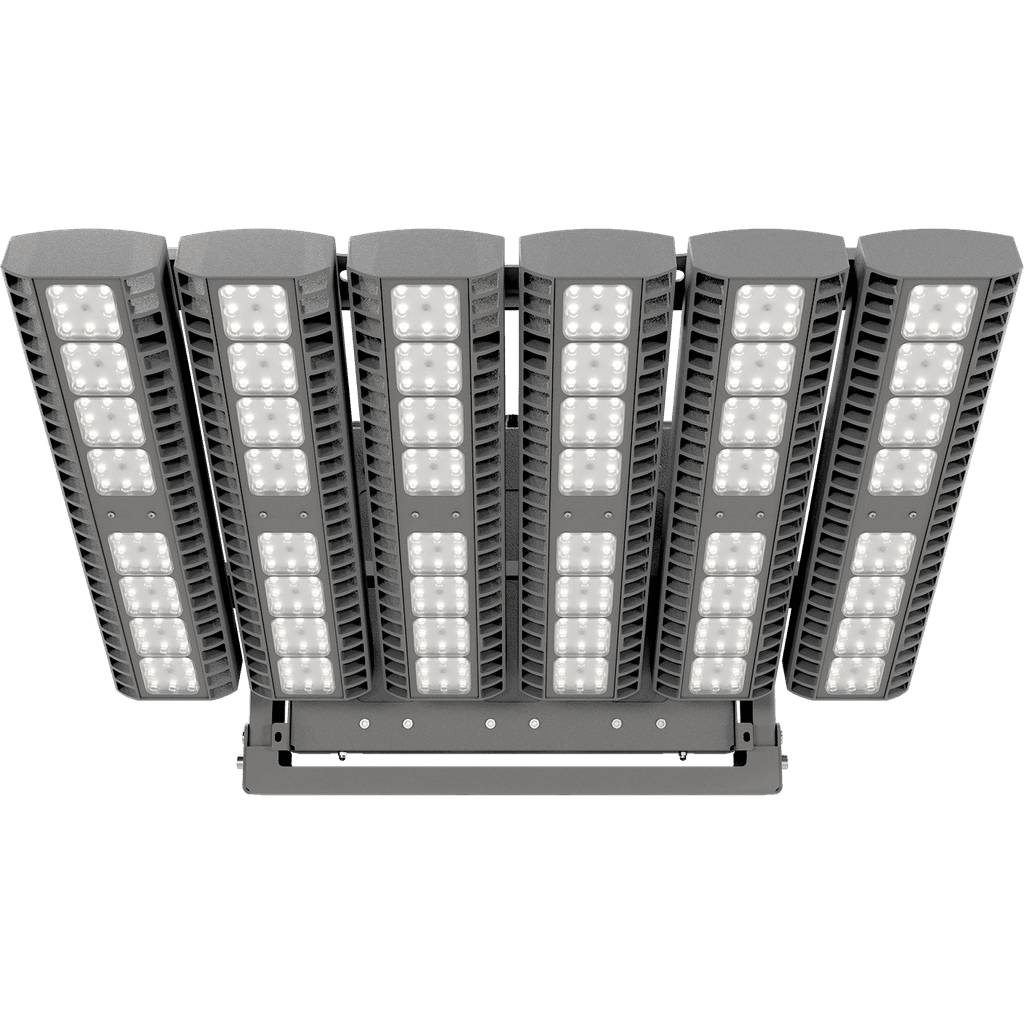

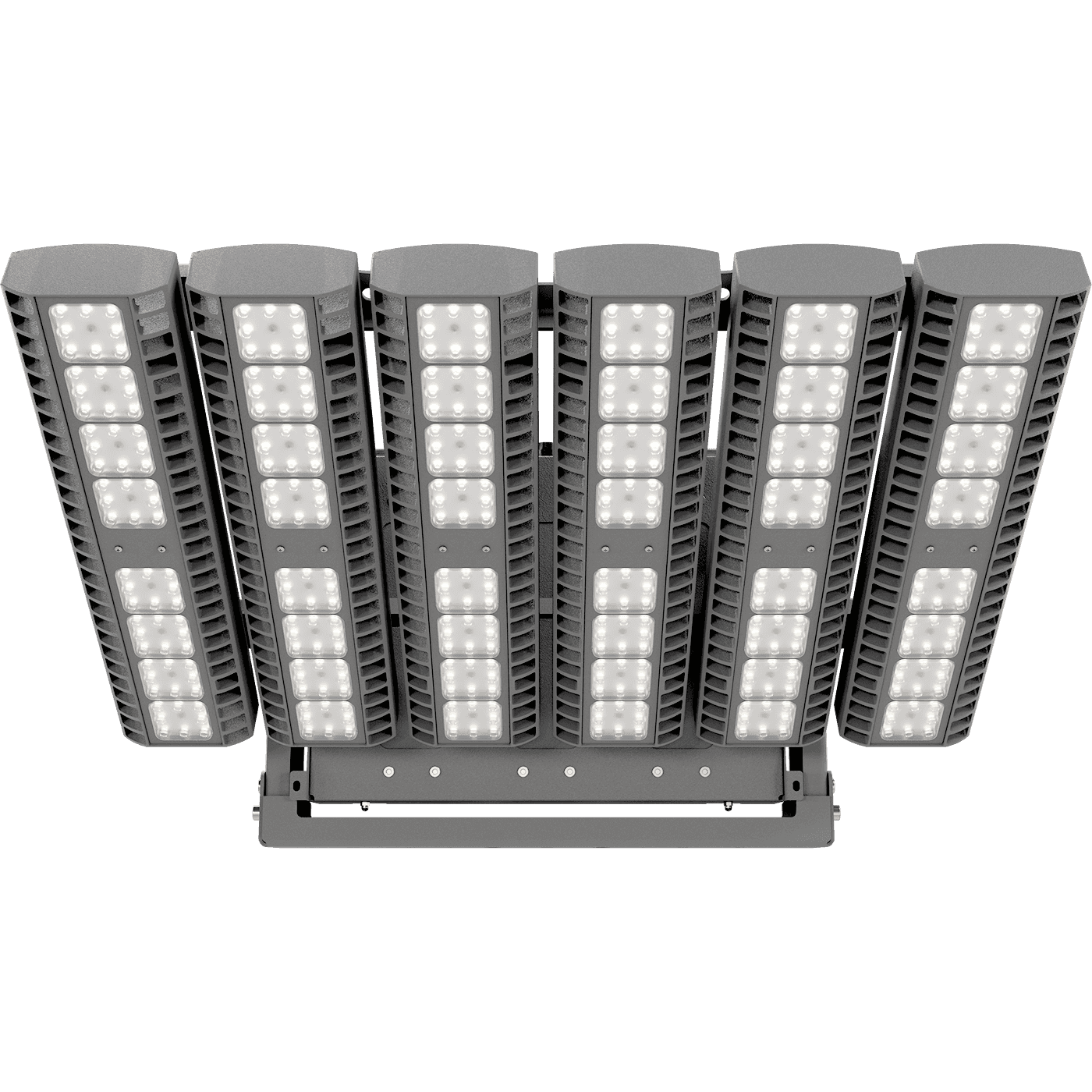

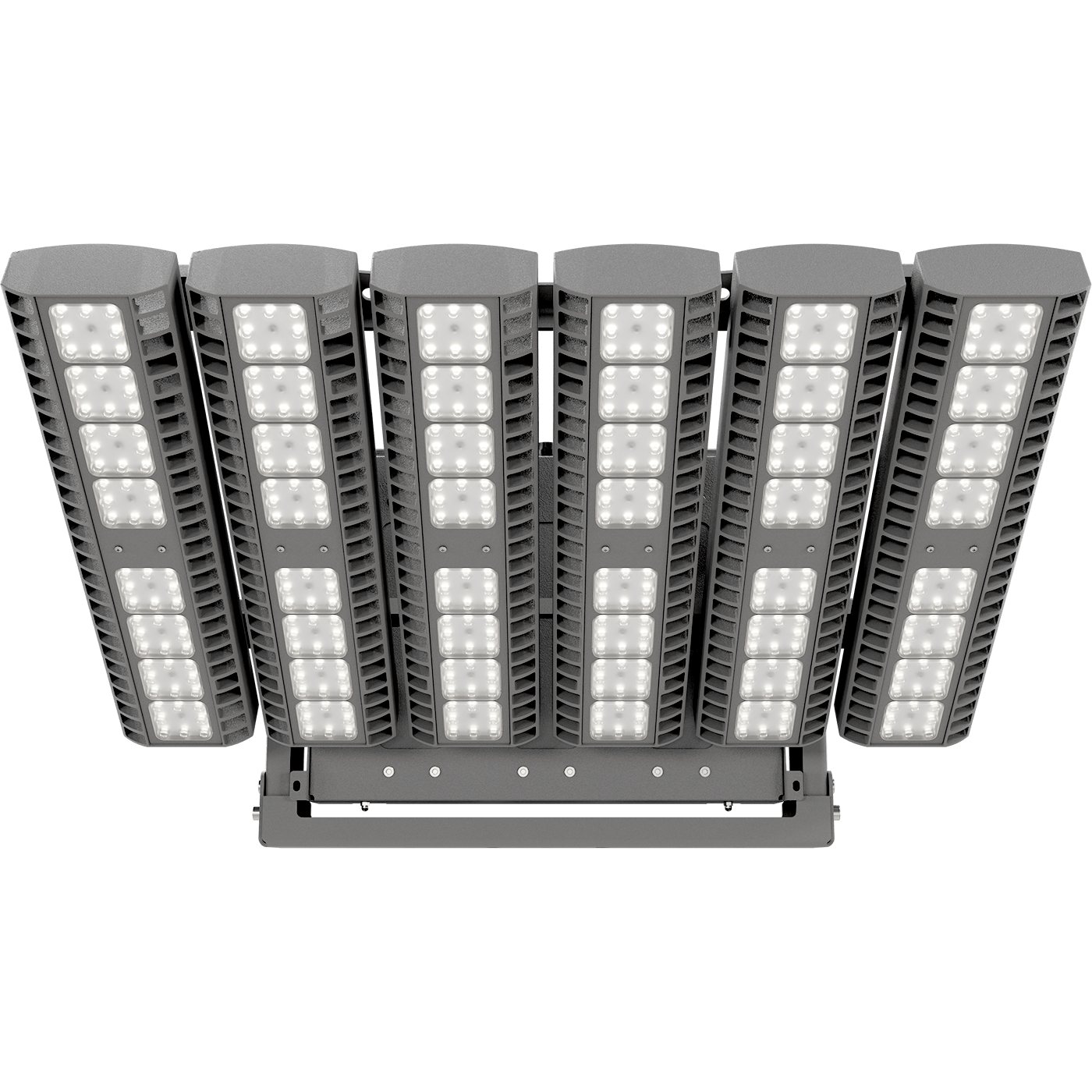

HB LED 800 D30 5000K
HB LED 800 D30 5000K
830 Wluminaire power
107600 lmlight flow
130 lm/Wenergy efficiency
code1224003780
color temperature5000
beam angleD30
weight28 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
107600 lmflickering factor
<1%energy efficiency
130 lm/Wbeam angle
D30color temperature
5000light source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
107600 lm
flickering factor
<1%
energy efficiency
130 lm/W
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
electrical
power factor
> 0,97
luminaire power
830 W
electric shock protection
I
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
65 A
supply voltage
230 V
starting current pulse time, µs
500 mks
constructional
shock resistance (IK)
IK07/2 Дж
climatic performance
УХЛ1*
fire safety class
П-ІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
28 kg
length, mm
710 mm
width, mm
535 mm
height, mm
360 mm
installation length, mm
340 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A+
service life, hour
50 000 h
temperature range
от -40 до +40 C
code
1224003780
model files
model files

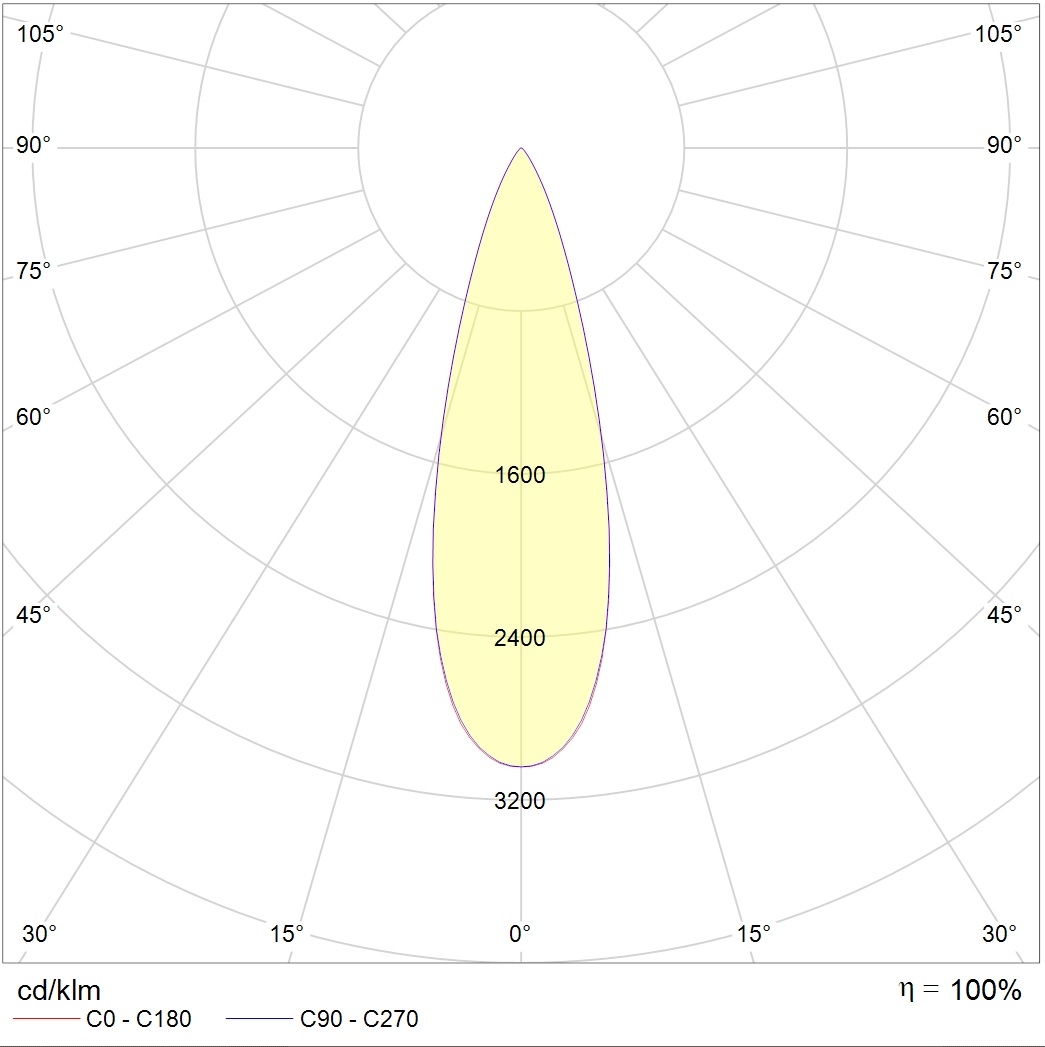

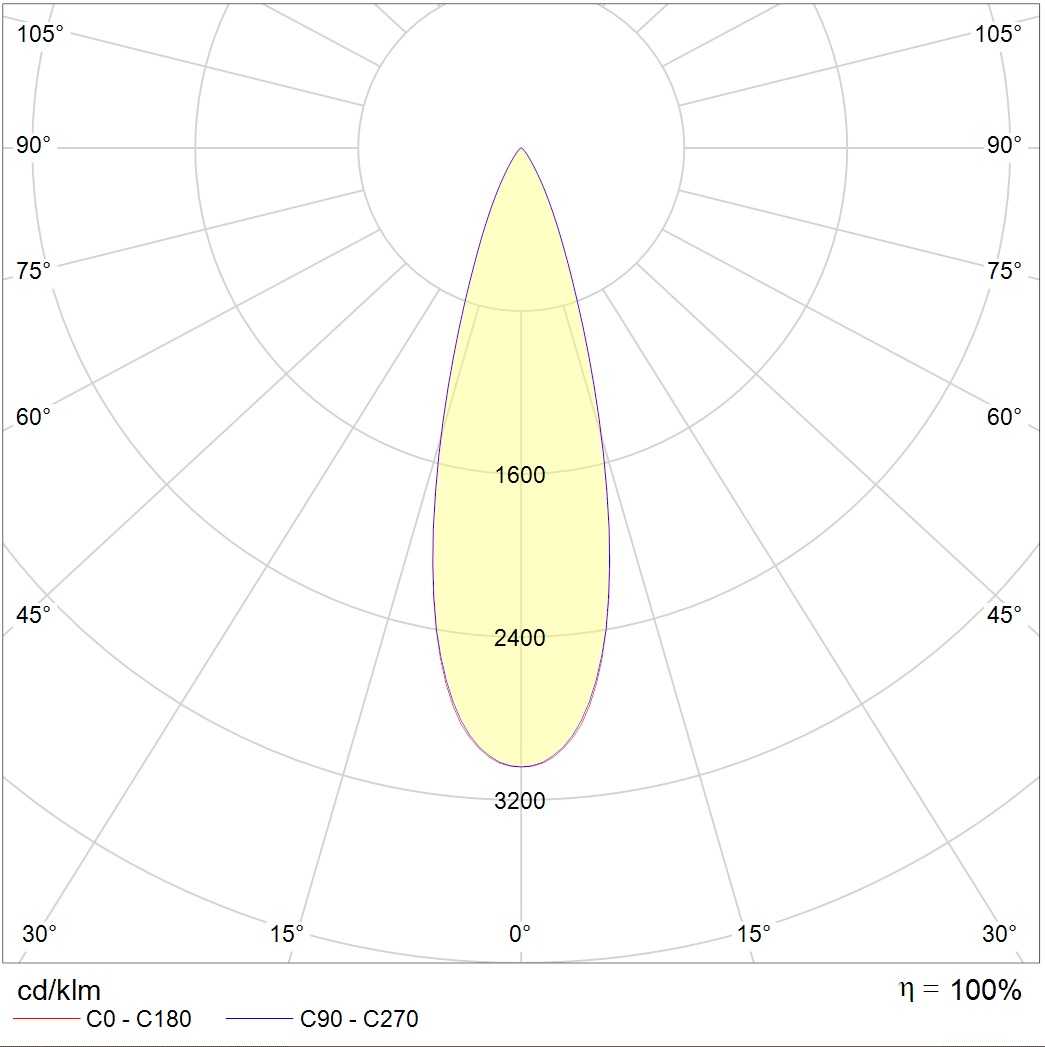

photometric files
documents
сертификаты
photometric files
jpg115.5 kB
ldt88.3 kB
documents
passport5.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
accessories

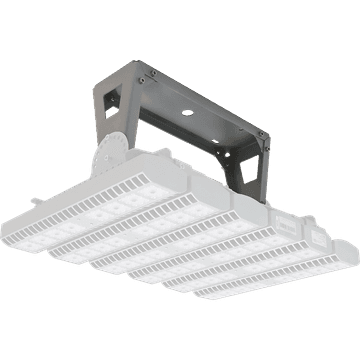

Straight bracket HB LED FLOODLIGHT4.1kgarticle: 2224000280
