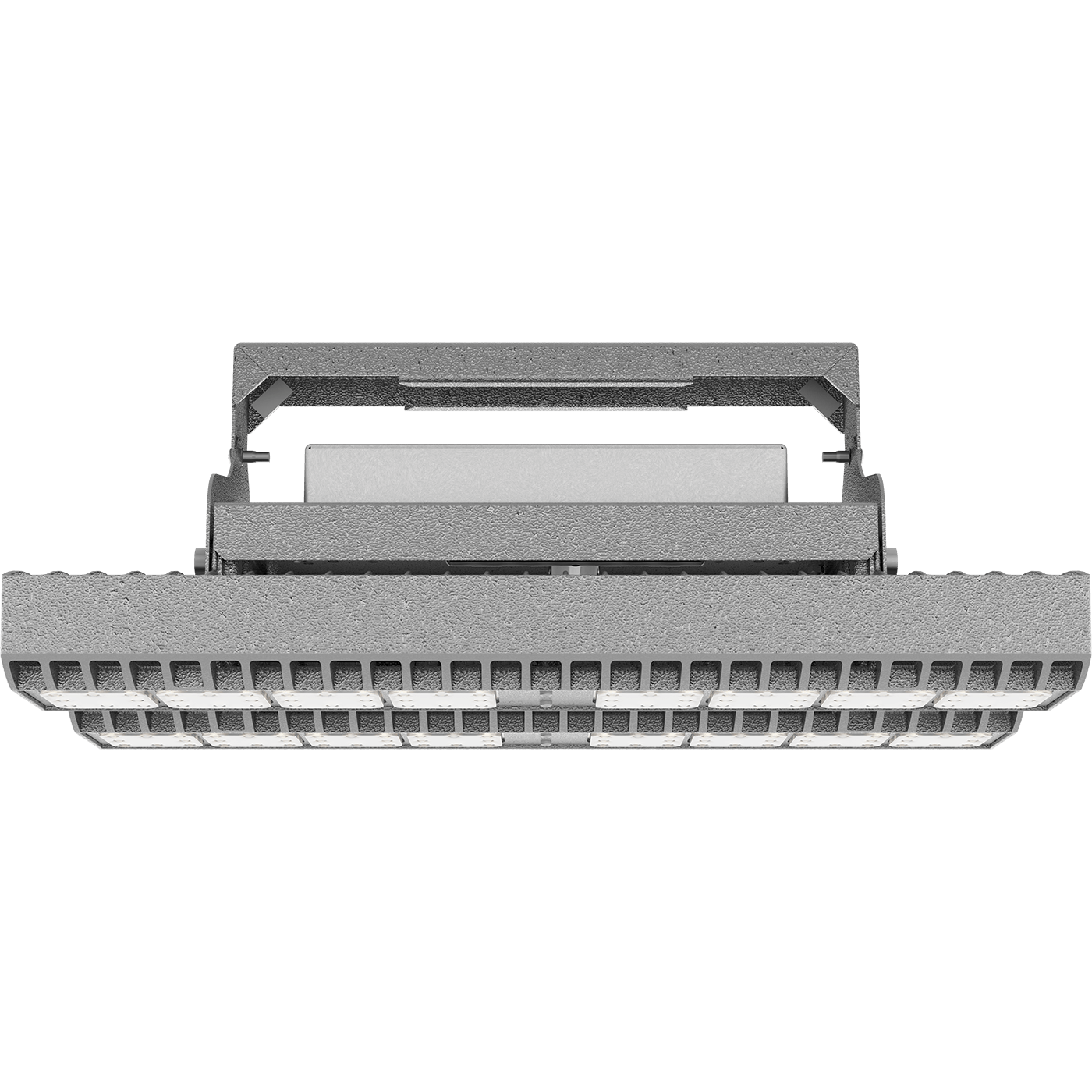

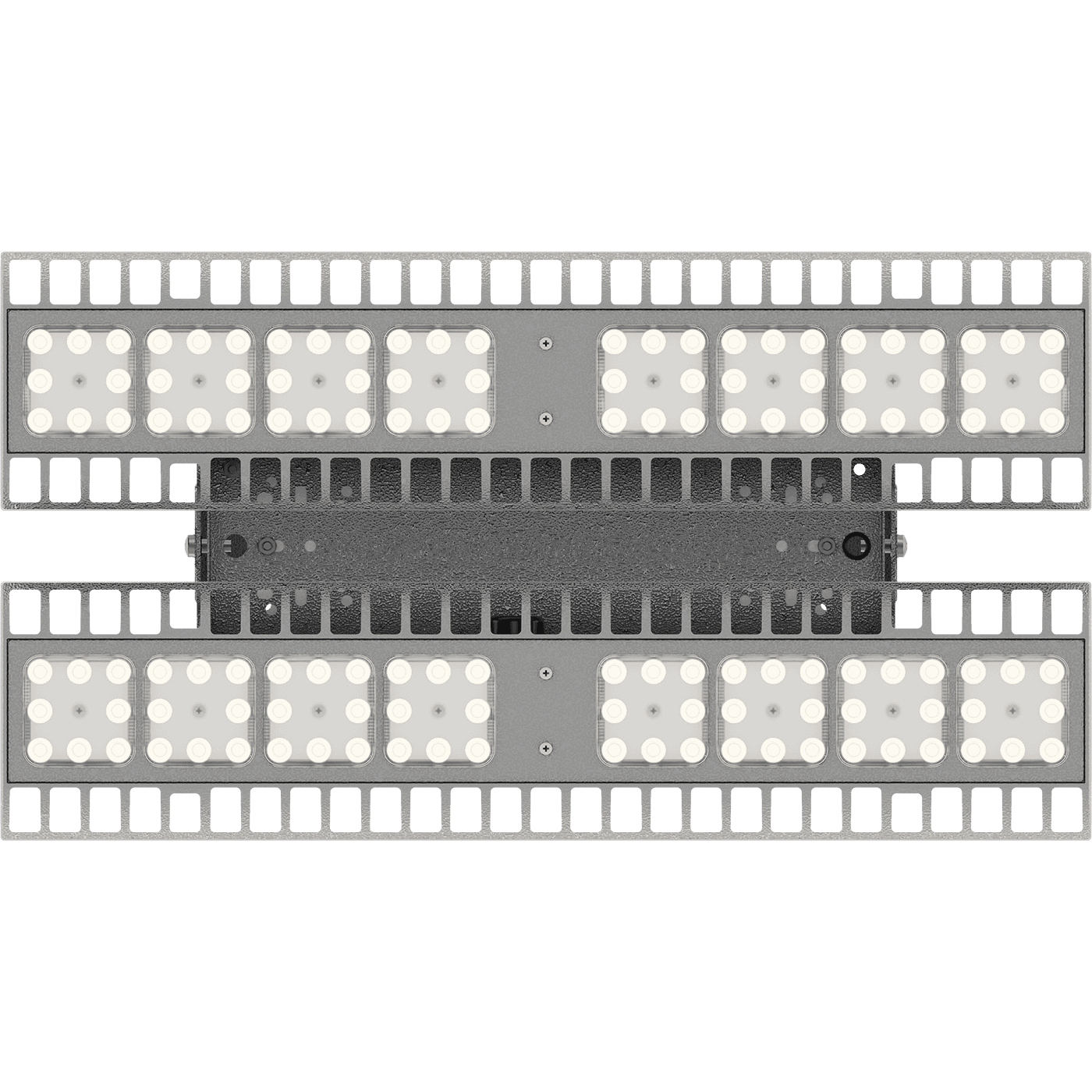

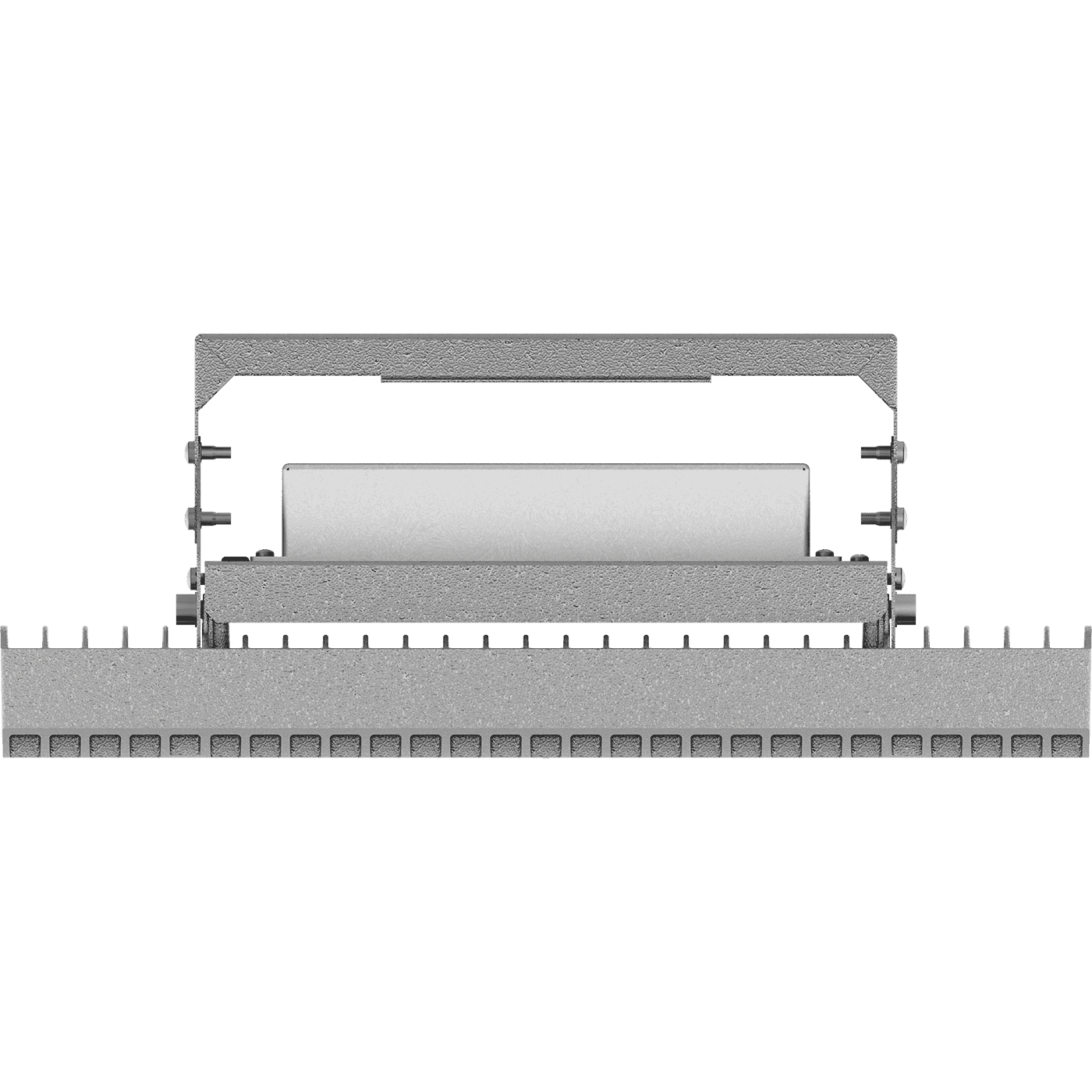

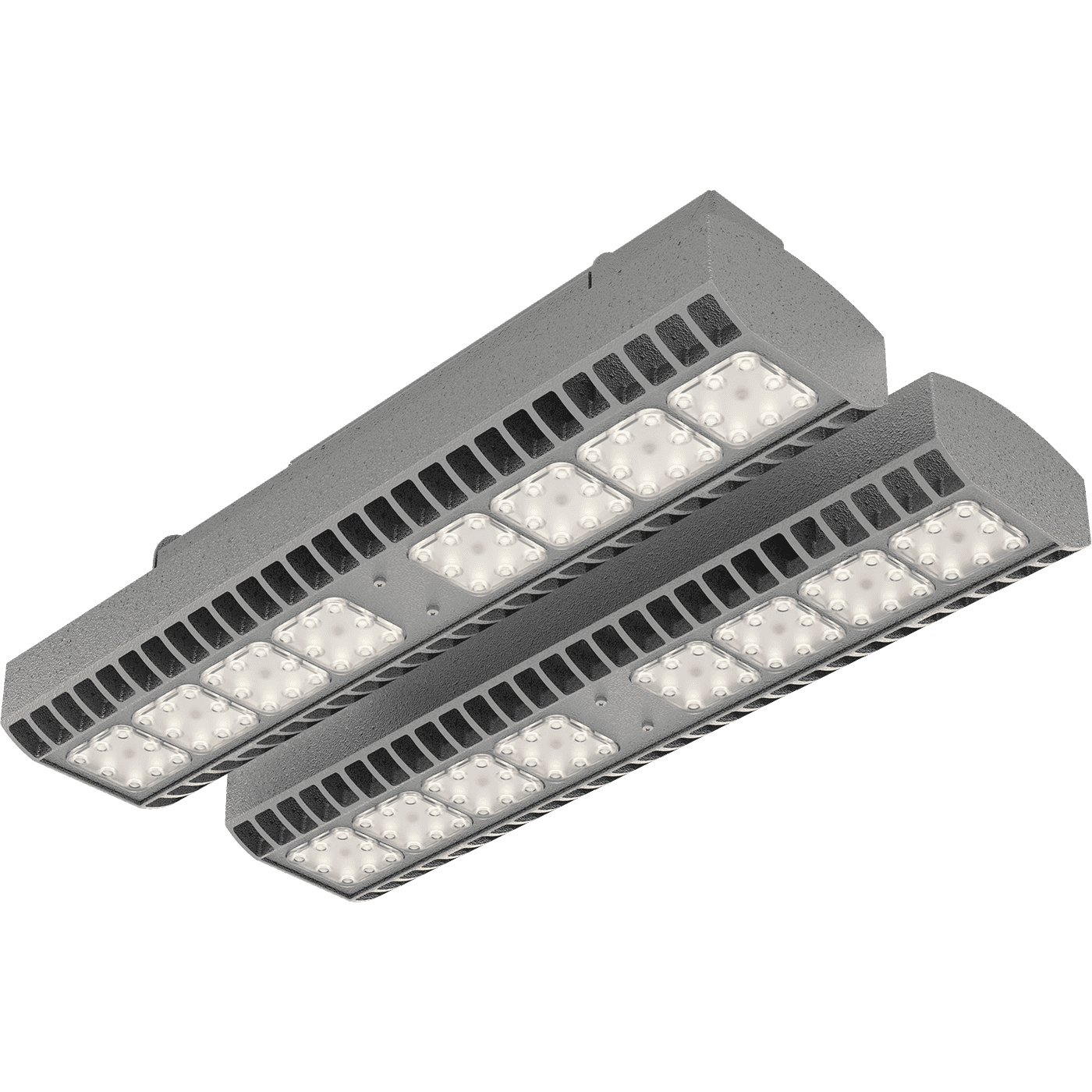

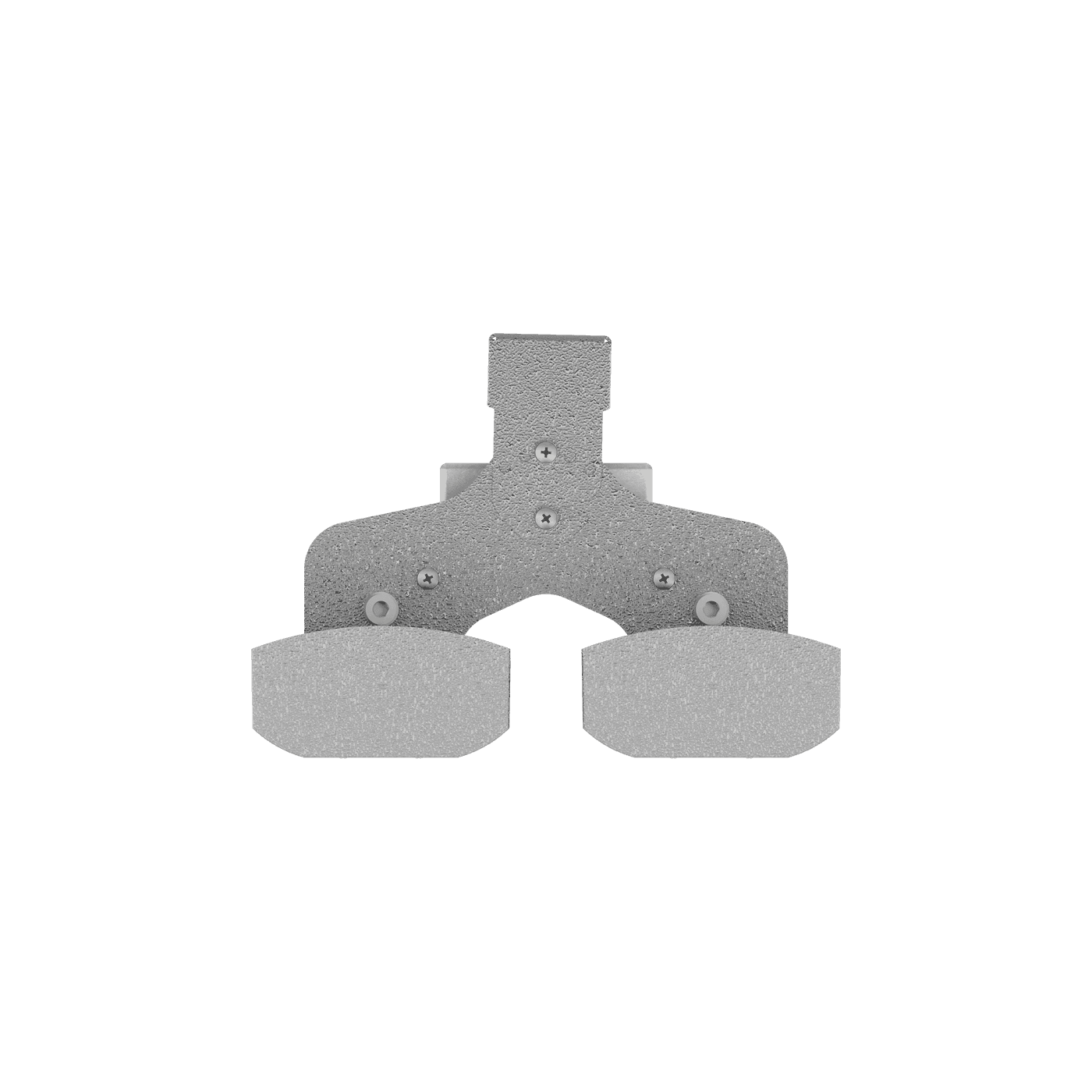

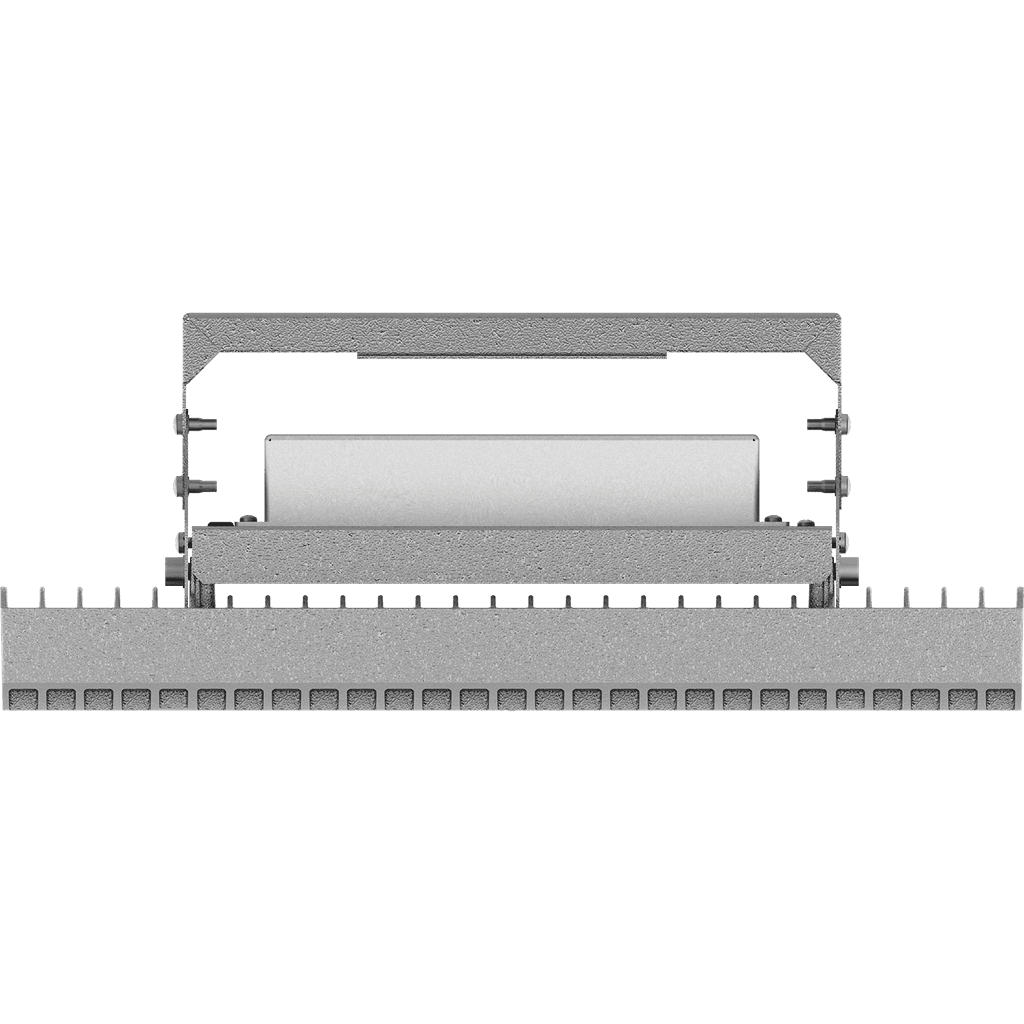

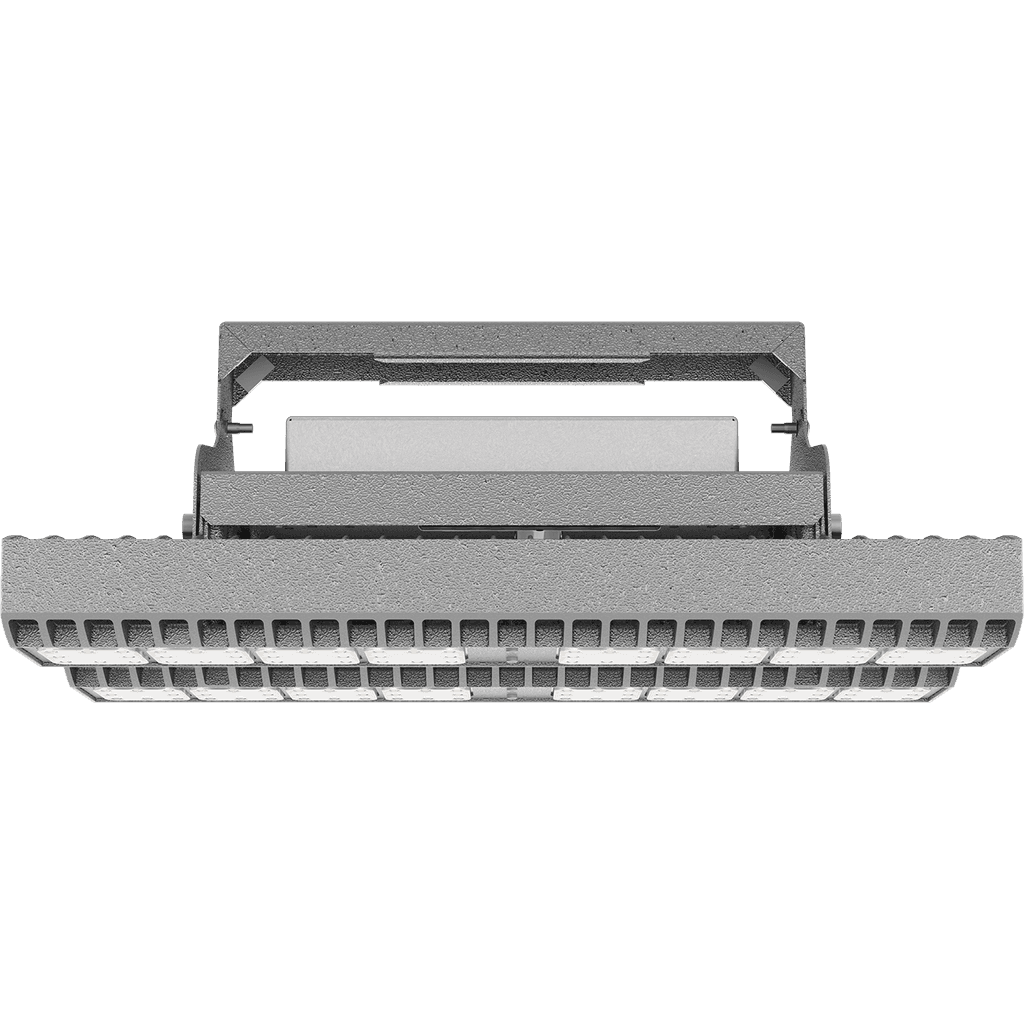

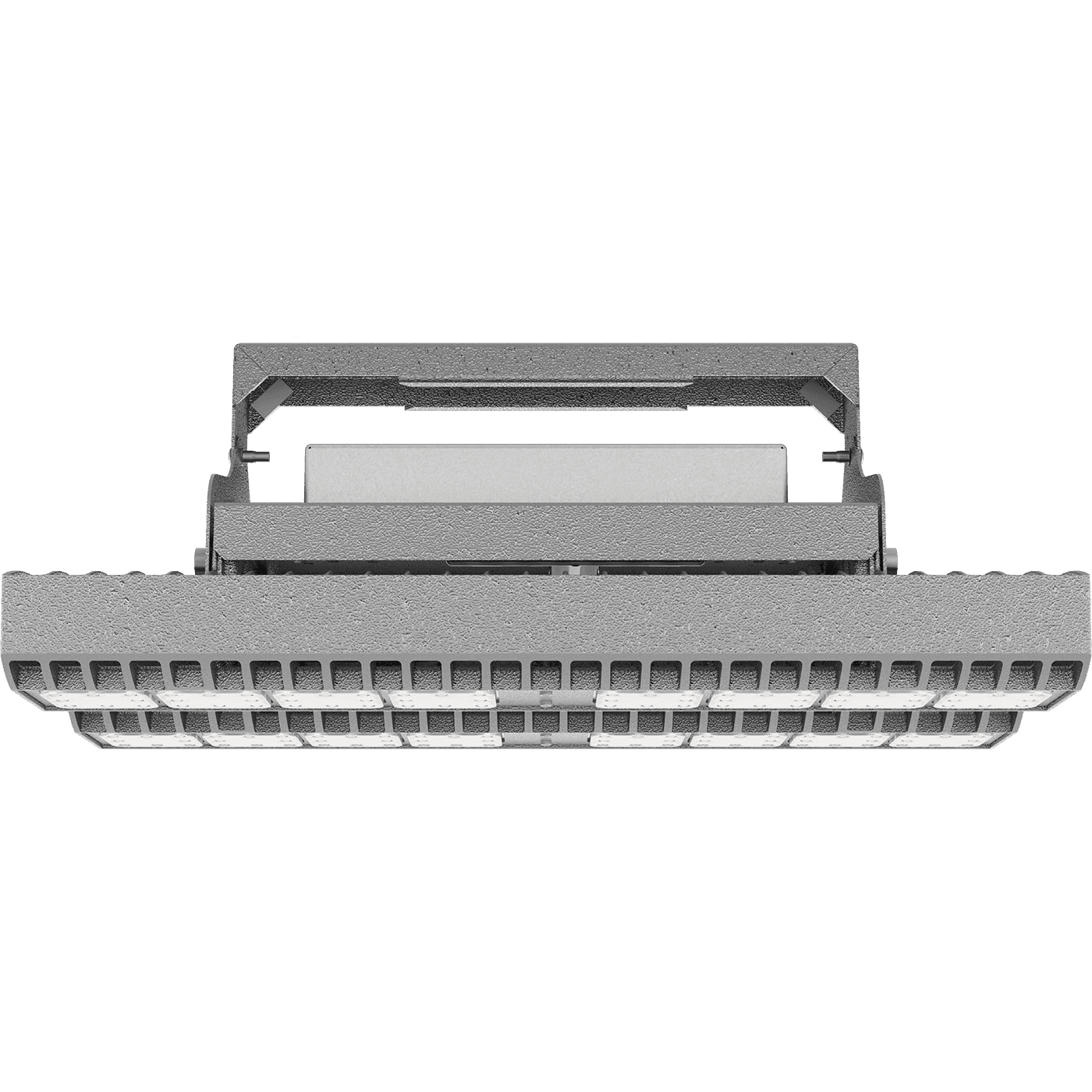

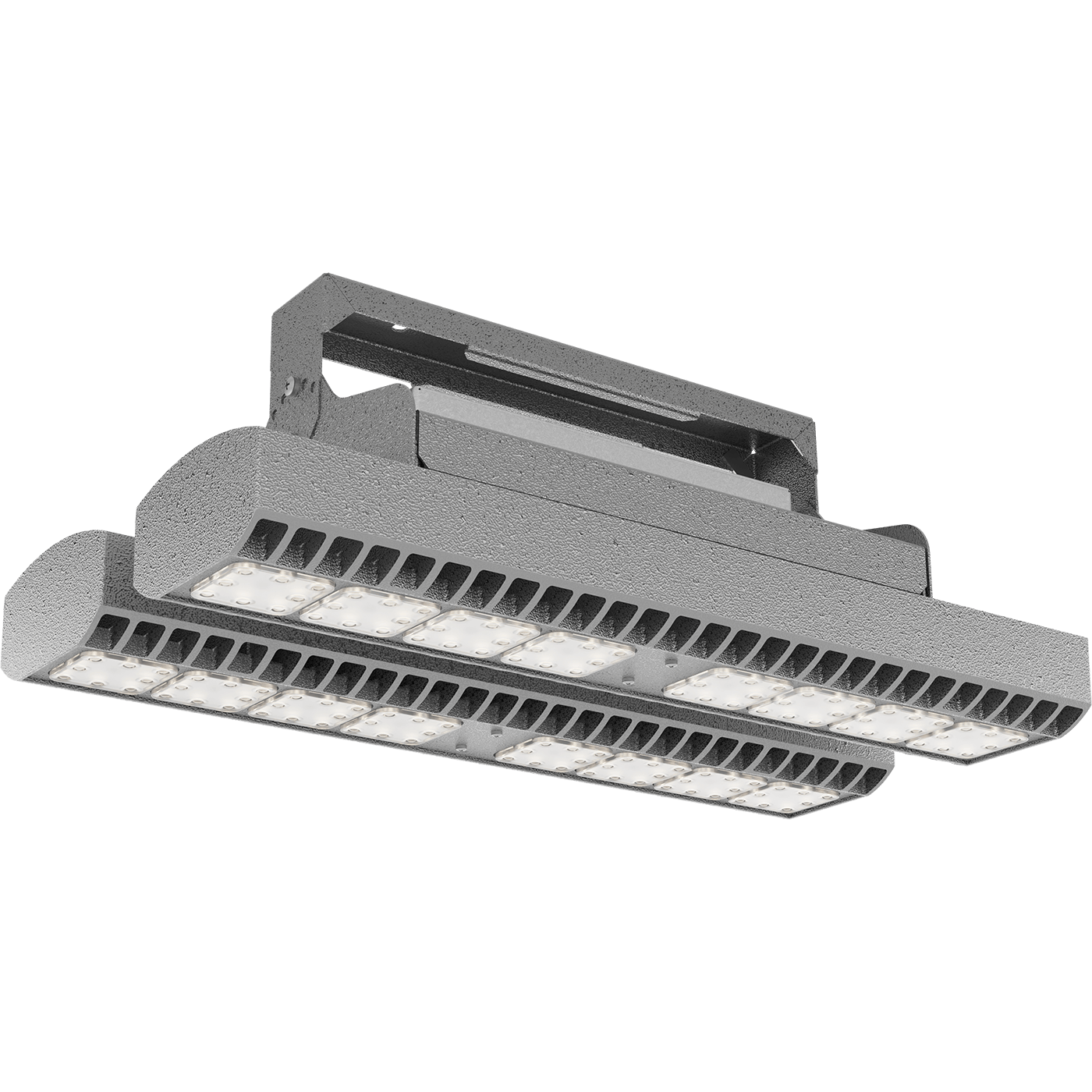

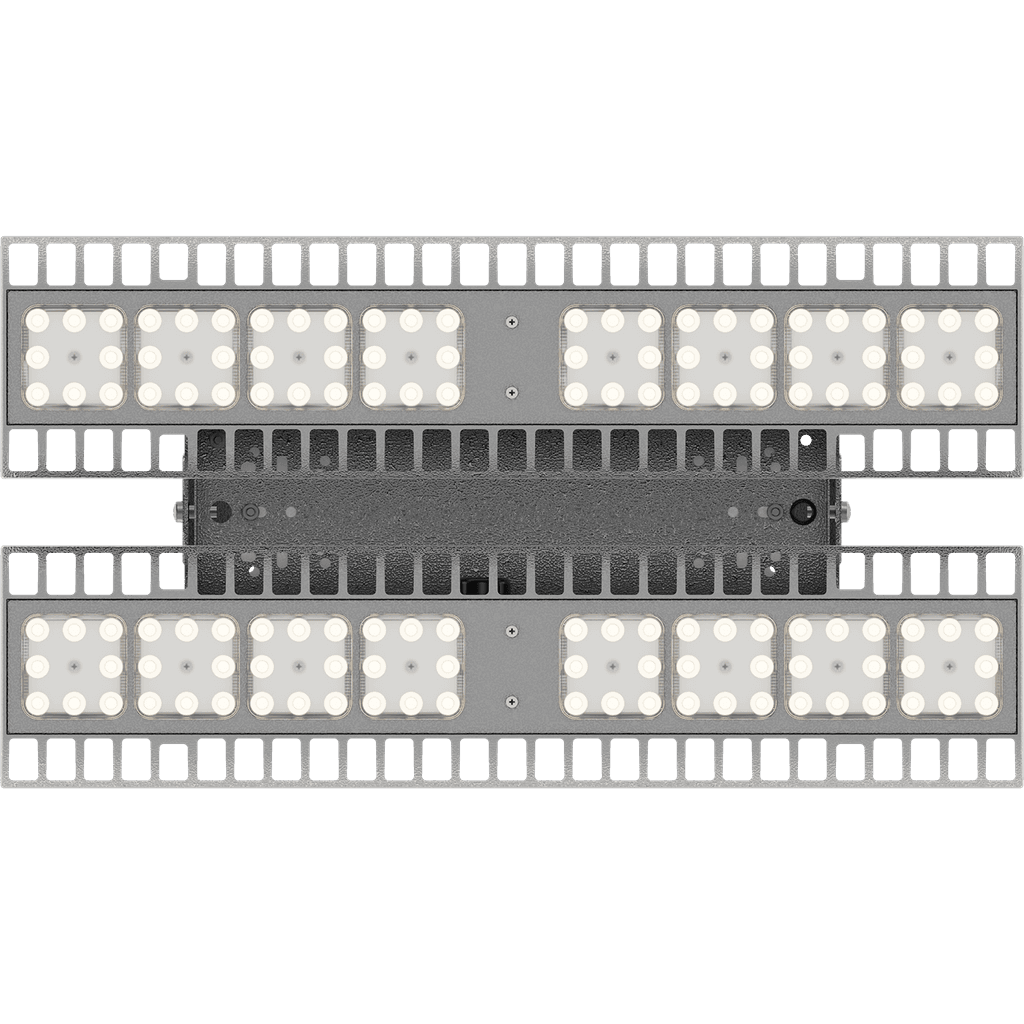

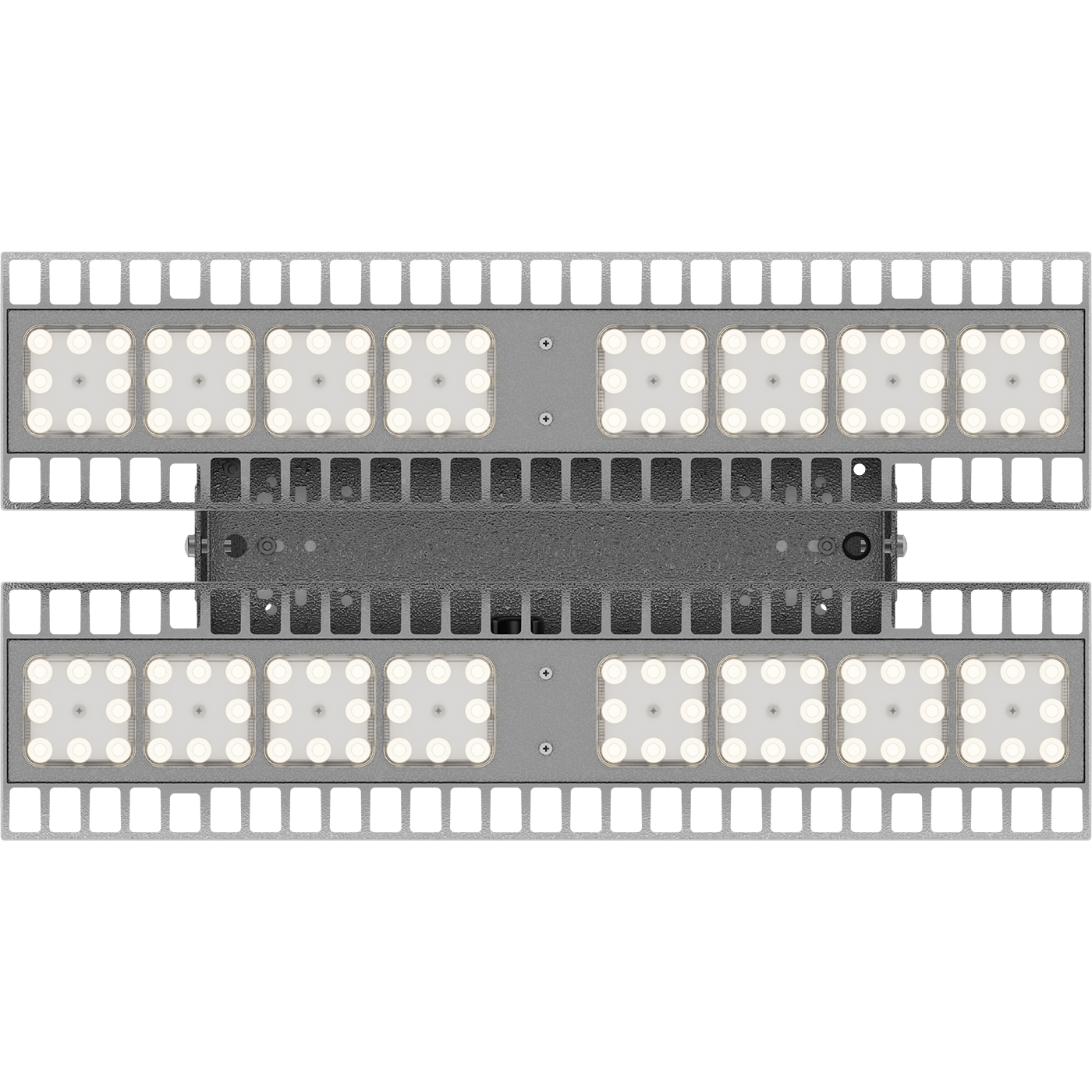

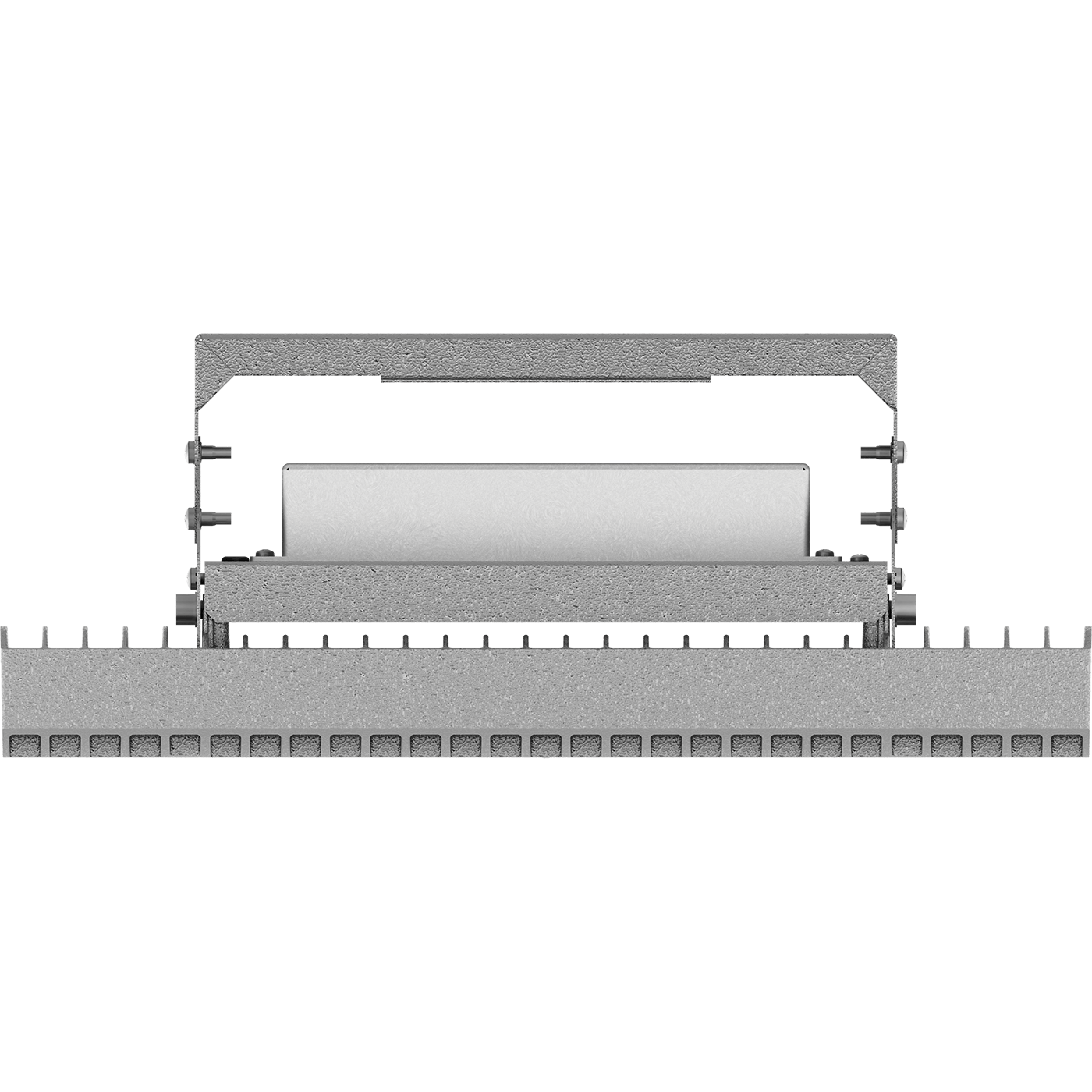

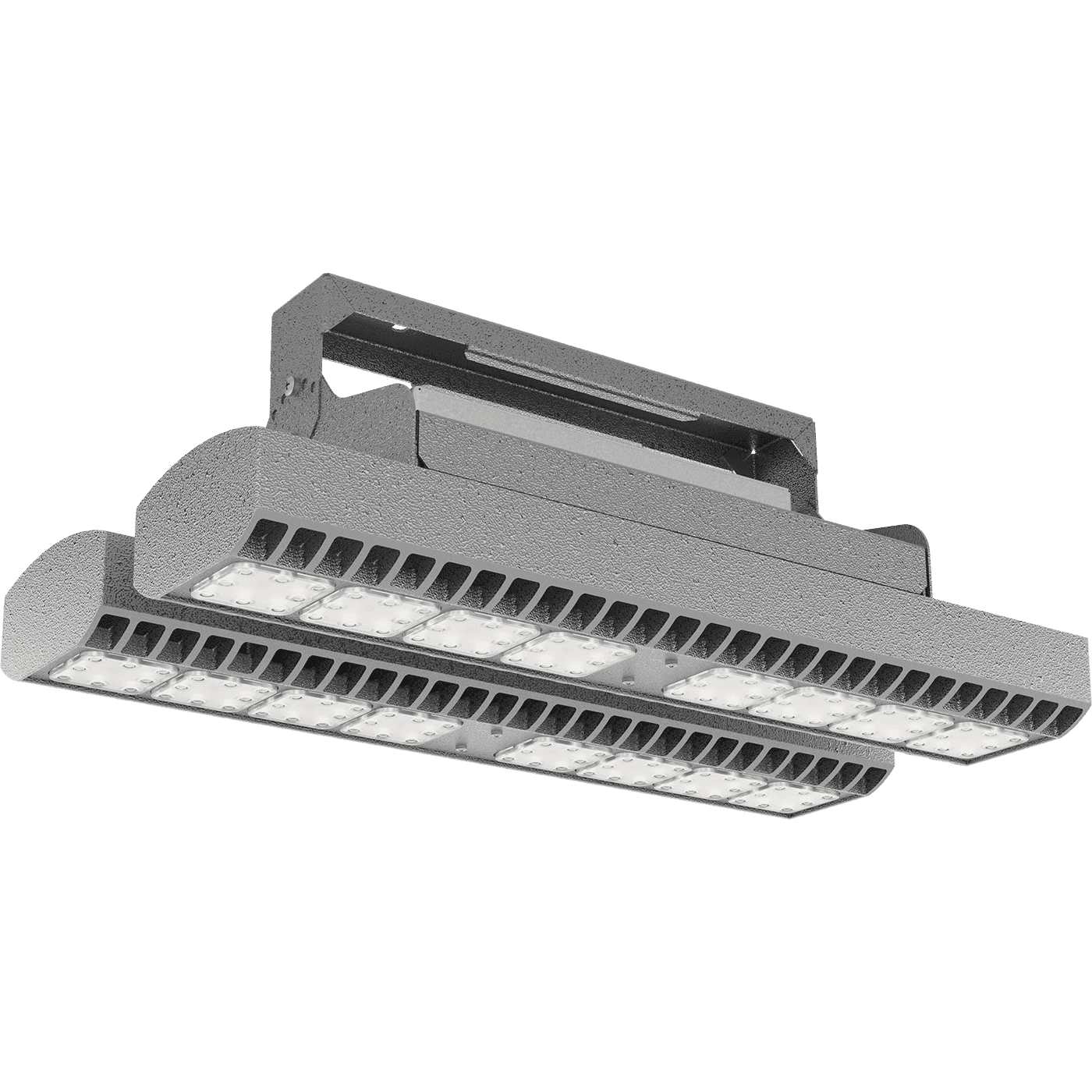

HB LED 150 D80 Ex 5000K

HB LED 150 D80 Ex 5000K
add to favorites
130 Wluminaire power
18200 lmlight flow
140 lm/Wenergy efficiency
code1224001570
color temperature5000 K
gas marking2 Ex nA II T6 Gc X
dust markingEx tc IIIC T80 C Dc X
beam angleD80
weight7.5 kg
  1. main page
  2. catalog
  3. by product type
  4. explosion-proof equipment
  5. explosion-proof lamps
  6. zone 2
  7. HB LED Ex
  8. HB LED 150 D80 Ex 5000K
options
свернуть все
illuminatingelectricalconstructionalexplosion-proofcommon
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
18200 lm
energy efficiency
140 lm/W
flickering factor
<1%
beam angle
D80
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
Synchronization of flashing mode
Нет
color rendition index (CRI)
>80
light flow
18200 lm
energy efficiency
140 lm/W
flickering factor
<1%
beam angle
D80
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
supply voltage, direct current
232-420 V
supply voltage, alternating current
150-305 V
maximum cross-section of the connected cable
4 mm2
starting current pulse time
500 µs
luminaire power
130 W
power factor
> 0,95
starting current
65 A
constructional

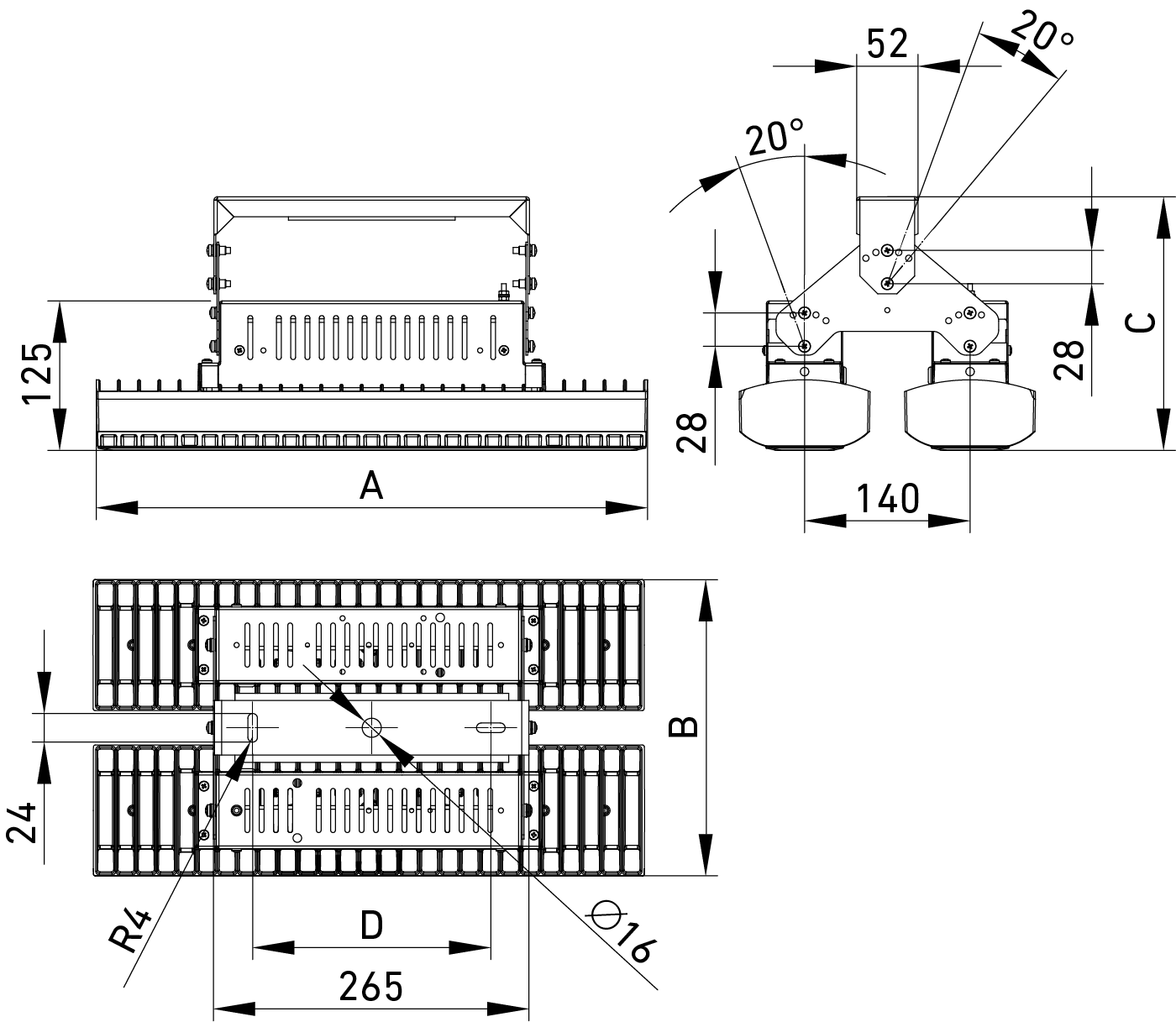

weight
7.5 kg

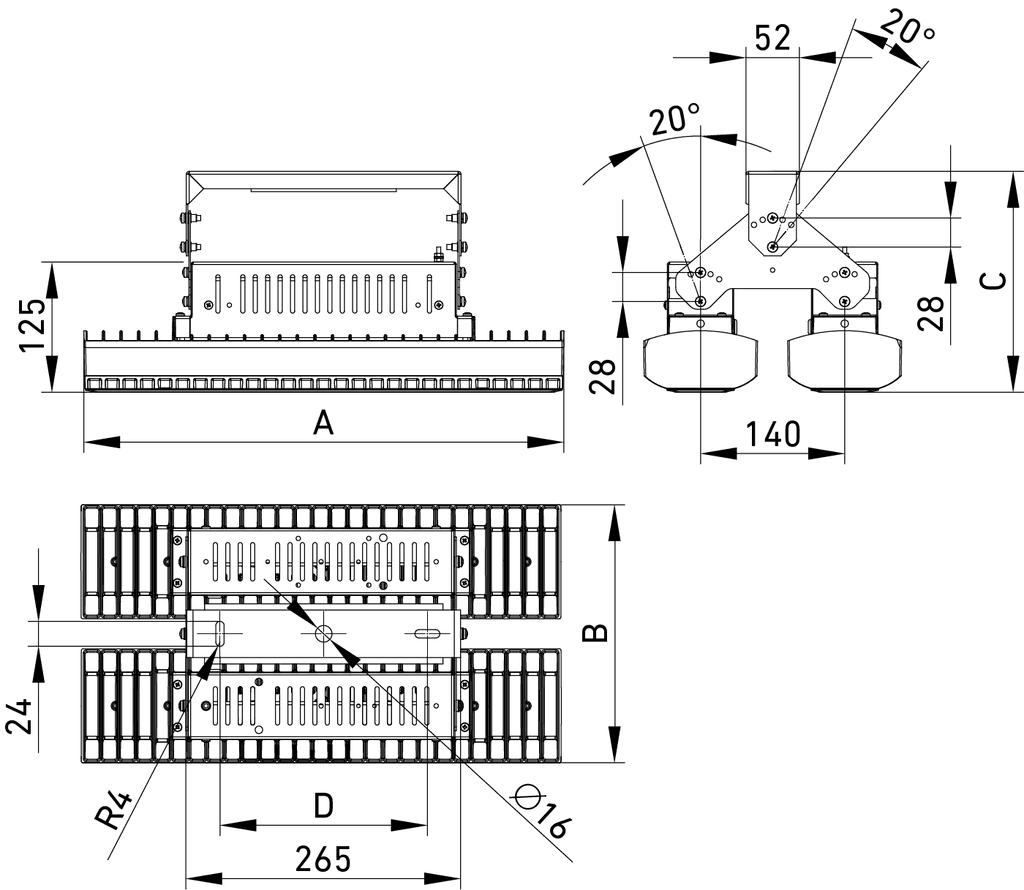

length
463 mm
width
248 mm
height
190 mm
installation length
180 mm
material
Сплав алюминиевый
fire safety class
П-ІІа
climatic performance
УХЛ1*
shock resistance (IK)
IK08/7 Дж
housing color
Металлик
explosion-proof
gas marking
2 Ex nA II T6 Gc X
dust marking
Ex tc IIIC T80 C Dc X
gas explosion-proof (type)
Ex nA
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T6
common
code
1224001570
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A++
service life
50 000 h
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
model files
model files
CAD/BIM files
model 3dMax704 kB

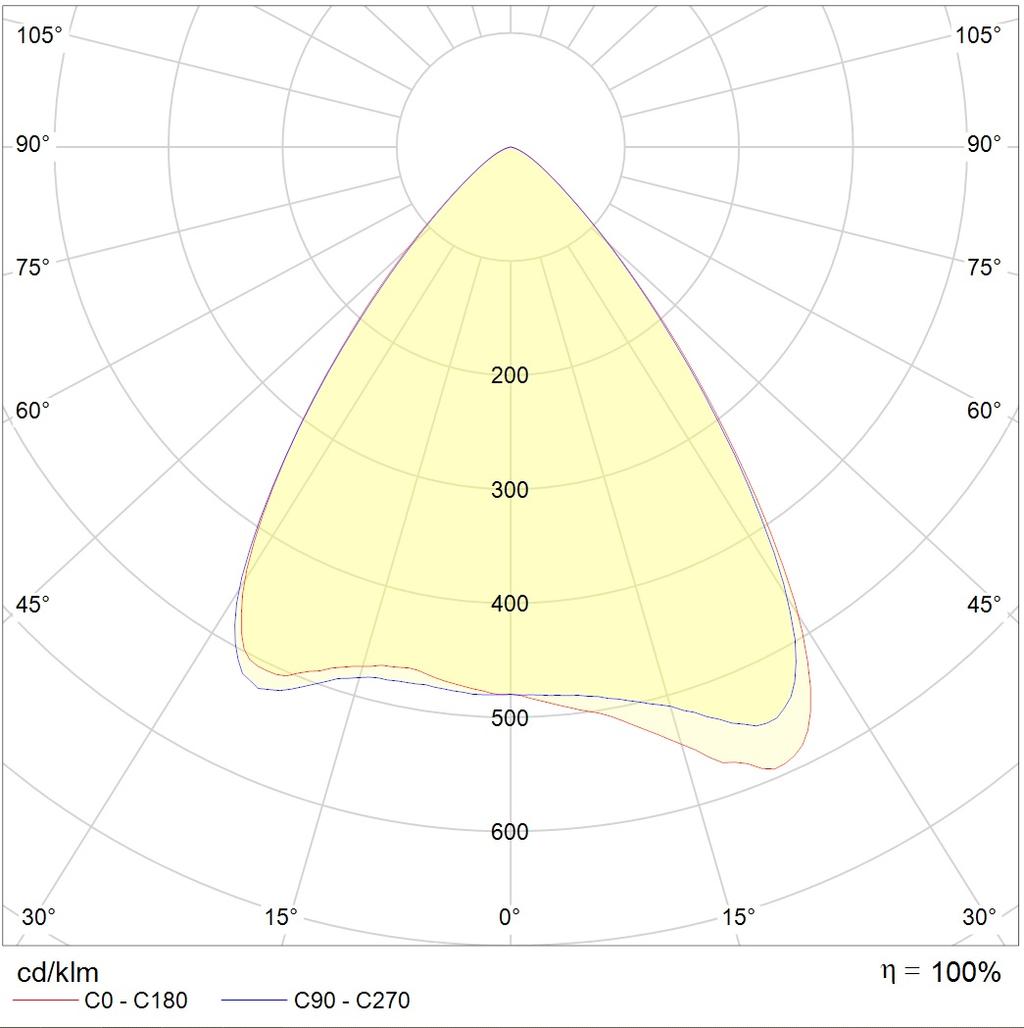

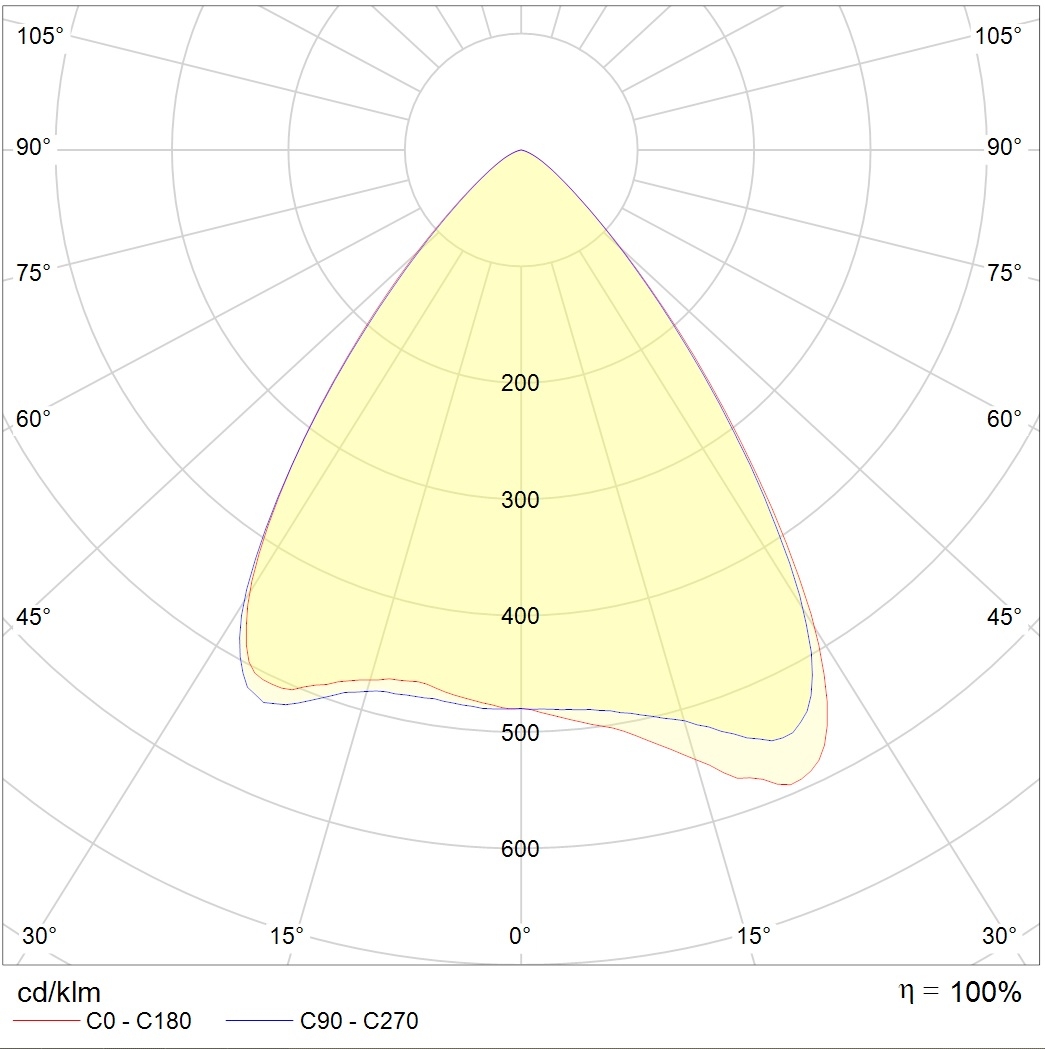

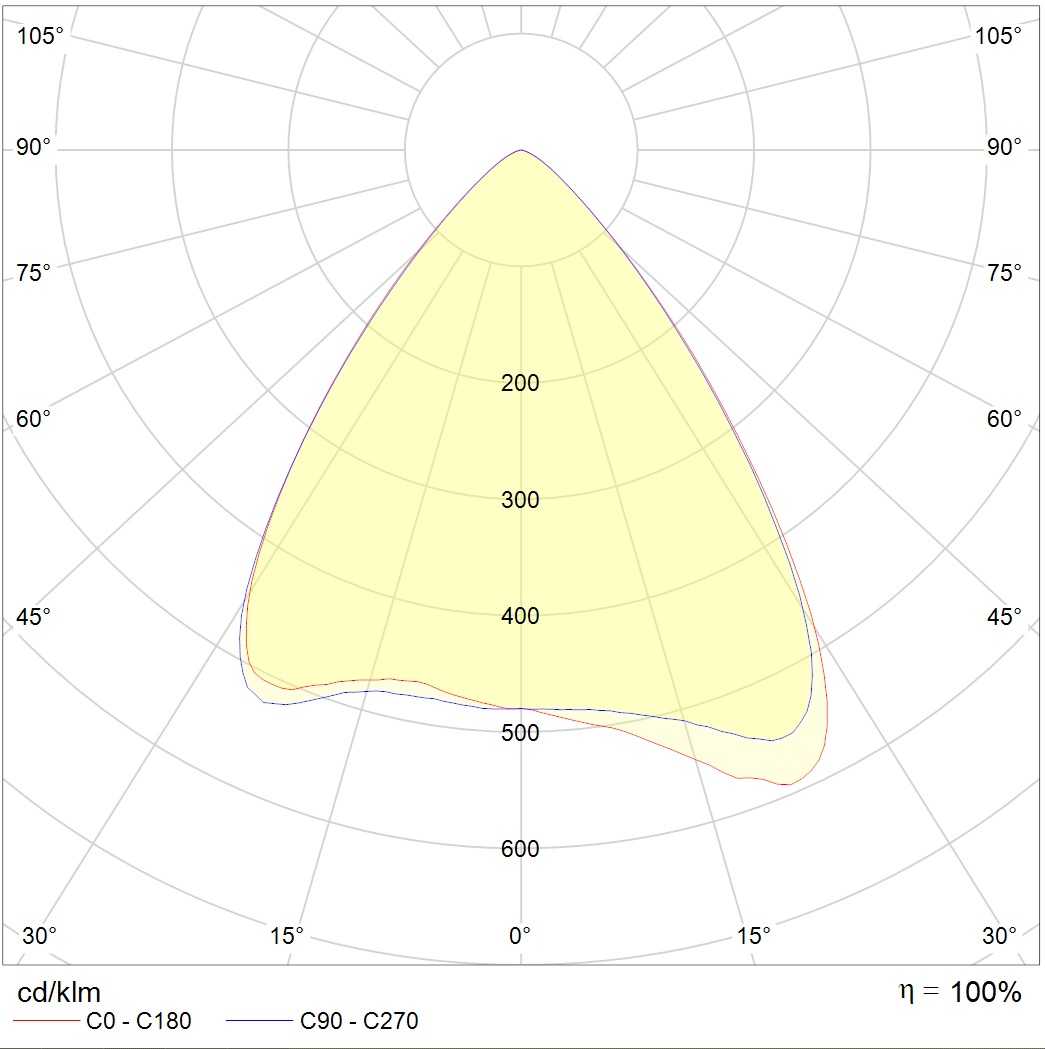

photometric files
ies263.2 kB
jpg134.9 kB
ldt163.1 kB
documents
passport4 mB
сертификаты
Russian origin559 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20112.2 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
CAD/BIM files
model 3dMax704 kB
photometric files
ies263.2 kB
jpg134.9 kB
ldt163.1 kB
documents
passport4 mB
сертификаты
Russian origin559 kB
Certificate of Russian maritime register of shipping1.5 mB
Certificate of conformity TRTS 012/20112.2 mB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
accessories
Clear tempered glass for HB LED G20.64kgarticle: 2224000270
Clear tempered glass OPH for HB LED G20.64kgarticle: 2224000300
