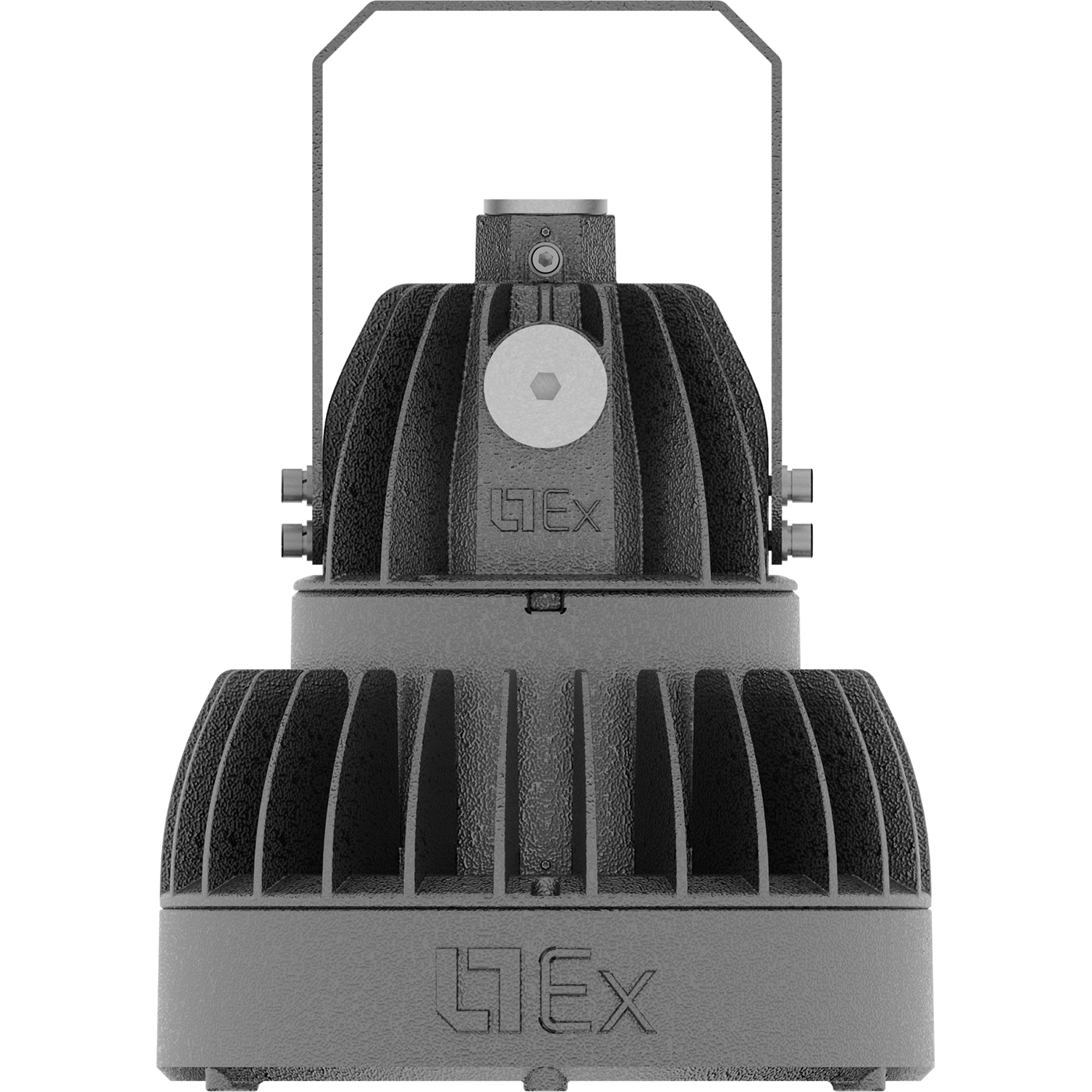

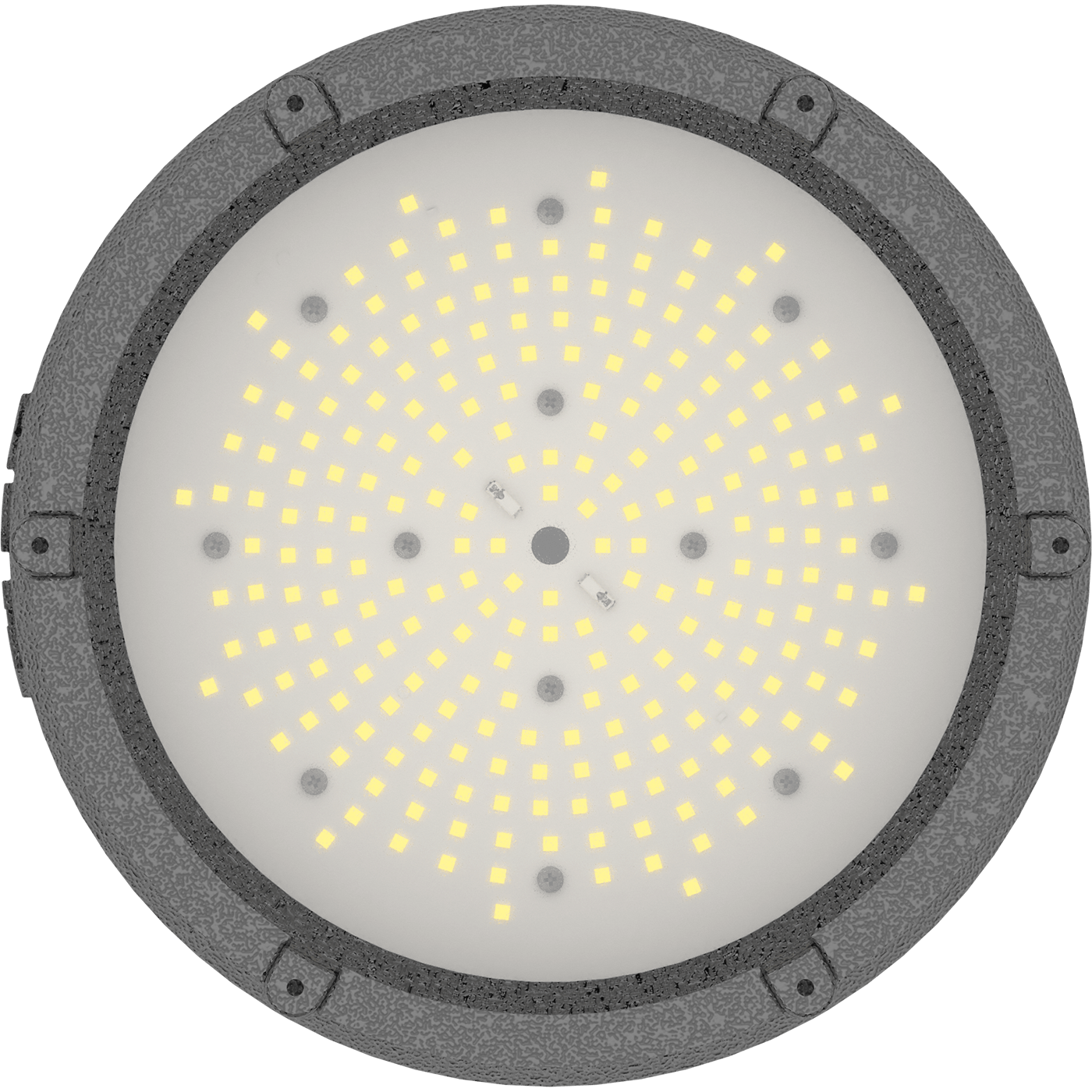

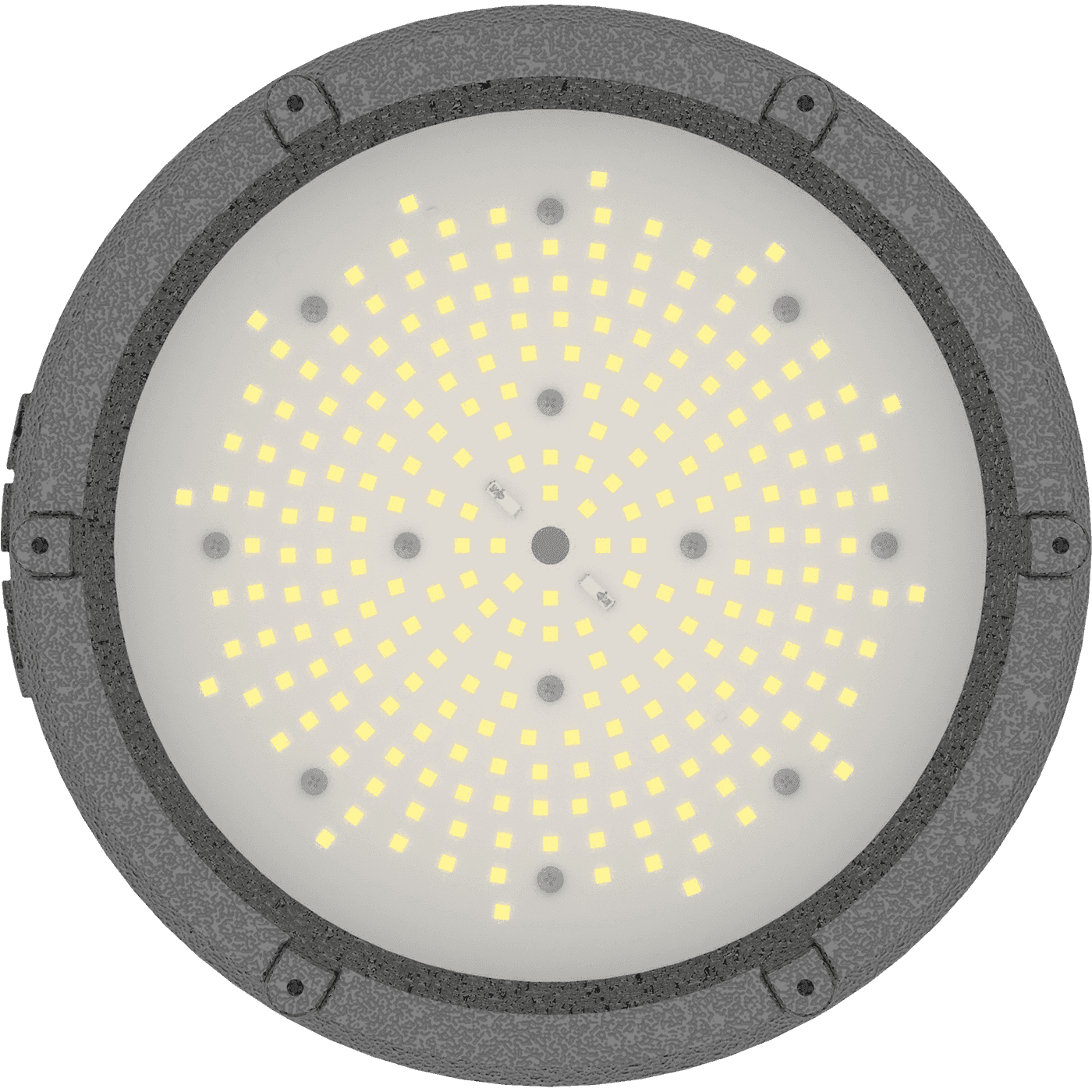

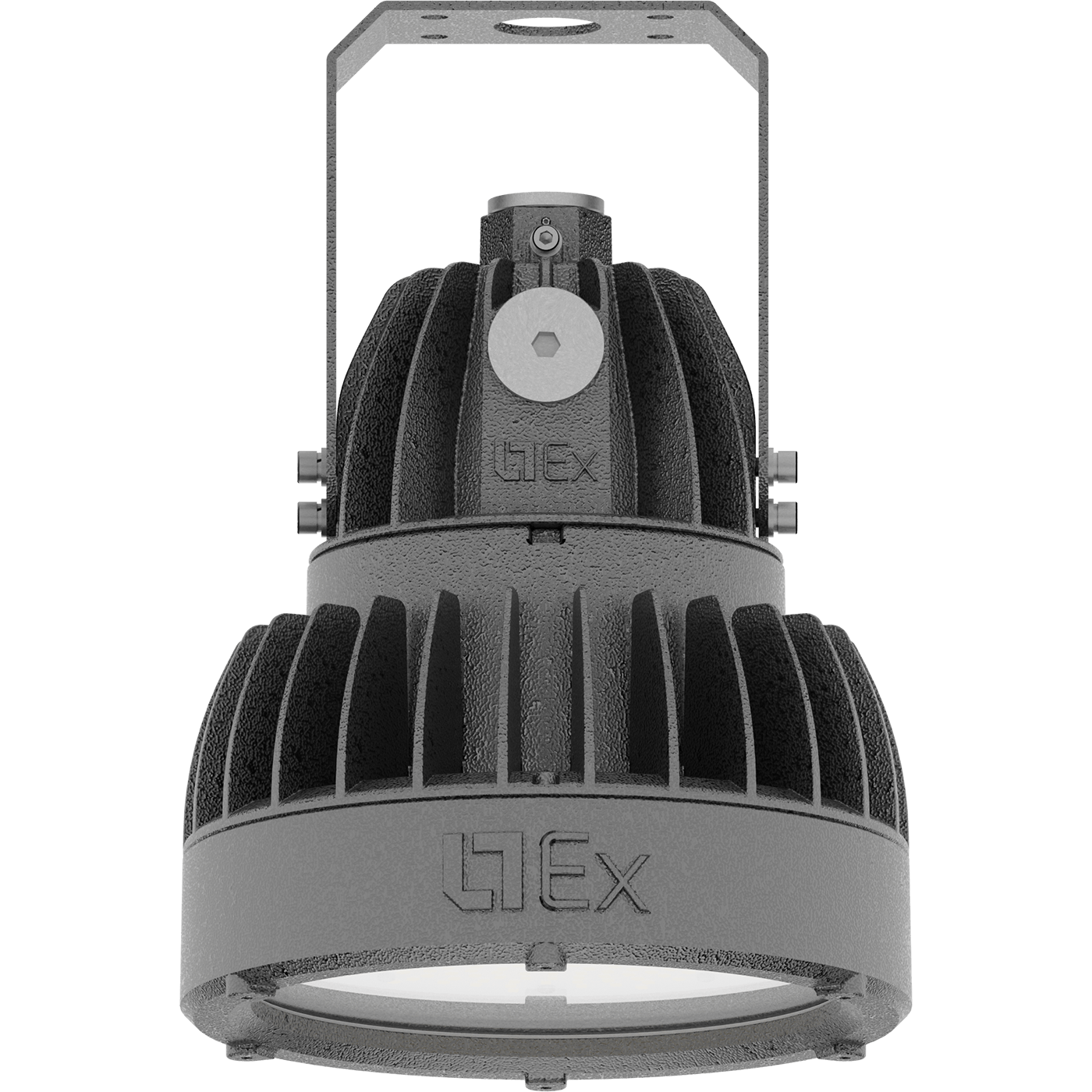

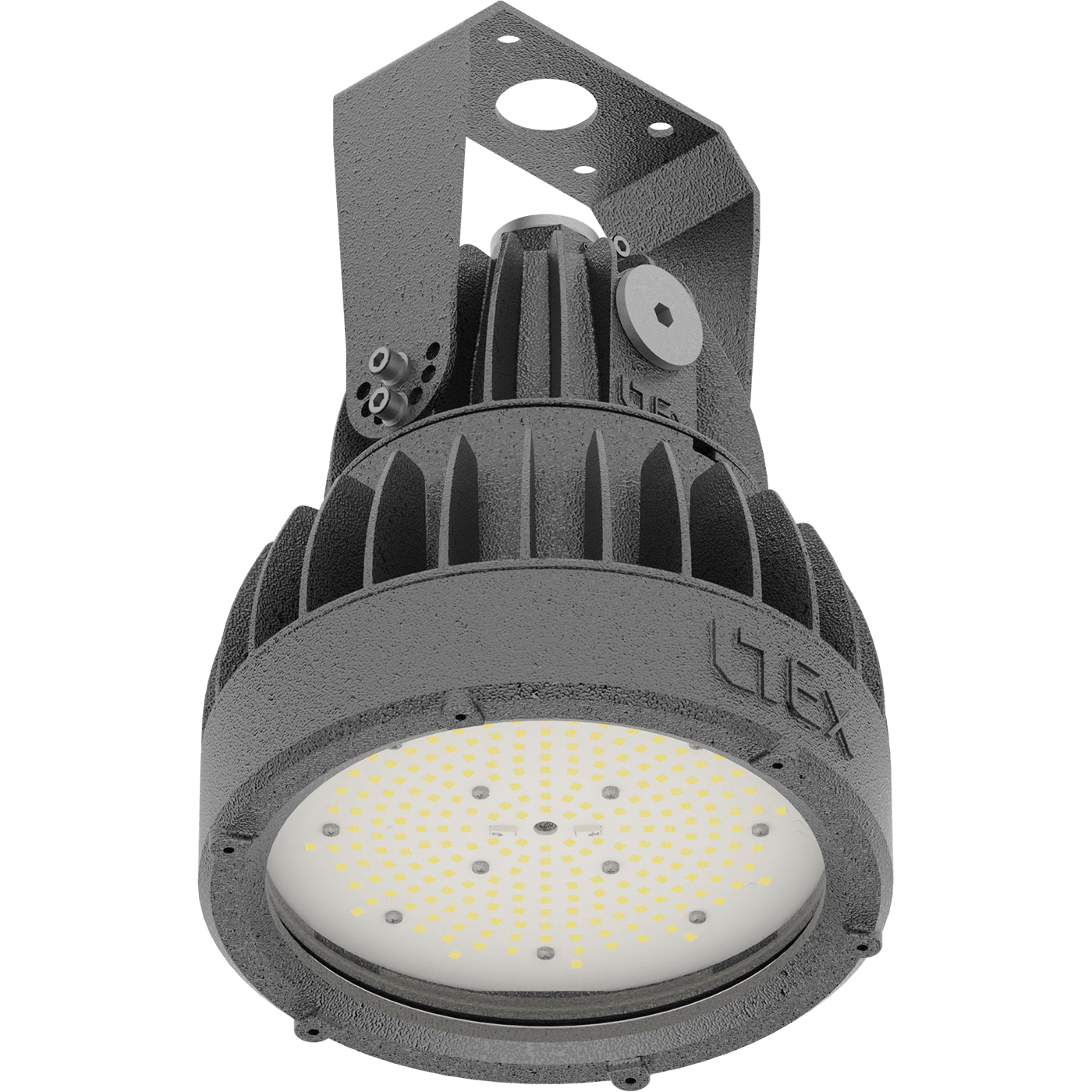

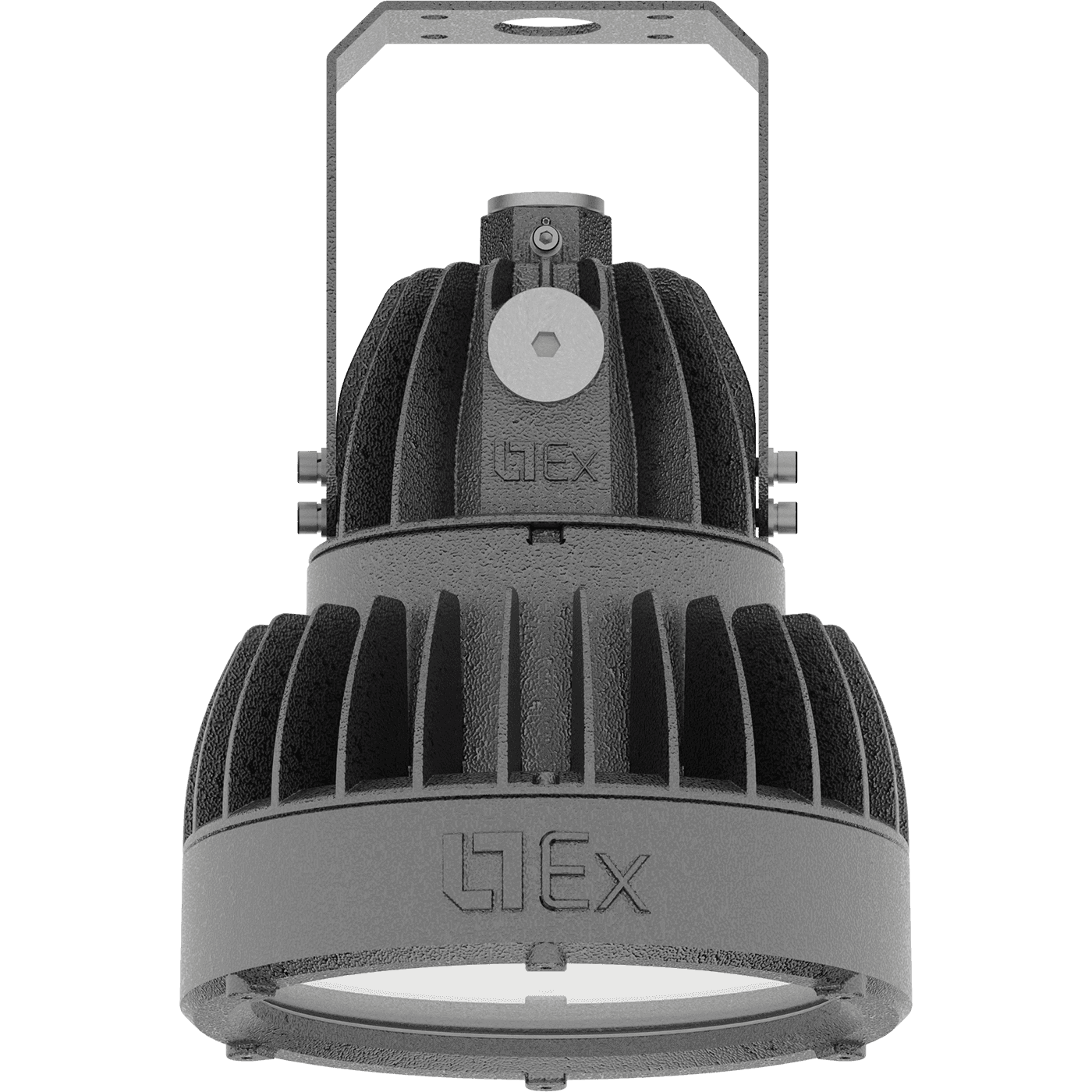

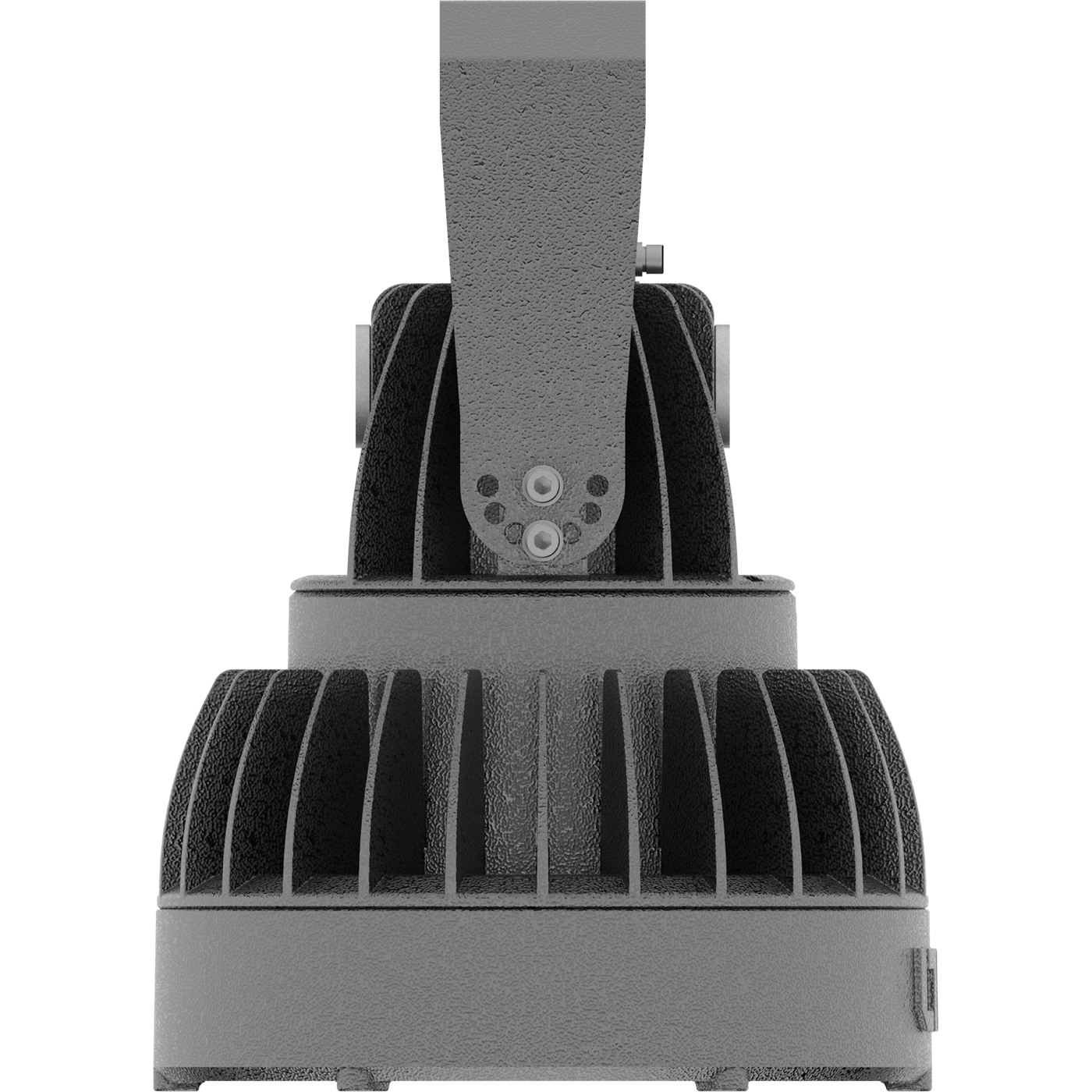

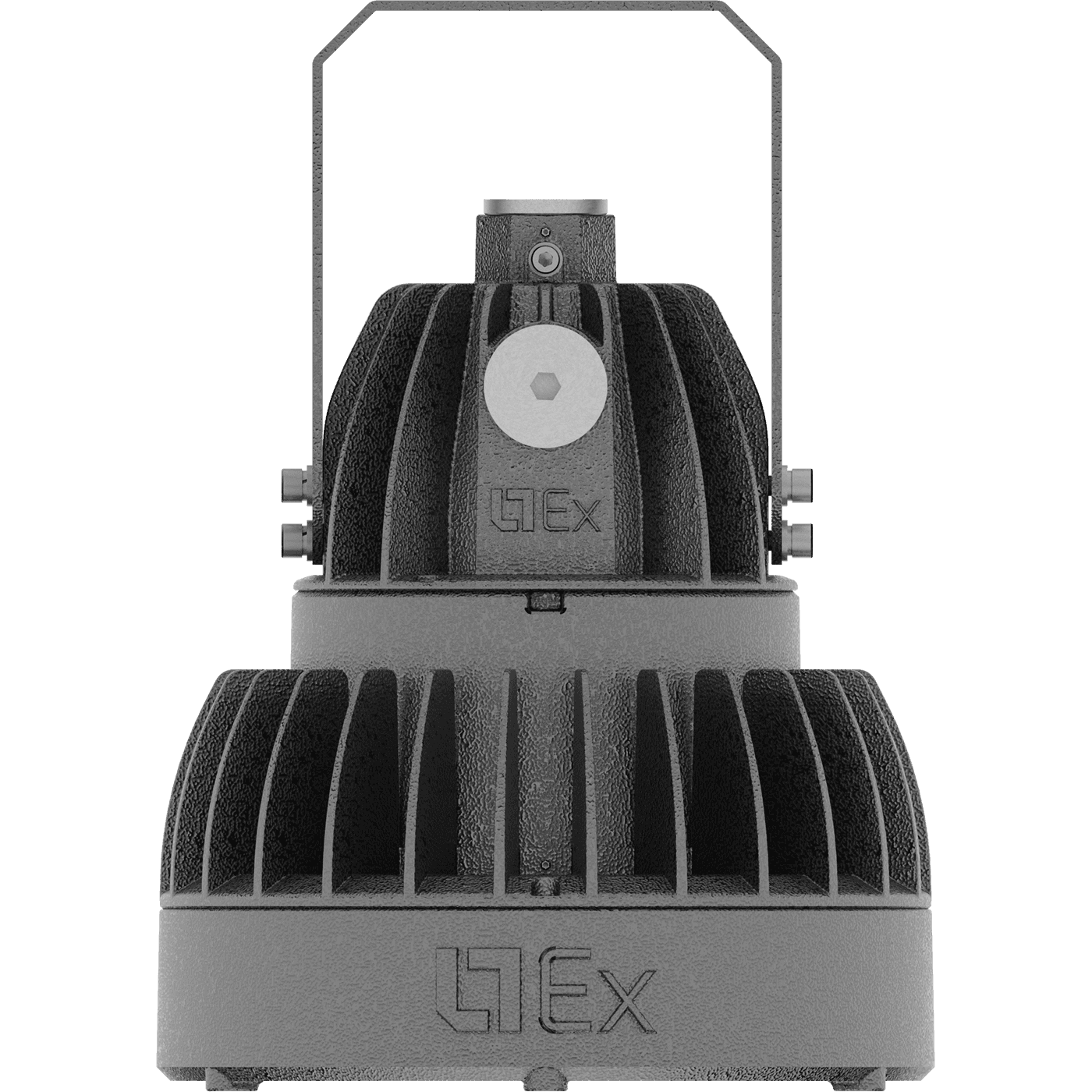

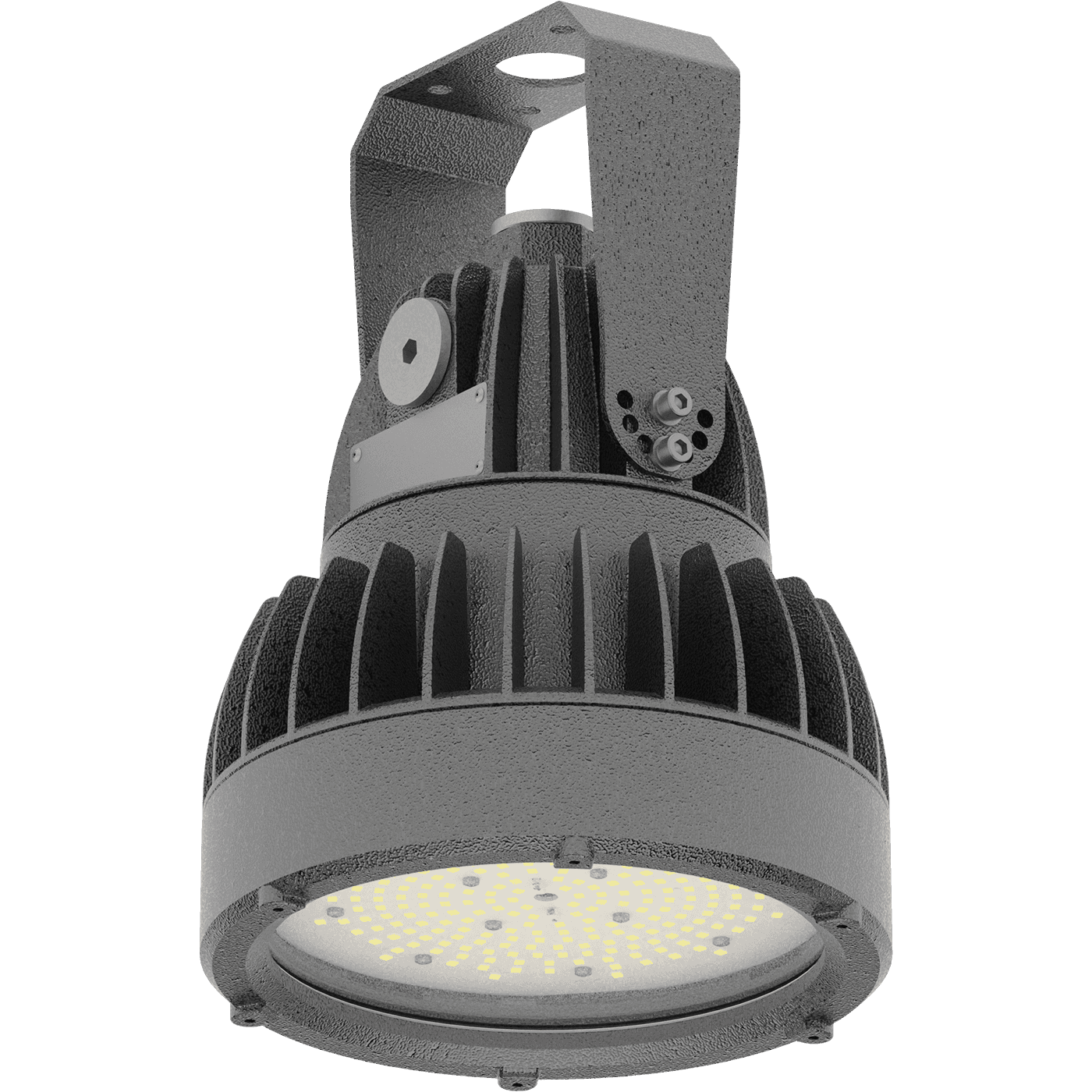

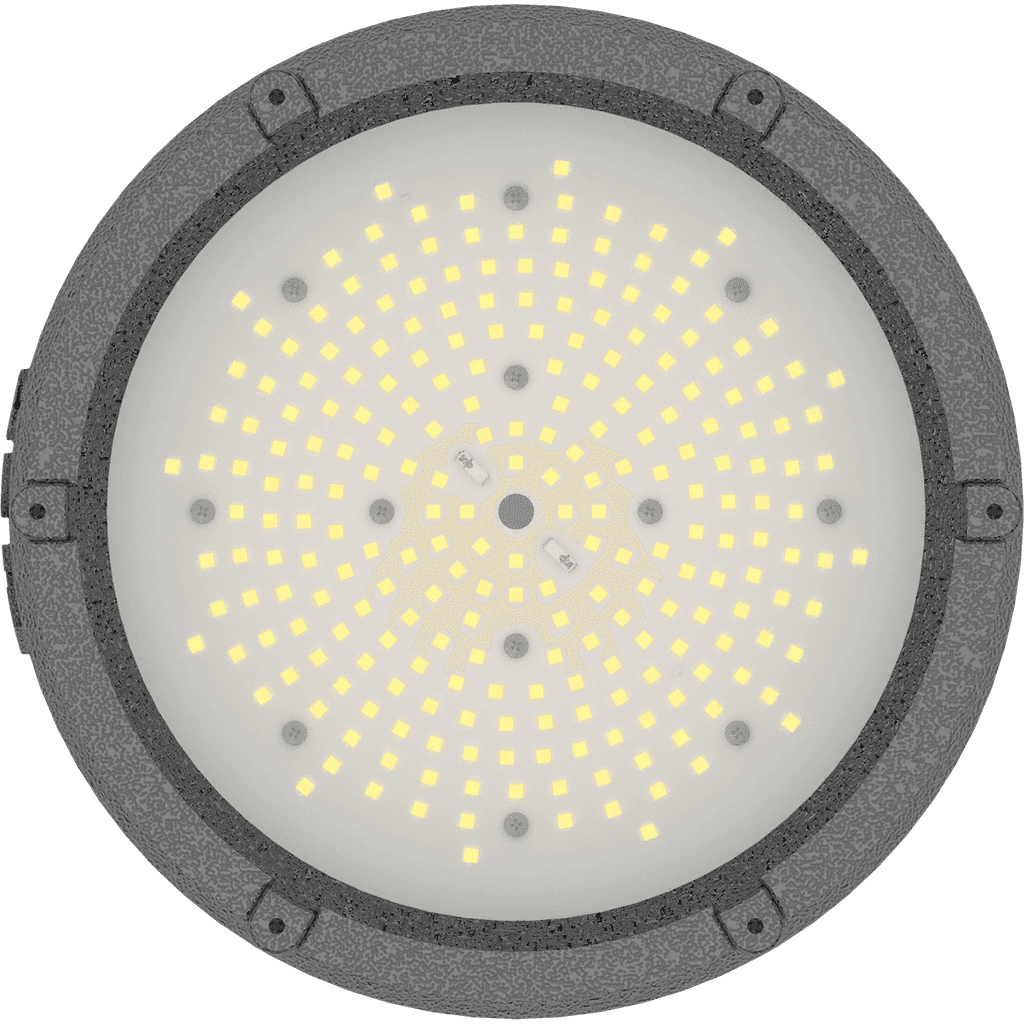

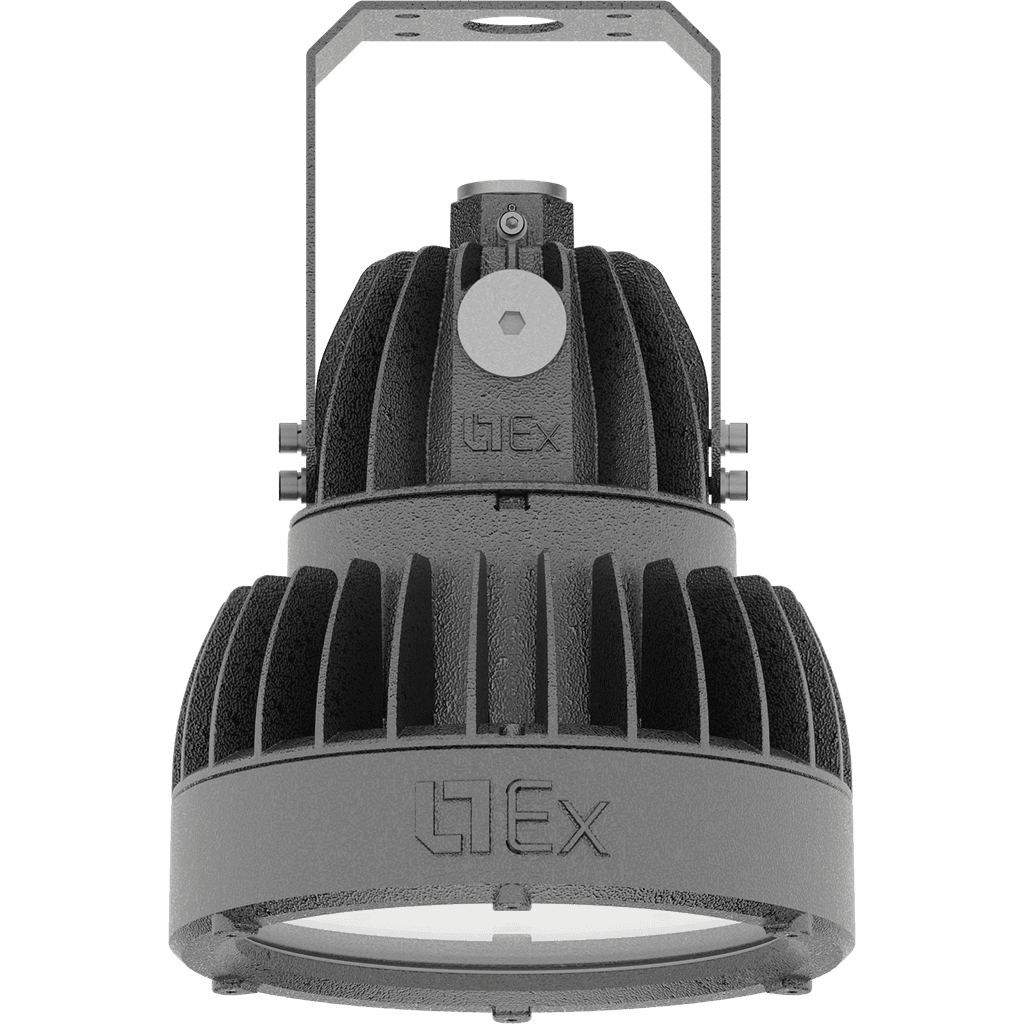

GLOBUS LED 60G Ex

model is discontinued
model is discontinued
GLOBUS LED 60G Ex
44 Wluminaire power
6000 lmlight flow
136 lm/Wenergy efficiency
code1388000120
color temperature5000 K
beam angleD120
options
свернуть все
illuminatingelectricalconstructionalcommon
emission color
Белый
light source type
LED
light flow
6000 lm
color rendition index (CRI)
>70
flickering factor
<5%
energy efficiency
136 lm/W
beam angle
D120
color temperature
5000 K
illuminating
emission color
Белый
light source type
LED
light flow
6000 lm
color rendition index (CRI)
>70
flickering factor
<5%
energy efficiency
136 lm/W
beam angle
D120
color temperature
5000 K
electrical
luminaire power
44 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
starting current
5 A
supply voltage
230 V
starting current pulse time
2000 µs
constructional
ingress protection (IP)
IP66
shock resistance (IK)
IK08/7 Дж
climatic performance
УХЛ1
fire safety class
П-ІІа
length
227 mm
width
227 mm
height
310 mm
material
Сплав алюминиевый
housing color
Серый
weight
6.9 kg
common
code
1388000120
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
energy efficiency class
A++
temperature range
от -60 до +60 C
model files
model files
CAD/BIM files
CAD model 3DS854 kB
model 3dMax4.7 mB
documents
passport1.1 mB
сертификаты
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
CAD/BIM files
CAD model 3DS854 kB
model 3dMax4.7 mB
documents
passport1.1 mB
сертификаты
INTERGASSERT906.1 kB
Certificate of conformity TRTS 012/2011389.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
