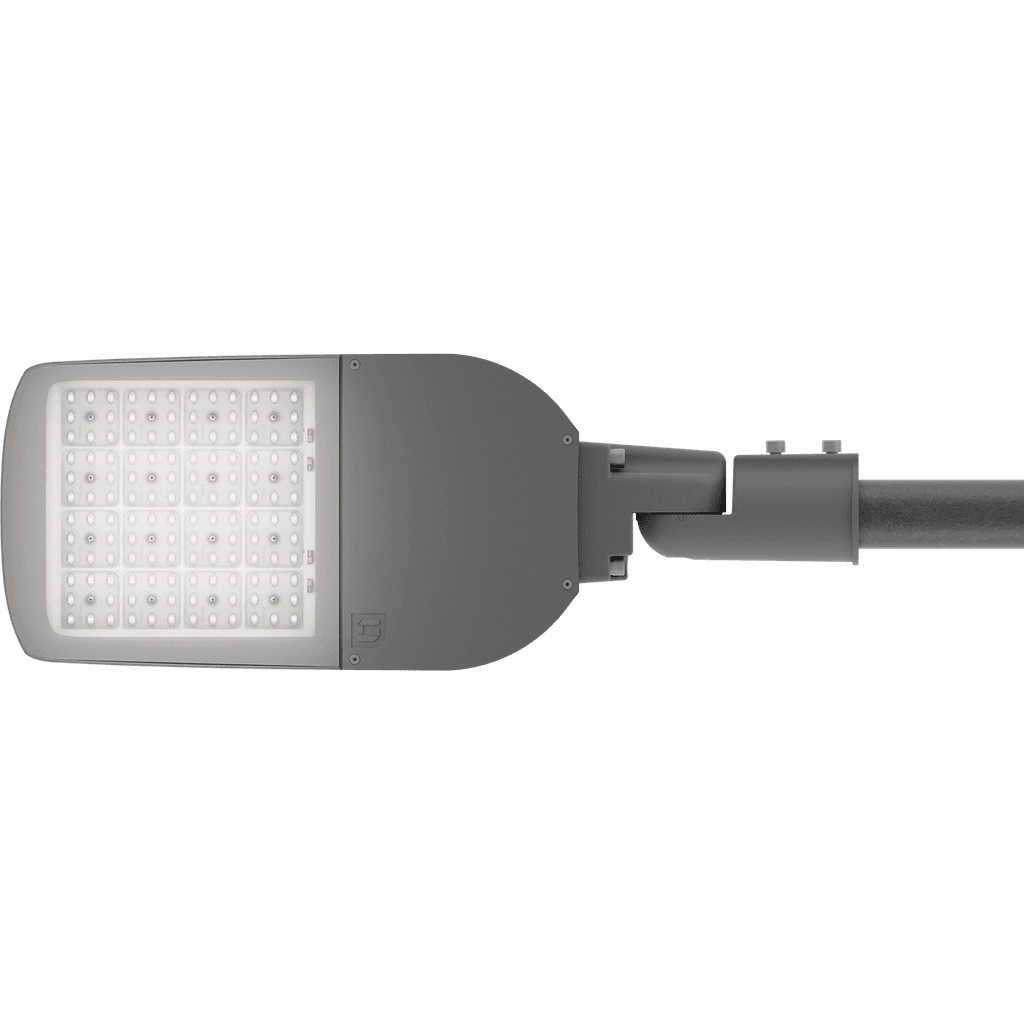

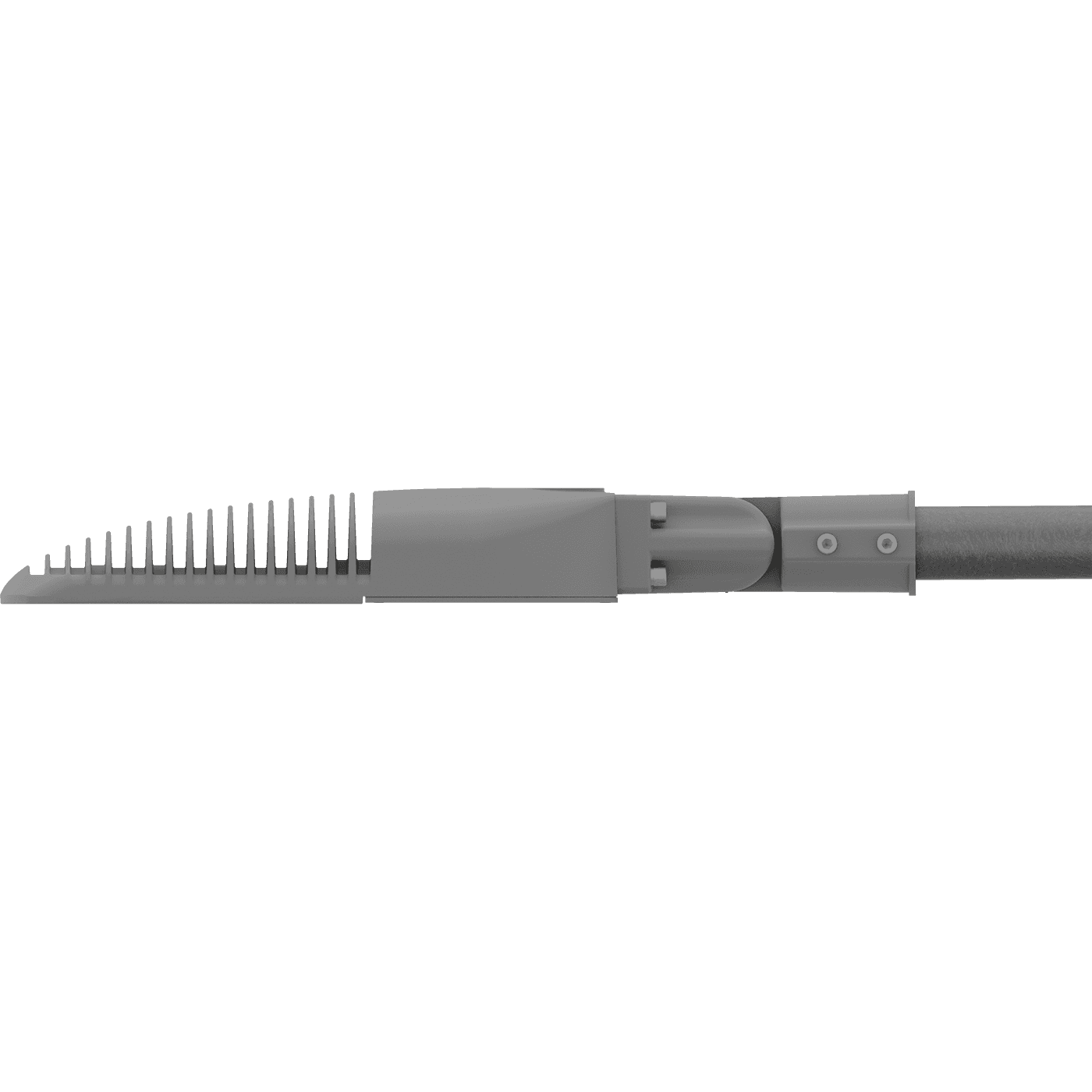

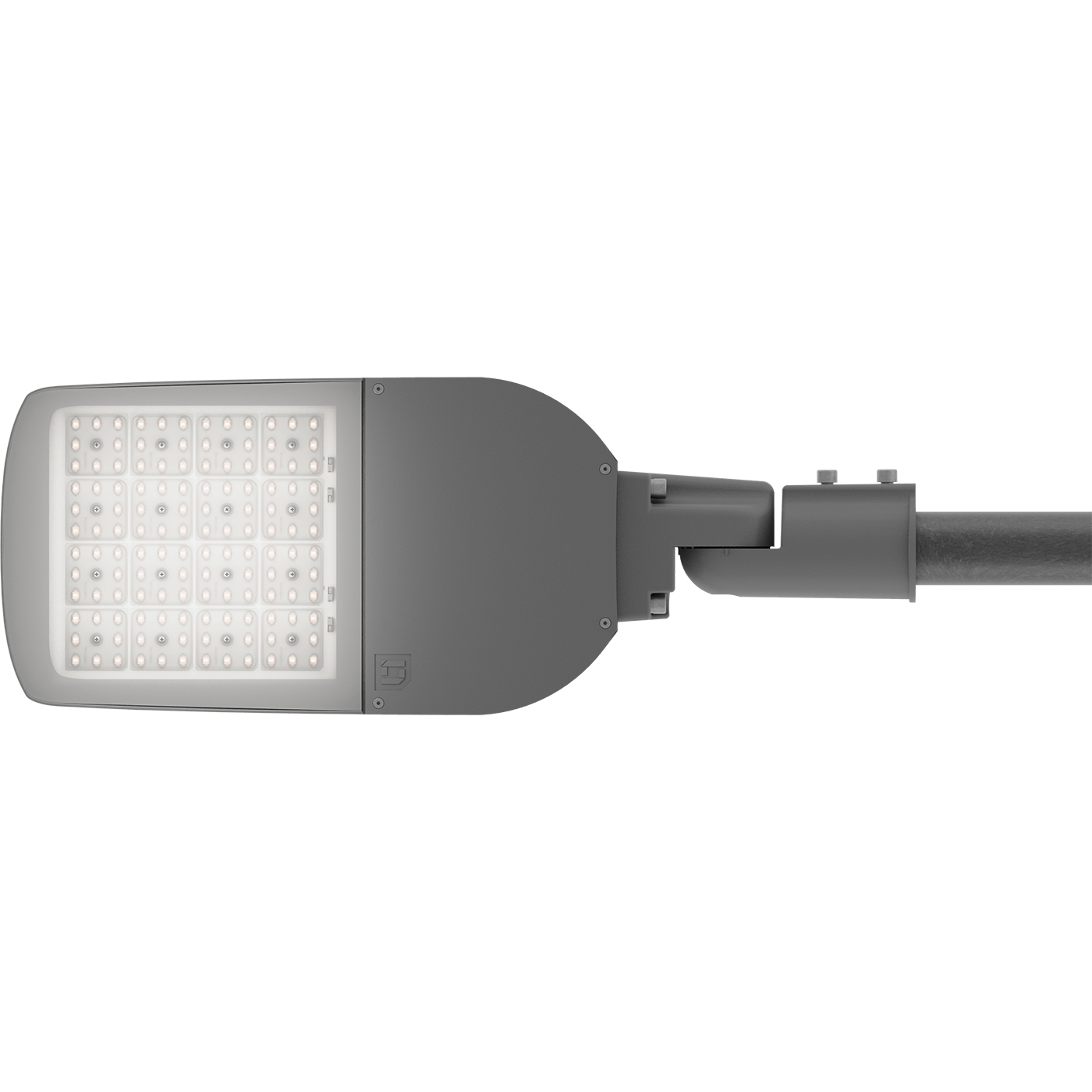

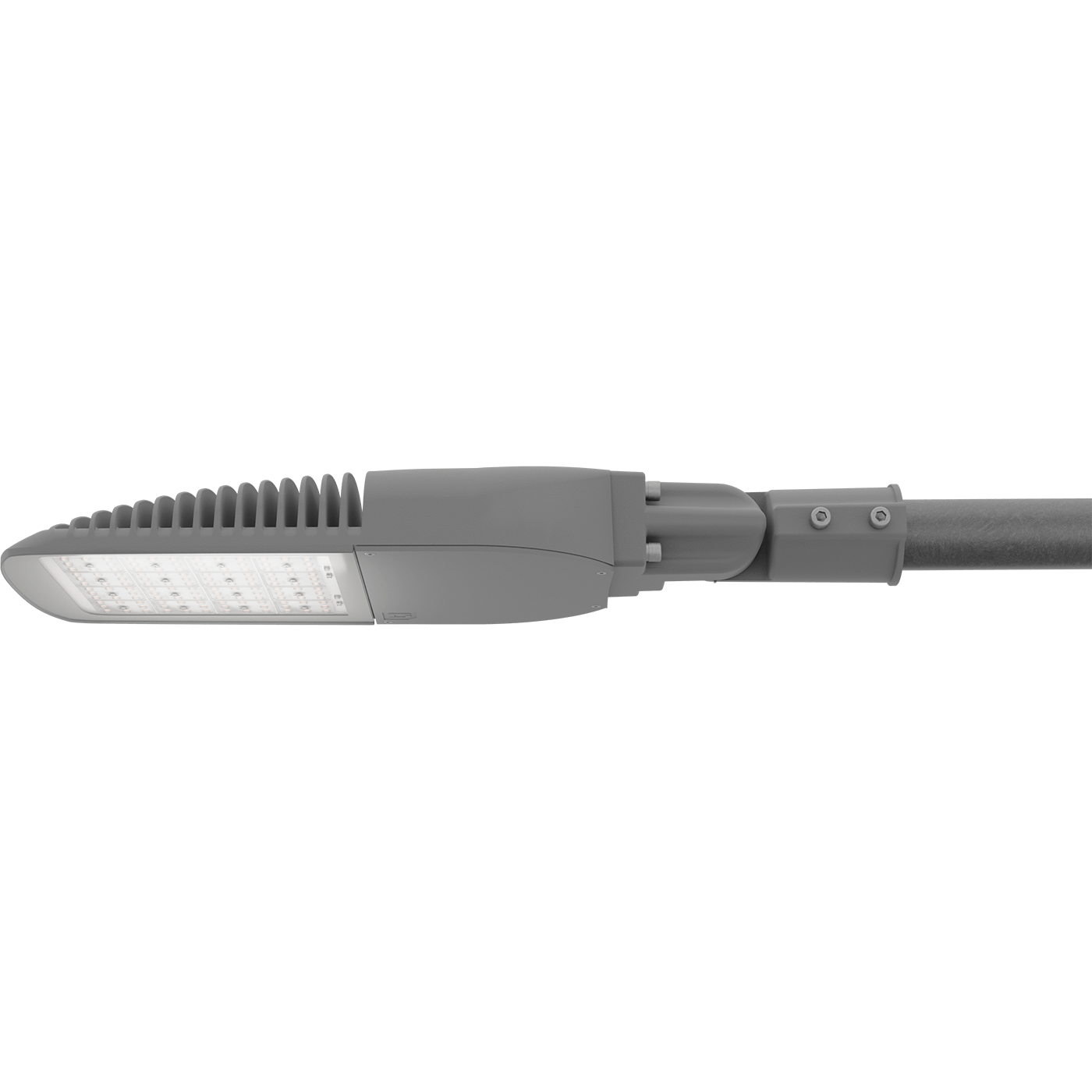

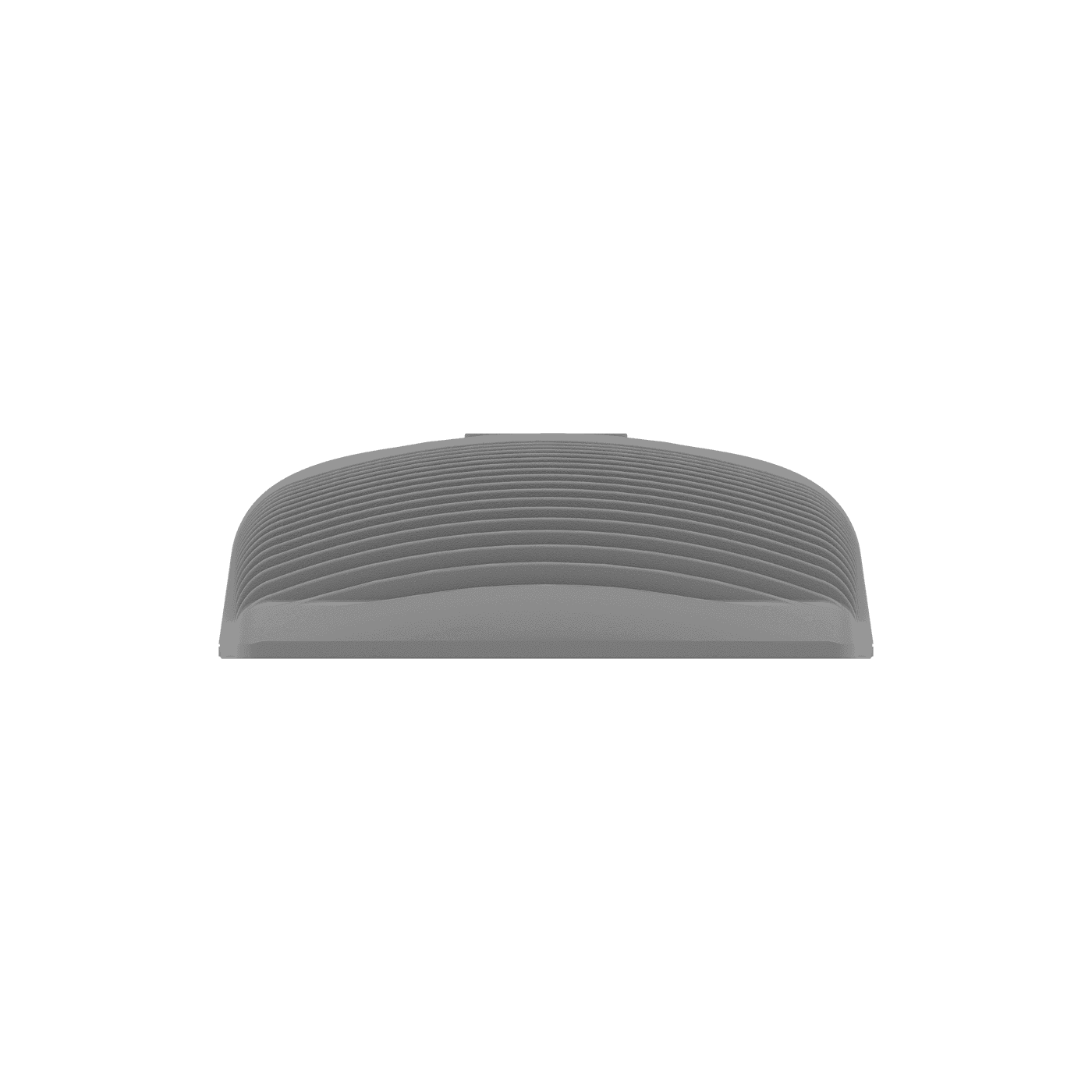

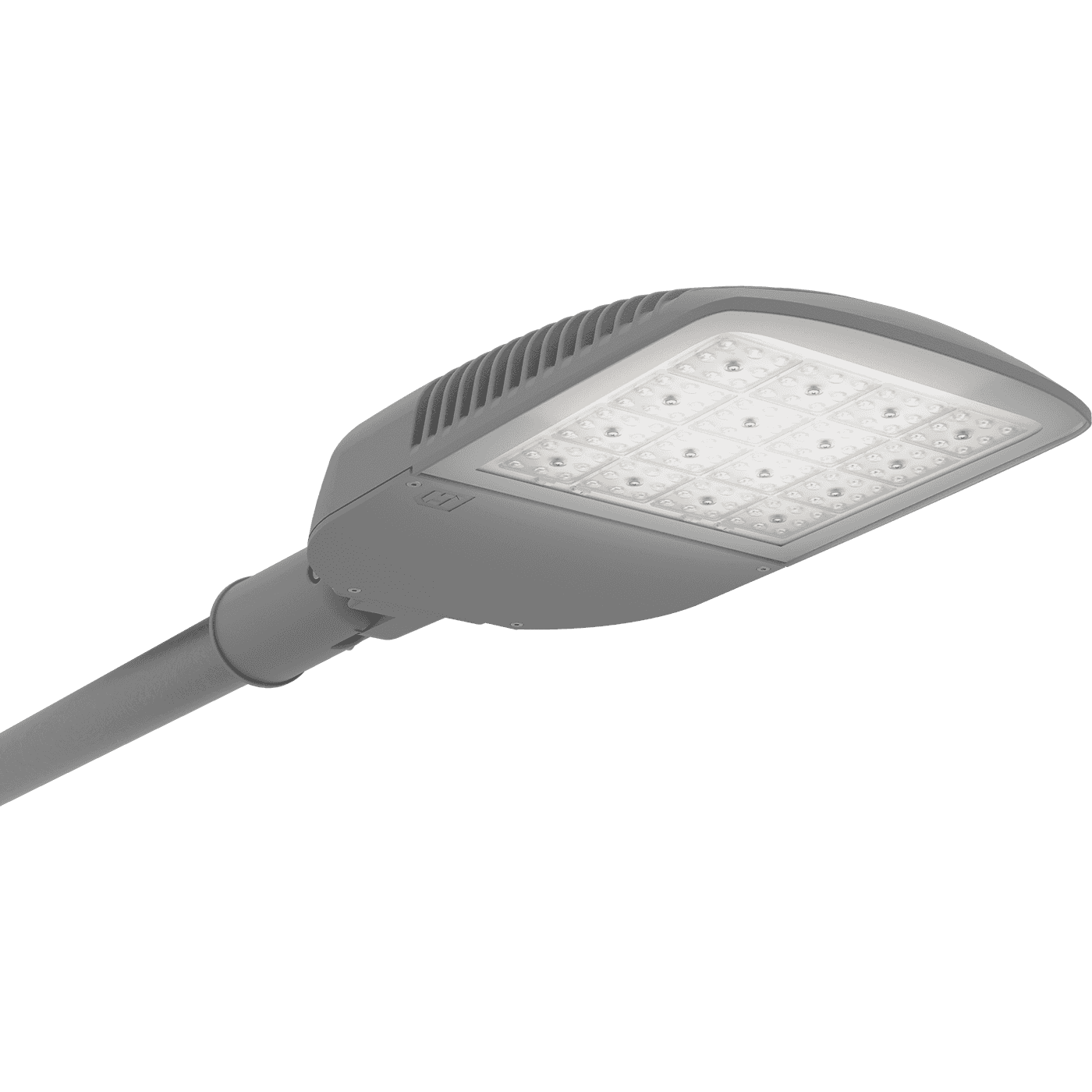

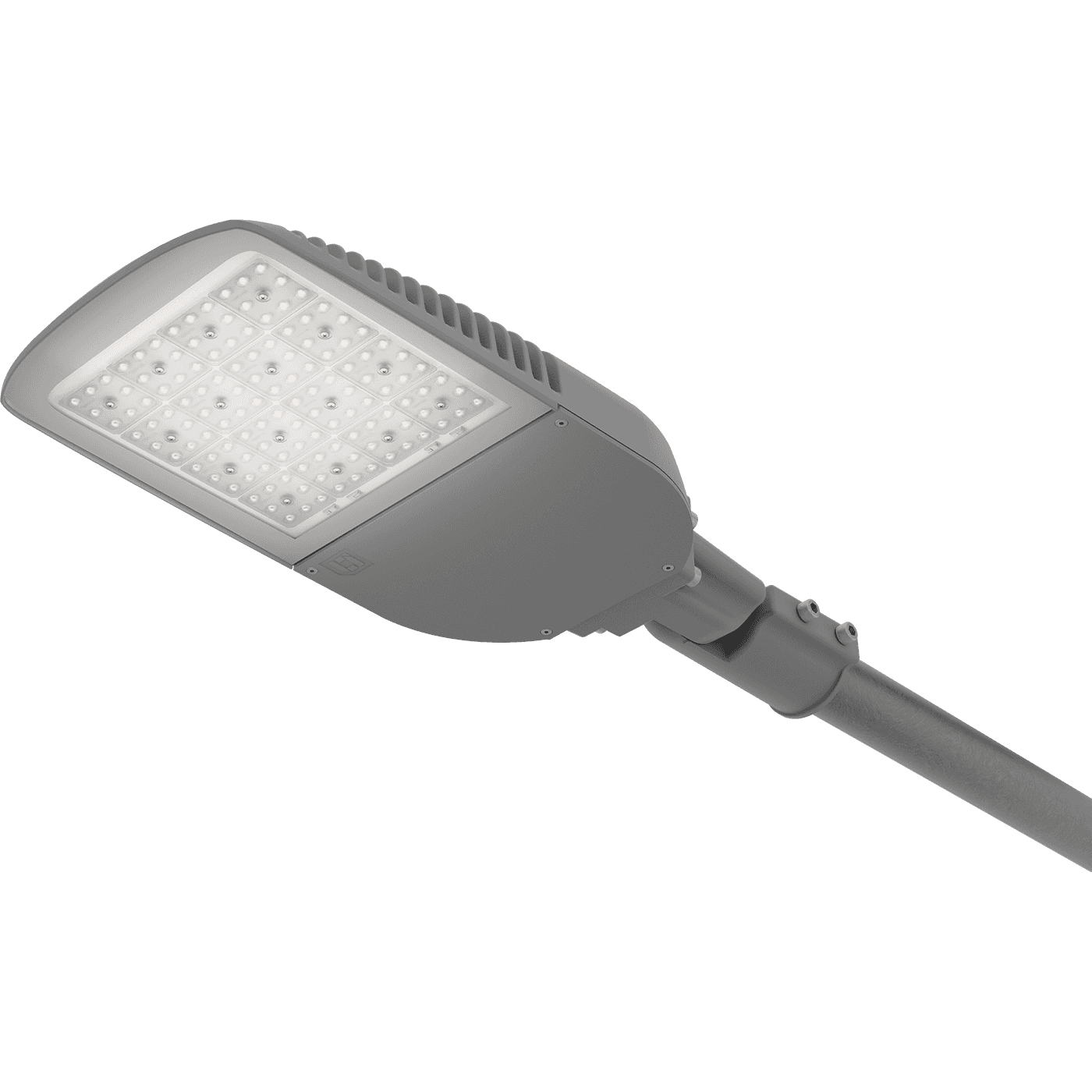

FREGAT LED 35 (W) PLC 4000K
model is discontinued
model is discontinued
FREGAT LED 35 (W) PLC 4000K
35 Wluminaire power
4900 lmlight flow
140 lm/Wenergy efficiency
code1426001170
beam angleD120
color temperature4000 K
weight9.4 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
140 lm/Wcolor rendition index (CRI)
>70light flow
4900 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
140 lm/W
color rendition index (CRI)
>70
light flow
4900 lm
flickering factor
<5%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
35 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,95
constructional
climatic performance
УХЛ1
fire safety class
П-ІІІ
width
265 mm
height
91 mm
housing color
Серебристый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
722 mm
material
Алюминий
installation diameter
48-60 mm
ingress protection (IP)
IP66
shock resistance (IK)
IK09/10 Дж
weight
9.4 kg
LMS options
dimming
PLC
common
code
1426001170
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +60 C
service life
50 000 h
ETIM class
Светильник для освещения улиц и площадей
model files
model files
CAD/BIM files
photometric files
сертификаты
CAD/BIM files
model 3dMax3.1 mB

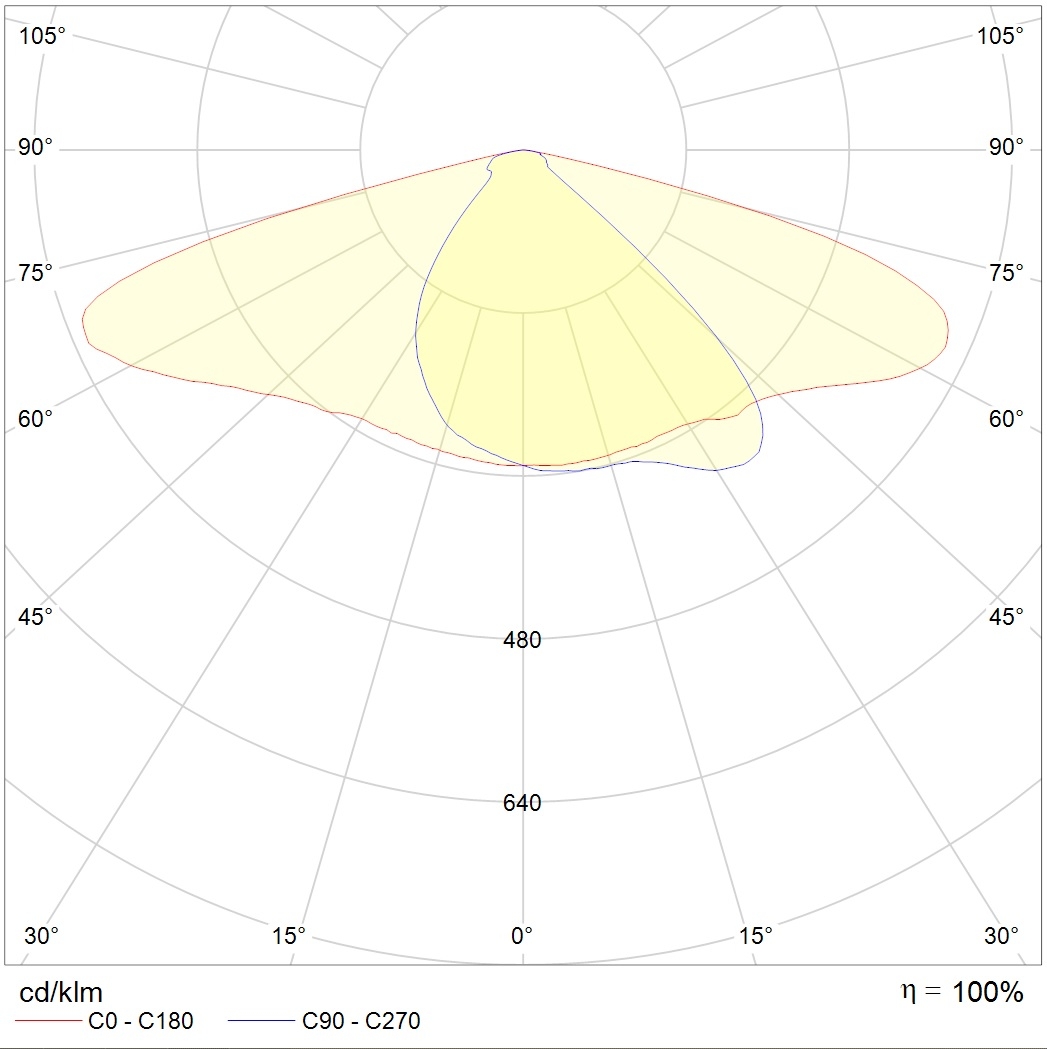

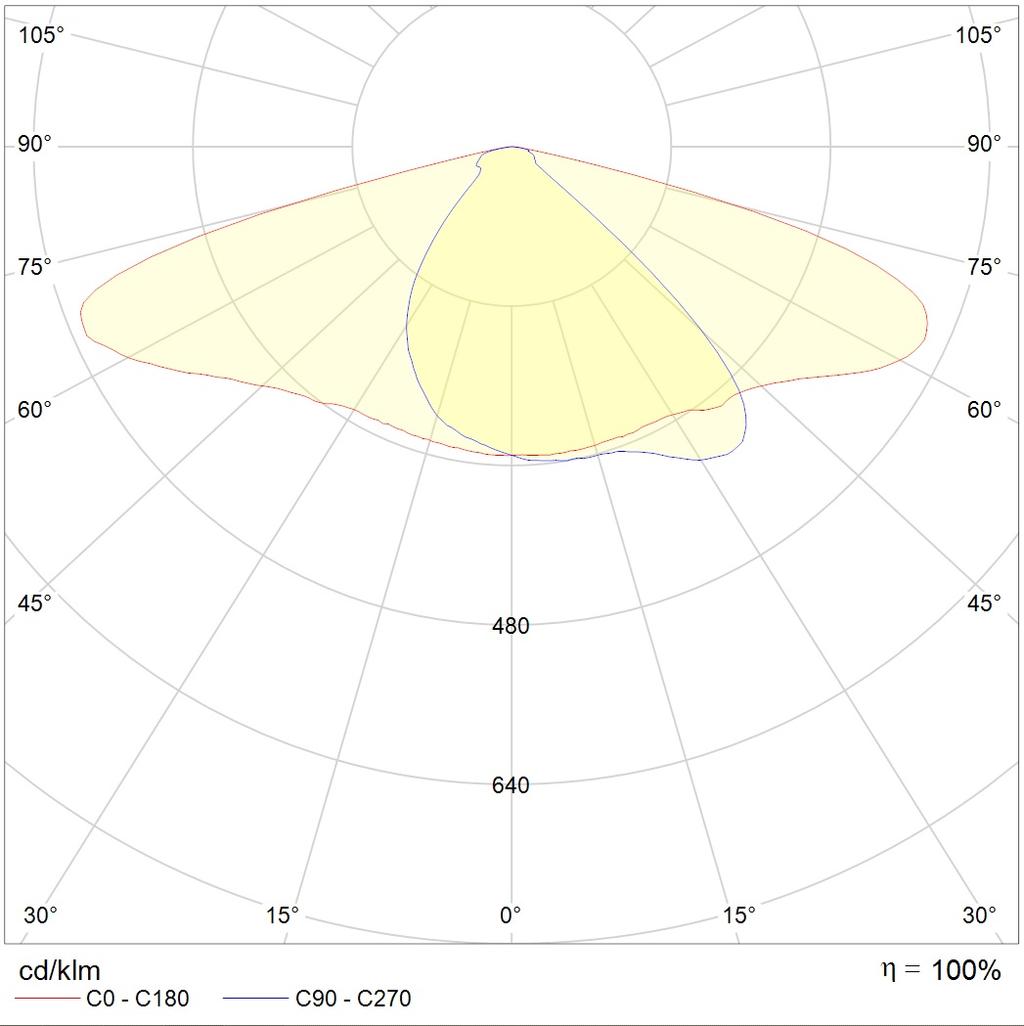

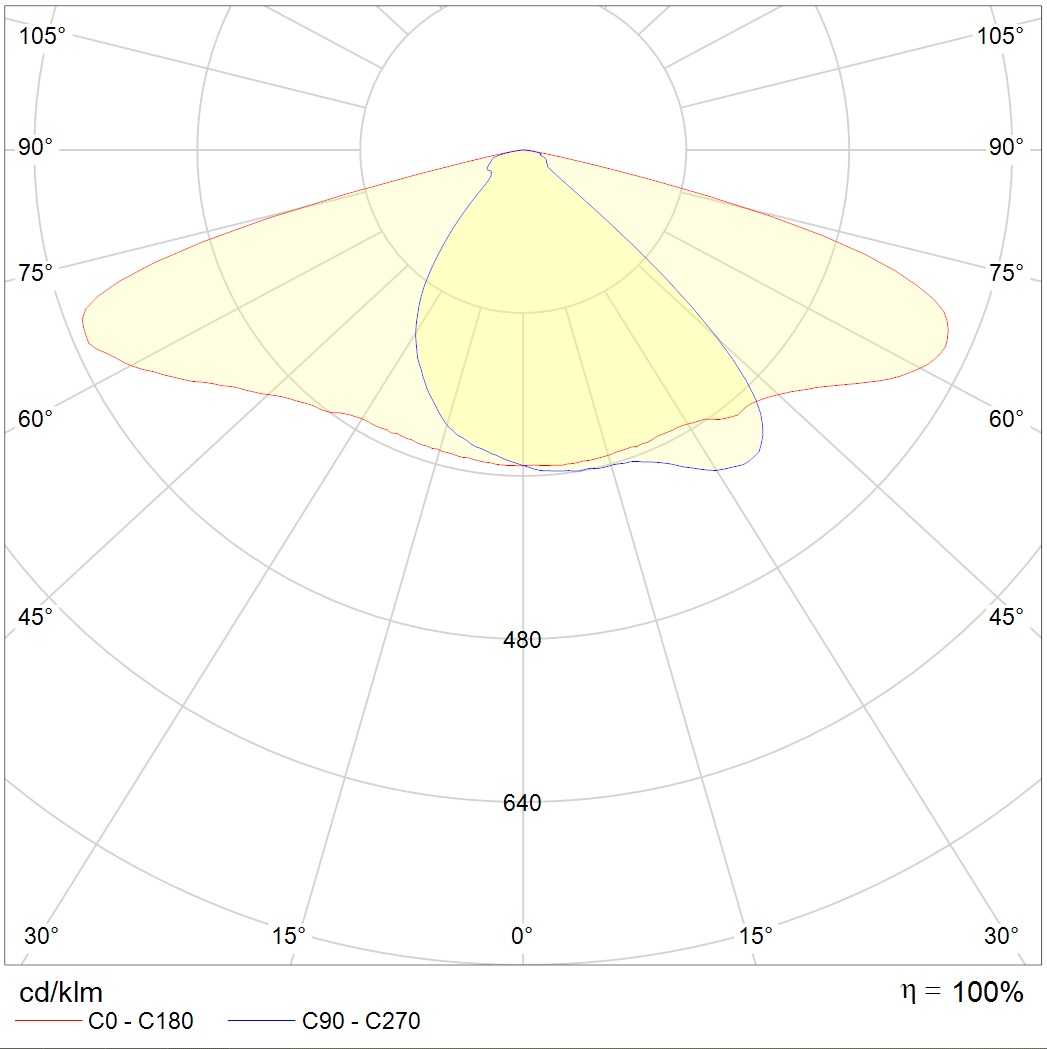

photometric files
ies263.2 kB
jpg119.4 kB
ldt156.9 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016502.2 kB
