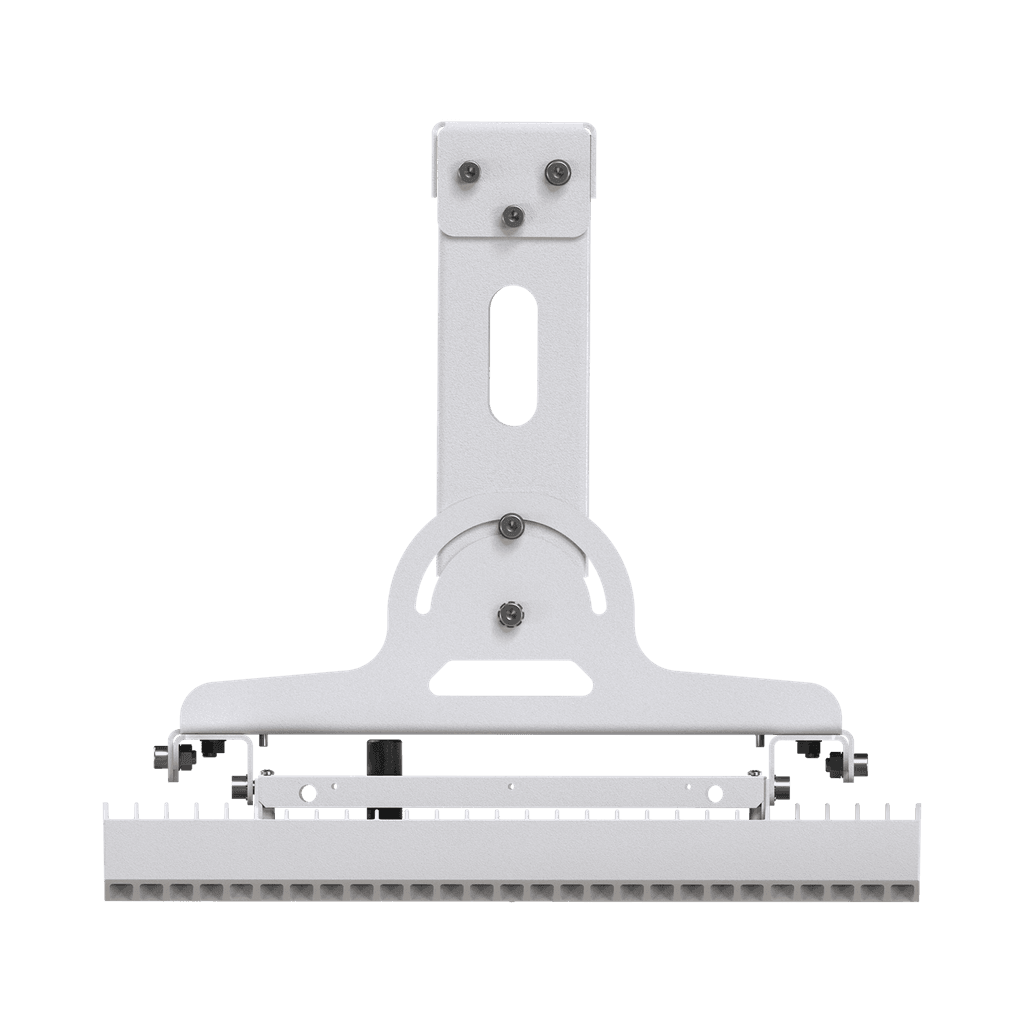

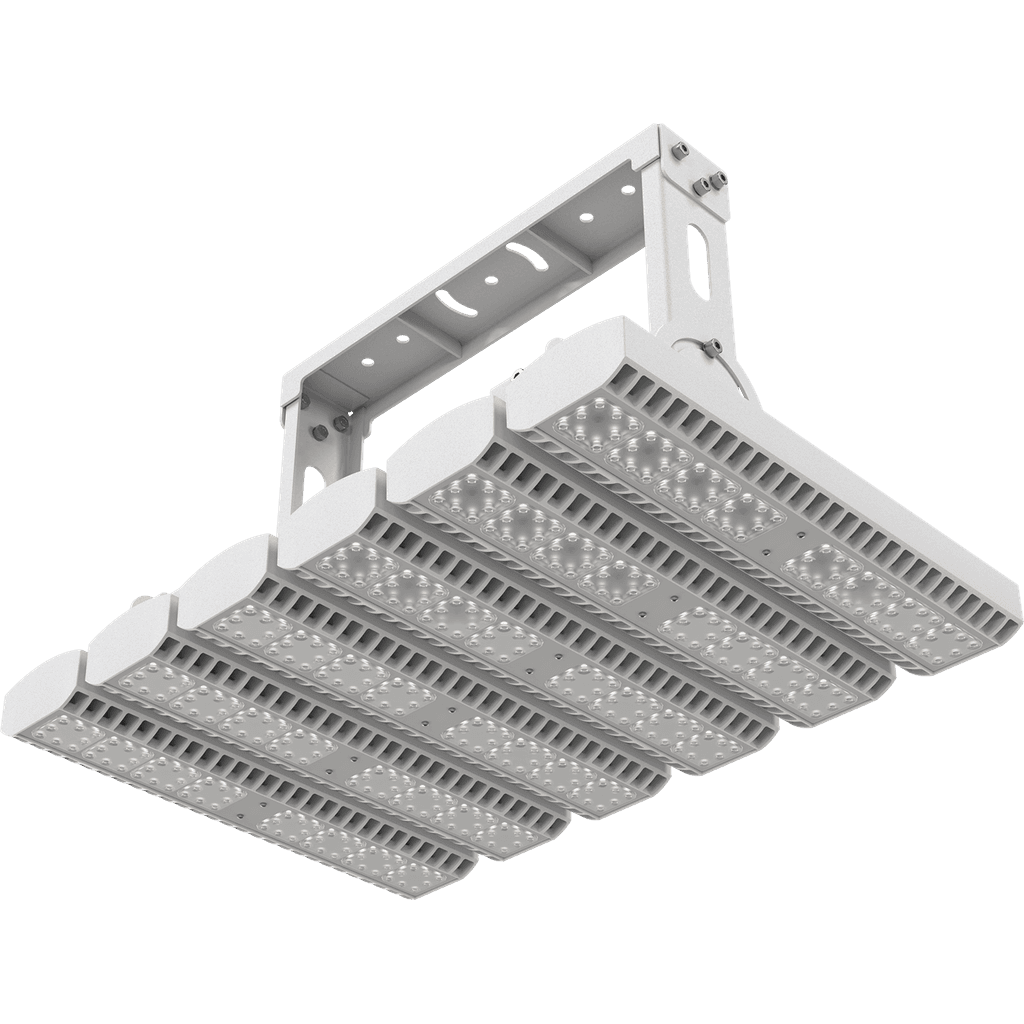

FORWARD 800W D60 950 WH SB
FORWARD 800W D60 950 WH SB
830 Wluminaire power
97000 lmlight flow
117 lm/Wenergy efficiency
code1864004070
beam angleD60
color temperature5000 K
weight28 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
117 lm/Wcolor rendition index (CRI)
>90light flow
97000 lmflickering factor
<1%beam angle
D60color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
117 lm/W
color rendition index (CRI)
>90
light flow
97000 lm
flickering factor
<1%
beam angle
D60
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
luminaire power
830 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,97
constructional
climatic performance
УХЛ1*
fire safety class
П-ІІ
width
535 mm
height
360 mm
installation length
340 mm
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
length
710 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK07/2 Дж
weight
28 kg
common
code
1864004070
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Светильник для освещения высоких пролетов (хайбей)
model files
model files

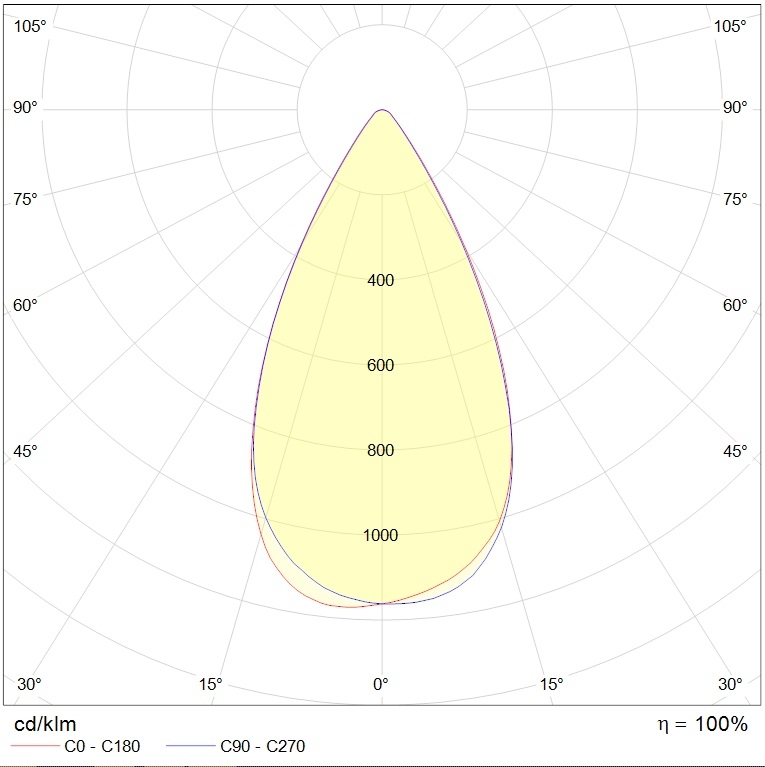

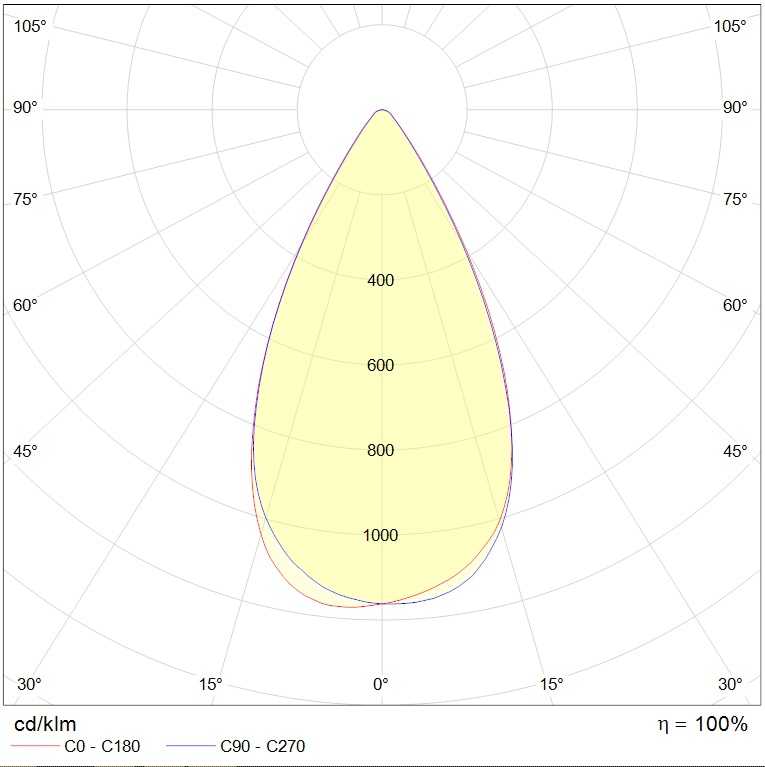

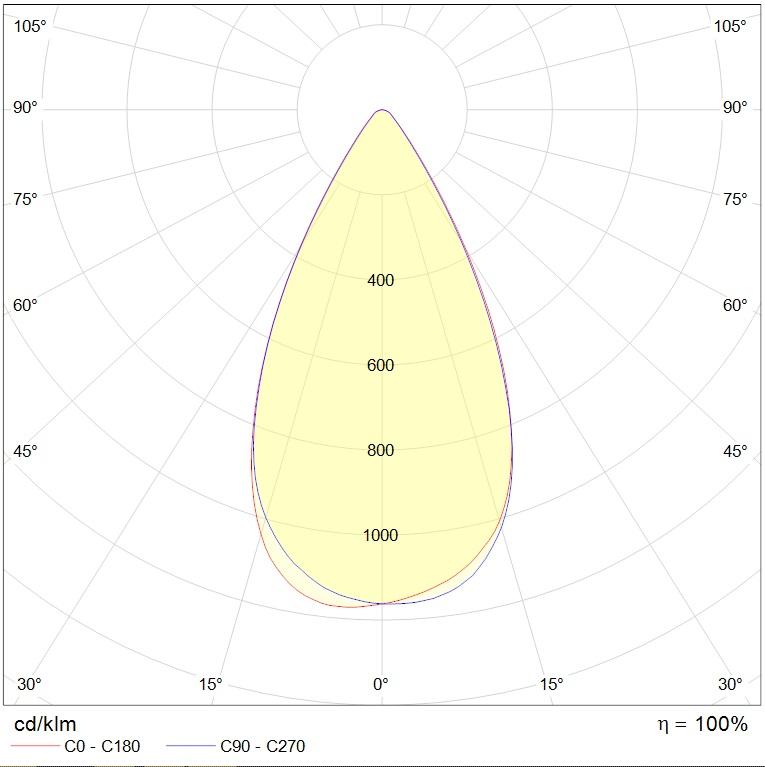

photometric files
сертификаты
photometric files
jpg86.8 kB
ldt168.9 kB
сертификаты
Russian origin649.4 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
